  1. Chapter 6 Thermochemistry

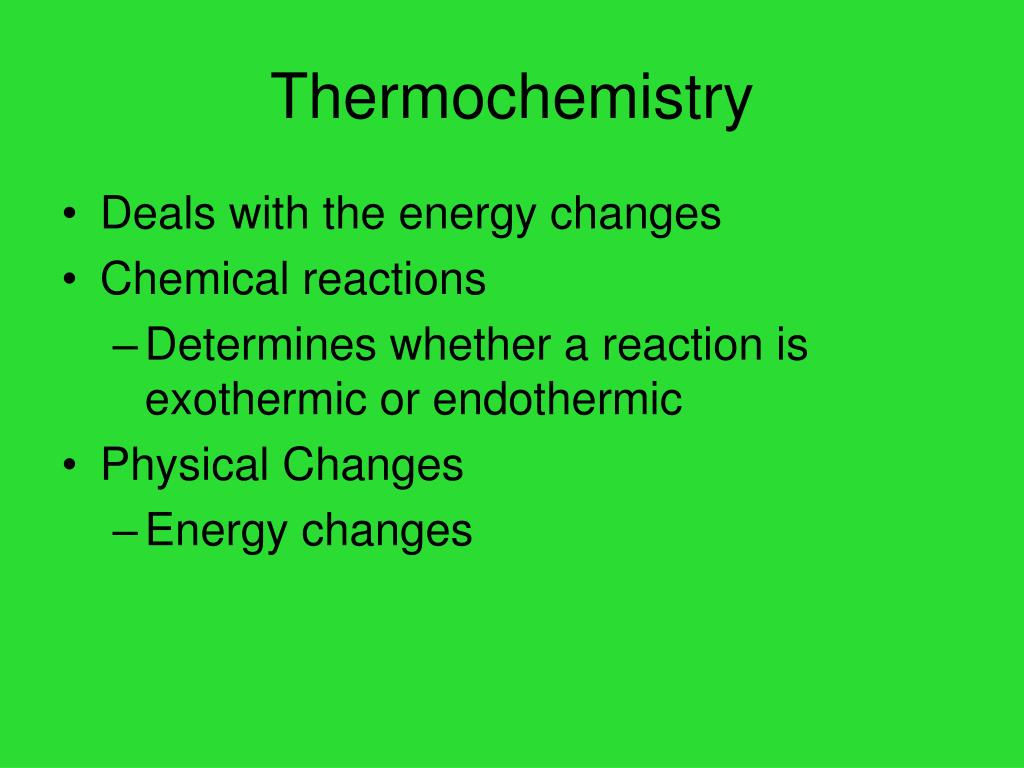

  2. Thermochemistry • Deals with the energy changes • Chemical reactions • Determines whether a reaction is exothermic or endothermic • Physical Changes • Energy changes

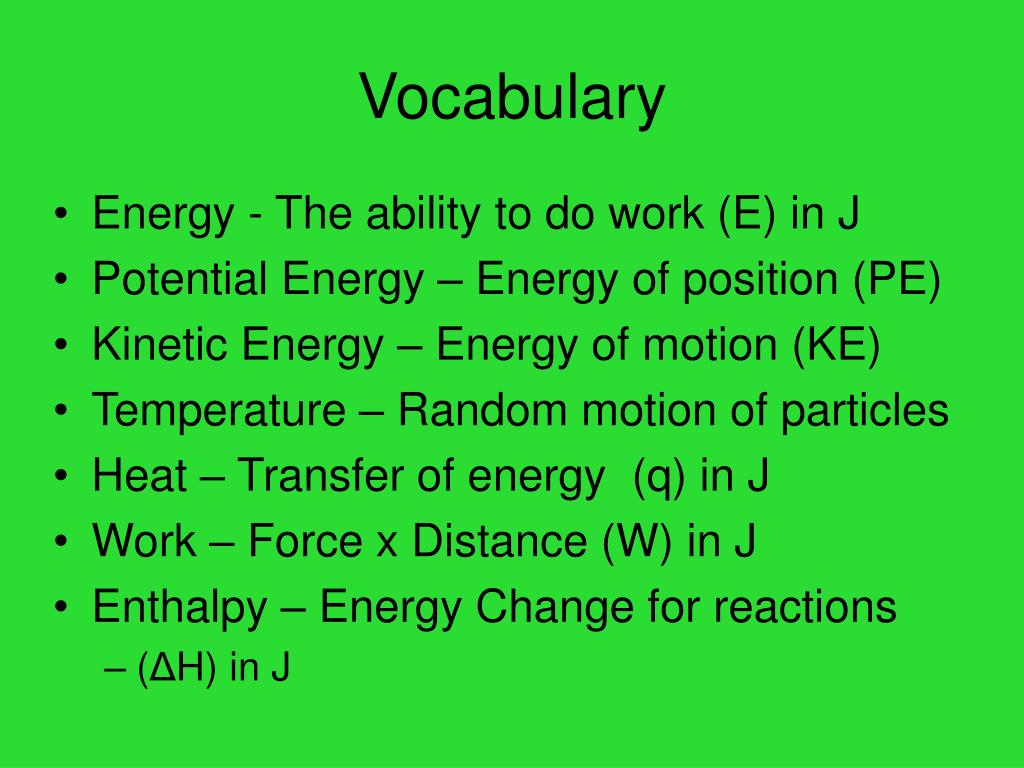

  3. Vocabulary • Energy - The ability to do work (E) in J • Potential Energy – Energy of position (PE) • Kinetic Energy – Energy of motion (KE) • Temperature – Random motion of particles • Heat – Transfer of energy (q) in J • Work – Force x Distance (W) in J • Enthalpy – Energy Change for reactions • (ΔH) in J

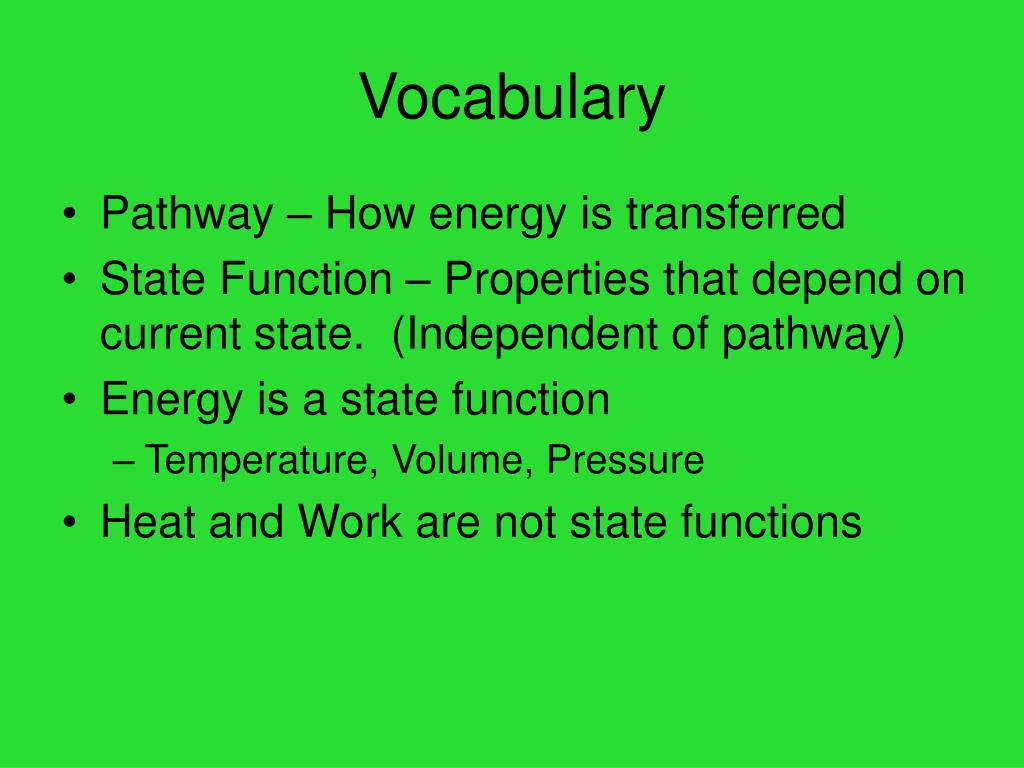

  4. Vocabulary • Pathway – How energy is transferred • State Function – Properties that depend on current state. (Independent of pathway) • Energy is a state function • Temperature, Volume, Pressure • Heat and Work are not state functions

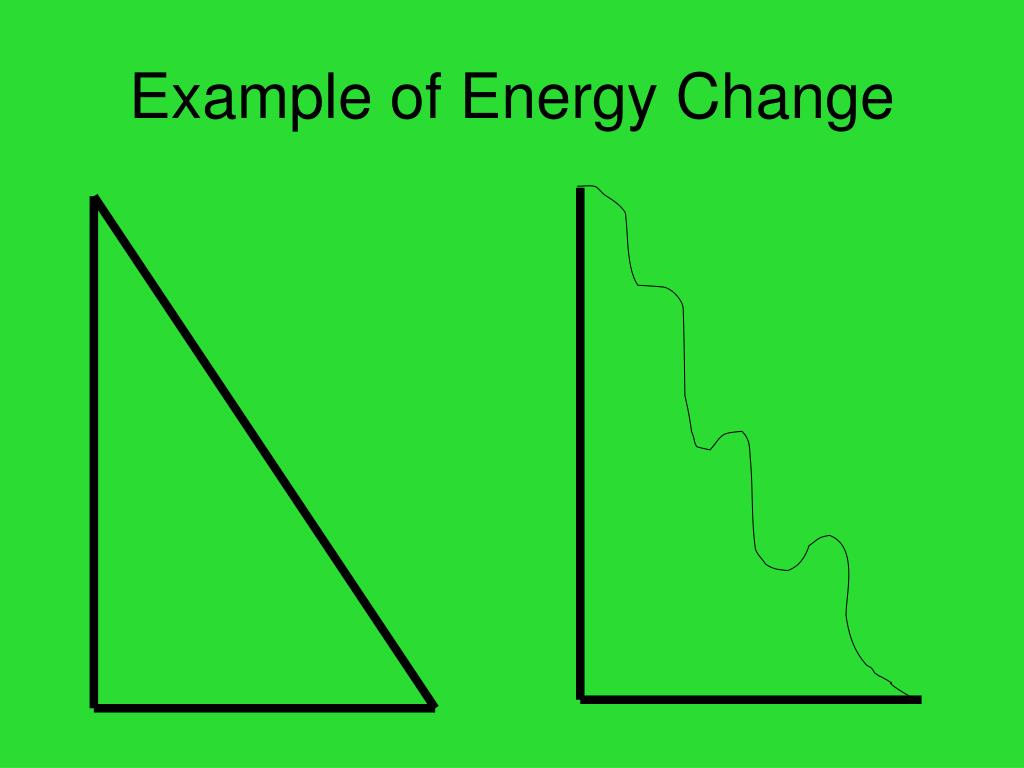

  5. Example of Energy Change

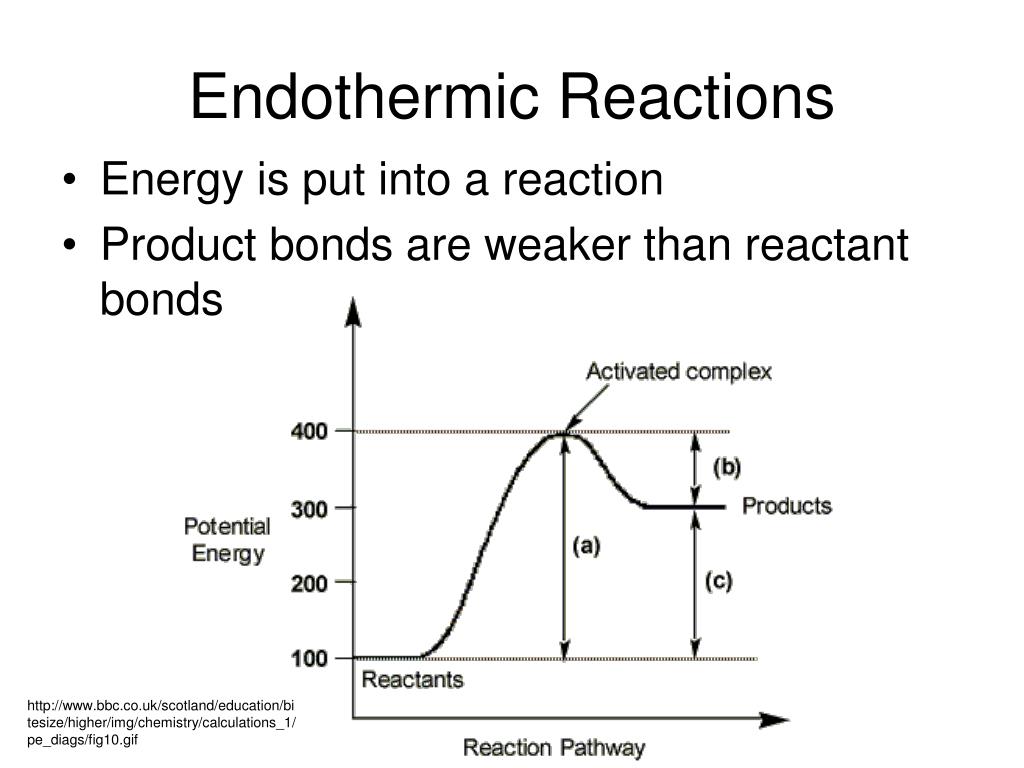

  6. Endothermic Reactions • Energy is put into a reaction • Product bonds are weaker than reactant bonds http://www.bbc.co.uk/scotland/education/bitesize/higher/img/chemistry/calculations_1/pe_diags/fig10.gif

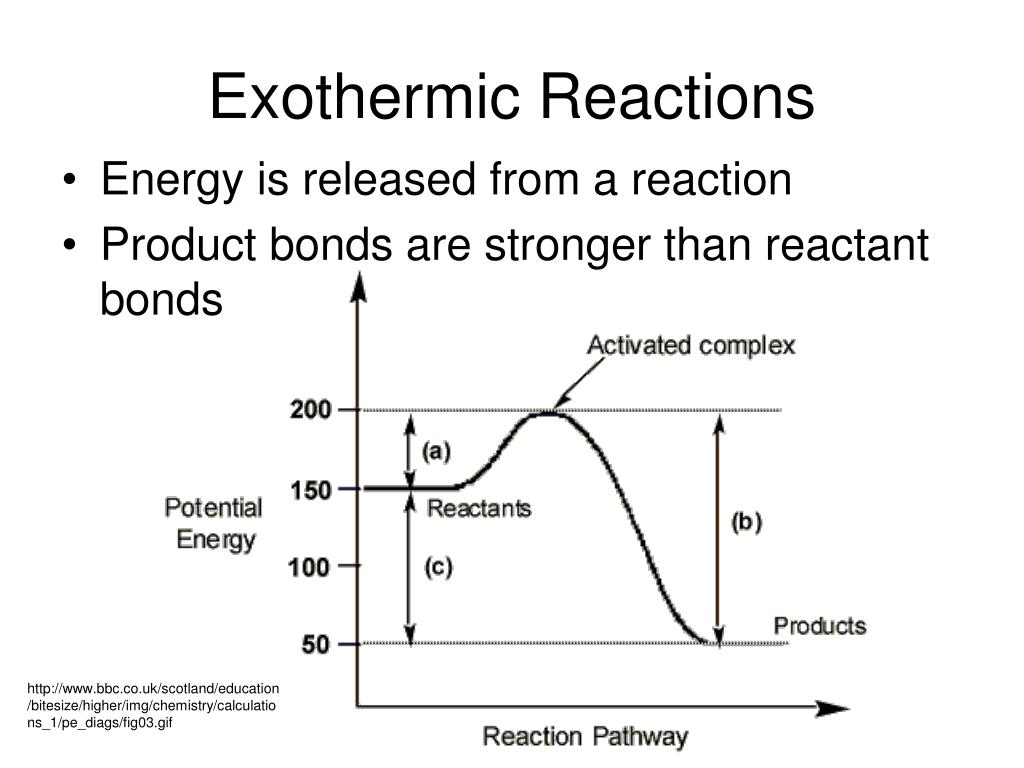

  7. Exothermic Reactions • Energy is released from a reaction • Product bonds are stronger than reactant bonds http://www.bbc.co.uk/scotland/education/bitesize/higher/img/chemistry/calculations_1/pe_diags/fig03.gif

  8. Signs for Exo vs. Endo.

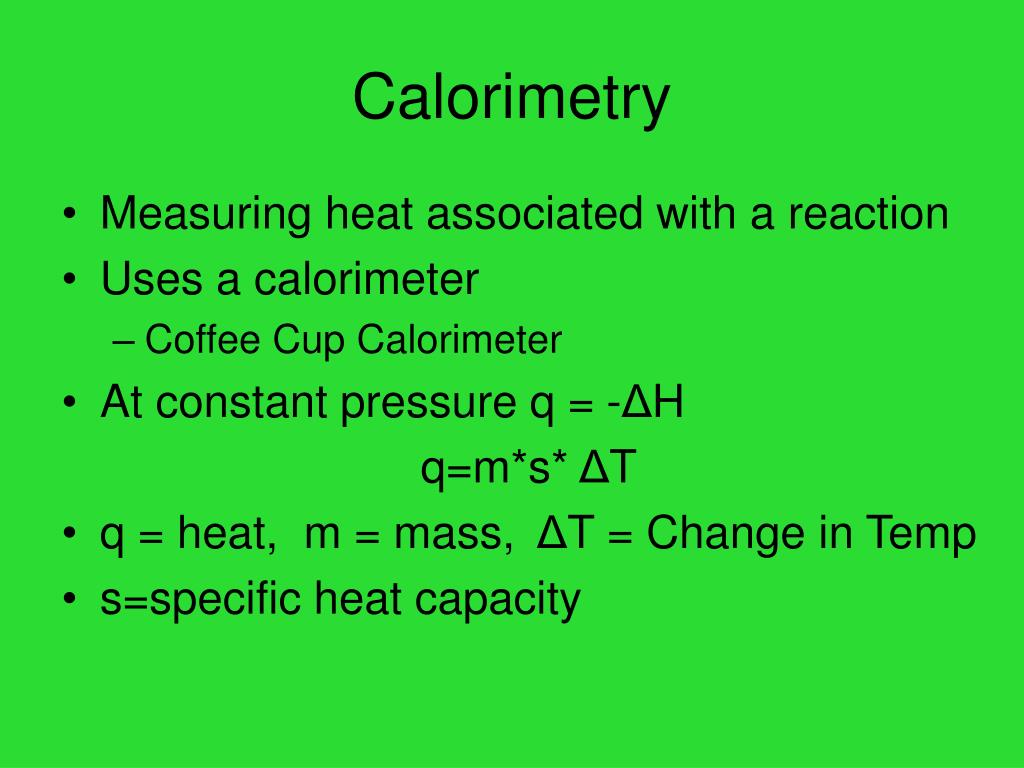

  9. Calorimetry • Measuring heat associated with a reaction • Uses a calorimeter • Coffee Cup Calorimeter • At constant pressure q = -ΔH q=m*s* ΔT • q = heat, m = mass, ΔT = Change in Temp • s=specific heat capacity

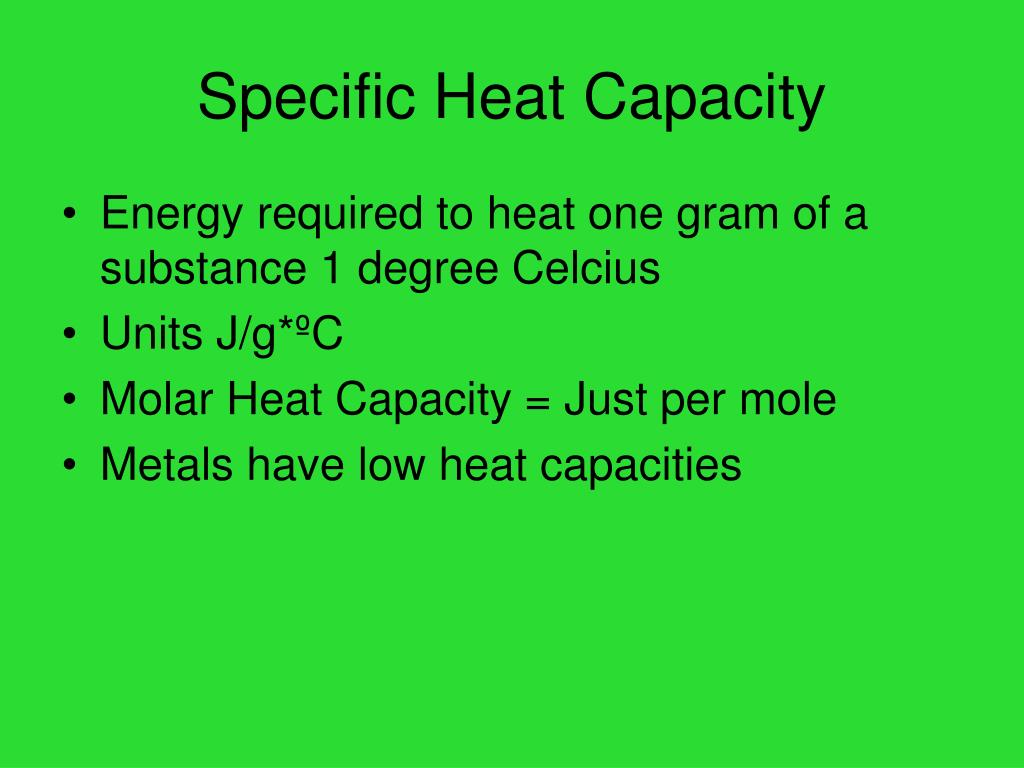

  10. Specific Heat Capacity • Energy required to heat one gram of a substance 1 degree Celcius • Units J/g*ºC • Molar Heat Capacity = Just per mole • Metals have low heat capacities

  11. Example How much energy is required to heat 55.3 grams of Aluminum metal from 22.0ºC to 100.0 ºC? Specific heat of water is 4.18 J/g*ºC the specific heat of aluminum is 0.89 J/g*ºC

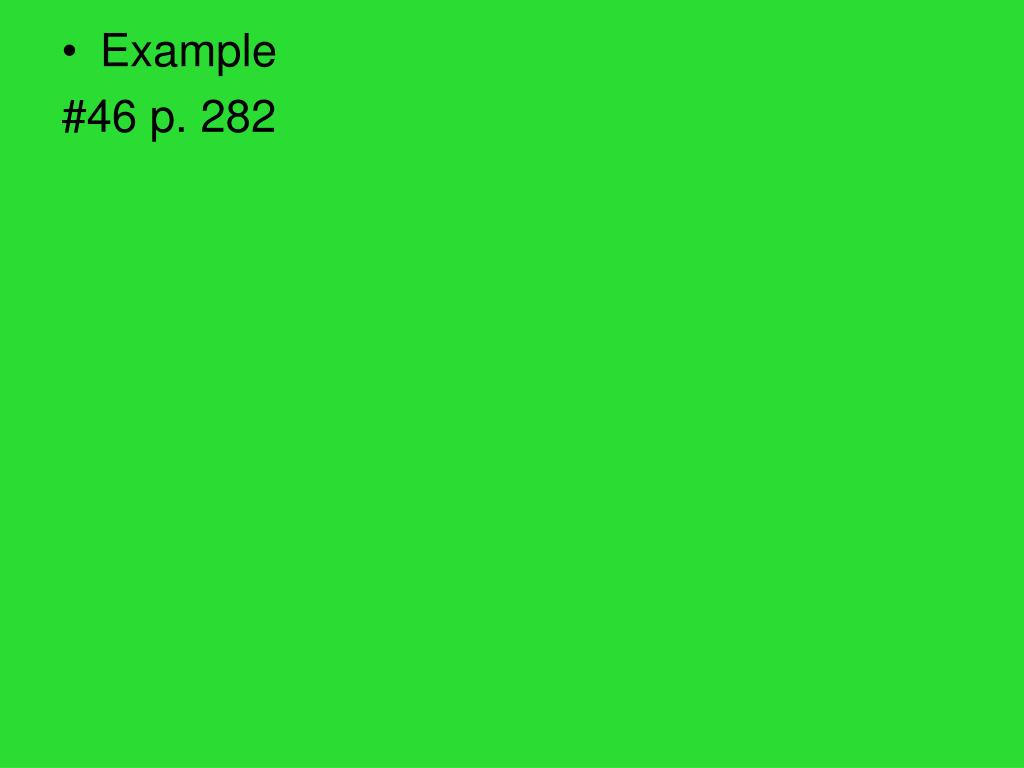

  12. Example #46 p. 282

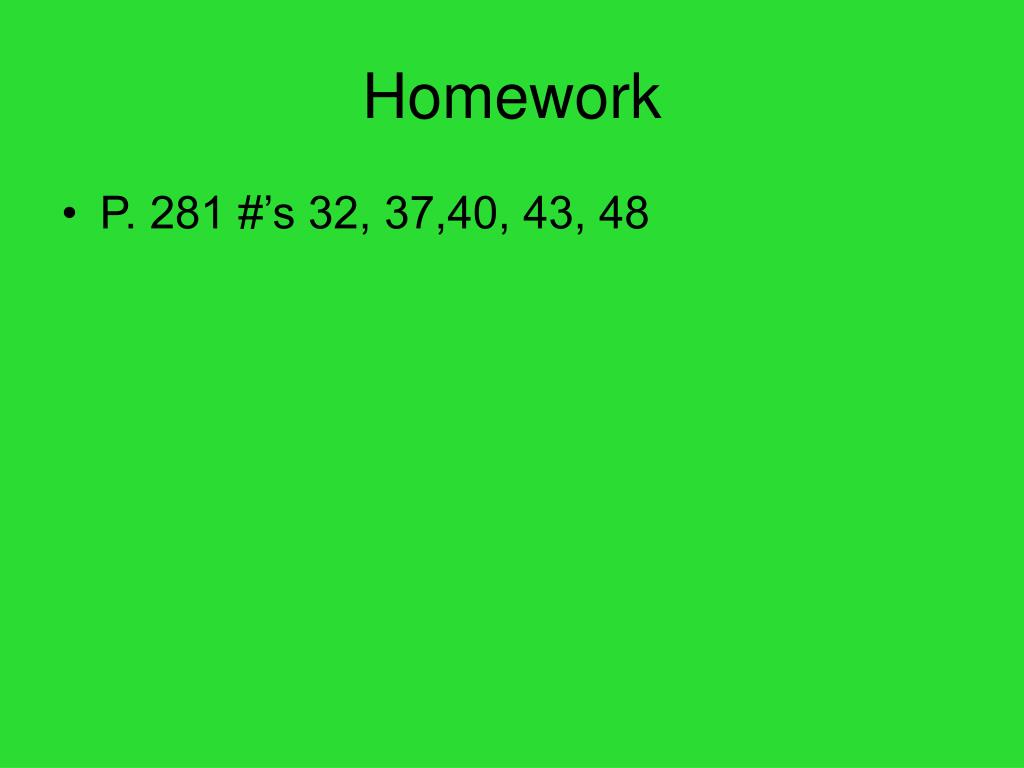

  13. Homework • P. 281 #’s 32, 37,40, 43, 48

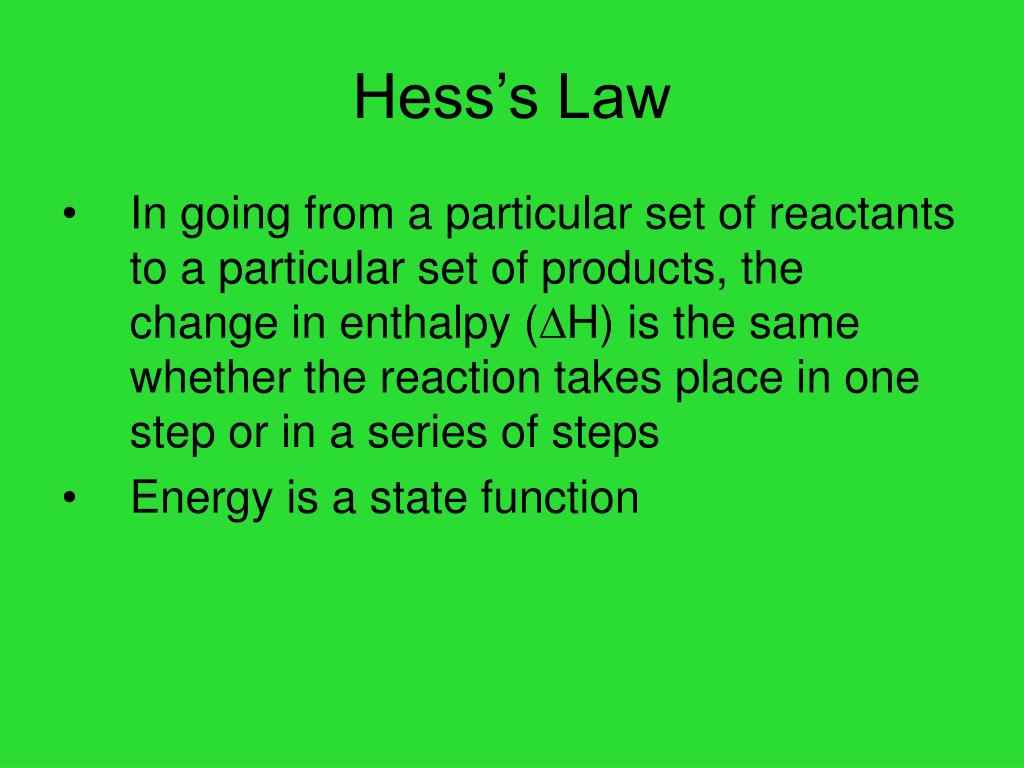

  14. Hess’s Law • In going from a particular set of reactants to a particular set of products, the change in enthalpy (H) is the same whether the reaction takes place in one step or in a series of steps • Energy is a state function

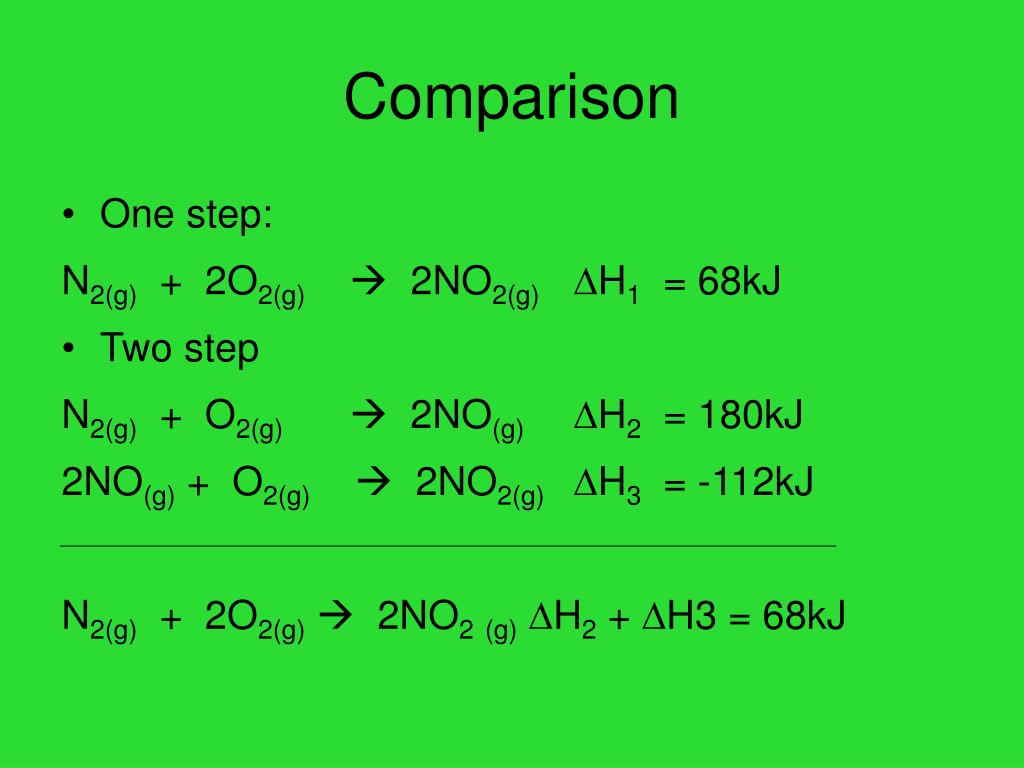

  15. Comparison • One step: N2(g) + 2O2(g) 2NO2(g)H1 = 68kJ • Two step N2(g) + O2(g) 2NO(g)H2 = 180kJ 2NO(g) + O2(g) 2NO2(g) H3 = -112kJ N2(g) + 2O2(g) 2NO2(g)H2 + H3 = 68kJ

  16. Hess’s Law Rules • Start with the end reaction in mind and work backward rearrange your equations • Work to cancel like terms • When reversing the equation the sign of ΔH must be changed • When multiplying an equation by a coefficient ΔH must be multiplied by the same coefficient

  17. Example #54 p. 283 NH3 ½ N2 + 3/2 H2H = 46 kJ 2H2 + O2 2H2OH = -486 kJ 2N2 + 6H2O 3O2 + 4NH3H = ? Based on enthalpy is this a useful synthesis?

  18. Example #52 p. 283 C4H4 + 5O2 4CO2 + 2H2O H = -2341kJ C4H8 + 6O2 4CO2 + 4H2OH = -2755kJ H2 + ½ O2 H2O H = -286kJ C4H4 + 2H2 C4H8H = ?

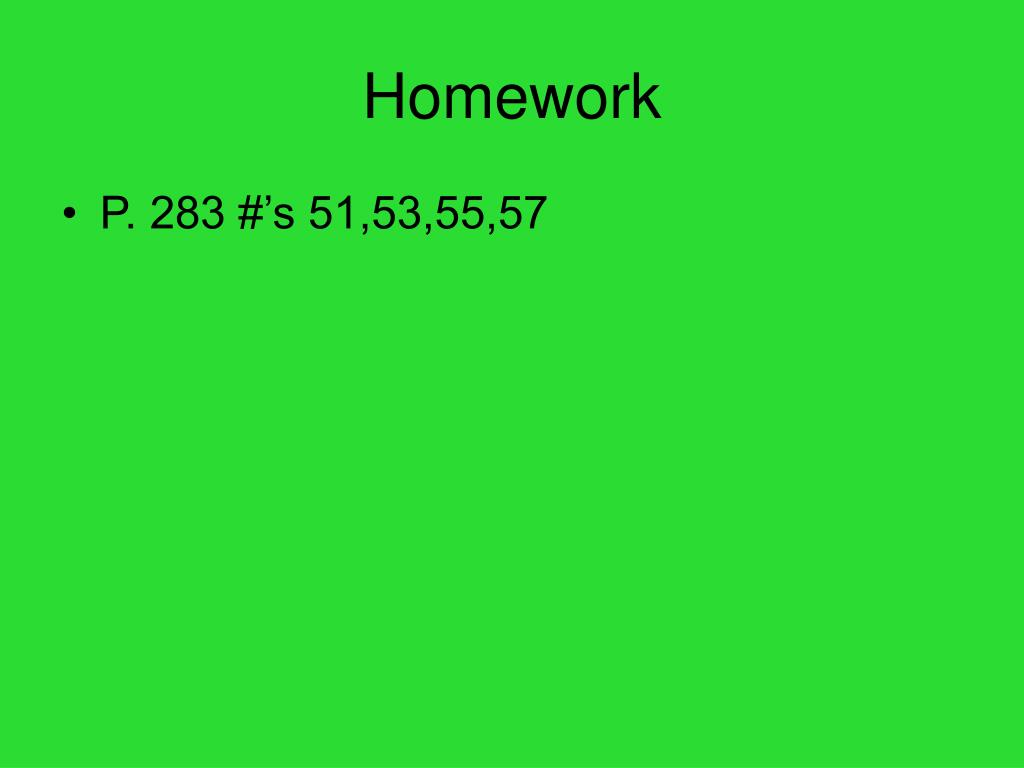

  19. Homework • P. 283 #’s 51,53,55,57

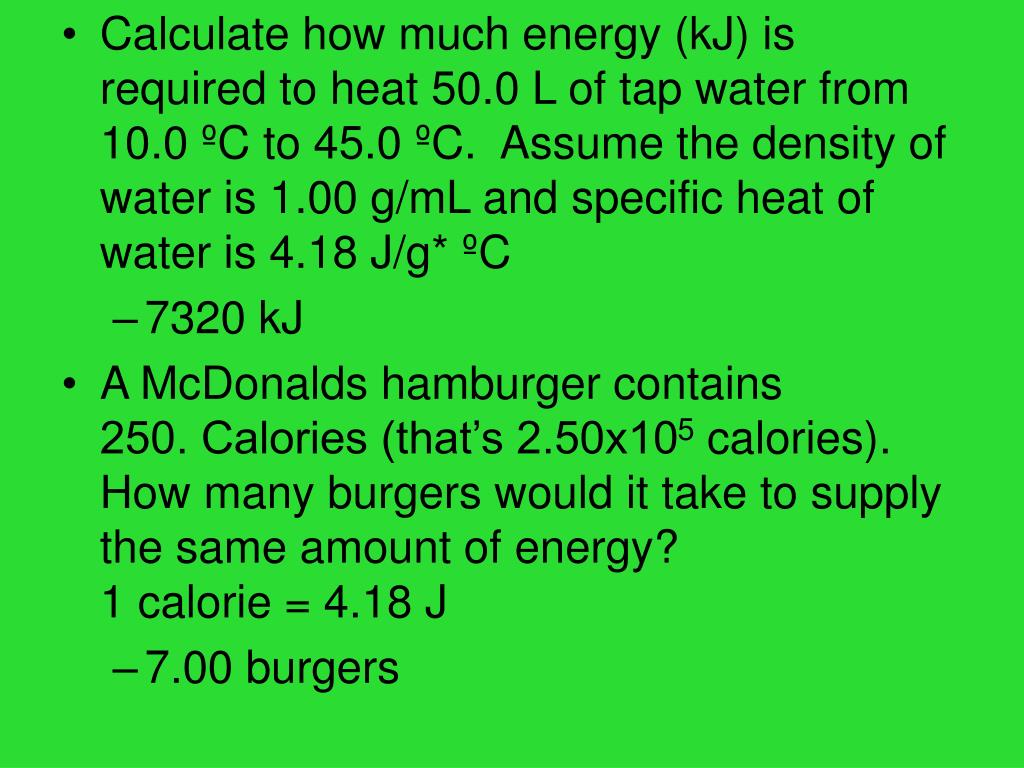

  20. Calculate how much energy (kJ) is required to heat 50.0 L of tap water from 10.0 ºC to 45.0 ºC. Assume the density of water is 1.00 g/mL and specific heat of water is 4.18 J/g* ºC • 7320 kJ • A McDonalds hamburger contains 250. Calories (that’s 2.50x105 calories). How many burgers would it take to supply the same amount of energy? 1 calorie = 4.18 J • 7.00 burgers

  21. Enthalpy of Formation • The change in enthalpy that accompanies the formation of one mole of a compound from its elements with all elements in their standard state • Symbol = ΔHfº • f is formation • Degree symbol means standard states

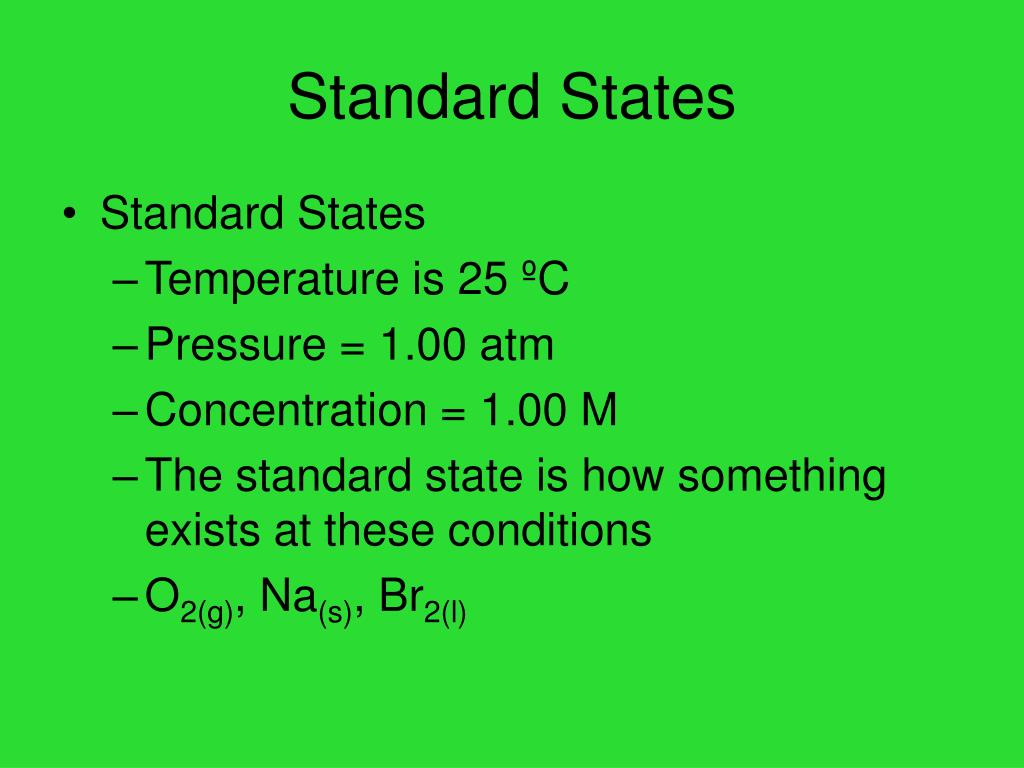

  22. Standard States • Standard States • Temperature is 25 ºC • Pressure = 1.00 atm • Concentration = 1.00 M • The standard state is how something exists at these conditions • O2(g), Na(s), Br2(l)

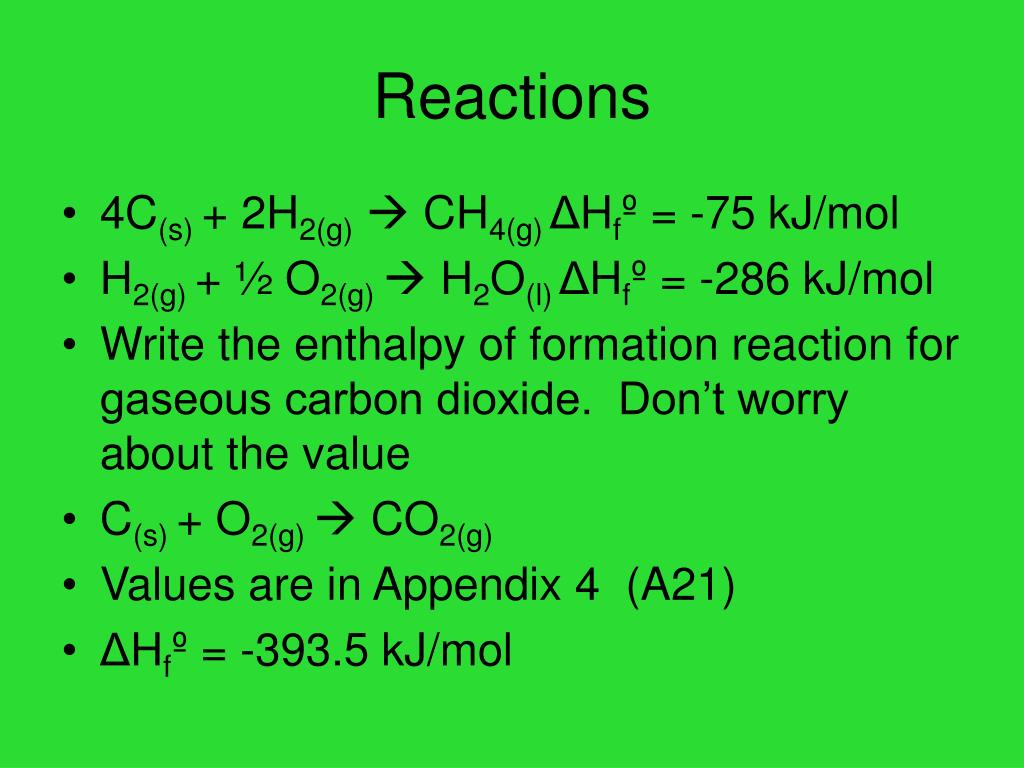

  23. Reactions • 4C(s) + 2H2(g) CH4(g) ΔHfº = -75 kJ/mol • H2(g) + ½ O2(g)  H2O(l) ΔHfº = -286 kJ/mol • Write the enthalpy of formation reaction for gaseous carbon dioxide. Don’t worry about the value • C(s) + O2(g)  CO2(g) • Values are in Appendix 4 (A21) • ΔHfº = -393.5 kJ/mol

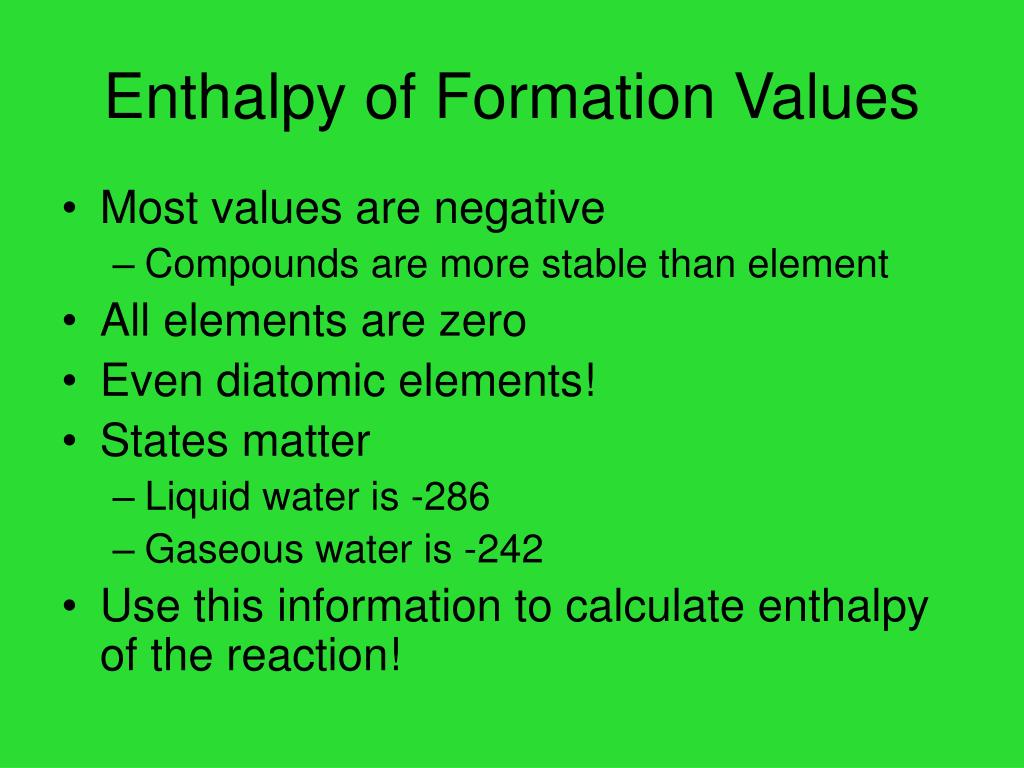

  24. Enthalpy of Formation Values • Most values are negative • Compounds are more stable than element • All elements are zero • Even diatomic elements! • States matter • Liquid water is -286 • Gaseous water is -242 • Use this information to calculate enthalpy of the reaction!

  25. Standard Enthalpy of Reaction • Standard Enthalpy of Reaction is the energy change at standard conditions • Symbol = ΔHº • ΔHº = Σ ΔHfº(Products) - Σ ΔHfº(Reactants) • Remember to include coefficients • Remember elements are zero!

  26. Calculate the standard enthalpy of reaction for the following Al(s) + Fe2O3(s)  Al2O3(s) + Fe(s) Al = 0, Fe = 0, Fe2O3 = -826, Al2O3 = -1676

  27. Homework • P. 284 #63
