Presentation Transcript
Chapter 6 l.jpg

Chapter 6

Chromatin and chromosomes

By

Benjamin Lewin


6 2 chromatin is divided into euchromatin and heterochromatin l.jpg
6.2 Chromatin is divided into euchromatin and heterochromatin

  • Individual chromosomes can be seen only during mitosis.

  • During interphase, the general mass of chromatin is in the form of euchromatin.

    • Euchromatin is less tightly packed than mitotic chromosomes.

  • Regions of heterochromatin remain densely packed throughout interphase.


6 3 chromosomes have banding patterns l.jpg
6.3 Chromosomes have banding patterns heterochromatin

  • Certain staining techniques cause the chromosomes to have the appearance of a series of striations called G-bands.

  • The bands are lower in G • C content than the interbands.

  • Genes are concentrated in the G • C-rich interbands.


6 4 eukaryotic dna has loops and domains attached to a scaffold l.jpg
6.4 Eukaryotic DNA has loops and domains attached to a scaffold

  • DNA of interphase chromatin is negatively supercoiled into independent domains of ~85 kb.

  • Metaphase chromosomes have a protein scaffold to which the loops of supercoiled DNA are attached.


6 5 specific sequences attach dna to an interphase matrix l.jpg
6.5 Specific sequences attach DNA to an interphase matrix scaffold

  • DNA is attached to the nuclear matrix at specific sequences called MARs or SARs.

  • The MARs are A • T-rich but do not have any specific consensus sequence.


6 6 the centromere is essential for segregation l.jpg
6.6 The centromere is essential for segregation scaffold

  • A eukaryotic chromosome is held on the mitotic spindle by the attachment of microtubules to the kinetochore that forms in its centromeric region.

  • Centromeres often have heterochromatin that is rich in satellite DNA sequences.


6 7 centromeres have short dna sequences in s cerevisiae l.jpg
6.7 Centromeres have short DNA sequences in scaffoldS. cerevisiae

  • CEN elements are identified in S. cerevisiae by the ability to allow a plasmid to segregate accurately at mitosis.

  • CEN elements consist of short conserved sequences CDE-I and CDE-III that flank the A • T-rich region CDE-II.


6 8 the centromere binds a protein complex l.jpg
6.8 The centromere binds a protein complex scaffold

  • A specialized protein complex that is an alternative to the usual chromatin structure is formed at CDE-II.

  • The CBF3 protein complex that binds to CDE-III is essential for centromeric function.

  • The proteins that connect these two complexes may provide the connection to microtubules.


6 9 centromeres may contain repetitious dna l.jpg
6.9 Centromeres may contain repetitious DNA scaffold

  • Centromeres in higher eukaryotic chromosomes contain large amounts of repetitious DNA.

  • The function of the repetitious DNA is not known.


6 10 telomeres are replicated by a special mechanism l.jpg
6.10 Telomeres are replicated by a special mechanism scaffold

  • The telomere is required for the stability of the chromosome end.

  • A telomere consists of a simple repeat where a C+A-rich strand has the sequence C>1(A/T)1-4.


6 11 telomeres seal the chromosome ends l.jpg
6.11 Telomeres seal the chromosome ends scaffold

  • The protein TRF2 catalyzes a reaction in which:

    • the 3repeating unit of the G+T-rich strand forms a loop by displacing its homologue in an upstream region of the telomere.


6 12 lampbrush chromosomes are extended l.jpg
6.12 Lampbrush chromosomes are extended scaffold

  • Sites of gene expression on lampbrush chromosomes show loops that are extended from the chromosomal axis.


6 13 polytene chromosomes form bands l.jpg
6.13 Polytene chromosomes form bands scaffold

  • Polytene chromosomes of Dipterans have a series of bands that can be used as a cytological map.


6 14 polytene chromosomes expand at sites of gene expression l.jpg
6.14 Polytene chromosomes expand at sites of gene expression scaffold

  • Bands that are sites of gene expression on polytene chromosomes expand to give “puffs.”


6 15 the nucleosome is the subunit of all chromatin l.jpg
6.15 The nucleosome is the subunit of all chromatin scaffold

  • Micrococcal nuclease releases individual nucleosomes from chromatin as 11S particles.

  • A nucleosome contains:

    • ~200 bp of DNA

    • two copies of each core histone (H2A, H2B, H3, and H4)

    • one copy of H1

  • DNA is wrapped around the outside surface of the protein octamer.


6 16 dna is coiled in arrays of nucleosomes l.jpg
6.16 DNA is coiled in arrays of nucleosomes scaffold

  • Greater than 95% of the DNA is recovered in nucleosomes or multimers when micrococcal nuclease cleaves DNA of chromatin.

  • The length of DNA per nucleosome varies for individual tissues in a range from 154-260 bp.


6 17 nucleosomes have a common structure l.jpg
6.17 Nucleosomes have a common structure scaffold

  • Nucleosomal DNA is divided into the core DNA and linker DNA depending on its susceptibility to micrococcal nuclease.

  • The core DNA is the length of 146 bp that is found on the core particles produced by prolonged digestion with micrococcal nuclease.


Slide18 l.jpg

6.17 Nucleosomes have a common structure scaffold

  • Linker DNA is the region of 8-114 bp that is susceptible to early cleavage by the enzyme.

  • Changes in the length of linker DNA account for the variation in total length of nucleosomal DNA.

  • H1 is associated with linker DNA and may lie at the point where DNA enters and leaves the nucleosome.


6 18 dna structure varies on the nucleosomal surface l.jpg
6.18 DNA structure varies on the nucleosomal surface scaffold

  • 1.65 turns of DNA are wound around the histone octamer.

  • The structure of the DNA is altered so that it has:

    • an increased number of base pairs/turn in the middle

    • but a decreased number at the ends


Slide20 l.jpg

6.18 DNA structure varies on the nucleosomal surface scaffold

  • Approximately 0.6 negative turns of DNA are absorbed by the change in bp/turn from 10.5 in solution to an average of 10.2 on the nucleosomal surface.

    • This explains the linking number paradox.

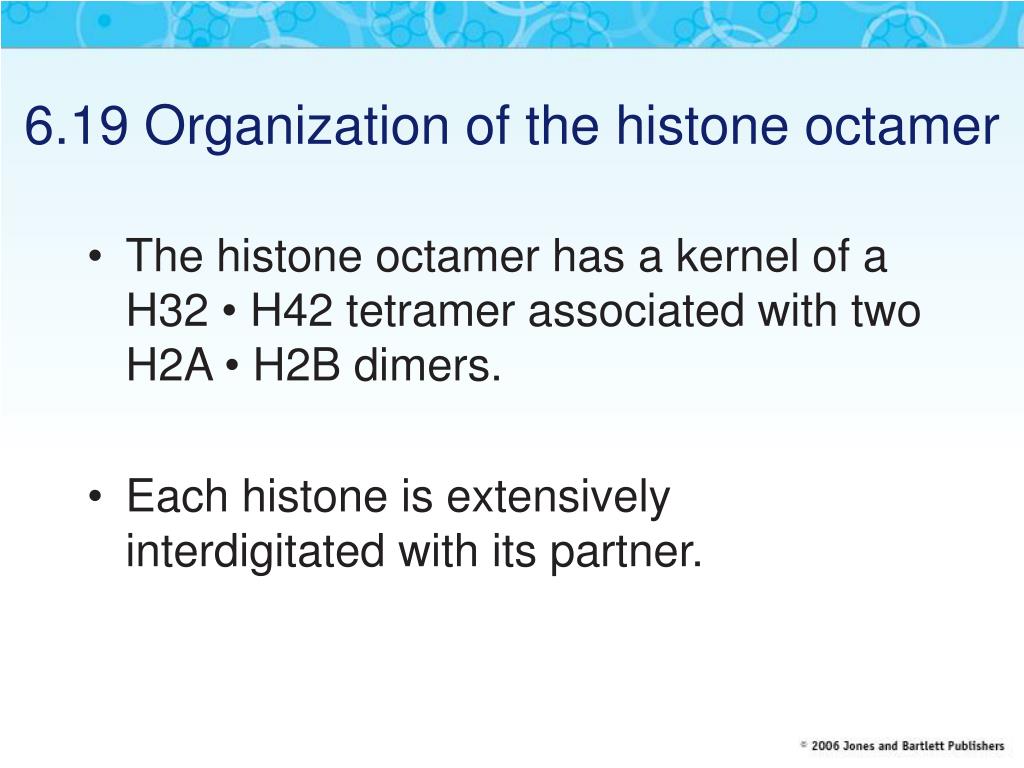

6 19 organization of the histone octamer l.jpg
6.19 Organization of the histone octamer scaffold

  • The histone octamer has a kernel of a H32 • H42 tetramer associated with two H2A • H2B dimers.

  • Each histone is extensively interdigitated with its partner.


Slide22 l.jpg

6.19 Organization of the histone octamer scaffold

  • All core histones have the structural motif of the histone fold.

  • The histone N-terminal tails extend out of the nucleosome.


6 20 the path of nucleosomes in the chromatin fiber l.jpg
6.20 The path of nucleosomes in the chromatin fiber scaffold

  • 10-nm chromatin fibers are unfolded from 30-nm fibers and consist of a string of nucleosomes.

  • 30-nm fibers have 6 nucleosomes/turn, organized into a solenoid.

  • Histone H1 is required for formation of the 30-nm fiber.


6 21 reproduction of chromatin requires assembly of nucleosomes l.jpg
6.21 Reproduction of chromatin requires assembly of nucleosomes

  • Histone octamers are not conserved during replication;

    • However, H2A • H2B dimers and H32 • H42 tetramers are conserved.

  • There are different pathways for the assembly of nucleosomes during replication and independently of replication.

  • Accessory proteins are required to assist the assembly of nucleosomes.


Slide25 l.jpg

6.21 Reproduction of chromatin requires assembly of nucleosomes

  • CAF-1 is an assembly protein that is linked to the PCNA subunit of the replisome;

    • it is required for deposition of H32 • H42 tetramers following replication.

  • A different assembly protein and a variant of histone H3 may be used for replication-independent assembly.


6 22 do nucleosomes lie at specific positions l.jpg
6.22 Do nucleosomes lie at specific positions? nucleosomes

  • Nucleosomes may form at specific positions as the result either of:

    • the local structure of DNA

    • proteins that interact with specific sequences

  • The most common cause of nucleosome positioning is when proteins binding to DNA establish a boundary.

  • Positioning may affect which regions of DNA are in the linker and which face of DNA is exposed on the nucleosome surface.

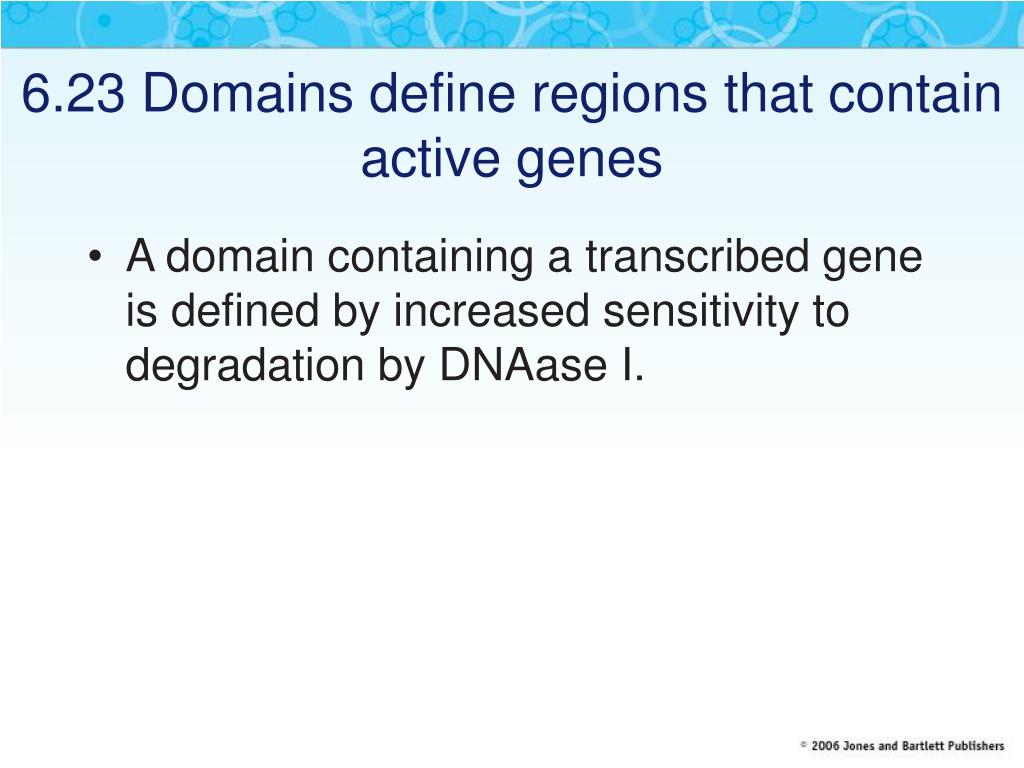

6 23 domains define regions that contain active genes l.jpg
6.23 Domains define regions that contain active genes nucleosomes

  • A domain containing a transcribed gene is defined by increased sensitivity to degradation by DNAase I.


6 24 are transcribed genes organized in nucleosomes l.jpg
6.24 Are transcribed genes organized in nucleosomes? nucleosomes

  • Nucleosomes are found at the same frequency when transcribed genes or nontranscribed genes are digested with micrococcal nuclease.

  • Some heavily transcribed genes appear to be exceptional cases that are devoid of nucleosomes.


6 25 histone octamers are displaced by transcription l.jpg
6.25 Histone octamers are displaced by transcription nucleosomes

  • RNA polymerase displaces histone octamers during transcription in a model system;

    • Octamers reassociate with DNA as soon as the polymerase has passed.

  • Nucleosomes are reorganized when transcription passes through a gene.


6 26 nucleosome displacement and reassembly require special factors l.jpg
6.26 Nucleosome displacement and reassembly require special factors

  • Ancillary factors are required both:

    • for RNA polymerase to displace octamers during transcription

    • for the histones to reassemble into nucleosomes after transcription


6 27 dnaase hypersensitive sites change chromatin structure l.jpg
6.27 DNAase hypersensitive sites change chromatin structure factors

  • Hypersensitive sites are found at the promoters of expressed genes.

  • They are generated by the binding of transcription factors that displace histone octamers.


6 28 chromatin remodeling is an active process l.jpg
6.28 Chromatin remodeling is an active process factors

  • Chromatin structure is changed by remodeling complexes that use energy provided by hydrolysis of ATP.

  • The SWI/SNF, RSC, and NURF complexes all are very large;

    • there are some common subunits.


Slide33 l.jpg

6.28 Chromatin remodeling is an active process factors

  • A remodeling complex does not itself have specificity for any particular target site;

    • it must be recruited by a component of the transcription apparatus.

  • Remodeling complexes are recruited to promoters by sequence-specific activators.

  • The factor may be released once the remodeling complex has bound.


6 19 histone acetylation is associated with genetic activity l.jpg
6.19 Histone acetylation is associated with genetic activity factors

  • Histone acetylation occurs transiently at replication.

  • Histone acetylation is associated with activation of gene expression.

  • Deacetylated chromatin may have a more condensed structure.


Slide35 l.jpg

6.19 Histone acetylation is associated with genetic activity factors

  • Transcription activators are associated with histone acetylase activities in large complexes.

  • The remodeling complex may recruit the acetylating complex.

  • Histone acetylases vary in their target specificity.

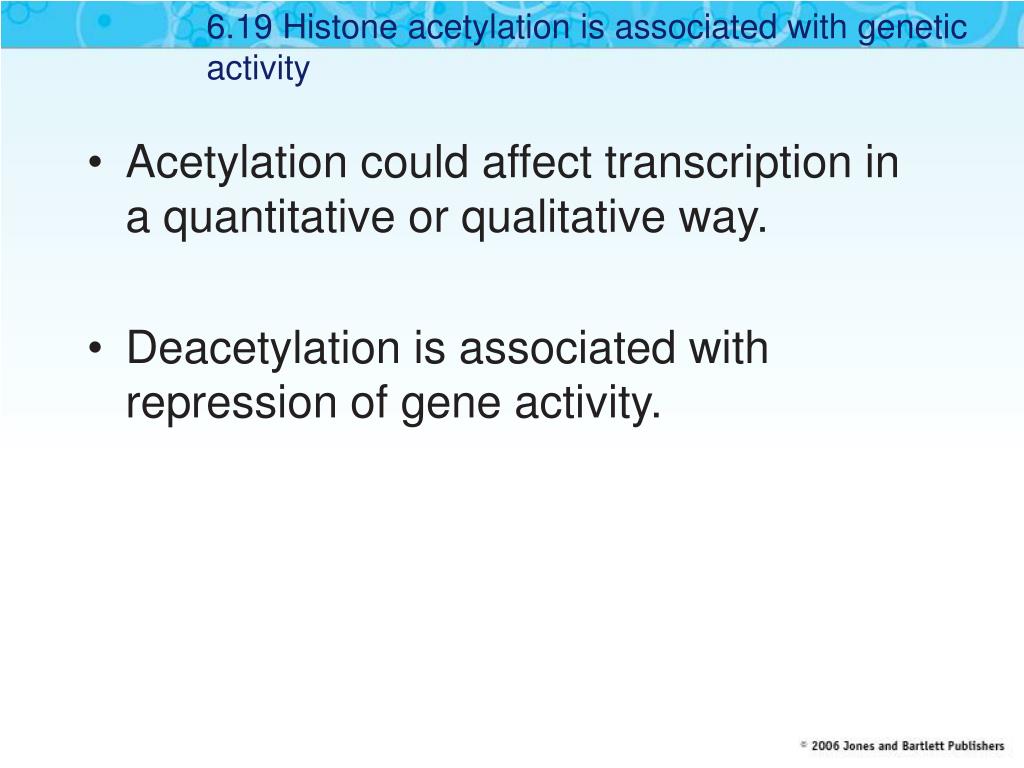

Slide36 l.jpg

6.19 Histone acetylation is associated with genetic activity factors

  • Acetylation could affect transcription in a quantitative or qualitative way.

  • Deacetylation is associated with repression of gene activity.


Slide37 l.jpg

6.19 Histone acetylation is associated with genetic activity factors

  • Deacetylases are present in complexes with repressor activity.

  • Acetylation of histones may be the event that maintains the complex in the activated state.


6 30 heterochromatin propagates from a nucleation event l.jpg
6.30 Heterochromatin propagates from a nucleation event factors

  • Heterochromatin is nucleated at a specific sequence.

    • The inactive structure propagates along the chromatin fiber.

  • Genes within regions of heterochromatin are inactivated.


Slide39 l.jpg

6.30 Heterochromatin propagates from a nucleation event factors

  • The length of the inactive region varies from cell to cell.

    • Inactivation of genes in this vicinity causes position effect variegation.

  • Similar spreading effects occur at:

    • telomeres

    • the silent cassettes in yeast mating type


6 31 heterochromatin depends on interactions with histones l.jpg
6.31 Heterochromatin depends on interactions with histones factors

  • HP1 is the key protein in forming mammalian heterochromatin.

    • It acts by binding to methylated H3 histone.

  • RAP1 initiates formation of heterochromatin in yeast by binding to specific target sequences in DNA.


Slide41 l.jpg

6.31 Heterochromatin depends on interactions with histones factors

  • The targets of RAP1 include telomeric repeats and silencers at HML and HMR.

  • RAP1 recruits SIR3/SIR4, which interact with the N-terminal tails of H3 and H4.


6 32 x chromosomes undergo global changes l.jpg

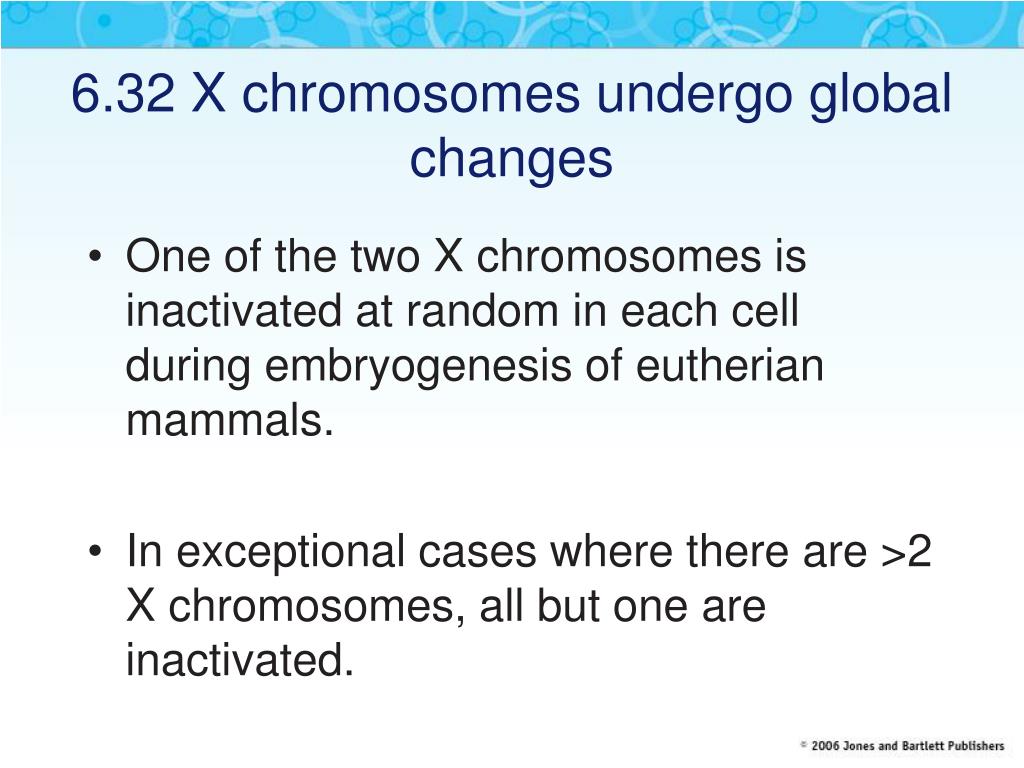

6.32 X chromosomes undergo global changes factors

  • One of the two X chromosomes is inactivated at random in each cell during embryogenesis of eutherian mammals.

  • In exceptional cases where there are >2 X chromosomes, all but one are inactivated.


Slide43 l.jpg

6.32 X chromosomes undergo global changes factors

  • The Xic (X inactivation center) is a cis-acting region on the X chromosome.

    • It is necessary and sufficient to ensure that only one X chromosome remains active.

  • Xic includes the Xist gene.

    • Xist codes for an RNA that is found only on inactive X chromosomes.


Slide44 l.jpg

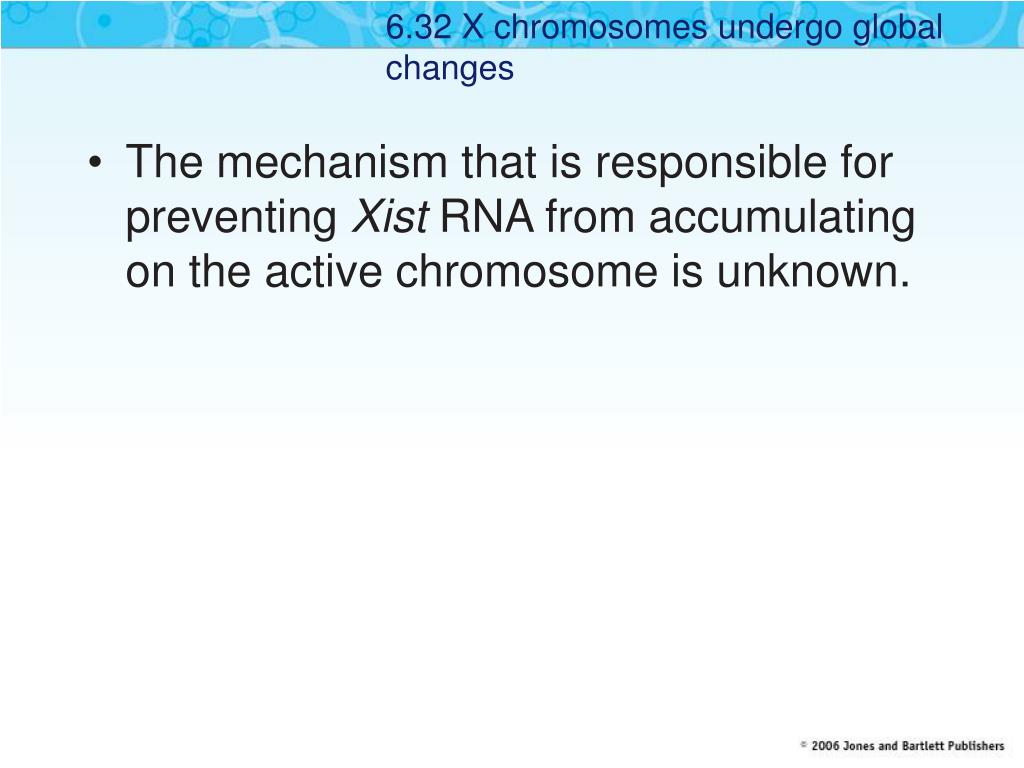

6.32 X chromosomes undergo global changes factors

  • The mechanism that is responsible for preventing Xist RNA from accumulating on the active chromosome is unknown.


6 33 chromosome condensation is caused by condensins l.jpg

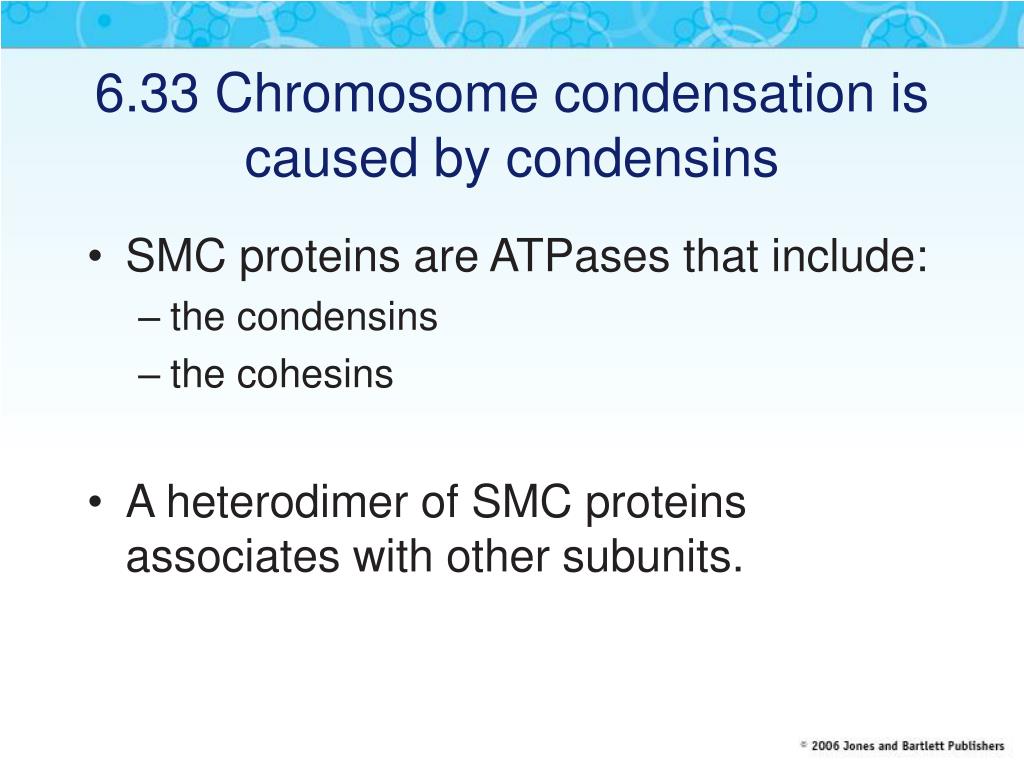

6.33 Chromosome condensation is caused by condensins factors

  • SMC proteins are ATPases that include:

    • the condensins

    • the cohesins

  • A heterodimer of SMC proteins associates with other subunits.


Slide46 l.jpg

6.33 Chromosome condensation is caused by condensins factors

  • The condensins cause chromatin to be more tightly coiled by introducing positive supercoils into DNA.

  • Condensins are responsible for condensing chromosomes at mitosis.

  • Chromosome-specific condensins are responsible for condensing inactive X chromosomes in C. elegans.
