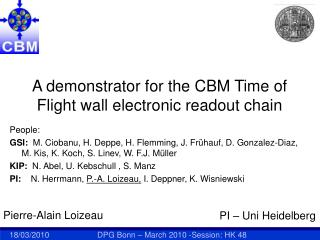

A demonstrator for the CBM Time of Flight wall electronic readout chain

People:

GSI:M. Ciobanu, H. Deppe, H. Flemming, J. Frühauf, D. Gonzalez-Diaz, M. Kis, K. Koch, S. Linev, W. F.J. Müller

KIP: N. Abel, U. Kebschull , S. Manz

PI: N. Herrmann, P.-A. Loizeau, I. Deppner, K. Wisniewski

Pierre-Alain Loizeau

PI – Uni Heidelberg

DPG Bonn – March 2010 -Session: HK 48

slide2

1. Main requirements for the electronics

2. Readout chain demonstrator design

3. Current components of the demonstrator

4. Clock synchronization

5. First observations on the full chain

Conclusion & Outlook

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide3

1. Main requirements for the electronics

Rate per electronic channel, Au+Au at 25 AGev, mbias, 10 MHz interaction rate, field scaling = 0.720 (from a simulation by A. Kiseleva)

  • ~75000 channels
  • Global electronic time resolution < 30ps (TDC < 25ps)
  • Self triggered system(Timestamp & Epoch markers)
  • Compatible readout, synchronization and time domain with other detectors
  • Low power consumption: < 60 mW/ch (~30mW/ch for both Analog and TDC)

Information about the conceptual design: see I. Deppner talk in Session HK58

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide4

PC

Online/ OfflineAnalysis

GO4

FAIRROOT

CLOSY2 + Distribution

Sync TDC

Sync TDC

CLK156

CLK250

CLK156

ABB

Opt A

R2F

(AD1)

CLK156

CLK250

ROC

Sync TDC

A

Opt

Opt B

CBMM-RPCDemo 1

PCIe

B

C

Eth

A

DABC

D

PADI

PADI

PADI

PADI

PADI

PADI

GET4

GET4

GET4

GET4

GET4

GET4

SYNC-S

E

B

AUX

F

Startcounter

G

Hybrid DAQSystem: triggered + time-stamped

2. Readout chain demonstrator design

Data readout, Epoch synchronization check, first data aggregation

Other systems: nXYTER, …

156/250 MHzclock & SYNC_TDCdistribution

A

RPCTestBench

someauxdets

SYNCmessagesender

FOPI RPCTest Environment

MBS System

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide5

3. Components: Front end

Analog part: Fast Pre-Amplifier & Discriminator

  • PADI project by M. Ciobanu at GSI-DetLab
  • Performances: resolution<15ps rms

Digital part: Free running High Resolution TDC

  • GET4 project at GSI by H. Deppe & H. Flemming from GSI-EE: See first talk of this session
  • Performances: ~25ps rms resolution, data readout >150 kHz/ch possible

Clock System: Generate 2 low jitter phase coupled clocks and a synchronization signal for GET4 and ROC

  • CLOSY2 (Cbm-cLOck-SYnthesizer) developed at GSI by K. Koch from GSI –EE

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide6

3. Components: readout & aggregation

ROC: FEB readout, first data processing, synchronization, FEB control

  • SYSCORE v2 based solution
  • Firmware developed at KIP by S. Manz: see previous talk

Software environment:

  • DAQ: DABC = Data Acquisition Backbone Core (HK49.1)
  • Data analysis: GO4 = GSI Object Oriented On-line-Offline (HK30.2)

Developed by J.Adamczewski-Musch, S.Linev, M.Al-Turany, D.Bertini & H.G.Essel (GSI - EE)

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide7

4. Clocks Synchronization

Why so important?

  • 2 free running systems with different clocks in CBM =>Event building!
  • 75000 channels  ~19000 TDC chips with current design, with measure of each hit against the received clock!

In the CLOSY2 system:

  • Sync signal generated every 5th coincidence
  • Correspond to 25 GET4 Epoch
  • Correspond to 40 NXYTER timestamp cycle

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide8

5. First observations on the full chain

  • Assembled for the first time middle of February
  • Using first version of the ROC firmware and an online analysis tool
  • In a first time focus on hardware checks:

-2 FEET-TDC & 3 FEET-PADI tested

-Presence of all voltages & error messages

-Clock system: Synchronization of the epochs between chips and between the 2 clock signals=> every 25 epochs

Results:

  • The readout of the chain using current versions of the electronic components and of the FAIR software environment is working
  • 1 FEET-TDC board was operated successfully with all voltages at nominal value and no synchronization error messages

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide9

Conclusion

  • The full readout chain for the demonstrator of the CBM ToF wall is a project involving 4 different groups, with strong requirement on the time resolution
  • Each of its components showed performance meeting the requirements during individual tests
  • This readout chain is now assembled for the first time since a few weeks and tests just started

Goals

  • Building & testing a full demonstrator including a differential RPC, with 64 channels (32 strips), until end of 2010
  • Demonstration of the readout chain performance with different kinds of Multi-Gap Resistive Plate Chambers

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide10

Thank you for your attention

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide12

FEET-PADI VME readout and evaluation system (Pulser)

Closy2

CAEN v1290A

Rising edge

FEET-PADI

Splitter

VME & MBS

Readout System

Splitter

CAEN v1290A

Falling edge

PC

Online/ OfflineAnalysis

GO4

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide13

HDM-RPC

PMT

PADI2 VME readout and evaluation system

with TACQUILA system (BEAM)

PC

PADI

TACQUILA + ToT board

PADI

PAW

PADI

TACQUILA + ToT board

PADI

START Card

TACQUILA

RPCTestBench

someauxdets

FOPI RPCTest Environment

MBS System

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide14

CLOSY2

Sync TDC

Sync TDC

CLK156

CLK250

CLK156

AD-1

(R2F)

CLK156

CLK250

ROC

Sync TDC

A

Opt

B

C

Eth

A

D

FEET

-

PADI

FEET

-

TDC

SYNC-S

E

B

AUX

F

G

System for the first full chain tests

PC

Online/ OfflineAnalysis

GO4

156/250 MHzclock & SYNC_TDCdistribution

Pulser

A

RocUtils

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48

slide15

Minimal Numbers of boards for each electronic layer per SM:

Total number of channels: ~75500! Total ROCs: ~710!

P.-A. Loizeau –DPG Bonn –March 2010 –Session HK 48
