Using LDAPv3 for Directory-Enabled Applications & Networking

1. Using LDAPv3 for Directory-Enabled Applications & Networking Greg LavenderDirector of TechnologyInnosoft International, Inc. Greg.Lavender@innosoft.com

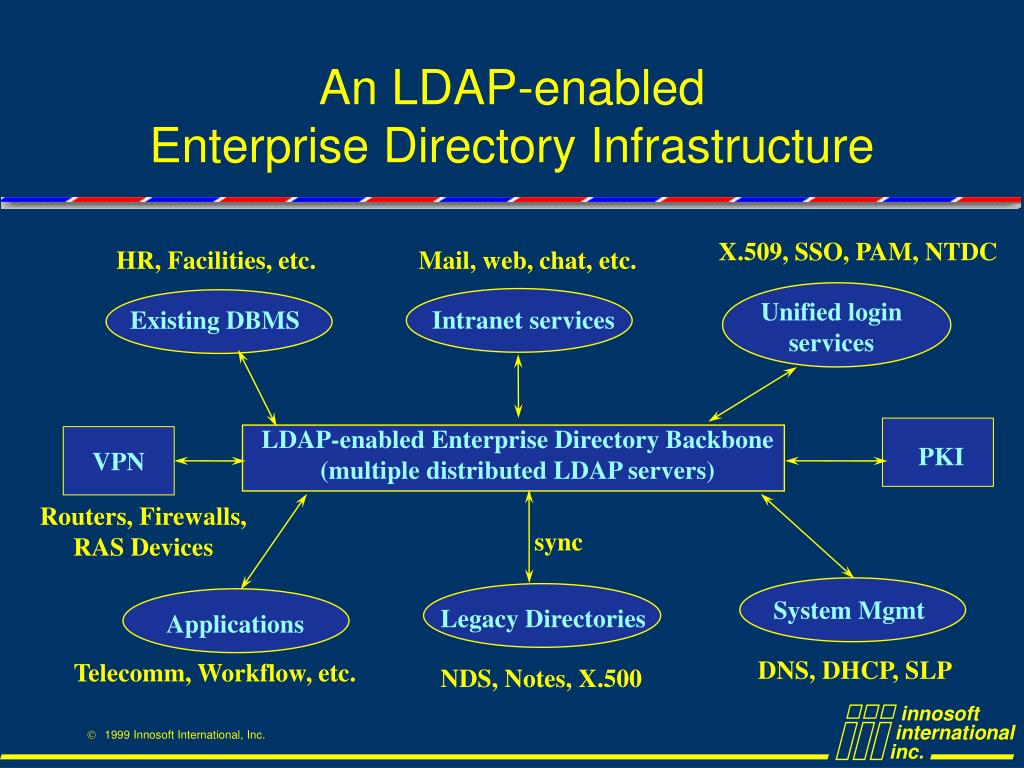

2. An LDAP-enabled Enterprise Directory Infrastructure X.509, SSO, PAM, NTDC HR, Facilities, etc. Mail, web, chat, etc. Unified login services Intranet services Existing DBMS LDAP-enabled Enterprise Directory Backbone (multiple distributed LDAP servers) VPN PKI Routers, Firewalls, RAS Devices sync System Mgmt Legacy Directories Applications DNS, DHCP, SLP Telecomm, Workflow, etc. NDS, Notes, X.500

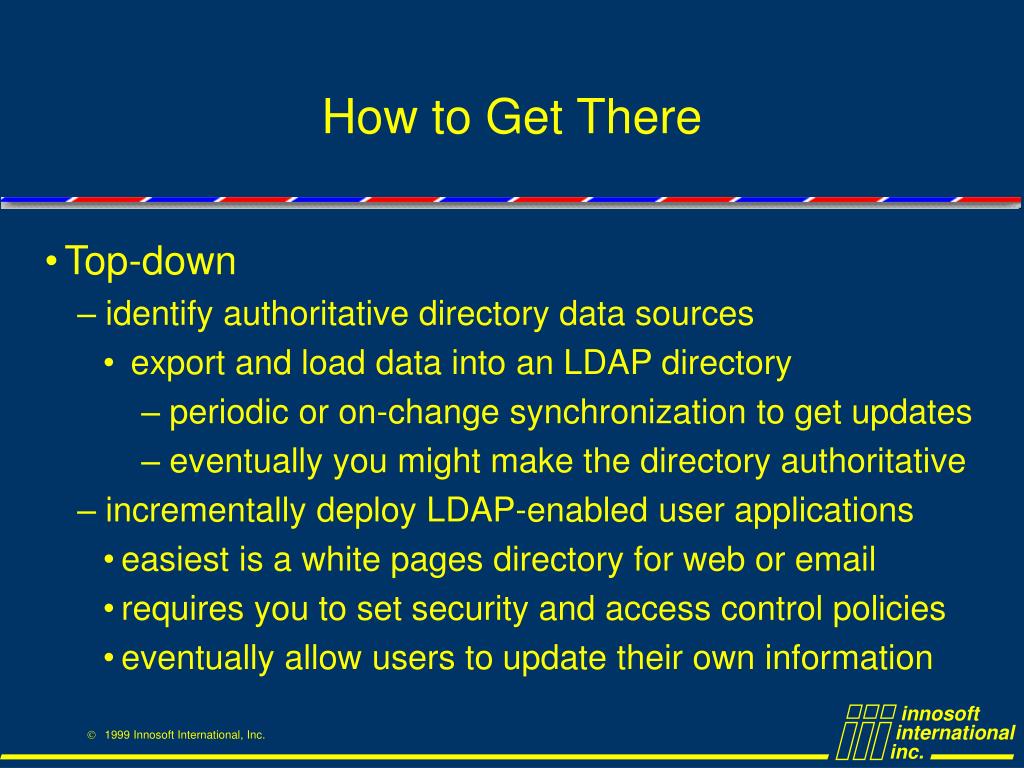

3. How to Get There • Top-down • identify authoritative directory data sources • export and load data into an LDAP directory • periodic or on-change synchronization to get updates • eventually you might make the directory authoritative • incrementally deploy LDAP-enabled user applications • easiest is a white pages directory for web or email • requires you to set security and access control policies • eventually allow users to update their own information

4. How to Get There • Bottom-up • LDAP-enable the network application infrastructure • web server authentication • remote access authentication (e.g., RADIUS) • firewall user authentication • POP and IMAP mail authentication • host and IP address management • policy based routing and VPN security • directory in support of public-key authentication

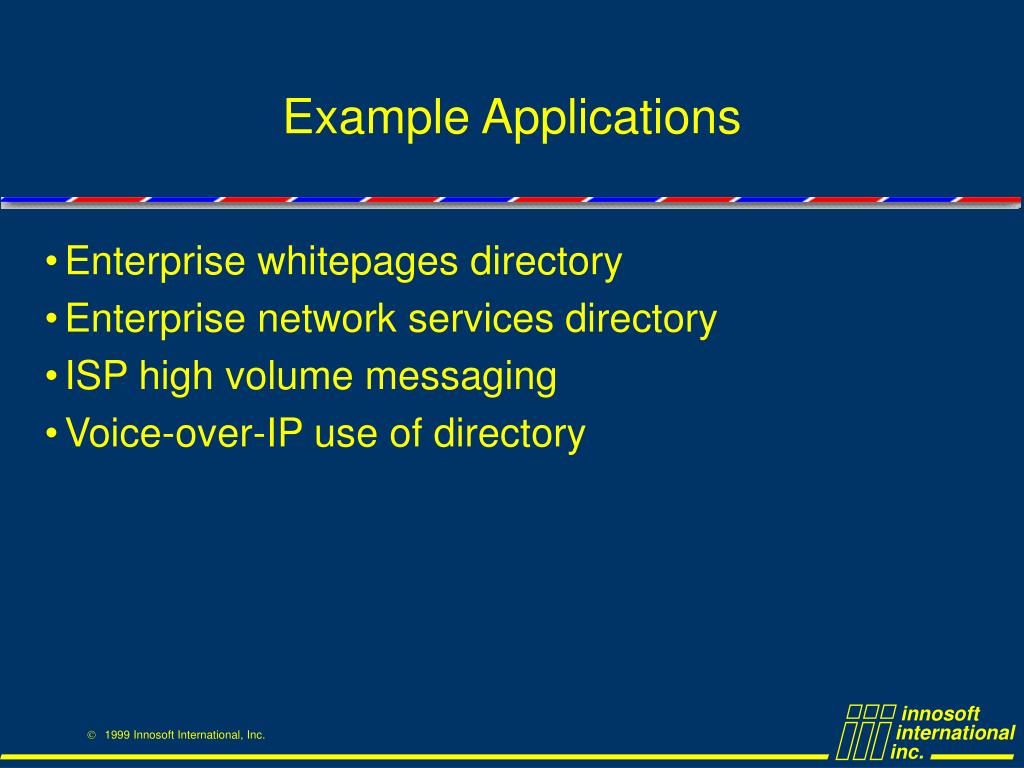

5. Example Applications • Enterprise whitepages directory • Enterprise network services directory • ISP high volume messaging • Voice-over-IP use of directory

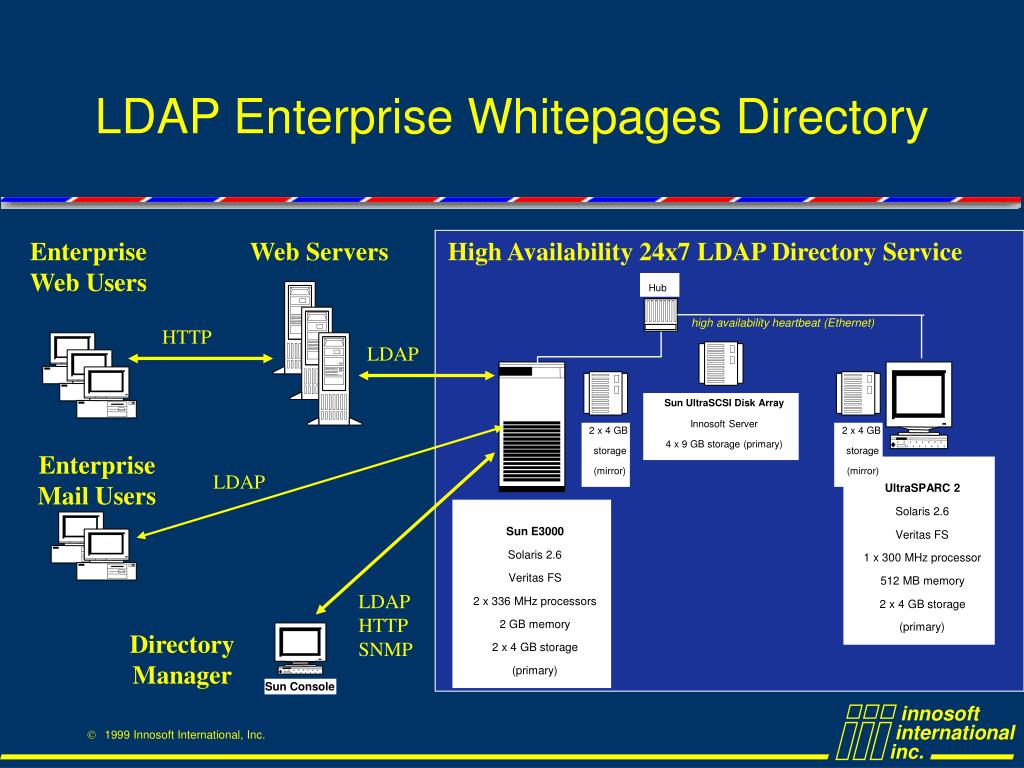

6. Sun Console LDAP Enterprise Whitepages Directory Enterprise Web Users Web Servers High Availability 24x7 LDAP Directory Service Hub high availability heartbeat (Ethernet) HTTP LDAP Sun UltraSCSI Disk Array Innosoft Server 2 x 4 GB 2 x 4 GB 4 x 9 GB storage (primary) Enterprise Mail Users storage storage (mirror) (mirror) LDAP UltraSPARC 2 Solaris 2.6 Sun E3000 Veritas FS Solaris 2.6 1 x 300 MHz processor Veritas FS 512 MB memory LDAP HTTP SNMP 2 x 336 MHz processors 2 x 4 GB storage 2 GB memory (primary) Directory Manager 2 x 4 GB storage (primary)

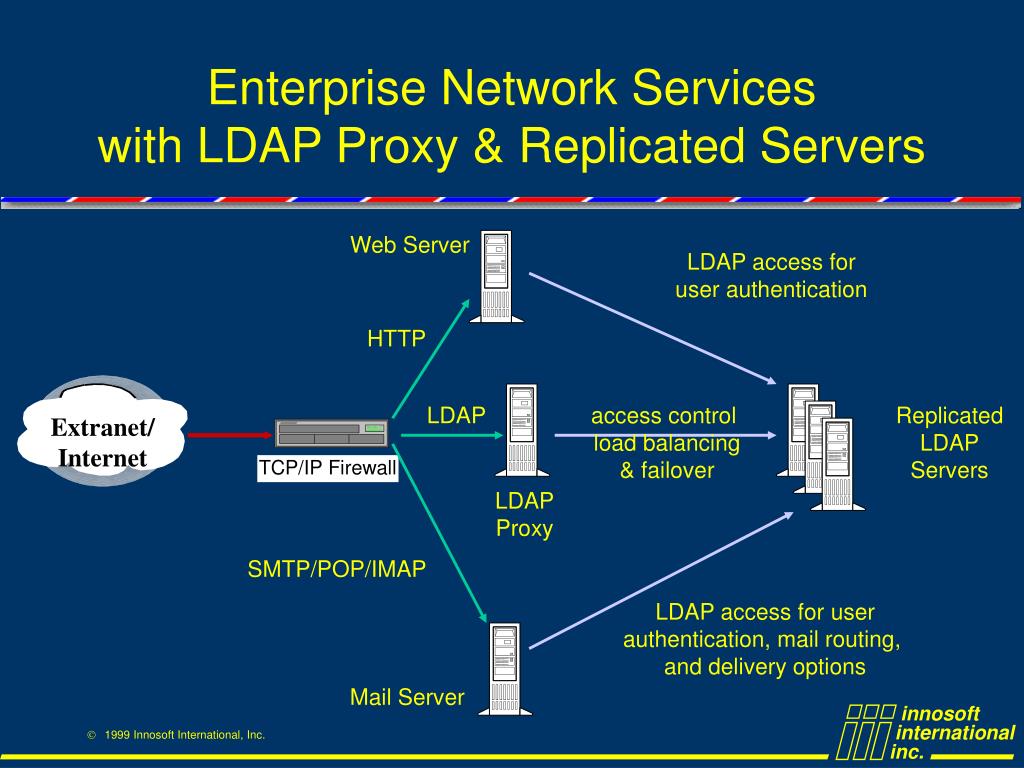

7. Extranet/ Internet Enterprise Network Serviceswith LDAP Proxy & Replicated Servers Web Server LDAP access for user authentication HTTP LDAP access control load balancing & failover Replicated LDAP Servers LDAP Proxy SMTP/POP/IMAP LDAP access for user authentication, mail routing, and delivery options Mail Server

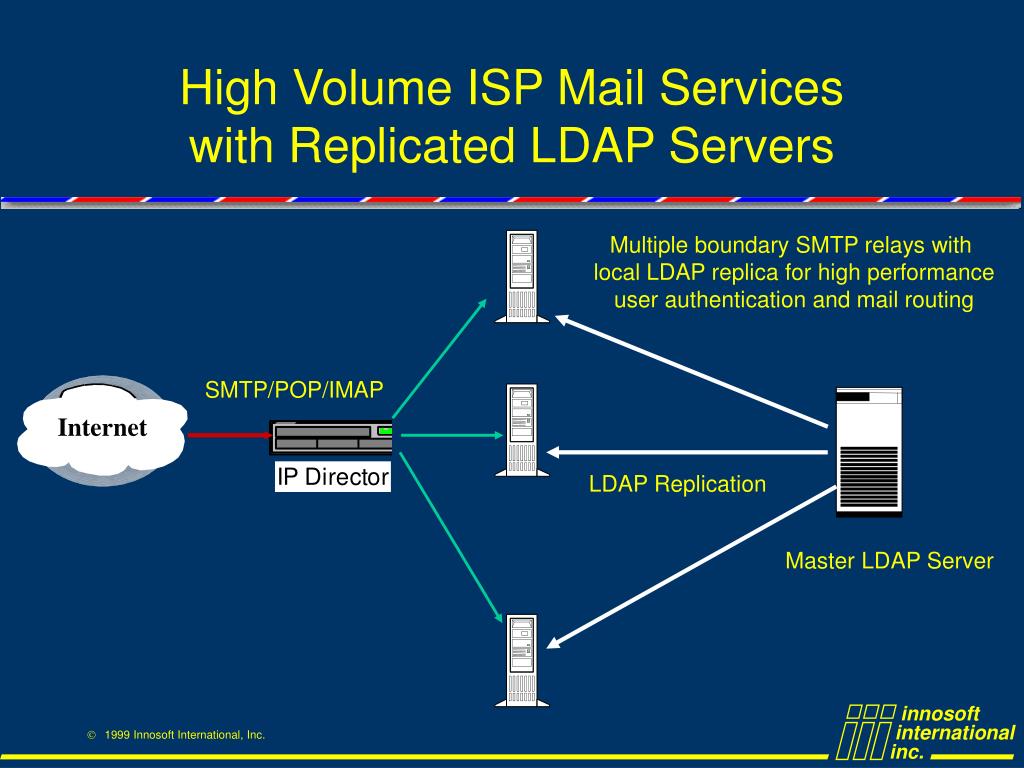

8. Internet High Volume ISP Mail Serviceswith Replicated LDAP Servers Multiple boundary SMTP relays with local LDAP replica for high performance user authentication and mail routing SMTP/POP/IMAP LDAP Replication Master LDAP Server

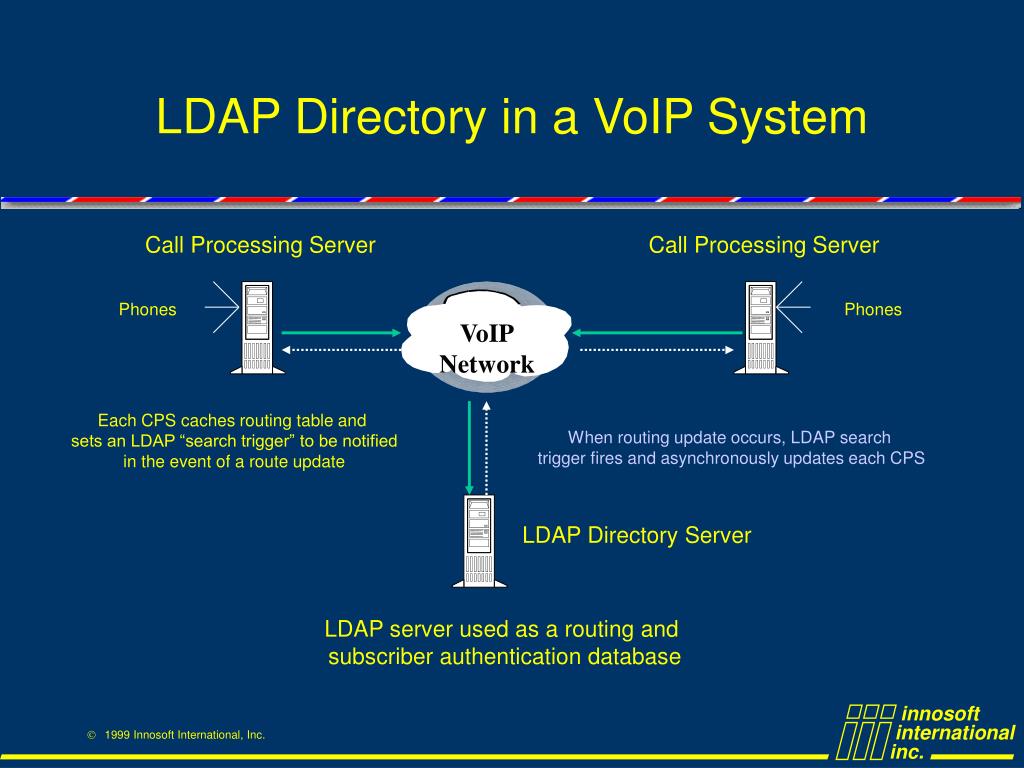

9. VoIP Network LDAP Directory in a VoIP System Call Processing Server Call Processing Server Phones Phones Each CPS caches routing table and sets an LDAP “search trigger” to be notified in the event of a route update When routing update occurs, LDAP search trigger fires and asynchronously updates each CPS LDAP Directory Server LDAP server used as a routing and subscriber authentication database

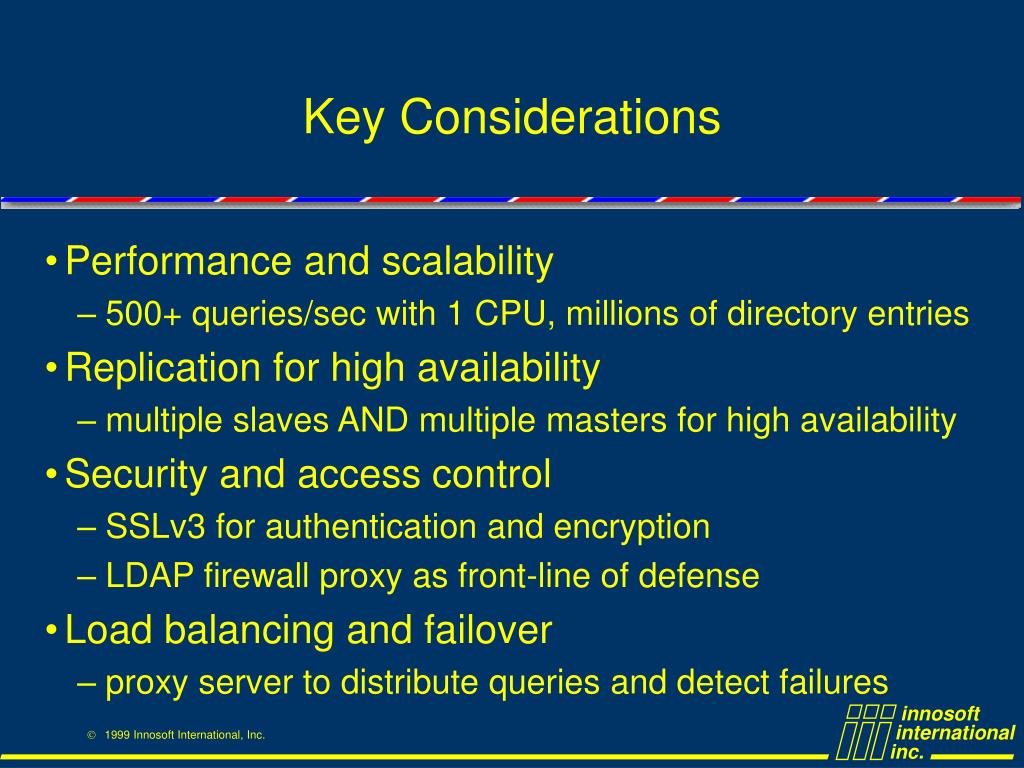

10. Key Considerations • Performance and scalability • 500+ queries/sec with 1 CPU, millions of directory entries • Replication for high availability • multiple slaves AND multiple masters for high availability • Security and access control • SSLv3 for authentication and encryption • LDAP firewall proxy as front-line of defense • Load balancing and failover • proxy server to distribute queries and detect failures

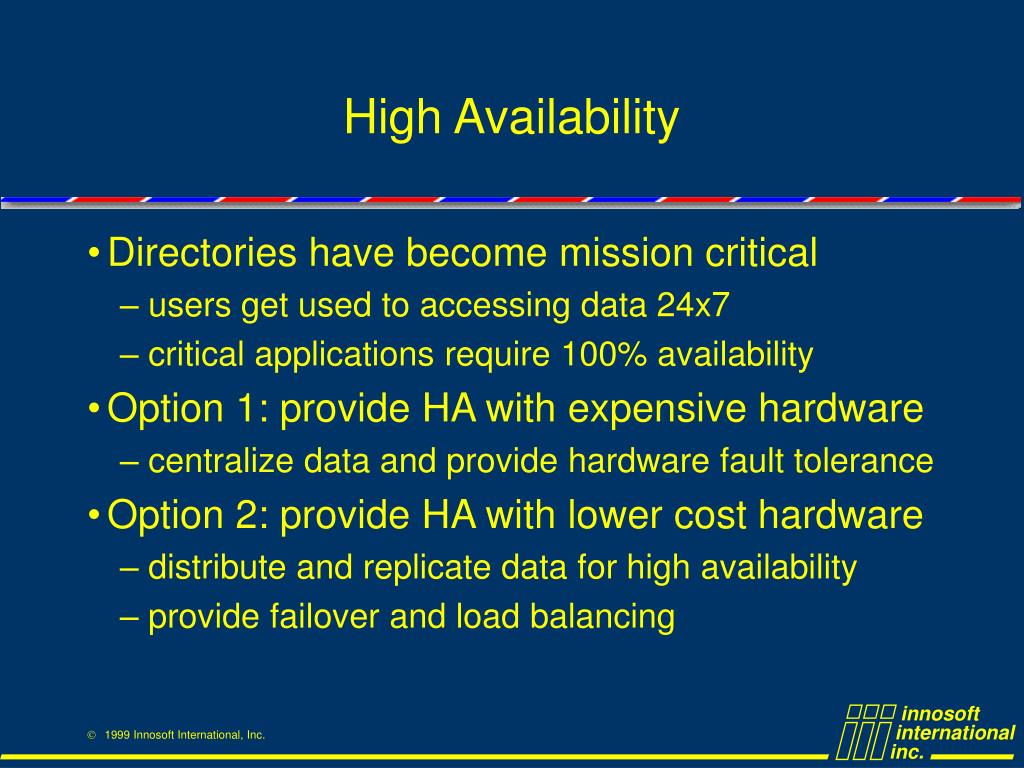

11. High Availability • Directories have become mission critical • users get used to accessing data 24x7 • critical applications require 100% availability • Option 1: provide HA with expensive hardware • centralize data and provide hardware fault tolerance • Option 2: provide HA with lower cost hardware • distribute and replicate data for high availability • provide failover and load balancing

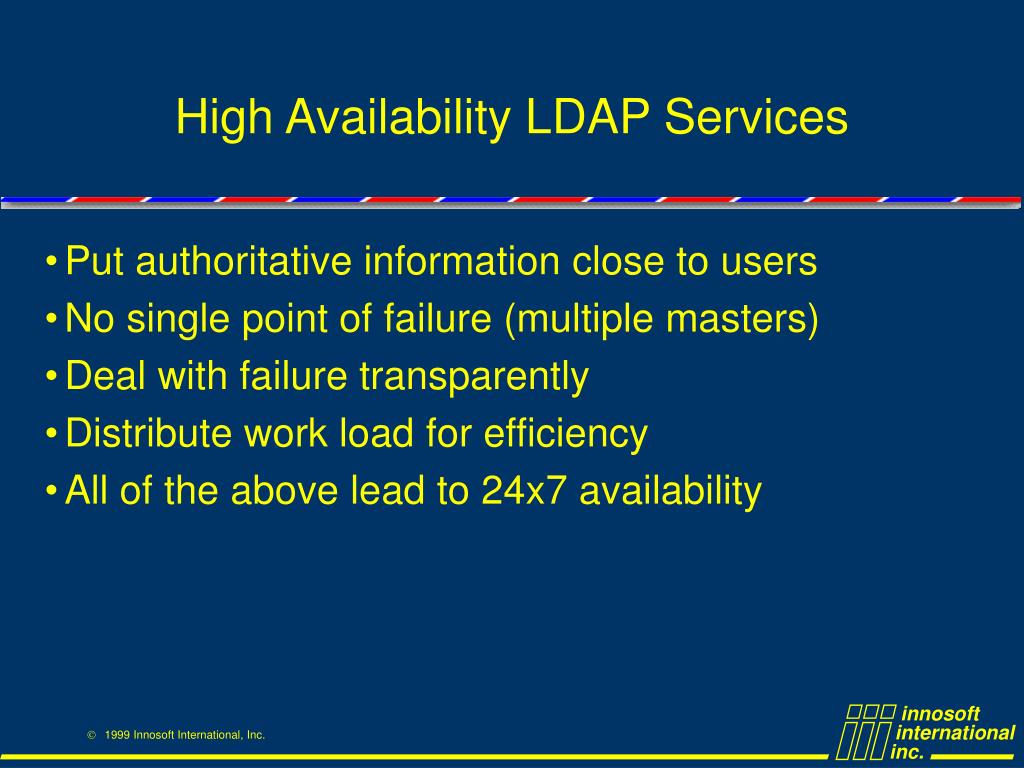

12. High Availability LDAP Services • Put authoritative information close to users • No single point of failure (multiple masters) • Deal with failure transparently • Distribute work load for efficiency • All of the above lead to 24x7 availability

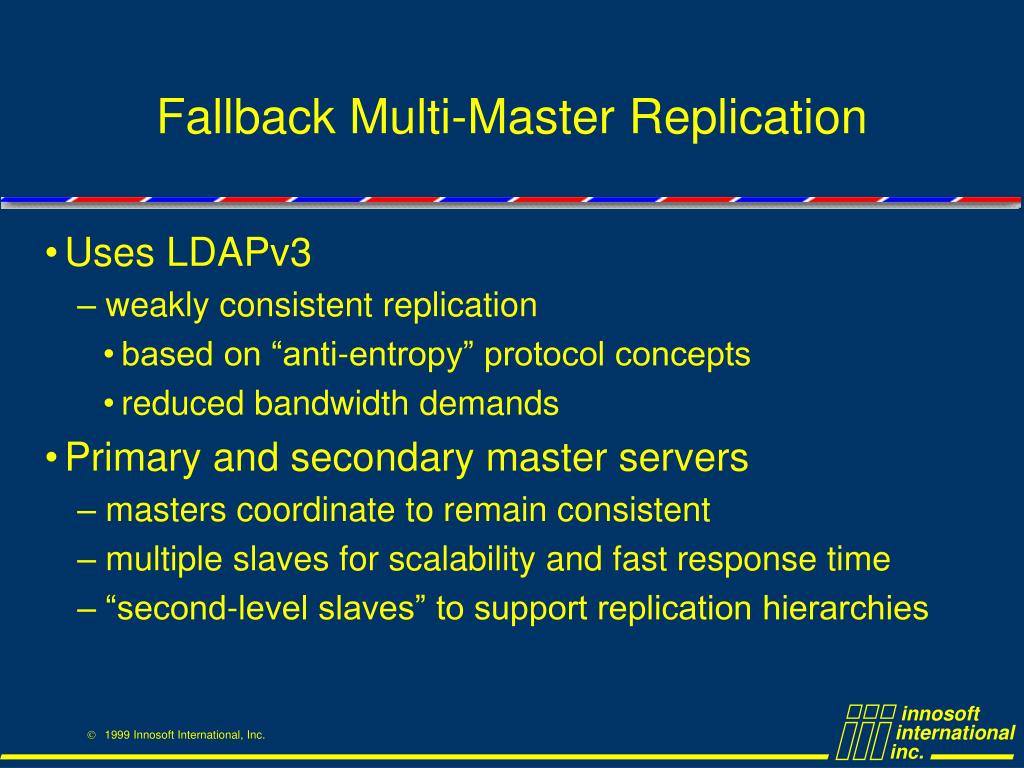

13. Fallback Multi-Master Replication • Uses LDAPv3 • weakly consistent replication • based on “anti-entropy” protocol concepts • reduced bandwidth demands • Primary and secondary master servers • masters coordinate to remain consistent • multiple slaves for scalability and fast response time • “second-level slaves” to support replication hierarchies

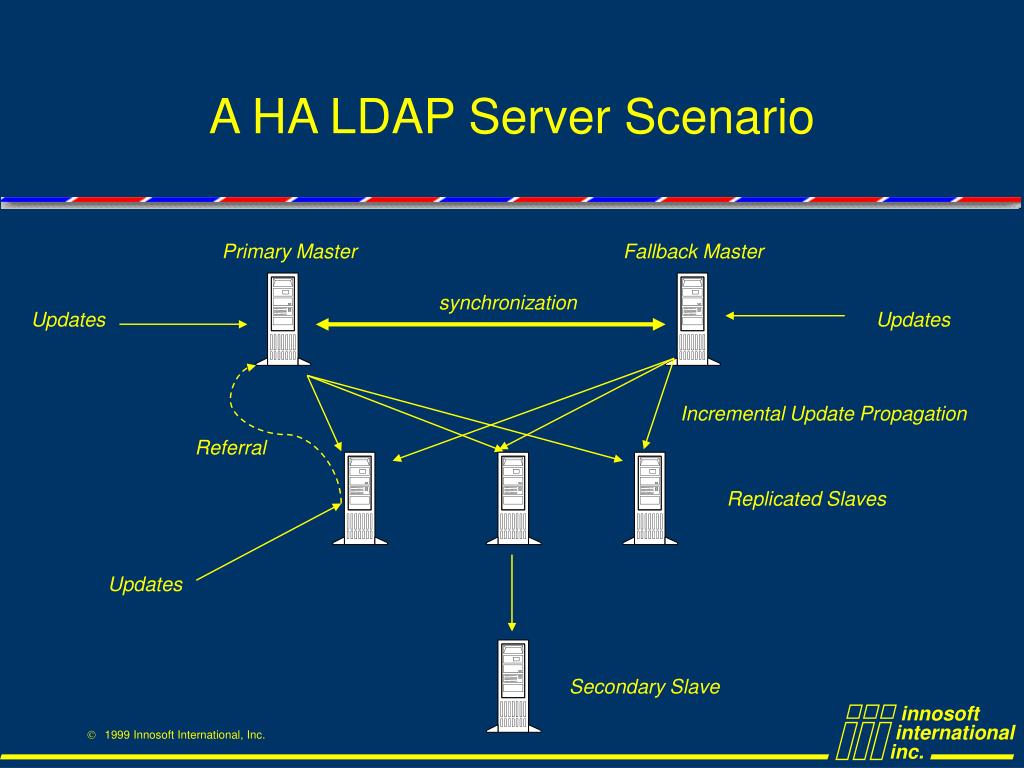

14. A HA LDAP Server Scenario Primary Master Fallback Master synchronization Updates Updates Incremental Update Propagation Referral Replicated Slaves Updates Secondary Slave

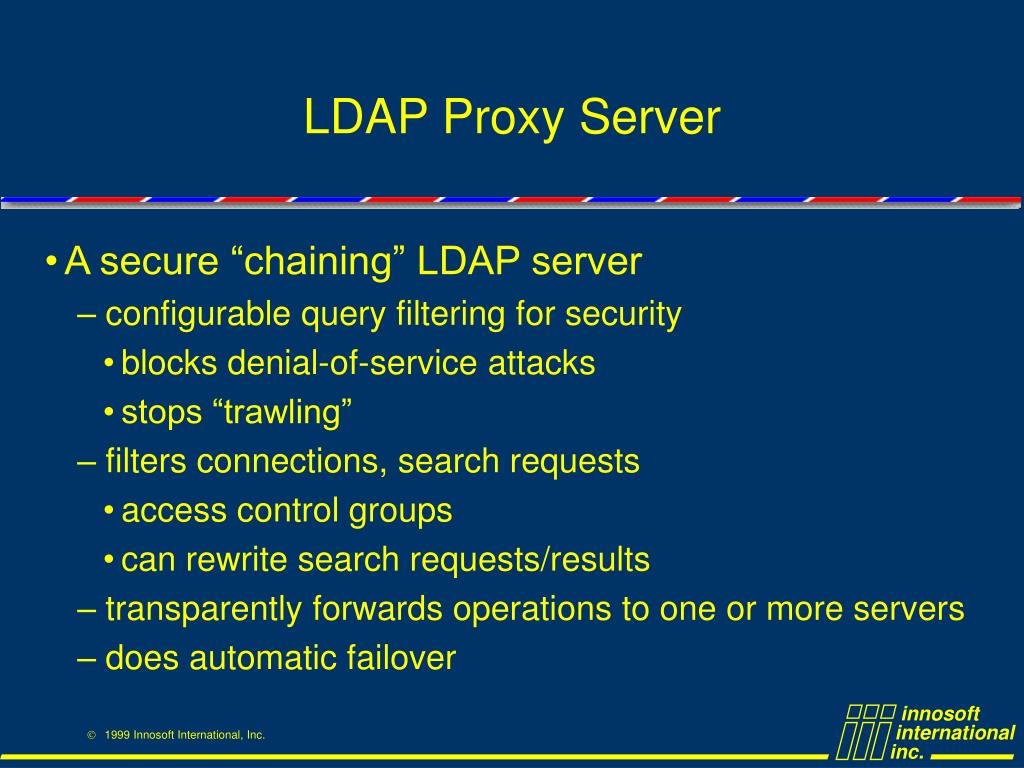

15. LDAP Proxy Server • A secure “chaining” LDAP server • configurable query filtering for security • blocks denial-of-service attacks • stops “trawling” • filters connections, search requests • access control groups • can rewrite search requests/results • transparently forwards operations to one or more servers • does automatic failover

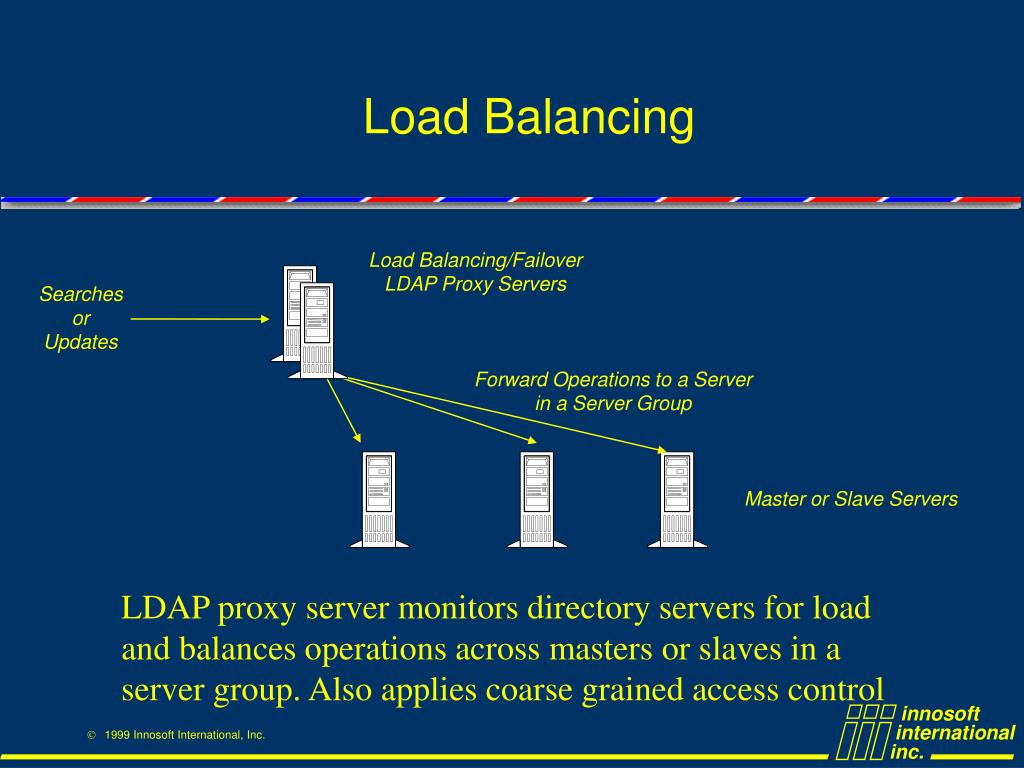

16. Load Balancing Load Balancing/Failover LDAP Proxy Servers Searches or Updates Forward Operations to a Server in a Server Group Master or Slave Servers LDAP proxy server monitors directory servers for load and balances operations across masters or slaves in a server group. Also applies coarse grained access control

17. Transparent Failover Load Balancing/Failover Proxy Servers Searches or Updates Forward Operations to a Server in a Server Group Masters or Slaves Proxy server monitors directory servers and detects server failure and redirects operations until recovery
