fragment assembly of dna

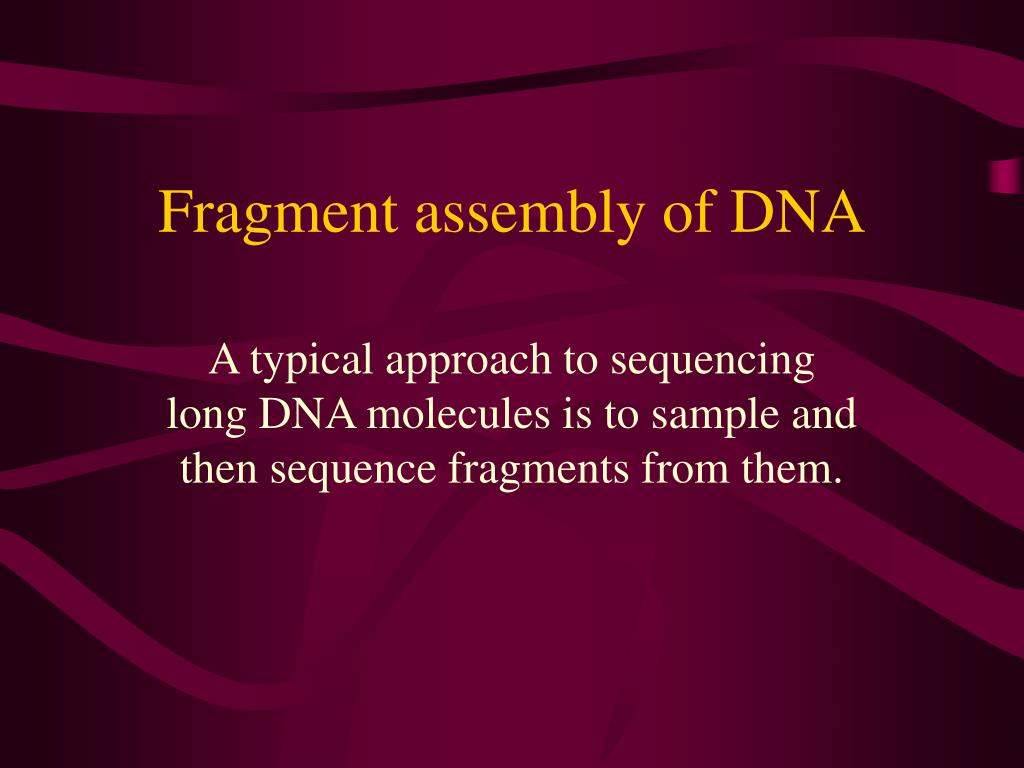

Fragment assembly of DNA

A typical approach to sequencing long DNA molecules is to sample and then sequence fragments from them.

fragment assembly of dna2

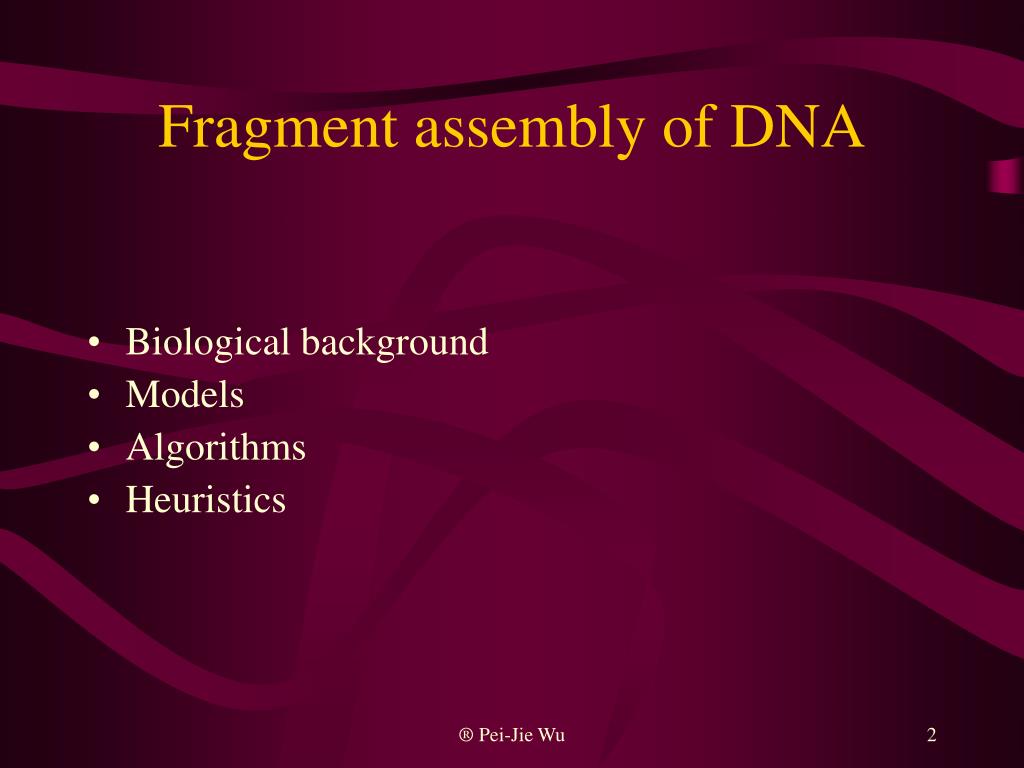

Fragment assembly of DNA
  • Biological background
  • Models
  • Algorithms
  • Heuristics

® Pei-Jie Wu

biological background

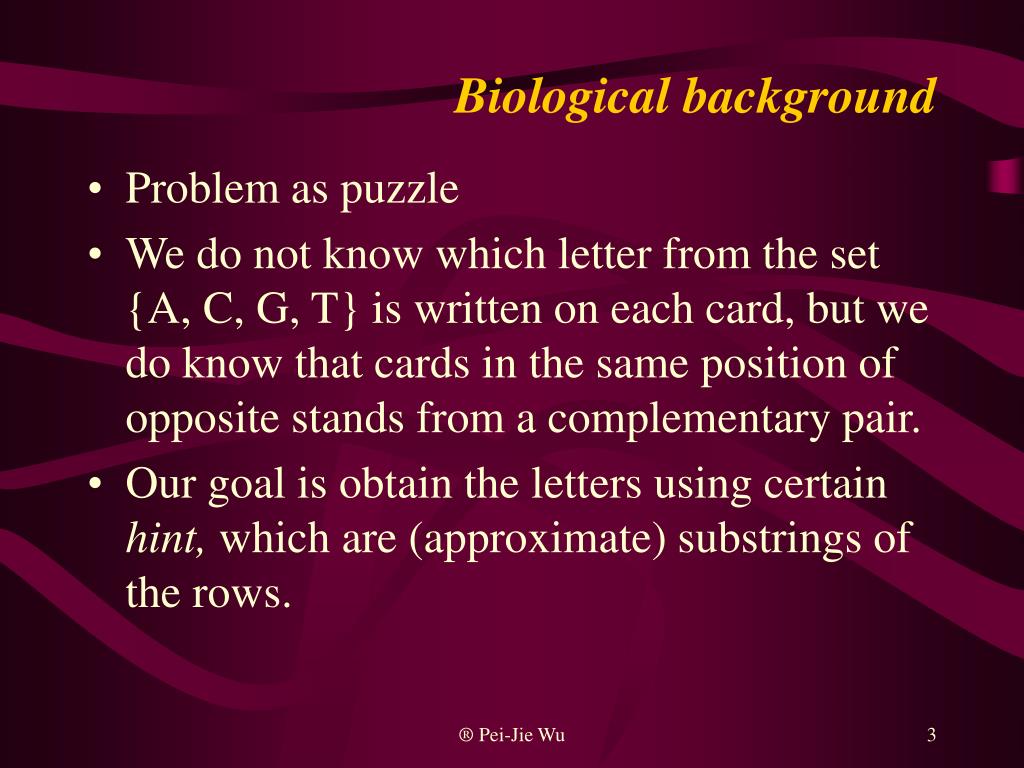

Biological background
  • Problem as puzzle
  • We do not know which letter from the set {A, C, G, T} is written on each card, but we do know that cards in the same position of opposite stands from a complementary pair.
  • Our goal is obtain the letters using certain hint, which are (approximate) substrings of the rows.

® Pei-Jie Wu

biological background4
Biological background
  • Target: The long sequence to reconstruct.
  • Fragment vs. Subsequence
  • Shotgun method:Based on fragment overlap
  • Fragment assembly: A collection of fragments to put together

® Pei-Jie Wu

biological background the ideal case
Biological background--The ideal case
  • Case: p.106
  • Aligned the input set, ignoring spaces at the extremities
  • Overlaps: the end part of a fragment is similar to the beginning of another
  • Consensus sequence base on majority vote

® Pei-Jie Wu

biological background complications
Biological background--Complications
  • The main factors that add to the complexity of the problem are:
    • Error
    • Unknown orientation
    • Repeated regions
    • Lack of coverage.

® Pei-Jie Wu

biological background complications7
Biological background--Complications

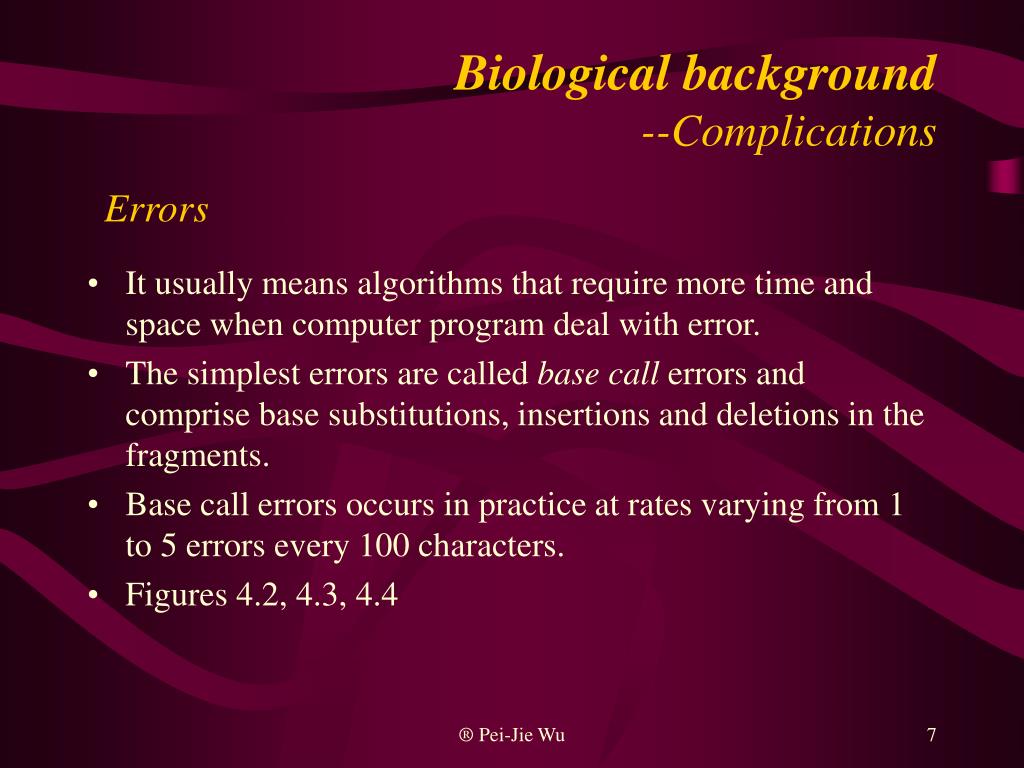

Errors

  • It usually means algorithms that require more time and space when computer program deal with error.
  • The simplest errors are called base call errors and comprise base substitutions, insertions and deletions in the fragments.
  • Base call errors occurs in practice at rates varying from 1 to 5 errors every 100 characters.
  • Figures 4.2, 4.3, 4.4

® Pei-Jie Wu

biological background complications8
Biological background--Complications

Errors

  • Two other types of errors: chimera and Contamination
  • Chimeras, arise when two regular fragments from distinct parts of the target molecule join end-to-end to form a fragment that is not a contiguous part of the target
    • Figure 4.5
    • Solution: Must be recognized as such and removed from the fragment set in a preprocessing stage.
  • Contamination is from host or vector DNA
    • Solution: Most vectors are well know, so we can screen the data before starting assembly.

® Pei-Jie Wu

biological background complications9
Biological background--Complications

Unknown orientation

  • We generally do not know to which strand a particular fragment belongs to.
  • The input fragments as being all approximate substrings of the consensus sought either as given or in reverse complement.
  • Figure 4.6
  • Complexity: 2n

® Pei-Jie Wu

biological background complications10
Biological background--Complications

Repeated regions

  • Repeats are sequences that appear two or more times in the targrt molecule.
    • Short repeats
    • Longer repeats
  • If the level of similarity between two copies of a repeat is high enough, the differences can be mistaken for base call errors
  • Figure 4.7

® Pei-Jie Wu

biological background complications11

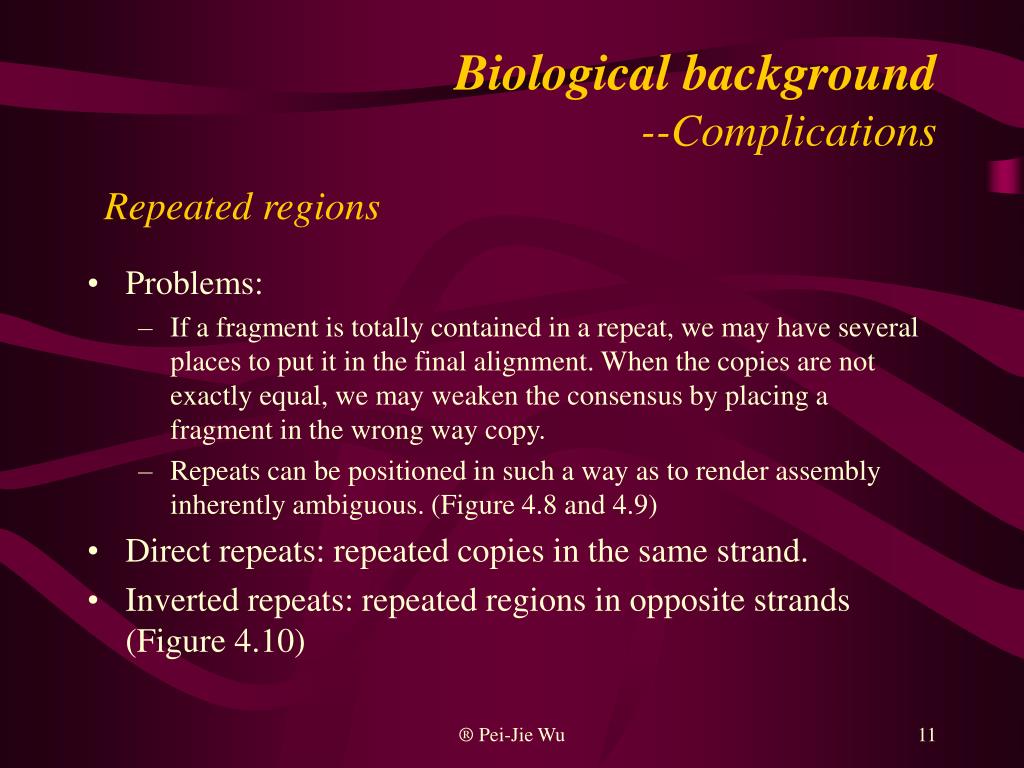

Biological background--Complications

Repeated regions

  • Problems:
    • If a fragment is totally contained in a repeat, we may have several places to put it in the final alignment. When the copies are not exactly equal, we may weaken the consensus by placing a fragment in the wrong way copy.
    • Repeats can be positioned in such a way as to render assembly inherently ambiguous. (Figure 4.8 and 4.9)
  • Direct repeats: repeated copies in the same strand.
  • Inverted repeats: repeated regions in opposite strands (Figure 4.10)

® Pei-Jie Wu

biological background complications12
Biological background--Complications

Lack of coverage

  • Coverage: position i of the target as the number of fragments that cover this position.
  • Contigs: The contiguously covered regions
  • Figure 4.11
  • Solutions:
    • Sampling more fragments
    • Directed sequencing or walking

® Pei-Jie Wu

biological background alternative methods for dna sequencing
Biological background--Alternative methods for DNA sequencing
  • Directed sequencing: a method that can be used to cover small remaining gaps in a shotgun project.
  • Problem:
    • It is expensive to build special primers
    • Sequential rather than parallel
  • Sequencing by hybridization (SBH), it consists of assembling the target molecule based on many hybridization experiments with very short, fixed length sequences called probes.

® Pei-Jie Wu

models

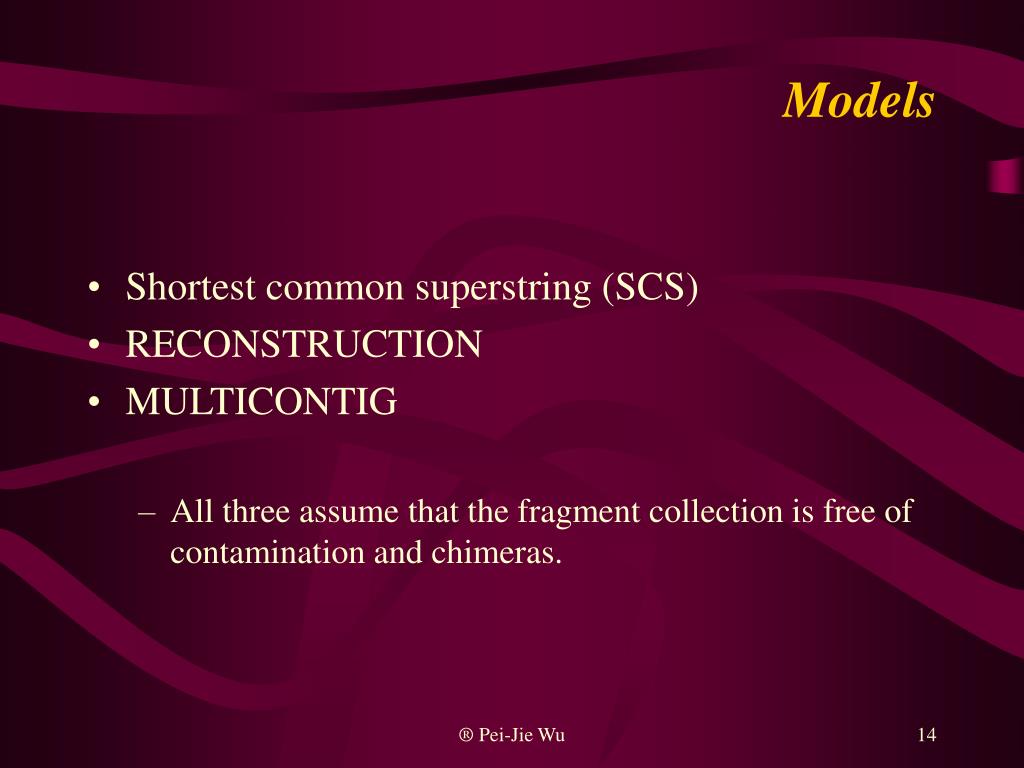

Models
  • Shortest common superstring (SCS)
  • RECONSTRUCTION
  • MULTICONTIG
    • All three assume that the fragment collection is free of contamination and chimeras.

® Pei-Jie Wu

models shortest common superstring
Models--Shortest common superstring
  • Seeking the shortest superstring of a collection of given strings
  • PROBLEM: Shortest common superstring (SCS)
  • INPUT: a collectionF of strings.
  • OUTPUT: a shortest possible string S such that for every fF , S is a superstring of f.

® Pei-Jie Wu

models shortest common superstring16
Models--Shortest common superstring
  • Example 4.1
  • Example 4.2
    • Figure 4.12
    • Figure 4.13
  • A superstring may contain only one copy, which will absorb all fragments totally contained in any of the copies

® Pei-Jie Wu

models reconstruction
Models--Reconstruction
  • Takes into account both errors and unknown orientation
  • Dynamic programming sequence comparison algorithm
  • Use distance rather than similarity
  • Expression: p.116

® Pei-Jie Wu

models reconstruction18
Models--Reconstruction
  • PROBLEM: RECONSTRUCTION
  • INPUT: a collectionF of strings and an error tolerance  between 1 and 0.
  • OUTPUT: (p.117)
  • Find a string S as short as possoble such that either f or its reverse complement must be an approximate substring of S at error level 
  • Does not model repeats, lack of coverage, and size of target

® Pei-Jie Wu

models multicontig
Models--Multicontig
  • Involve internal linkage of the fragments in the layout
  • Nonlink: there is a fragment that properly contains the overlap on both sides
  • Weakest link: the smallest size of any link
  • t-contig: the weakest link of a layout is at least as large as t
  • Example 4.4
  • Definition: p.119

® Pei-Jie Wu

algorithms

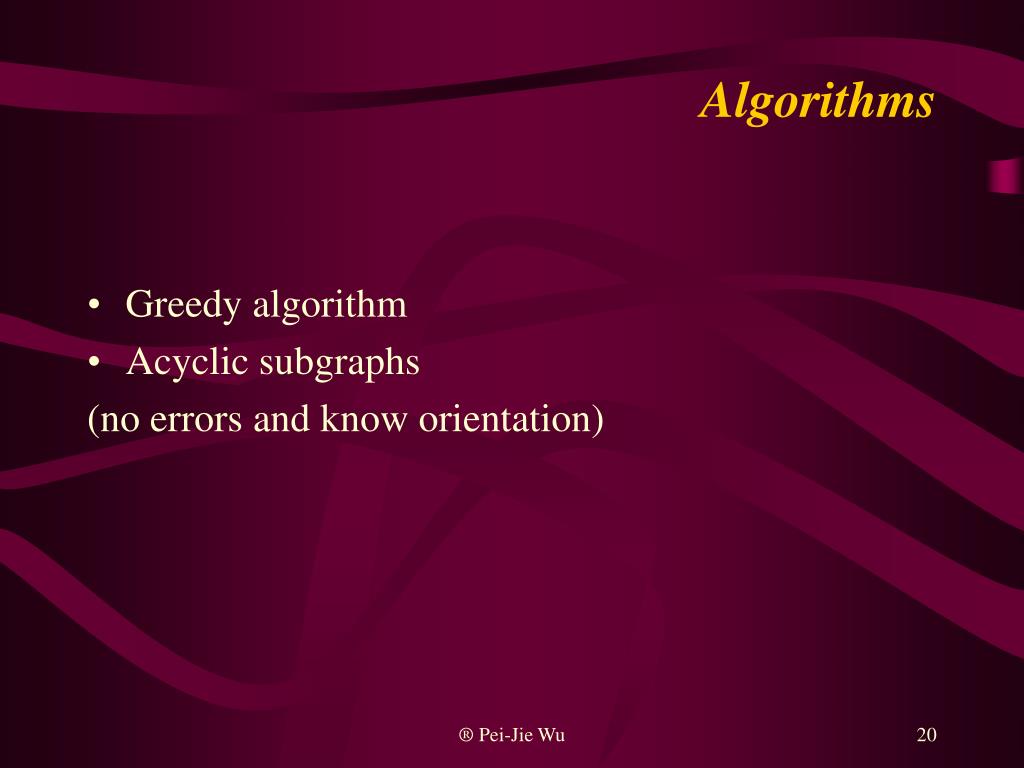

Algorithms
  • Greedy algorithm
  • Acyclic subgraphs

(no errors and know orientation)

® Pei-Jie Wu

algorithms representing overlaps
Algorithms--Representing overlaps
  • Over multigraph OM(F) of a collection F is the directed, weighted multigraph
  • Set V of nodes of this structure is just F itself.
  • A directed edge from a to a different fragment b with weight t  0 exists if the suffix of a with t characters is a prefix of b
  • May be many edges from a to b
  • No self-loops

® Pei-Jie Wu

algorithms paths originating superstrings
Algorithms--Paths originating superstrings
  • Edge e = (f, g) in the path has a certain weight t, which means that the last t bases of the tail f of e
  • Figure 4.15
    • Example in p.121
  • Equation 4.3
  • Hamiltonian paths: A path that goes through every vertex
  • Equation 4.4
    • Minimizing |S(P)|  maximizing w(P)

® Pei-Jie Wu

algorithms shortest superstrings as paths
Algorithms--Shortest superstrings as paths
  • A collection F is said to be substring-free if there are no two distinct strings a and b in such that a is a substring of b.
  • THEOREM 4.1
  • COROLLARY 4.1
  • LEMMA 4.1
  • THEOREM 4.2

® Pei-Jie Wu

algorithms the greedy algorithm
Algorithms--The greedy algorithm
  • Looking for shortest common superstrings is the same as looking for Hamiltonian paths of maximum weight in a directed multigraph.
  • OM(F)  OG(F)
  • “greedy” attempt at computing the heaveiest path. The basic idea employed in it is to continuously add the heaviest available edge

® Pei-Jie Wu

algorithms the greedy algorithm25

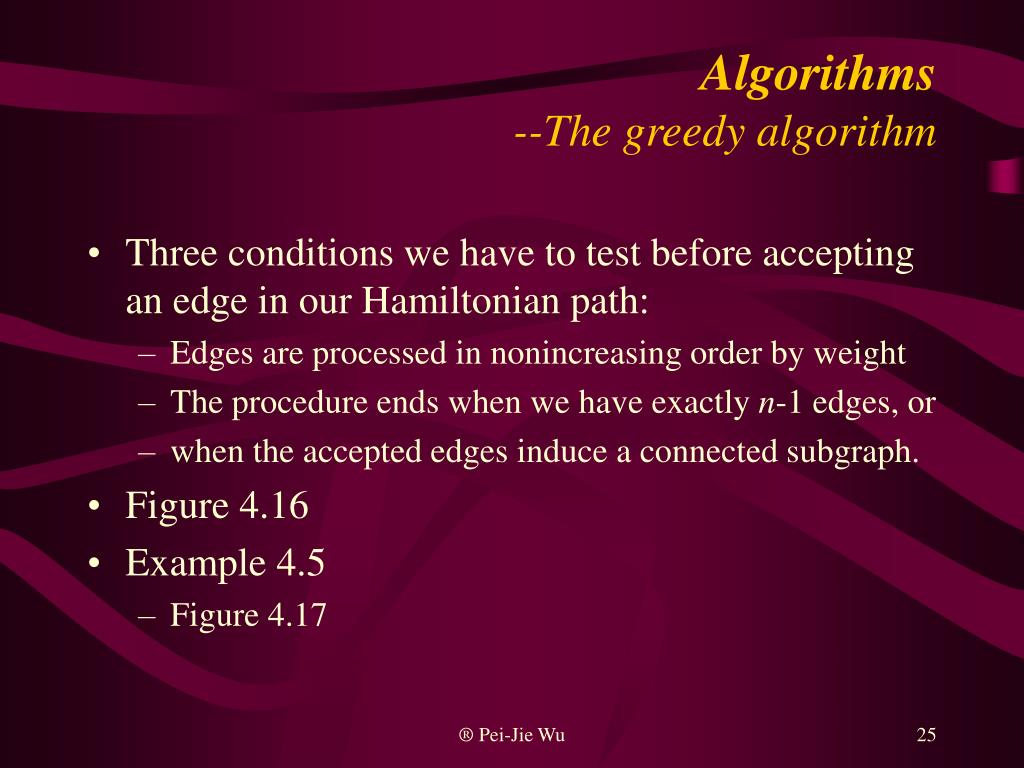

Algorithms--The greedy algorithm
  • Three conditions we have to test before accepting an edge in our Hamiltonian path:
    • Edges are processed in nonincreasing order by weight
    • The procedure ends when we have exactly n-1 edges, or
    • when the accepted edges induce a connected subgraph.
  • Figure 4.16
  • Example 4.5
    • Figure 4.17

® Pei-Jie Wu

algorithms acyclic subgraphs

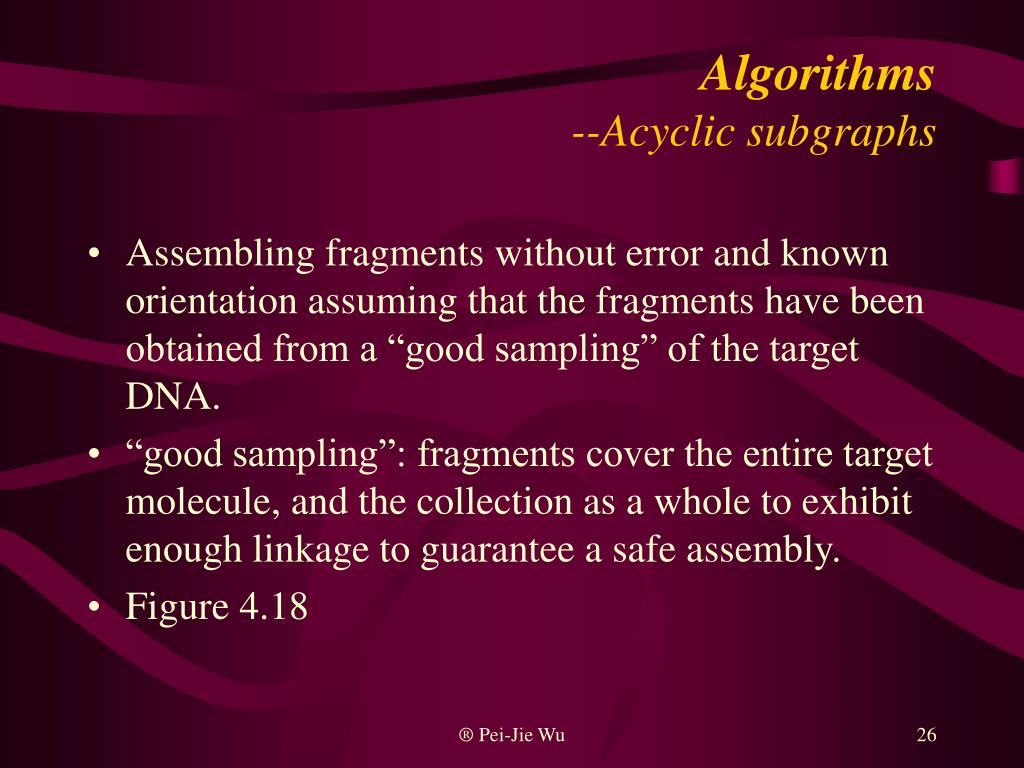

Algorithms--Acyclic subgraphs
  • Assembling fragments without error and known orientation assuming that the fragments have been obtained from a “good sampling” of the target DNA.
  • “good sampling”: fragments cover the entire target molecule, and the collection as a whole to exhibit enough linkage to guarantee a safe assembly.
  • Figure 4.18

® Pei-Jie Wu

algorithms acyclic subgraphs27
Algorithms--Acyclic subgraphs
  • The presence of repeated regions, or repeated element, in the target string S is related to the existence of cycles in the overlap graph.
  • Cycles in an overlap graph are necessarily due to repeats in S. The converse is not necessarily true; that is, we may have repeats but still an acyclic overlap graph.
  • THEOREM 4.5
  • Algorithm: Topological sorting
  • Example 4.6
    • Figure 4.19, 4.20 and 4.21

® Pei-Jie Wu

heuristics
Heuristics
  • None of the formalisms proposed for fragment assembly are entirely adequate
  • Fragment assembly can be viewed as a multiple alignment problem with some additional feature:
    • Each fragment can participate with either the direct or the reverse-complemented sequence.
    • The sequences themselves are usually much shorter than the alignment itself.

® Pei-Jie Wu

heuristics29
Heuristics

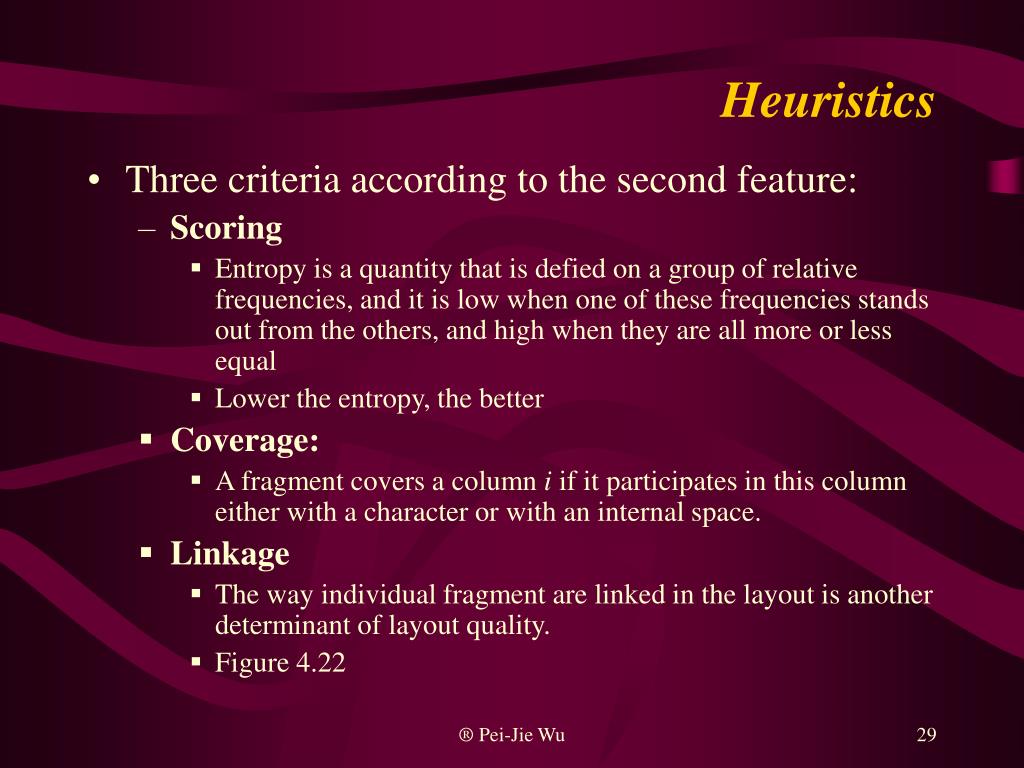

  • Three criteria according to the second feature:
    • Scoring
      • Entropy is a quantity that is defied on a group of relative frequencies, and it is low when one of these frequencies stands out from the others, and high when they are all more or less equal
      • Lower the entropy, the better
    • Coverage:
      • A fragment covers a column i if it participates in this column either with a character or with an internal space.
    • Linkage
      • The way individual fragment are linked in the layout is another determinant of layout quality.
      • Figure 4.22

® Pei-Jie Wu

heuristics assembly in practice

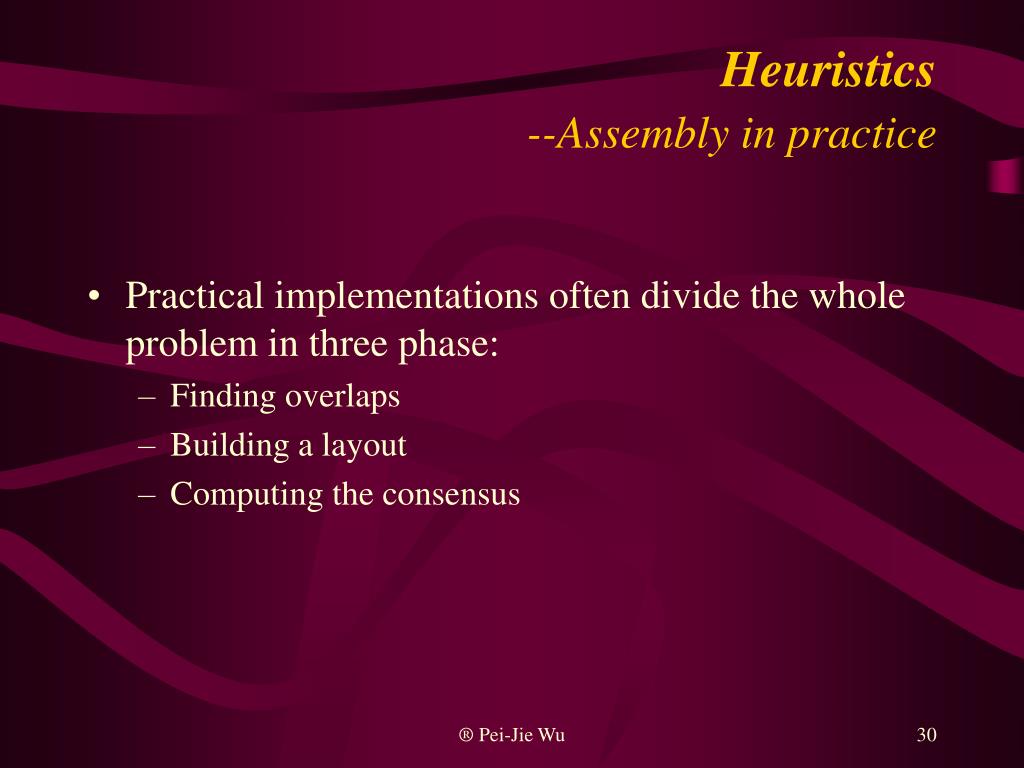

Heuristics--Assembly in practice
  • Practical implementations often divide the whole problem in three phase:
    • Finding overlaps
    • Building a layout
    • Computing the consensus

® Pei-Jie Wu

heuristics assembly in practice31
Heuristics--Assembly in practice

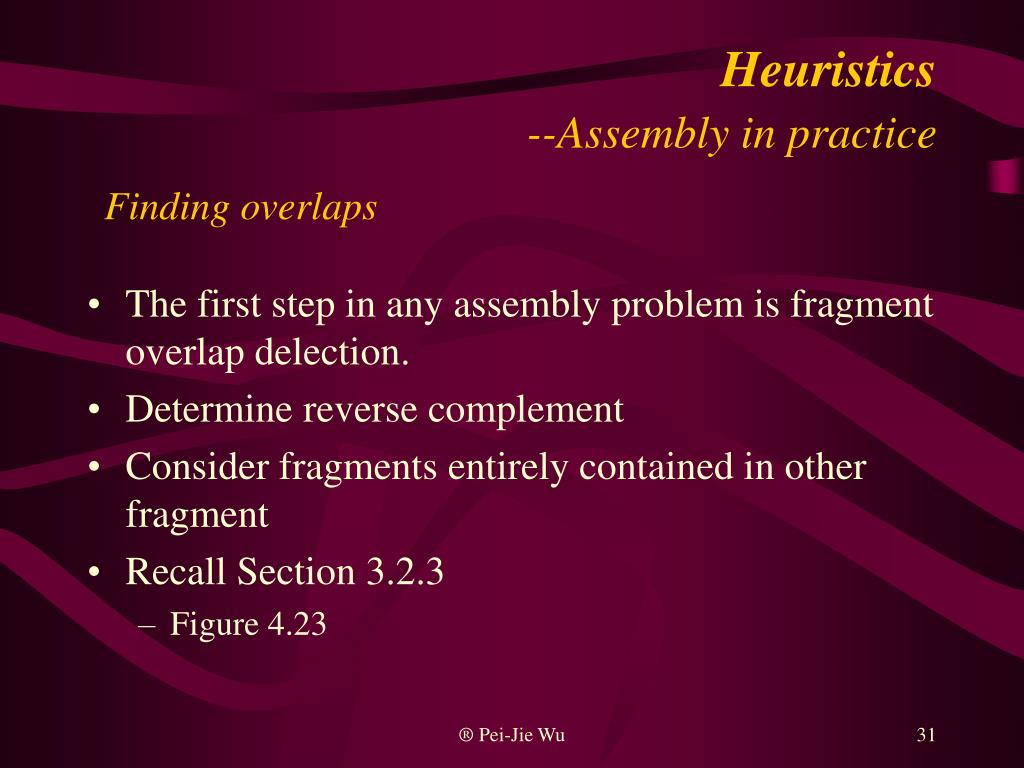

Finding overlaps

  • The first step in any assembly problem is fragment overlap delection.
  • Determine reverse complement
  • Consider fragments entirely contained in other fragment
  • Recall Section 3.2.3
    • Figure 4.23

® Pei-Jie Wu

heuristics assembly in practice32
Heuristics--Assembly in practice

Ordering fragments

  • Finding a good ordering of fragments in a contig
  • No algorithm that is simple and general enough
  • There are four issues to keep in mind when building paths:
    • Every path has a corresponding complement path
    • It is not necessary to include contain fragments
    • Cycles usually indicate the presence of repeats
    • Unbalanced coverage may be related to repeats as well (see Figure 4.13)

® Pei-Jie Wu

heuristics assembly in practice33
Heuristics--Assembly in practice

Alignment and consensus

  • Building a layout from a path in an overlap graph
  • Two techniques related to alignment construction:
    • The first one helps in building a good layout from a path in the presence of errors.
      • Example 4.7
      • Implement: Figure 4.24
    • The second one focuses on locally improving an already constructed layout
      • Example 4.8 in Figure 4.25
      • Implement: sum-of-pairs scoring scheme
