sample size selection for microarray based gene expression studies

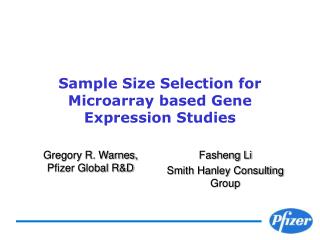

Sample Size Selection for Microarray based Gene Expression Studies

Gregory R. Warnes, Pfizer Global R&D

Fasheng Li

Smith Hanley Consulting Group

outline
Outline
  • What is the context?
  • What is the problem?
  • What are possible approaches?
  • What approach was chosen and why?
  • How was the approach implemented?
  • What do the results look like?
  • Future plans?
  • References

Industry/FDA Statistics Workshop: September 18-19, 2003

what is pfizer global r d
What is Pfizer Global R&D?
  • What do we do? Lots!
    • Pharmaceutical research and development
    • Associated basic science, medical, and technological research
  • How are we doing? Very Well
    • 2003 R&D budget: $7.1 billion
    • 33 major research projects across 10 major therapeutic categories
    • 12,000 employees
    • 6 Major Research Sites

Industry/FDA Statistics Workshop: September 18-19, 2003

how are we using gene expression technologies
How are we using Gene Expression Technologies?
  • Determine regulatory and metabolic pathways
  • Identify potential biomarkers
  • Identify potential targets
  • Determine mechanism of action (desired and undesired)
  • Evaluate / predict safety
  • Determine mechanism of toxicity

Industry/FDA Statistics Workshop: September 18-19, 2003

what is the problem
What is the problem?
  • Gene expression assays are expensive
    • ~ $2,000 per samplefor Affymetrix experiments
  • Good experimental design is important
  • A huge number of variables measured on each experimental unit
    • 9,300 variables the Affymetrix S98 Yeast Genechip™
    • 16,000 variables for Affymetrix RAE230a Rat Genechip™
    • 23,000 + 23,000 = 46,000 variables for the Affymetrix U133A and U133B Human Genechips™
  • Sample size calculations are hard

Industry/FDA Statistics Workshop: September 18-19, 2003

standard sample size calculation
Standard sample size calculation

For a single outcome variable, given

  • simple design (e.g., two-sample t-test)
  • effect size (ideally, minimum practical significance)
  • population variance ²,
  • significance level(probability of a false positive when no true effect)
  • power(probability of a true positive given the defined effect size)

It is straightforward to compute the required sample size n (see e.g. Cochrain & Cox (1957))

Industry/FDA Statistics Workshop: September 18-19, 2003

gene expression sample size calculation
Gene expression sample size calculation

When there are thousands of outcome variables which are not independent, many problems arise:

  • How to handle multiple comparison?
  • How to deal with dependencies?
  • One effect size or many?
  • One power or many?
  • Many variables, how to get a single answer?

Industry/FDA Statistics Workshop: September 18-19, 2003

what are possible approaches
What are possible approaches?

Two extremes:

  • Treat each variable (gene) as a separate and independent problem, then summarize

+ easy to set up, understand, explain

+ available data can be used

- may not be sufficiently realistic, hence accuracy may suffer

  • Model the entire system, including realistic error structure and interdependencies

+may be more accurate (if model is good)

- more initial work to set up / compute

- may require substantial new data to be realistic

- May be hard to understand, explain

Industry/FDA Statistics Workshop: September 18-19, 2003

what approach was chosen and why
What approach was chosen and why?
  • We chose to treat each variable (gene) as a separate and independent problem, then summarize
  • Why?
    • First approximations usually yield a useful information with minimal effort.
    • Answers were needed immediately.
    • At best, results would only be used for general guidance
    • A more realistic error model didn’t work:

We tried fitting the model from Zien, et al (2002), which requires high-dimensional numerical integration via MCMC or equivalent. However, the model appears to be non-identifiable.

Industry/FDA Statistics Workshop: September 18-19, 2003

how was the approach implemented
How was the approach implemented?
  • Compute variance of each gene (variable) from existing studies
  • Assume a two sample t-test on log(expression)
  • Bonferonni adjust significance value: i =  / #variables
  • Generate plots of cumulative #genes :
    • Fixed I, , 1- vs. sample size (e.g. n=5/group,6/group,…)
    • Fixed I, , n vs. power (eg. 1-= 60%, 70%, 80%, …)
    • Fixed I, 1-, n vs. effect size (=1.5x, 2.0x, 2.5x, …)
  • Run twice:
    • ‘candidate’ genes ( less stringent Bonf. Adj.)
    • all genes
  • Implemented using R [Ross & Ihaka, 1996] using the power.t.test function.

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like standard deviations focus group
What do the results look like? Standard Deviations: Focus Group

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like fixed i 1 vs sample size focus group
What do the results look like? Fixed I, , 1- vs. Sample Size:Focus Group

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like fixed i n vs power focus group
What do the results look like?Fixed I, , n vs. Power: Focus Group

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like fixed i 1 n vs fold change focus group
What do the results look like?Fixed I, 1-, n vs. Fold Change: Focus Group

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like standard deviations all genes
What do the results look like? Standard Deviations: All Genes

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like fixed i 1 vs sample size all genes
What do the results look like? Fixed I, , 1- vs. Sample Size:All Genes

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like fixed i n vs power all genes
What do the results look like?Fixed I, , n vs. Power: All genes

Industry/FDA Statistics Workshop: September 18-19, 2003

what do the results look like fixed i 1 n vs fold change all genes
What do the results look like?Fixed I, 1-, n vs. Fold Change: All Genes

Industry/FDA Statistics Workshop: September 18-19, 2003

future plans
Future plans?
  • A web-applet backed by R to perform the calculations

Industry/FDA Statistics Workshop: September 18-19, 2003

future plans20
Future plans?
  • Provide a web-applet backed by R to perform the calculations
  • Use a library of gene variation information in normal samples, (structured by organism, Affymetrix chip type, cell type, normalization/scaling method)
  • Extend to more complicated designs (2-way ANOVA, Repeated measures, etc)
  • Other types of multiple comparison adjustments (FDR)
  • Develop models that deal with correlations between genes.

Industry/FDA Statistics Workshop: September 18-19, 2003

references
References
  • Two-sample t-test sample size:
    • Cochrain WG, Cox GM (1953). Experimental Designs (2nd Ed). 17-28.
  • General sample size calculations:
    • Chow SC, Liu JP (1998). Design and Analysis of Clinical Trials : Concept and Methodologies. Wiley-Interscience. Chapter 10, 424 – 482
    • Chow SC , Shao J, Wang H (2003). Sample Size Calculation in Clinical Research. Marcel Dekker [New, looks interesting]
  • Gene expression experiments sample size:
    • Zien A, Fluck J, Zimmer R, Lengauer T (2002). Microarrays: How Many Do You Need? RECOMB02, Meyers G, Hannenhalli S, Istrail S, Pevzner P, Waterman M, eds. 321-330.
  • Statistical analysis software:
    • Ihaka R, Gentleman R, et al (2003). http://www.r-project.org[web site]
    • Ross Ihaka and Robert Gentleman (1996). R: A Language for Data Analysis and Graphics, Journal of Computational and Graphical Statistics, Vol 5, Number 3: 299-314.
  • Web applet software:
    • Warnes GR, (2003). http://www.analytics.washington.edu/Zope/projects/RSessionDA/ [web site]
  • Me:
    • http://www.warnes.net

Industry/FDA Statistics Workshop: September 18-19, 2003
