This update from Tomoko Muranaka details the developments in in situ SEM/DC experiments conducted in Uppsala. Noteworthy advancements include the installation of a 3D piezo positioner in October 2012, which enhances targeted measurements and 2D scanning capabilities. Key efforts focus on field emission measurements and understanding grain orientation dependence. Observations reveal issues such as an uneven anode surface and potential deformation of the anode holder. Solutions involve KOH etching and diamond cutting prior to cleaning for improved results.
E N D
In situ SEM DC experiments in Uppsala – update 17 June 2013 Tomoko Muranaka

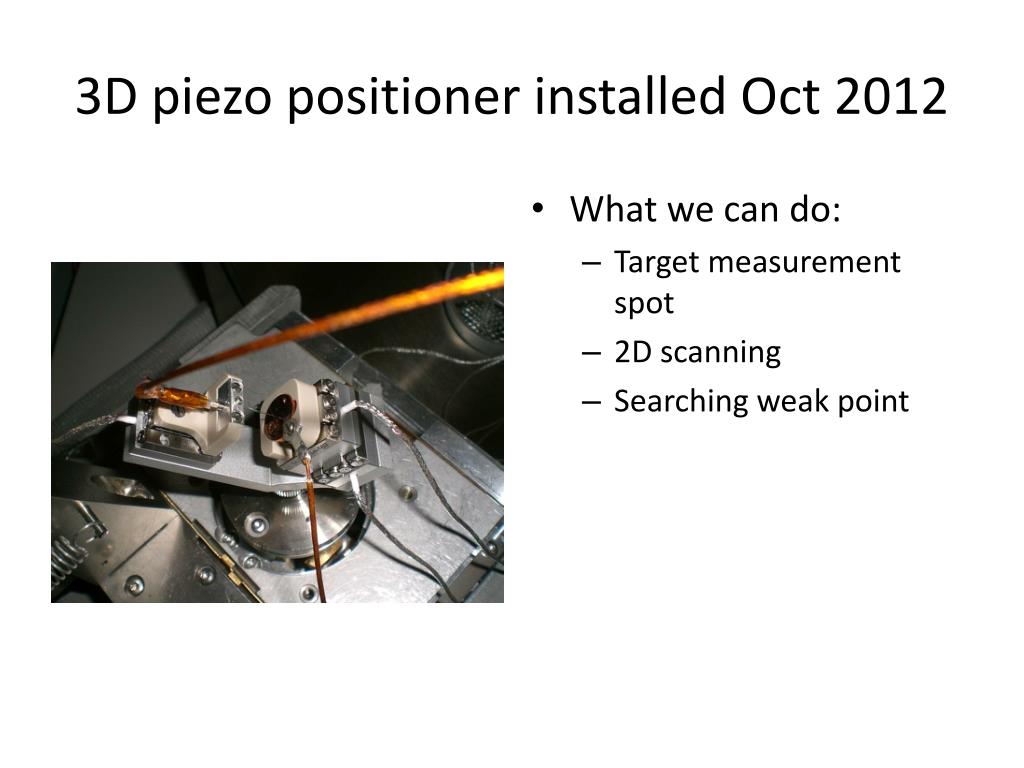

3D piezo positioner installed Oct 2012 • What we can do: • Target measurement spot • 2D scanning • Searching weak point

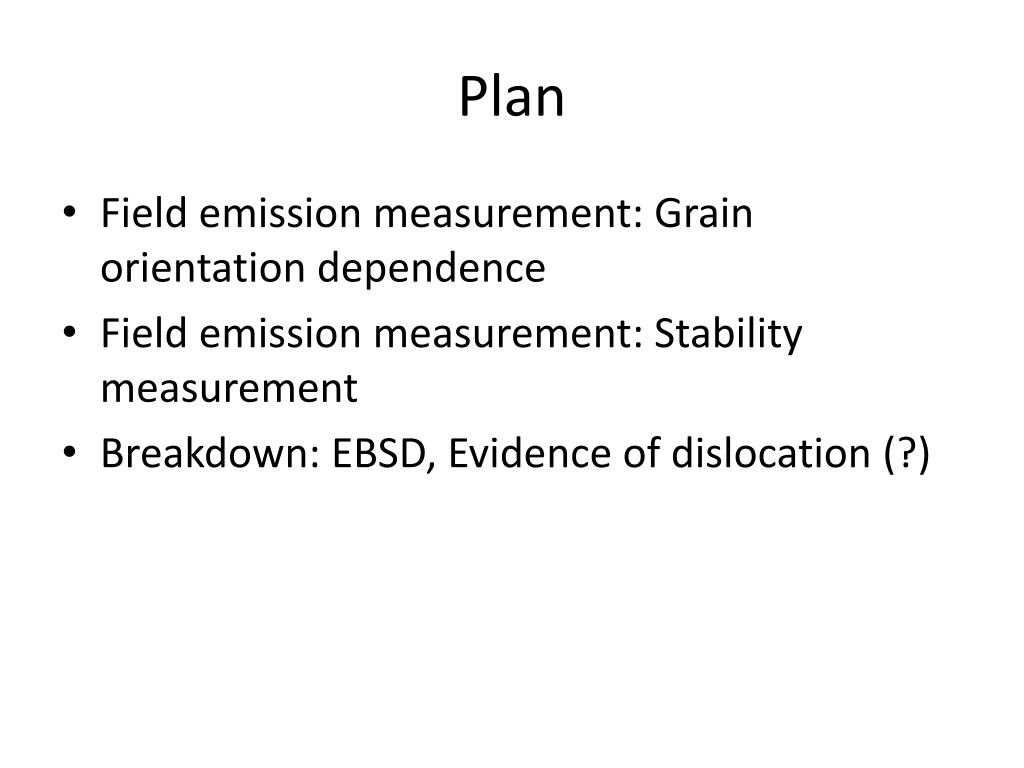

Plan • Field emission measurement: Grain orientation dependence • Field emission measurement: Stability measurement • Breakdown: EBSD, Evidence of dislocation (?)

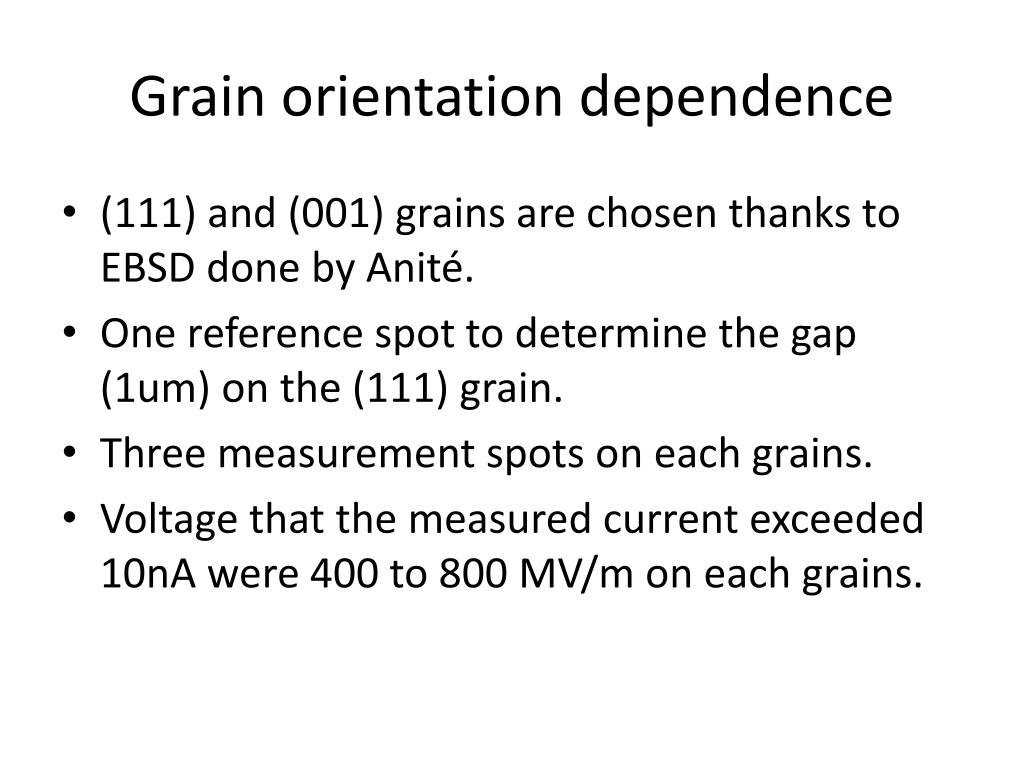

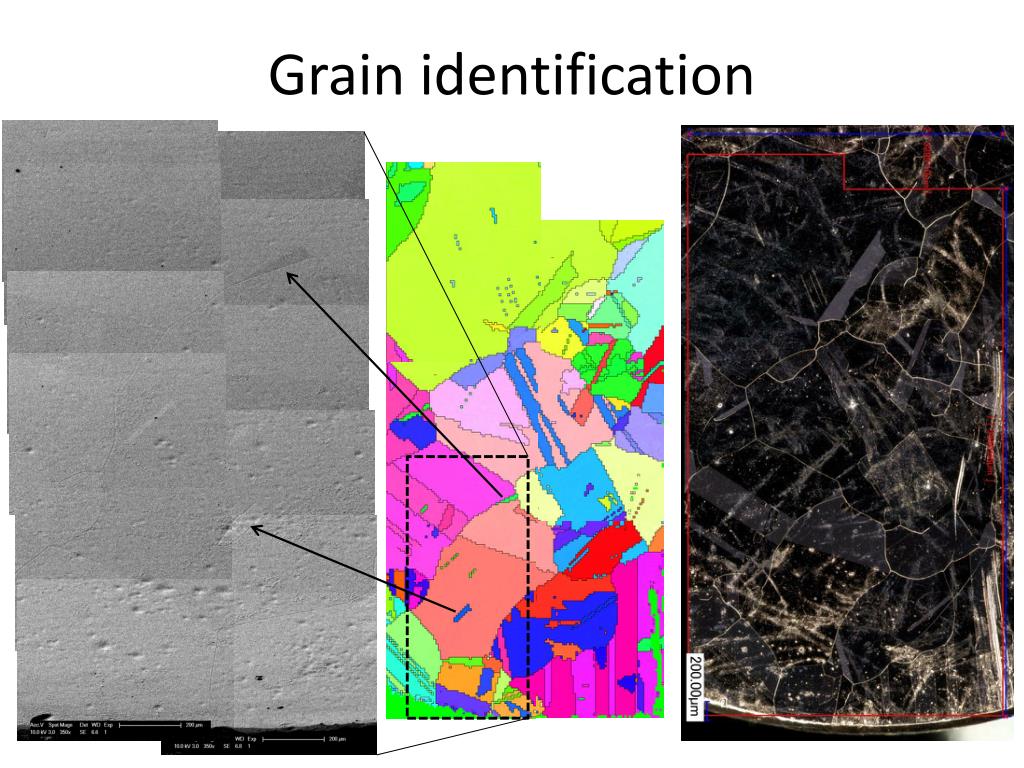

Grain orientation dependence • (111) and (001) grains are chosen thanks to EBSD done by Anité. • One reference spot to determine the gap (1um) on the (111) grain. • Three measurement spots on each grains. • Voltage that the measured current exceeded 10nA were 400 to 800 MV/m on each grains.

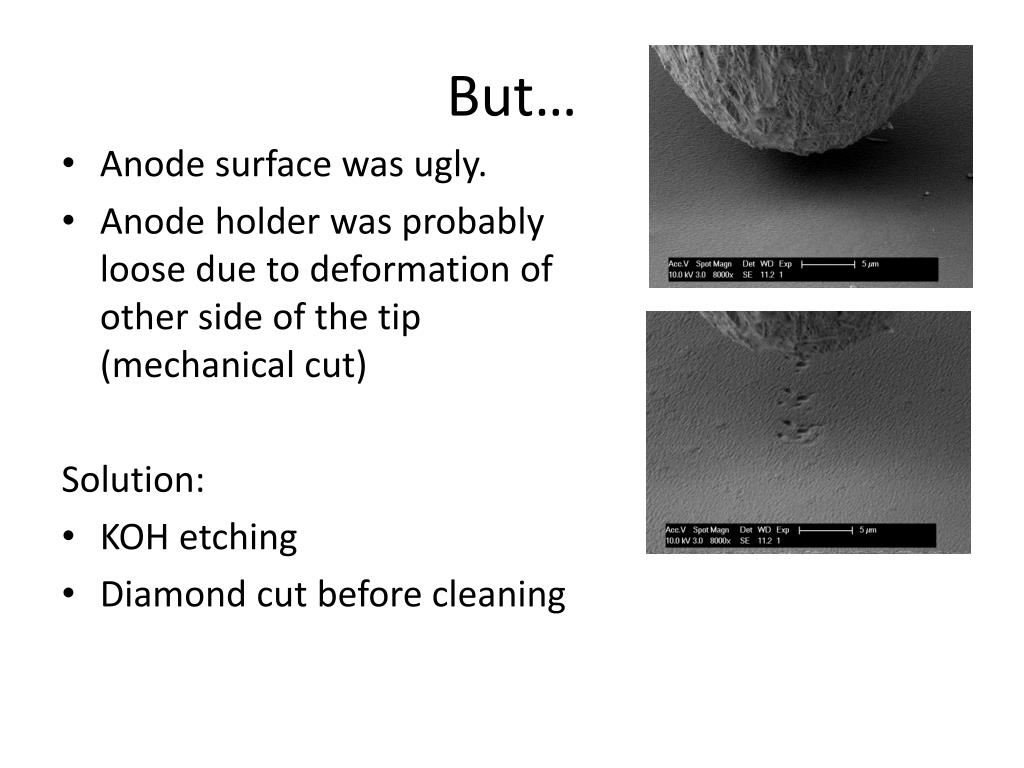

But… • Anode surface was ugly. • Anode holder was probably loose due to deformation of other side of the tip (mechanical cut) Solution: • KOH etching • Diamond cut before cleaning
