  1. Applied Systems Single Screw Chillers STEPLESS CAPACITY CONTROL

  2. Single Screw Chillers STEPLESS CAPACITY CONTROL What is new ? • Stepless Single Screw Compressor • One control platform, pCO² digital controller • PE - Condenser Coils • Max. Protection & Easy Installation • Nomenclature C O N T E N T New chiller ranges : • EWAP 110 ~ 540 MBYNN (EUWA - MZY) • EWAD 120 ~ 340 MBYNN (EUWA - KBXY) • ERAP 110 ~ 170 MBYNN (ER - MZY) • EWWD 120 ~ 540 MBYNN (EUW - MAXY) • EWLD 120 ~ 540 MBYNN (EUWL - MXY)

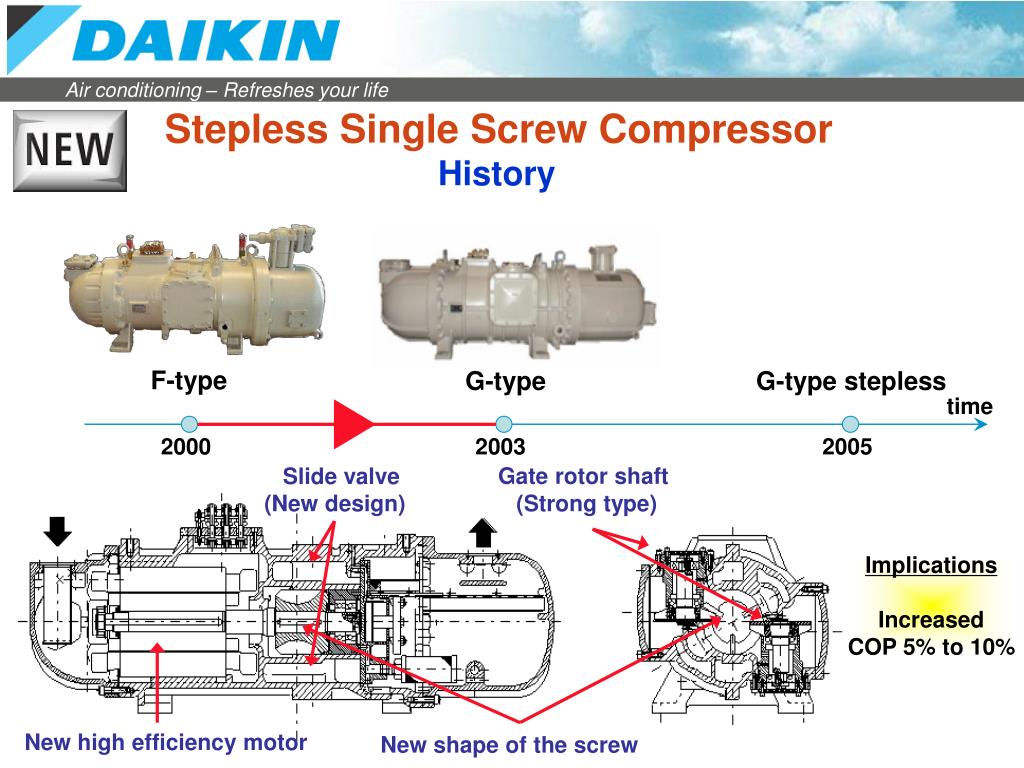

  3. Slide valve (New design) Gate rotor shaft (Strong type) New high efficiency motor New shape of the screw Stepless Single Screw Compressor History F-type G-type G-type stepless time 2000 2003 2005 Implications Increased COP 5% to 10%

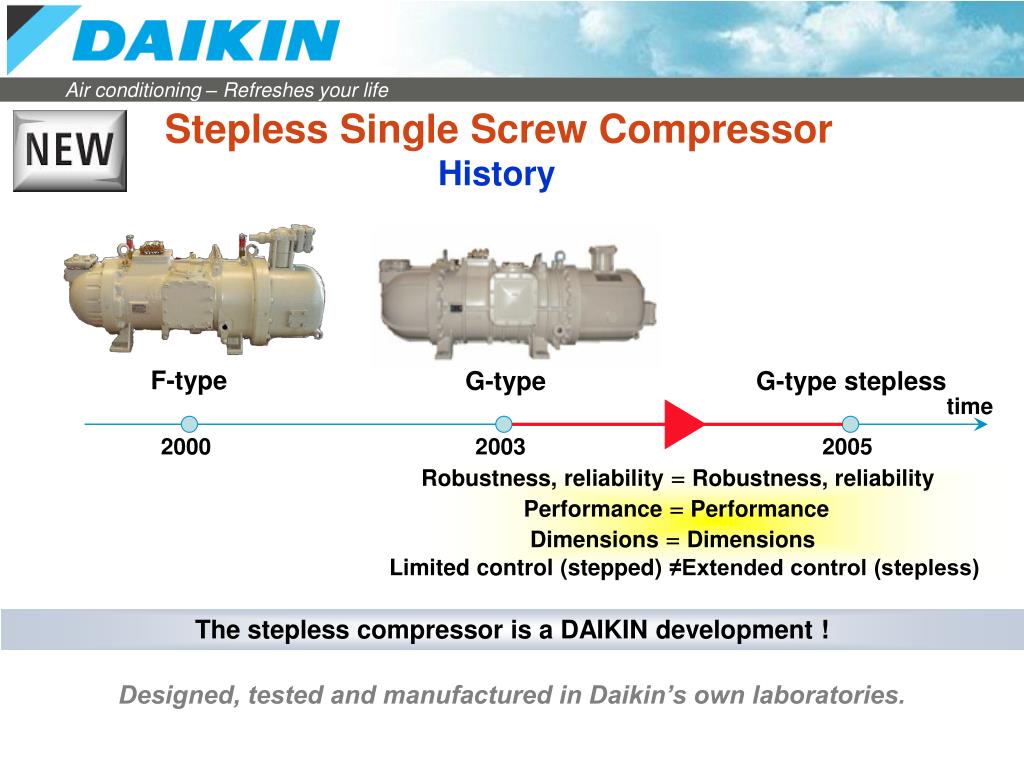

  4. Stepless Single Screw Compressor History F-type G-type G-type stepless time 2000 2003 2005 Robustness, reliability = Robustness, reliability Performance = Performance Dimensions = Dimensions Limited control (stepped) ≠Extended control (stepless) The stepless compressor is a DAIKIN development ! Designed, tested and manufactured in Daikin’s own laboratories.

  5. Stepless Single Screw Compressor Launch of STEPLESS capacity control (Sales launch: August 2005) • Better control of the chiller at partial load • WHAT YOU WANT IS WHAT YOU GET • More accurate control of the temperature • OUTLET CONTROL (+/- 0,5°C) • If water quantity chiller + system ≥ minimum water quantity •  No buffertank required G-type stepless Higher Efficiency Saves the environment’s resources … and nevertheless your own resources DAIKIN compressor = the compressor that you can count on Designed, tested and manufactured in Daikin’s own laboratories.

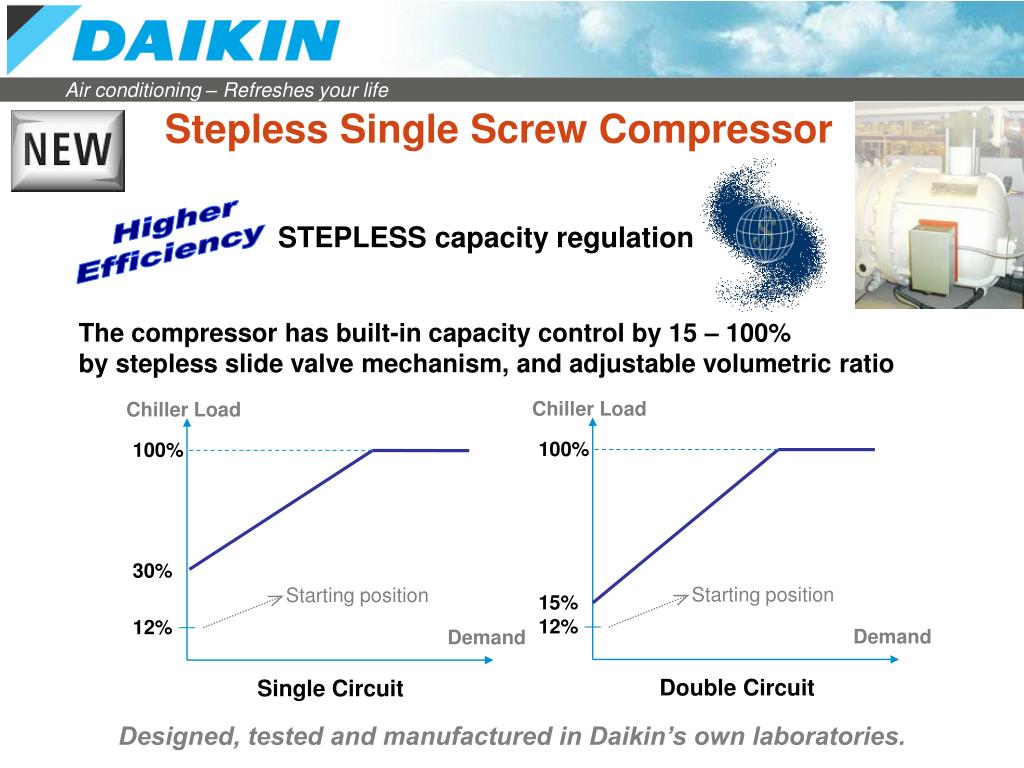

  6. Stepless Single Screw Compressor Higher Efficiency STEPLESS capacity regulation The compressor has built-in capacity control by 15 – 100% by stepless slide valve mechanism, and adjustable volumetric ratio Chiller Load Chiller Load 100% 100% 30% Starting position Starting position 15% 12% 12% Demand Demand Double Circuit Single Circuit Designed, tested and manufactured in Daikin’s own laboratories.

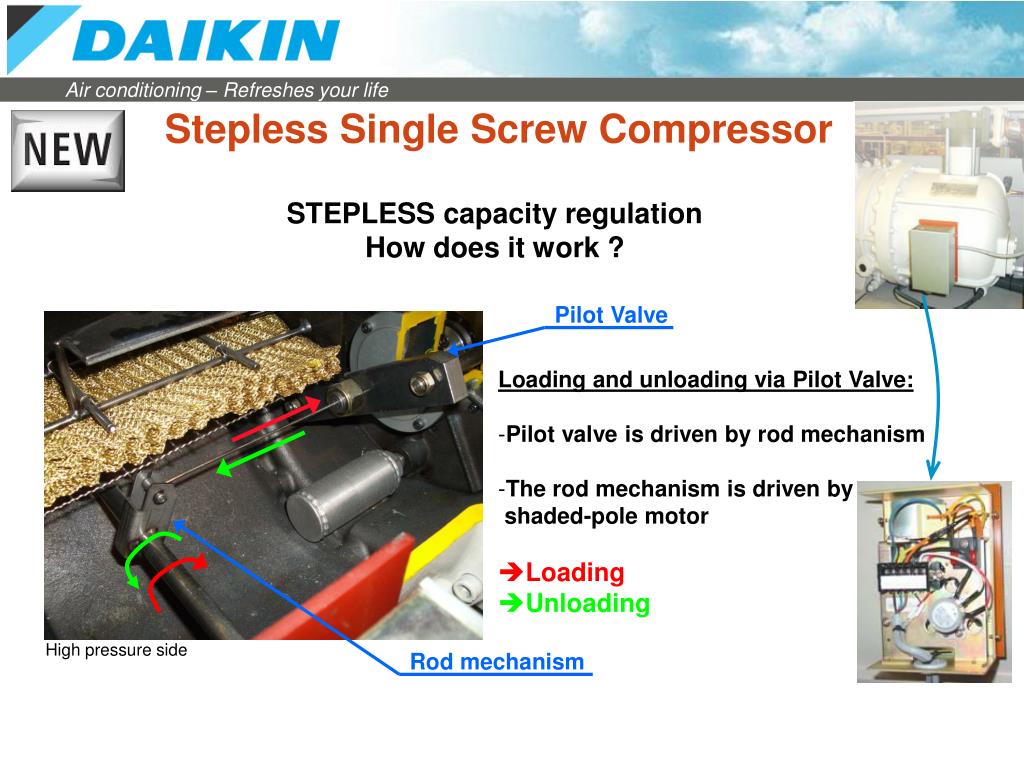

  7. Stepless Single Screw Compressor STEPLESS capacity regulation How does it work ? Pilot Valve • Loading and unloading via Pilot Valve: • Pilot valve is driven by rod mechanism • The rod mechanism is driven by • shaded-pole motor • Loading • Unloading High pressure side Rod mechanism

  8. Stepless Single Screw Compressor STEPLESS capacity regulation How does it work ? Pilot Valve Balancing hole Bleedhole for pilot valve High pressure side Rod mechanism  Loading  Unloading

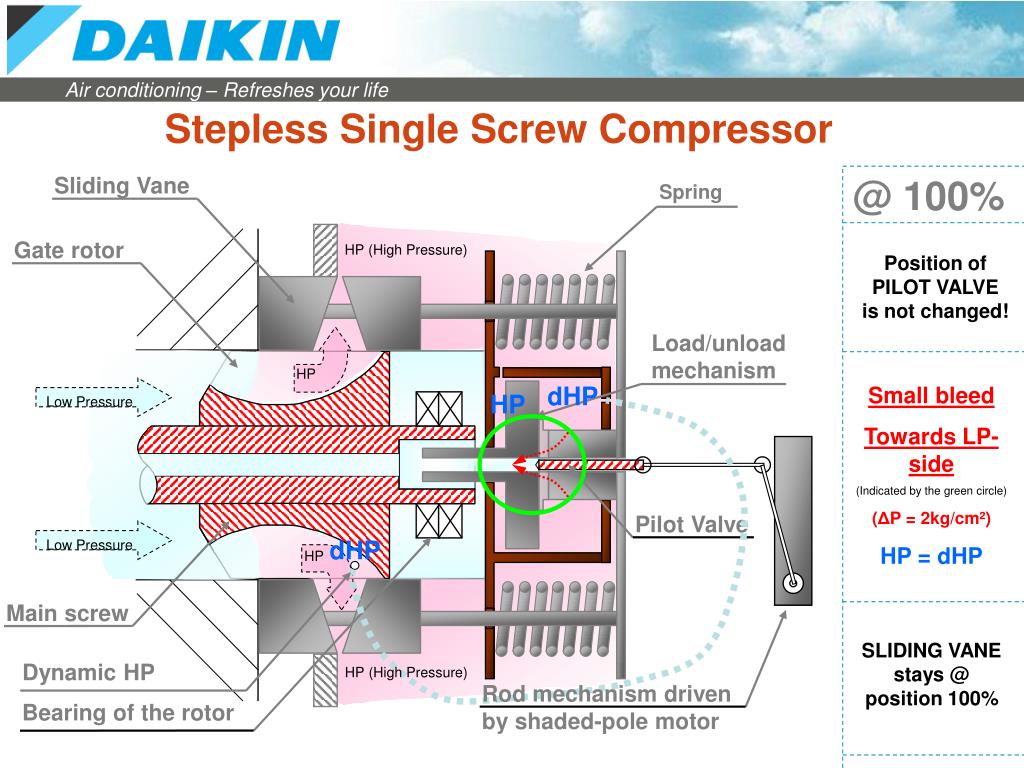

  9. Stepless Single Screw Compressor Sliding Vane @ 100% Spring Gate rotor HP (High Pressure) Position of PILOT VALVE is not changed! Load/unload mechanism HP dHP Small bleed Towards LP-side (Indicated by the green circle) (ΔP = 2kg/cm²) HP = dHP Low Pressure HP Pilot Valve Low Pressure dHP HP Main screw SLIDING VANE stays @ position 100% Dynamic HP HP (High Pressure) Rod mechanism driven by shaded-pole motor Bearing of the rotor

  10. Stepless Single Screw Compressor @ 100% Position of pilot vane moves to right side (towards 90%) Position of PILOT VALVE moves right HP dHP Bigger bleed Towards LP-side HP > dHP Low Pressure HP Low Pressure dHP HP SLIDING VANE moves to right decrease CC Unloading from 100% to 90%

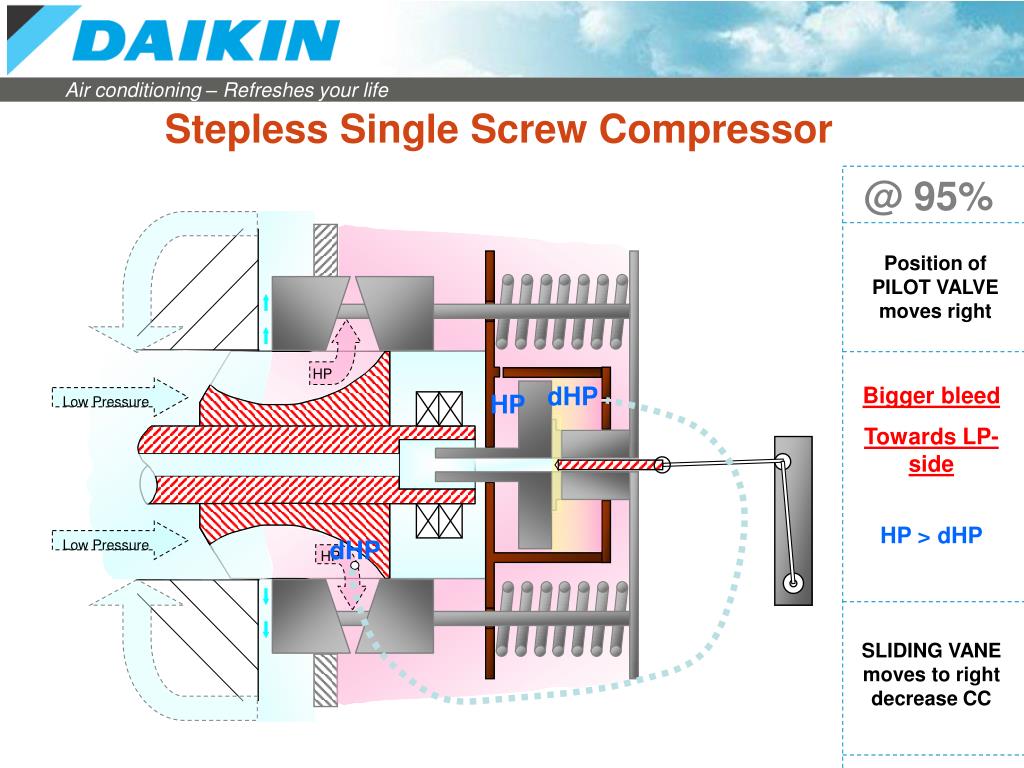

  11. Stepless Single Screw Compressor @ 95% Position of PILOT VALVE moves right HP dHP Bigger bleed Towards LP-side HP > dHP Low Pressure HP Low Pressure dHP HP SLIDING VANE moves to right decrease CC

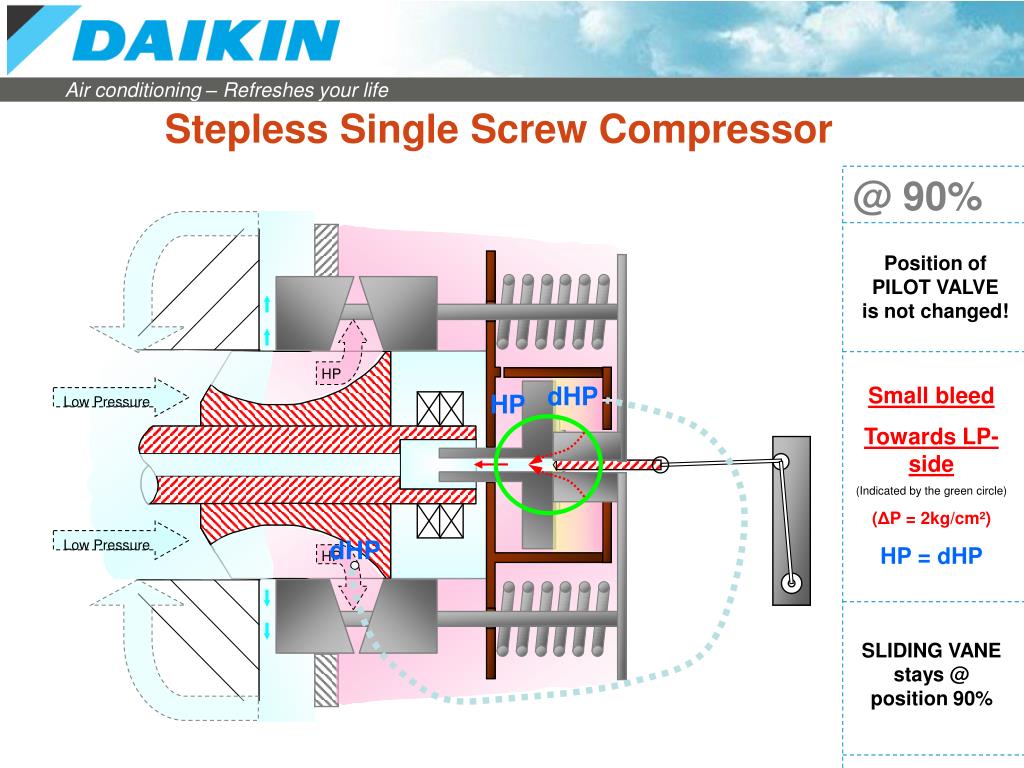

  12. Stepless Single Screw Compressor @ 90% Position of PILOT VALVE is not changed! HP dHP Small bleed Towards LP-side (Indicated by the green circle) (ΔP = 2kg/cm²) HP = dHP Low Pressure HP Low Pressure dHP HP SLIDING VANE stays @ position 90%

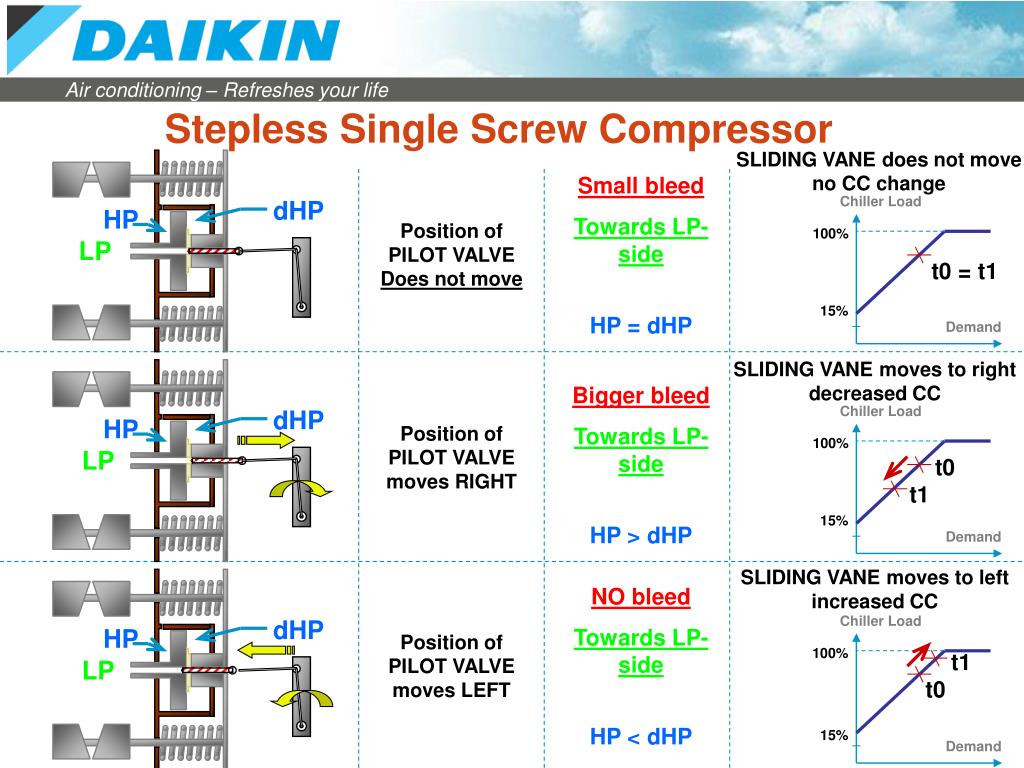

  13. SLIDING VANE does not move no CC change Small bleed Towards LP-side HP = dHP Chiller Load dHP HP 100% LP t0 = t1 15% Demand SLIDING VANE moves to right decreased CC Bigger bleed Towards LP-side HP > dHP Chiller Load dHP HP 100% LP t0 t1 15% Demand SLIDING VANE moves to left increased CC NO bleed Towards LP-side HP < dHP Chiller Load dHP HP 100% t1 t0 LP 15% Demand Stepless Single Screw Compressor Position of PILOT VALVE Does not move Position of PILOT VALVE moves RIGHT Position of PILOT VALVE moves LEFT

  14. One control platform, pCO² digital controller The pCO² gives you stronger control functions … The nerve centre of the Chiller System • Ensures efficient & harmonious operation of unit • Efficient control of the chilled water temperature • Control operating range of unit • Manage safe operation of unit • Provide useful information to the user Features • Schedule time groups (4) • Floating set point according to ambient temp. • Comprehensive control logic for independent free cooling • Load shedding through capacity setback (night setback) • Customized control by programmable input/outputs • D.I.C.N. = Daikin Integrated Chiller Network Combine up to 4 Daikin chillers as if they were 1 unit STANDARD

  15. Better control enables you to use your air conditioning in many more ways … UNIT Remote Controller pCO² - Controller EKRUPC pCO-controller BMS (Building Management System) EKAC200A Gateway RS232/485/422 EKBMSMBA EKBMSBNA

  16. (Aluminum) PE – Condenser Coils All our AIR HEAT EXCHANGER Have a high corrosion resistance that guarantees you a longer operational life and reliability. Polyacryl pre-coated • Change from ‘Chromate Treated’ coils to ‘PE - coated’ coils: • Similar resistance as chromate treated coils • Applied successfully on VRV, Split, Sky-Air, Small Chillers • Company’s quality and environmental policies A) Waffle louvre fins B) Cross fin coil with Hi-X tubes Lubricant layer Hydrophilic layer Colouring & Corrosion proof Corrosion proof layer

  17. Max. Protection and Easy Installation To secure the safety of YOUR installation + EASY INSTALLATION Filter 2 x VICTAULIC JOINTS Delivered as a kit + Perforation diameter = 1mm Supplied standard with units with BPHE Flow Switch Previous New: Factory Mounted Water Sensor

  18. NEW Nomenclature for Chillers ! Machine Type AAA EWA Air-Cooled Chiller C/O EWT Air Cooled Chiller C/O + H/R EWY Air-Cooled Chiller H/P EWC Air-Cooled Chiller Centr. Fan EWW Water-Cooled Chiller EWL Remote Condenser Chiller ERA Air Cooled Condensing unit C/O C/O = Cooling Only H/P = Heat Pump H/R = Heat Recovery

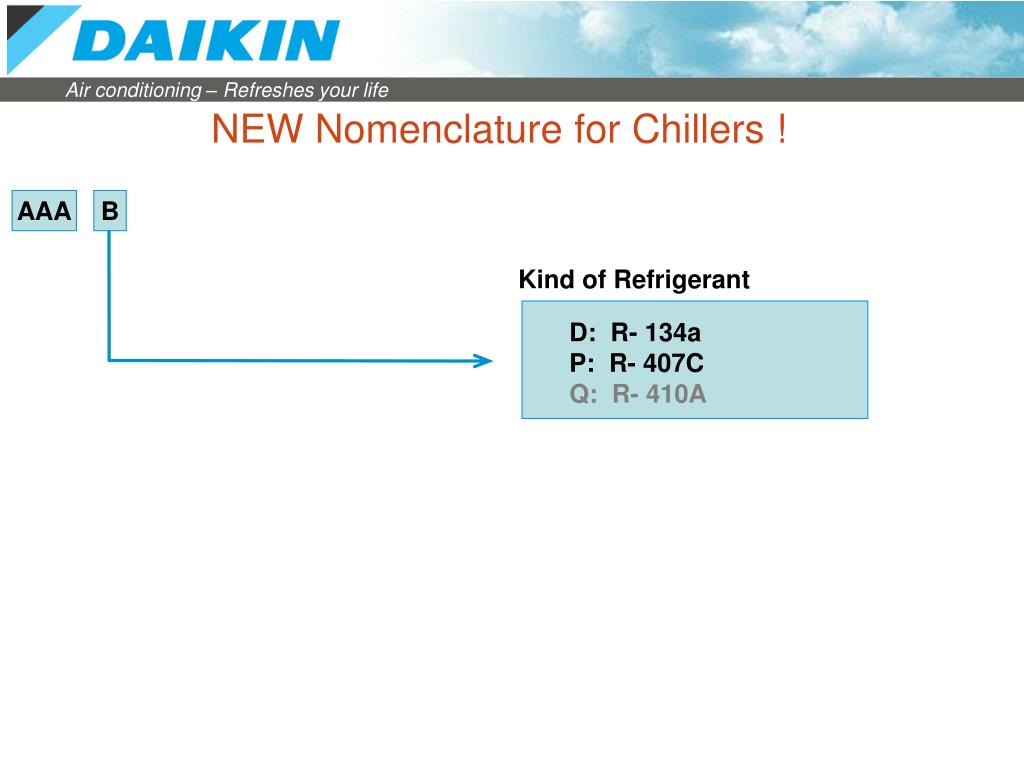

  19. NEW Nomenclature for Chillers ! AAA B Kind of Refrigerant D: R- 134a P: R- 407C Q: R- 410A

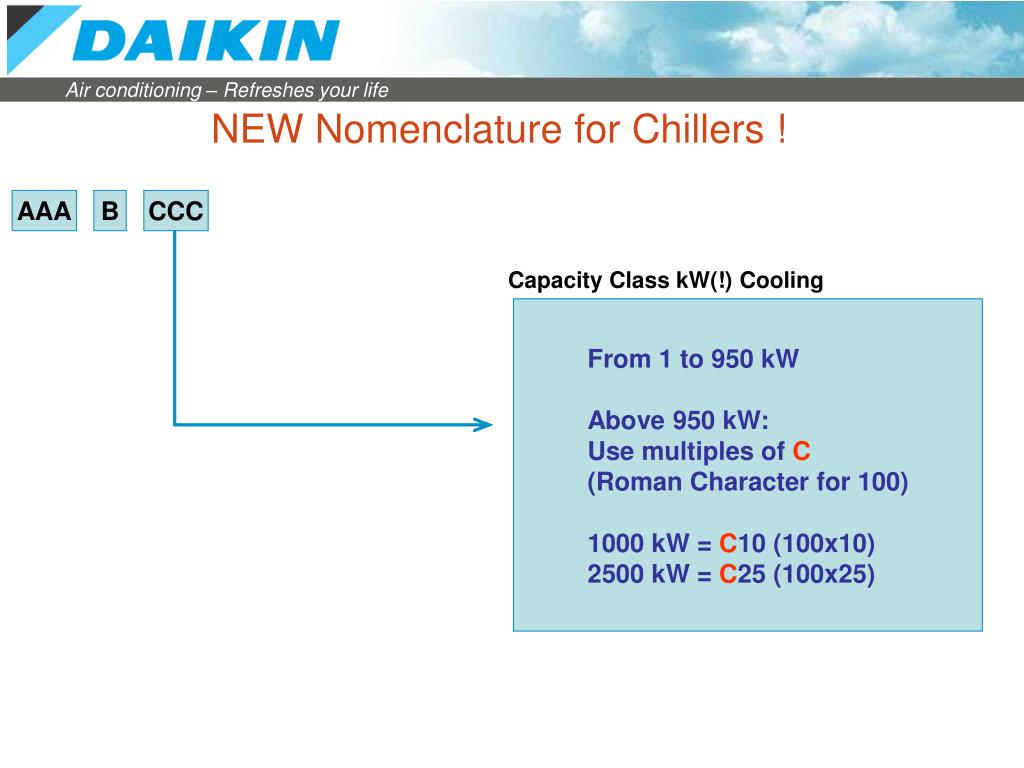

  20. NEW Nomenclature for Chillers ! AAA B CCC Capacity Class kW(!) Cooling From 1 to 950 kW Above 950 kW: Use multiples of C (Roman Character for 100) 1000 kW = C10 (100x10) 2500 kW = C25 (100x25)

  21. NEW Nomenclature for Chillers ! AAA B CCC DD Model Series First Character Letter A,B,… Major Modification Second Character Letter A,B,… Minor Modification

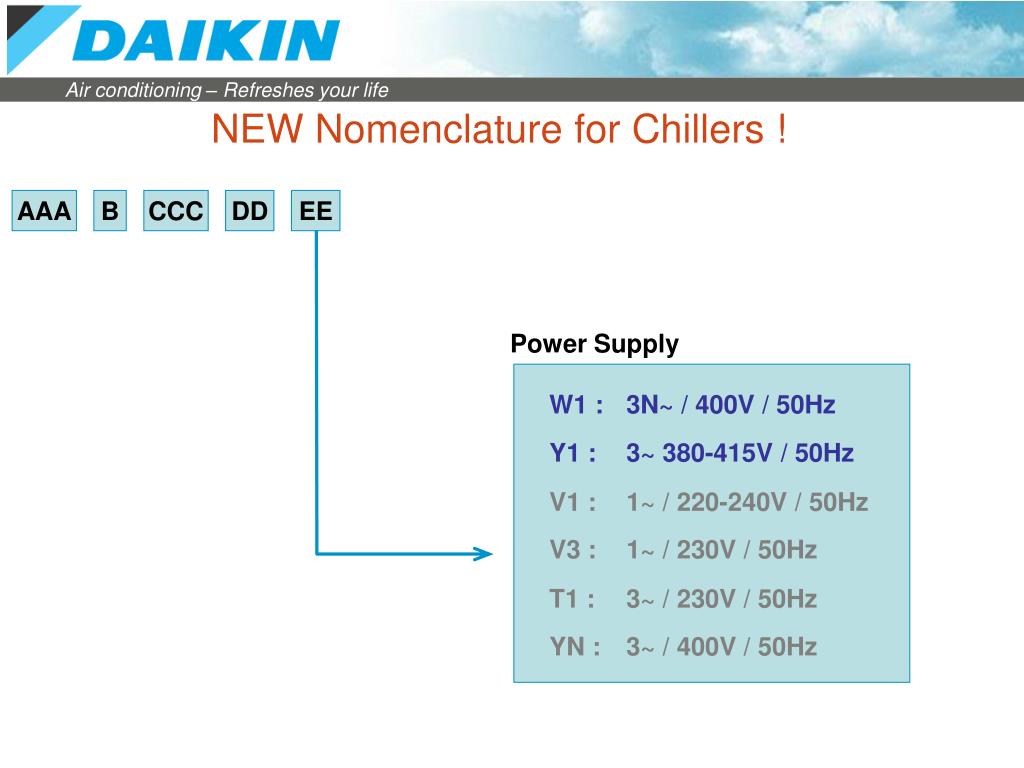

  22. NEW Nomenclature for Chillers ! AAA B CCC DD EE Power Supply W1 : 3N~ / 400V / 50Hz Y1 : 3~ 380-415V / 50Hz V1 : 1~ / 220-240V / 50Hz V3 : 1~ / 230V / 50Hz T1 : 3~ / 230V / 50Hz YN : 3~ / 400V / 50Hz

  23. NEW Nomenclature for Chillers ! AAA B CCC DD EE F Hydraulic Module N : NO Hydraulic components P : Pump B : Buffer Tank + pump M : Modular

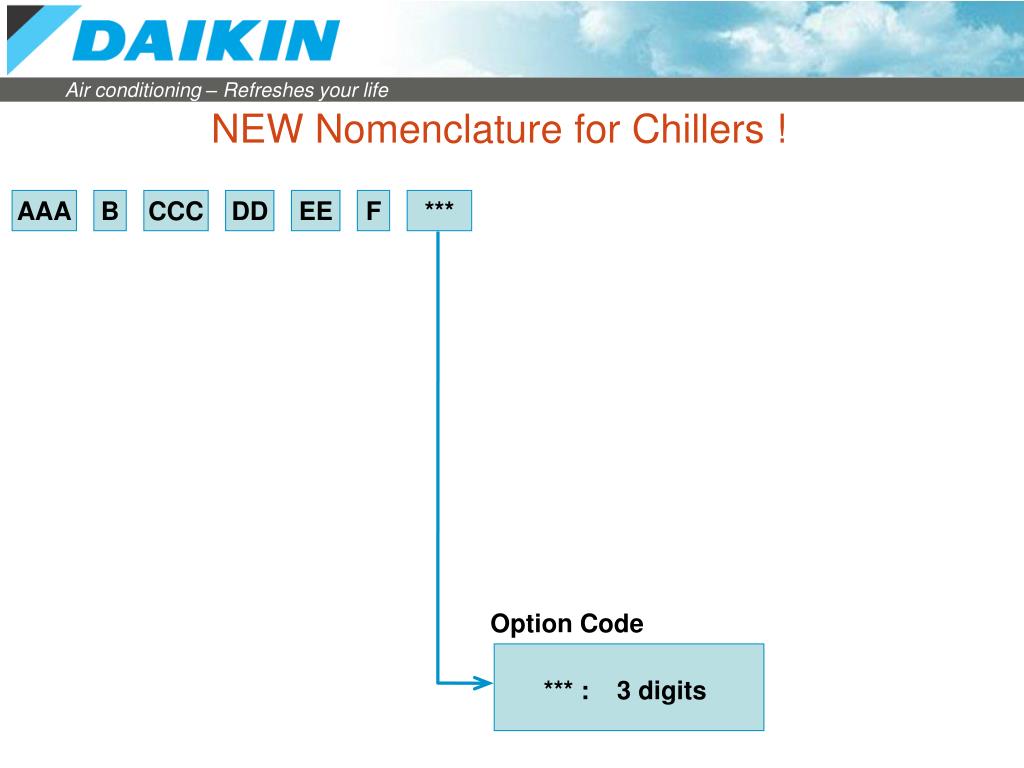

  24. NEW Nomenclature for Chillers ! AAA B CCC DD EE F *** Option Code *** : 3 digits

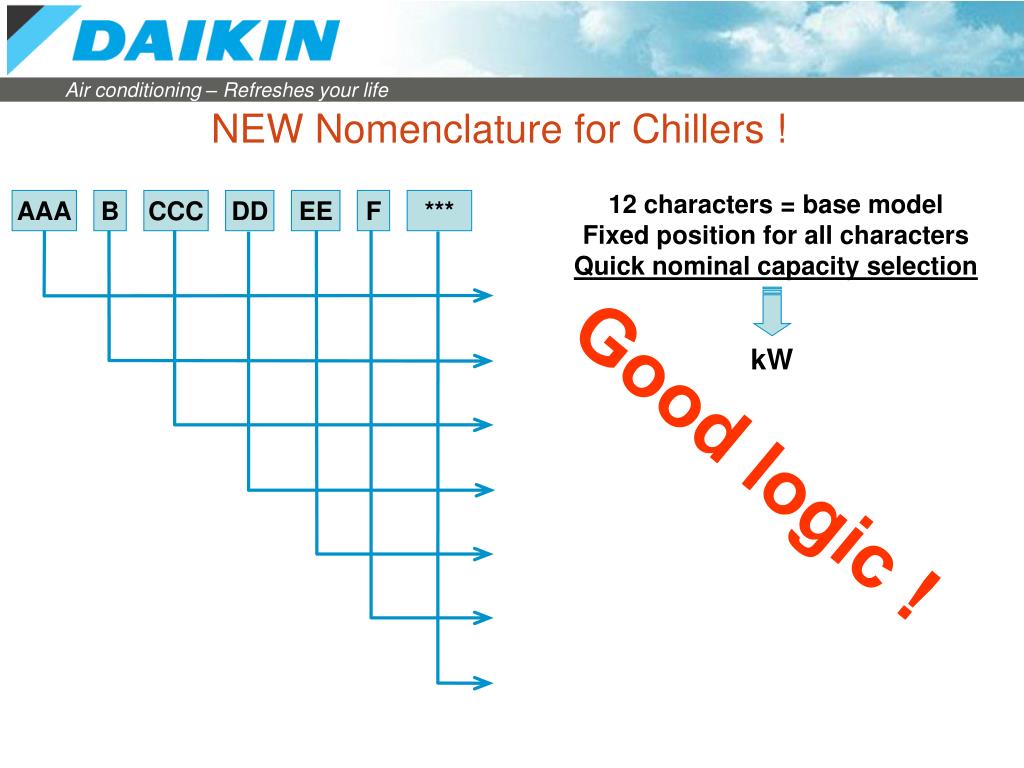

  25. NEW Nomenclature for Chillers ! 12 characters = base model Fixed position for all characters Quick nominal capacity selection kW AAA B CCC DD EE F *** Good logic !

  26. Single Screw Chillers STEPLESS CAPACITY CONTROL What is new ? • Stepless Single Screw Compressor • One control platform, pCO² digital controller • PE - Condenser Coils • Max. Protection & Easy Installation • Nomenclature C O N T E N T New chiller ranges : • EWAP 110 ~ 540 MBYNN (EUWA - MZY) • EWAD 120 ~ 340 MBYNN (EUWA - KBXY) • ERAP 110 ~ 170 MBYNN (ER - MZY) • EWWD 120 ~ 540 MBYNN (EUW - MAXY) • EWLD 120 ~ 540 MBYNN (EUWL - MXY)

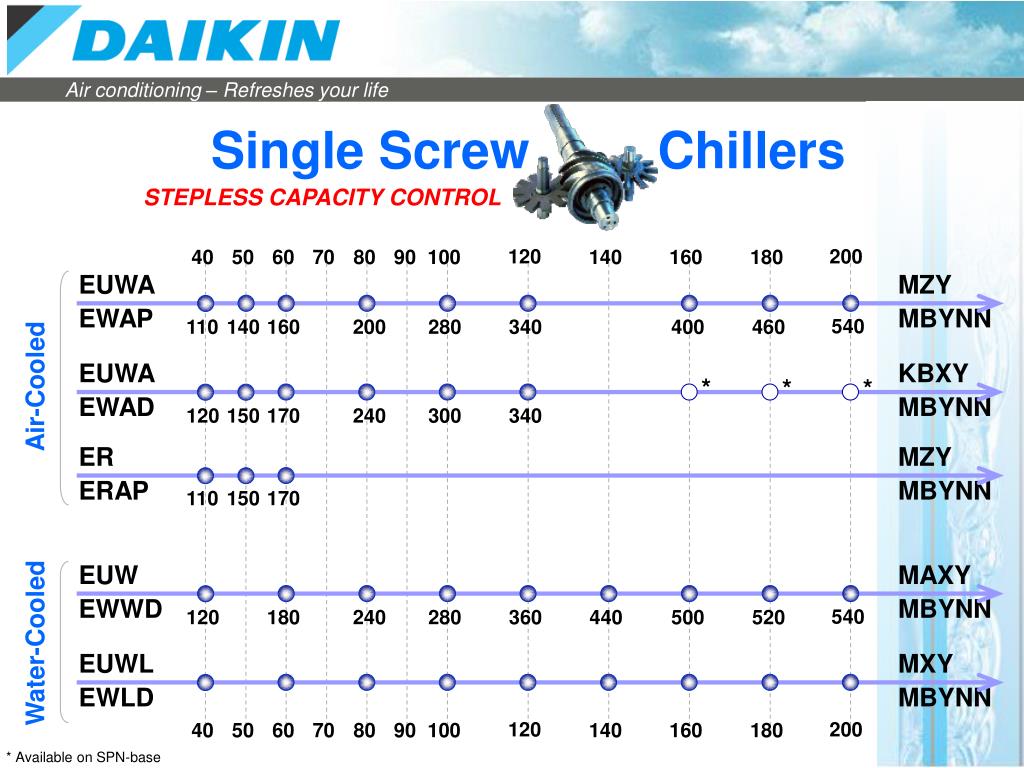

  27. Single Screw Chillers STEPLESS CAPACITY CONTROL 120 200 40 50 60 70 80 90 100 140 160 180 EUWA MZY EWAP MBYNN 540 110 140 160 200 280 340 400 460 Air-Cooled EUWA KBXY EWAD MBYNN * * * 120 150 170 240 300 340 ER MZY ERAP MBYNN 110 150 170 EUW MAXY EWWD MBYNN Water-Cooled 540 120 180 240 280 360 440 500 520 EUWL MXY EWLD MBYNN 120 200 40 50 60 70 80 90 100 140 160 180 * Available on SPN-base

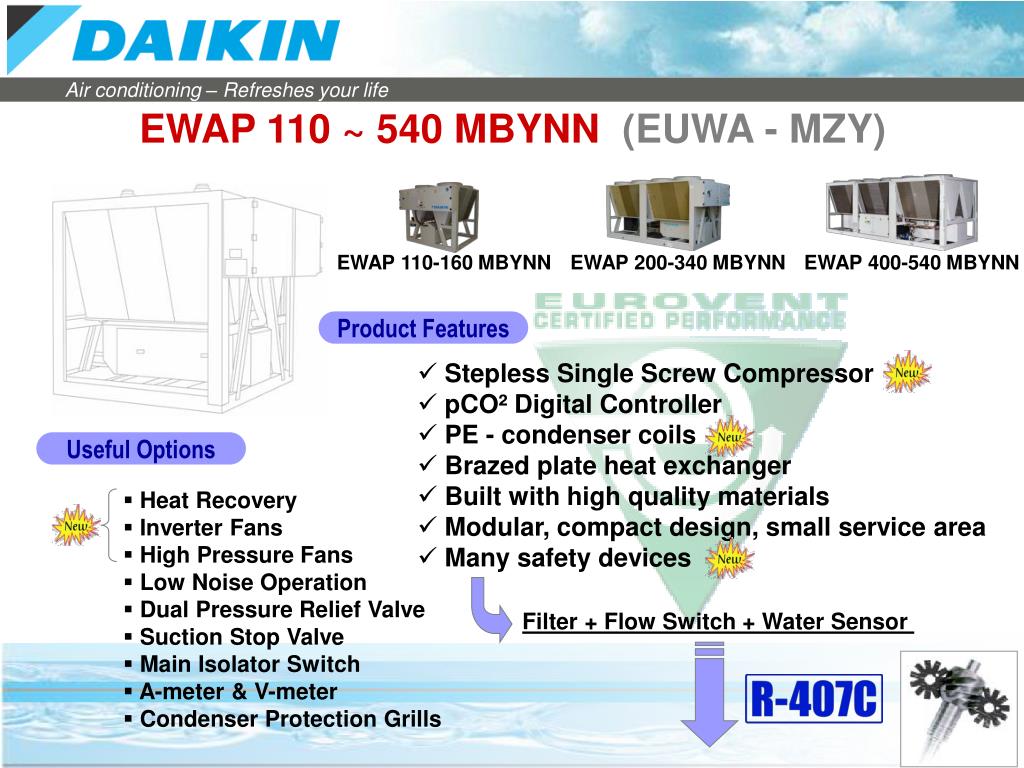

  28. Useful Options • Heat Recovery • Inverter Fans • High Pressure Fans • Low Noise Operation • Dual Pressure Relief Valve • Suction Stop Valve • Main Isolator Switch • A-meter & V-meter • Condenser Protection Grills Filter + Flow Switch + Water Sensor EWAP 110 ~ 540 MBYNN(EUWA - MZY) EWAP 110-160 MBYNN EWAP 200-340 MBYNN EWAP 400-540 MBYNN Product Features • Stepless Single Screw Compressor • pCO² Digital Controller • PE - condenser coils • Brazed plate heat exchanger • Built with high quality materials • Modular, compact design, small service area • Many safety devices

  29. Flow Switch Semi Full Standard Mounting * * NOTE: Only for EWAP 140-160 MBYNN EWAP 110 ~ 540 MBYNN(EUWA - MZY) EWAP 110-160 MBYNN EWAP 200-340 MBYNN EWAP 400-540 MBYNN Product Features • Many safety devices Filter + Flow Switch + Water Sensor Filter: protection PHE NOTE: supplied in a box, not mounted Water Sensor: ensures an accurate temp. indication NOTE: water sensor will be factory mounted

  30. Useful Options • High Pressure Fans • Low Noise Operation • Suction Stop Valve • Dual Pressure Relief Valve • Main Isolator Switch • A-meter & V-meter • Condenser Protection Grills Flow Switch + Water Sensor EWAD 120 ~ 340 MBYNN(EUWA - KBXY) Increased Performance 5 to 10% EWAD 120-170 MBYNN EWAD 240-340 MBYNN Product Features • Stepless Single Screw Compressor • pCO² Digital Controller • PE - condenser coils • Shell & Tube heat exchanger • Built with high quality materials • Modular, compact design, small service area • Many safety devices

  31. EWAD 120 ~ 340 MBYNN(EUWA - KBXY) Increased Performance 5 to 10% EWAD 120-170 MBYNN EWAD 240-340 MBYNN Product Features • Many safety devices Flow Switch Flow Switch + Water Sensor Water Sensor: ensures an accurate temp. indication NOTE: water sensor will be pre-mounted Shell & Tube Full Standard Mounting

  32. Useful Options • Low Noise Operation • Suction Stop Valve • Dual Pressure Relief Valve • Main Isolator Switch • A-meter & V-meter • Condenser Protection Grills Filter + Flow Switch + Water Sensor EWWD 120 ~ 540 MBYNN(EUW – MAXY) EWLD 120 ~ 540 MBYNN(EUWL – MXY) EWWD 120-280 MBYNN EWWD 360-540 MBYNN Product Features • Stepless Single Screw Compressor • pCO² Digital Controller • Brazed plate heat exchangers (evaporator) • Shell & Tube heat exchanger (condenser) • Built with high quality materials • Modular, compact design, small service area • Many safety devices

  33. EWWD 120 ~ 540 MBYNN(EUW – MAXY) EWLD 120 ~ 540 MBYNN(EUWL – MXY) EWWD 120-280 MBYNN EWWD 360-540 MBYNN Product Features • Many safety devices Flow Switch Filter + Flow Switch + Water Sensor (one set per brazed plate heat exchanger) Filter: protection PHE NOTE: supplied in a box, not mounted Water Sensor: ensures an accurate temp. indication NOTE: water sensor will be pre-mounted Semi Not factory mounted

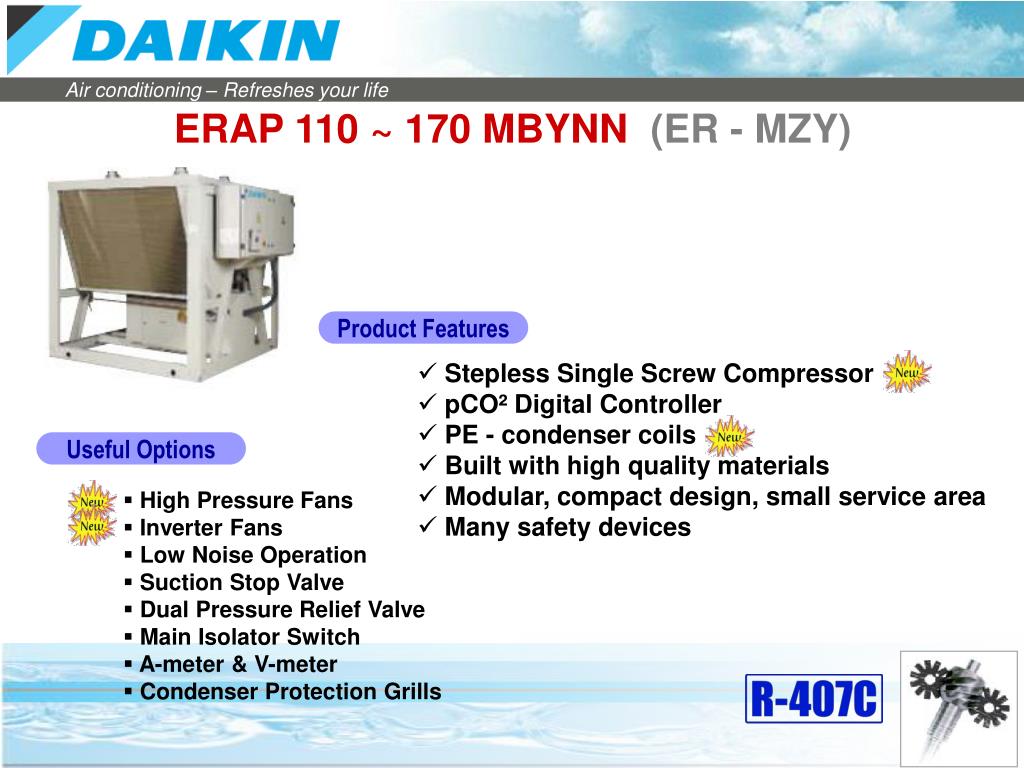

  34. ERAP 110 ~ 170 MBYNN(ER - MZY) Product Features • Stepless Single Screw Compressor • pCO² Digital Controller • PE - condenser coils • Built with high quality materials • Modular, compact design, small service area • Many safety devices Useful Options • High Pressure Fans • Inverter Fans • Low Noise Operation • Suction Stop Valve • Dual Pressure Relief Valve • Main Isolator Switch • A-meter & V-meter • Condenser Protection Grills

  35. Applied Systems Single Screw Chillers STEPLESS CAPACITY CONTROL Thank you for your attention!
