  1. Hidden Automation The Power of GEL Scripting to Enhance Functionality

  2. Topics • Background of GEL • Basic Script Structure • Commonly Used Tags • Hands on exercises with creating GEL Scripts • Best Practices • Real-life Examples • Q&A

  3. Background of GEL • GEL (Generic Execution Language) is a tool you can use to turn XML into executable code. It is based on Jelly, a jakarta.apache.org Commons project. It has been extended and embedded into CA Clarity PPM to enable custom logic to solve business problems. • Additional information can be found in the CA Documentation (CAClarityPPM_XOG_DeveloperGuide_ENU.pdf) and at the Apache Jelly website at http://jakarta.apache.org/commons/jelly/index.html.

  4. GEL Setup • The GEL run-time is packaged with XOG in the XOG client. Once the client is installed, you can use the GEL command in the bin directory of the XOG client to validate and execute GEL scripts. • GEL can also be used within Clarity processes.

  5. Script Structure <gel:script xmlns:core="jelly:core" xmlns:gel="jelly:com.niku.union.gel.GELTagLibrary" xmlns:sql="jelly:sql" xmlns:xsd="http://www.w3.org/2001/XMLSchema"> <!-- CODE GOES HERE --> </gel:script> Header Comment Footer

  6. GEL Tags A GEL script is an executable XML file that is built from qualified elements bound to Java code called tags. Using namespace declarations, tags are organized into tag libraries which are made available in a script. Hello World Example: <gel:script xmlns:core="jelly:core" xmlns:gel="jelly:com.niku.union.gel.GELTagLibrary"> <core:forEach indexVar='i' begin='1' end='3'> <gel:out>Hello World ${i}!</gel:out> </core:forEach> </gel:script> • Note: An entire script always resides within the GEL script tag.

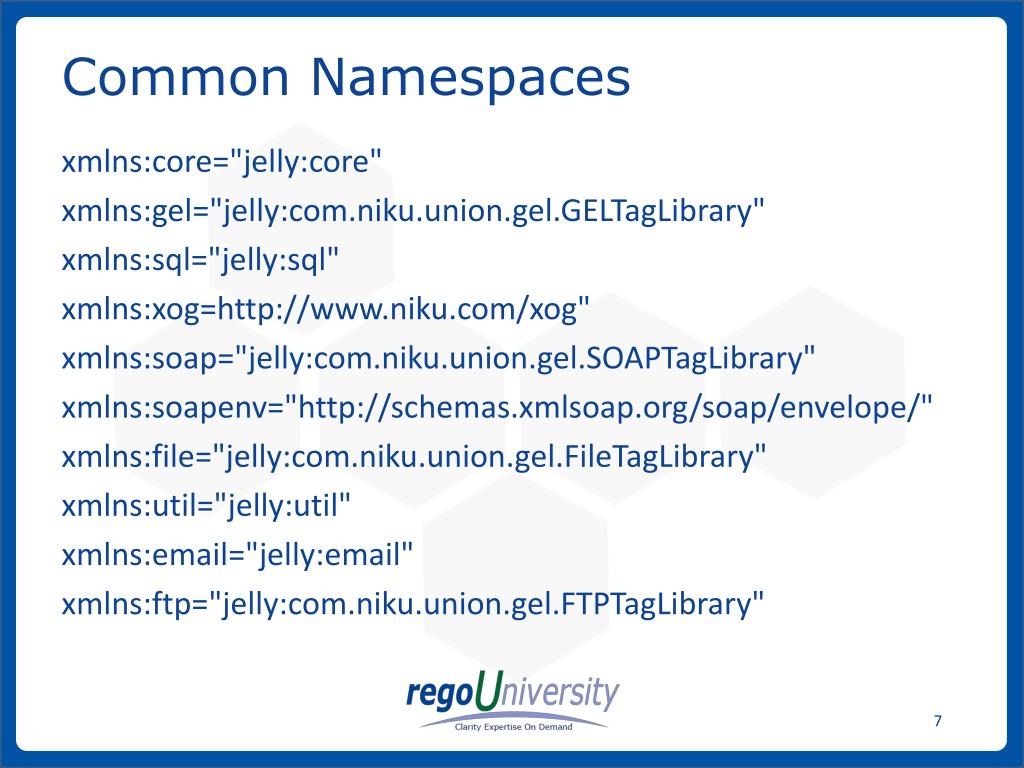

  7. Common Namespaces xmlns:core="jelly:core" xmlns:gel="jelly:com.niku.union.gel.GELTagLibrary" xmlns:sql="jelly:sql" xmlns:xog=http://www.niku.com/xog" xmlns:soap="jelly:com.niku.union.gel.SOAPTagLibrary" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:file="jelly:com.niku.union.gel.FileTagLibrary" xmlns:util="jelly:util" xmlns:email="jelly:email" xmlns:ftp="jelly:com.niku.union.gel.FTPTagLibrary"

  8. Variables Variables are used extensively throughout GEL scripts. Many tags can set variables. An example of a tag that can set variables is core:set. You can use the common syntax ${variable_name} to reference variables. In the Hello World example, 'i' is a variable which is set by the forEach tag and is incremented with each loop. Hello World Example: <gel:script xmlns:core="jelly:core" xmlns:gel="jelly:com.niku.union.gel.GELTagLibrary"> <core:forEach indexVar='i' begin='1' end='3'> <gel:out>Hello World ${i}!</gel:out> </core:forEach> </gel:script>

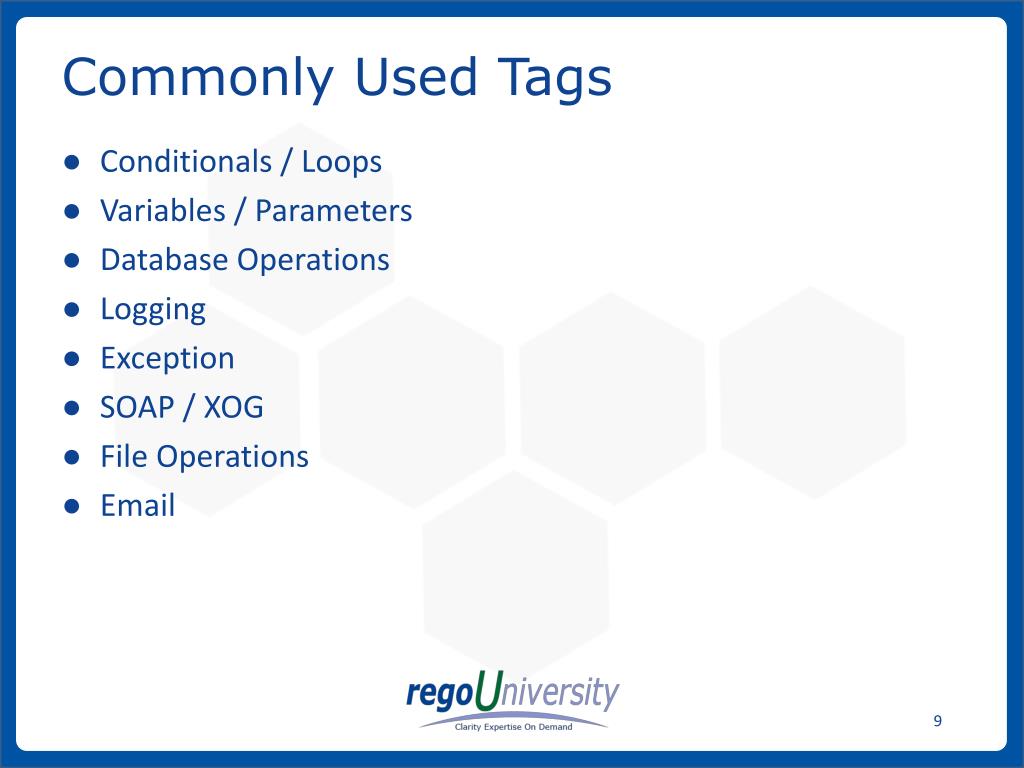

  9. Commonly Used Tags • Conditionals / Loops • Variables / Parameters • Database Operations • Logging • Exception • SOAP / XOG • File Operations • Email

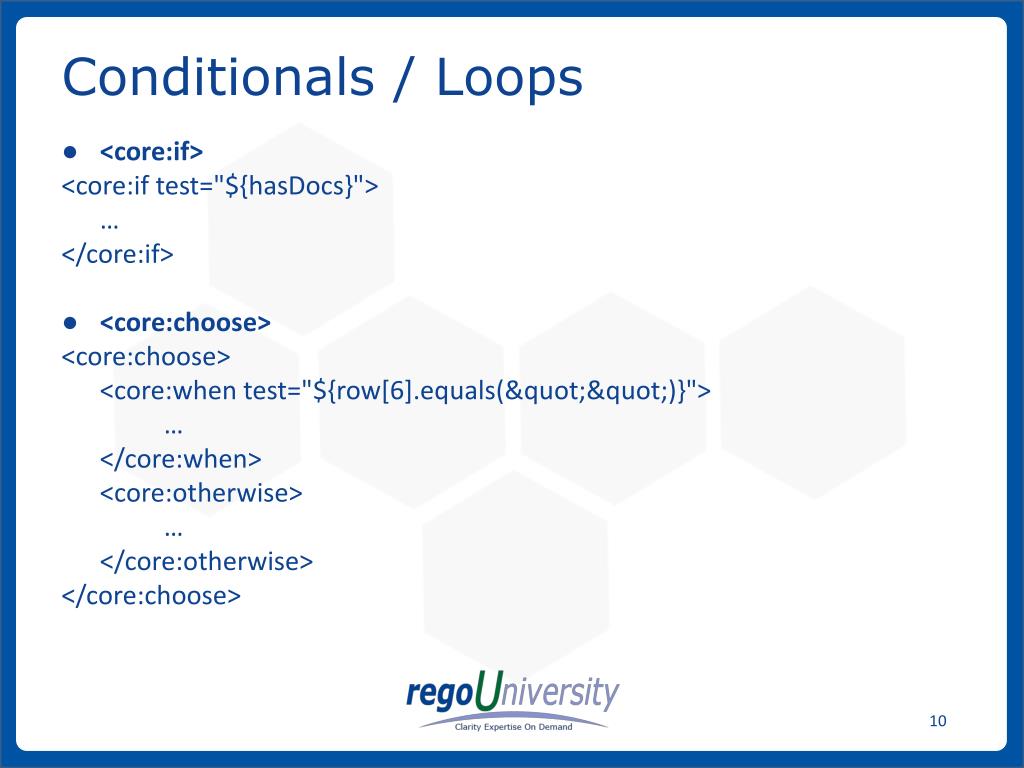

  10. Conditionals / Loops • <core:if> <core:if test="${hasDocs}"> … </core:if> • <core:choose> <core:choose> <core:when test="${row[6].equals(&quot;&quot;)}"> … </core:when> <core:otherwise> … </core:otherwise> </core:choose>

  11. Conditionals / Loops cont. • <core:forEach> <core:forEach trim="true" items="${queryResult.rows}" var="row"> … </core:forEach> • <gel:forEach> <gel:forEach select="$projectsXML/NikuDataBus/Projects/Project" var="currentPrj"> … </gel:forEach> • Note that there are two separate forEach loop types. The core version performs basic FOR looping. If you need to retrieve values from an XML document to use in the loop condition (that is, need to use a SELECT clause), then you need the GEL implementation.

  12. Variables • <gel:parameter> This tag allows values to be passed into a GEL script from a CA Clarity PPM process. Inside the GEL script, you can refer to the parameter as you would any other variable (that is, using the ${variablename} syntax). The optional attribute secure="true" causes CA Clarity PPM to hide the actual value in the user interface with asterisks (*). <gel:parameter var="XOGUsername" default="admin"/> <gel:parameter var="XOGPassword" default="password" secure="true"/>

  13. Variables cont. • <core:set> This tag is used to set basic variables; that is, ones that do not need to be extracted from an XML document. Refer to the variable using the ${variablename} syntax. <core:set value="1" var="yes"/> <gel:out>${yes}</gel:out> You can do some basic math on the variable: <gel:out>${yes+2}</gel:out> • <gel:set> Use this tag when it is necessary to extract the value of the variable from an XML document. This tag differs from the <core:set> tag in that it takes a select attribute which in turn requires an XPath statement. If you are unfamiliar with XPath, think of it as a hierarchy mapping of the XML document. In the example below, the select statement points the way to the Statistics node of a XOG output file. <gel:set asString="true" select="$result//XOGOutput/Statistics" var="xogStats"/>

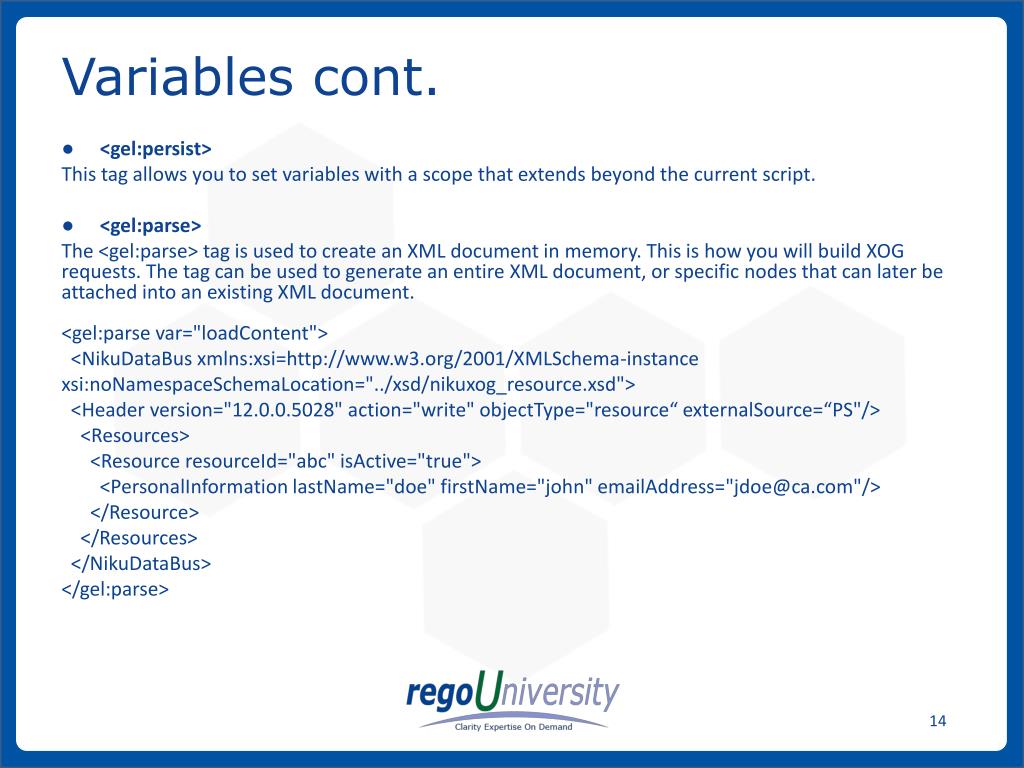

  14. Variables cont. • <gel:persist> This tag allows you to set variables with a scope that extends beyond the current script. • <gel:parse> The <gel:parse> tag is used to create an XML document in memory. This is how you will build XOG requests. The tag can be used to generate an entire XML document, or specific nodes that can later be attached into an existing XML document. <gel:parse var="loadContent"> <NikuDataBus xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance xsi:noNamespaceSchemaLocation="../xsd/nikuxog_resource.xsd"> <Header version="12.0.0.5028" action="write" objectType="resource“ externalSource=“PS"/> <Resources> <Resource resourceId="abc" isActive="true"> <PersonalInformation lastName="doe" firstName="john" emailAddress="jdoe@ca.com"/> </Resource> </Resources> </NikuDataBus> </gel:parse>

  15. Built-in Parameters Custom Action GEL scripts associated with processes have the following parameters available to them: • Object instance ID If no object is associated with the process, the ID is -1. Otherwise the ${gel_objectInstanceId} parameter contains the object instance ID. • Process ID ${gel_processId} is the process identifier; all instances of this process share this identifier. • Process instance ID ${gel_processInstanceId} is the process instance identifier; all instances have a unique value. • All built-in parameters have a "gel_" prefix and are of data type - numeric.

  16. Case Sensitive Issues Information contained within GEL tags is case sensitive. For example, if you declare a variable as follows: <core:set var="v_ProjectID">PRJ-123456</core:set> Then reference the variable as follows: <gel:out>${v_projectid}</gel:out> This will not output PRJ-123456. However, this will not cause an actual error to occur, so you can’t “catch” this error.

  17. Database Operations • Datasources • SQL Queries • SQL Updates • SQL Bind Variables / Parameters • Transactions

  18. Datasources There are a couple of methods you can use within GEL to connect to your Clarity database. The recommended method is to use: <gel:setDataSource/> The tag takes the database id attribute as follows: <gel:setDataSource dbId="Niku" [var="clarityDS"]/> The above tag takes the connection properties (including password) from Clarity’s properties (set in the CSA). Niku, in the above example, is the ID of the default internal Clarity database. If you create additional external database definitions, you can reference them in the same manner. For example, if you added a second database connection definition called “ORA-FIN” you could reference it as follows: <gel:setDataSource dbId="ORA-FIN"/>

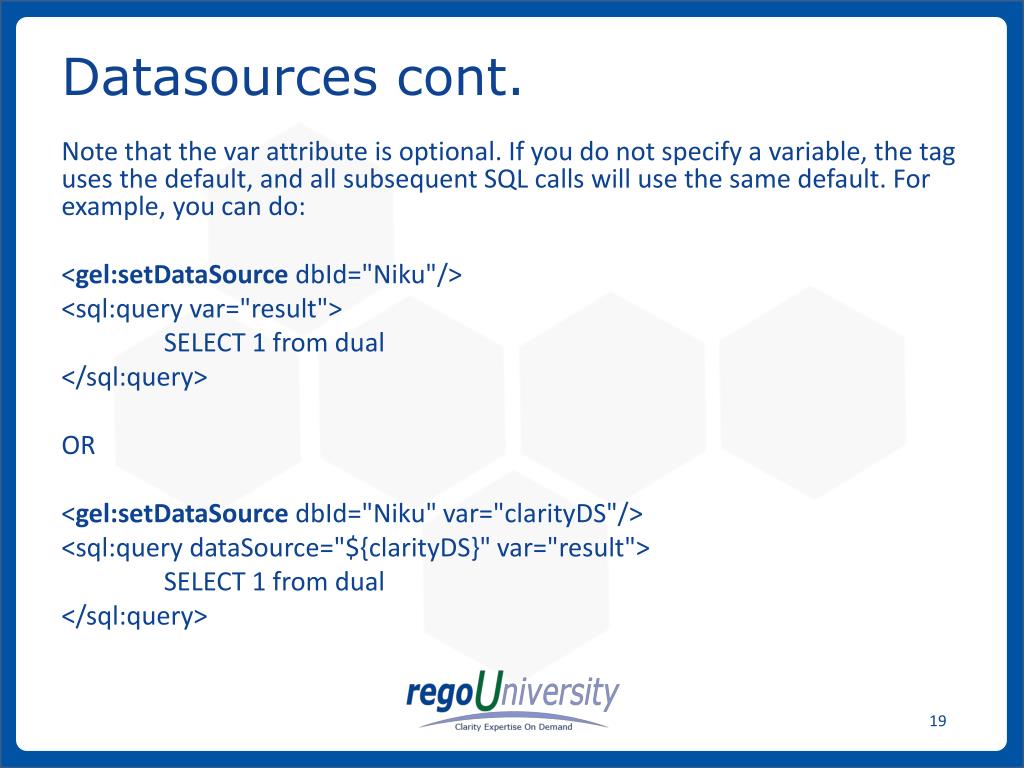

  19. Datasources cont. Note that the var attribute is optional. If you do not specify a variable, the tag uses the default, and all subsequent SQL calls will use the same default. For example, you can do: <gel:setDataSource dbId="Niku"/> <sql:query var="result"> SELECT 1 from dual </sql:query> OR <gel:setDataSource dbId="Niku" var="clarityDS"/> <sql:query dataSource="${clarityDS}" var="result"> SELECT 1 from dual </sql:query>

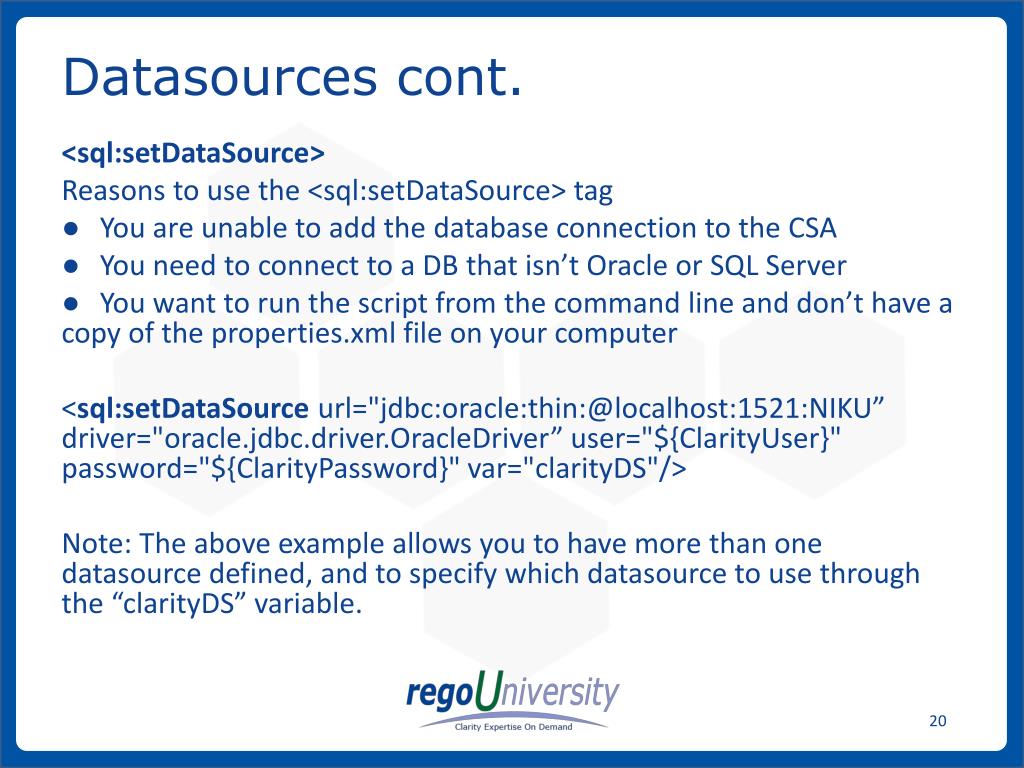

  20. Datasources cont. <sql:setDataSource> Reasons to use the <sql:setDataSource> tag • You are unable to add the database connection to the CSA • You need to connect to a DB that isn’t Oracle or SQL Server • You want to run the script from the command line and don’t have a copy of the properties.xml file on your computer <sql:setDataSource url="jdbc:oracle:thin:@localhost:1521:NIKU” driver="oracle.jdbc.driver.OracleDriver” user="${ClarityUser}" password="${ClarityPassword}" var="clarityDS"/> Note: The above example allows you to have more than one datasource defined, and to specify which datasource to use through the “clarityDS” variable.

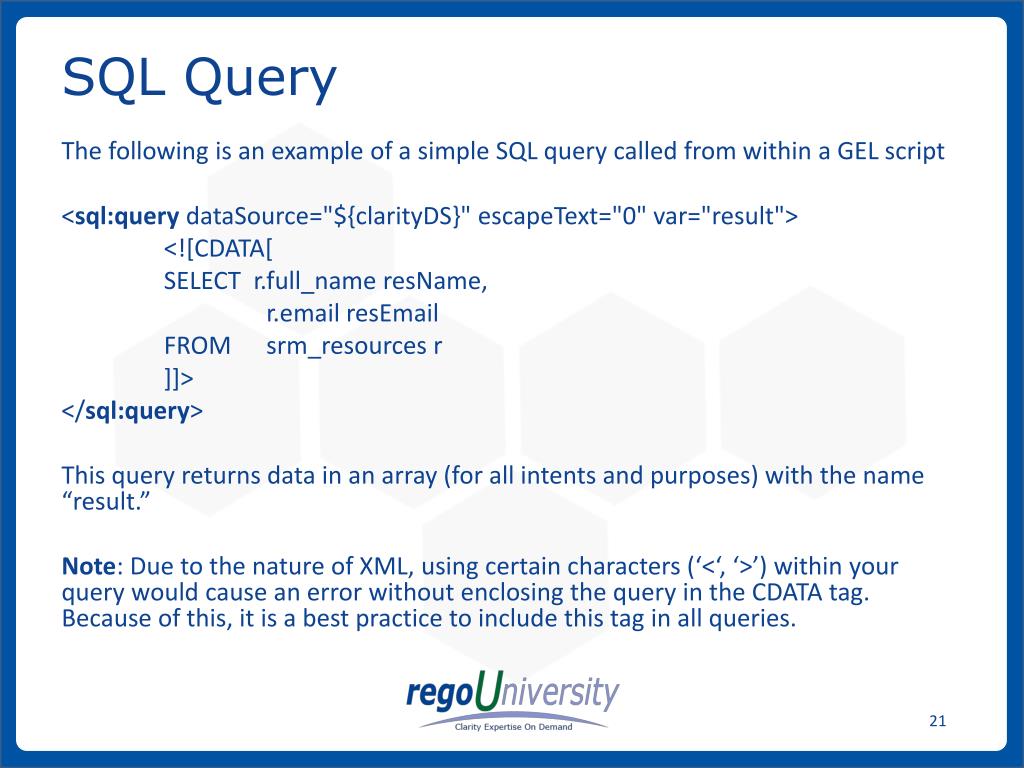

  21. SQL Query The following is an example of a simple SQL query called from within a GEL script <sql:query dataSource="${clarityDS}" escapeText="0" var="result"> <![CDATA[ SELECT r.full_name resName, r.email resEmail FROM srm_resources r ]]> </sql:query> This query returns data in an array (for all intents and purposes) with the name “result.” Note: Due to the nature of XML, using certain characters (‘<‘, ‘>’) within your query would cause an error without enclosing the query in the CDATA tag. Because of this, it is a best practice to include this tag in all queries.

  22. SQL Query cont. You can then access the data in the “result” array using the <core:forEach> tag. There are a couple of different ways to do this: <!-- By Index --> <core:forEach trim="true" items="${result.rowsByIndex}" var="row"> <gel:out>Resource Name: ${row[0]}</gel:out> </core:forEach> <!-- By Column Name (Preferred Method) --> <core:forEach trim="true" items="${result.rows}" var="row"> <gel:out>Resource Name: ${row.resName}</gel:out> </core:forEach> Note: When possible, avoid setting a bunch of variables with the results of the query.

  23. SQL Update Often times processes require updating the values of specific attributes. One of the ways to do this is with a SQL Update statement. Keep in mind the following when performing direct database updates • Generally speaking, it is best to avoid Insert statements – these are best suited for XOG • Direct database updates will not trigger a process to start – XOG updates typically will trigger processes to start • Avoid updating OOTB tables when possible – using XOG will ensure all Clarity business rules are followed • It is generally safe to update custom attributes with a SQL update. These are typically found in tables beginning with odf_ca • Extra caution should also be used within On-demand environments

  24. SQL Update cont. Example <sql:update dataSource="${clarityDS}" escapeText="0" var="updateCnt"> <![CDATA[ UPDATE odf_ca_project ocp SET ocp.rego_appr_date = sysdate WHERE ocp.id = ${gel_objectInstanceId} ]]> </sql:update> The variable ${updateCnt} will contain the number of rows that the update statement affects Note: Using CDATA tags in update statements is also preferred.

  25. SQL Bind Variables / Parameters Many times SQL statements will include variables that are passed in to the statement. It is best to set these up as parameters within the SQL Statement. This serves a couple of purposes: • Ensures data types are correct • Prevents SQL injection • Allows reuse of SQL statements for performance gains Example: <sql:update dataSource="${clarityDS}" escapeText="0" var="updateCnt"> <![CDATA[ UPDATE odf_ca_project ocp SET ocp.rego_appr_date = sysdate, ocp.rego_resource = ? WHERE ocp.id = ? ]]> <sql:param value="${row.resourceId}"/> <sql:param value="${gel_objectInstanceId}"/> </sql:update> Note: You must have a <sql:param> tag for each ? in the SQL statement, even if they are using the same value. The parameters also must be placed in the order that they appear in the statement.

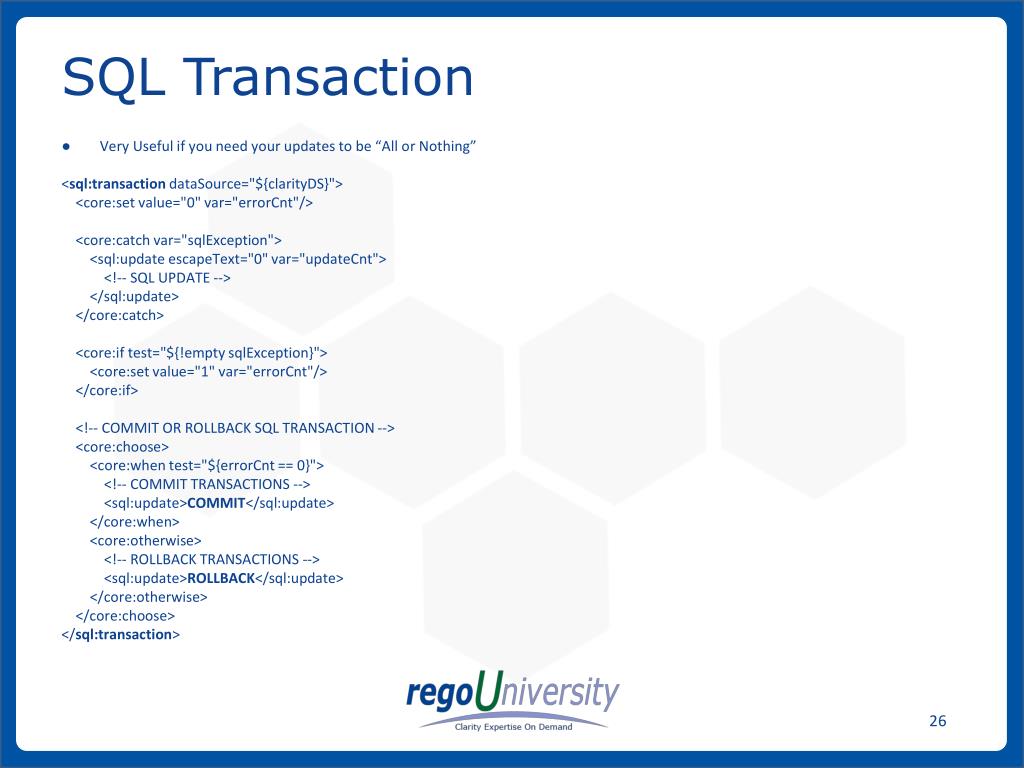

  26. SQL Transaction • Very Useful if you need your updates to be “All or Nothing” <sql:transaction dataSource="${clarityDS}"> <core:set value="0" var="errorCnt"/> <core:catch var="sqlException"> <sql:update escapeText="0" var="updateCnt"> <!-- SQL UPDATE --> </sql:update> </core:catch> <core:if test="${!empty sqlException}"> <core:set value="1" var="errorCnt"/> </core:if> <!-- COMMIT OR ROLLBACK SQL TRANSACTION --> <core:choose> <core:when test="${errorCnt == 0}"> <!-- COMMIT TRANSACTIONS --> <sql:update>COMMIT</sql:update> </core:when> <core:otherwise> <!-- ROLLBACK TRANSACTIONS --> <sql:update>ROLLBACK</sql:update> </core:otherwise> </core:choose> </sql:transaction>

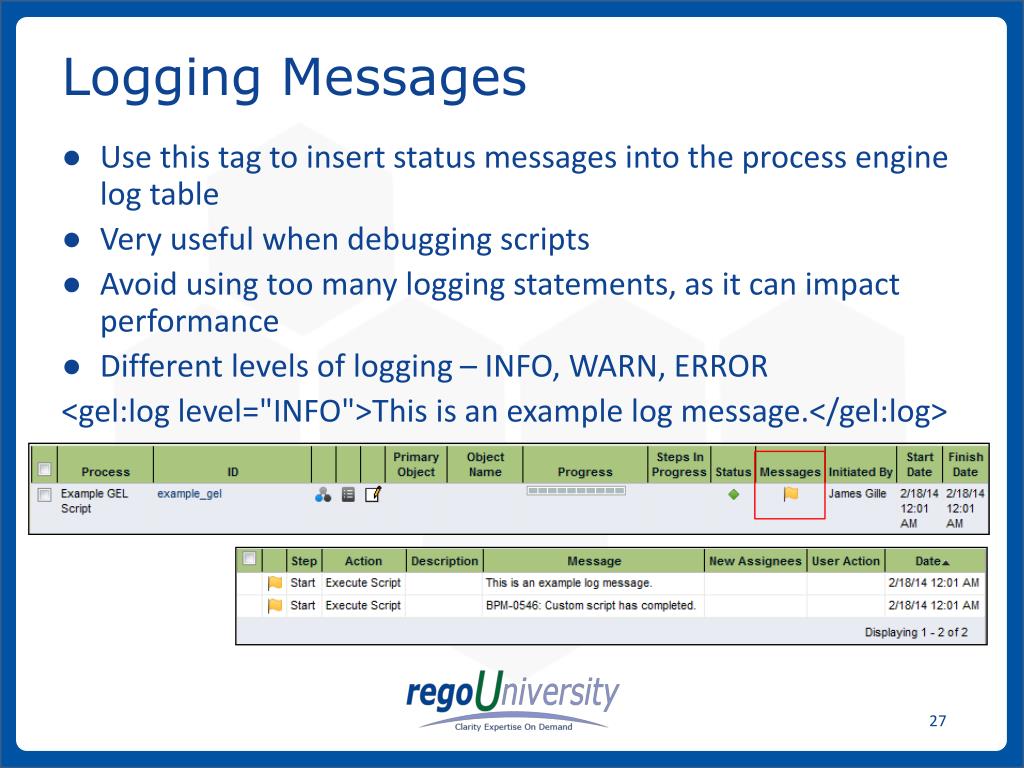

  27. Logging Messages • Use this tag to insert status messages into the process engine log table • Very useful when debugging scripts • Avoid using too many logging statements, as it can impact performance • Different levels of logging – INFO, WARN, ERROR <gel:log level="INFO">This is an example log message.</gel:log>

  28. Exceptions Use the GEL fault-handling tags to catch exceptions and exit gracefully when a process failure occurs. Use the <core:catch> tag to capture exceptions into a variable. Outside of the catch tags, you can check the variable and write it to the console. Example: <core:catch var="sqlException"> <sql:query dataSource="${clarityDS}" escapeText="0" var="result"> <![CDATA[ SELECT r.id, FROM srm_resources r ]]> </sql:query> </core:catch> <core:if test="${!empty sqlException}"> <gel:log level="ERROR">Exception: ${sqlException}</gel:log> </core:if>

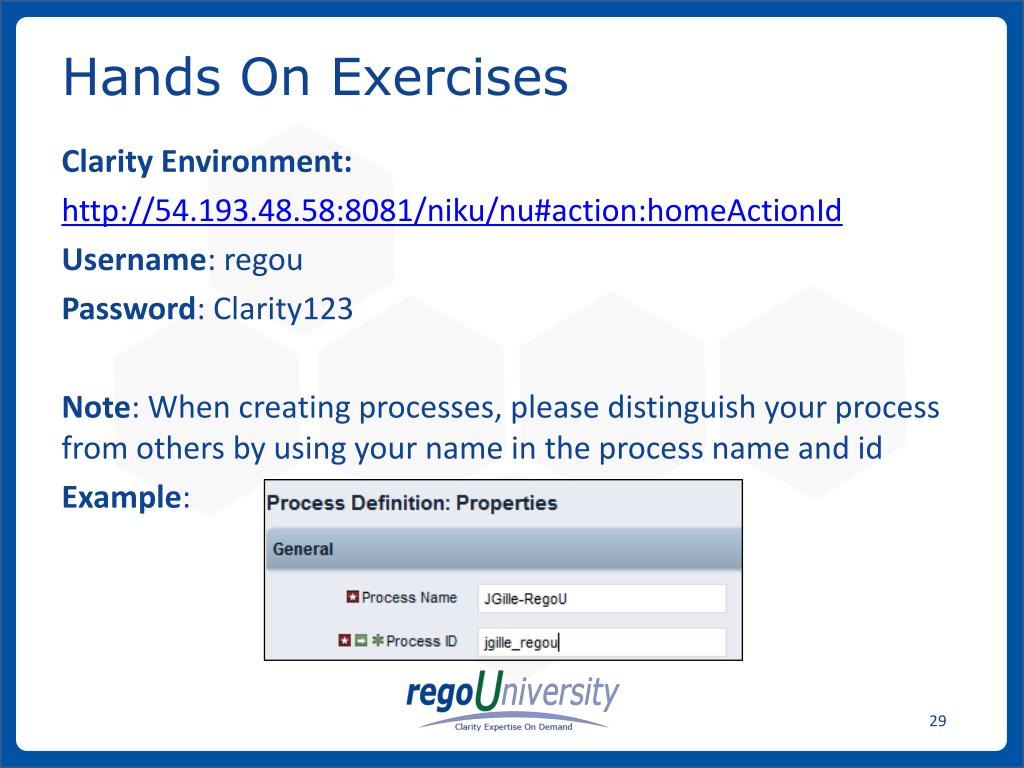

  29. Hands On Exercises Clarity Environment: http://54.193.48.58:8081/niku/nu#action:homeActionId Username: regou Password: Clarity123 Note: When creating processes, please distinguish your process from others by using your name in the process name and id Example:

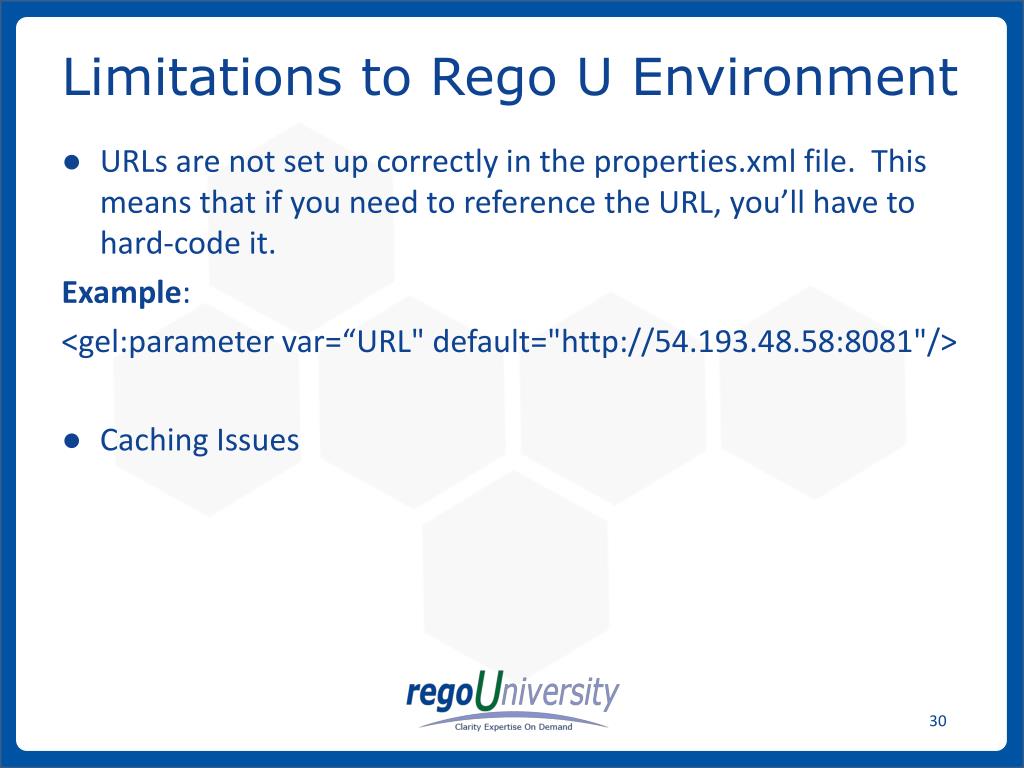

  30. Limitations to Rego U Environment • URLs are not set up correctly in the properties.xml file. This means that if you need to reference the URL, you’ll have to hard-code it. Example: <gel:parameter var=“URL" default="http://54.193.48.58:8081"/> • Caching Issues

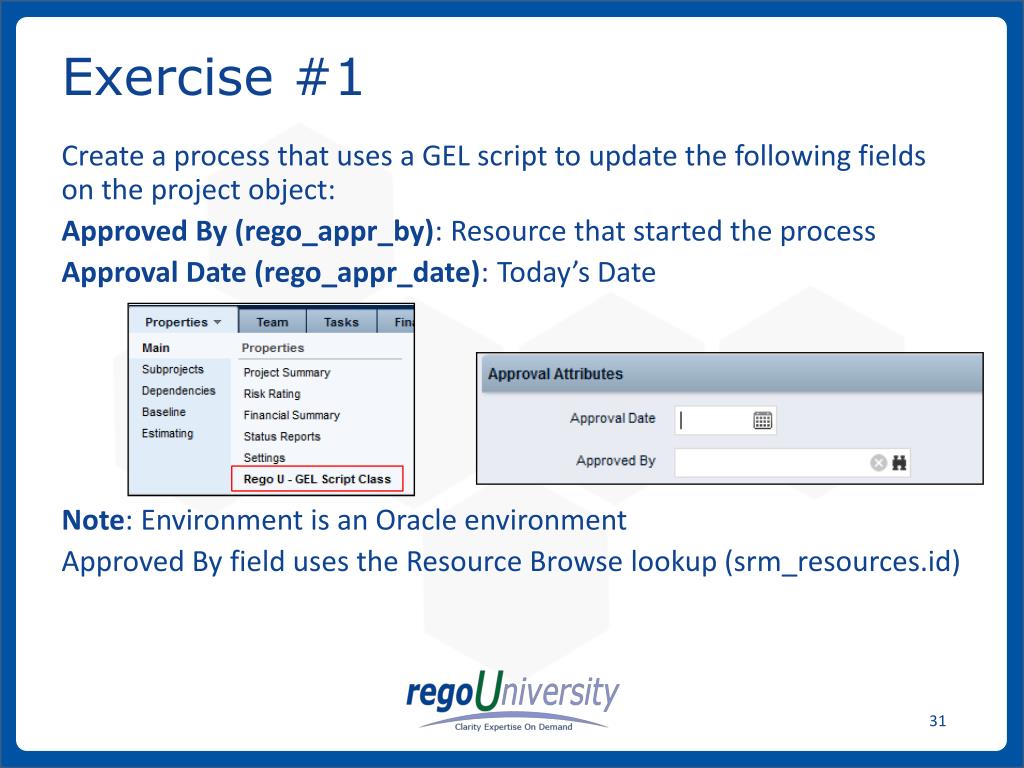

  31. Exercise #1 Create a process that uses a GEL script to update the following fields on the project object: Approved By (rego_appr_by): Resource that started the process Approval Date (rego_appr_date): Today’s Date Note: Environment is an Oracle environment Approved By field uses the Resource Browse lookup (srm_resources.id)

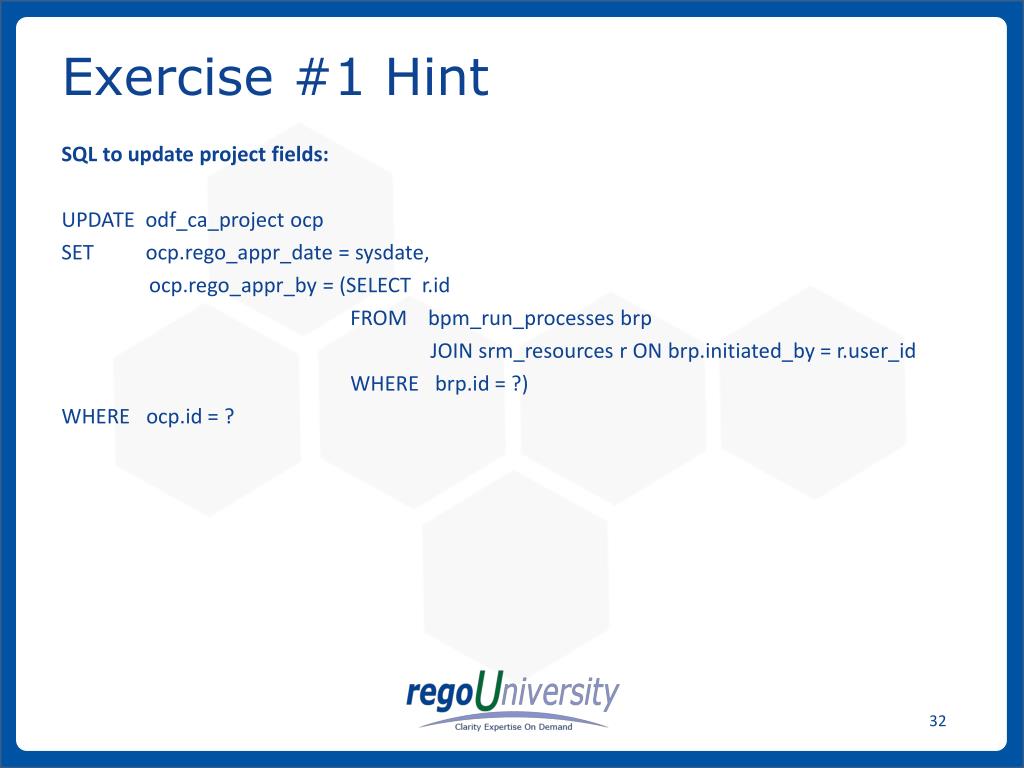

  32. Exercise #1 Hint SQL to update project fields: UPDATE odf_ca_project ocp SET ocp.rego_appr_date = sysdate, ocp.rego_appr_by = (SELECT r.id FROM bpm_run_processes brp JOIN srm_resources r ON brp.initiated_by = r.user_id WHERE brp.id = ?) WHERE ocp.id = ?

  33. Exercise #1 Review

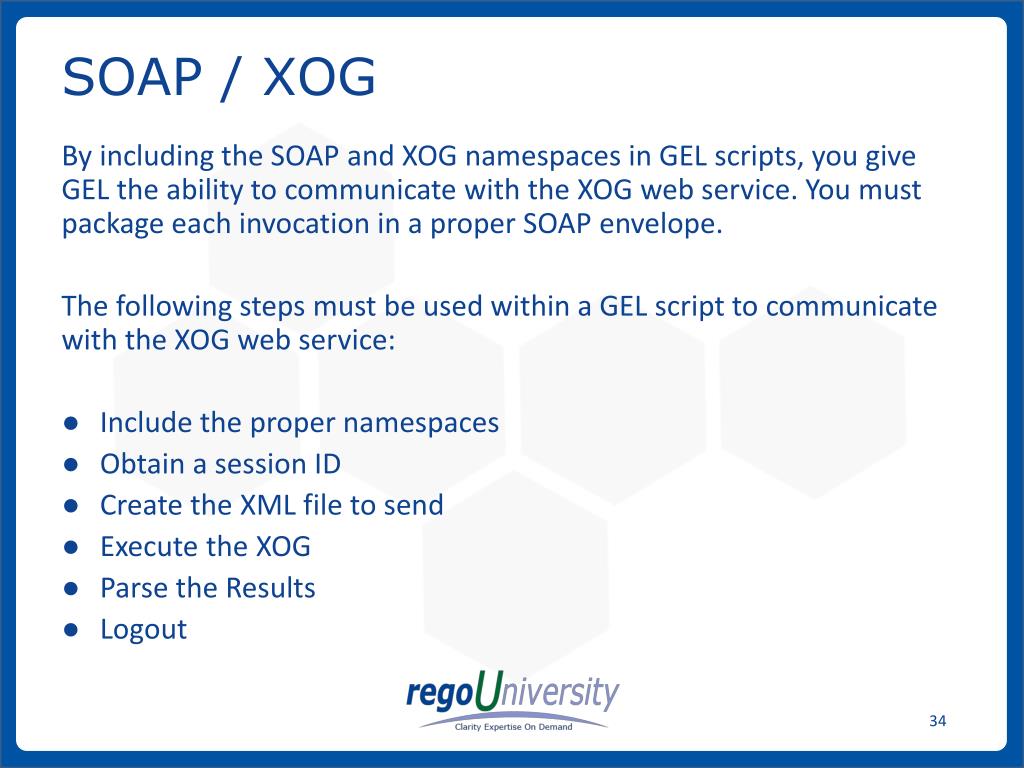

  34. SOAP / XOG By including the SOAP and XOG namespaces in GEL scripts, you give GEL the ability to communicate with the XOG web service. You must package each invocation in a proper SOAP envelope. The following steps must be used within a GEL script to communicate with the XOG web service: • Include the proper namespaces • Obtain a session ID • Create the XML file to send • Execute the XOG • Parse the Results • Logout

  35. XOG - Include the proper namespaces <gel:script xmlns:core="jelly:core“ xmlns:gel="jelly:com.niku.union.gel.GELTagLibrary“ xmlns:xog="http://www.niku.com/xog" xmlns:soap="jelly:com.niku.union.gel.SOAPTagLibrary" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">

  36. XOG - Obtain a Session ID <!-- Get sessionId by username --> <gel:parameter var="username" default="admin"/> <core:new className="com.niku.union.security.DefaultSecurityIdentifier" var="secId" /> <core:invokeStatic var="userSessionCtrl" className="com.niku.union.security.UserSessionControllerFactory" method="getInstance" /> <core:set var="secId" value="${userSessionCtrl.init(username, secId)}"/> <core:set var="XOGUsername" value="${secId.getUserName()}"/> <core:set var="sessionID" value="${secId.getSessionId()}"/> <core:choose> <core:when test="${sessionID == null}"> <gel:log level="ERROR"> Unable to obtain a Session ID. </gel:log> </core:when> <core:otherwise> <!-- Execute XOG --> </core:otherwise> </core:choose>

  37. XOG - Create the XML File Example: <gel:parse var="userXML"> <NikuDataBus xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../xsd/nikuxog_user.xsd"> <Header action="write" externalSource="NIKU" objectType="user" version="13.2.0.472"/> <Users> <User externalId=" " isLDAP="false" uiThemeDefaultPartitionCode=" " userLanguage="English" userLocale="en_US” userName="${row.userName}" userStatus="${row.userStatus}" userTimezone="America/Los_Angeles" userType="INTERNAL"> <PersonalInformationemailAddress="${row.email}" firstName="${row.firstName}" lastName="${row.lastName}"/> <Resource resourceId="${row.resourceId}"/> <Groups/> </User> </Users> </NikuDataBus> </gel:parse>

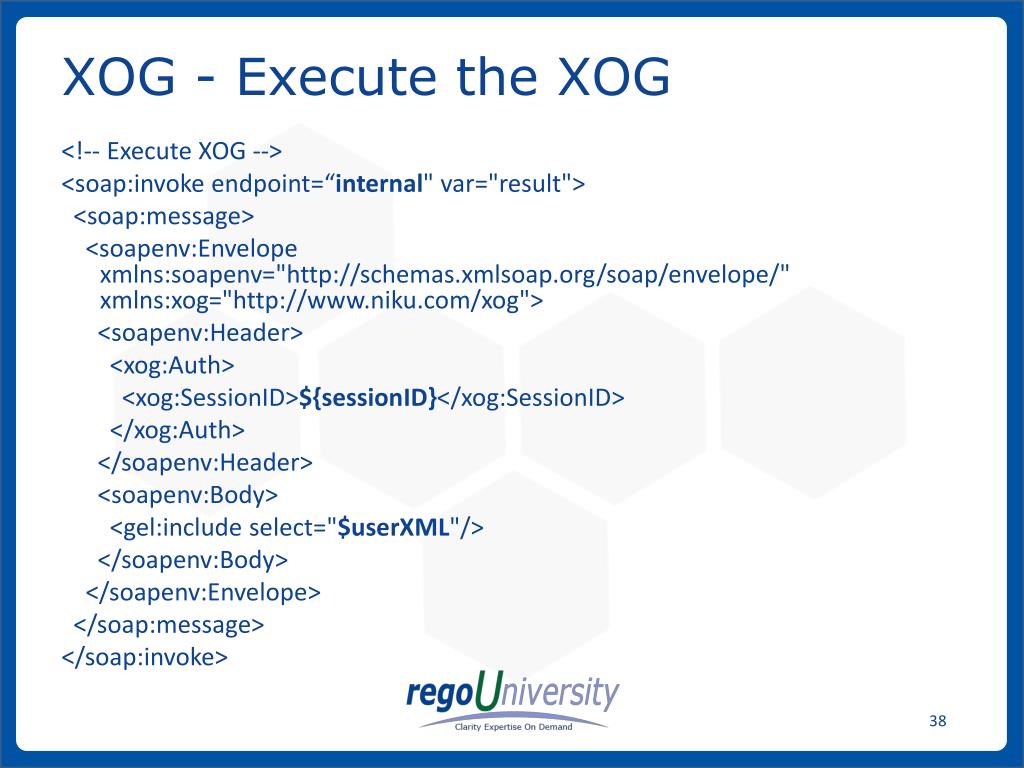

  38. XOG - Execute the XOG <!-- Execute XOG --> <soap:invoke endpoint=“internal" var="result"> <soap:message> <soapenv:Envelopexmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xog="http://www.niku.com/xog"> <soapenv:Header> <xog:Auth> <xog:SessionID>${sessionID}</xog:SessionID> </xog:Auth> </soapenv:Header> <soapenv:Body> <gel:include select="$userXML"/> </soapenv:Body> </soapenv:Envelope> </soap:message> </soap:invoke>

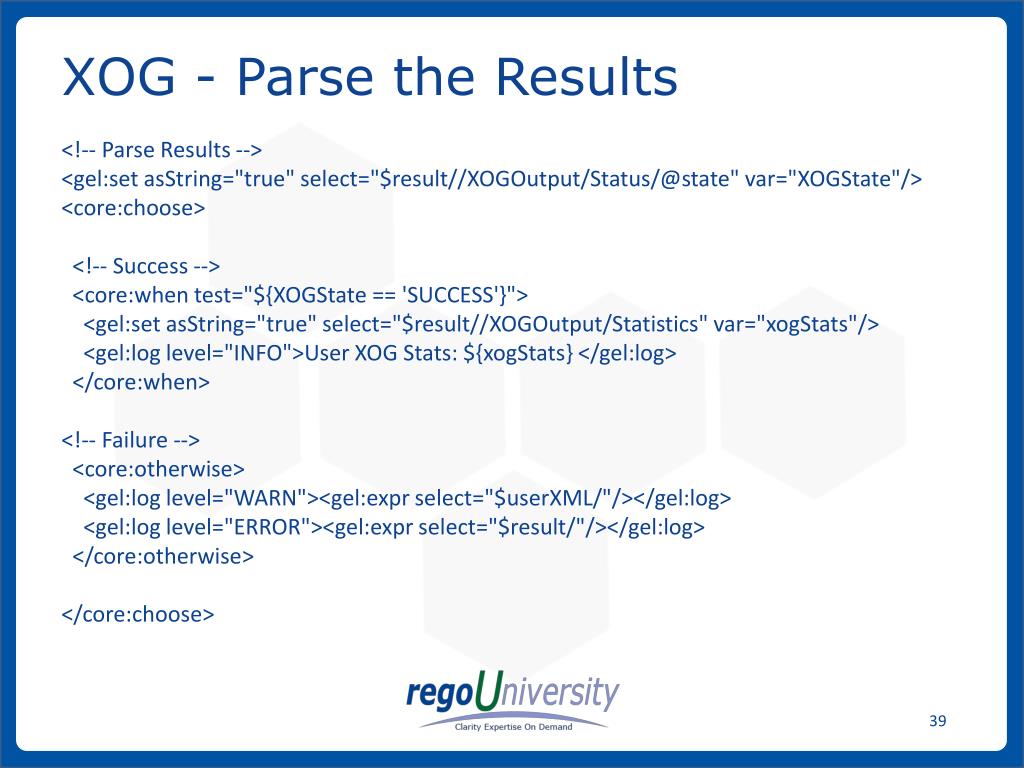

  39. XOG - Parse the Results <!-- Parse Results --> <gel:setasString="true" select="$result//XOGOutput/Status/@state" var="XOGState"/> <core:choose> <!-- Success --> <core:when test="${XOGState == 'SUCCESS'}"> <gel:setasString="true" select="$result//XOGOutput/Statistics" var="xogStats"/> <gel:log level="INFO">User XOG Stats: ${xogStats} </gel:log> </core:when> <!-- Failure --> <core:otherwise> <gel:log level="WARN"><gel:expr select="$userXML/"/></gel:log> <gel:log level="ERROR"><gel:expr select="$result/"/></gel:log> </core:otherwise> </core:choose>

  40. XOG - Logout <!-- Logout XOG--> <soap:invoke endpoint=“internal" var="result"> <soap:message> <soapenv:Envelopexmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xog="http://www.niku.com/xog"> <soapenv:Header> <xog:Auth> <xog:SessionID>${sessionID}</xog:SessionID> </xog:Auth> </soapenv:Header> <soapenv:Body> <xog:Logout/> </soapenv:Body> </soapenv:Envelope> </soap:message> </soap:invoke>

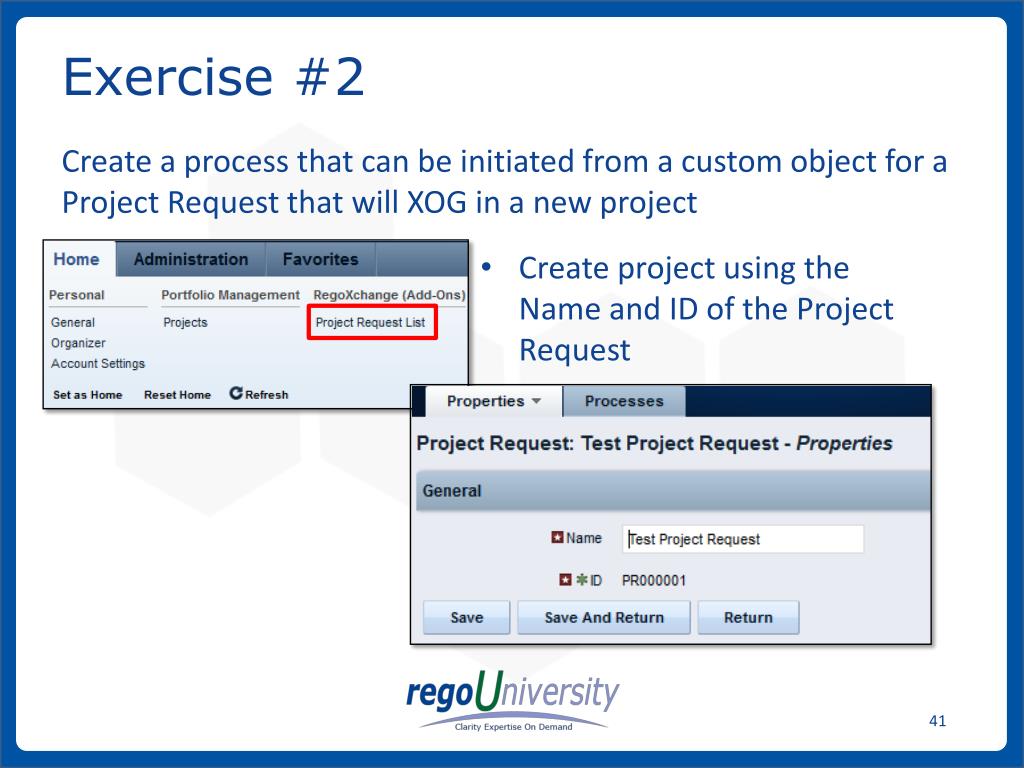

  41. Exercise #2 Create a process that can be initiated from a custom object for a Project Request that will XOG in a new project • Create project using the Name and ID of the Project Request

  42. Exercise #2 Hint Sample Project XOG: <NikuDataBusxmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../xsd/nikuxog_project.xsd"> <Header version="6.0.11" action="write" objectType="project" externalSource="NIKU"/> <Projects> <Project name="Test Project" projectID="PR1234" /> </Projects> </NikuDataBus> SQL to get Project Request Name and ID: SELECT pr.codeprjCode, pr.name prjName FROM odf_ca_rego_prj_req pr WHERE pr.id = ?

  43. Exercise #2 Review

  44. File Operations GEL can open a file (and if it is an XML file or a comma-delimited file, parse out all the nodes and attributes), read the file, and write to it. It can also perform FTP operations on files. It cannot, however, create a directory to put files in, move files around, or delete files after it is done with them.

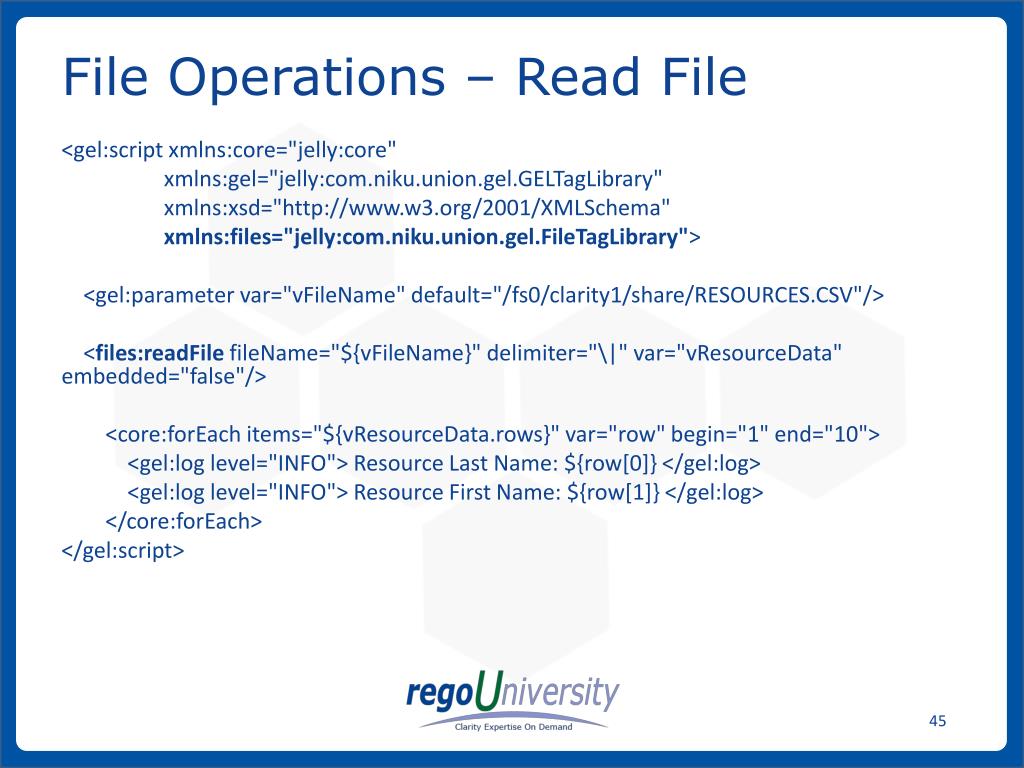

  45. File Operations – Read File <gel:scriptxmlns:core="jelly:core" xmlns:gel="jelly:com.niku.union.gel.GELTagLibrary" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:files="jelly:com.niku.union.gel.FileTagLibrary"> <gel:parametervar="vFileName" default="/fs0/clarity1/share/RESOURCES.CSV"/> <files:readFilefileName="${vFileName}" delimiter="\|" var="vResourceData" embedded="false"/> <core:forEach items="${vResourceData.rows}" var="row" begin="1" end="10"> <gel:log level="INFO"> Resource Last Name: ${row[0]} </gel:log> <gel:log level="INFO"> Resource First Name: ${row[1]} </gel:log> </core:forEach> </gel:script>

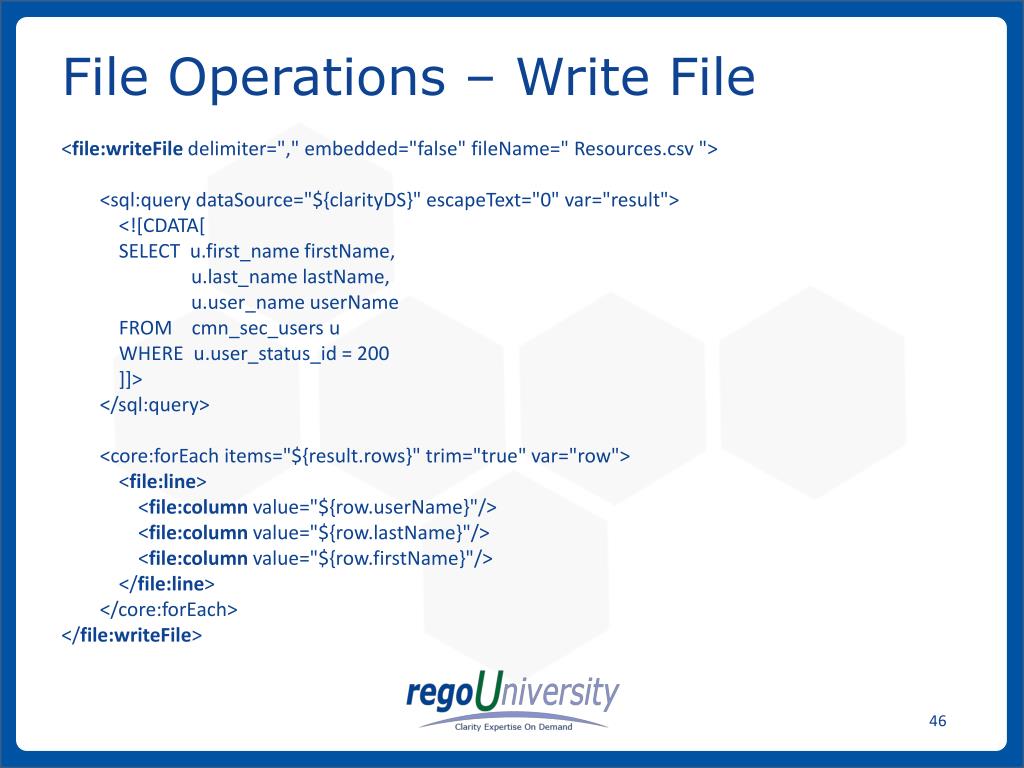

  46. File Operations – Write File <file:writeFile delimiter="," embedded="false" fileName=" Resources.csv "> <sql:querydataSource="${clarityDS}" escapeText="0" var="result"> <![CDATA[ SELECT u.first_namefirstName, u.last_namelastName, u.user_nameuserName FROM cmn_sec_users u WHERE u.user_status_id = 200 ]]> </sql:query> <core:forEach items="${result.rows}" trim="true" var="row"> <file:line> <file:column value="${row.userName}"/> <file:column value="${row.lastName}"/> <file:column value="${row.firstName}"/> </file:line> </core:forEach> </file:writeFile>

  47. Email GEL scripts are often used to send emails. Using a GEL script notification allows for a lot more flexibility than sending an action item. There are two types of email tags, <gel:email> and <email:email>. It is recommended to use the <gel:email> tag where possible.

  48. Email cont. <gel:email> • Email server information is derived from the properties.xml of the installation. • Supports HTML Example: <gel:scriptxmlns:gel="jelly:com.niku.union.gel.GELTagLibrary"> <gel:email from="clarity-do-not-reply@ca.com" subject="Clarity - Test Email" to="john@gmail.com"> <![CDATA[ This is a test email. <br/> <br/> ------------------------------------------------------------------- <br/> This is an automated message, please do not reply. ]]> </gel:email> </gel:script>

  49. Email cont. <email:email> • Mail Server must be specified within the tag • Does not support HTML • Supports Attachments Example: <gel:scriptxmlns:core="jelly:core" xmlns:gel="jelly:com.niku.union.gel.GELTagLibrary" xmlns:email="jelly:email"> <core:invokeStaticclassName="java.lang.System" method="getenv" var="NIKU_HOME"> <core:arg value="NIKU_HOME"/> </core:invokeStatic> <gel:parse file="${NIKU_HOME}/config/properties.xml" var="properties"/> <gel:setasString="true" select="$properties/properties/mailServer/@host" var="mailServer"/> <email:email to="john@gmail.com" from="clarity-do-not-reply@ca.com" subject=“app-ca.log file" server="${mailServer}" attach="${NIKU_HOME}/logs/app-ca.log"> App-ca.log File </email:email> </gel:script>

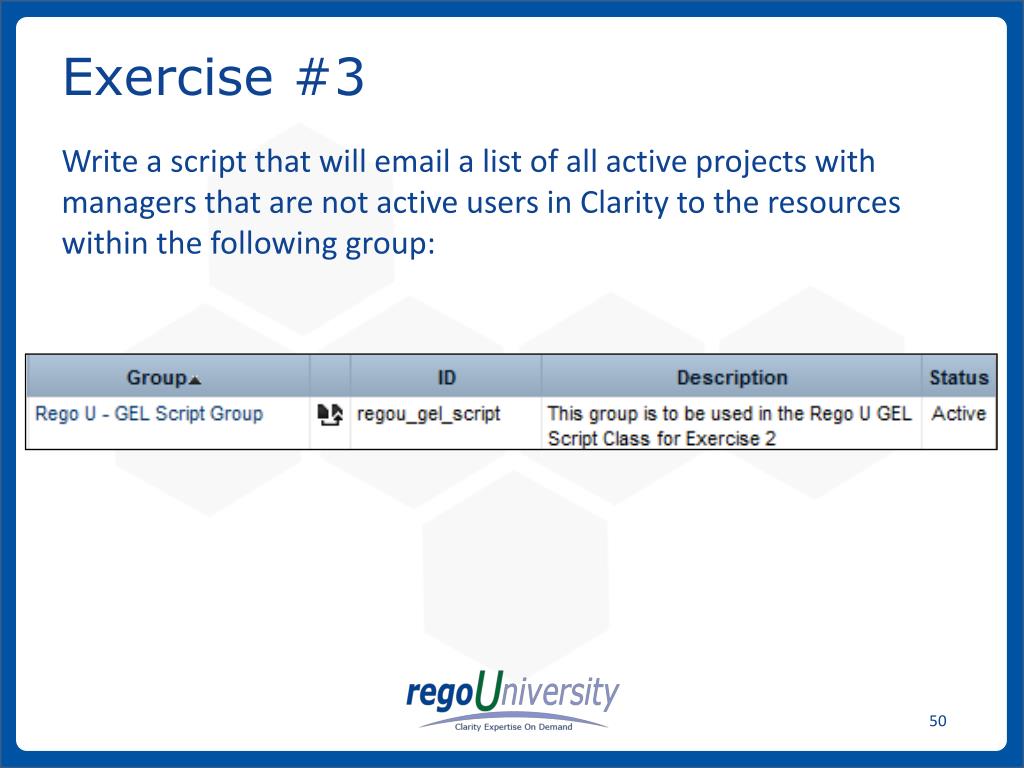

  50. Exercise #3 Write a script that will email a list of all active projects with managers that are not active users in Clarity to the resources within the following group:
