  1. hidden safety

  2. hidden safety Basics … Common practice according to regulations: Actively lit pictograms near emergency exits are sparsely installed and therefor not always noticeable. Improved safety at emergency situation: Additional top- and floorsignage speed up evacuation, while mitigating panic. Normal situation: Additional signage remain non-obtrusive at light, thus blending well with interior design © lovenstein (feb, 2007) pat.pending

  3. hidden safety Extra signage / features Exits are hard to find at larger distances … … a trail of arrows continuously reassures the easiest way out ! © lovenstein (feb, 2007) pat.pending

  4. hidden safety Extra signage / features Obscuring and obstructing obstacles lead to insecurity … … additional signs point the safest way out ! © lovenstein (feb, 2007) pat.pending

  5. hidden safety Extra signage / features At lost when smoke starts … … back on track to the fastest way out ! © lovenstein (feb, 2007) pat.pending

  6. hidden safety Extra signage / features Despite additional signage in the dark … … signs are non-obtrusive in the light ! © lovenstein (feb, 2007) pat.pending

  7. hidden safety Top signage / light fixtures Ultra bright photolum escape route indicator leads the safest way out ! Easy fixation to fluorescent lighting © lovenstein (feb, 2007) pat.pending

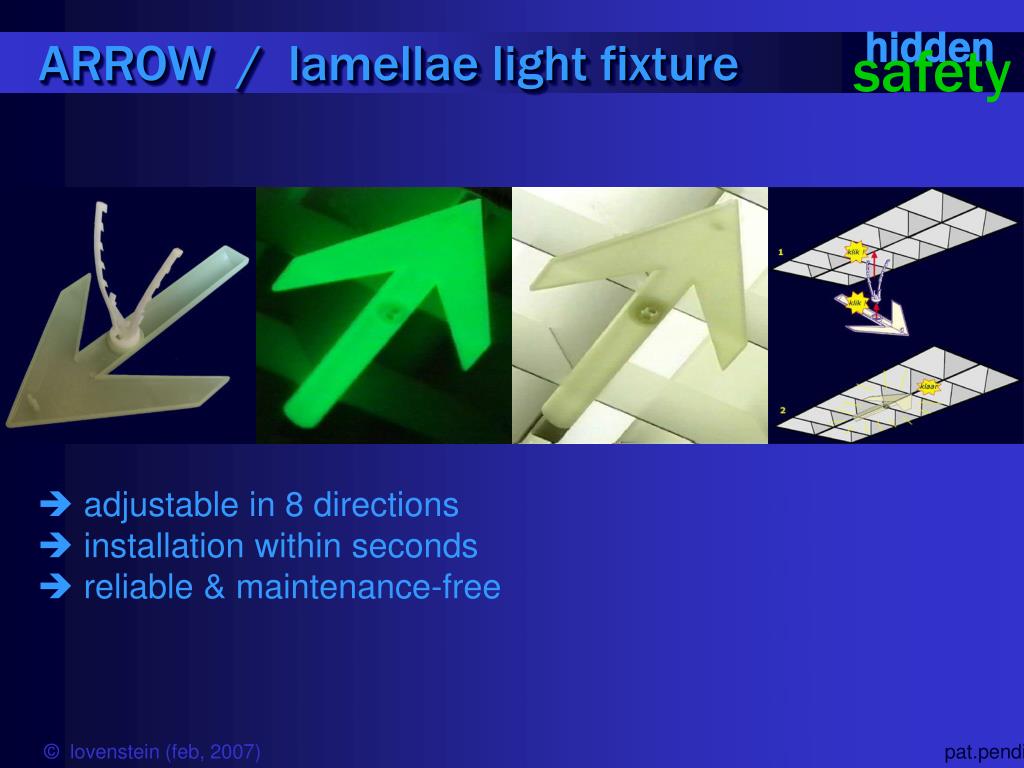

  8. hidden safety ARROW / lamellae light fixture • adjustable in 8 directions • installation within seconds • reliable & maintenance-free © lovenstein (feb, 2007) pat.pending

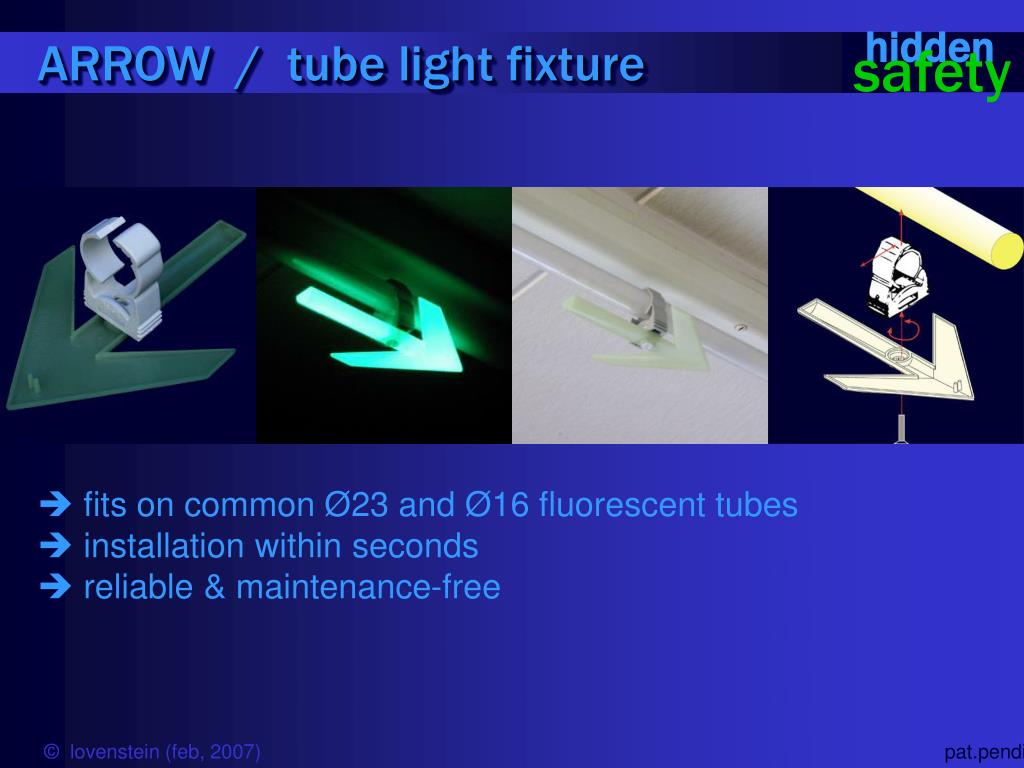

  9. hidden safety ARROW / tube light fixture • fits on common Ø23 and Ø16 fluorescent tubes • installation within seconds • reliable & maintenance-free © lovenstein (feb, 2007) pat.pending

  10. hidden safety BAR / tube light fixture • additional anti-panic lighting • installation within seconds • fits on common Ø23 and Ø16 fluorescent tubes • reliable & maintenance-free © lovenstein (feb, 2007) pat.pending

  11. hidden safety DISC / lamellae light fixture • additional anti-panic lighting • installation within seconds • reliable & maintenance-free • various shapes/sizes/prints optional © lovenstein (feb, 2007) pat.pending

  12. hidden safety DISC / down beamer fixture • additional anti-panic lighting • simple installation • reliable & maintenance-free • various shapes/sizes/prints optional © lovenstein (feb, 2007) pat.pending

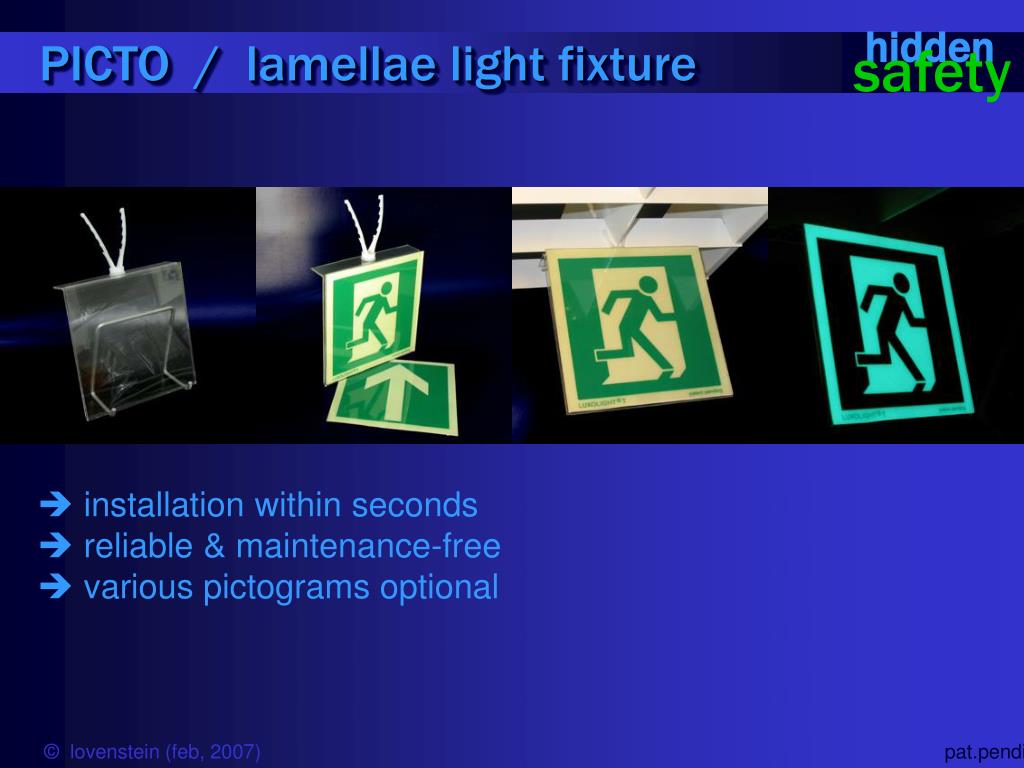

  13. hidden safety PICTO / lamellae light fixture • installation within seconds • reliable & maintenance-free • various pictograms optional © lovenstein (feb, 2007) pat.pending

  14. hidden safety Floor signage Photolum escape route guidance leads the smartest way out ! Fully integrated in various flooring systems © lovenstein (feb, 2007) pat.pending

  15. hidden safety Flake flooring • esthetical camouflage • reliable & maintenance-free • flakes spread in various patterns and colours • non-slippery, no dirt built-up • tiles or wall to wall surface © lovenstein (feb, 2007) pat.pending

  16. hidden safety Gravel/Mortar flooring • esthetically hidden safety • reliable & maintenance-free • various pictograms and patterns optional • non-slippery • wall to wall surface © lovenstein (feb, 2007) pat.pending

  17. hidden safety Terrazzo flooring • esthetically hidden safety • reliable & maintenance-free • various colours & patterns optional • non-slippery, no dirt built-up • seamless surface or tiles © lovenstein (feb, 2007) pat.pending

  18. hidden safety Photolum surfaces • various colors & patterns • esthetical camouflage • no additional electric power • fully integrated • + all other advantages of concrete surfaces © lovenstein (feb, 2007) pat.pending

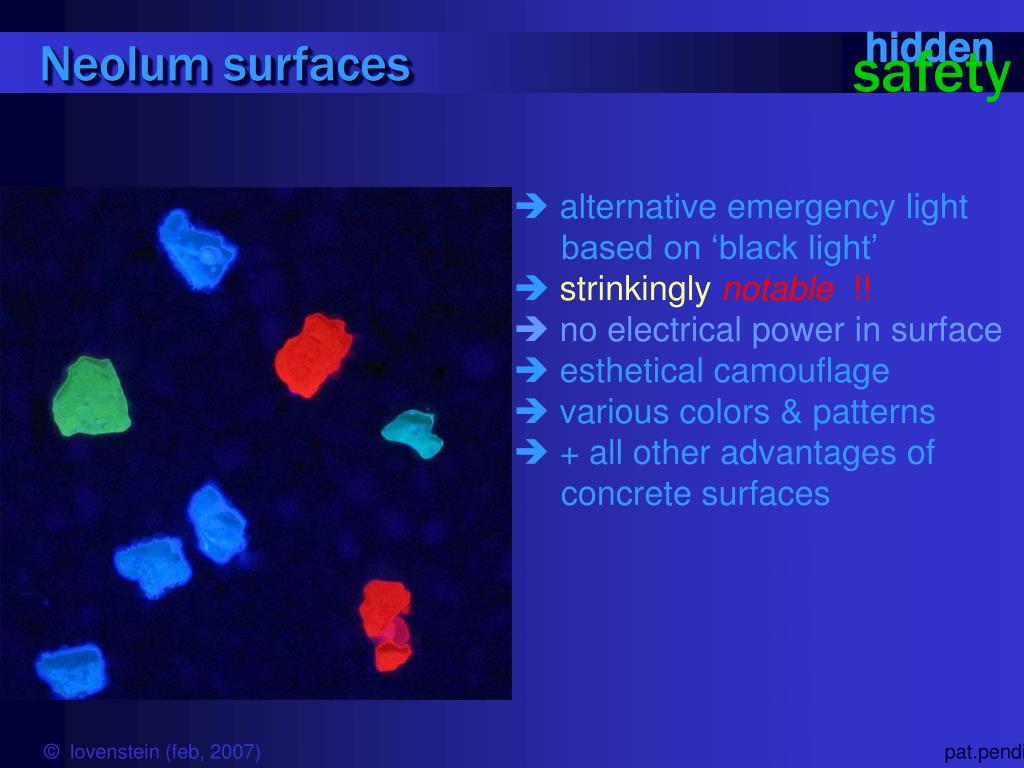

  19. hidden safety Neolum surfaces • alternative emergency light based on ‘black light’ • strinkinglynotable !! • no electrical power in surface • esthetical camouflage • various colors & patterns • + all other advantages of concrete surfaces © lovenstein (feb, 2007) pat.pending

  20. hidden safety Applications • shoppingmalls, schools, hotels, hospitals • offices, factories, warehouses • underground stations, parkings • in your building ... © lovenstein (feb, 2007) pat.pending

  21. hidden safety Conclusion … hidden safety … • esthetic • only noticed when required • more than a juridical cover • it needs no looking after • economic Visit our website www.hiddensafety.eu ! © lovenstein (feb, 2007) pat.pending
