EFFICIENT FPGA IMPLEMENTATION OF PWM CORE

1. EFFICIENT FPGA IMPLEMENTATION OF PWM CORE 105/MAPLD

2. INTRODUCTION • Two undeniable trends pervade today's semiconductor design industry: -shrinking process geometries -the increasing adoption of system-on-a-chip (IP) blocks • As semiconductors increase in density, growing trend toward moving complete systems from the board level to the chip level. 105/MAPLD

3. Shrinking design cycle times are putting pressure on system designers to use existing chips and differentiate their products at the system level. • Virtually impossible for a single design team to create completely new intellectual property (IP) with each chip. • Greater focus on design reuse, where IP from earlier designs is utilized and reused in later designs. 105/MAPLD

4. IP, EDA and Library vendors design various sophisticated IP cores to fulfill application-specific needs. • Each IP core needs silicon technology support to ensure that the IP core is reusable and verified. • The integrated-circuit industry is entering a system-on-chip era in which IP cores will be the key to enhancing design productivity and meeting the product road map. 105/MAPLD

5. The following sections describe the implementation of a Pulse Width Modulation (PWM) core on a Xilinx 4003E FPGA using CAD tool WorkView Office from Synopsis. • The core is designed to operate at a clock frequency of 4Mhz. • The PWM core developed can be used in many diverse and complex applications like robotics, motor and motion control, microprocessor-controlled data acquisition system etc. 105/MAPLD

6. FUNCTIONAL DESCRIPTION • A PWM circuit works by making a pulsating DC square wave with a variable on-to-off ratio. • The average on time may be varied from 0 to 100 percent. • The widths of the pulses are proportional to the input signal. • When the signal is small, a series of narrow pulses is generated. When the signal is large, a series of wide pulses is generated. 105/MAPLD

7. In many of the applications, the single bit digital output is subject to a low-pass filter that results in an analog output level. • The output level is the analog equivalent of the digital PWM’s duty-cycle. 105/MAPLD

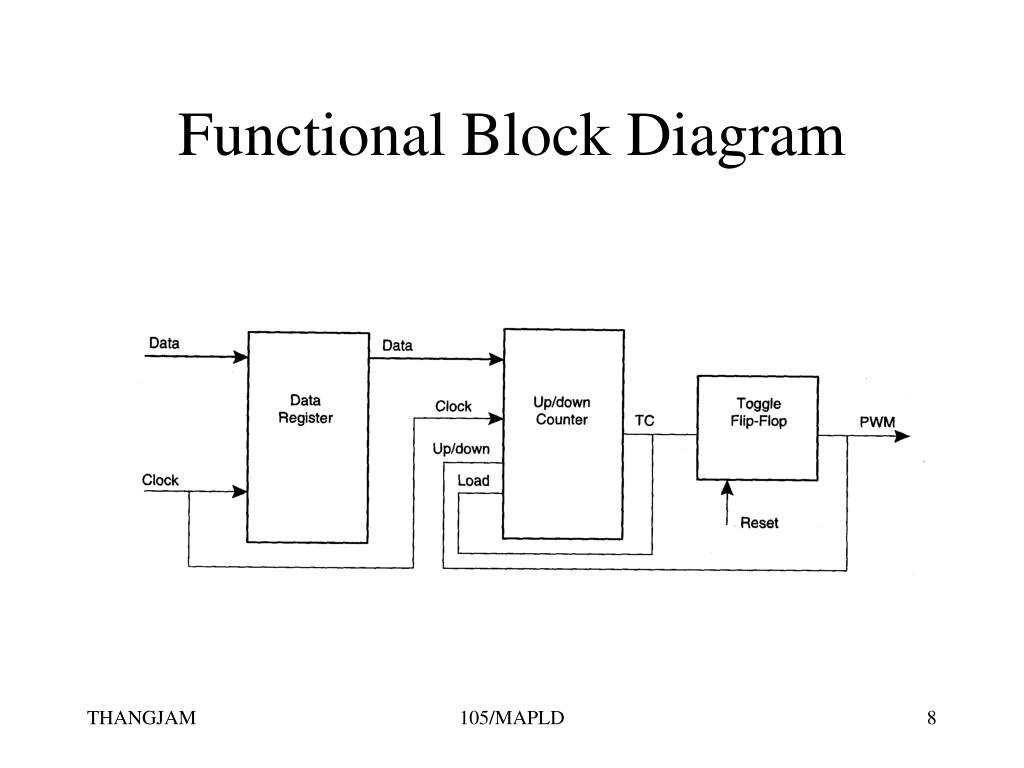

8. Functional Block Diagram 105/MAPLD

9. Basic principle: a register to store the value which is loaded on to the Up/Down Counter whenever the counter reaches its terminal count. • The terminal counter is used to generate the pulse width modulation. 105/MAPLD

10. A data register: to store the value for the counter. • Value determines the pulse width. • The Up/Down Counter: loaded with a new value from the data register when the counter reaches its terminal count. • Toggle Flip-flop generates the PWM output 105/MAPLD

11. When data value is first loaded, counter counts down from data value to 0. • Terminal count and PWM signals are Low. • When counter goes through 0 transition, terminal count is generated. • Triggers Toggle Flip-flop to drive PWM signal High. • Data value is re-loaded and counting proceeds up to maximum value. • Terminal count generated again when counter reaches its maximum value. • Drives PWM signal to toggle from High to Low. • Data value is re-loaded and cycle repeats. 105/MAPLD

12. Direction of counter controlled by PWM signal: counter is set to count down when PWM is Low, and count up when PWM is High. • Terminal count controls data value loaded to counter from data register. Data is loaded when terminal count is High. • Duty cycle of the PWM signal is controlled by data value loaded to the up/down counter. Higher the data value, higher the duty cycle. 105/MAPLD

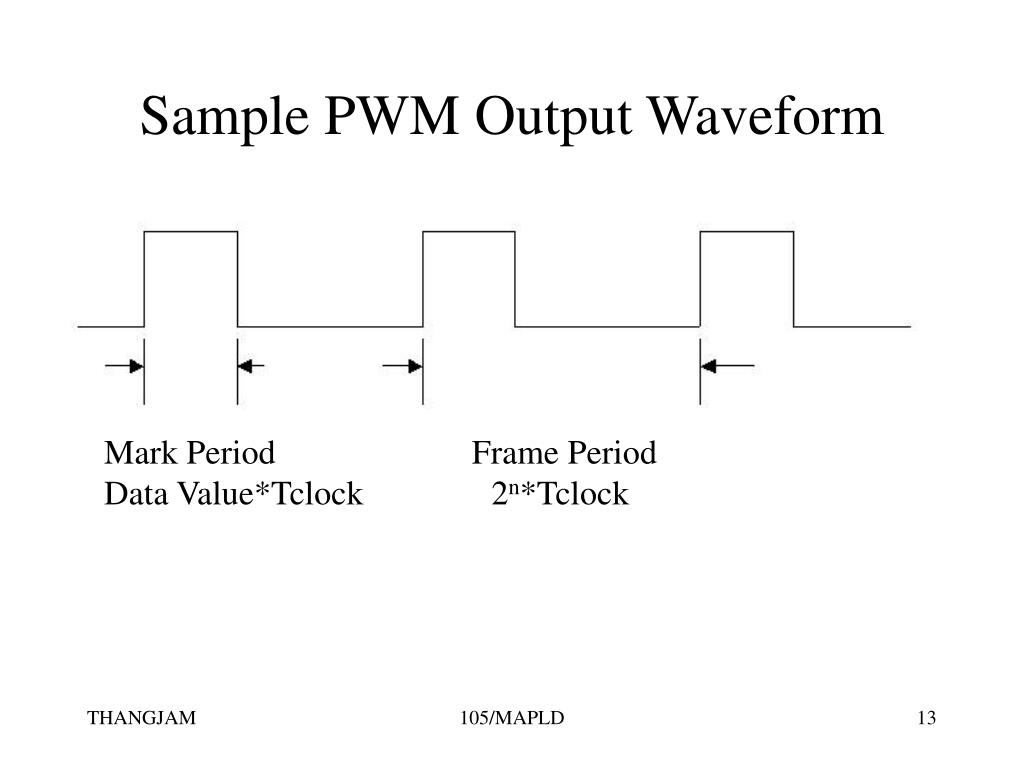

13. Sample PWM Output Waveform Mark Period Frame Period Data Value*Tclock 2n*Tclock 105/MAPLD

14. Duty Cycle = Mark Period/Frame Period = Data Value/2n • Mark Period = Data value*Tclock • Frame Period=Tclock*2n • For a 16-bit PWM core, n=16 and an on-board 4Mhz clock gives the value of the Tclock=250nsec. • Mark Period = ( Data Value *250nsec ) • Frame Period = 250nsec*216 • Duty cycle = (Data value/216 ) 105/MAPLD

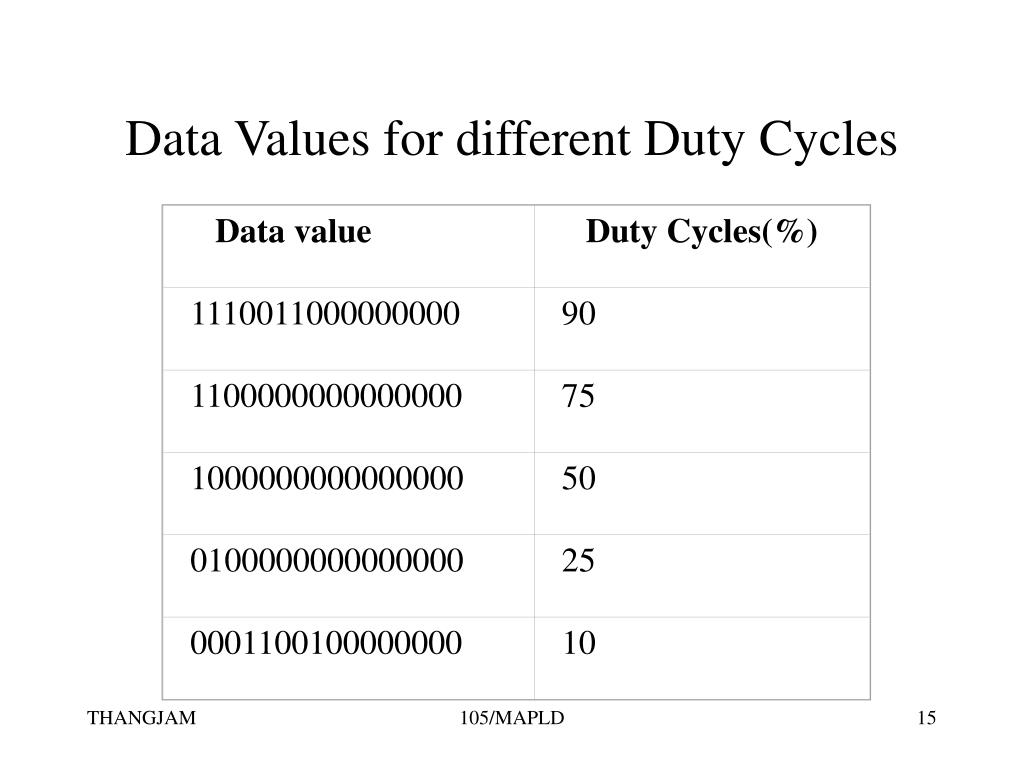

15. Data value Duty Cycles(%) 1110011000000000 90 1100000000000000 75 1000000000000000 50 0100000000000000 25 0001100100000000 10 Data Values for different Duty Cycles 105/MAPLD

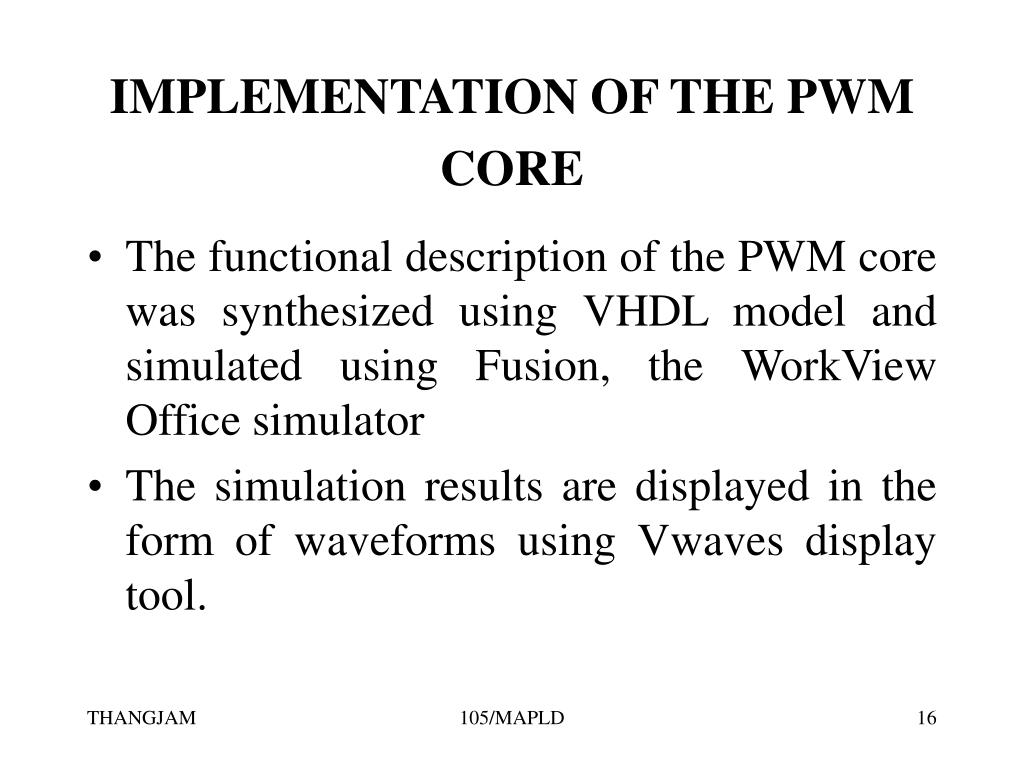

16. IMPLEMENTATION OF THE PWM CORE • The functional description of the PWM core was synthesized using VHDL model and simulated using Fusion, the WorkView Office simulator • The simulation results are displayed in the form of waveforms using Vwaves display tool. 105/MAPLD

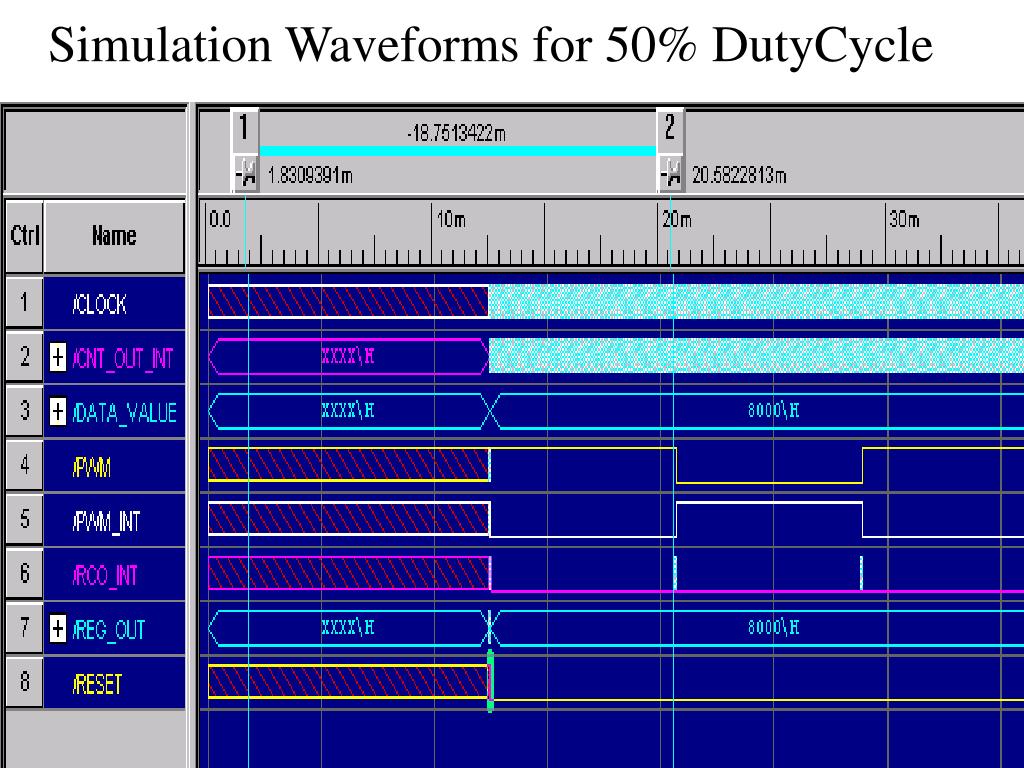

17. Simulation Waveforms for 50% DutyCycle 105/MAPLD

18. The VHDL model was implemented on XC4003E and optimized for area. • The data value is loaded by the user using switches connected to the input pins of the XC4003E. • The optimized implementation was found to consume 33 flip-flops on the CLBs, i.e., 16% of the total available flip-flops. • Implementation results also indicate a maximum working frequency of 17.517 Mhz. • The PWM output is taken out on one of the output pins of the XC4003E and can be observed on an oscilloscope. 105/MAPLD

19. CONCLUSION • A resource efficient implementation of a PWM core on FPGAs has been studied. • The choice of the device depends upon the complexity of the system to be designed. • Finding cores with the appropriate functionality, quality level and support can be quite challenging. • So, the core can also be made available as part of an SOC platform and used in those applications where PWM is essential. • The designed PWM core can be used in many applications like motor and motion control, microprocessor-controlled data acquisition system so that a complete SOC can be designed 105/MAPLD
