    1. Evolution of the Tetrapods

    2. Evolution of the Tetrapods

    3. Vertebrates

    4. The Origin of Tetrapods • The first vertebrates on land were amphibians in the Devonian (400 mya) • Arose from the rhipidistian (a family of lobed finned fish) (based on morhpology) or a lungfish (DNA)

    5. Origin of Tetrapods

    6. Origin of Tetrapods

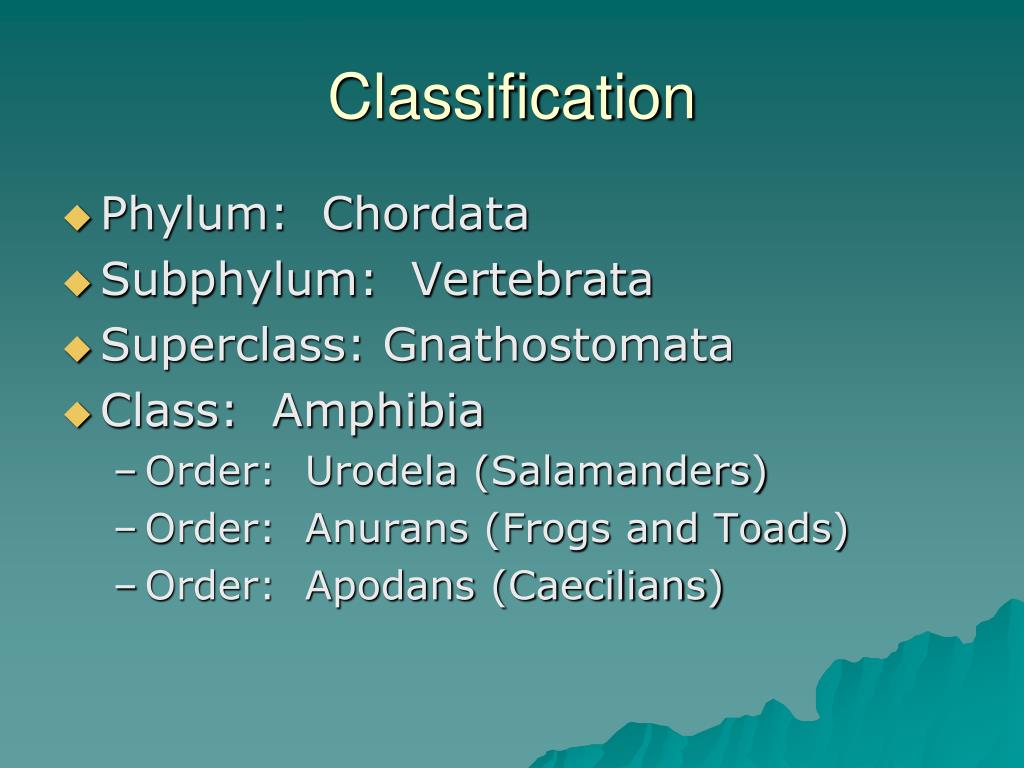

    7. Classification • Phylum: Chordata • Subphylum: Vertebrata • Superclass: Gnathostomata • Class: Amphibia • Order: Urodela (Salamanders) • Order: Anurans (Frogs and Toads) • Order: Apodans (Caecilians)

    8. Class: Amphibia • Two lives • refers to metamorphosis of many frogs • Skin smooth and moist (cutaneous respiration) • _____ chambered heart with a double circulation system • Mesolecithal eggs with jelly-like membrane 3

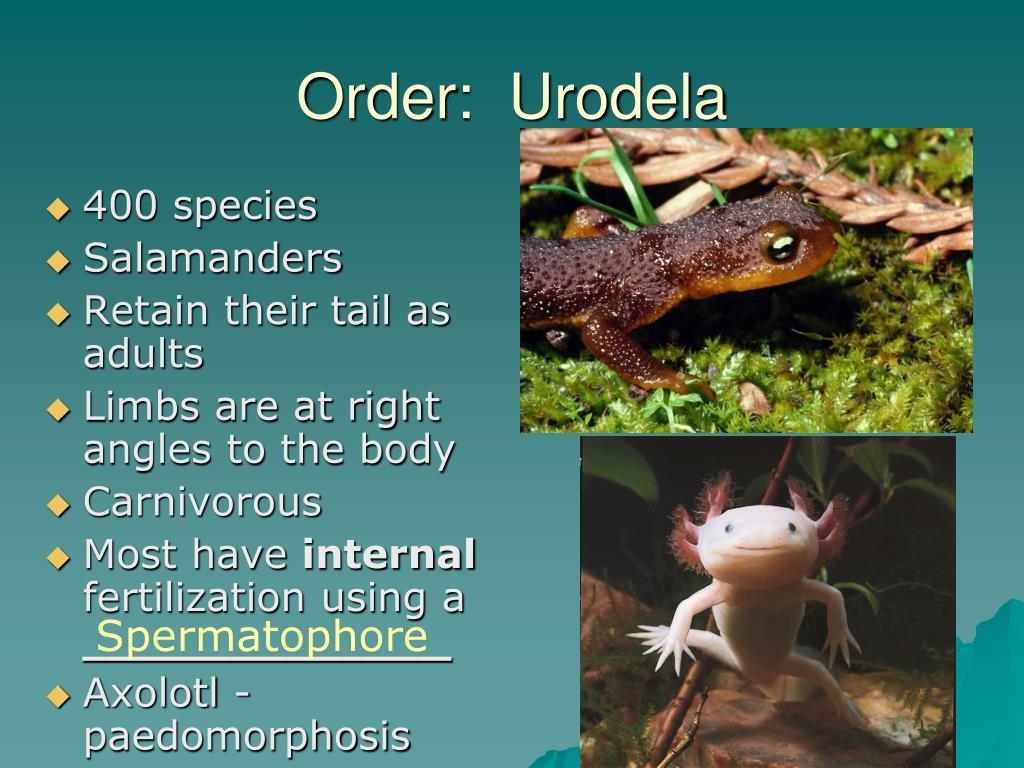

    9. Order: Urodela • 400 species • Salamanders • Retain their tail as adults • Limbs are at right angles to the body • Carnivorous • Most have internal fertilization using a _____________ • Axolotl - paedomorphosis Spermatophore

    10. Order: Anurans • 3500 species • Frogs and Toads • Lose their tail as adults • Hind limbs are adapted for jumping • Tongue connected to front of mouth • Secrete mucus • __________ Fertilization External

    11. Order: Apodans • 150 species • Caecilians • Legless and blind • Mostly Tropical • __________ Fertilization • Usually give birth to live young. Internal

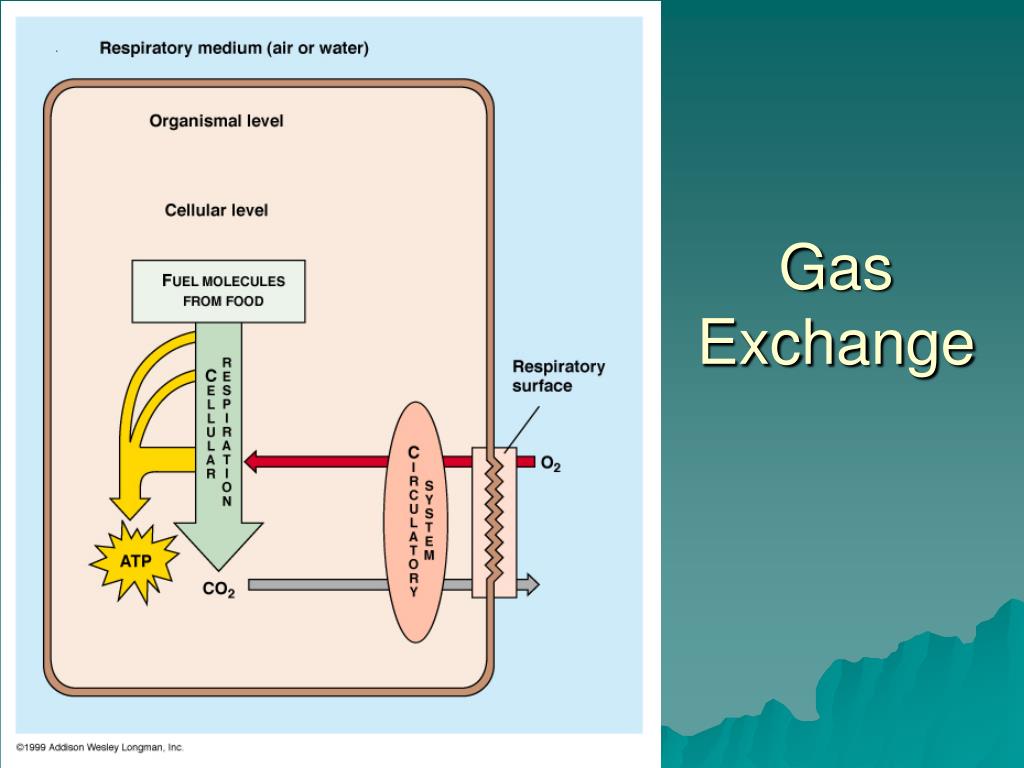

    12. Gas Exchange

    13. Conditions for Respiratory Surfaces • Large surface area • Thin • Moist

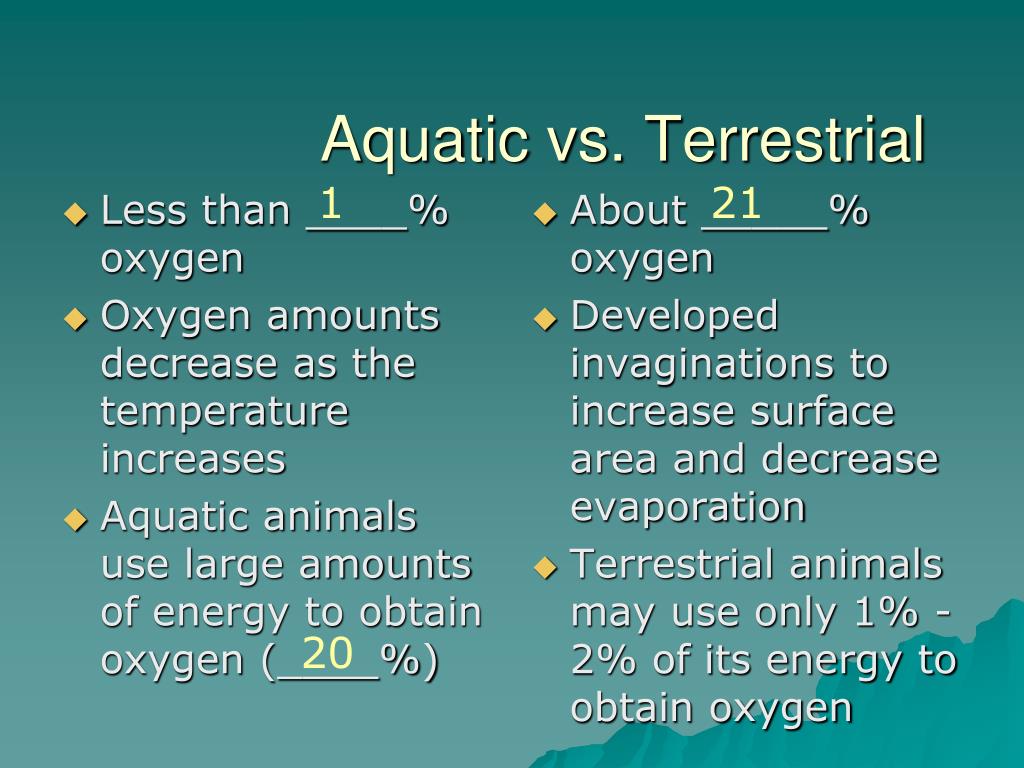

    14. Less than ____% oxygen Oxygen amounts decrease as the temperature increases Aquatic animals use large amounts of energy to obtain oxygen (____%) About _____% oxygen Developed invaginations to increase surface area and decrease evaporation Terrestrial animals may use only 1% - 2% of its energy to obtain oxygen Aquatic vs. Terrestrial 1 21 20

    15. Respiratory Surfaces • Cutaneous Respiration • Gills • Tracheal Systems • Lungs

    16. Cutaneous Respiration • Direct diffusion of gases between the organism and the environment • Found in Porifera, Cnidarians, Platyhelminthes, nematodes, Annelids, and some Amphibians • Supplements other organisms (amphibians)

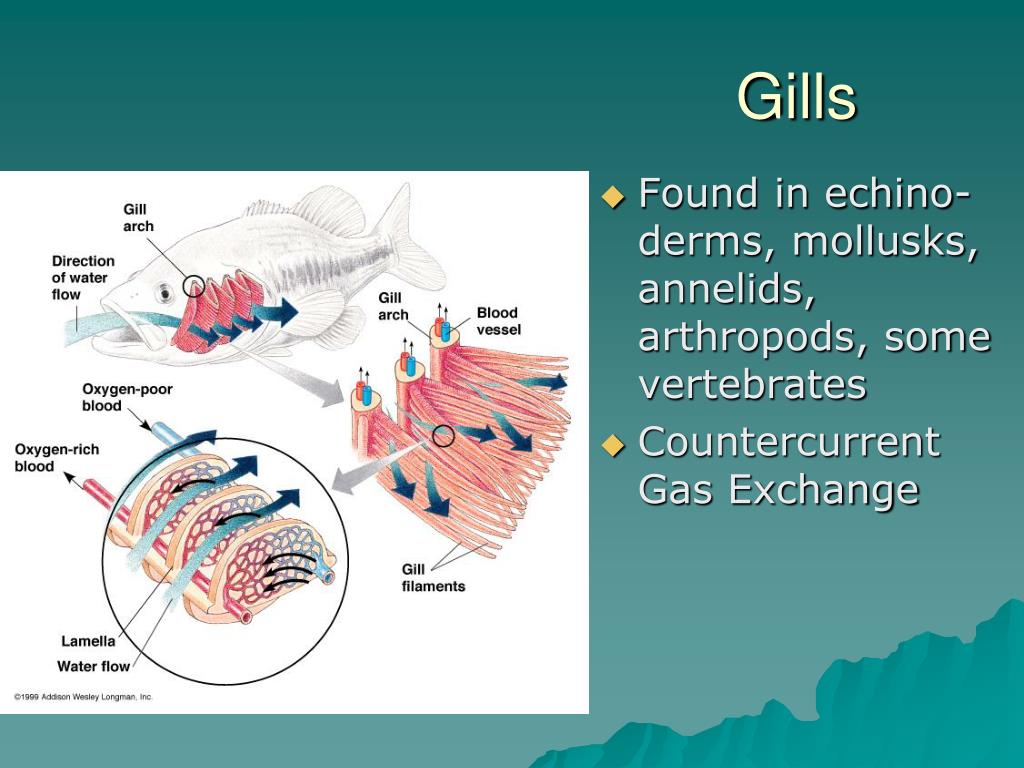

    17. Gills • Found in echino-derms, mollusks, annelids, arthropods, some vertebrates • Countercurrent Gas Exchange

    18. Countercurrent Gas Exchange • Maintains gradient over the whole length of the capillaries • Extracts ____% of the oxygen from the water 80

    19. Tracheal Systems • Found in arthropods • Tracheae • open tubes • Spiracles • openings • Tracheoles • contact with cells • Muscle • increase amount of Carbon Dioxide removed

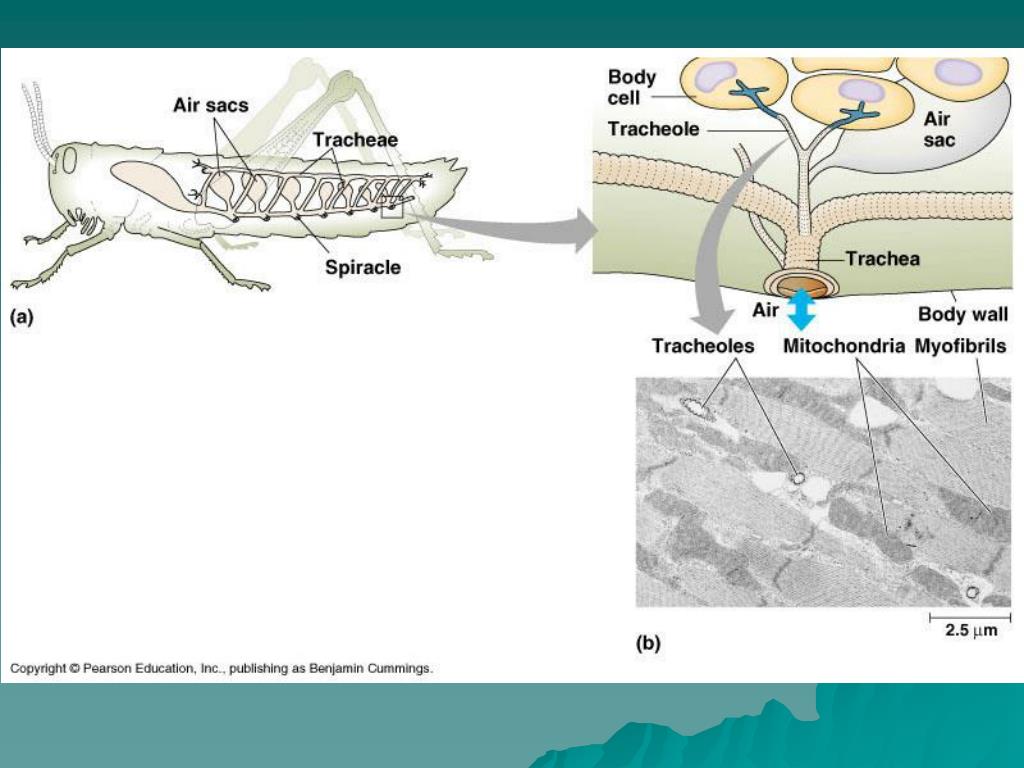

    20. Tracheal Systems

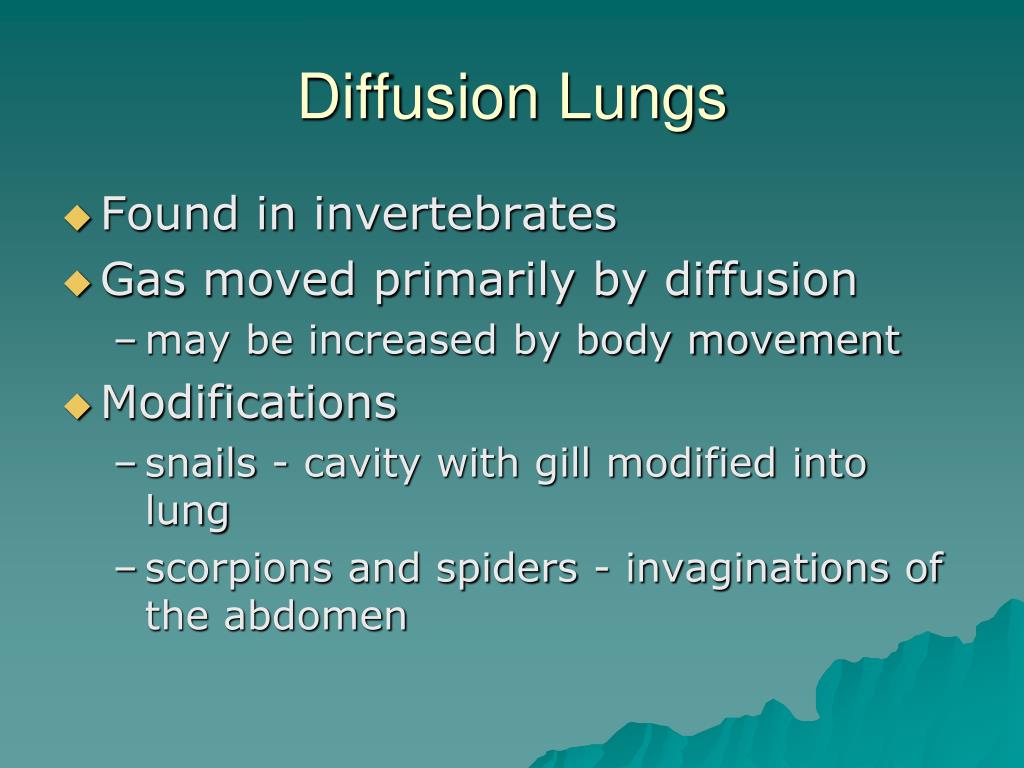

    21. Diffusion Lungs • Found in invertebrates • Gas moved primarily by diffusion • may be increased by body movement • Modifications • snails - cavity with gill modified into lung • scorpions and spiders - invaginations of the abdomen

    22. Ventilation Lungs • Found in amphibians, reptiles, mammals and birds • Pharynx • Larynx • Trachea • Bronchi • Bronchioles • Alveoli

    23. Alveoli

    24. _______ Pressure Breathing pushes air down trachea seen in frogs and other amphibians ________ Pressure Breathing suction created by diaphragm seen in mammals Ventilating The Lungs Negative Positive

    25. Negative Pressure Breathing

    26. Evolution of the _________ Egg Amniotic • Allows animals to complete their entire life cycle on land • Has shell that retains water (or is lost when kept inside mammals) • Specialized extraembryonic membranes (not part of the animal)

    27. The Amniotic Egg

    28. Evolution of the Amniotic Egg • Amnion - Protects from dehydration and mechanical shock • Yolk Sac - Nutrient storage • Albumin (egg white) - Nutrient storage • Allantois - stores waste, gas exchange • Chorion - gas exchange

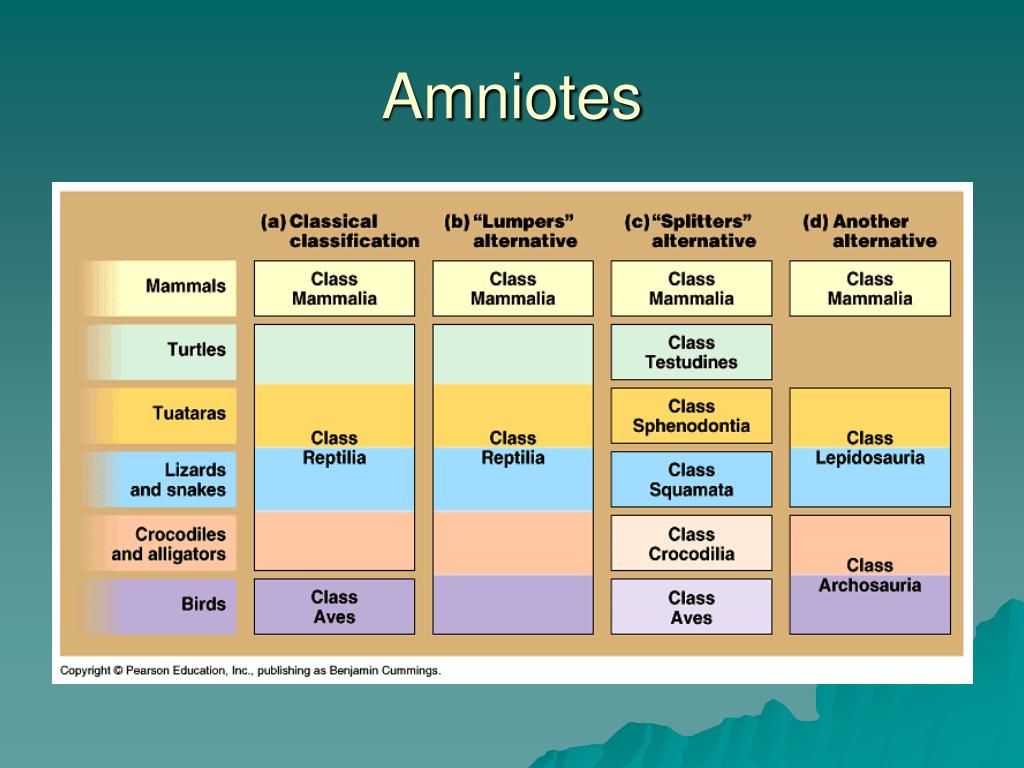

    29. Amniotes

    30. Amniotes

    31. Tough, dry skin Amniotic egg Crushing or gripping jaws Copulatory organs More efficient circulatory system with a higher blood pressure More developed lungs (thoracic breathing) Better water conservation Better body support and limbs Better nervous system How Reptiles differ from Amphibians

    32. Classification • Phylum: Chordata • Subphylum: Vertebrata • Superclass: Gnathostomata • Class: Reptilia (not real) • Class: Testudines (Turtles and Tortoises) • Class: Spenodontia (Tuataras) • Class: Squamata (Lizards and Snakes) • Class: Crocodilia (Crocodiles and Alligators)

    33. Reptile Radiation • Synapsids (therapsids) - led to mammals • Sauropsids • _________ (turtles) • _________ (all others) Anapsid Diapsid

    34. Class: Testudines (Chelonia) • Protective Shell • Carapace (top) • Plastron (bottom) • Land and Sea -Evolved on land and returned to water (lay eggs on land) Largest, Leatherback Sea Turtle (2,000 lbs!)

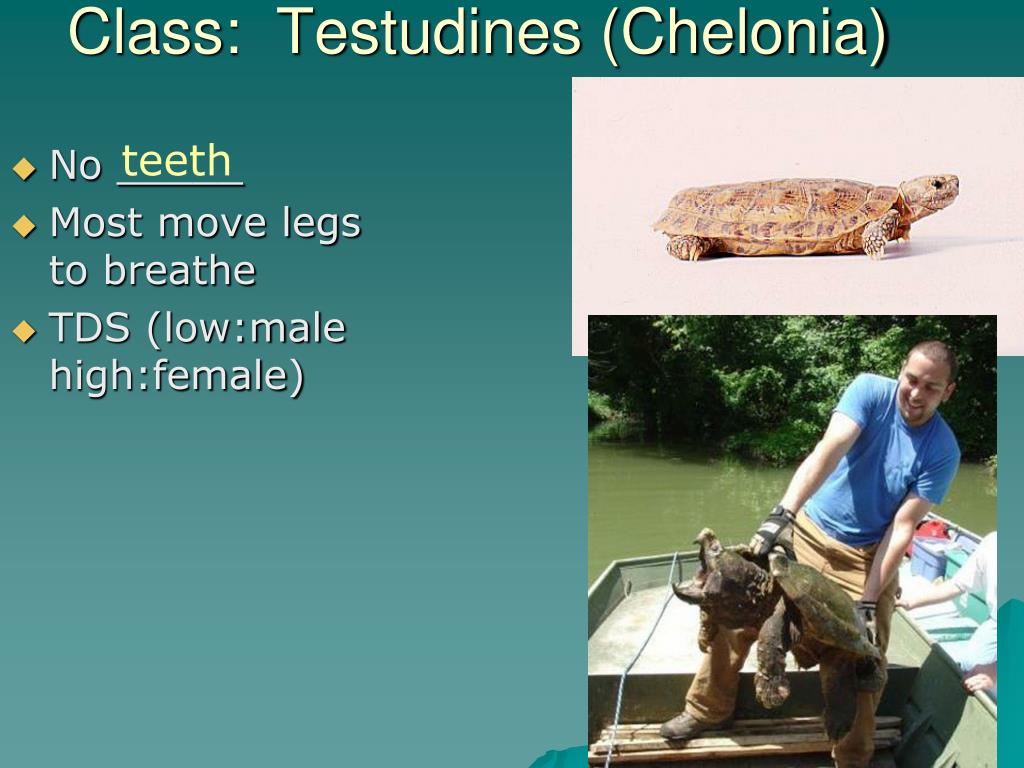

    35. Class: Testudines (Chelonia) teeth • No _____ • Most move legs to breathe • TDS (low:male high:female)

    36. Class: Sphenodontia Tuataras • ___________ • Two living species (New Zealand) • Not a True Lizard (no external ears, different teeth) • Very Primitive (similar to mesozoic reptiles • Well developed eye below skin?

    37. Class: Squamata • Lizards • geckos, iguanas, skinks, chameleons • terrestrial, burrowing, aquatic, arboreal • moveable eyelids (in most) • Paired copulatory organs

    38. Class: Squamata • Tongue usually not bifurcated • Lower jaw loosely connected to skull • TSD (female to male) • ______________ Parthenogenesis

    39. Class: Squamata

    40. Class: Squamata

    41. Class: Squamata

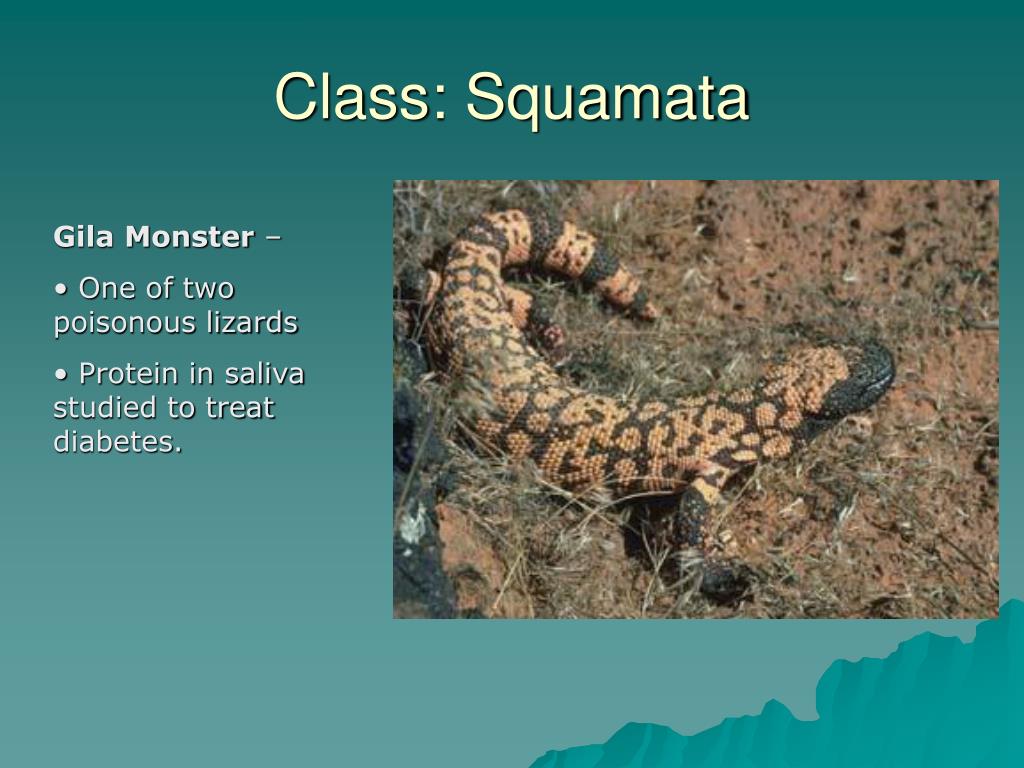

    42. Class: Squamata • Gila Monster – • One of two poisonous lizards • Protein in saliva studied to treat diabetes.

    43. Class: Squamata • Snakes • Lack limbs • Lack moveable eyelids

    44. Class: Squamata • Bifurcated tongue • _________ organ • Pit Vipers (Loreal Pits) Jacobson’s

    45. Class: Squamata • Venom • Viperidae (Folding Fangs) • Rattlesnakes • Elapidae (Fixed Front Fangs) • Cobras, Sea Snakes, Coral Snakes • neurotoxic • hemotoxic

    46. Class: Squamata

    47. Class: Squamata

    48. Class: Squamata

    49. Feeding Adaptations • Teeth curved and pointed inward • Hinged __________ bone • Bones of jaw are attached by muscles and ligaments • Moveable palate • Elastic skin • No sternum Quadrate
