Post-Launch Analysis of Missouri S&T's Satellite Team's SHOT II Performance and Results

The Missouri S&T Satellite Team's SHOT II mission aimed to enable communication between two payloads in space. Each payload was designed to transmit and receive character strings, with successful ground-range tests achieving communication at 155 m. However, a critical failure occurred two minutes before launch, likely due to a receiver malfunction. Data was collected before launch, revealing 31 characters received and 1030 characters transmitted over 2.8 hours. Post-recovery tests showed successful communication, indicating potential for further investigation into failure modes.

tia
Download Presentation

Post-Launch Analysis of Missouri S&T's Satellite Team's SHOT II Performance and Results

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. M-SATMissouri S&T Satellite TeamSHOT II Post-LaunchRyan PahlMatt CampbellStephanie EvansAustin Ferguson

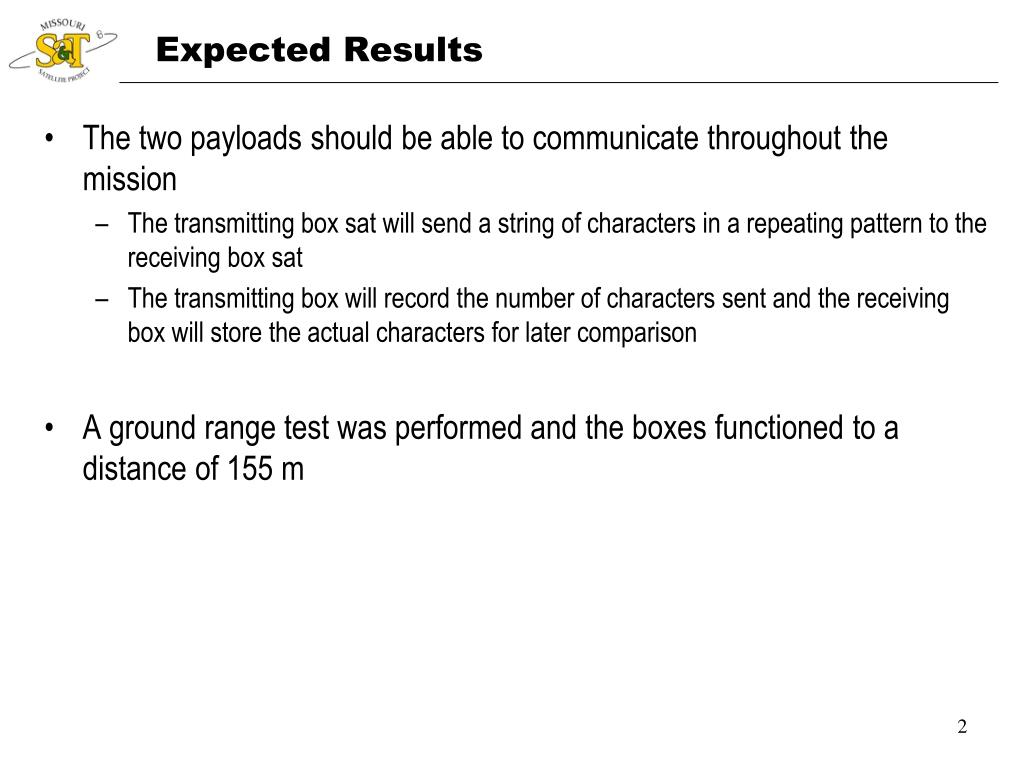

  2. Expected Results • The two payloads should be able to communicate throughout the mission • The transmitting box sat will send a string of characters in a repeating pattern to the receiving box sat • The transmitting box will record the number of characters sent and the receiving box will store the actual characters for later comparison • A ground range test was performed and the boxes functioned to a distance of 155 m

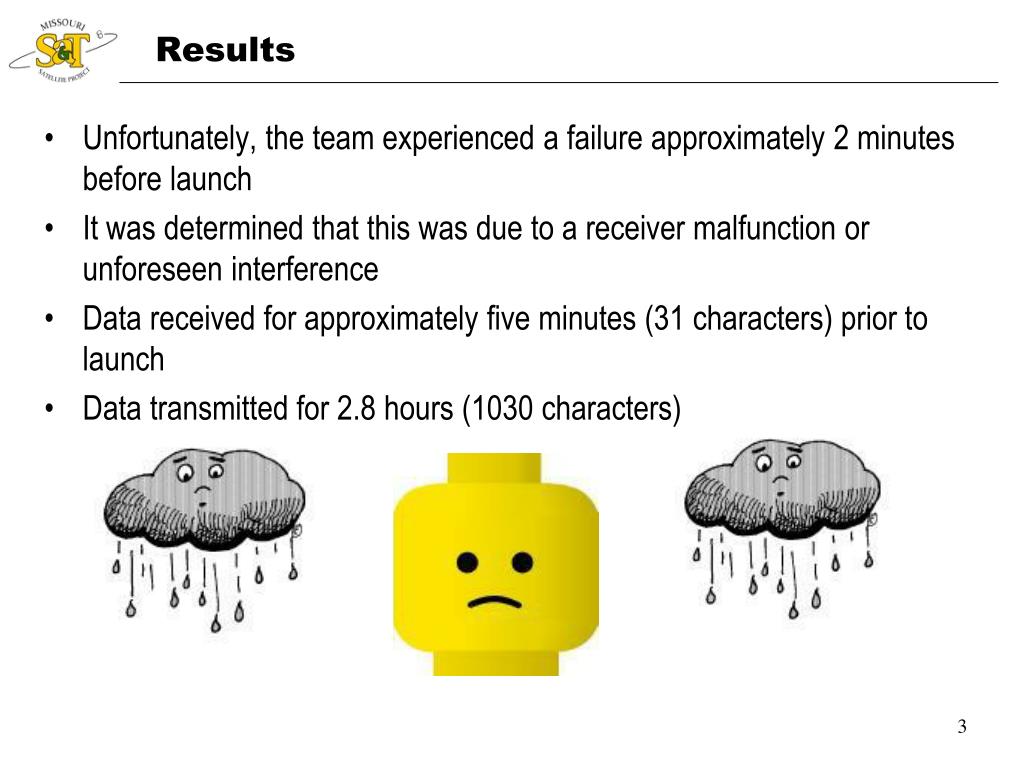

  3. Results • Unfortunately, the team experienced a failure approximately 2 minutes before launch • It was determined that this was due to a receiver malfunction or unforeseen interference • Data received for approximately five minutes (31 characters) prior to launch • Data transmitted for 2.8 hours (1030 characters)

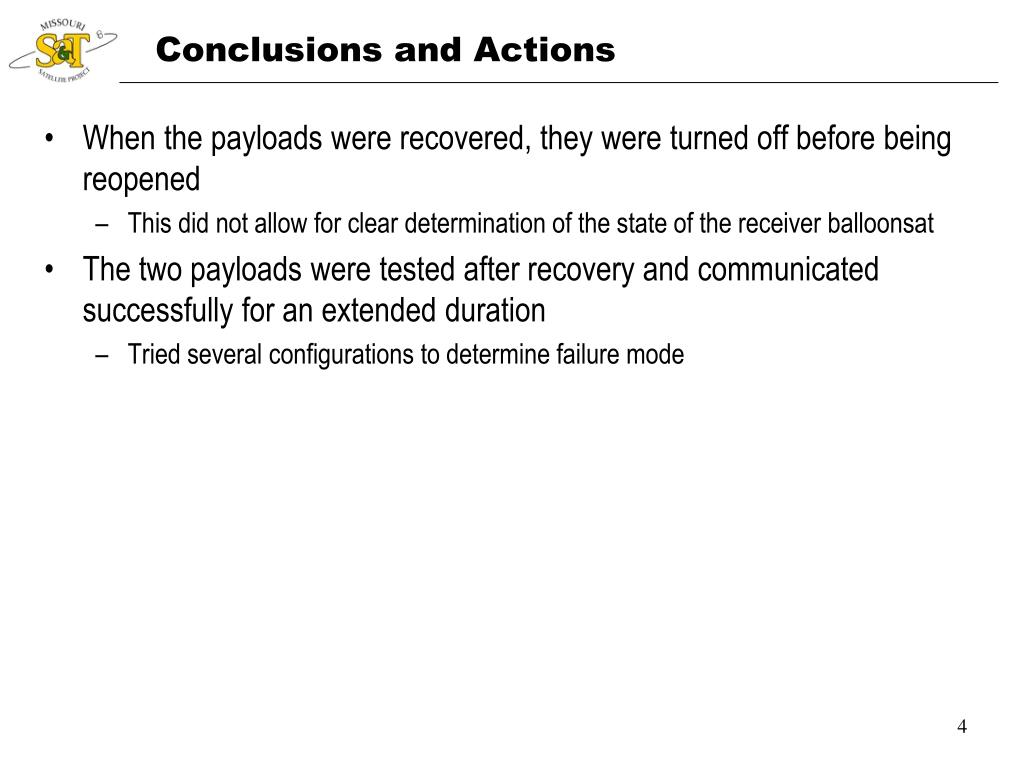

  4. Conclusions and Actions • When the payloads were recovered, they were turned off before being reopened • This did not allow for clear determination of the state of the receiver balloonsat • The two payloads were tested after recovery and communicated successfully for an extended duration • Tried several configurations to determine failure mode
