  1. TIMER/COUNTER

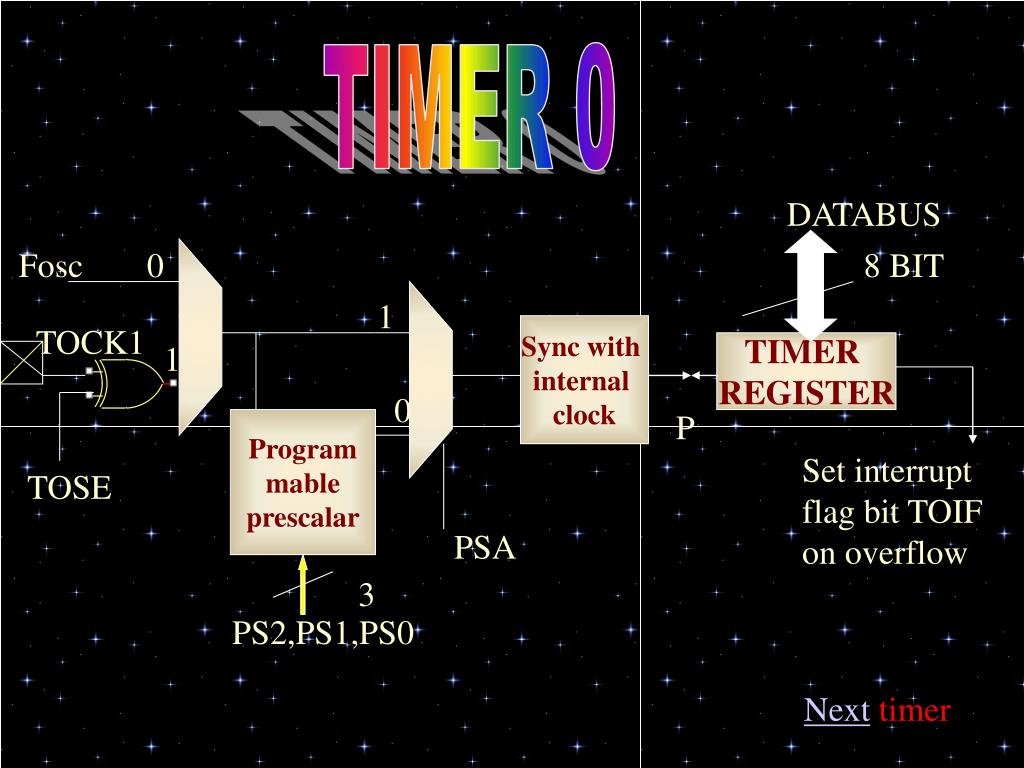

  2. TIMER 0 DATABUS Fosc 0 8 BIT 1 TOCK1 Sync with internal clock 1 TIMER REGISTER 0 P Program mable prescalar Set interrupt flag bit TOIF on overflow TOSE PSA 3 PS2,PS1,PS0 Next timer

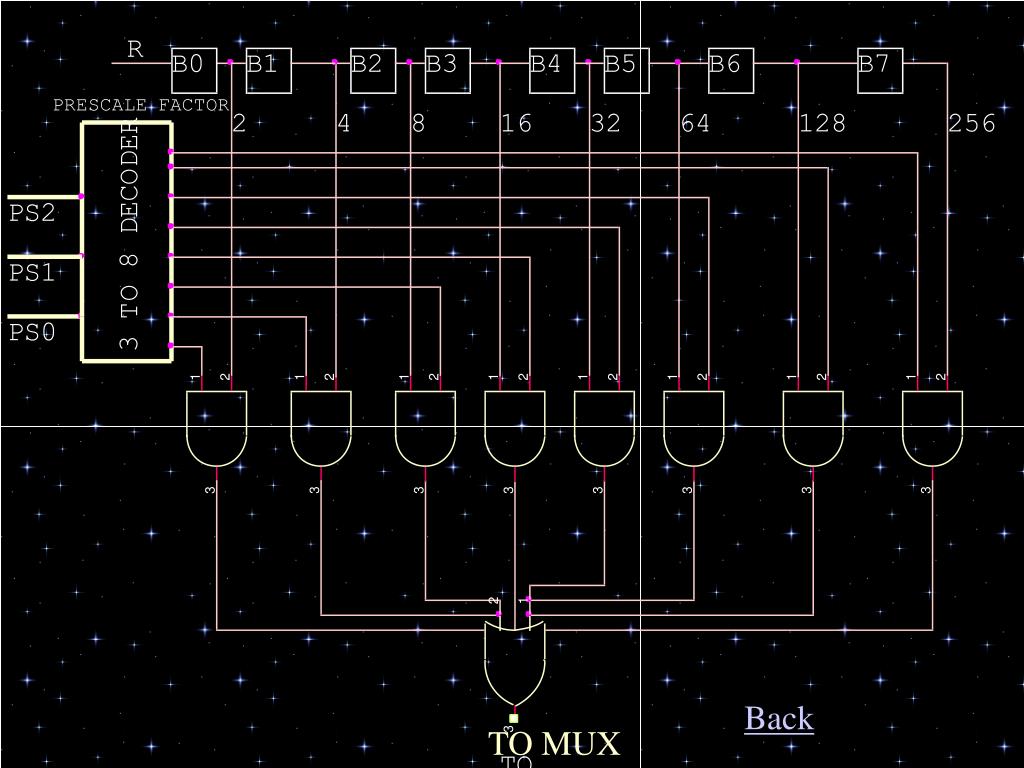

  3. Back TO MUX

  4. TIMER1 • 16 BITWIDE • COMPOSED OF TMR1H and TMR1L • OPERATION IS ENABLED OR DISABLED BASED ON TMR1ON and T1CON register

  5. TIMER 2 TMR2 O/P TMR2IF Programmable Prescalar Timer Register Fosc 2 Postscalar T2CKPS1:T2CKPS2 Comparator 4 TOUTPS3:TOUTPS0> PR2 register
