  1. Antaira Products Overview For Internal & Business Partners purpose Prepared by: Roger Yue Date: Jan 28, 2013

  2. Agenda • Industrial Networking Solutions – Why? • Product Lines Overview • Industrial Ethernet Switches Overview • Industrial Media Converters • Industrial Wireless Consideration • Industrial Serial Communication Solutions Confidential

  3. Agenda • Industrial Networking Solutions – Why? • Product Lines Overview • Industrial Ethernet Switches Overview • Industrial Media Converters • Industrial Wireless Consideration • Industrial Serial Communication Solutions Confidential

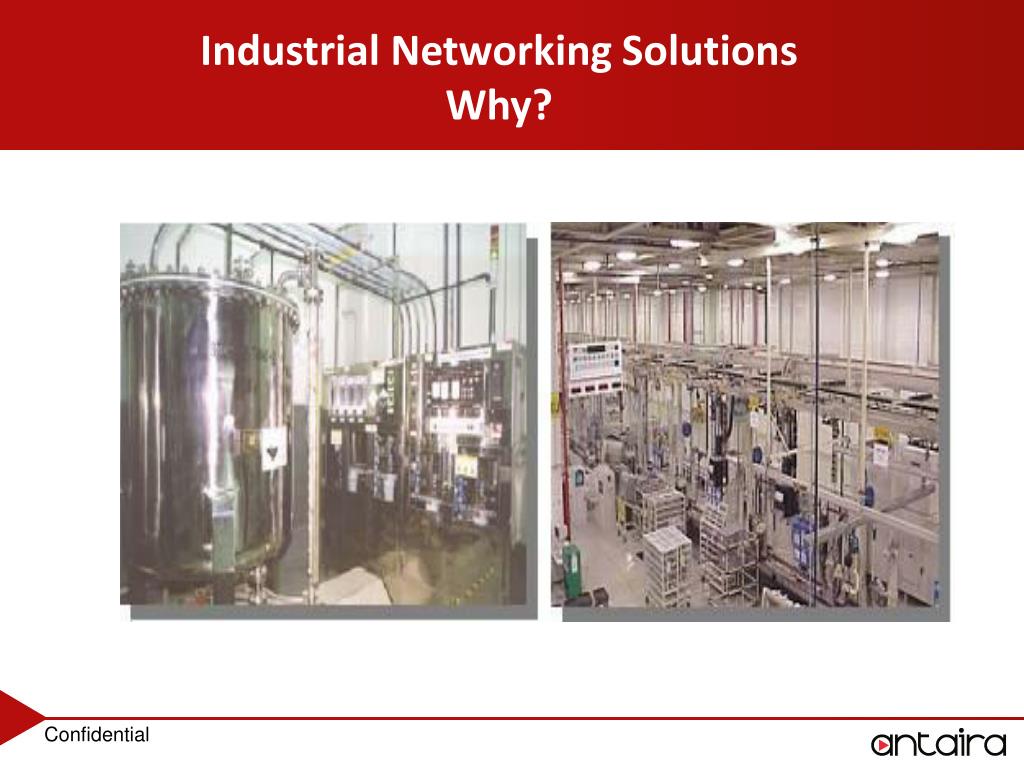

  4. Industrial Networking Solutions Why? Confidential

  5. Harsh Environment Conditions Different Installation Wide Temperature Range No Single Environment Outdoor Environment Specific Environment Confidential

  6. Ethernet Capability Summary Confidential

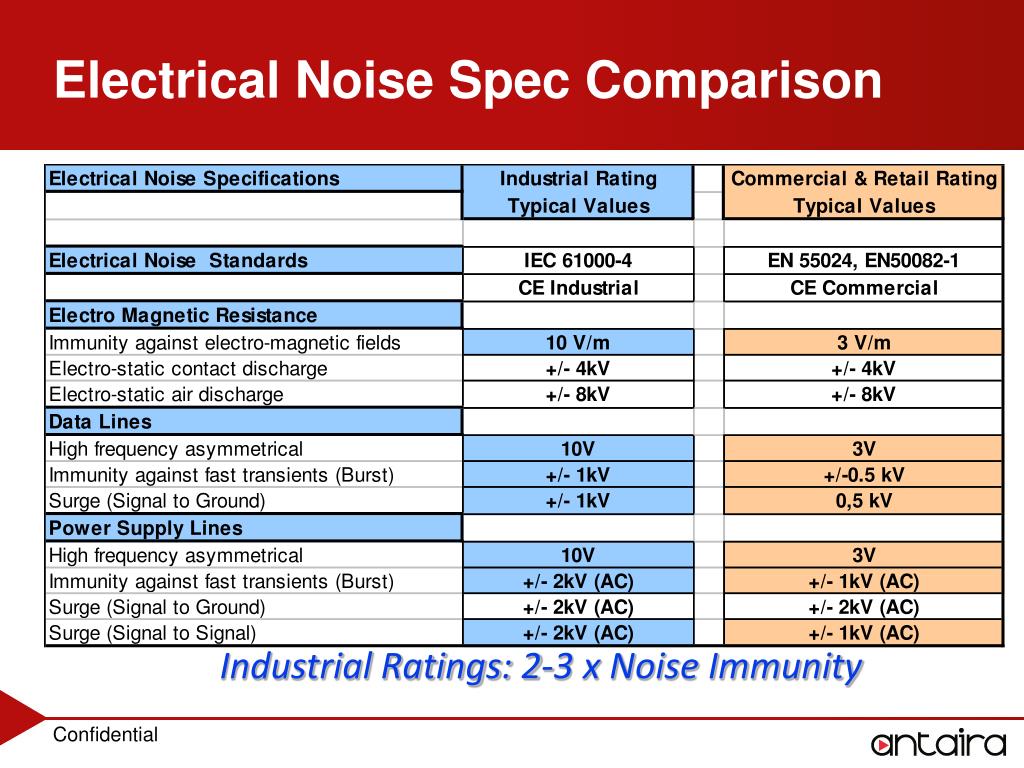

  7. Electrical Noise Spec Comparison Industrial Ratings: 2-3 x Noise Immunity Confidential

  8. More Examples EMS Environmental Test Description Description Test Levels Test Levels IEC 61000-4-2 IEC 60068-2-6 ESD Vibration Air discharge +/- 8 KV 10~500~10Hz, 0.5 oct./min., 4 g, X, Y, Z (3 axes) Contact discharge +/- 6 KV IEC 60068-2-27 Shock 50 g, 11 ms, ±X, ±Y, ±Z (6 directions) IEC 60068-2-32 Free Fall 75 cm, 1 corner, 3 edges, 6 faces (total 10 drops) ESD contact indirect +/- 6 KV IEC 61000-4-3 Radiated RFI Housing 10 V/m, 80 MHz – 1 GHz, AM 1 KHz 80% modulation 10 V/m, .9 GHz – 1.8 GHz, FM 200 Hz 50% square IEC 61000-4-4 Burst (Fast Transient) Power supply lines +/- 2 KV Comm. lines +/- 1 KV Relay +/- 1 KV IEC 61000-4-5 Surge Power supply lines +/- 2 KV, 12Ω, CM +/- 1KV, 2Ω, DM Relay +/- 1 KV, 42Ω, CM +/- 1KV, 42Ω, DM IEC 61000-4-6 Induced (Conducted) RFI Power supply lines 10 Vrms, 150 KHz – 80 MHz, AM 1 KHz 80% modulation Comm. lines 10 Vrms, 150 KHz – 80 MHz, AM 1 KHz 80% modulation Rely 10 Vrms, 150 KHz – 80 MHz, AM 1 KHz 80% modulation Environmental Test Confidential

  9. High Level Test for Verification Environment Refer. Standard Purpose Ensure that product works well under high and low temp./hum. environment. IEC68-2-1/2/3/30/56/61 48hrs ; 6-8 Cycle T/H Cycle Test Ensure that product can power ON successfully under high and low temperature. IEC68-2-1/2/3/30/56/61 ON/OFF Testing : 300 times High/Low Temp. ON/OFF Test IEC68-2-1/2/3/30/56/61 Test Time : 24 hrs Ensure that product can work stably after high temp. and hum. Storage. High T/H Storage Test IEC68-2-6/36/37 ; MIL-STD-810E Method 514.4 Sine – 1G ; Random – 3.5G Ensure that product can work stably in the following states: 1) under vibration environment 2) after transportation process. Vibration Test IEC68-2-32 Federal Test Method Standard 101 Ensure that product can work well after transportation process. Drop Test Confidential

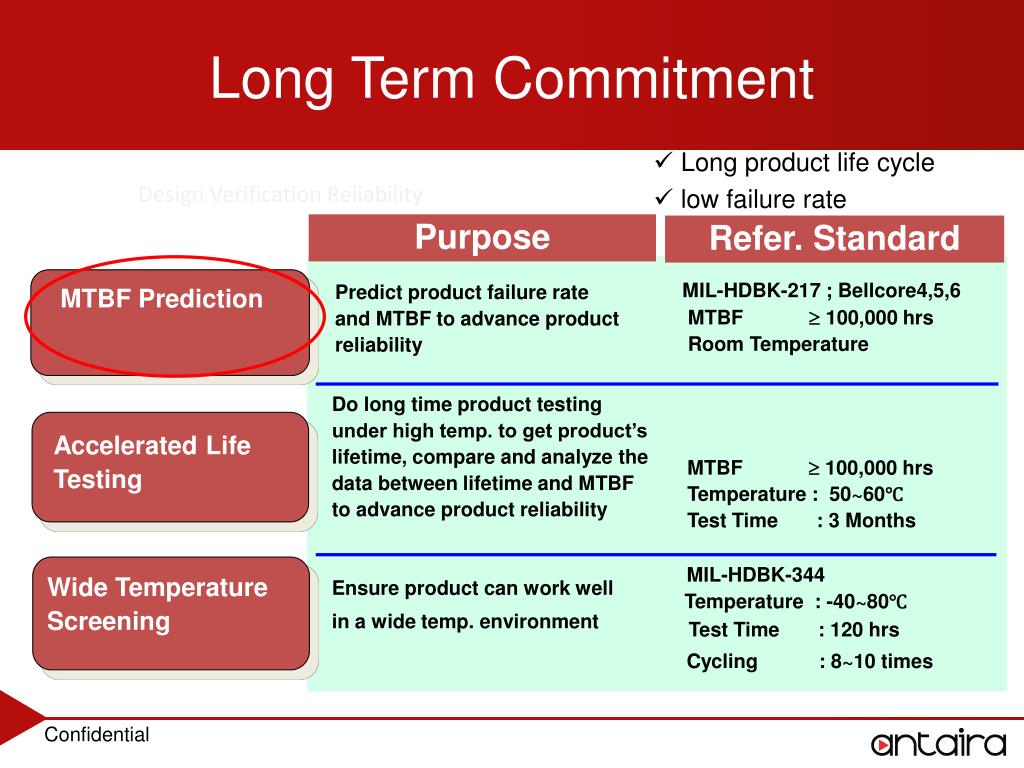

  10. Long Term Commitment Purpose Refer. Standard MIL-HDBK-217 ; Bellcore4,5,6 MTBF  100,000 hrs Room Temperature MTBF Prediction Predict product failure rate and MTBF to advance product reliability Do long time product testing under high temp. to get product’s lifetime, compare and analyze the data between lifetime and MTBF to advance product reliability Accelerated Life Testing MTBF  100,000 hrs Temperature : 50~60℃ Test Time : 3 Months MIL-HDBK-344 Ensure product can work well in a wide temp. environment Wide Temperature Screening Temperature : -40~80℃ Test Time : 120 hrs Cycling : 8~10 times Design Verification Reliability • Long product life cycle • low failure rate MIL-HDBK-781 ; MIL-STD-781D Confidential

  11. Approval for Specific Applications • A specific environmental criteria could be very important for certain vertical market. Confidential

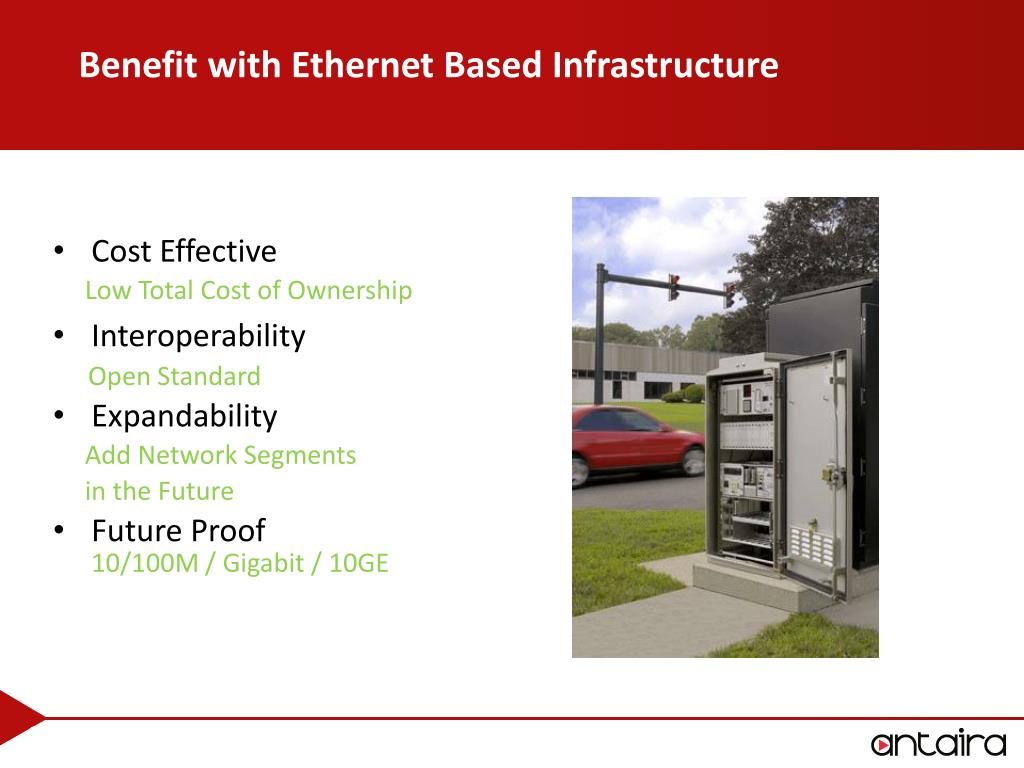

  12. Benefit with Ethernet Based Infrastructure • Cost Effective Low Total Cost of Ownership • Interoperability Open Standard • Expandability Add Network Segments in the Future • Future Proof10/100M / Gigabit / 10GE Confidential

  13. Infrastructure & Setup Fiber Optics Twisted Pairs Industrial Wireless Fiber Optic Conduit COAX Confidential

  14. Agenda • Industrial Networking Solutions – Why? • Product Lines Overview • Industrial Ethernet Switches Overview • Industrial Media Converters • Industrial Wireless Consideration • Industrial Serial Communication Solutions Confidential

  15. Product Lines Overview Industrial Ethernet Switches Industrial Media Converters 10/100/1000T Fiber, Gigabit Fiber PoE, PoE+ Managed, Unmanaged 10/100/1000T Fiber, Gigabit Fiber PoE, PoE+ Managed, Unmanaged Industrial Serial / USB Industrial Wireless MSC, USB, Converters, Serial to Ethernet, Gateway 802.11a/b/g/n AP / Bridge / Client / Router Indoor / Outdoor Confidential Confidential

  16. Agenda • Industrial Networking Solutions – Why? • Product Lines Overview • Industrial Ethernet Switches Overview • Industrial Media Converters • Industrial Wireless Consideration • Industrial Serial Communication Solutions Confidential

  17. Industrial Ethernet Switches • Complete Line of Industrial Ethernet Solutions • Wide range of choices to choose from • Unmanaged and Managed Ethernet Switches • 10/100BTx, Gigabit and fast Ethernet • Multi or Single Mode, WDM Single Strand Fiber Options • PoE 802.3af and PoE 802.at • EN50155 M12/IP67 Managed Ethernet Switches • Network Redundancy- Redundancy Ring support - recovery time < 20 ms w/250 switches • Industrial-grade design- IP30 and IP67 casings, -40 to 75C operating temperature - Compact design, for rack, panel, and DIN-rail mounting • Hazard-free Ethernet Networking • CE, FCC, UL, cUL Class 1 Div 2

  18. Industrial Grade Design- Hardware • IP30 and IP67 casings • Wide Temperature Range • Compact design • Slim Form Factor • Flexible Mounting design • Din-Rail • Wall Mounting • Rack Mounting Confidential

  19. Naming Rule Example LN?- aabbAGH– cc – dd – T LN is for Industrial Ethernet series (LANOLINX). X is for non PoE switch; or P is for PoE switch. aa: Total Port counts bb: Total Fiber port counts A – Hardware Version Blank – 1st version G – 10/100BTx and 1000BTx Support Blank– 10/100BTx support only H – High Power PoE Support Blank– Standard PoE power support cc – Fiber connector: ST, SC, or LC Blank – No fiber connector dd – 100Fx Fiber: MM (2 Ports Multi Mode); SS (2 Ports Single Mode) Blank– No Fiber Port T – Wide Temperature support (from -40 to 80 C Range, base on models) Blank– Standard Temperature range support ( 0 to 60 C) LNX-602A-ST-M-T Confidential

  20. Antaira Industrial Ethernet Switches- Unmanaged Switches 10/100BTx series • LNX-500 series • 5*10/100Tx or • 4*10/100Tx + 1*100Fx • LNX-600 series • 4*10/100Tx + 2*100Fx • LNX-800 series • 8*10/100Tx Confidential

  21. Antaira Industrial Ethernet Switches- Unmanaged Switches Gigabit series • LNX-500AG series • 5*10/100/1000Tx • LNX-501AG-SFP series • 4*10/100/1000Tx + 1*SFP slot • LNX-800AG series • 8*10/100/1000Tx • LNX-802AG series • 8*10/100/1000Tx + 2*1000Fx • LNX-1802G series • 16*10/100Tx + 2*10/100/1000/SFP Combo Ports Confidential

  22. Antaira Industrial Ethernet Switches- Unmanaged Switches PoE/PoE+ & Gigabit series • LNP-101AG series • 1*10/100/1000Tx PoE Splitter • LNP-201AG series • 1*10/100/1000Tx PoE+ Injector • LNP-500A series • 1*10/100Tx + 4*10/100Tx with PoE • LNP-500AH series • 1*10/100Tx + 4*10/100Tx with High Power PoE (25W/port) • LNP-501A series • 1*100Fx + 4*10/100Tx with PoE • LNP-601AGH-SFP series • 1*100/1000Tx/SFP + 1*10/100/1000Tx + 4*10/100/1000Tx w/PoE+ • LNP-602AGH series • 2*SFP + 4*10/100/1000Tx w/PoE+ • LNP-800AGH series • 8*10/100/1000Tx with PoE+ • LNP-800-M12-T • EN50155 w/M12 Connectors – 4*10/100Tx + 4*10/100Tx w/PoE Confidential

  23. Application Note: Facility Surveillance Camera - PoE Network Camera with an Unmanaged Switch • Application – Facility Surveillance • Improve Security Surveillance • Allow Video Streaming through Network • Challenges & Solutions • Require PoE Network Camera, due to no power source in some locations • Require Industrial Ethernet PoE Switch to extend distance back to the local Network (up to 100M) • Equipment Check List • PC or Laptop • PoE Network Camera (Panasonic WV-SP102) • Software CD • Unmanaged PoE Switch (Antaira LNP-500A) • AC to DC Power Supply • Ethernet cable * 2 Confidential

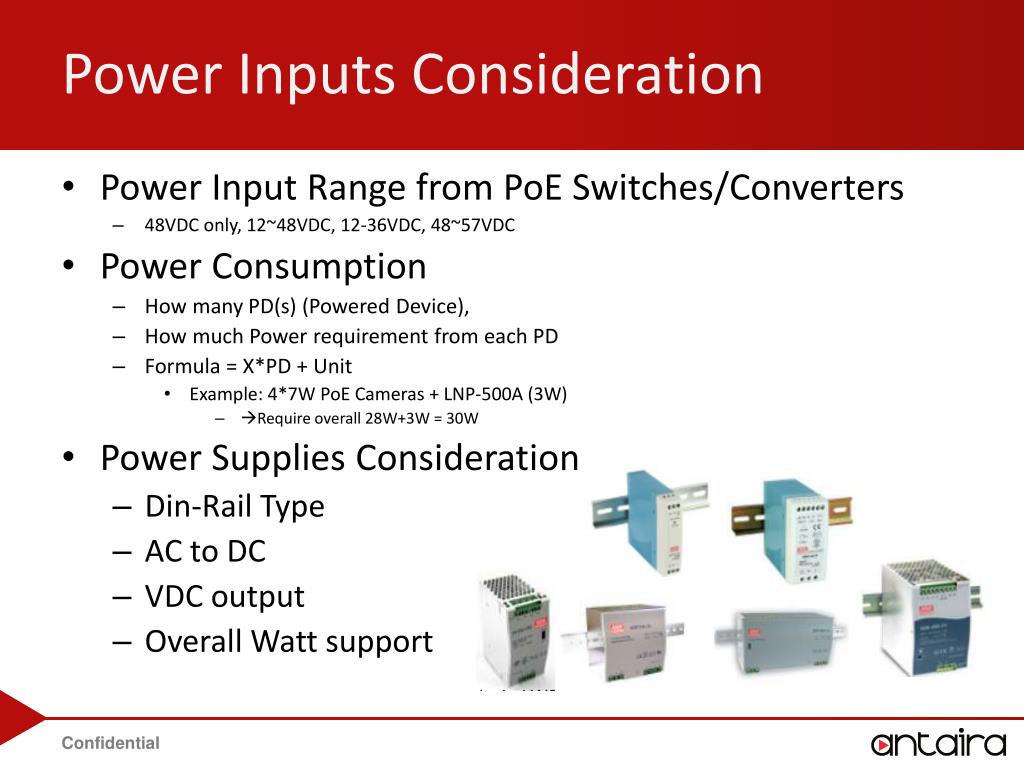

  24. Power Inputs Consideration • Power Input Range from PoE Switches/Converters • 48VDC only, 12~48VDC, 12-36VDC, 48~57VDC • Power Consumption • How many PD(s) (Powered Device), • How much Power requirement from each PD • Formula = X*PD + Unit • Example: 4*7W PoE Cameras + LNP-500A (3W) • Require overall 28W+3W = 30W • Power Supplies Consideration • Din-Rail Type • AC to DC • VDC output • Overall Watt support Confidential

  25. Connectors Type for Fiber • 100Fx (Multi Mode 5Km, Single Mode 20Km up): • pair of fibers is required. (TX, RX) • WDM (Single Strand Fiber. 1 Fiber w/Tx, Rx) SC ST WDM – A (1310nm) WDM – B (1550nm) • 1000Fx: • Multi Mode 550M • Single Mode 10Km up): SFP Module - LC Confidential

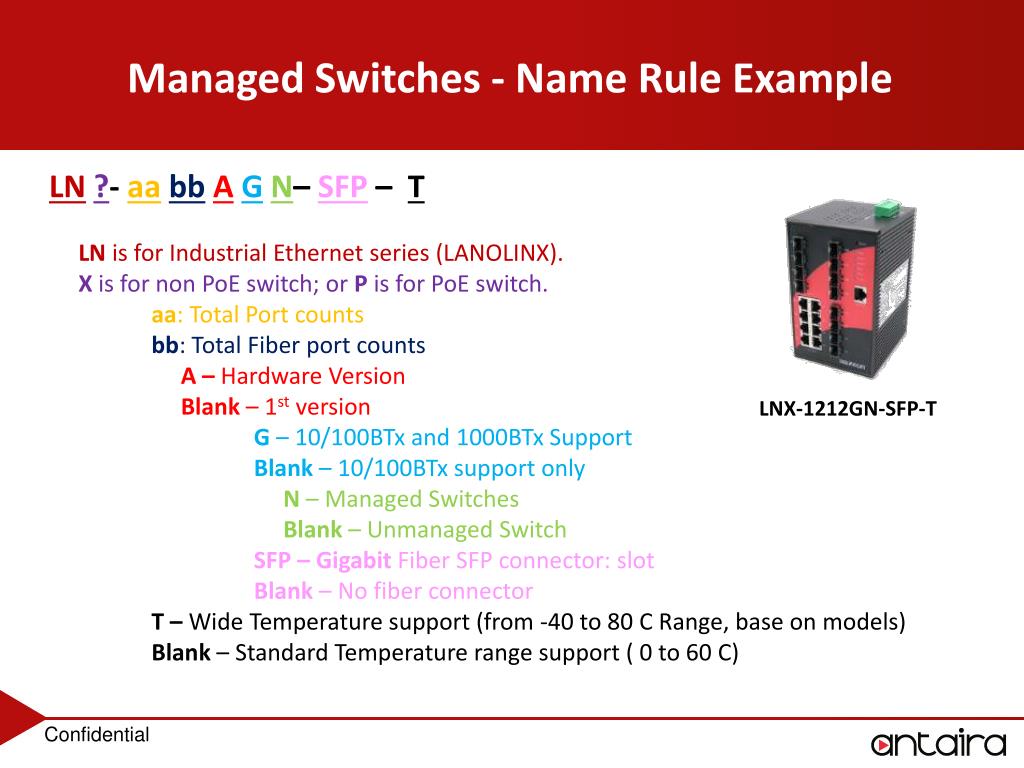

  26. Managed Switches - Name Rule Example LN?- aabbAGN– SFP – T LN is for Industrial Ethernet series (LANOLINX). X is for non PoE switch; or P is for PoE switch. aa: Total Port counts bb: Total Fiber port counts A – Hardware Version Blank – 1st version G – 10/100BTx and 1000BTx Support Blank– 10/100BTx support only N– Managed Switches Blank– Unmanaged Switch SFP – Gigabit Fiber SFP connector: slot Blank – No fiber connector T – Wide Temperature support (from -40 to 80 C Range, base on models) Blank– Standard Temperature range support ( 0 to 60 C) LNX-1212GN-SFP-T Confidential

  27. Antaira Industrial Ethernet Switches- Managed Switches 10/100BTx series • LNX-501W series • 4*10/100Tx + 1*100Fx • LNX-501WWA & WB series • 4*10/100Tx + 1*100Fx WDM • LNX-602N series • 4*10/100Tx + 2*100Fx • LNX-800N series • 8*10/100Tx • 6*10/100Tx + 2*100Fx • LNX-800N-67 series (w/M12 Type) • 8*10/100Tx • 6*100/100Tx + 2*100Fx Confidential

  28. Antaira Industrial Ethernet Switches- Managed Switches Gigabit series • LNX-804GN series • 4*10/100/1000Tx + 4*SFP • LNX-1002GN series • 8*10/100Tx + 2*GigE Combo • LNX-1212GN-SFP series • 8*GigE Combo + 4*SFP slot • LNX-1802GN series • 16*10/100Tx + 2*GigE Combo • LNX-2602GN series • 24*10/100Tx + 2*GigE Combo Confidential

  29. Antaira Industrial Ethernet Switches- Managed Switches PoE/PoE+ & Gigabit series • LNP-600N series • 2*10/100Tx 4*10/100Tx w/PoE High Power (25W) • 2*100Fx + 4*10/100Tx w/PoE High Power (25W) • LNP-1002GN series • 8*10/100Tx w/PoE + 2*GigE Combo • LNP-1204GN series • 8*10/100/1000Tx + 4*SFP • LNP-2602GN series • 24*10/100Tx + 2*GigE Combo Confidential

  30. Industrial Managed Switches Consideration- Why? • Reliable Network – Self Healing • Redundantcapability • Increase Remote Monitoring capability • SNMP built in • Flexible Network planning • Increase Determinism • Traffic monitoring & diagnosis • Advanced events handling • Dual DC Inputs, 12~48VDC Confidential

  31. Industrial Managed Switches Consideration • RJ-45 port supports Auto MDI/MDI-X • Supports STP/RSTP/MSTP • Redundancy Ring<20ms over 250units • 802.1Q Tag VLAN for flexible network planning • Port Mirror for traffic monitoring & diagnosis • Security: 802.1X/RADIUS support • IGMP Snooping for multicast service • 802.1p CoS (QoS) increase determinism • Support 100Fx Multi/Single mode SC/ST • Support 1000Tx, Gigabit Fiber SFP/XFP • Support 802.3af or 802.3at • Dual DC Inputs, 12~48VDC Confidential

  32. IGMP Snooping for Multicast service The Internet Group Management Protocol (IGMP) • Aaxeon Industrial Managed Switches supports IGMP snooping, which provide the ability to prune multicast traffic so that data travels only to those end destinations that require this kind of traffic. • The overall effect is to reduce the amount of traffic on the network. • Devices with Multicast Protocol Confidential

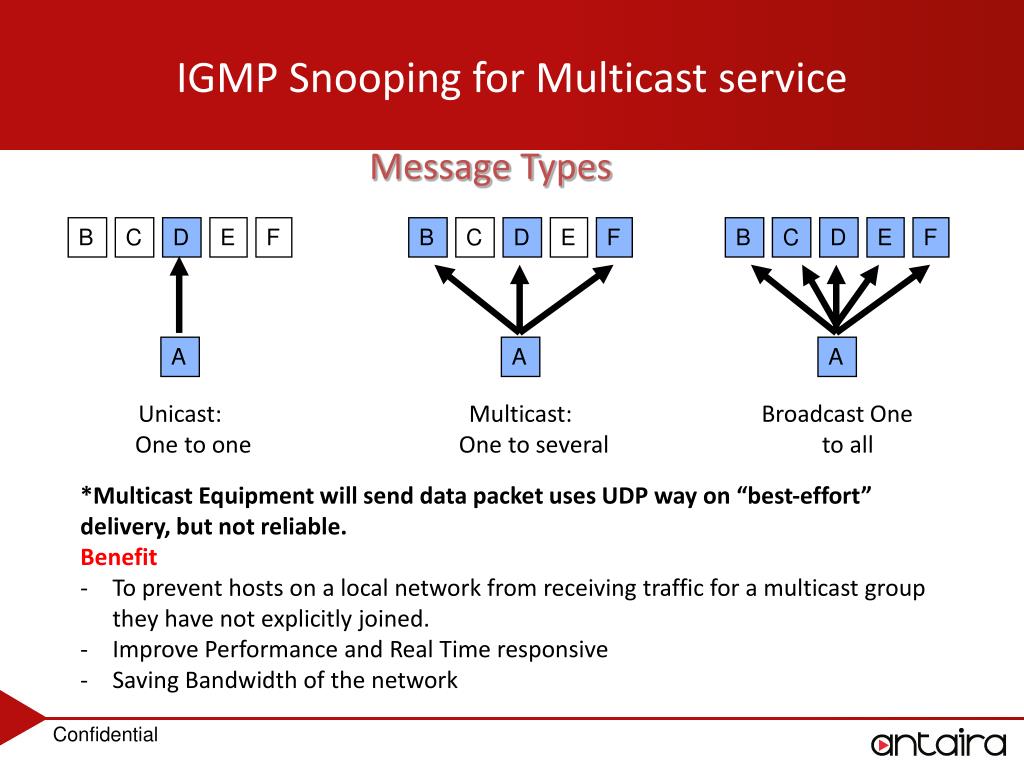

  33. B C D E F B C D E F B C D E F A A A Unicast: One to one Multicast: One to several Broadcast One to all IGMP Snooping for Multicast service Message Types • *Multicast Equipment will send data packet uses UDP way on “best-effort” delivery, but not reliable. • Benefit • To prevent hosts on a local network from receiving traffic for a multicast group they have not explicitly joined. • Improve Performance and Real Time responsive • Saving Bandwidth of the network Confidential

  34. VLAN Eases Network Planning A VLAN is a group of devices that can be located anywhere on a network, but which communicate as if they are on the same physical segment. VLANs can be used to segment your network without being restricted by physical connections—a limitation imposed by traditional network design. If power automation systems incorporate sensitive devices belong to different VLANs, they cannot communicate with each other, providing extra security and protection from unwanted invasion or traffic. Confidential

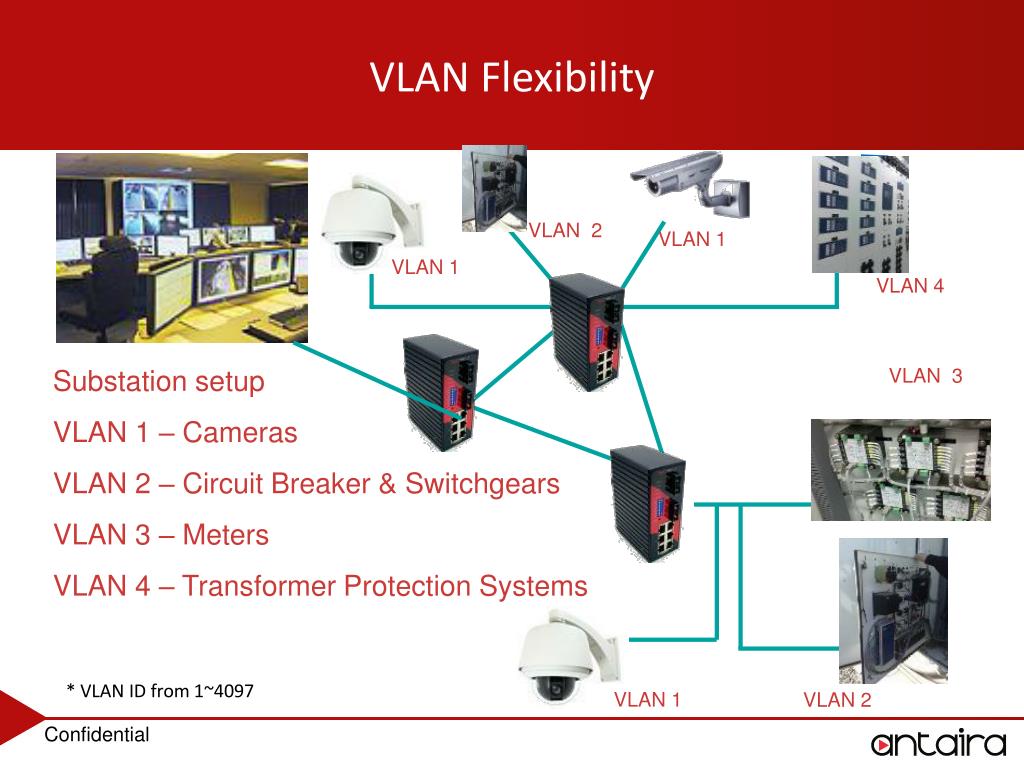

  35. VLAN Flexibility VLAN 2 VLAN 1 VLAN 1 VLAN 4 Substation setup VLAN 1 – Cameras VLAN 2 – Circuit Breaker & Switchgears VLAN 3 – Meters VLAN 4 – Transformer Protection Systems VLAN 3 * VLAN ID from 1~4097 VLAN 1 VLAN 2 Confidential

  36. VLAN Benefits 1. Increase Speed Of Network • Completely Isolate Traffic Between Groups of Devices • Reduce Need for Slower Processing Routers • Industrial: Separate Manufacturing Cells or Very High Speed Operations • Provide Added System Security • Limit Access to Critical Plant sections • Prevent Breach at one point from spreading to Entire plant • Low Cost & Adaptable • No wire Cutting & Added Interface Cards • Instantly Reconfigurable via Software Confidential

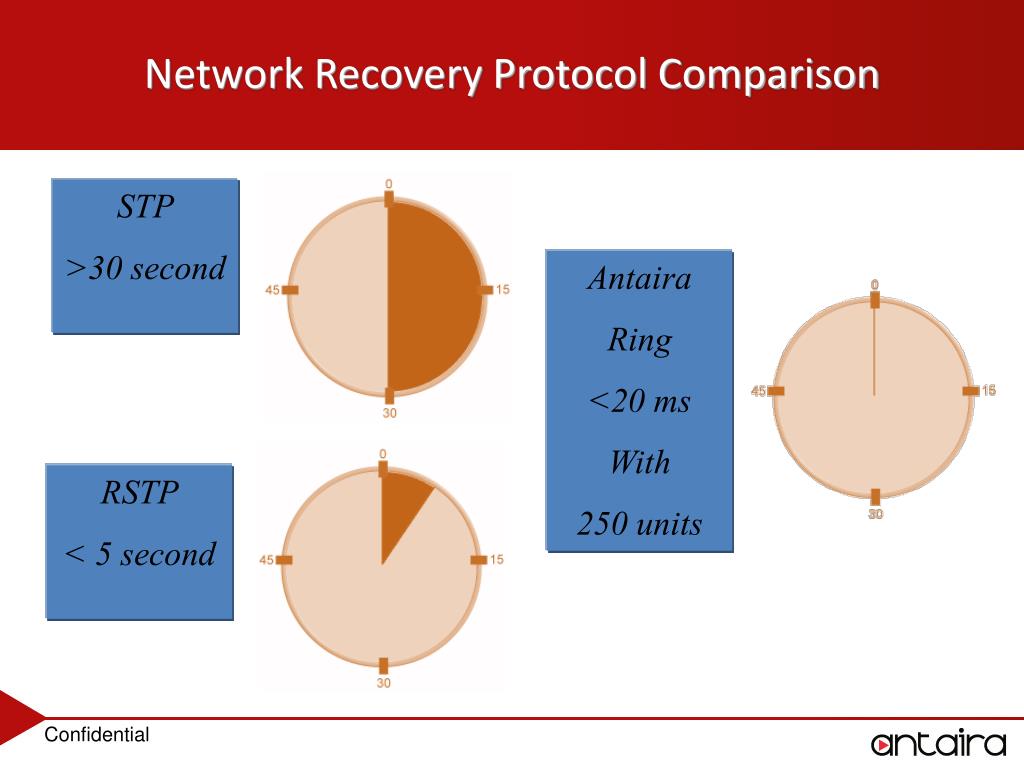

  37. Network Recovery Protocol Comparison STP >30 second RSTP < 5 second Antaira Ring <20 ms With 250 units Confidential

  38. Fast Networking Recovery Protocol Ring Master < 20 ms for up to 250 switches Benefit Self Healing Redundancy Network Reduce Network downtime Confidential

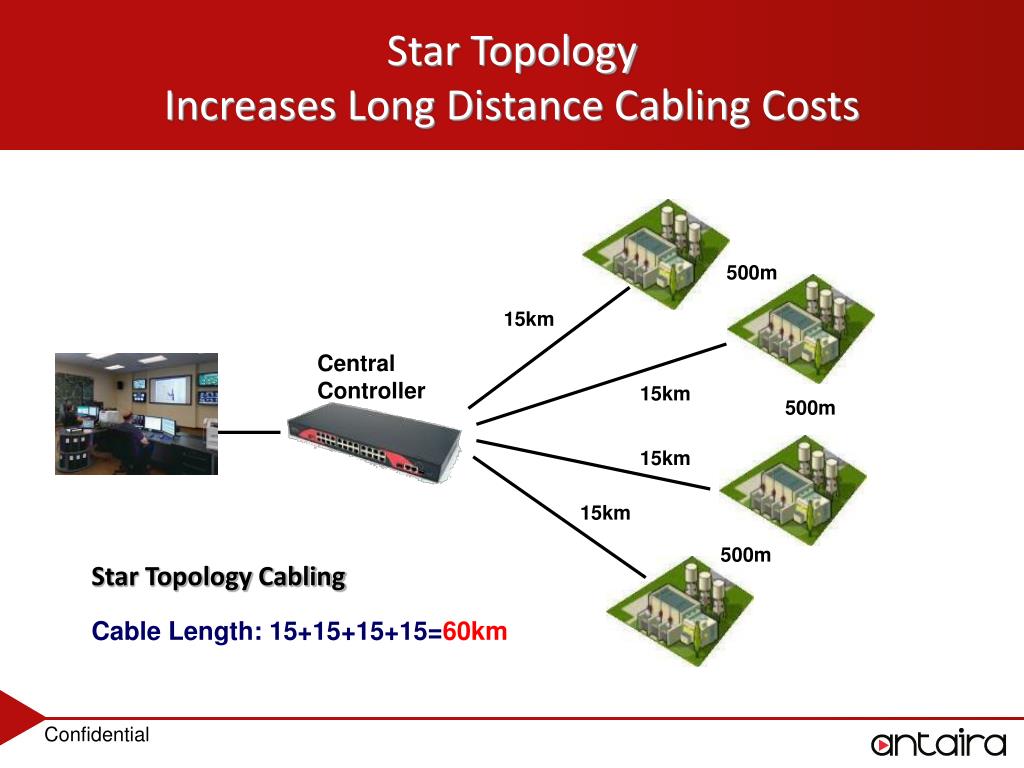

  39. Star Topology Increases Long Distance Cabling Costs 500m 15km Central Controller 15km 500m 15km 15km 500m Star Topology Cabling Cable Length: 15+15+15+15=60km Confidential

  40. Ring Topology Decreases Long Distance Cabling Costs Ring Topology Cabling Cable Length: 15+15+0.5+0.5+0.5=31.5km 500m 15km 500 m Central Controller 15km 500 m Confidential

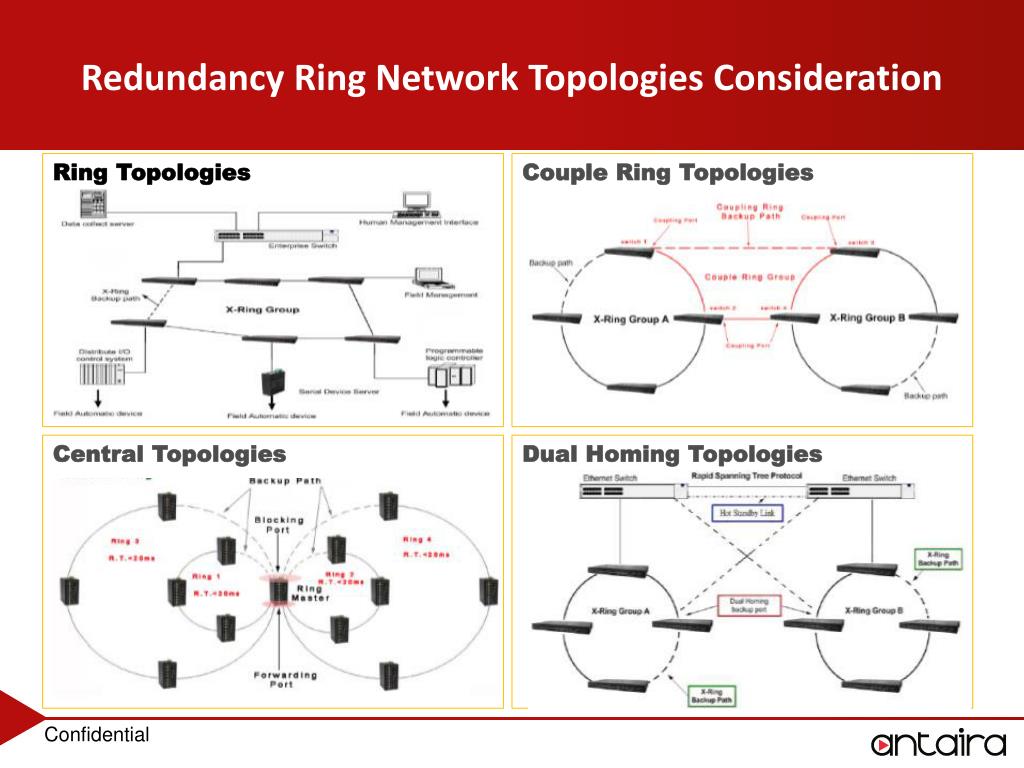

  41. Redundancy Ring Network Topologies Consideration Ring Topologies Couple Ring Topologies Central Topologies Dual Homing Topologies Confidential

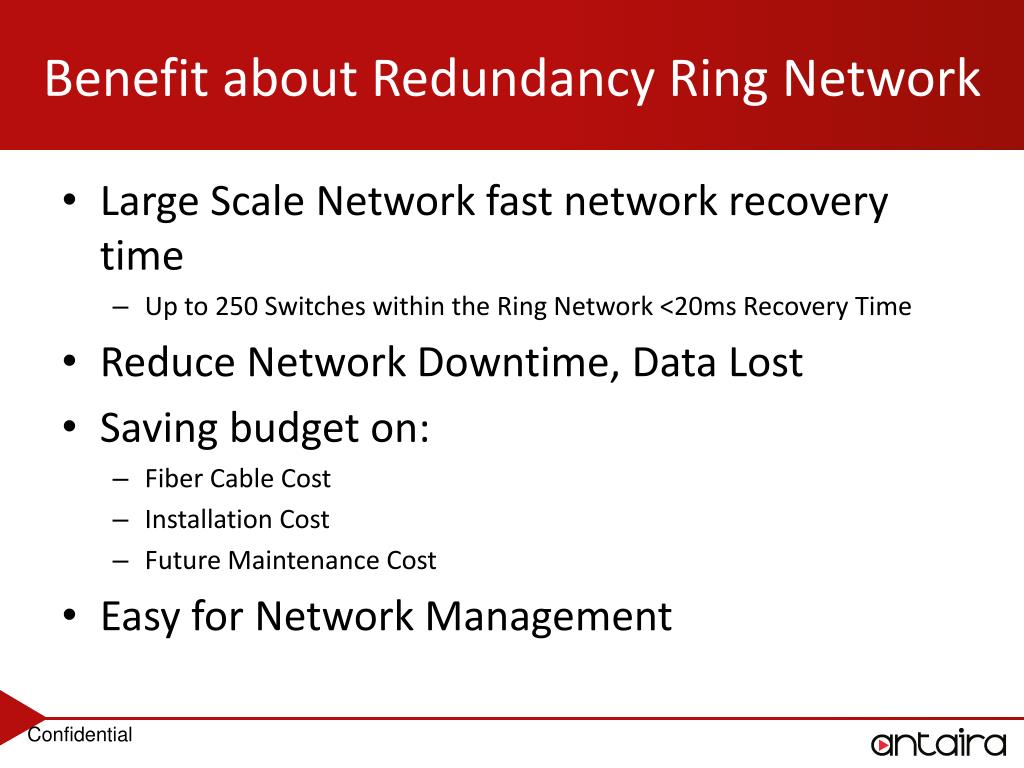

  42. Benefit about Redundancy Ring Network • Large Scale Network fast network recovery time • Up to 250 Switches within the Ring Network <20ms Recovery Time • Reduce Network Downtime, Data Lost • Saving budget on: • Fiber Cable Cost • Installation Cost • Future Maintenance Cost • Easy for Network Management Confidential

  43. PoE ? Confidential

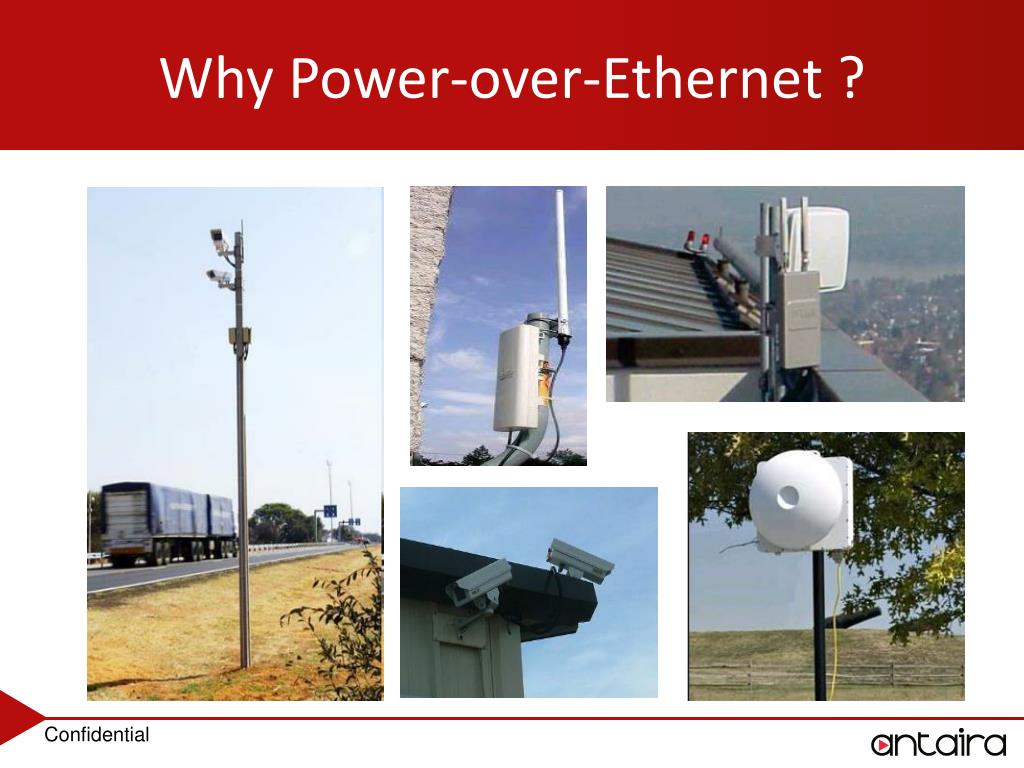

  44. Why Power-over-Ethernet ? Confidential

  45. Industrial PoE Switches Requirement • Outdoor Applications • Rugged Design / High MTBF • Wide Temperature range support • Insufficient Power Source • Increment usage of PoE Equipment • VOIP Phone, Camera, Wireless AP Confidential

  46. PoE Standards: IEEE 802.3af & 802.3at Confidential

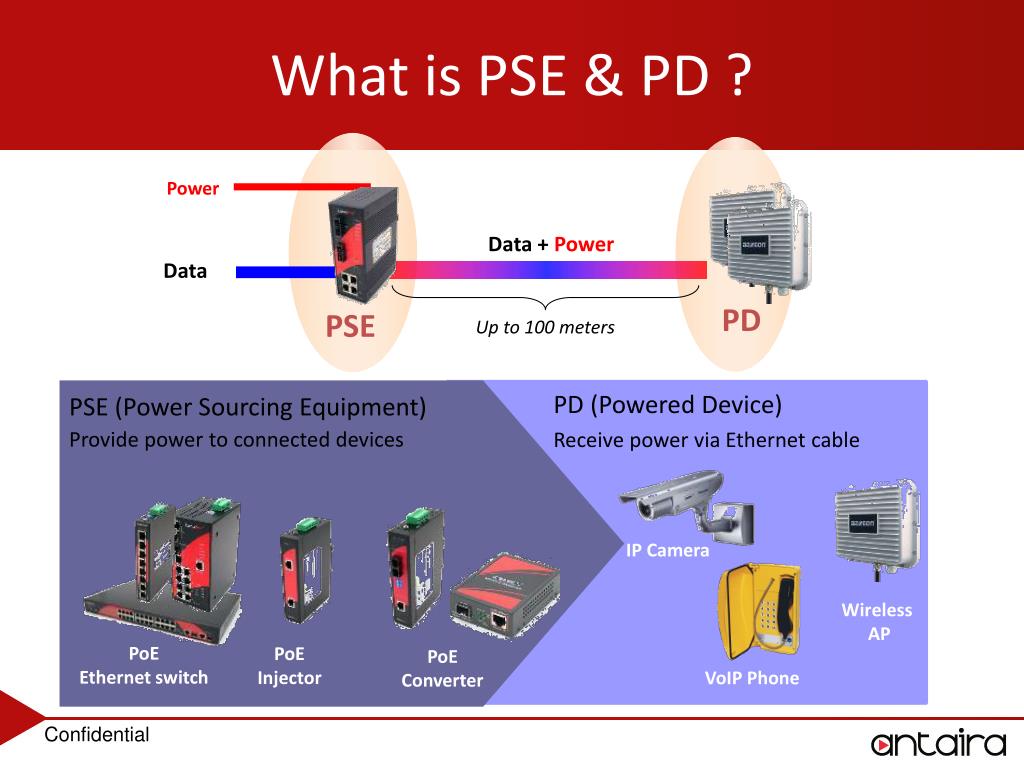

  47. What is PSE & PD ? Power Data + Power Data PD PSE Up to 100 meters PD (Powered Device) Receive power via Ethernet cable PSE (Power Sourcing Equipment) Provide power to connected devices IP Camera Wireless AP PoE Ethernet switch PoE Injector PoE Converter VoIP Phone Confidential

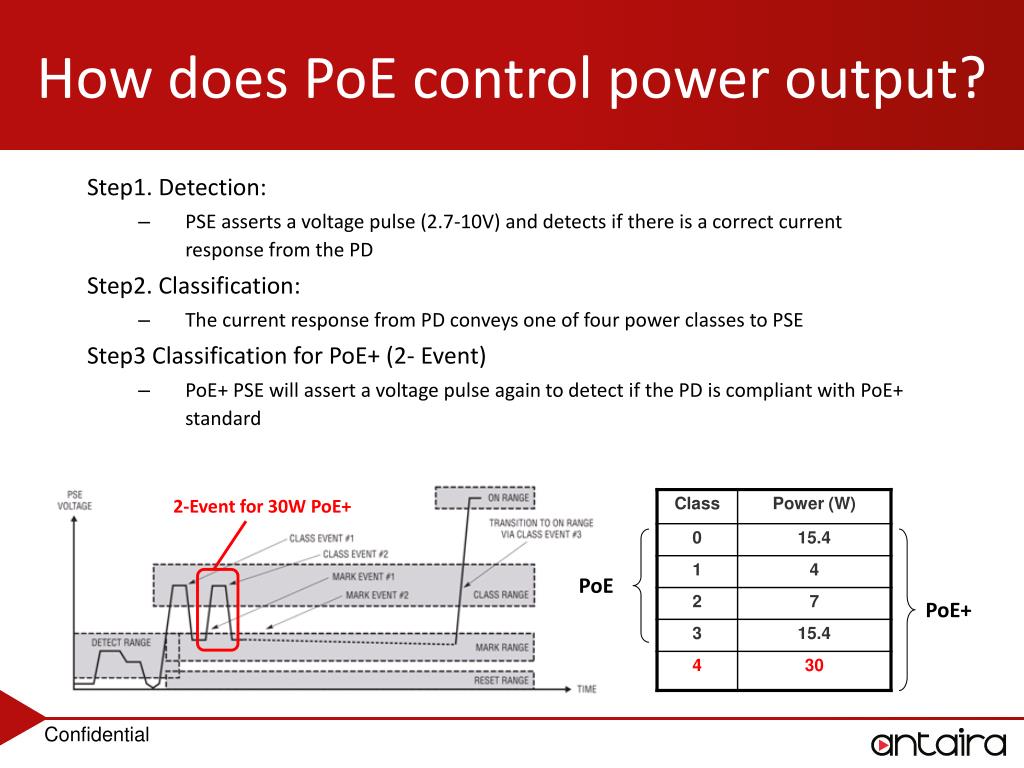

  48. How does PoE control power output? Step1. Detection: • PSE asserts a voltage pulse (2.7-10V) and detects if there is a correct current response from the PD Step2. Classification: • The current response from PD conveys one of four power classes to PSE Step3 Classification for PoE+ (2- Event) • PoE+ PSE will assert a voltage pulse again to detect if the PD is compliant with PoE+ standard 2-Event for 30W PoE+ PoE PoE+ Confidential

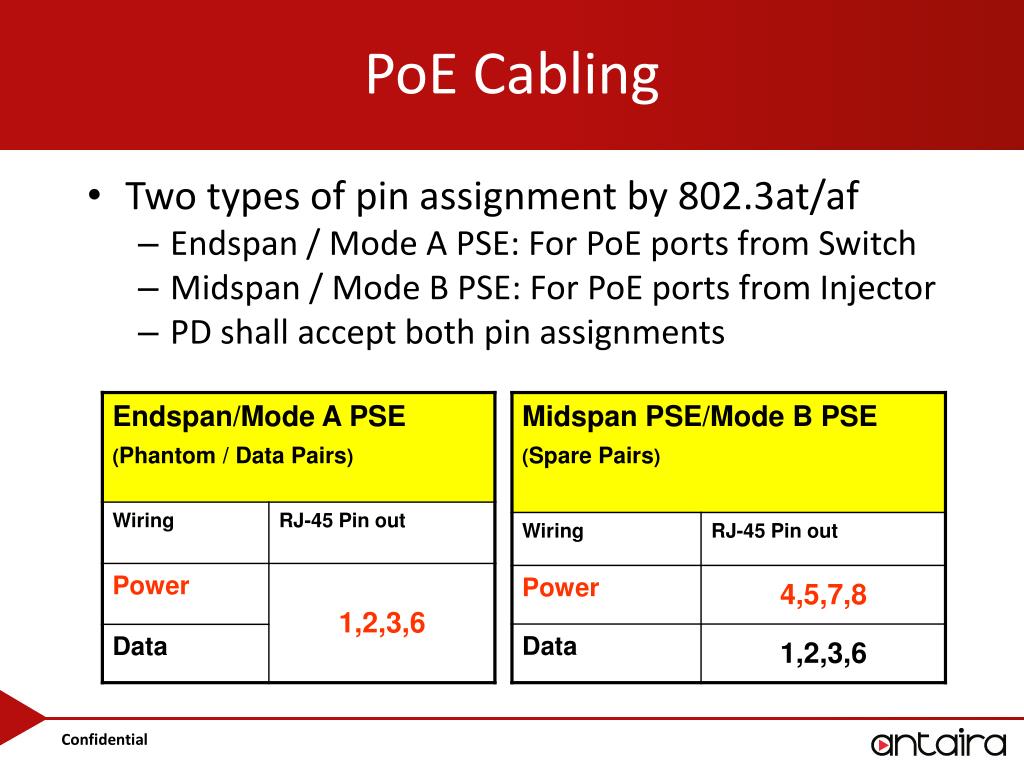

  49. PoE Cabling • Two types of pin assignment by 802.3at/af • Endspan / Mode A PSE: For PoE ports from Switch • Midspan / Mode B PSE: For PoE ports from Injector • PD shall accept both pin assignments Confidential

  50. Agenda • Industrial Networking Solutions – Why? • Product Lines Overview • Industrial Ethernet Switches Overview • Industrial Media Converters • Industrial Wireless Consideration • Industrial Serial Communication Solutions Confidential
