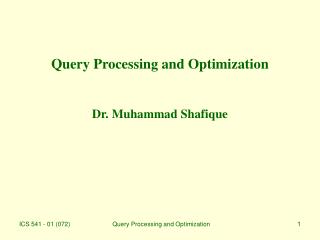

### Query Processing and Optimization Dr. Muhammad Shafique

Query Processing and Optimization

Outline

- Background review
- Processing a query
- SQL queries and relational algebra
- Implementing basic query operations
- Heuristics-based query optimization
- Cost-function-based query optimization
- Semantic-based query optimization
- Query optimization in Oracle DBMS

Query Processing and Optimization

Processing a Query

- Query processing and query optimization
- Problem formulation

Given a query q, a space of execution plans, E, and a cost function, cost(p) that assigns a numeric cost to an execution plan p E, find the minimum cost execution plan that computes q.

Query Processing and Optimization

Processing a Query

- Typical steps in processing a high-level query
- Query in a high-level query language like SQL
- Scanning, parsing, and validation
- Intermediate-form of query like query tree
- Query optimizer
- Execution plan
- Query code generator
- Object-code for the query
- Run-time database processor
- Results of query

Query Processing and Optimization

SQL Queries and Relational Algebra

- SQL query is translated into an equivalent extended relational algebra expression --- represented as a query tree
- In order to transform a given query into a query tree, the query is decomposed into query blocks
- A query block contains a single SELECT-FROM-WHERE expression along with GROUP-BY and HAVING clauses.
- The query optimizer chooses an execution plan for each block

Query Processing and Optimization

SQL Queries and Relational Algebra

- Example

SELECT Lname, Fname

FROM EMPLOYEE

WHERE Salary > ( SELECT MAX(Salary)

FROM EMPLOYEE

WHERE Dno = 5 )

Query Processing and Optimization

Translating SQL Queries into Relational Algebra (1)

SELECT LNAME, FNAME

FROM EMPLOYEE

WHERE SALARY > ( SELECT MAX (SALARY)

FROM EMPLOYEE

WHERE DNO = 5);

SELECT LNAME, FNAME

FROM EMPLOYEE

WHERE SALARY > C

SELECT MAX (SALARY)

FROM EMPLOYEE

WHERE DNO = 5

πLNAME, FNAME(σSALARY>C(EMPLOYEE))

ℱMAX SALARY(σDNO=5 (EMPLOYEE))

Query Processing and Optimization

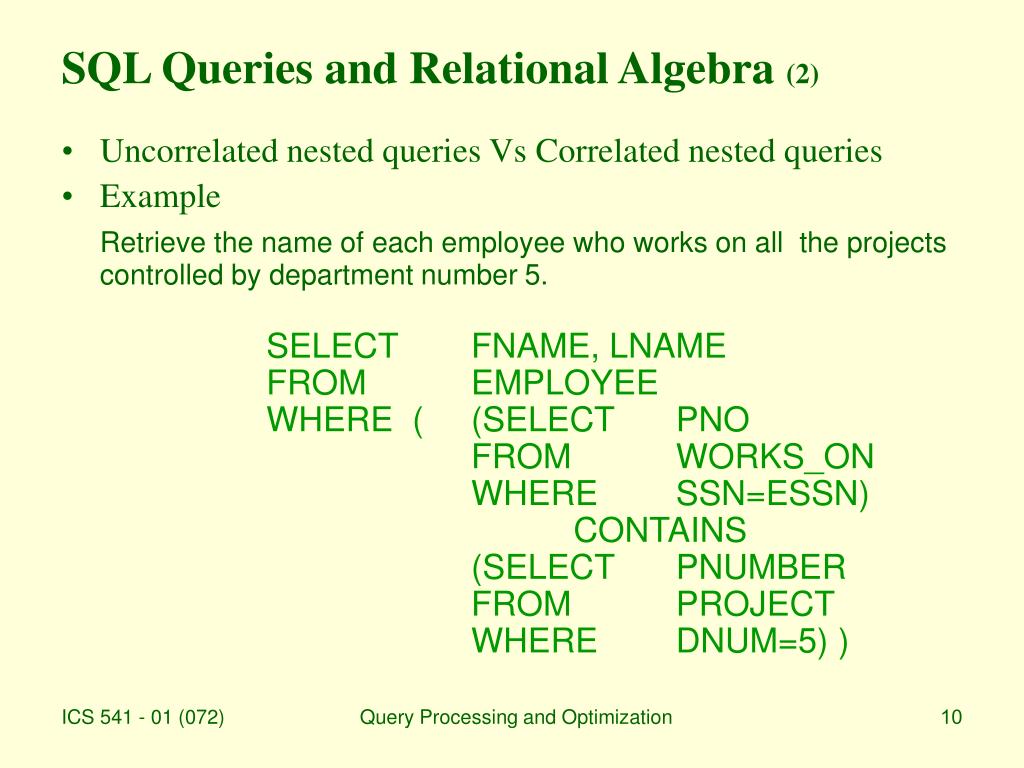

SQL Queries and Relational Algebra (2)

- Uncorrelated nested queries Vs Correlated nested queries
- Example

Retrieve the name of each employee who works on all the projects controlled by department number 5.

SELECT FNAME, LNAME FROM EMPLOYEE WHERE ( (SELECT PNO FROM WORKS_ON WHERE SSN=ESSN) CONTAINS (SELECT PNUMBER FROM PROJECT WHERE DNUM=5) )

Query Processing and Optimization

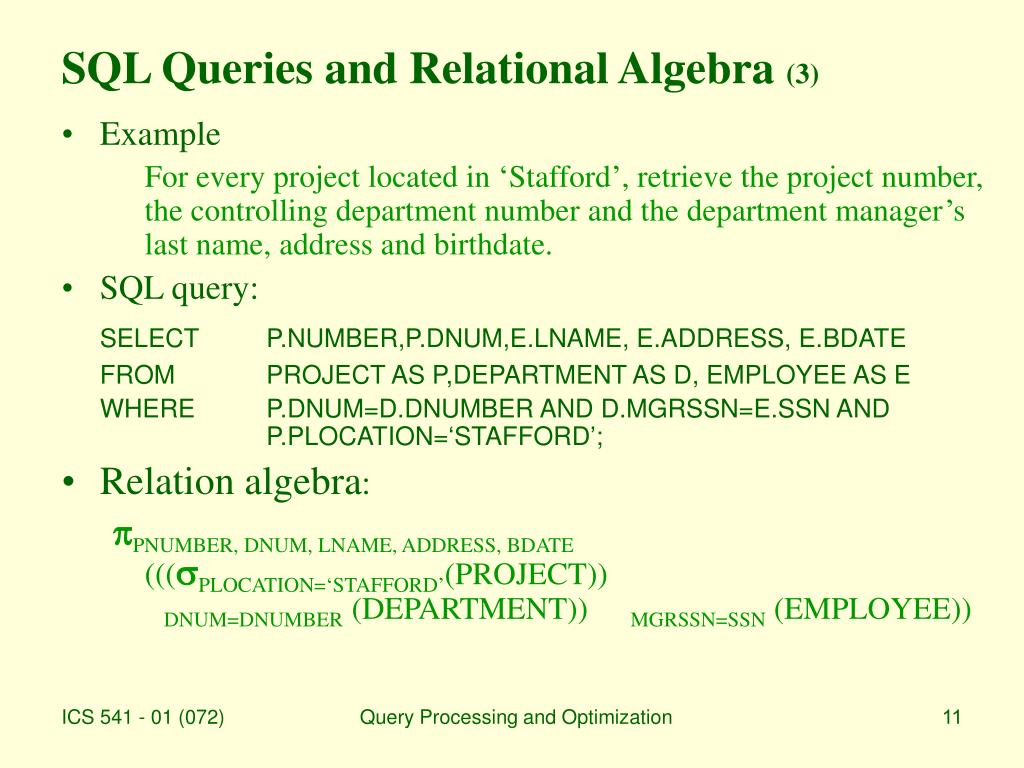

SQL Queries and Relational Algebra (3)

- Example

For every project located in ‘Stafford’, retrieve the project number, the controlling department number and the department manager’s last name, address and birthdate.

- SQL query:

SELECT P.NUMBER,P.DNUM,E.LNAME, E.ADDRESS, E.BDATE

FROM PROJECT AS P,DEPARTMENT AS D, EMPLOYEE AS E

WHERE P.DNUM=D.DNUMBER AND D.MGRSSN=E.SSN AND P.PLOCATION=‘STAFFORD’;

- Relation algebra:

PNUMBER, DNUM, LNAME, ADDRESS, BDATE (((PLOCATION=‘STAFFORD’(PROJECT))DNUM=DNUMBER (DEPARTMENT)) MGRSSN=SSN (EMPLOYEE))

Query Processing and Optimization

SQL Queries and Relational Algebra (4)

Query Processing and Optimization

Implementing Basic Query Operations

- An RDBMS must provide implementation(s) for all the required operations including relational operators and more
- External sorting
- Sort-merge strategy
- Sorting phase
- Number of file blocks (b)
- Number of available buffers (nB)
- Runs --- (b / nB)
- Merging phase --- passes
- Degree of merging --- the number of runs that are merged together in each pass

Query Processing and Optimization

Algorithms for External Sorting (1)

- External sorting:
- Refers to sorting algorithms that are suitable for large files of records stored on disk that do not fit entirely in main memory, such as most database files.
- Sort-Merge strategy:
- Starts by sorting small subfiles (runs) of the main file and then merges the sorted runs, creating larger sorted subfiles that are merged in turn.

Query Processing and Optimization

Algorithms for External Sorting(2)

Query Processing and Optimization

Algorithms for External Sorting (3)

- Analysis

Number of file blocks = b

Number of initial runs = nR

Available buffer space = nB

Sorting phase: nR = (b/nB)

Degree of merging: dM = Min (nB-1, nR);

Number of passes: nP = (logdM(nR))

Number of block accesses: (2 * b) + (2 * b * (logdM(nR)))

- Example done in the class

Query Processing and Optimization

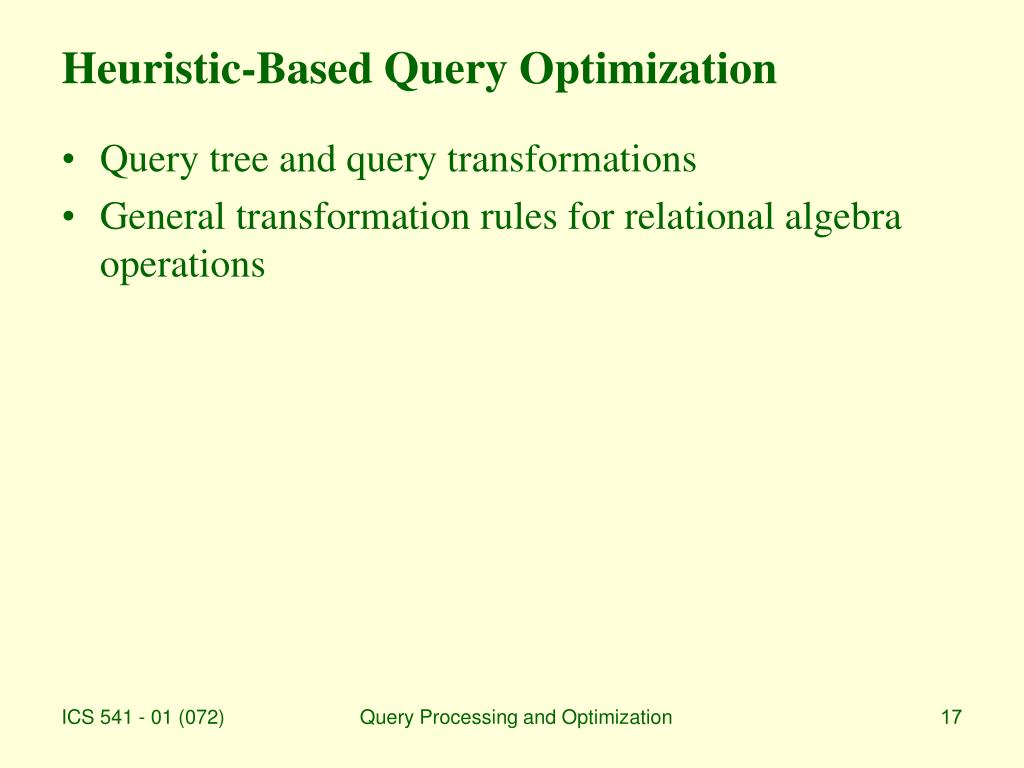

Heuristic-Based Query Optimization

- Query tree and query transformations
- General transformation rules for relational algebra operations

Query Processing and Optimization

General Transformation Rules for Relational Algebra Operations

- Cascade of : A conjunctive selection condition can be broken up into a cascade (that is, a sequence) of individual operations: C1 AND C2 AND ….AND Cn (R) ≡ C1 (C2( …(Cn(R))…)
- Commutativity of : The operation is commutative: C1(C2(R)) ≡C2(C1(R))
- Cascade of : In a cascade (sequence) of operations, all but the last one can be ignored
- Commuting with : If the selection condition c involves only those attributes A1, ..., An in the projection list, the two operations can be commuted
- And more …

Query Processing and Optimization

Heuristic-Based Query Optimization

- Outline of heuristic algebraic optimization algorithm
- Break up SELECT operations with conjunctive conditions into a cascade of SELECT operations
- Using the commutativity of SELECT with other operations, move each SELECT operation as far down the query tree as is permitted by the attributes involved in the select condition
- Using commutativity and associativity of binary operations, rearrange the leaf nodes of the tree
- Combine a CARTESIAN PRODUCT operation with a subsequent SELECT operation in the tree into a JOIN operation, if the condition represents a join condition
- Using the cascading of PROJECT and the commuting of PROJECT with other operations, break down and move lists of projection attributes down the tree as far as possible by creating new PROJECT operations as needed
- Identify sub-trees that represent groups of operations that can be executed by a single algorithm

Query Processing and Optimization

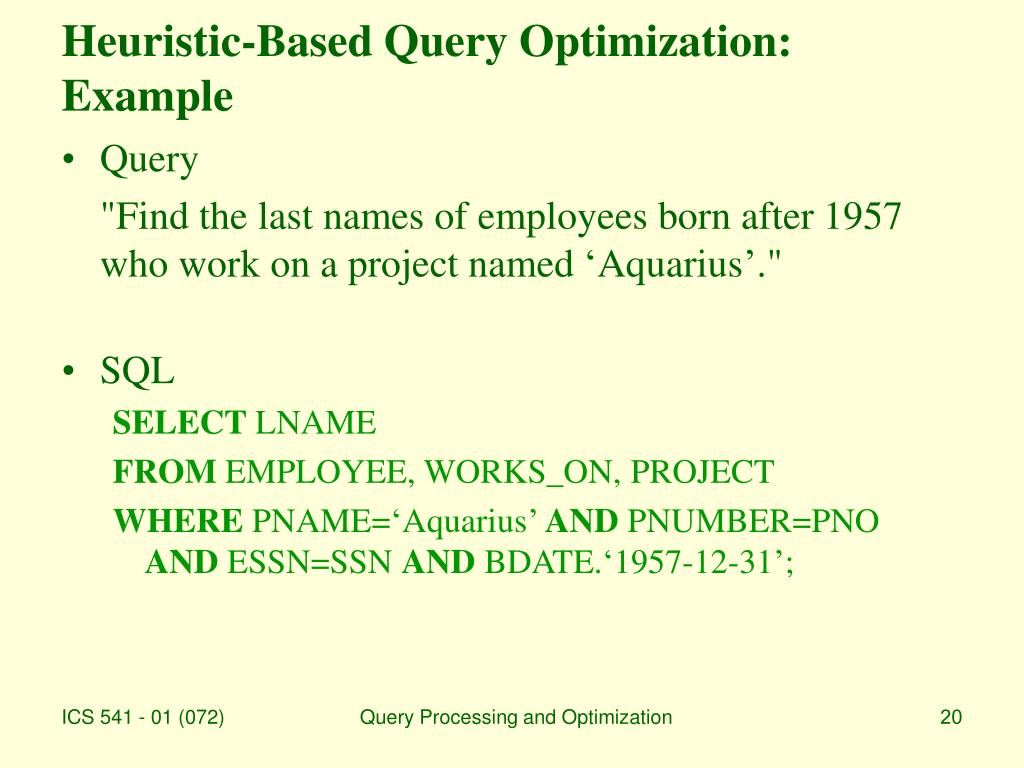

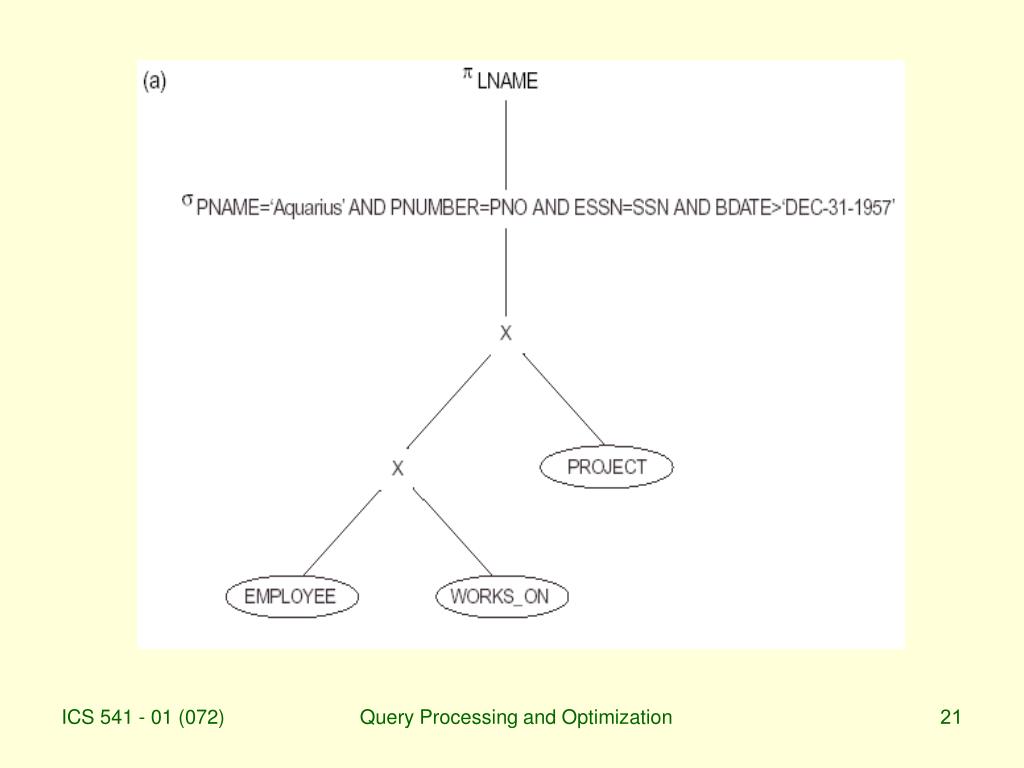

Heuristic-Based Query Optimization: Example

- Query

"Find the last names of employees born after 1957 who work on a project named ‘Aquarius’."

- SQL

SELECT LNAME

FROM EMPLOYEE, WORKS_ON, PROJECT

WHERE PNAME=‘Aquarius’ AND PNUMBER=PNO AND ESSN=SSN AND BDATE.‘1957-12-31’;

Query Processing and Optimization

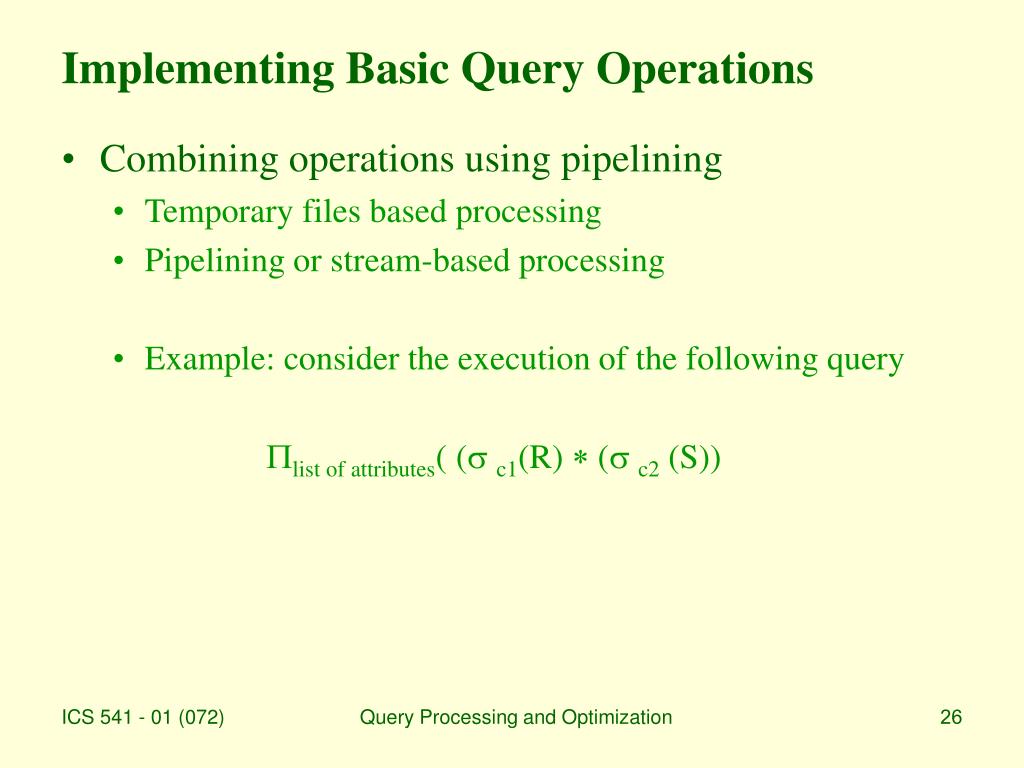

Implementing Basic Query Operations

- Combining operations using pipelining
- Temporary files based processing
- Pipelining or stream-based processing
- Example: consider the execution of the following query

list of attributes( ( c1(R) ( c2 (S))

Query Processing and Optimization

Implementing Basic Query Operations

- Estimates of selectivity
- Selectivity is the ratio of the number of tuples that satisfy the condition to the total number of tuples in the relation.
- SELECT ( ) operator implementation
- Linear search
- Binary search
- Using a primary index (or hash key)
- Using primary index to retrieve multiple records
- Using clustering index to retrieve multiple records
- Using a secondary index on an equality comparison
- Conjunctive selection using an individual index
- Conjunctive selection using a composite index
- Conjunctive selection by intersection of record pointers

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation:
- Join (EQUIJOIN, NATURAL JOIN)
- two–way join: a join on two files
- e.g. R A=B S
- multi-way joins: joins involving more than two files.
- e.g. R A=B S C=D T
- Examples
- (OP6): EMPLOYEE DNO=DNUMBER DEPARTMENT
- (OP7): DEPARTMENT MGRSSN=SSN EMPLOYEE

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation (contd.):
- Methods for implementing joins:
- J1 Nested-loop join (brute force):
- For each record t in R (outer loop), retrieve every record s from S (inner loop) and test whether the two records satisfy the join condition t[A] = s[B].
- J2 Single-loop join (Using an access structure to retrieve the matching records):
- If an index (or hash key) exists for one of the two join attributes — say, B of S — retrieve each record t in R, one at a time, and then use the access structure to retrieve directly all matching records s from S that satisfy s[B] = t[A].

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation (contd.):
- Methods for implementing joins:

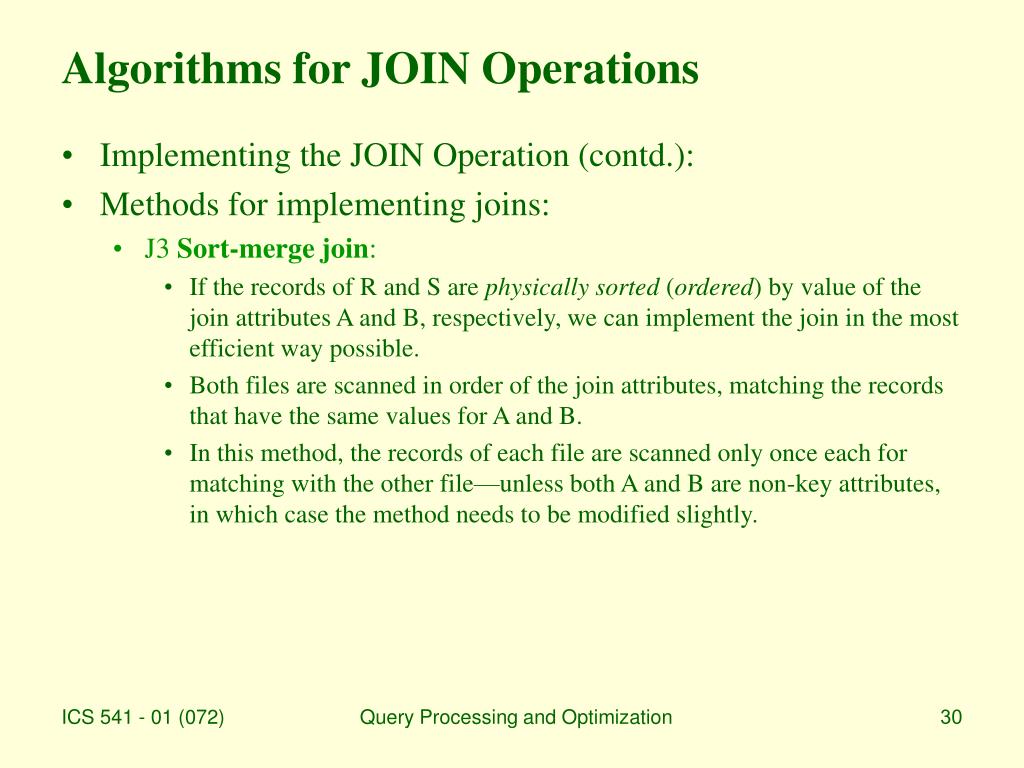

- J3 Sort-merge join:
- If the records of R and S are physically sorted (ordered) by value of the join attributes A and B, respectively, we can implement the join in the most efficient way possible.
- Both files are scanned in order of the join attributes, matching the records that have the same values for A and B.
- In this method, the records of each file are scanned only once each for matching with the other file—unless both A and B are non-key attributes, in which case the method needs to be modified slightly.

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation (contd.):
- Methods for implementing joins:

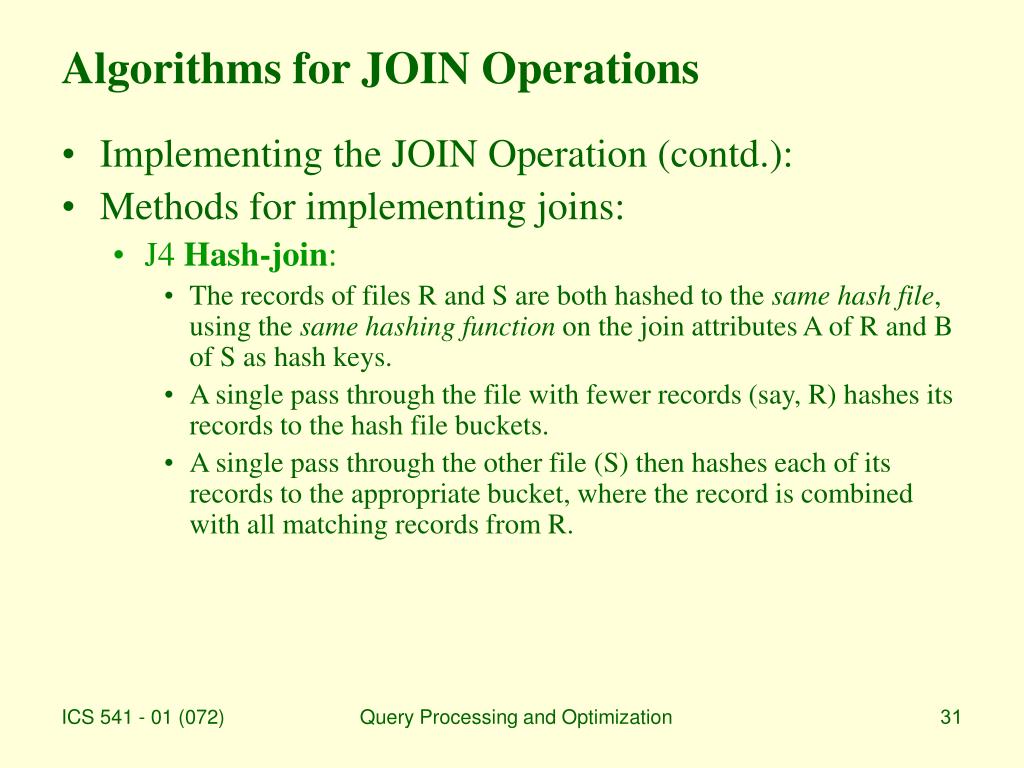

- J4 Hash-join:
- The records of files R and S are both hashed to the same hash file, using the same hashing function on the join attributes A of R and B of S as hash keys.
- A single pass through the file with fewer records (say, R) hashes its records to the hash file buckets.
- A single pass through the other file (S) then hashes each of its records to the appropriate bucket, where the record is combined with all matching records from R.

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation (contd.):
- Factors affecting JOIN performance
- Available buffer space
- Join selection factor
- Choice of inner VS outer relation

Query Processing and Optimization

Buffer Space and Join performance

In the nested-loop join, it makes a difference which file is chosen for the outer loop and which for the inner loop. If EMPLOYEE is used for the outer loop, each block of EMPLOYEE is read once, and the entire DEPARTMENT file (each of its blocks) is read once for each time we read in (nB - 2) blocks of the EMPLOYEE file. We get the following:

Total number of blocks accessed for outer file = bE

Number of times ( nB - 2) blocks of outer file are loaded = bE / nB – 2

Total number of blocks accessed for inner file = bD * bE / nB – 2

Hence, we get the following total number of block accesses:

bE + ( bE / nB – 2 * bD) = 2000 + ( (2000/5) * 10) = 6000 blocks

On the other hand, if we use the DEPARTMENT records in the outer loop, by symmetry we get the following total number of block accesses:

bD + ( bD / nB – 2 * bE) = 10 + ((10/5) * 2000) = 4010 blocks

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation (contd.):
- Other types of JOIN algorithms
- Partition hash join
- Partitioning phase:
- Each file (R and S) is first partitioned into M partitions using a partitioning hash function on the join attributes:
- R1 , R2 , R3 , ...... RM and S1 , S2 , S3 , ...... SM
- Minimum number of in-memory buffers needed for the partitioning phase: M+1.
- A disk sub-file is created per partition to store the tuples for that partition.
- Joining or probing phase:
- Involves M iterations, one per partitioned file.
- Iteration i involves joining partitions Ri and Si.

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation (contd.):
- Partitioned Hash Join Procedure:
- Assume Ri is smaller than Si.
- Copy records from Ri into memory buffers.
- Read all blocks from Si, one at a time and each record from Si is used to probe for a matching record(s) from partition Si.
- Write matching record from Ri after joining to the record from Si into the result file.

Query Processing and Optimization

Algorithms for JOIN Operations

- Implementing the JOIN Operation (contd.):
- Cost analysis of partition hash join:
- Reading and writing each record from R and S during the partitioning phase:(bR + bS), (bR + bS)
- Reading each record during the joining phase:(bR + bS)
- Writing the result of join:bRES
- Total Cost:
- 3* (bR + bS) + bRES

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Cost-based query optimization:
- Estimate and compare the costs of executing a query using different execution strategies and choose the strategy with the lowest cost estimate.
- Issues
- Cost function
- Number of execution strategies to be considered
- Compare to heuristic query optimization

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

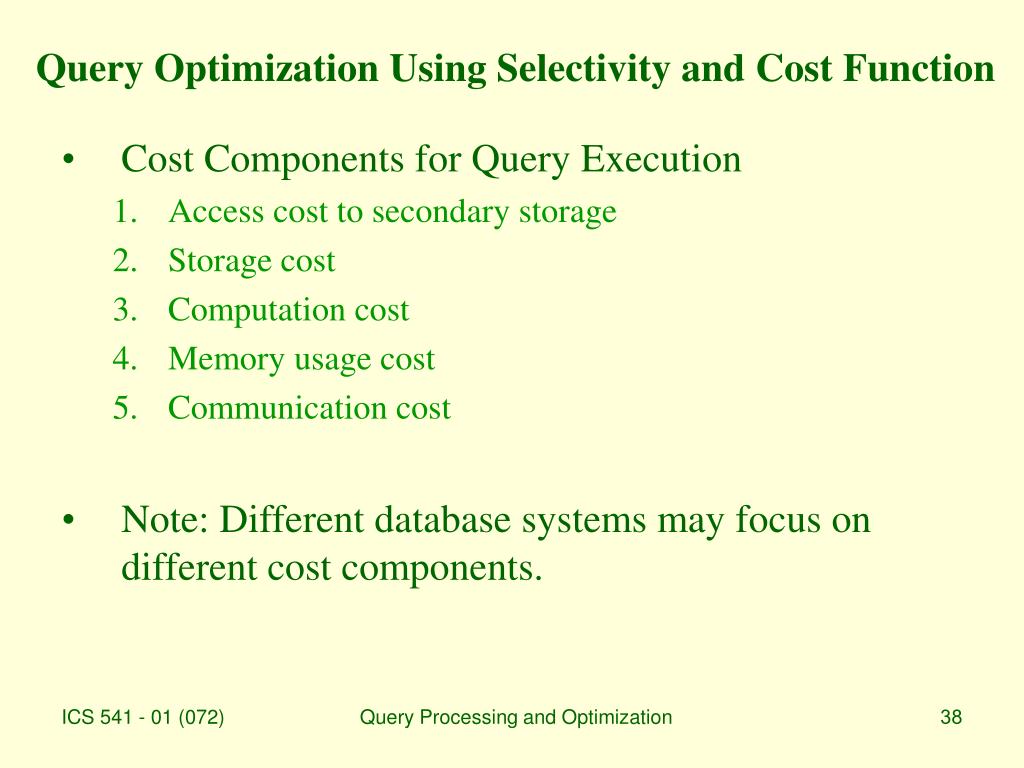

- Cost Components for Query Execution
- Access cost to secondary storage
- Storage cost
- Computation cost
- Memory usage cost
- Communication cost
- Note: Different database systems may focus on different cost components.

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

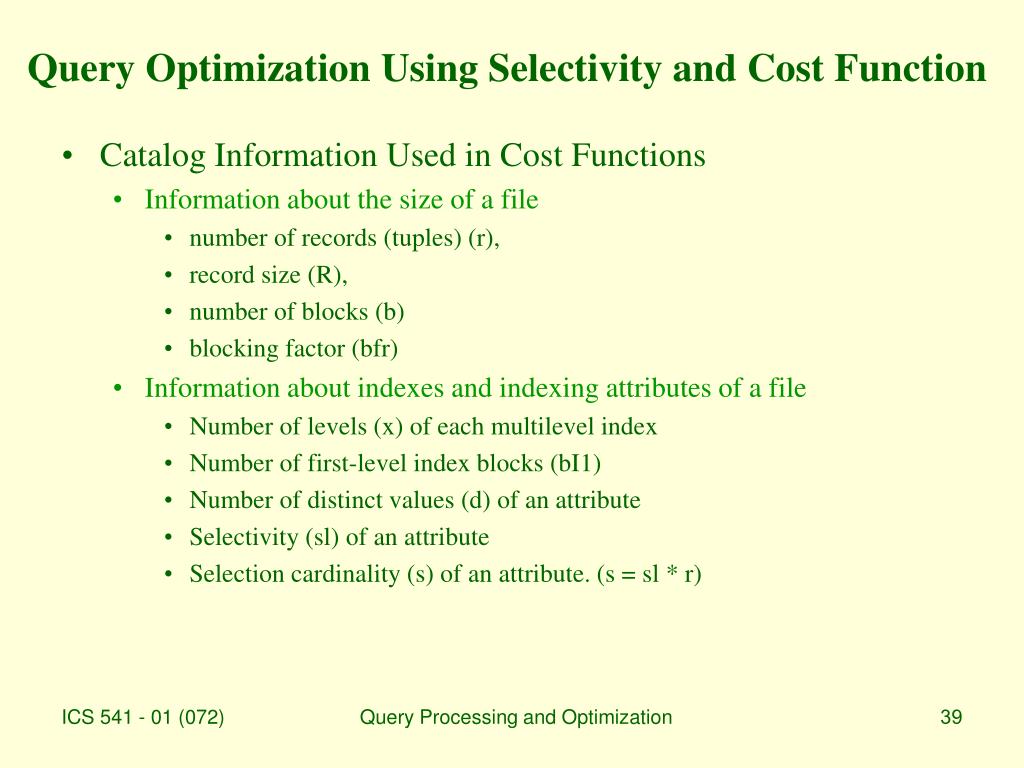

- Catalog Information Used in Cost Functions
- Information about the size of a file
- number of records (tuples) (r),
- record size (R),
- number of blocks (b)
- blocking factor (bfr)
- Information about indexes and indexing attributes of a file
- Number of levels (x) of each multilevel index
- Number of first-level index blocks (bI1)
- Number of distinct values (d) of an attribute
- Selectivity (sl) of an attribute
- Selection cardinality (s) of an attribute. (s = sl * r)

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Examples of Cost Functions for SELECT
- S1. Linear search (brute force) approach
- CS1a = b;
- For an equality condition on a key, CS1a = (b/2) if the record is found; otherwise CS1a = b.
- S2. Binary search:
- CS2 = log2b + (s/bfr) –1
- For an equality condition on a unique (key) attribute, CS2 =log2b
- S3. Using a primary index (S3a) or hash key (S3b) to retrieve a single record
- CS3a = x + 1; CS3b = 1 for static or linear hashing;
- CS3b = 2 for extendible hashing;

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Examples of Cost Functions for SELECT (contd.)

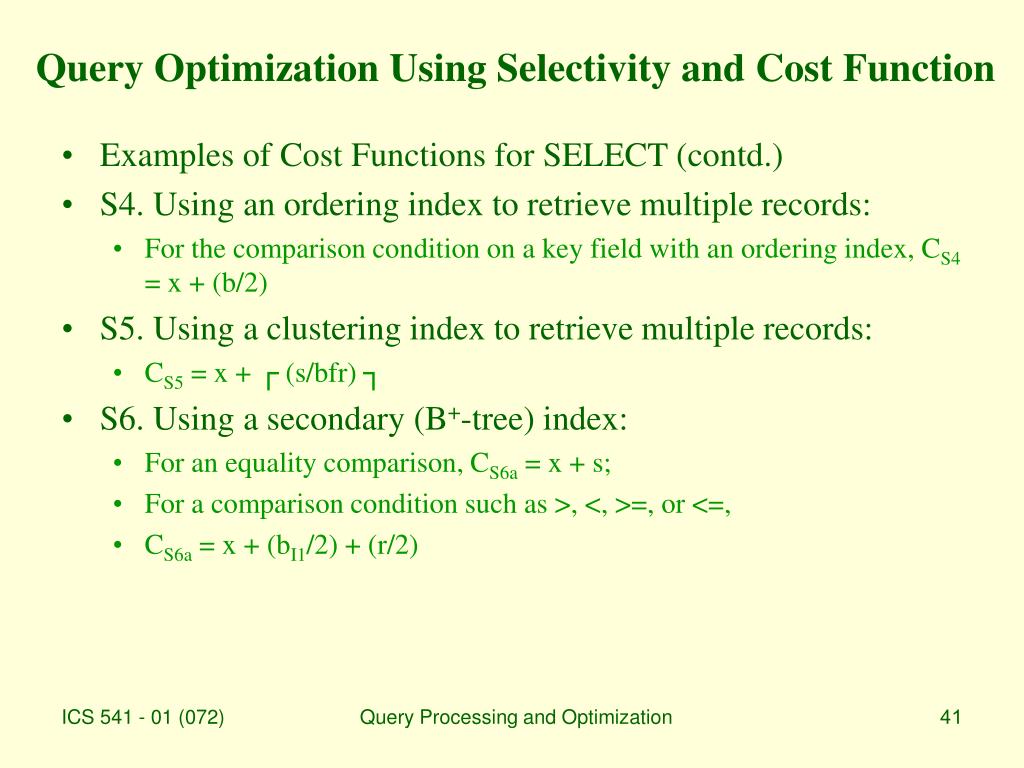

- S4. Using an ordering index to retrieve multiple records:
- For the comparison condition on a key field with an ordering index, CS4 = x + (b/2)
- S5. Using a clustering index to retrieve multiple records:
- CS5 = x + ┌ (s/bfr) ┐
- S6. Using a secondary (B+-tree) index:
- For an equality comparison, CS6a = x + s;
- For a comparison condition such as >, <, >=, or <=,
- CS6a = x + (bI1/2) + (r/2)

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Examples of Cost Functions for SELECT (contd.)
- S7. Conjunctive selection:
- Use either S1 or one of the methods S2 to S6 to solve.
- For the latter case, use one condition to retrieve the records and then check in the memory buffer whether each retrieved record satisfies the remaining conditions in the conjunction.
- S8. Conjunctive selection using a composite index:
- Same as S3a, S5 or S6a, depending on the type of index.
- Examples of using the cost functions.

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Examples of Cost Functions for JOIN

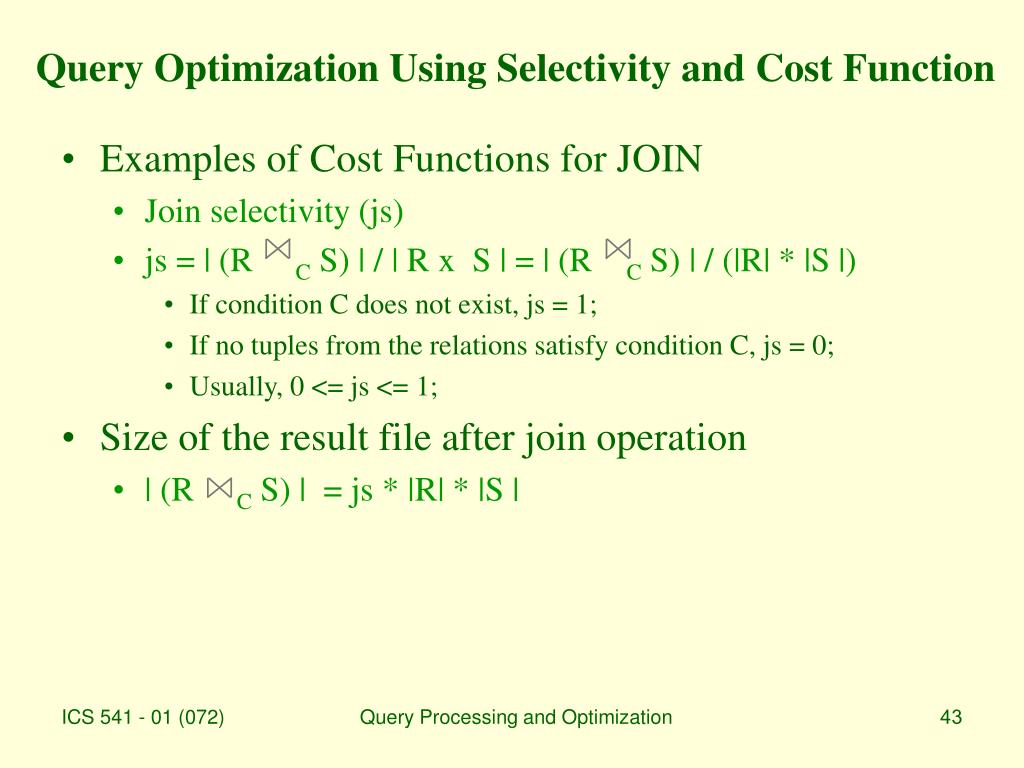

- Join selectivity (js)
- js = | (R C S) | / | R x S | = | (R C S) | / (|R| * |S |)
- If condition C does not exist, js = 1;
- If no tuples from the relations satisfy condition C, js = 0;
- Usually, 0 <= js <= 1;
- Size of the result file after join operation
- | (R C S) | = js * |R| * |S |

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Examples of Cost Functions for JOIN (contd.)

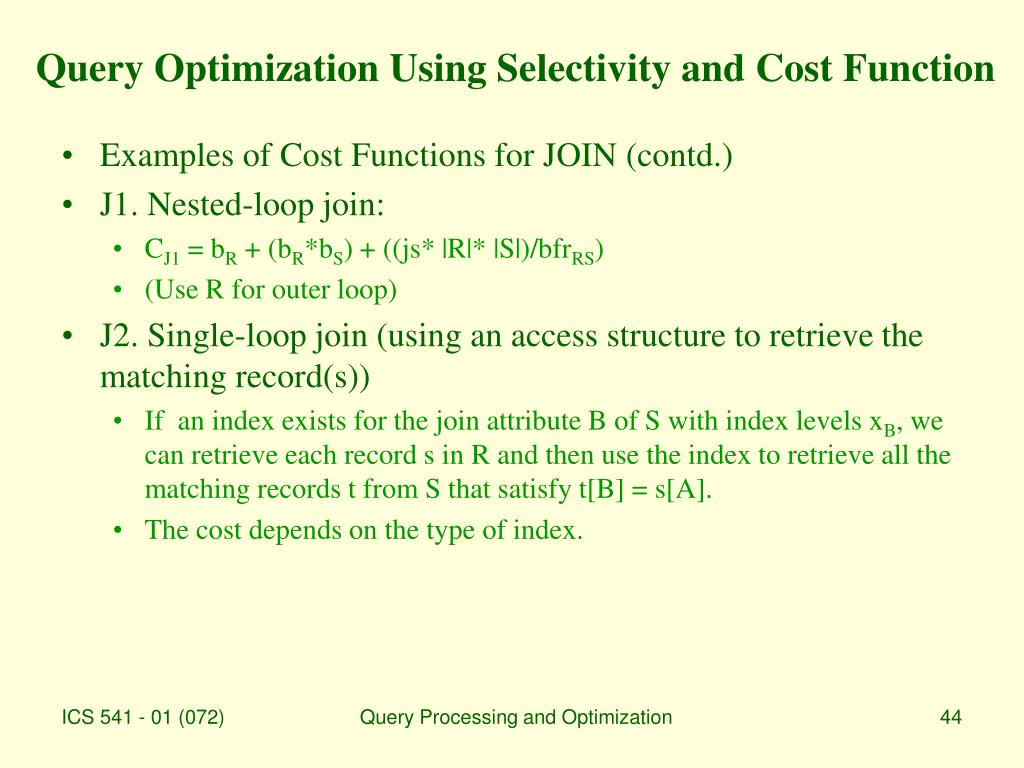

- J1. Nested-loop join:
- CJ1 = bR + (bR*bS) + ((js* |R|* |S|)/bfrRS)
- (Use R for outer loop)
- J2. Single-loop join (using an access structure to retrieve the matching record(s))
- If an index exists for the join attribute B of S with index levels xB, we can retrieve each record s in R and then use the index to retrieve all the matching records t from S that satisfy t[B] = s[A].
- The cost depends on the type of index.

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Examples of Cost Functions for JOIN (contd.)

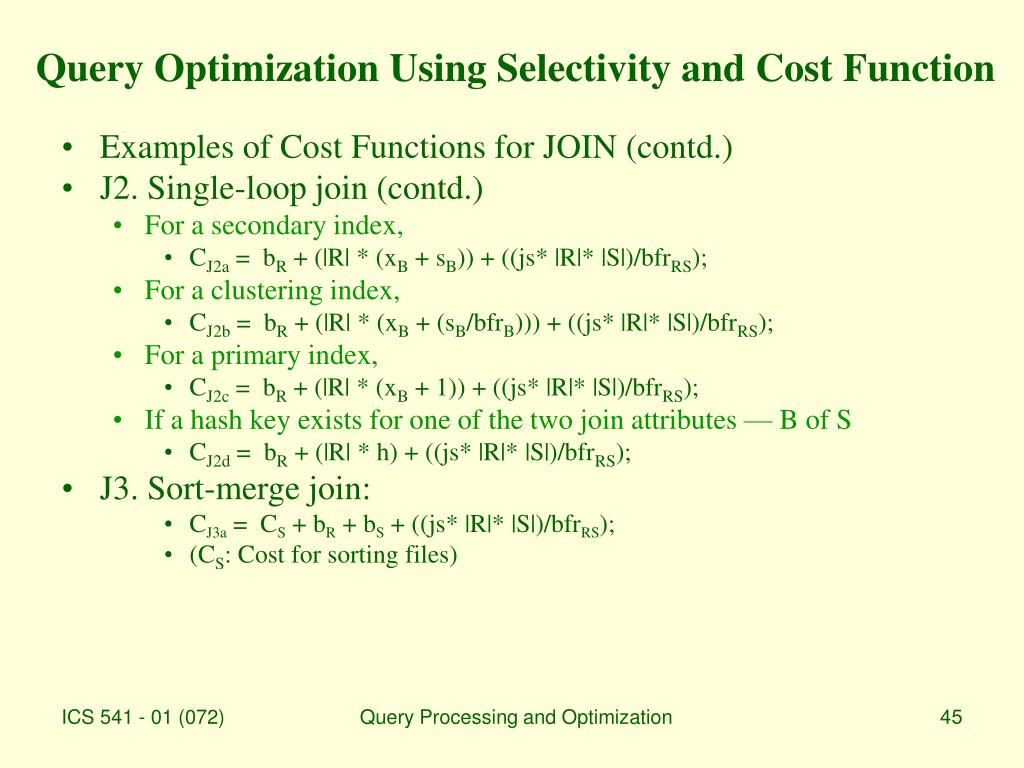

- J2. Single-loop join (contd.)
- For a secondary index,
- CJ2a = bR + (|R| * (xB + sB)) + ((js* |R|* |S|)/bfrRS);
- For a clustering index,
- CJ2b = bR + (|R| * (xB + (sB/bfrB))) + ((js* |R|* |S|)/bfrRS);
- For a primary index,
- CJ2c = bR + (|R| * (xB + 1)) + ((js* |R|* |S|)/bfrRS);
- If a hash key exists for one of the two join attributes — B of S
- CJ2d = bR + (|R| * h) + ((js* |R|* |S|)/bfrRS);
- J3. Sort-merge join:
- CJ3a = CS + bR + bS + ((js* |R|* |S|)/bfrRS);
- (CS: Cost for sorting files)

Query Processing and Optimization

Query Optimization Using Selectivity and Cost Function

- Multiple Relation Queries and Join Ordering
- A query joining n relations will have n-1 join operations, and hence can have a large number of different join orders when we apply the algebraic transformation rules.

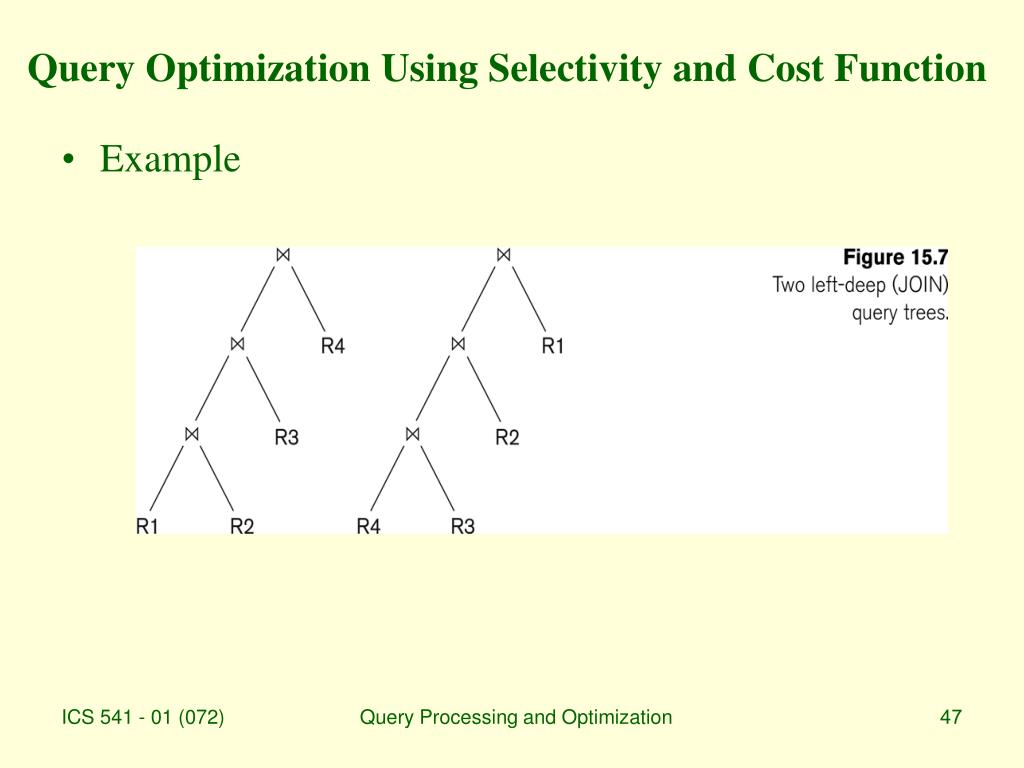

- Current query optimizers typically limit the structure of a (join) query tree to that of left-deep (or right-deep) trees.
- Left-deep tree:
- A binary tree where the right child of each non-leaf node is always a base relation.
- Amenable to pipelining
- Could utilize any access paths on the base relation (the right child) when executing the join.

Query Processing and Optimization

Cost-Function Based Query Optimization

- Example

SELECT pnumber, dnum, lname, address, bdate

FROM Project, Department, Employee

WHERE dnum=dnumber AND mgrssn=ssn AND plocation = ‘Dhahran’;

- Join order selection
- Project * Department * Employee
- Department * Project * Employee
- Department * Employee * Project
- Employee * Department * Project

Query Processing and Optimization

Cost-Function Based Query Optimization

Query Processing and Optimization

Traditional Query optimizers

- Three design components of commercial query optimizers
- Execution space
- Normally represented as an annotated query tree
- All trees that compute the query are considered legal plans for the query
- A finite subset of the infinite space of legal plans is the search space
- Cost model
- It assigns an integer cost to a plan based on some assumptions about the statistical distribution of data and the abstract machine
- Search algorithm
- Algorithm used to search the search space for the plan with minimum cost. For example, search algorithm for System R is dynamic programming

Query Processing and Optimization

A Model for Parallel Execution

- Two possible sources of parallelism
- Inter-operator parallelism
- Data independent like sub-trees and data dependent like pipelined
- Intra-operator parallelism
- Like sort
- Two deterrents of parallelism
- Data dependencies between operators
- Resource contention
- Several operators running in parallel and competing for the same resources
- Operator tree
- Operator tree has nodes that are atomic, i.e., run-time scheduler cannot subdivide the operation further

Query Processing and Optimization

Dynamic Programming Algorithm

- DP Algorithm for left-Deep join trees

Input: An SPJ query q on relations R1, R2, …, Rn

Output: A query plan Popt for q with optimal work

for i = 1 to n do

optPlan({Ri}) = accessPlan(Ri)

for i = 2 to n do

for all S {R1, R2, …, Rn} s.t. |S| = i do {

bestPlan = dummy plan with infinite cost

for all Rj, Sj s.t. S = {Rj} Sj do {

p = joinPlan(optPlan(Sj) , Rj)

if p work bestPlan then bestPlan = p }

optPlan(S) = bestPlan } }

Popt = optPlan( {R1, R2, …., Rn })

- Principle of optimality: An optimal plan for a set of relations is an extension of an optimal plan for some subset of the set

Query Processing and Optimization

Failure of Dynamic Programming

- Fundamental assumptions in DP
- Principle of optimality

p1≤cost p2 → (i) joinplan(p1, Ri) ≤cost joinplan(p2, Ri)

- Total order

(p1p2) not(p1≤cost p2) → (p2 ≤cost p1)

- DP and response time
- Any reasonable cost model for response time will violate the principle of optimality
- Generalization of DP for partial orders

Query Processing and Optimization

Overview of Query Optimization in Oracle

- Rule-based query optimization: the optimizer chooses execution plans based on heuristically ranked operations.
- May be phased out
- Cost-based query optimization: the optimizer examines alternative access paths and operator algorithms and chooses the execution plan with lowest estimate cost.
- The query cost is calculated based on the estimated usage of resources such as I/O, CPU and memory needed.
- Application developers could specify hints to the ORACLE query optimizer.
- application developer might know more information about the data.
- SELECT /*+ ...hint... */ [rest of query]
- SELECT /*+ index(t1 t1_abc) index(t2 t2_abc) */ COUNT(*)FROM t1, t2WHERE t1.col1 = t2.col1;

Query Processing and Optimization

Query Processing and Optimization in Oracle RDB

- Applications using
- Embedded SQL
- SQL module language
- Dynamic SQL
- Interactive SQL
- Distributed and heterogeneous query processing
- DEC DB Integrator (also known as Access Works)
- Sub-queries can be submitted to other DBMSs (DB2, Sybase
- DEC DB Integrator has its own query optimizer

Query Processing and Optimization

Query Processing and Optimization in Oracle RDB

- Oracle query processor designed for wide range of queries from simple to very complex
- Queries with up to 128 joins can be evaluated
- Query processor consists of two parts
- Query compiler
- Query executor
- Each part has its own optimizer
- Query transformation
- Takes place in the SQL front-end
- SQL text to polish notation to linked structure of internal blocks
- Other transformations take place during the other stages like code generation

Query Processing and Optimization

Query Processing and Optimization in Oracle RDB

- Execution plan selection
- To determine a join order
- Exhaustive search
- Left-deep tree of two-way joins for each sub-query
- The least expensive join order for each sub-query starting from innermost
- Execution plan selection based on the cost model
- Join strategies
- Supports nested-loop join
- Two-way merge join works on two sorted streams

Query Processing and Optimization

Query Processing and Optimization in Oracle RDB

- Single table scan
- Sequential scan
- Scan of one or more indexes
- Direct access of a row by the row identifier (RID)
- Dynamic optimization
- Advanced features
- BLOBs
- Triggers
- NOT NULL and UNIQUE constraints are not evaluated when a row is deleted from a table

Query Processing and Optimization

Semantic Query Optimization

- Semantic query optimization uses constraints specified in the database schema
- The technique may be used in combination with other techniques
- Example

SELECT E.LNAME, M.LNAME

FROM EMPLOYEE AS E, EMPLOYEE AS M

WHERE E.SUPERSSN=M.SSN AND E.SALARY >M.SALARY

- Constraint --- no employee can earn more than his manager
- No need to execute the query
- Searching through the constraints to find out which one is applicable !!!

Query Processing and Optimization

References

- Required
- Textbook Chapter 15
- “Execution Strategies for SQL Subqueries” Mostafa Elhamali et al SIGMOD’07 June 12-14, 2007, Beijing China pp 993-1004
- Recommended
- “Adaptive Query Processing: Why, How, When, What next” Amol Deshpande et al, SIGMOD 2006, pp 806-807.
- “Efficient and Extensible Algorithms for Multi Query Optimizations”Prasan Rop, S. Seshadri, S. Sudarshan, and S. bhobeACM SIGMOD Record volume 29, Number 2, June 2000, pp 249 – 260
- “Query Processing and Optimization in Oracle RDB”Gennady Antoshenkov and Mohamed ZiauddinThe VLDB Journal Springer-Verlag, VLDB(1996) 5: 229 – 237

Query Processing and Optimization

Summary

- Background review
- Processing a query
- SQL queries and relational algebra
- Implementing basic query operations
- Heuristics-based query optimization
- Cost-function-based query optimization
- Query Processing and Optimization in Oracle RDB

Query Processing and Optimization

Download Presentation

Connecting to Server..
