  1. The Single ResponsibilityPrinciple (SRP) A class should have only one reason to change

  2. Agenda • Motivation • The problemwithnot having a singleresponsibility • When to separate responsibilities • How to separate responsibilities • Separation • Facadepattern • AnotherExample • Conclusion

  3. Motivation • The Single ResponsibilityPrinciple (SRP) is.. • .. a basic principle of Object OrientatedProgramming • .. a principle created by Robert C. Martin • .. the "S" of the SOLID acronym by Robert C. Martin • .. easy to understand, but hard to master

  4. Motivation • The Single ResponsibilityPrinciple (SRP) is.. • .. a basic principle of Object OrientatedProgramming • .. a principle created by Robert C. Martin • .. the "S" of the SOLID acronym by Robert C. Martin • .. easy to understand, but hard to master • The Single Responsibility Principle means.. • .. thateveryclass only hasoneresponsibility • .. thatthisresponsibilityisfullyencapsulated by the class

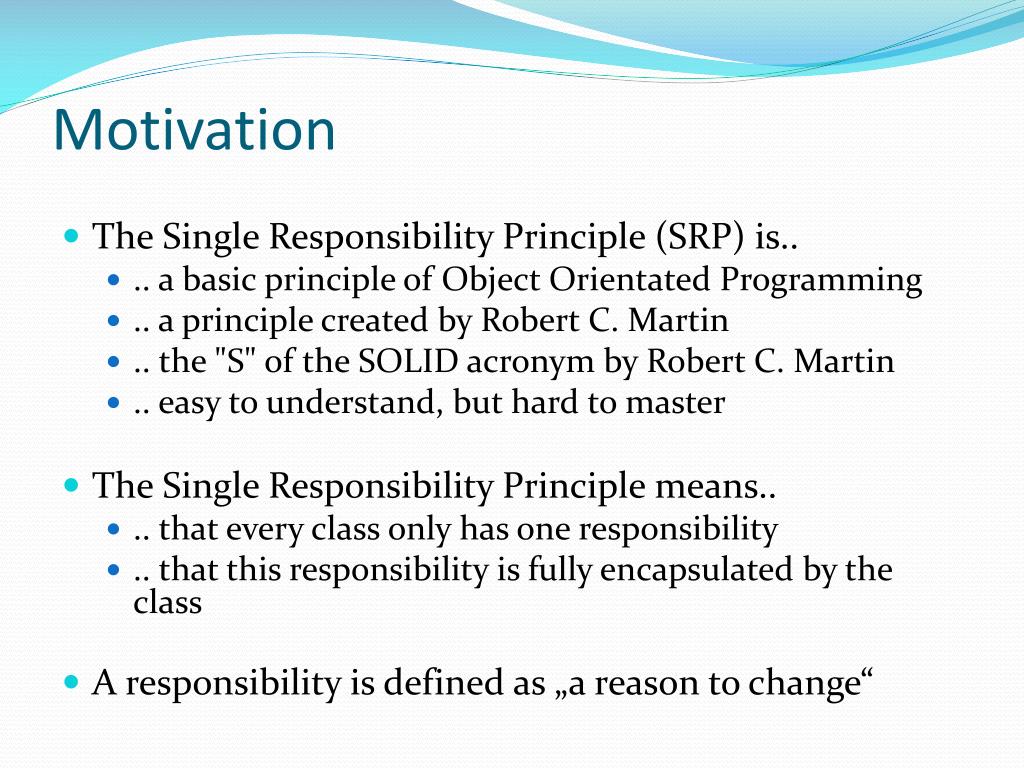

  5. Motivation • The Single ResponsibilityPrinciple (SRP) is.. • .. a basic principle of Object OrientatedProgramming • .. a principle created by Robert C. Martin • .. the "S" of the SOLID acronym by Robert C. Martin • .. easy to understand, but hard to master • The Single Responsibility Principle means.. • .. thateveryclass only hasoneresponsibility • .. thatthisresponsibilityisfullyencapsulated by the class • A responsibilityisdefinedas „a reason to change“

  6. Motivation “There should never be more than one reason for a class to change.” Robert C. Martin, Principles of Object Oriented Design

  7. Agenda • Motivation • The problemwithnot having a singleresponsibility • When to separate responsibilities • How to separate responsibilities • Separation • Facadepattern • AnotherExample • Conclusion

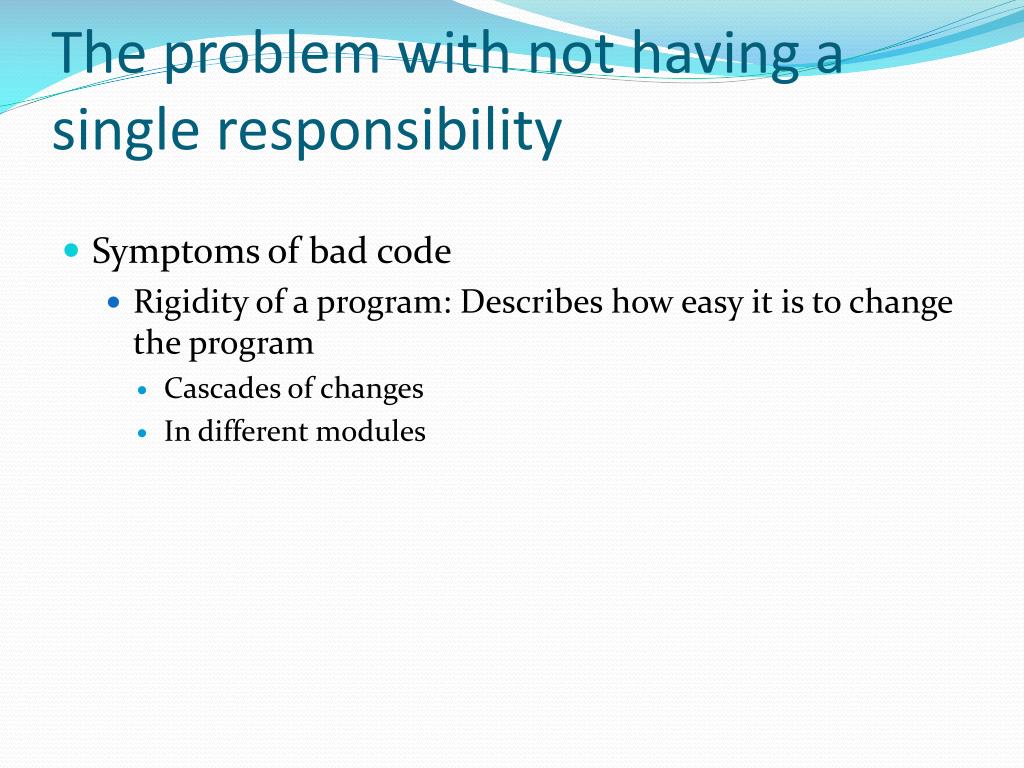

  8. The problemwith not having a singleresponsibility • Symptoms of badcode • Rigidity of a program: Describes how easy it is to change the program • Cascades of changes • In different modules

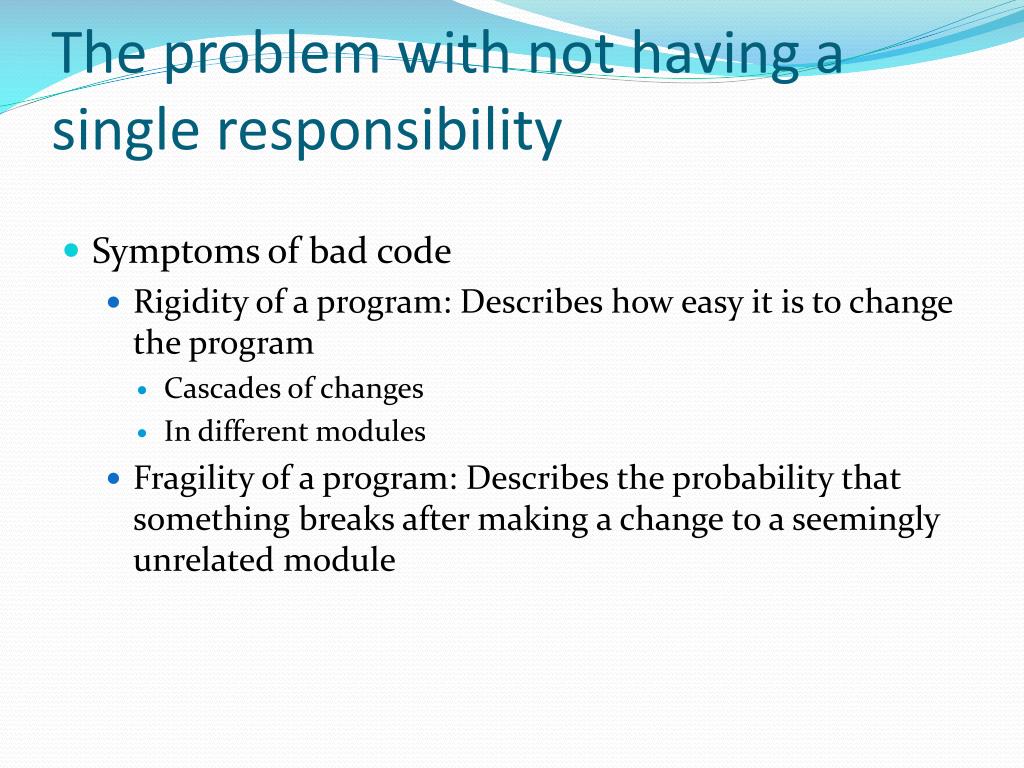

  9. The problemwith not having a singleresponsibility • Symptoms of badcode • Rigidity of a program: Describes how easy it is to change the program • Cascades of changes • In different modules • Fragility of a program: Describes the probability that something breaks after making a change to a seemingly unrelated module

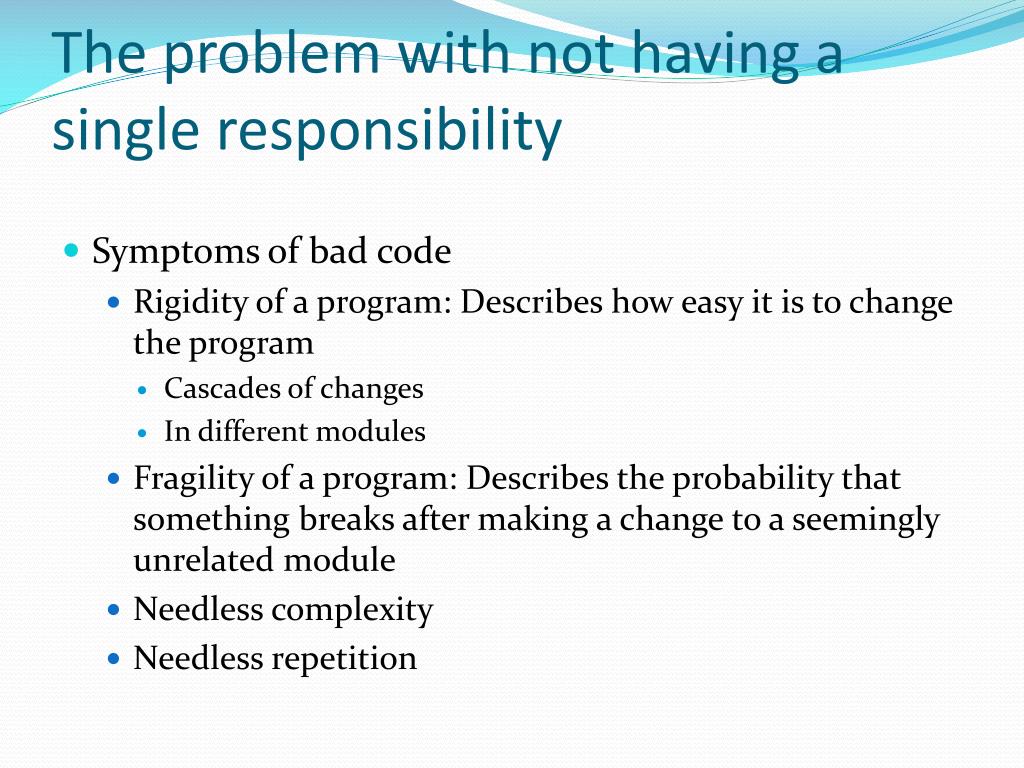

  10. The problemwith not having a singleresponsibility • Symptoms of badcode • Rigidity of a program: Describes how easy it is to change the program • Cascades of changes • In different modules • Fragility of a program: Describes the probability that something breaks after making a change to a seemingly unrelated module • Needless complexity • Needless repetition

  11. The problemwith not having a singleresponsibility Example:Rectangle

  12. The problemwith not having a singleresponsibility

  13. The problemwith not having a singleresponsibility • 2 responsibilities, used by 2 different applications • area() for geometriccalculations • draw() for rendering

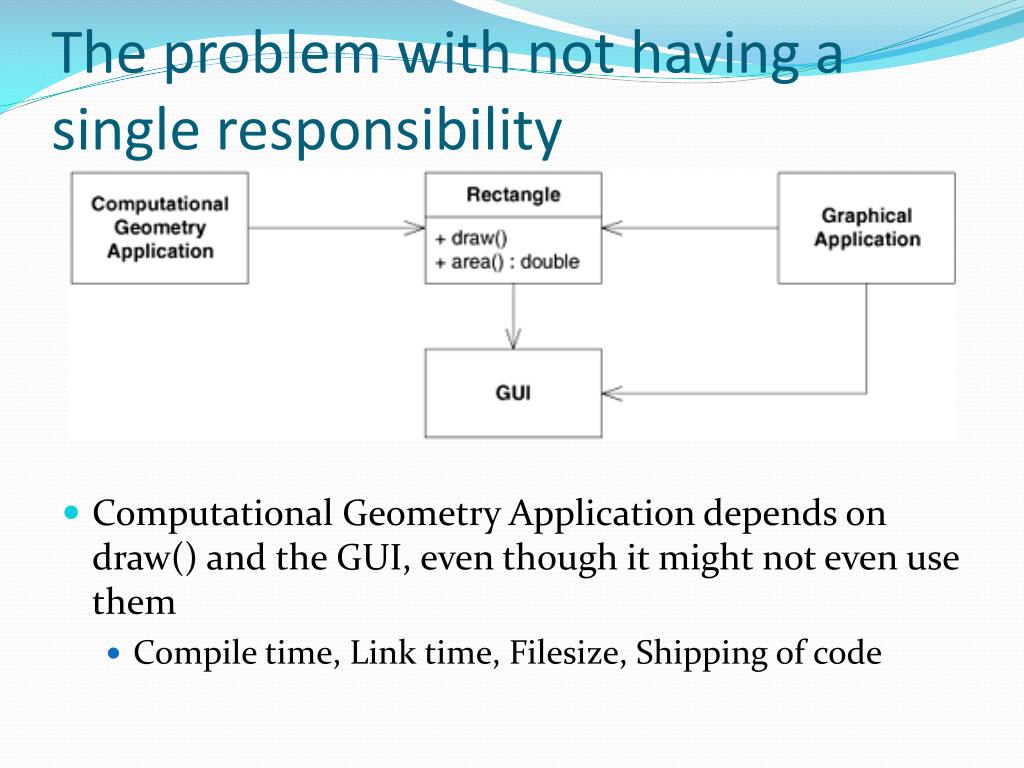

  14. The problemwith not having a singleresponsibility • ComputationalGeometryApplicationdepends on draw() and the GUI, eventhough it might not evenusethem • Compile time, Link time, Filesize, Shipping of code

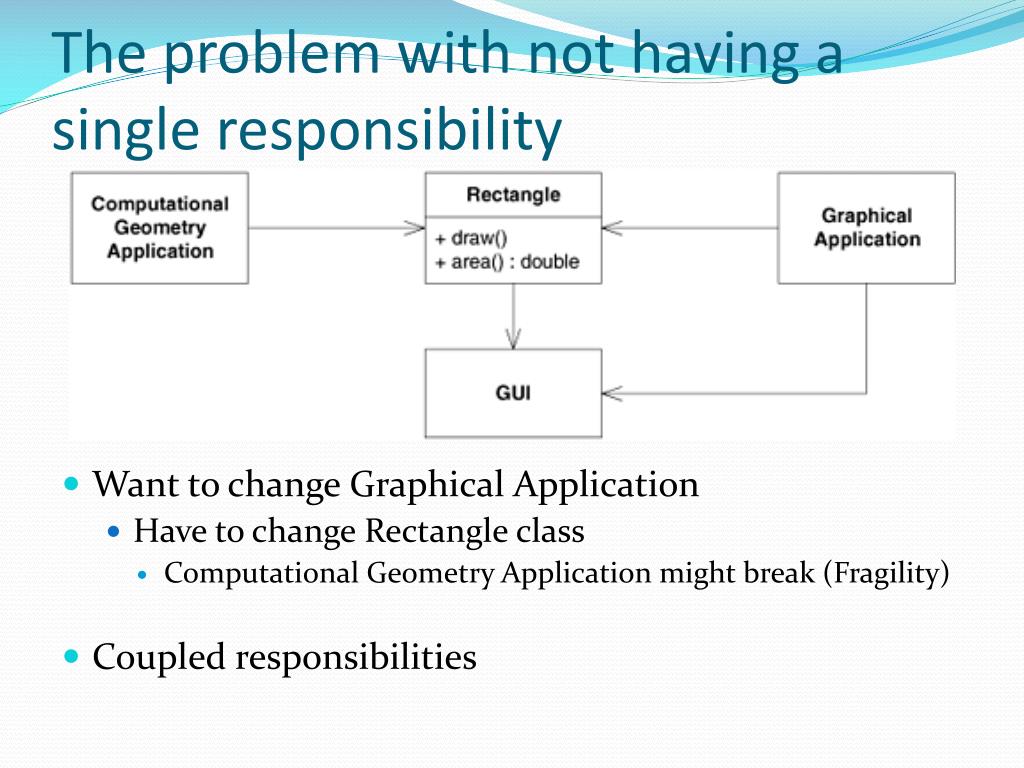

  15. The problemwith not having a singleresponsibility • Want to changeGraphicalApplication • Have to changeRectangleclass • ComputationalGeometryApplicationmightbreak (Fragility) • Coupledresponsibilities

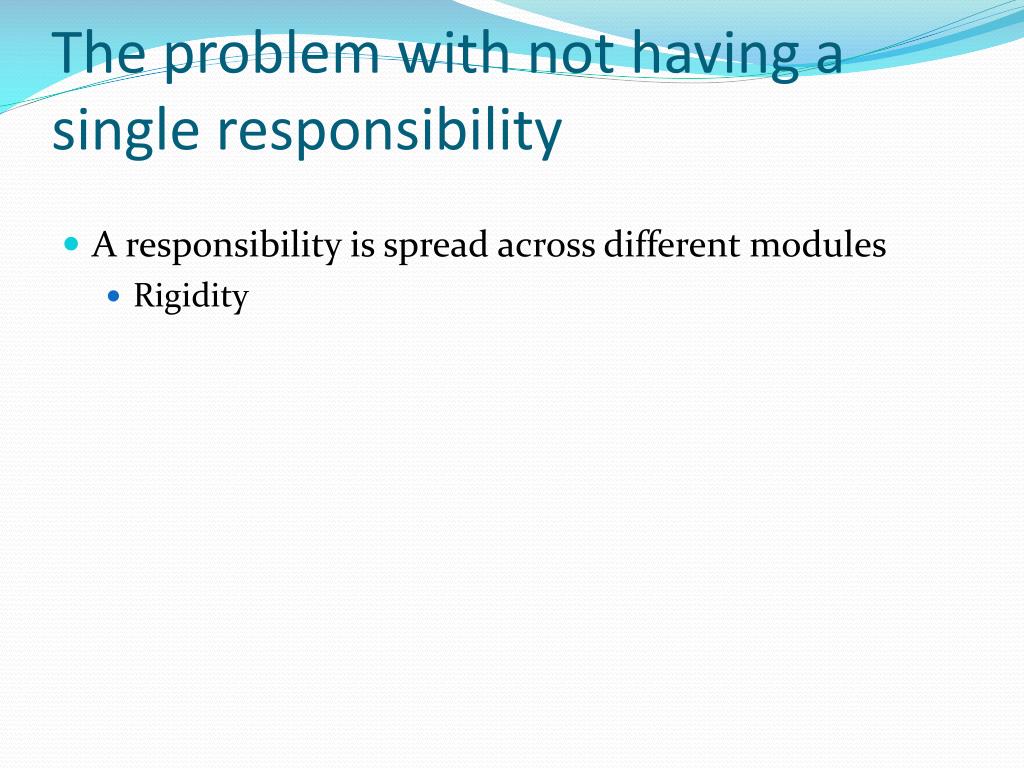

  16. The problemwith not having a singleresponsibility • A responsibilityisspreadacross different modules • Rigidity

  17. Agenda • Motivation • The problemwithnot having a singleresponsibility • When to separate responsibilities • How to separate responsibilities • Separation • Facadepattern • AnotherExample • Conclusion

  18. When to separate responsibilities Example:Modem

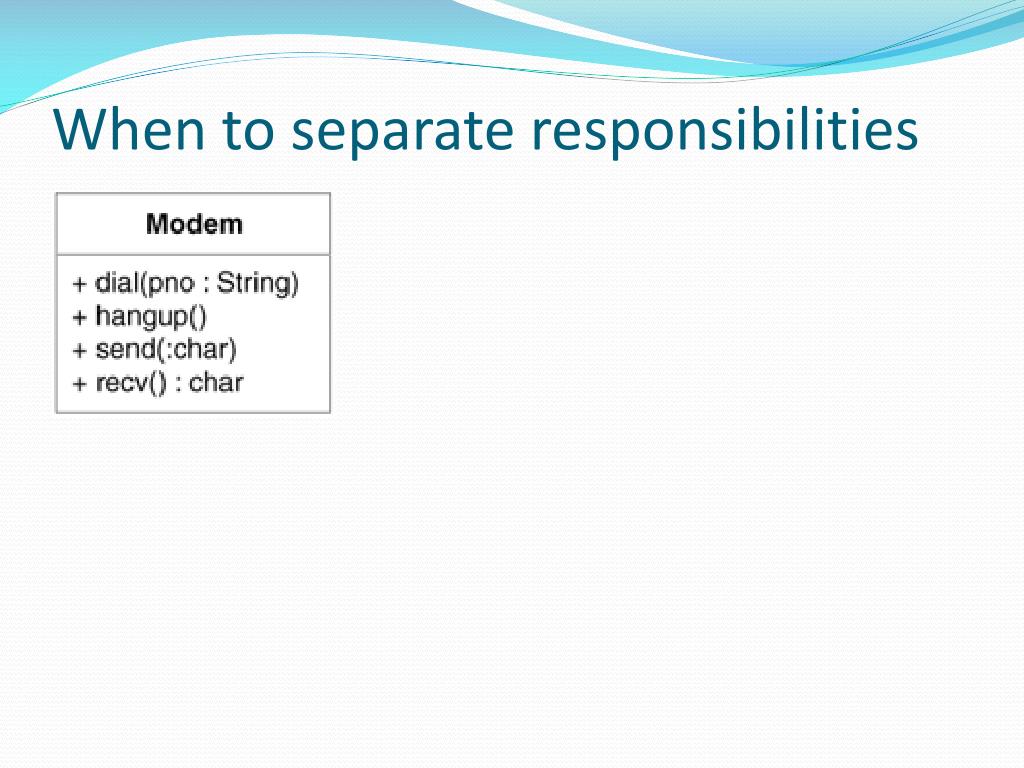

  19. When to separate responsibilities

  20. When to separate responsibilities • 2 responsibilities • Connection management • Data communication • Separate them?

  21. When to separate responsibilities • Depends on how the classisused • Applicationsuse all functions and whenchangesappeartheyinvolvebothresponsibilities: Don‘t separate • Needlesscomplexity • Applicationsuse only parts of the class and changescaninvolve only oneresponsibility: Separate them

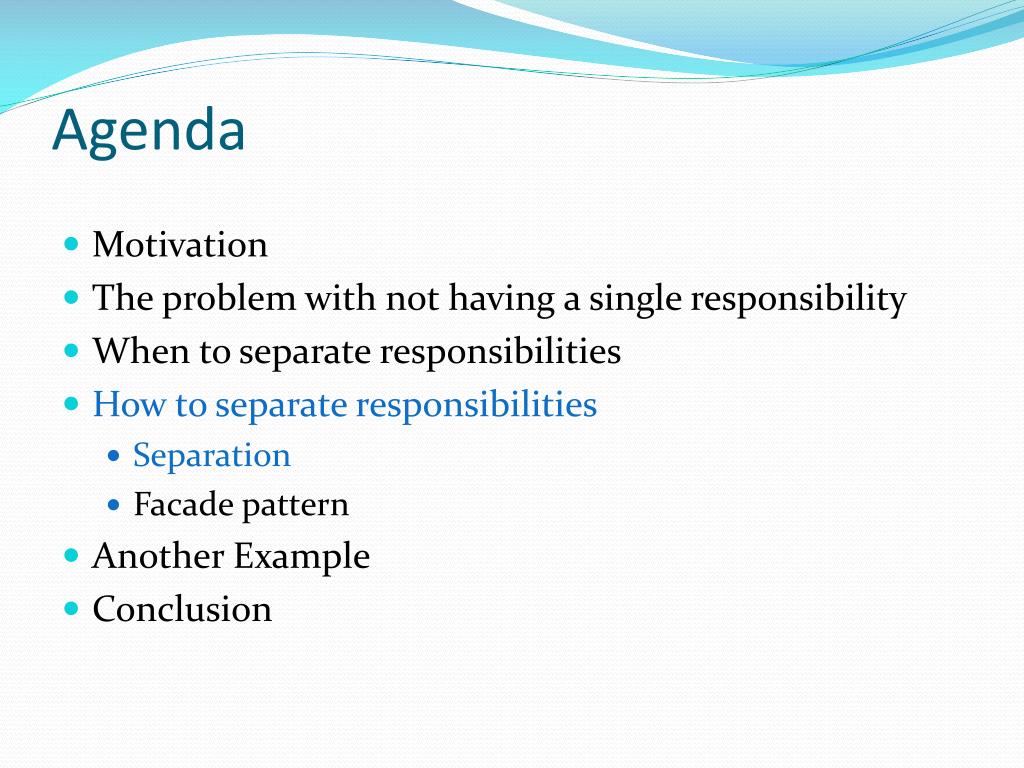

  22. Agenda • Motivation • The problemwithnot having a singleresponsibility • When to separate responsibilities • How to separate responsibilities • Separation • Facadepattern • AnotherExample • Conclusion

  23. How to separate responsibilities: Separation Example:Rectangle

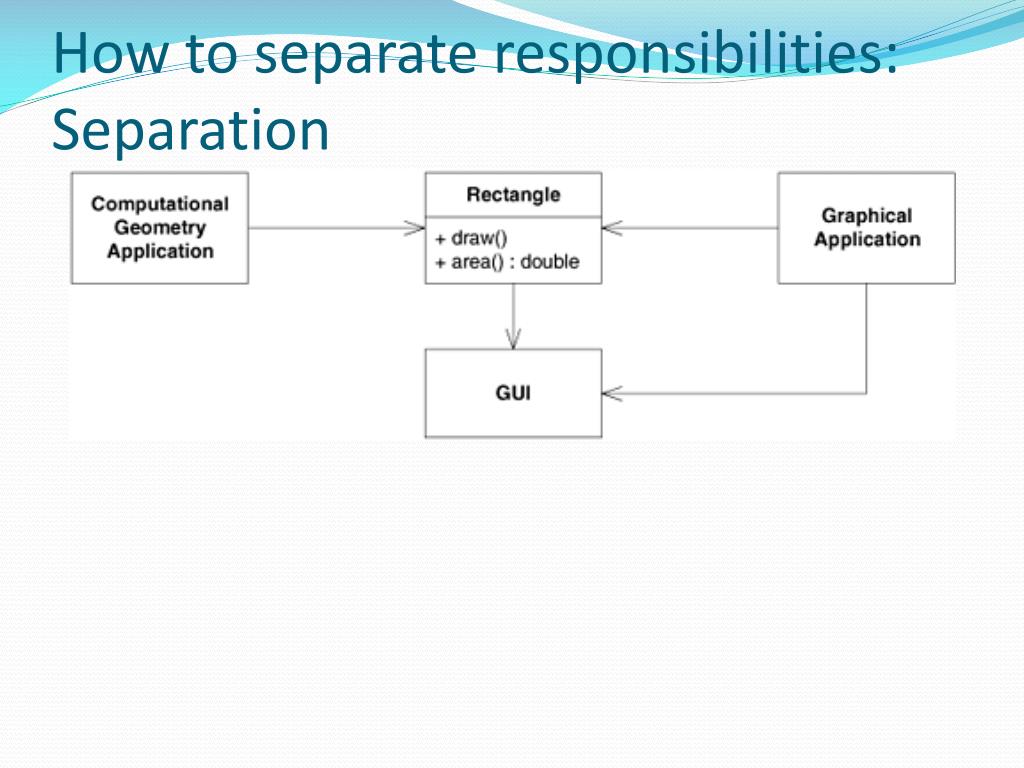

  24. How to separate responsibilities: Separation

  25. How to separate responsibilities: Separation • Separate the responsibilities • Straight forward

  26. How to separate responsibilities: Separation

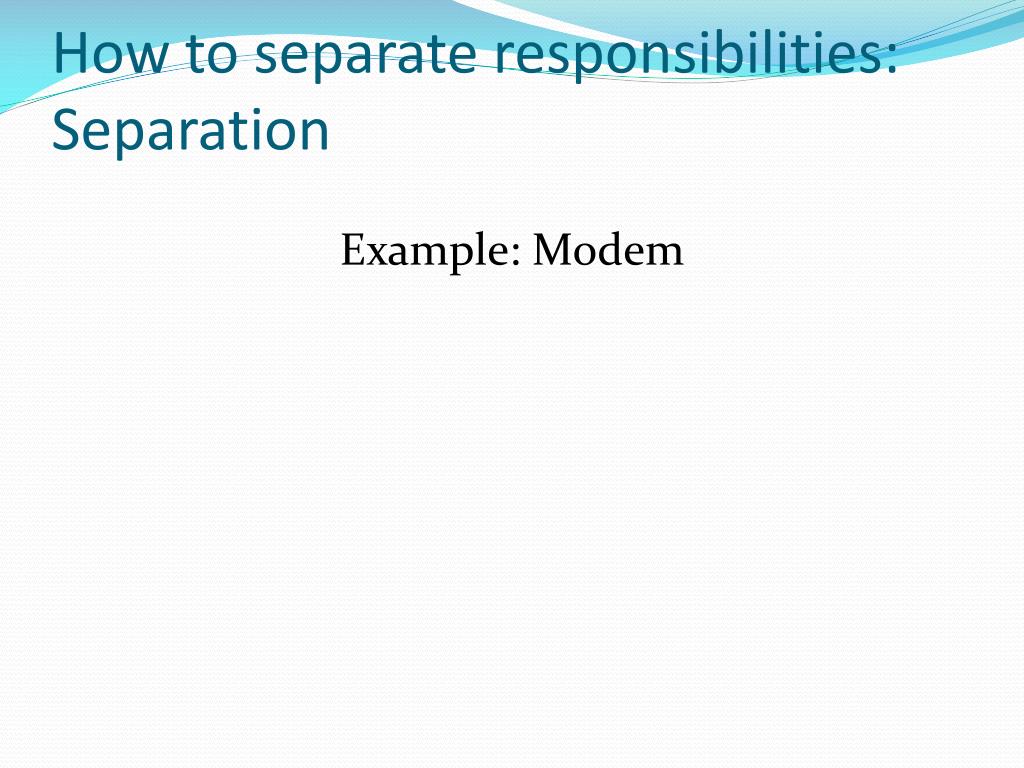

  27. How to separate responsibilities: Separation Example:Modem

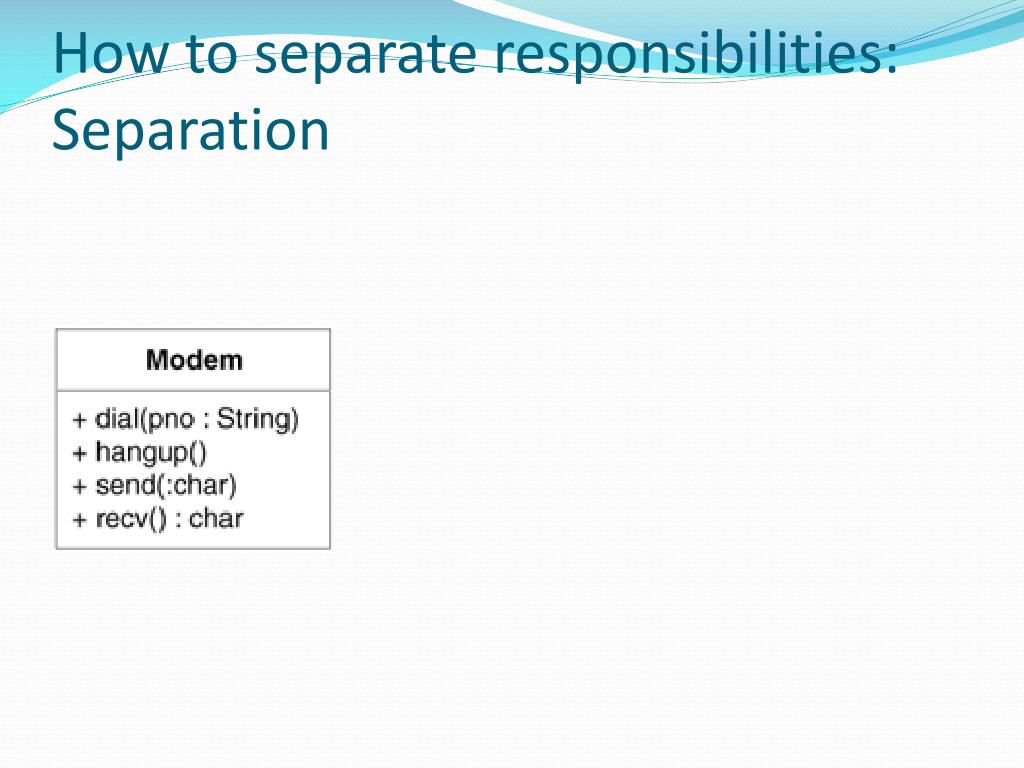

  28. How to separate responsibilities: Separation

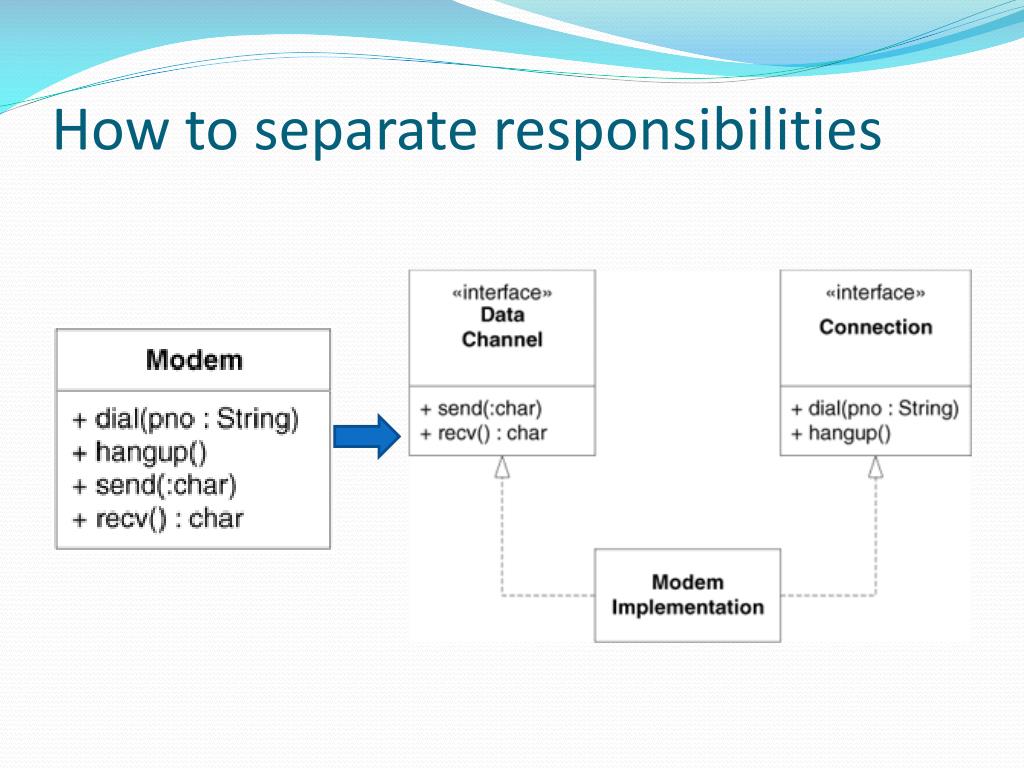

  29. How to separate responsibilities

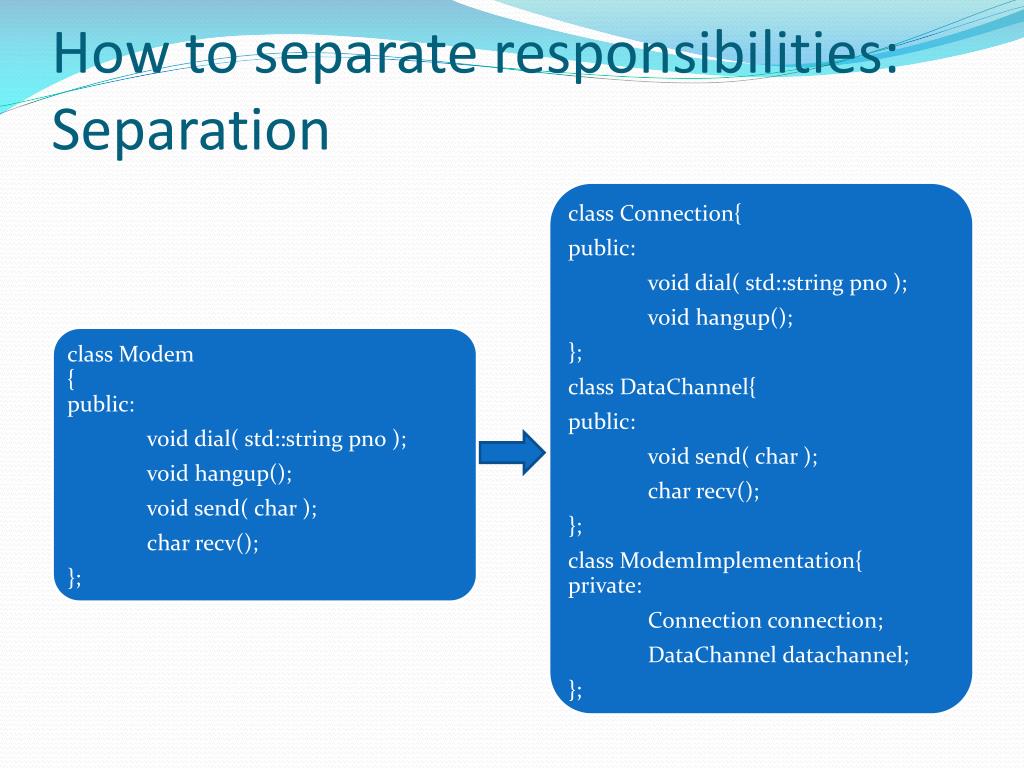

  30. How to separate responsibilities: Separation

  31. Agenda • Motivation • The problemwithnot having a singleresponsibility • When to separate responsibilities • How to separate responsibilities • Separation • Facadepattern • AnotherExample • Conclusion

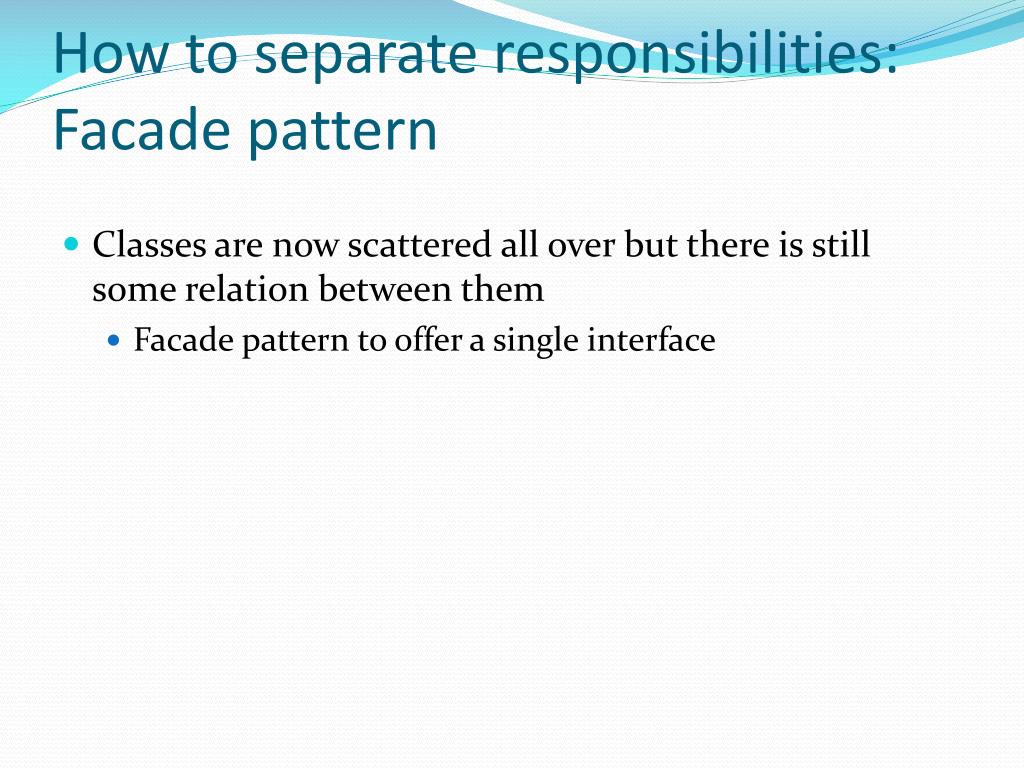

  32. How to separate responsibilities: Facadepattern • Classesarenowscattered all over but thereis still somerelationbetweenthem • Facadepatternto offer a singleinterface

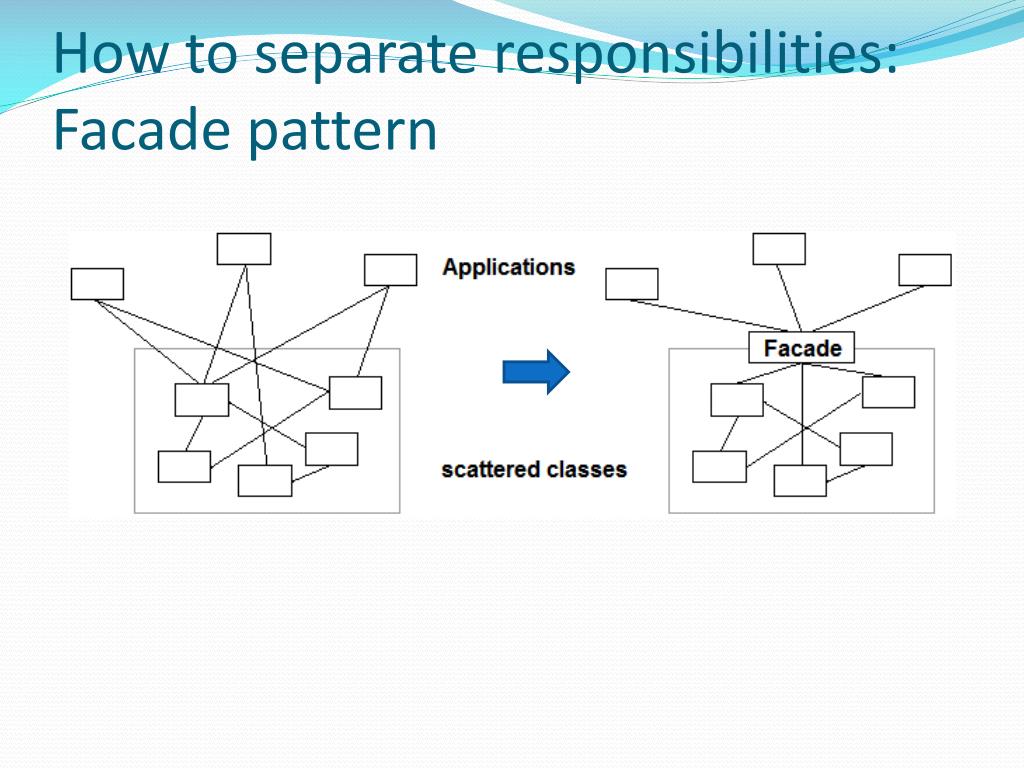

  33. How to separate responsibilities: Facadepattern

  34. How to separate responsibilities: Facadepattern Example:Modem

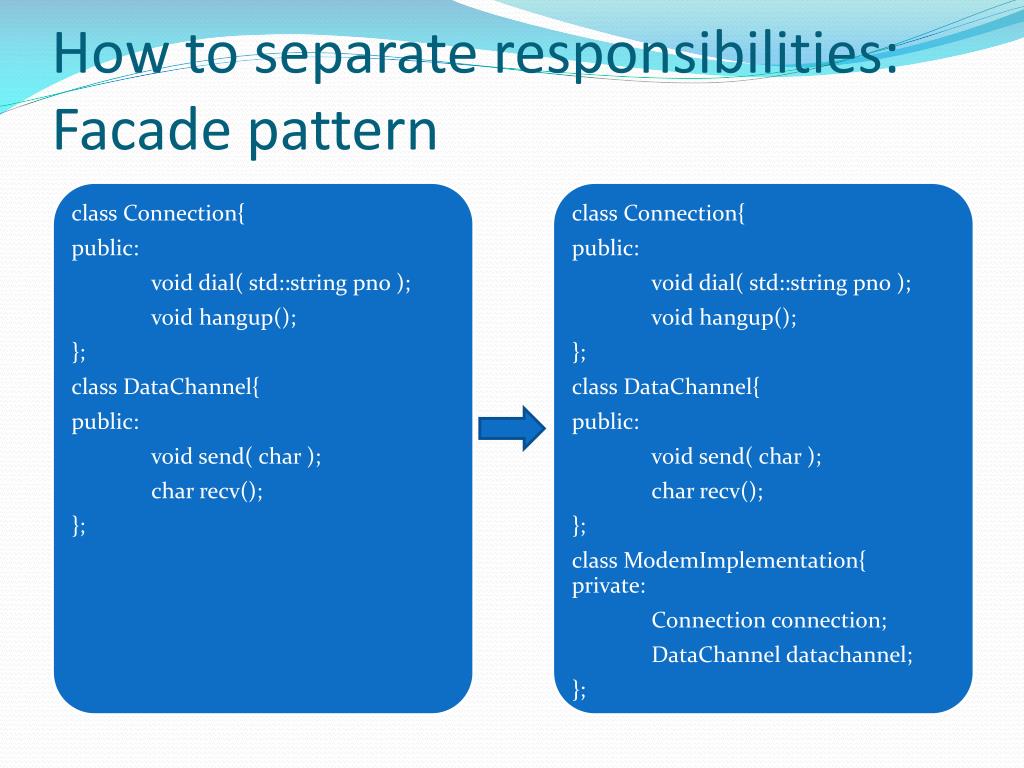

  35. How to separate responsibilities: Facadepattern

  36. How to separate responsibilities: Facadepattern

  37. Agenda • Motivation • The problemwithnot having a singleresponsibility • When to separate responsibilities • How to separate responsibilities • Separation • Facadepattern • AnotherExample • Conclusion

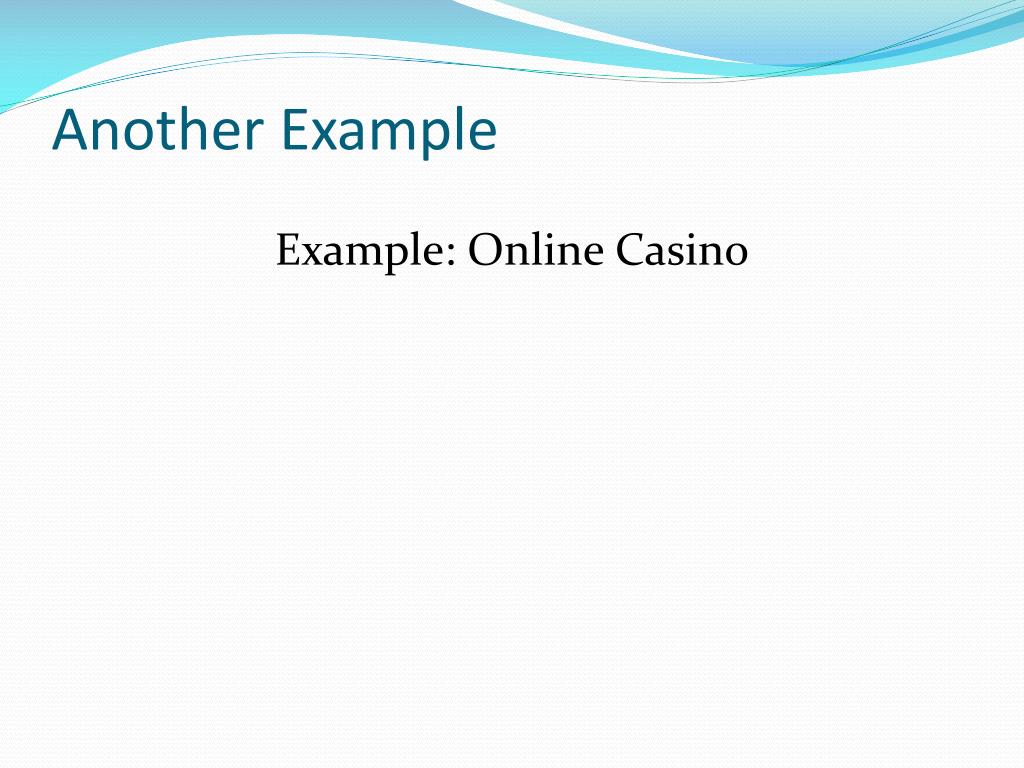

  38. AnotherExample Example:Online Casino

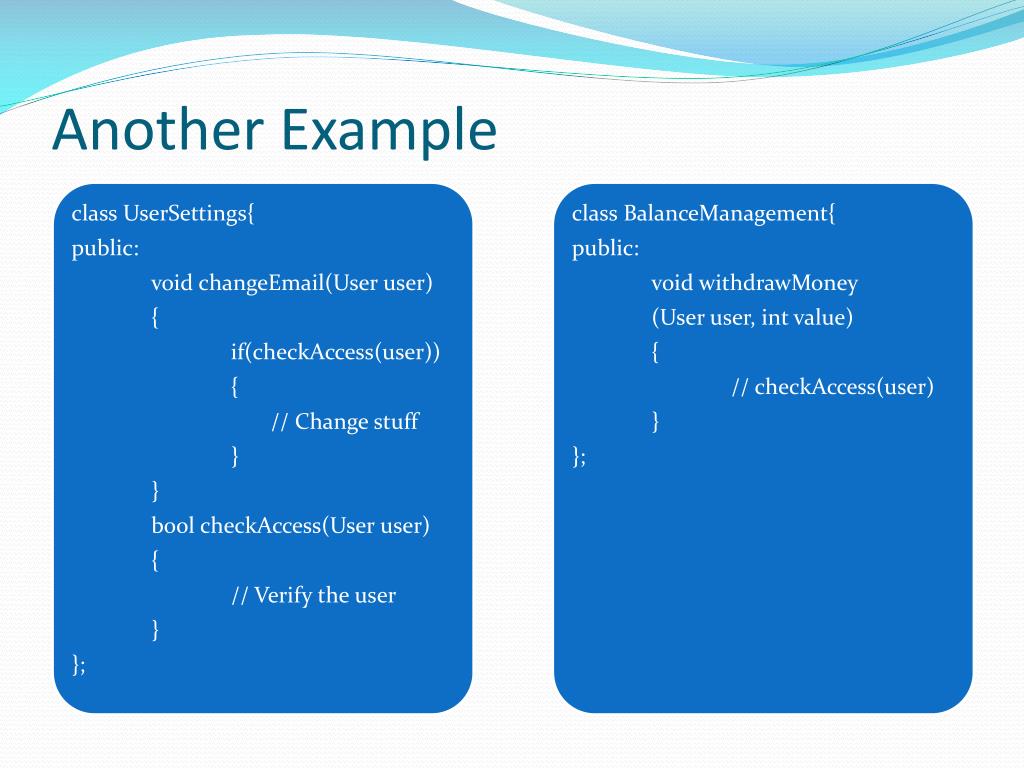

  39. AnotherExample

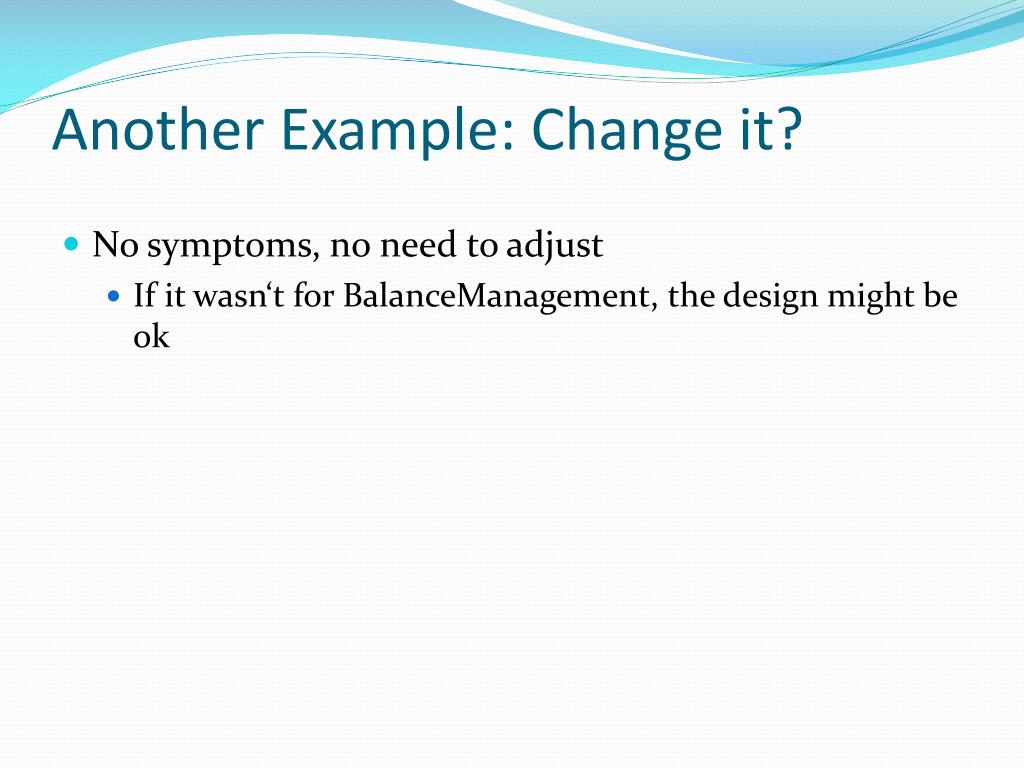

  40. AnotherExample: Change it? • No symptoms, no need to adjust • If it wasn‘t for BalanceManagement, the design might be ok

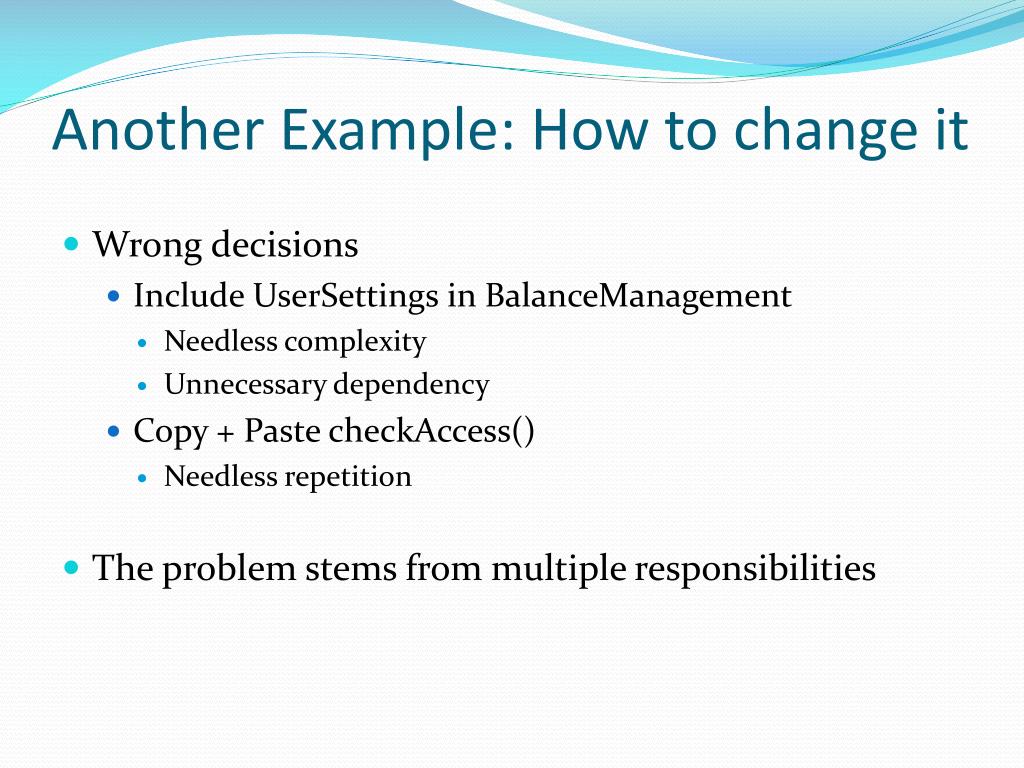

  41. AnotherExample: How to change it • Wrongdecisions • IncludeUserSettings in BalanceManagement • Needlesscomplexity • Unnecessarydependency • Copy + Paste checkAccess() • Needlessrepetition • The problem stems from multiple responsibilities

  42. AnotherExample

  43. Conclusion • A class should have only one reason to change • Separate responsibilities only ifneeded (Needlesscomplexity) • When an applicationuses only certainfunctions of a class (Fragility) • Whencodebreakswhichyoudidn‘t evenintend to change (Fragility) • Whenyouwant to reusecode but cannot (Needlessrepetition) • Ifneeded, useFacadepattern to make the scattering of classesbearable

  44. Questions?
