  1. Microprocessors I Time: Sundays & Tuesdays 07:30 to 8:45 Place: EE 4 ( New building) Lecturer: Bijan Vosoughi Vahdat Room: VP office, NE of Uni Office Hours: After 16 please Vahdat@sharif.edu http://sharif.edu/~vahdat Phone: (6616) 5001 Fax: 6600 5816

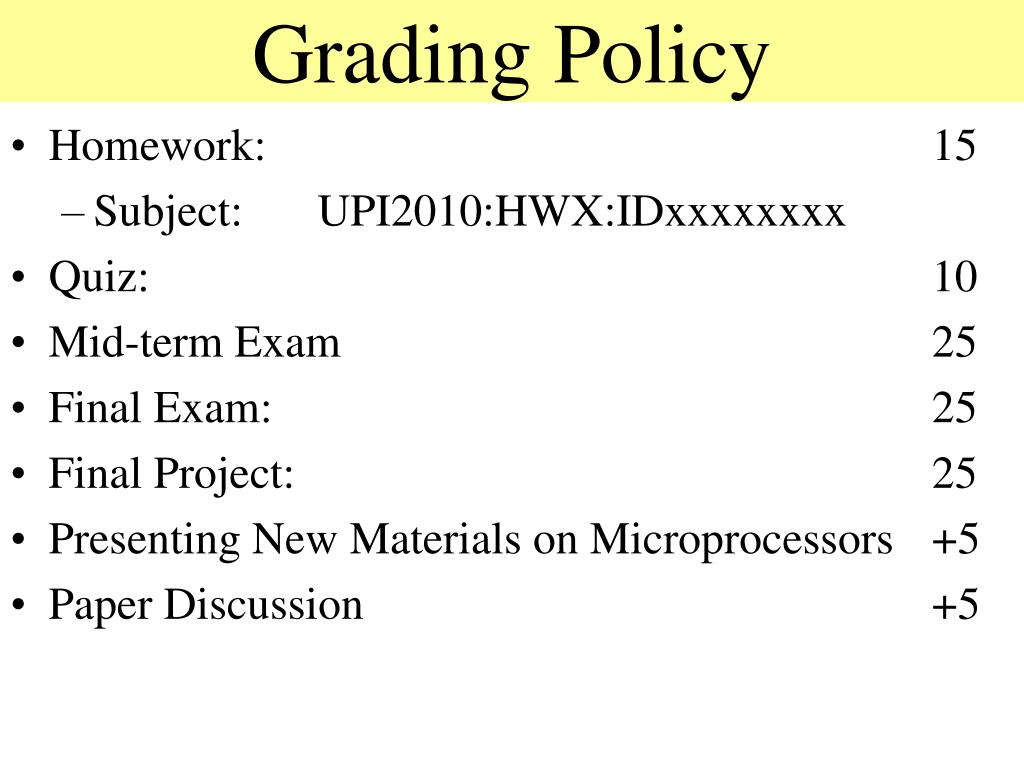

  2. Grading Policy • Homework: 15 • Subject: UPI2010:HWX:IDxxxxxxxx • Quiz: 10 • Mid-term Exam 25 • Final Exam: 25 • Final Project: 25 • Presenting New Materials on Microprocessors +5 • Paper Discussion +5

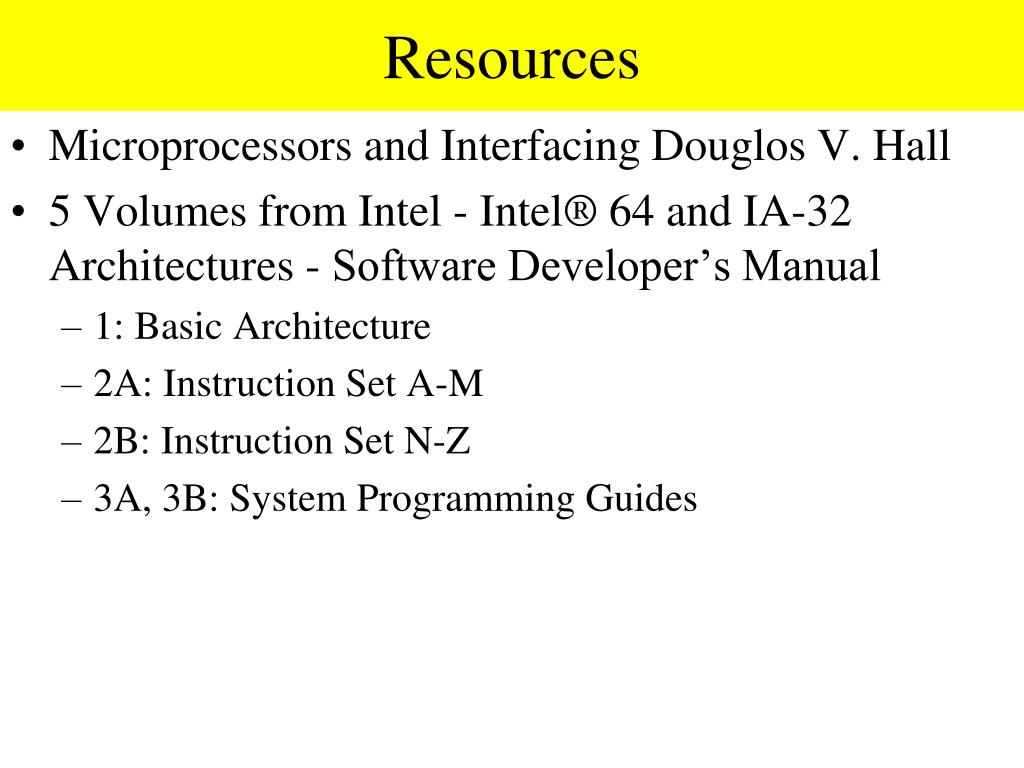

  3. Resources • Microprocessors and Interfacing Douglos V. Hall • 5 Volumes from Intel - Intel® 64 and IA-32 Architectures - Software Developer’s Manual • 1: Basic Architecture • 2A: Instruction Set A-M • 2B: Instruction Set N-Z • 3A, 3B: System Programming Guides

  4. Reference Book

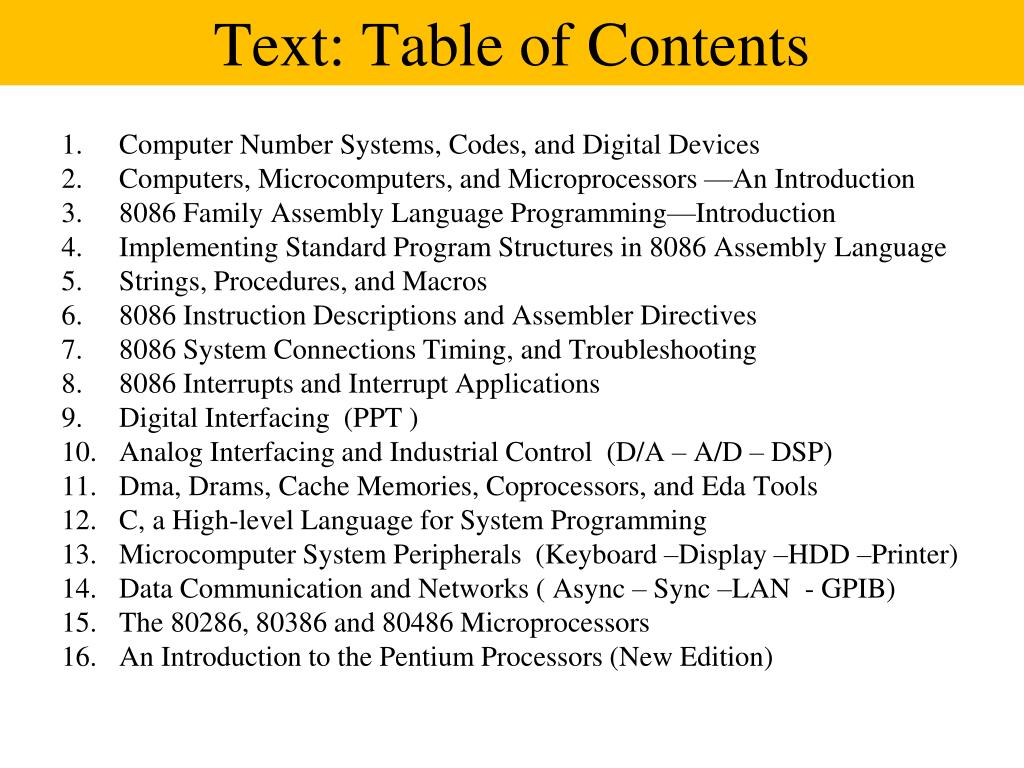

  5. Text: Table of Contents • Computer Number Systems, Codes, and Digital Devices • Computers, Microcomputers, and Microprocessors —An Introduction • 8086 Family Assembly Language Programming—Introduction • Implementing Standard Program Structures in 8086 Assembly Language • Strings, Procedures, and Macros • 8086 Instruction Descriptions and Assembler Directives • 8086 System Connections Timing, and Troubleshooting • 8086 Interrupts and Interrupt Applications • Digital Interfacing (PPT ) • Analog Interfacing and Industrial Control (D/A – A/D – DSP) • Dma, Drams, Cache Memories, Coprocessors, and Eda Tools • C, a High-level Language for System Programming • Microcomputer System Peripherals (Keyboard –Display –HDD –Printer) • Data Communication and Networks ( Async – Sync –LAN - GPIB) • The 80286, 80386 and 80486 Microprocessors • An Introduction to the Pentium Processors (New Edition)

  6. Covered by 5 Volums Intel® CoreTM2 Duo processor Quad Q6000 series Extreme X7000 and X6800 Extreme QX6000 Extreme QX9000 - X9000 Quad Q9000 series Duo E8000, T9000 Intel® Xeon® 5100, 5300 series Intel® Xeon® processor 7100 Intel® Pentium® Dual-Core Xeon® processor 7200, 7300 Xeon® 5200, 5400, 7400 AtomTM processor family Intel® CoreTMi7 processor • Pentium® processors • P6 family processors • Pentium® 4 processors • Pentium® M processors • Intel® Xeon® processors • Pentium® D processors • Extreme Editions • 64-bit Xeon® processors • CoreTM Duo processor • CoreTM Solo processor • Dual-Core Xeon® LV • Xeon® processor 3000, 3200 • Xeon® processor 5000

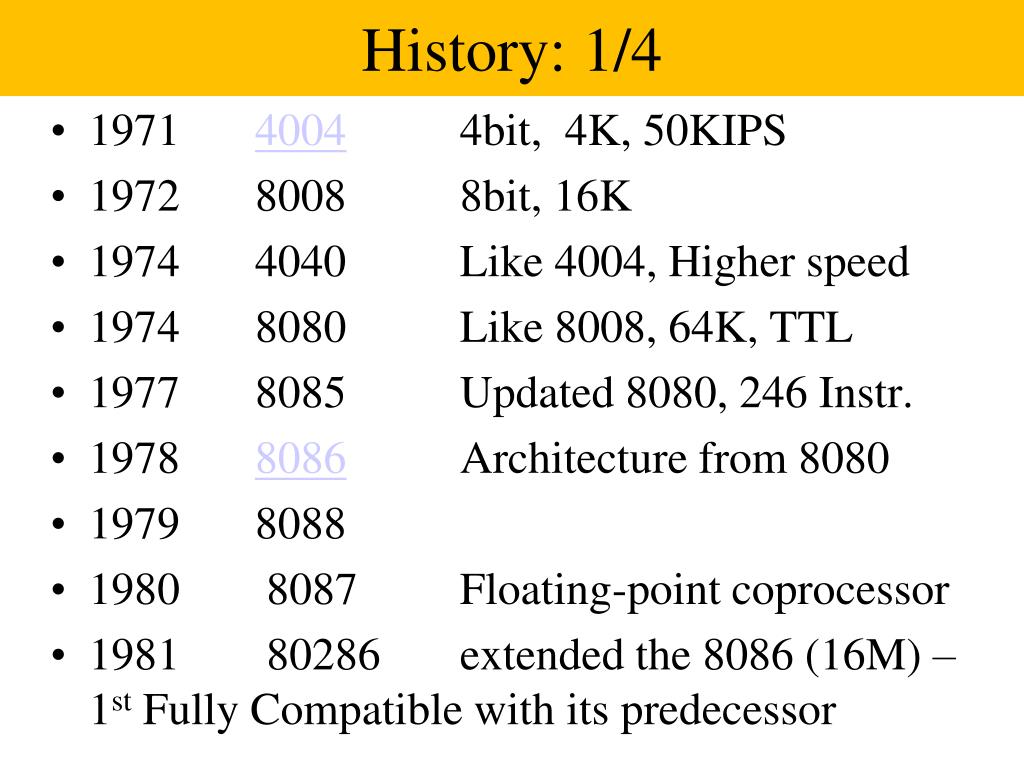

  7. History: 1/4 • 1971 4004 4bit, 4K, 50KIPS • 1972 8008 8bit, 16K • 1974 4040 Like 4004, Higher speed • 1974 8080 Like 8008, 64K, TTL • 1977 8085 Updated 8080, 246 Instr. • 1978 8086 Architecture from 8080 • 1979 8088 • 1980 8087 Floating-point coprocessor • 1981 80286 extended the 8086 (16M) – 1st Fully Compatible with its predecessor

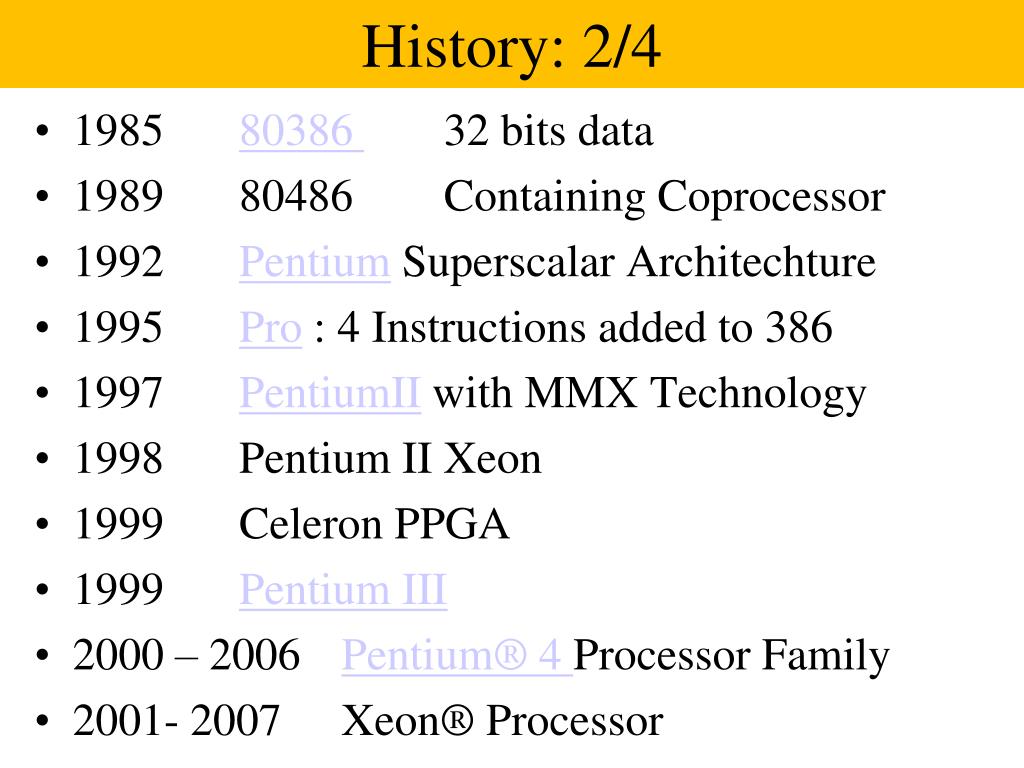

  8. History: 2/4 • 1985 80386 32 bits data • 1989 80486 Containing Coprocessor • 1992 Pentium Superscalar Architechture • 1995 Pro : 4 Instructions added to 386 • 1997 PentiumII with MMX Technology • 1998 Pentium II Xeon • 1999 Celeron PPGA • 1999 Pentium III • 2000 – 2006 Pentium® 4 Processor Family • 2001- 2007 Xeon® Processor

  9. History: 3/4 • 2003-Current Pentium® M Processor • 2005-2007 Pentium® Processor Extreme Edition • 2006-2007 The Intel® Core™ Duo and Intel® Core™ Solo Processors • 2006-Current The Intel® Xeon® Processor 5100, 5300 Series and Intel® Core™2 Processor Family

  10. History: 4/4 • 2007-Current The Intel® Xeon® Processor 5200, 5400, 7400 Series and Intel® Core™2 Processor Family • 2008-Current The Intel® Atom™ Processor Family • 2008-Current The Intel® Core™i7 Processor Family

  11. Where to go

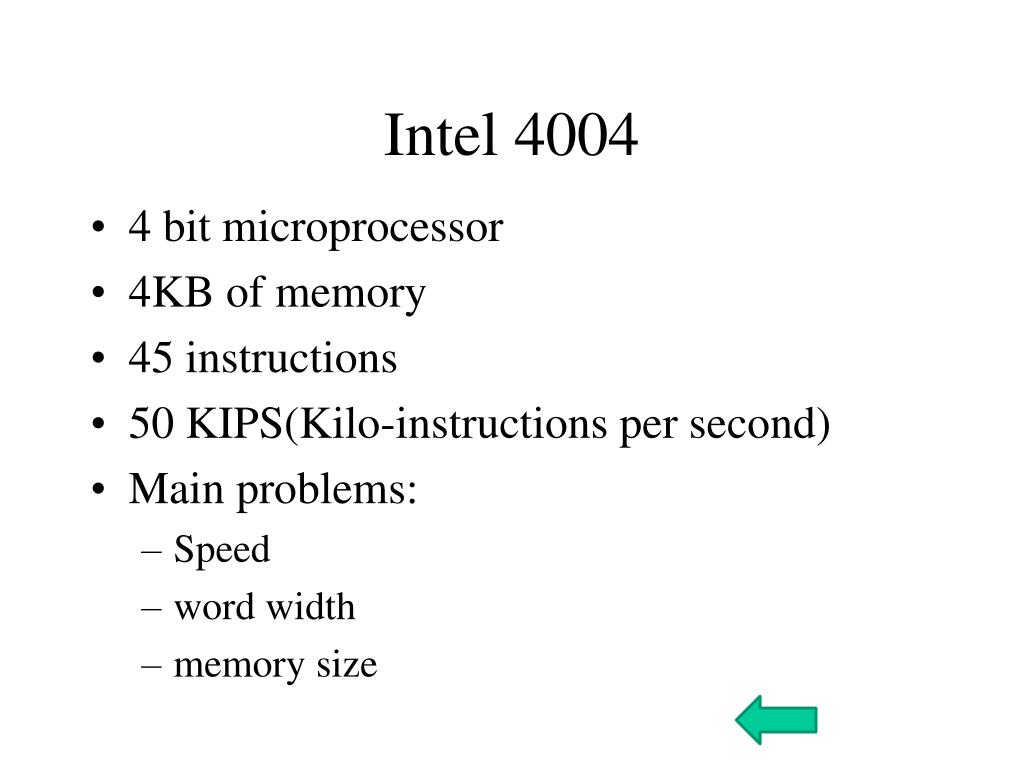

  12. Intel 4004 • 4 bit microprocessor • 4KB of memory • 45 instructions • 50 KIPS(Kilo-instructions per second) • Main problems: • Speed • word width • memory size

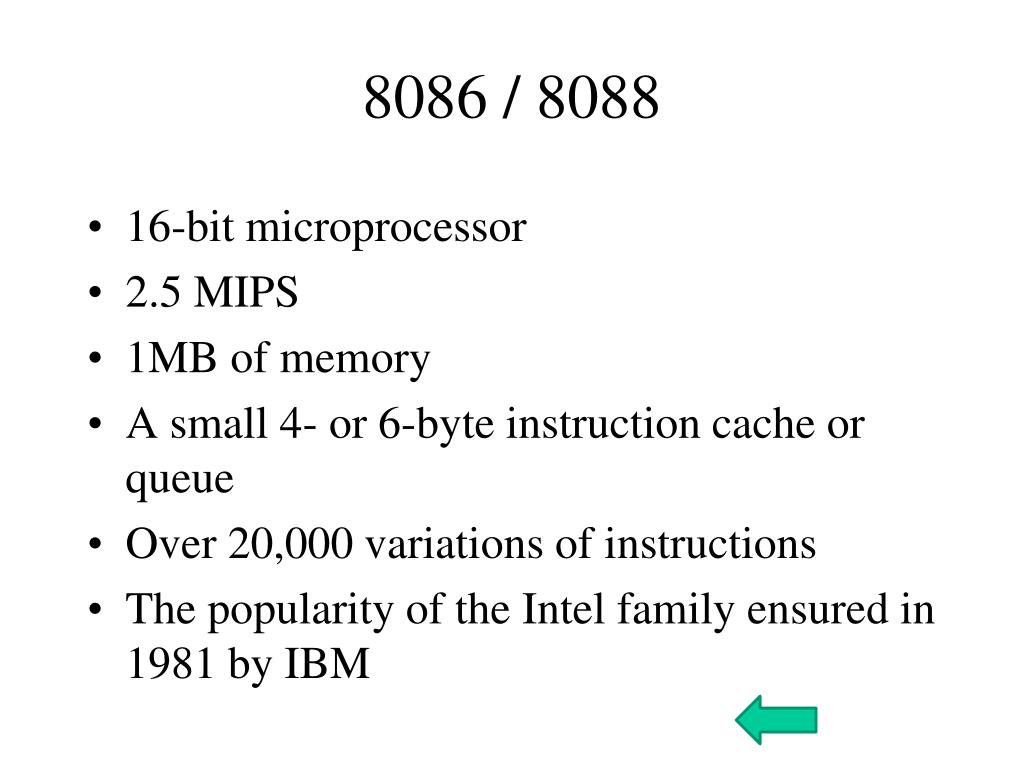

  13. 8086 / 8088 • 16-bit microprocessor • 2.5 MIPS • 1MB of memory • A small 4- or 6-byte instruction cache or queue • Over 20,000 variations of instructions • The popularity of the Intel family ensured in 1981 by IBM

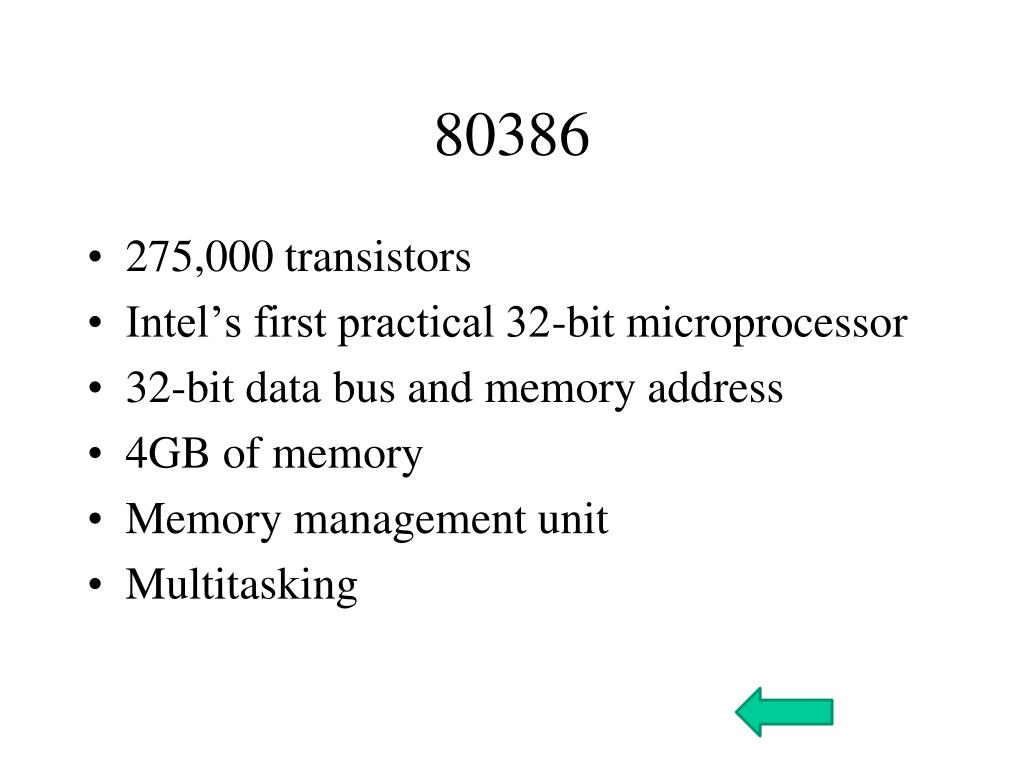

  14. 80386 • 275,000 transistors • Intel’s first practical 32-bit microprocessor • 32-bit data bus and memory address • 4GB of memory • Memory management unit • Multitasking

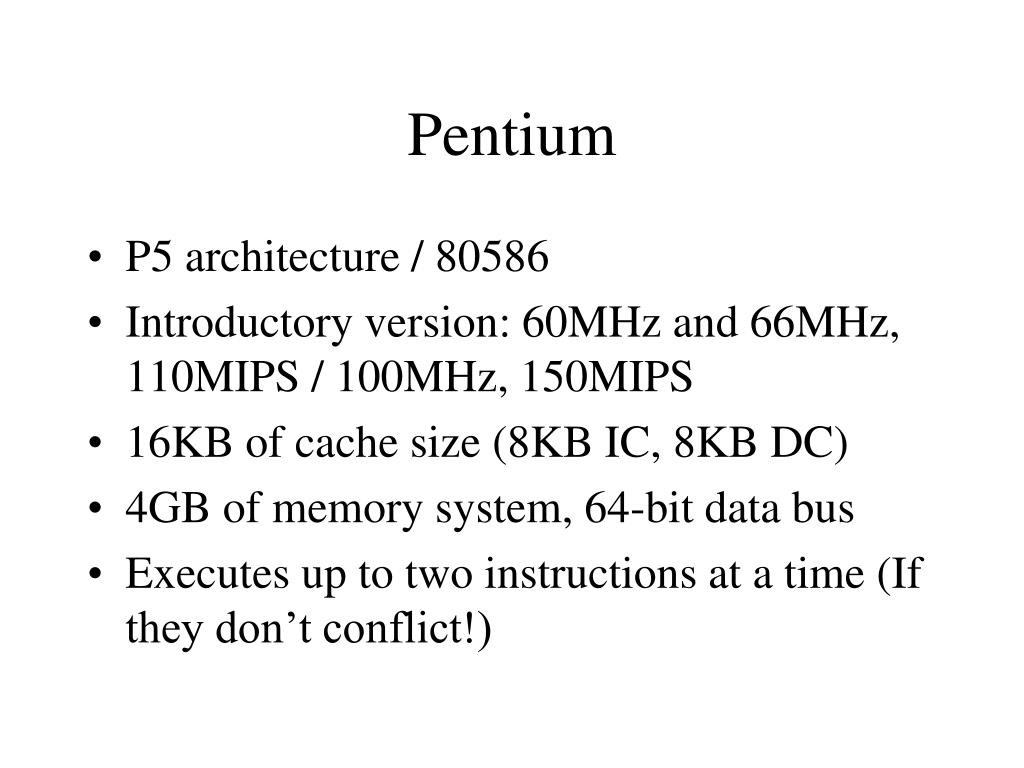

  15. Pentium • P5 architecture / 80586 • Introductory version: 60MHz and 66MHz, 110MIPS / 100MHz, 150MIPS • 16KB of cache size (8KB IC, 8KB DC) • 4GB of memory system, 64-bit data bus • Executes up to two instructions at a time (If they don’t conflict!)

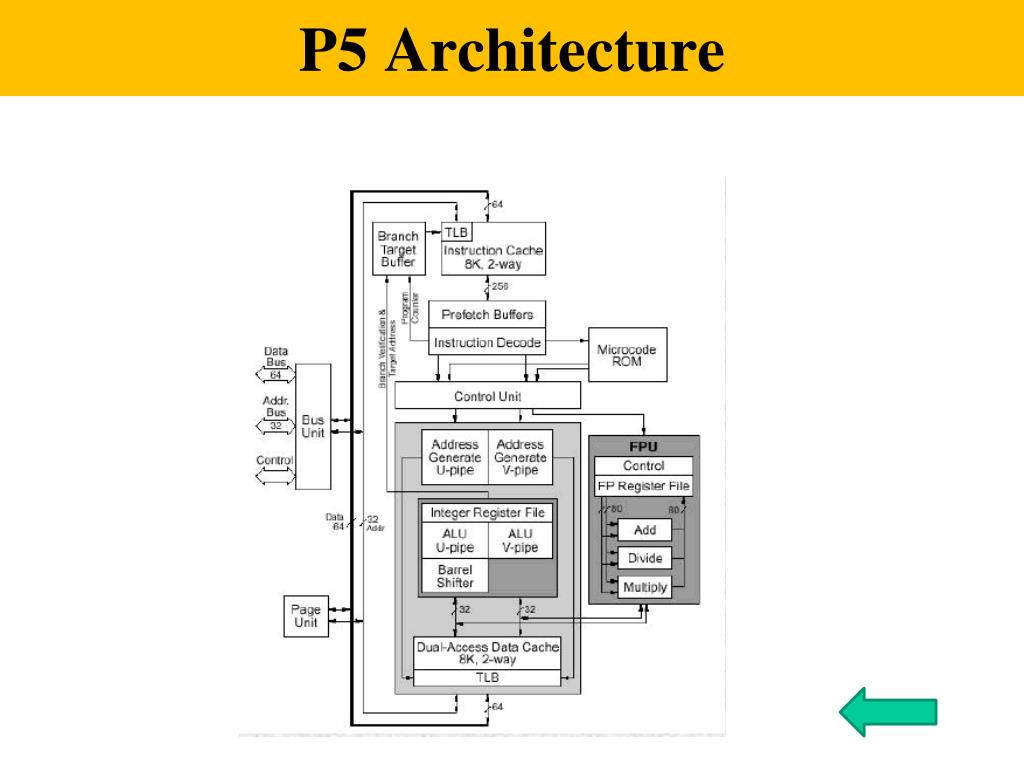

  16. P5 Architecture

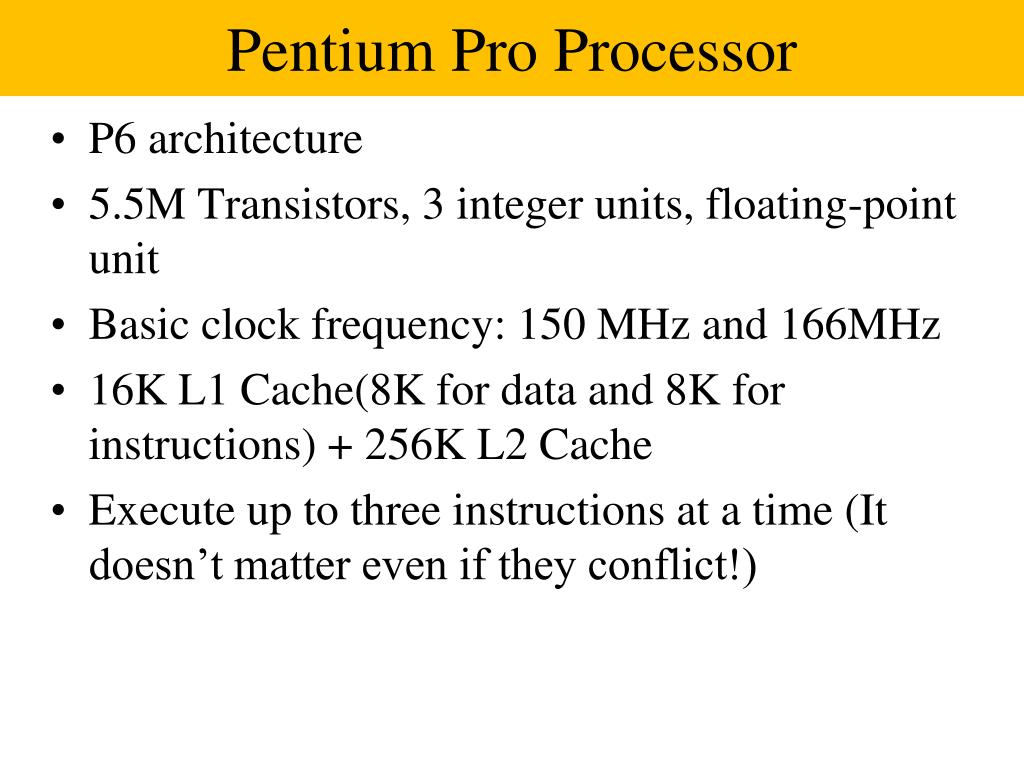

  17. Pentium Pro Processor • P6 architecture • 5.5M Transistors, 3 integer units, floating-point unit • Basic clock frequency: 150 MHz and 166MHz • 16K L1 Cache(8K for data and 8K for instructions) + 256K L2 Cache • Execute up to three instructions at a time (It doesn’t matter even if they conflict!)

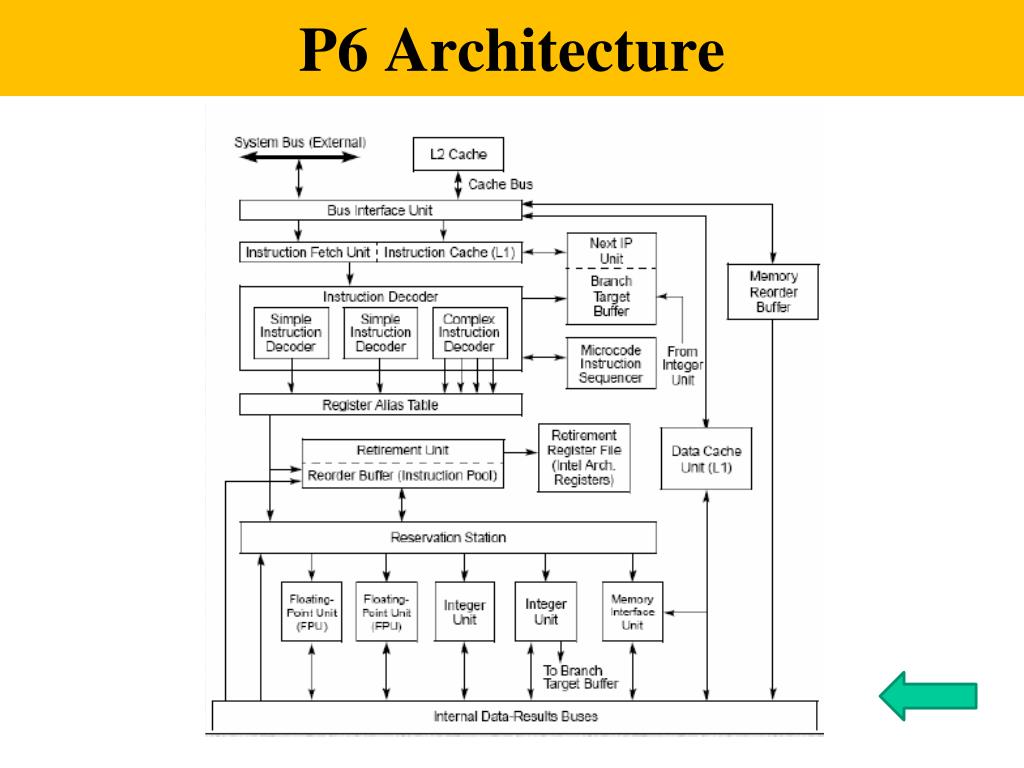

  18. P6 Architecture Three-way Superscalar, pipelined architecture

  19. P6 Architecture

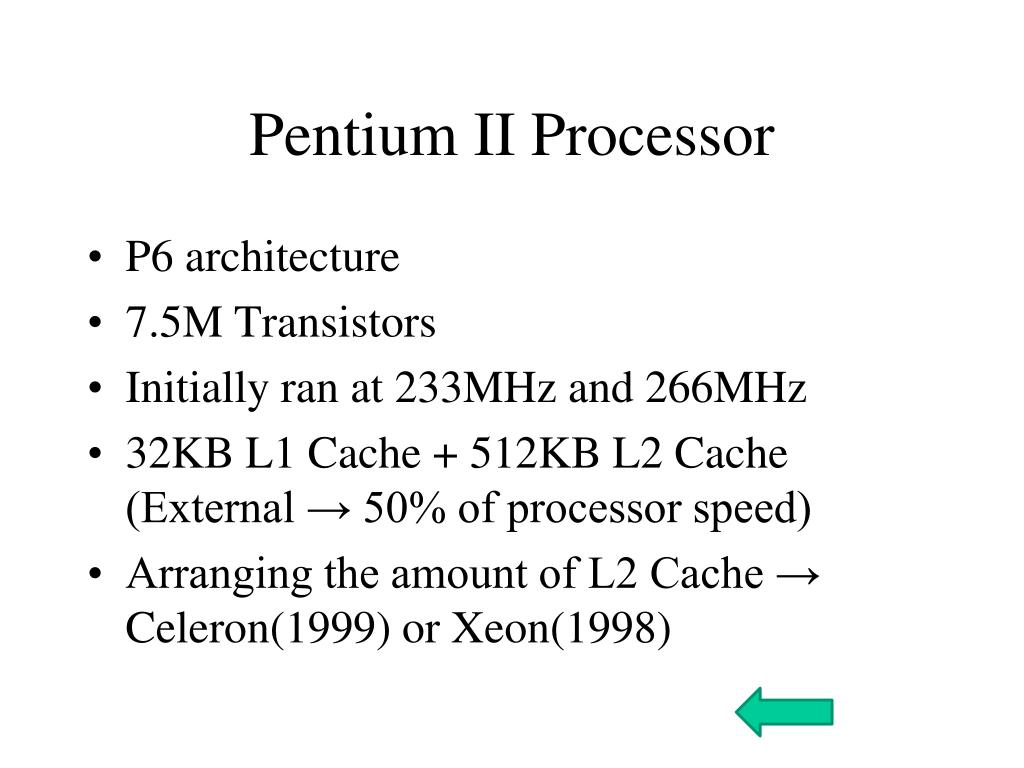

  20. Pentium II Processor • P6 architecture • 7.5M Transistors • Initially ran at 233MHz and 266MHz • 32KB L1 Cache + 512KB L2 Cache (External → 50% of processor speed) • Arranging the amount of L2 Cache → Celeron(1999) or Xeon(1998)

  21. Pentium III Processor • P6 architecture • 9.5 Million transistors • 450 and 500 MHz • SSE(Streaming SIMD Extensions) instructions • Improved L1 cache controller • Low-end Celeron / High-end Xeon

  22. Pentium 4 Processor • NetBurst architecture • Deep instruction pipeline, SSE2, 64-Bit floating point computation • 42 Million transistors, 1.4 GHz and 1.5 GHz • Hyper Threading

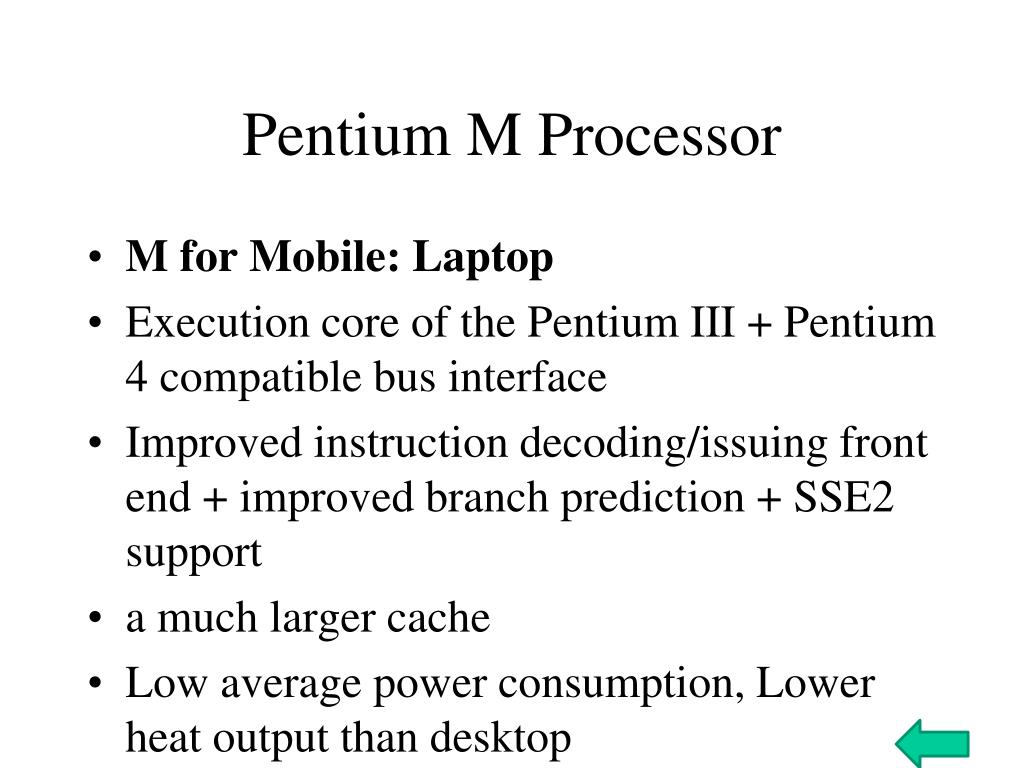

  23. Pentium M Processor • M for Mobile: Laptop • Execution core of the Pentium III + Pentium 4 compatible bus interface • Improved instruction decoding/issuing front end + improved branch prediction + SSE2 support • a much larger cache • Low average power consumption, Lower heat output than desktop

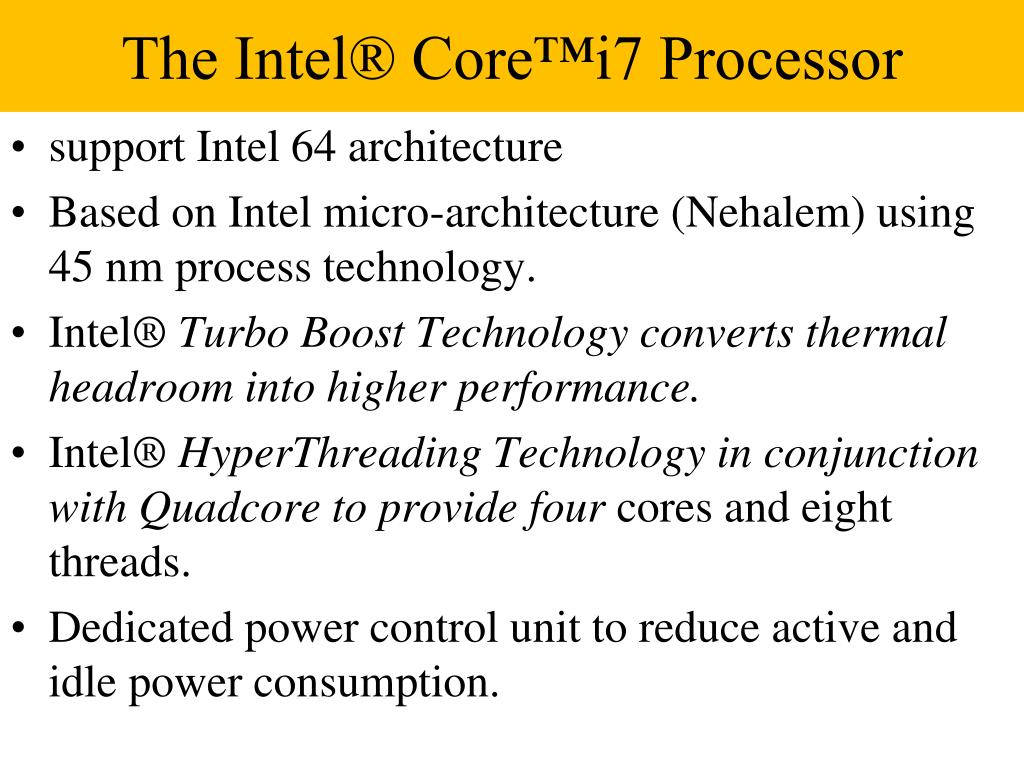

  24. The Intel® Core™i7 Processor • support Intel 64 architecture • Based on Intel micro-architecture (Nehalem) using 45 nm process technology. • Intel® Turbo Boost Technology converts thermal headroom into higher performance. • Intel® HyperThreading Technology in conjunction with Quadcore to provide four cores and eight threads. • Dedicated power control unit to reduce active and idle power consumption.

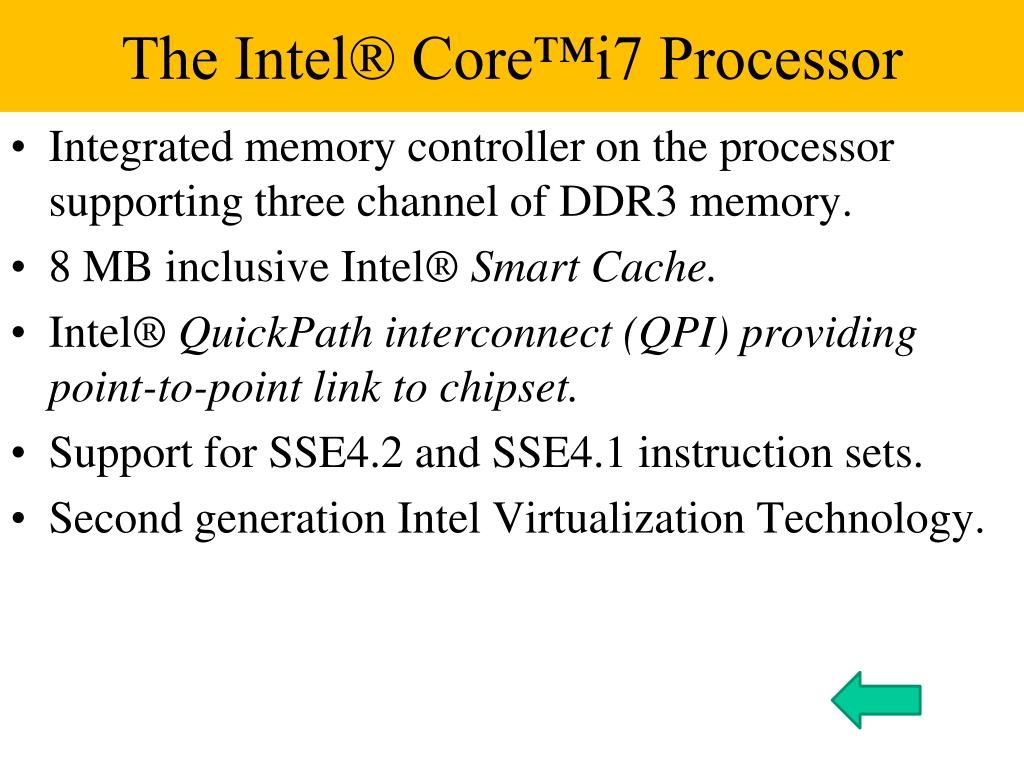

  25. The Intel® Core™i7 Processor • Integrated memory controller on the processor supporting three channel of DDR3 memory. • 8 MB inclusive Intel® Smart Cache. • Intel® QuickPath interconnect (QPI) providing point-to-point link to chipset. • Support for SSE4.2 and SSE4.1 instruction sets. • Second generation Intel Virtualization Technology.
