Hematology Analyzer

Labnic Hematology Analyzer measures 27 blood parameters to detect abnormal cells and stores up to 60,000 results with scattergrams and histograms. It operates between 10 and 30 u00b0C and offers manual, auto and fresh blood calibration. It features tri-angle laser scattering and 3-level quality control.

susanlabnic
Download Presentation

Hematology Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

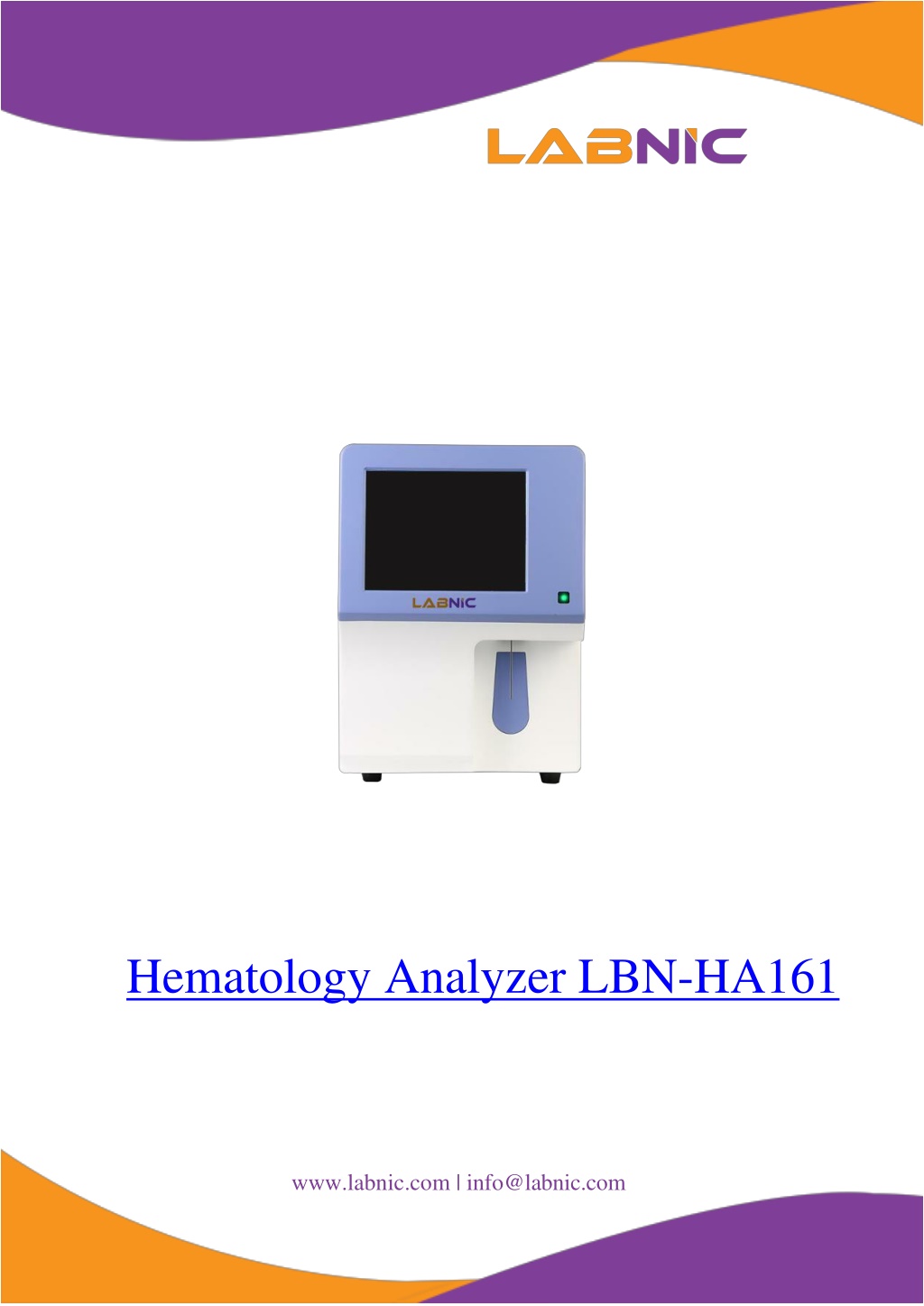

  1. Hematology Analyzer LBN-HA161 www.labnic.com | info@labnic.com

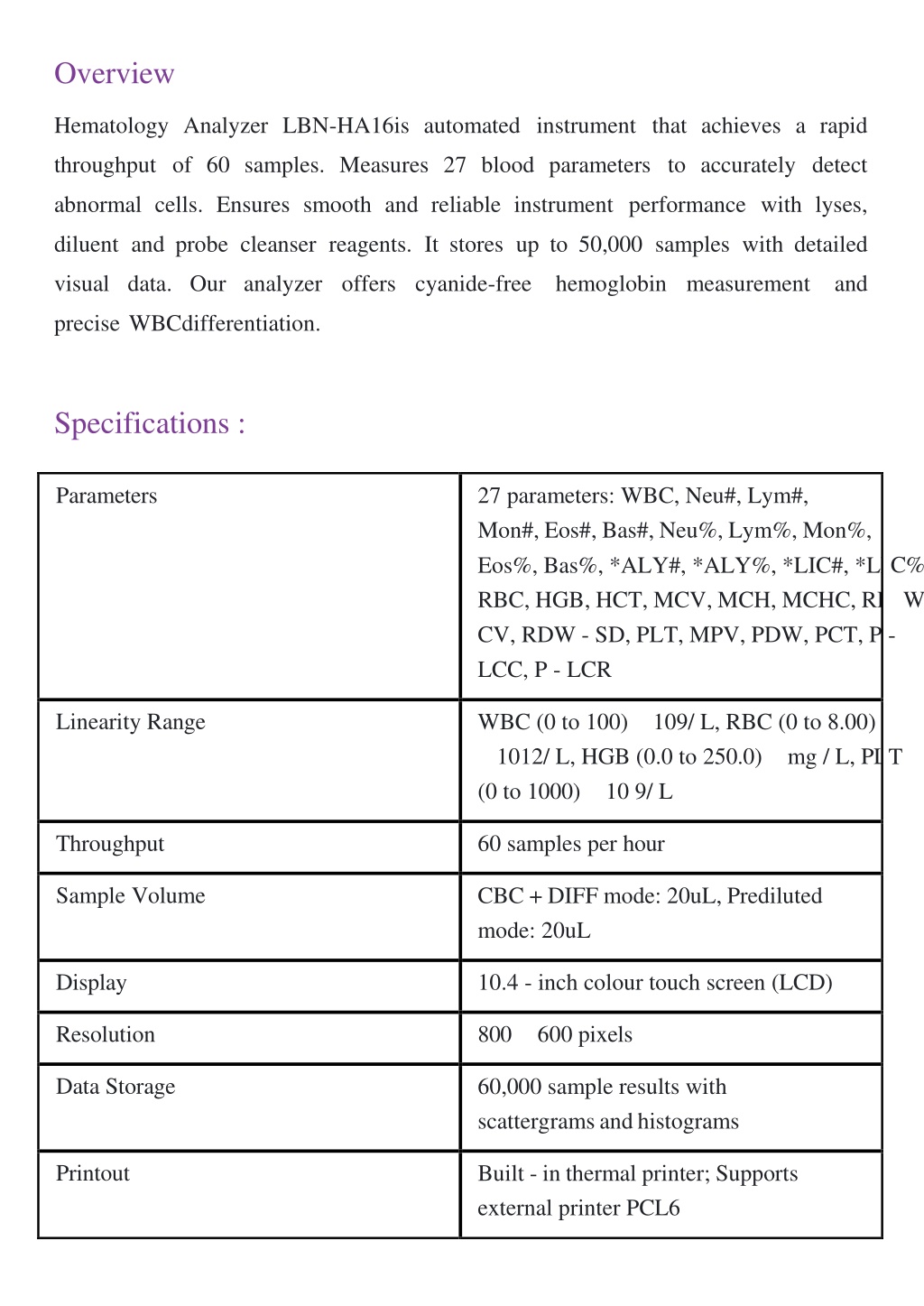

  2. Overview Hematology Analyzer LBN-HA16is automated instrument that achieves a rapid throughput of 60 samples. Measures 27 blood parameters to accurately detect abnormal cells. Ensures smooth and reliable instrument performance with lyses, diluent and probe cleanser reagents. It stores up to 50,000 samples with detailed visual data. Our analyzer offers cyanide-freehemoglobin measurementand precise WBCdifferentiation. Specifications : Parameters 27 parameters: WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%, Mon%, Eos%, Bas%, *ALY#, *ALY%, *LIC#, *LI RBC, HGB, HCT, MCV, MCH, MCHC, RD CV, RDW - SD, PLT, MPV, PDW, PCT, P LCC, P - LCR C% W - Linearity Range WBC (0 to 100) 109/ L, RBC (0 to 8.00) 1012/ L, HGB (0.0 to 250.0) mg / L, PL (0 to 1000) 10 9/ L T Throughput 60 samples per hour Sample Volume CBC + DIFF mode: 20uL, Prediluted mode: 20uL Display 10.4 - inch colour touch screen (LCD) Resolution 800 600 pixels Data Storage 60,000 sample results with scattergrams and histograms Printout Built - in thermal printer; Supports external printer PCL6

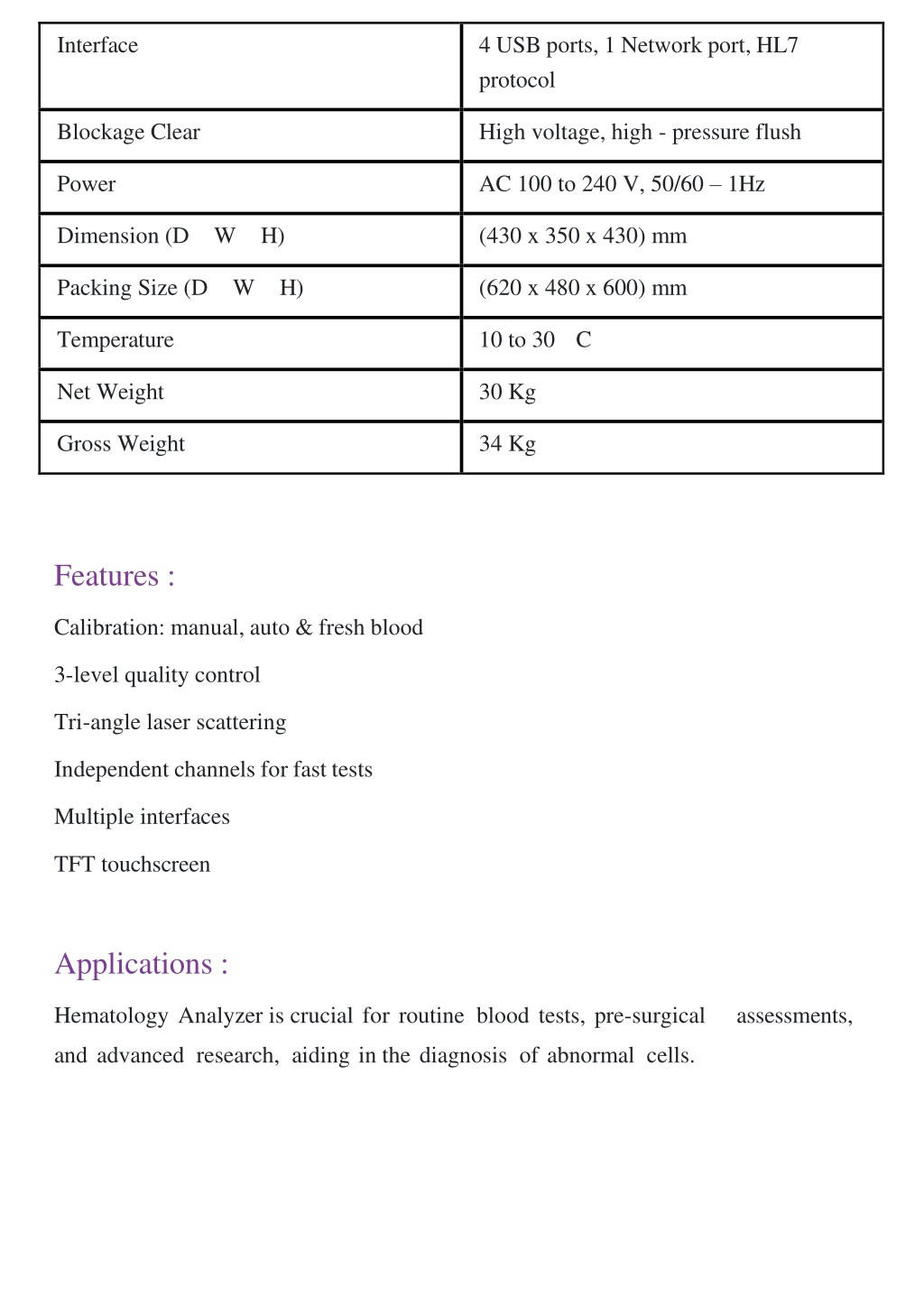

  3. Interface 4 USB ports, 1 Network port, HL7 protocol Blockage Clear High voltage, high - pressure flush Power AC 100 to 240 V, 50/60 – 1Hz Dimension (D W H) (430 x 350 x 430) mm Packing Size (D W H) (620 x 480 x 600) mm Temperature 10 to 30 C Net Weight 30 Kg Gross Weight 34 Kg Features : Calibration: manual, auto & fresh blood 3-level quality control Tri-angle laser scattering Independent channels for fast tests Multiple interfaces TFT touchscreen Applications : Hematology Analyzer is crucial for routine blood tests, pre-surgical assessments, and advanced research, aiding in the diagnosis of abnormal cells.

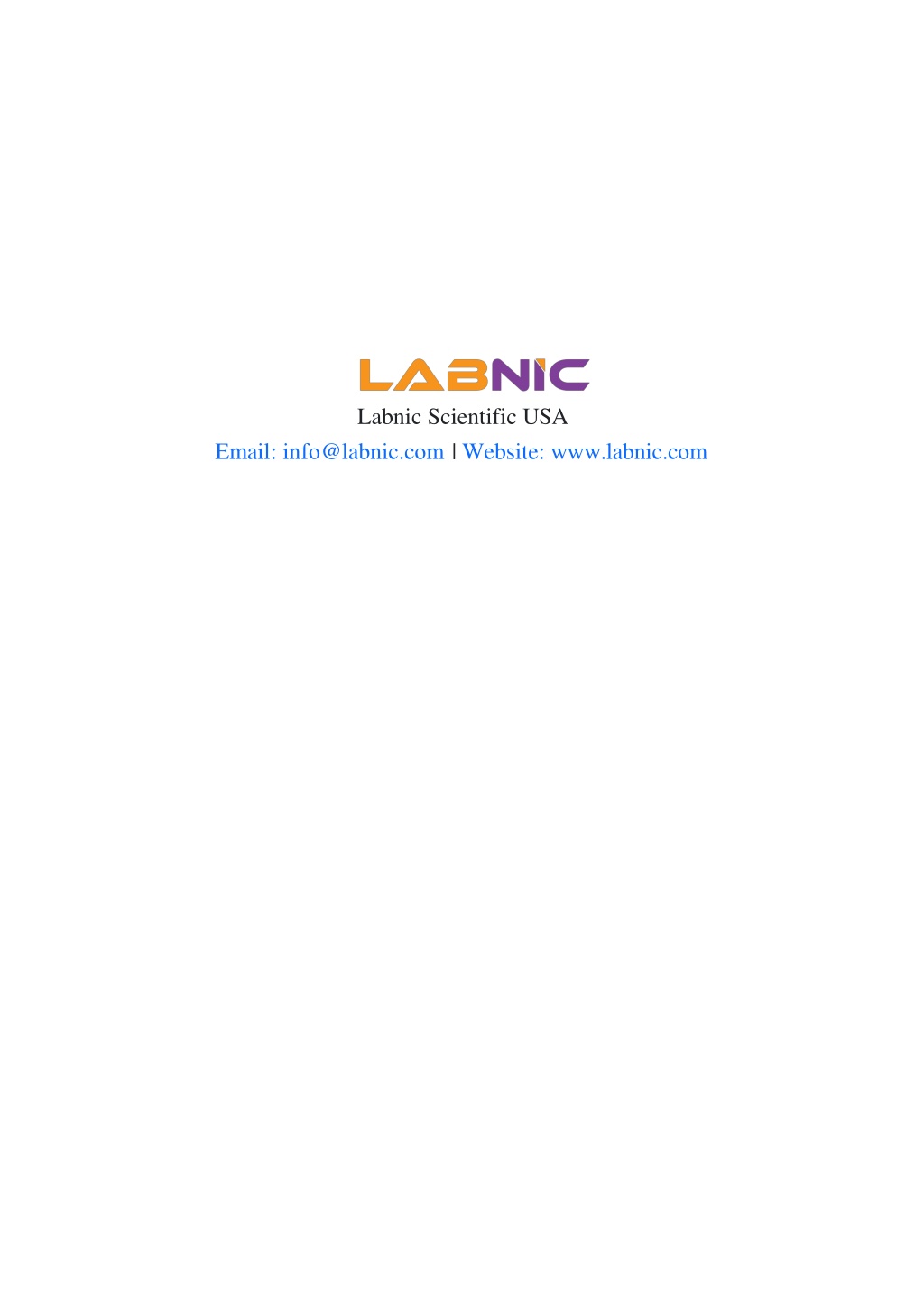

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
