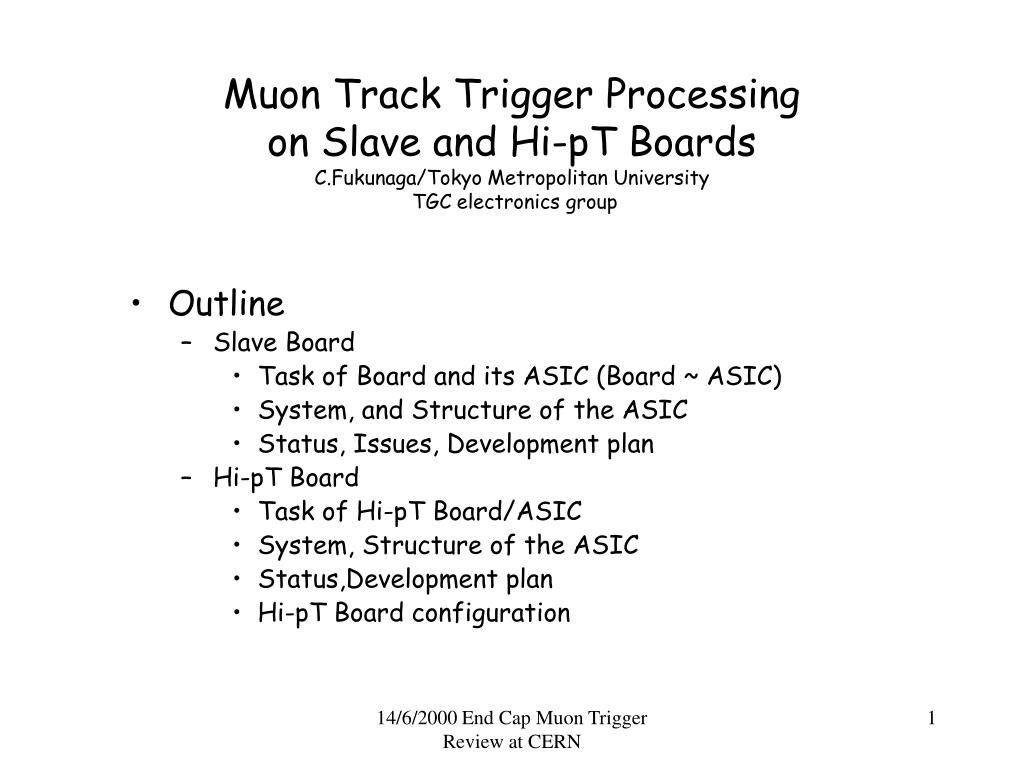

  1. Muon Track Trigger Processing on Slave and Hi-pT BoardsC.Fukunaga/Tokyo Metropolitan University TGC electronics group • Outline • Slave Board • Task of Board and its ASIC (Board ~ ASIC) • System, and Structure of the ASIC • Status, Issues, Development plan • Hi-pT Board • Task of Hi-pT Board/ASIC • System, Structure of the ASIC • Status,Development plan • Hi-pT Board configuration 14/6/2000 End Cap Muon Trigger Review at CERN

  2. Slave Board ASIC TTL/LVDS Slave Board (SB) /ASIC • An on detector board, installed several boards in a PS pack • Inputs are Bunch crossing identified hit patterns from TRIPLET and two DOUBLETS (pivot(outer most one) and middle) • Low pT muon candidates (> 6 GeV/c) will be identified • DAQ(Pipeline, derandomizer) system for TGC coordinates are embedded • Encoded hit information is sent to Hi-pT Board • Board functionality is more-or-less the same as one of ASIC 14/6/2000 End Cap Muon Trigger Review at CERN

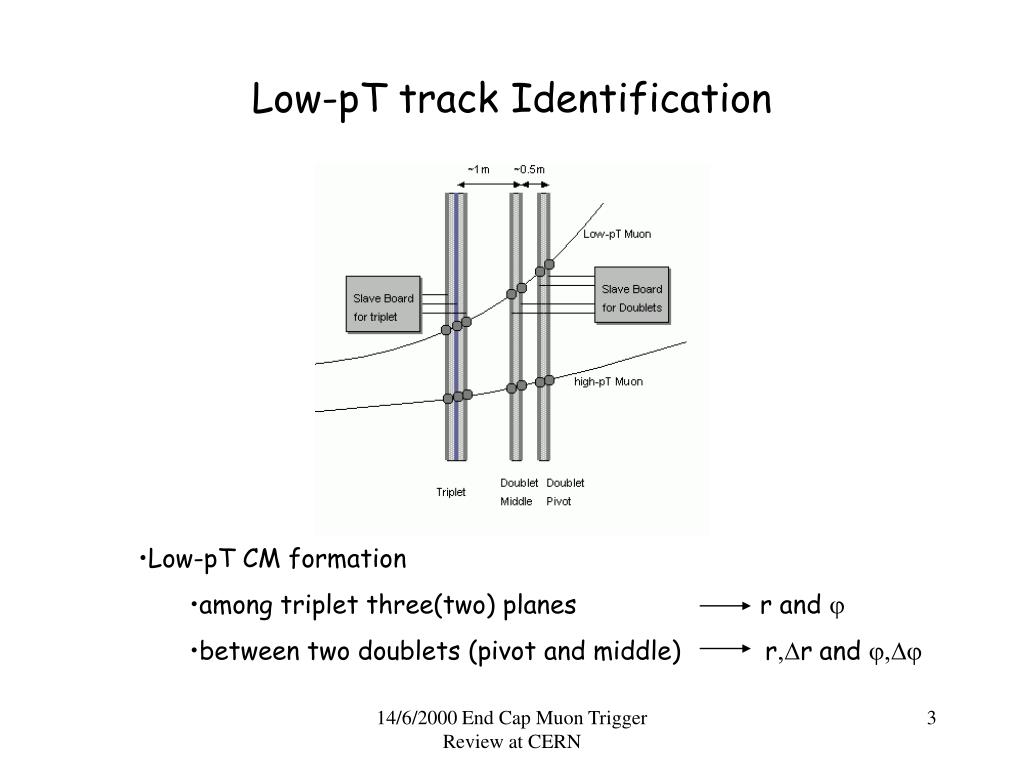

  3. Low-pT track Identification • Low-pT CM formation • among triplet three(two) planes r and j • between two doublets (pivot and middle) r,Dr and j,Dj 14/6/2000 End Cap Muon Trigger Review at CERN

  4. Slave Board (SB) System 14/6/2000 End Cap Muon Trigger Review at CERN

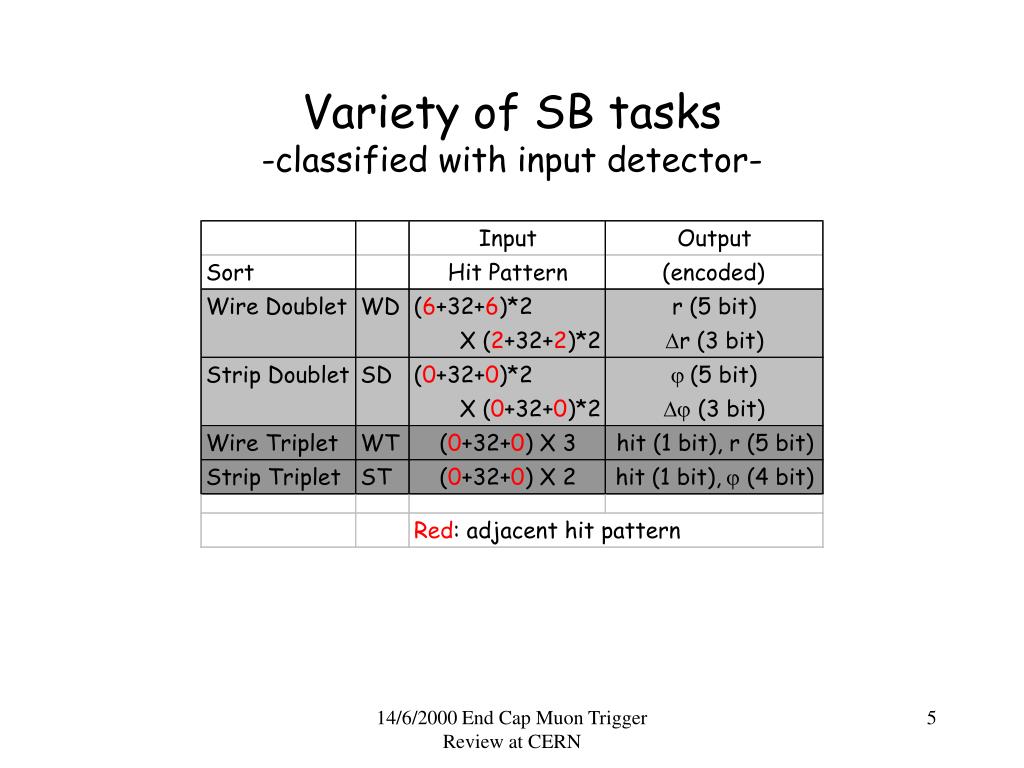

  5. Variety of SB tasks-classified with input detector- 14/6/2000 End Cap Muon Trigger Review at CERN

  6. SB ASIC Structure (Doublet) • Main Blocks • MIDDLE,PIVOT-IN • Phase Adjust • Mask • Local Coincidence • MATRIX • Coincidence of Middle and Pivot planes • DECLUSTER • continuoushits tosingle coordinate 14/6/2000 End Cap Muon Trigger Review at CERN

  7. LocalCoincidence • Doublet two planes are staggered • Resolution of a simple coincidence technique will be the same width as CELL width (Dwire, Dstrip) • New logic with relaxed AND • Single hit (a track passed edge) • Double hits (a track passed center) • Effective resolution will be finer 14/6/2000 End Cap Muon Trigger Review at CERN

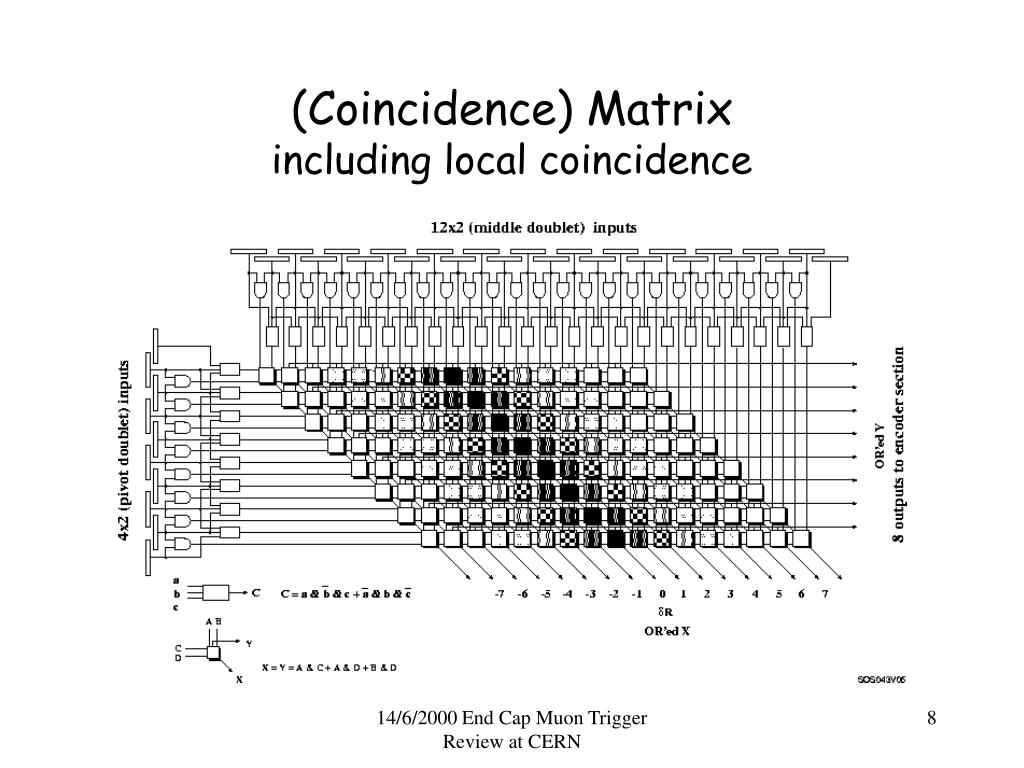

  8. (Coincidence) Matrixincluding local coincidence 14/6/2000 End Cap Muon Trigger Review at CERN

  9. Primary Encode,Declustering & Encodecommon for all sorts of SBs • After Matrix operation • Primary Encode to select track with minimum Dr and/or Dj • Declustering • A successive cluster for a track is shrunk to one hit • Encode 3 bit for Dr,Dj and 4 or 5 bit for r and j 14/6/2000 End Cap Muon Trigger Review at CERN

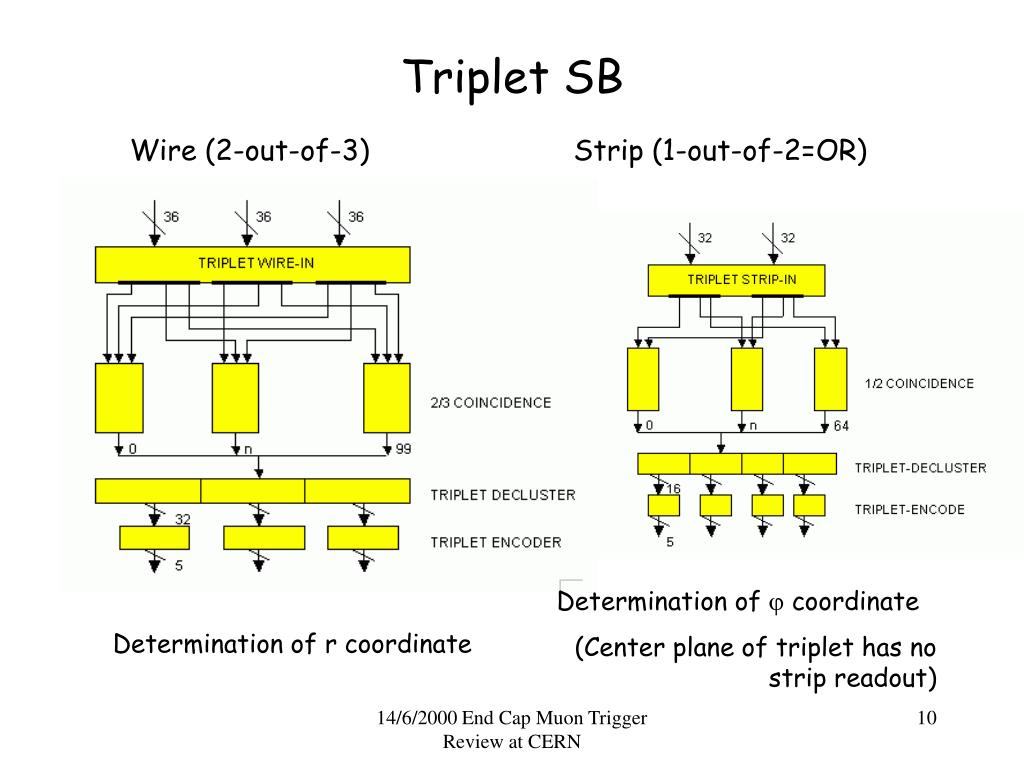

  10. Triplet SB Wire (2-out-of-3) Strip (1-out-of-2=OR) Determination of j coordinate (Center plane of triplet has no strip readout) Determination of r coordinate 14/6/2000 End Cap Muon Trigger Review at CERN

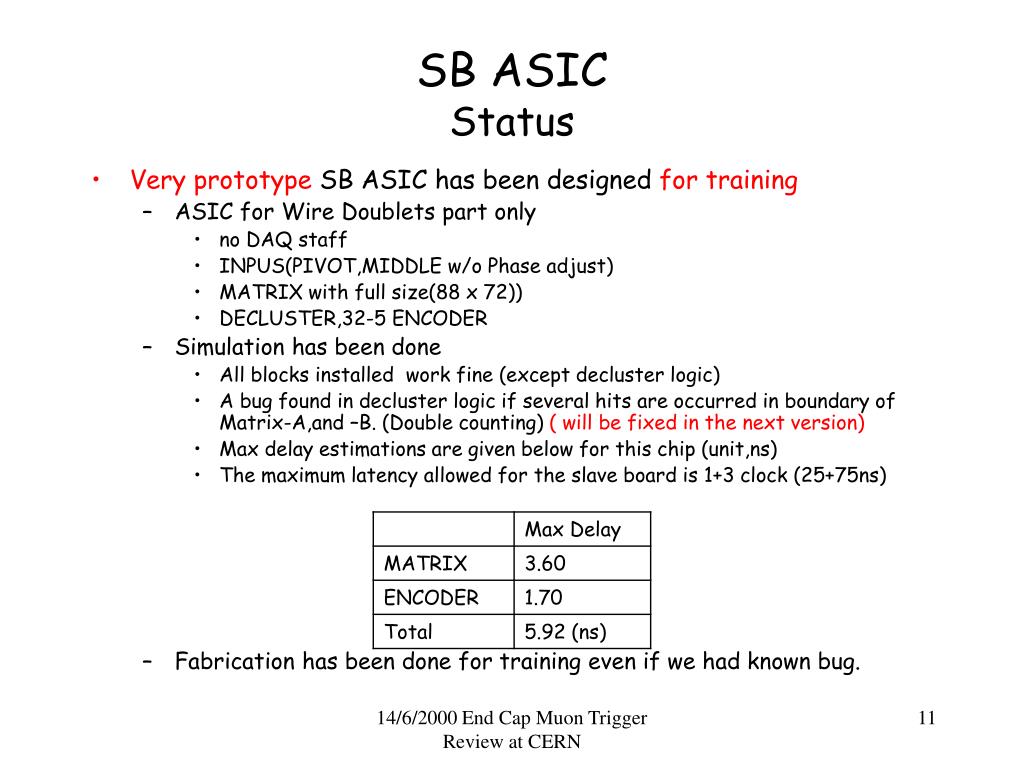

  11. SB ASIC Status • Very prototype SB ASIC has been designed for training • ASIC for Wire Doublets part only • no DAQ staff • INPUS(PIVOT,MIDDLE w/o Phase adjust) • MATRIX with full size(88 x 72)) • DECLUSTER,32-5 ENCODER • Simulation has been done • All blocks installed work fine (except decluster logic) • A bug found in decluster logic if several hits are occurred in boundary of Matrix-A,and –B. (Double counting) ( will be fixed in the next version) • Max delay estimations are given below for this chip (unit,ns) • The maximum latency allowed for the slave board is 1+3 clock (25+75ns) • Fabrication has been done for training even if we had known bug. 14/6/2000 End Cap Muon Trigger Review at CERN

  12. Soft Tolerant Hard SB ASICIssues, Development Plan • Issues • Radiation Tolerance • Dose 25 Gy (10 yrs) • Neutron 3.9x10^12 (8.1x10^11 for >1MeV) (10 yrs) • We choose normal process for fabrication, but pay lots of attention for functionality • Magnetic Field • 100 ~ 1000 Gauss, need confirmation for working • Under investigating • Future plan • Summarized in the last slide 14/6/2000 End Cap Muon Trigger Review at CERN

  13. LVDS/TTL Hi-pT ASIC Opt./E Conv. Hi-pT board/ASIC Hi-pT track Identification • Inputs are encoded data of SB for triple and doublet • All SB processed data are once passed in a Hi-pT system • Hi-pT ASICs on a Hi-pT board are (VME 9U module) installed in a Hi-pT crate which is put on a outer rim of the pivot doublet • Basic relation of board and ASIC • But number of ASICs/board are different for different trigger purposes • pT > 20 GeV/c 14/6/2000 End Cap Muon Trigger Review at CERN

  14. Structure and block diagrams(Wire and Strip) • For both wire and strip, a common ASIC will serve • Main Blocks • TRIPLET-IN/DOUBLET-IN • Phase Adjust • Decode • MATRIX • 2-out-of-6 SELECT • H/L SELECT (If no Hi-pT, then Low-Pt data are filled in output buffer) • G-OUT (Serializer/G-link converter) 14/6/2000 End Cap Muon Trigger Review at CERN

  15. Matrix for wire&strip Wire Input 192 x 232 CM Strip Input 192 x 192 CM 14/6/2000 End Cap Muon Trigger Review at CERN

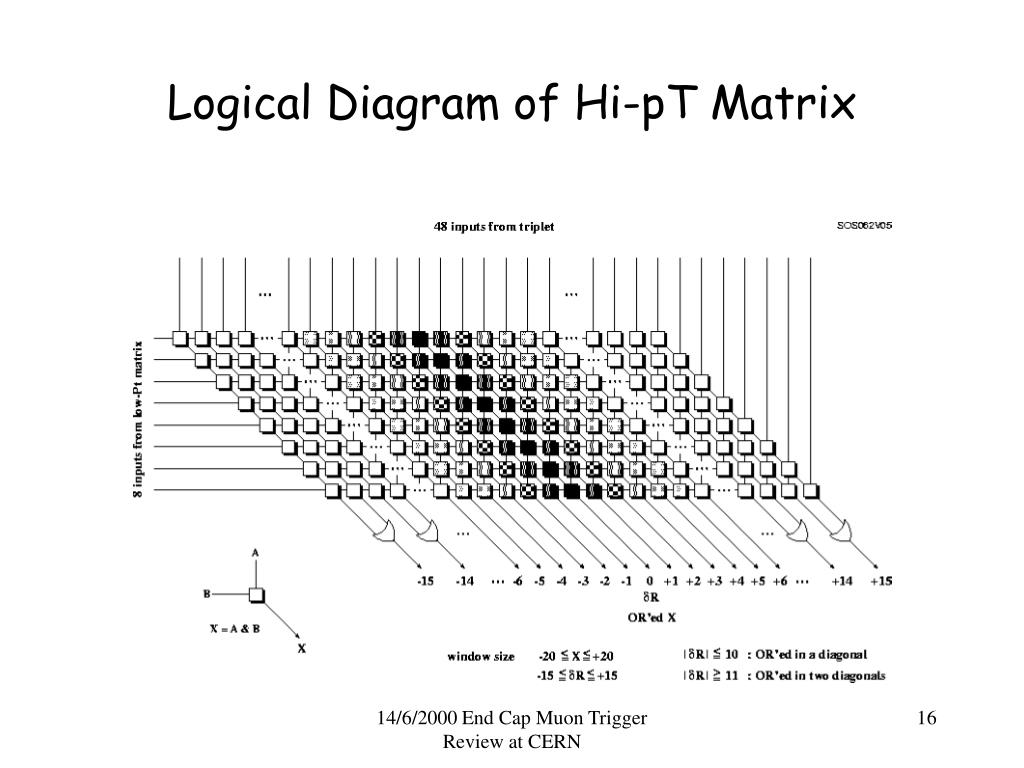

  16. Logical Diagram of Hi-pT Matrix 14/6/2000 End Cap Muon Trigger Review at CERN

  17. j direction OR is needed Main modifications since the last TDR • OR logic for strip signal (for track signals shared with two(three) chambers) • DAQ part is removed (SB readout only) • 2-out-of-6 SELECT 6 tracks are found, but only two highest pT tracks are sent to Sector Logic • Width of Diagonal lines of CM widen (|15| to |20|) • Identical output format for both strip & wire (9 bits) 14/6/2000 End Cap Muon Trigger Review at CERN

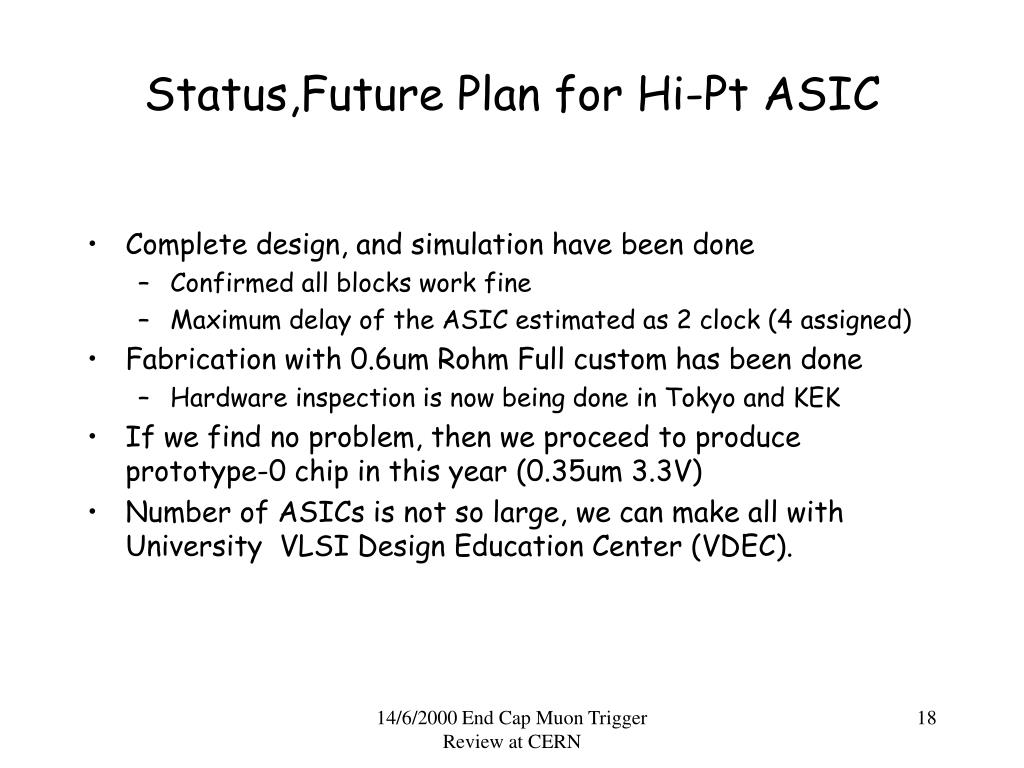

  18. Status,Future Plan for Hi-Pt ASIC • Complete design, and simulation have been done • Confirmed all blocks work fine • Maximum delay of the ASIC estimated as 2 clock (4 assigned) • Fabrication with 0.6um Rohm Full custom has been done • Hardware inspection is now being done in Tokyo and KEK • If we find no problem, then we proceed to produce prototype-0 chip in this year (0.35um 3.3V) • Number of ASICs is not so large, we can make all with University VLSI Design Education Center (VDEC). 14/6/2000 End Cap Muon Trigger Review at CERN

  19. Hi-pT Board configuration and production 14/6/2000 End Cap Muon Trigger Review at CERN

  20. One of Hi-pT boards 14/6/2000 End Cap Muon Trigger Review at CERN

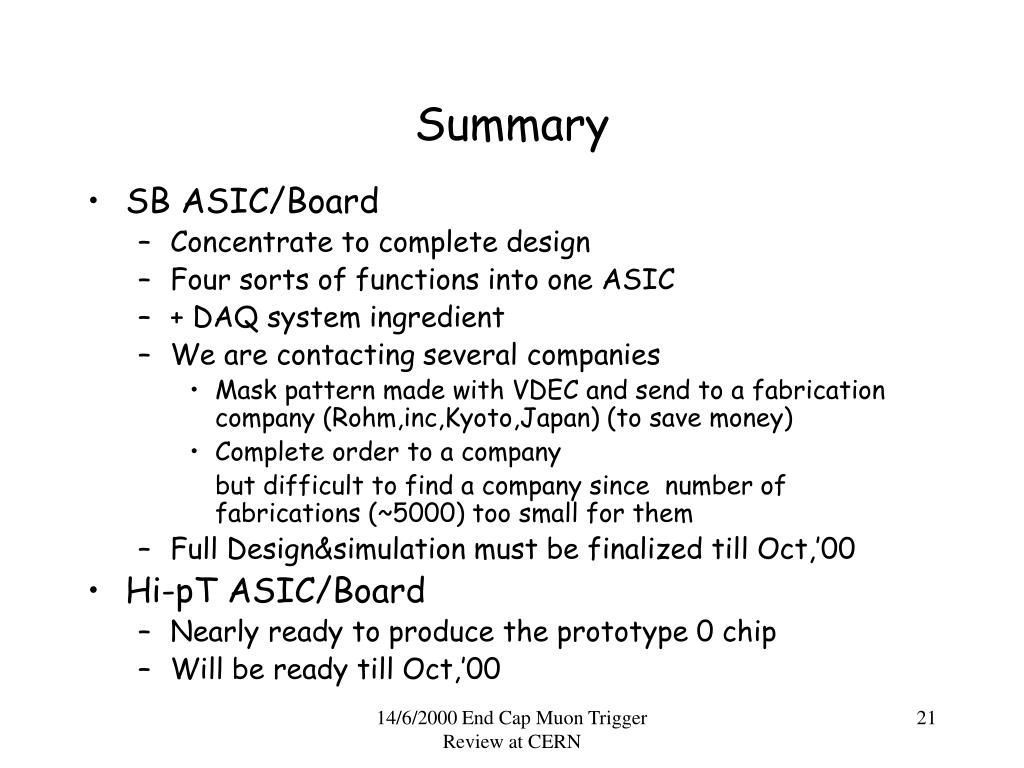

  21. Summary • SB ASIC/Board • Concentrate to complete design • Four sorts of functions into one ASIC • + DAQ system ingredient • We are contacting several companies • Mask pattern made with VDEC and send to a fabrication company (Rohm,inc,Kyoto,Japan) (to save money) • Complete order to a company but difficult to find a company since number of fabrications (~5000) too small for them • Full Design&simulation must be finalized till Oct,’00 • Hi-pT ASIC/Board • Nearly ready to produce the prototype 0 chip • Will be ready till Oct,’00 14/6/2000 End Cap Muon Trigger Review at CERN
