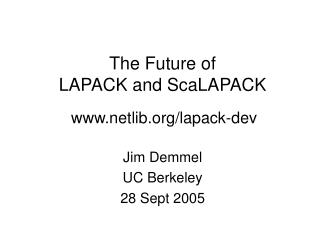

The Future of LAPACK and ScaLAPACK www.netlib.org/lapack-dev. Jim Demmel UC Berkeley 28 Sept 2005. Outline. Motivation Participants Goals Better numerics (faster and more accurate algorithms) Expand contents (more functions, more parallel implementations) Automate performance tuning

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'The Future of LAPACK and ScaLAPACK www.netlib.org/lapack-dev' - steffi


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
outline
Outline
  • Motivation
  • Participants
  • Goals
    • Better numerics (faster and more accurate algorithms)
    • Expand contents (more functions, more parallel implementations)
    • Automate performance tuning
    • Improve ease of use
    • Better maintenance and support
    • Increase community involvement (this means you!)
  • Questions for the audience
  • Selected Highlights
  • Concluding poem
motivation
Motivation
  • LAPACK and ScaLAPACK are widely used
    • Adopted by Cray, Fujitsu, HP, IBM, IMSL, MathWorks, NAG, NEC, SGI, …
    • >52M web hits @ Netlib (incl. CLAPACK, LAPACK95)
  • Many ways to improve them, based on
    • Own algorithmic research
    • Enthusiastic participation of research community
    • On-going user/vendor survey (url below)
    • Opportunities and demands of new architectures, programming languages
  • New releases planned (NSF support)
  • Your feedback desired
    • www.netlib.org/lapack-dev
participants
Participants
  • UC Berkeley:
    • Jim Demmel, Ming Gu, W. Kahan, Beresford Parlett, Xiaoye Li, Osni Marques, Christof Voemel, David Bindel, Yozo Hida, Jason Riedy, Jianlin Xia, Jiang Zhu, undergrads…
  • U Tennessee, Knoxville
    • Jack Dongarra, Victor Eijkhout, Julien Langou, Julie Langou, Piotr Luszczek, Stan Tomov
  • Other Academic Institutions
    • UT Austin, UC Davis, Florida IT, U Kansas, U Maryland, North Carolina SU, San Jose SU, UC Santa Barbara
    • TU Berlin, FU Hagen, U Madrid, U Manchester, U Umeå, U Wuppertal, U Zagreb
  • Research Institutions
    • CERFACS, LBL
  • Industrial Partners
    • Cray, HP, Intel, MathWorks, NAG, SGI
goal 1 better numerics
Goal 1 – Better Numerics
  • Fastest algorithm providing “standard” backward stability
    • MRRR algorithm for symmetric eigenproblem / SVD: Parlett / Dhillon / Voemel / Marques / Willems
    • Up to 10x faster HQR: Byers / Mathias / Braman
    • Extensions to QZ: Kågström / Kressner
    • Faster Hessenberg, tridiagonal, bidiagonal reductions: van de Geijn, Bischof / Lang , Howell / Fulton
    • Recursive blocked layouts for packed formats: Gustavson / Kågström / Elmroth / Jonsson/
goal 1 better numerics6
Goal 1 – Better Numerics
  • Fastest algorithm providing “standard” backward stability
    • MRRR algorithm for symmetric eigenproblem / SVD: Parlett / Dhillon / Voemel / Marques / Willems
    • Up to 10x faster HQR: Byers / Mathias / Braman
    • Extensions to QZ: Kågström / Kressner
    • Faster Hessenberg, tridiagonal, bidiagonal reductions: van de Geijn, Bischof / Lang , Howell / Fulton
    • Recursive blocked layouts for packed formats: Gustavson / Kågström / Elmroth / Jonsson/
  • New: Most accurate algorithm providing “standard” speed
    • Iterative refinement for Ax=b, least squares
      • Assume availability of Extra Precise BLAS (Li/Hida/…)
      • www.netlib.org/blas/blast-forum/
    • Jacobi SVD: Drmaĉ/Veselić
goal 1 better numerics7
Goal 1 – Better Numerics
  • Fastest algorithm providing “standard” backward stability
    • MRRR algorithm for symmetric eigenproblem / SVD: Parlett / Dhillon / Voemel / Marques / Willems
    • Up to 10x faster HQR: Byers / Mathias / Braman
    • Extensions to QZ: Kågström / Kressner
    • Faster Hessenberg, tridiagonal, bidiagonal reductions: van de Geijn, Bischof / Lang , Howell / Fulton
    • Recursive blocked layouts for packed formats, Gustavson / Kågström / Elmroth / Jonsson/
  • New: Most accurate algorithm providing “standard” speed
    • Iterative refinement for Ax=b, least squares
      • Assume availability of Extra Precise BLAS (Li/Hida/…)
      • www.netlib.org/blas/blast-forum/
    • Jacobi SVD: Drmaĉ/Veselić
  • Condition estimates for (almost) everything (ongoing)
goal 1 better numerics8
Goal 1 – Better Numerics
  • Fastest algorithm providing “standard” backward stability
    • MRRR algorithm for symmetric eigenproblem / SVD: Parlett / Dhillon / Voemel / Marques / Willems
    • Up to 10x faster HQR: Byers / Mathias / Braman
    • Extensions to QZ: Kågström / Kressner
    • Faster Hessenberg, tridiagonal, bidiagonal reductions: van de Geijn, Bischof / Lang , Howell / Fulton
    • Recursive blocked layouts for packed formats, Gustavson / Kågström / Elmroth / Jonsson/
  • New: Most accurate algorithm providing “standard” speed
    • Iterative refinement for Ax=b, least squares
      • Assume availability of Extra Precise BLAS (Li/Hida/…)
      • www.netlib.org/blas/blast-forum/
    • Jacobi SVD: Drmaĉ/Veselić
  • Condition estimates for (almost) everything (ongoing)
  • What is not fast or accurate enough?
what goes into sca lapack
What goes into Sca/LAPACK?

For all linear algebra problems

For all matrix structures

For all data types

For all architectures and networks

For all programming interfaces

Produce best algorithm(s) w.r.t.

performance and accuracy

(including condition estimates, etc)

Need to automate and prioritize!

goal 2 expanded content
Goal 2 – Expanded Content
  • Make content of ScaLAPACK mirror LAPACK as much as possible
    • Full Automation would be nice, not yet robust, general enough
      • Telescoping languages, Bernoulli, Rose, FLAME, …
  • New functions (examples)
    • Updating / downdating of factorizations: Stewart, Langou
    • More generalized SVDs: Bai , Wang
    • More generalized Sylvester/Lyapunov eqns: Kågström, Jonsson, Granat
    • Structured eigenproblems
      • O(n2) version of roots(p) – Gu, Chandrasekaran, Zhu et al
      • Selected matrix polynomials: Mehrmann
  • How should we prioritize missing functions?
goal 3 automate performance tuning
Goal 3 – Automate Performance Tuning
  • Not just BLAS
  • 1300 calls to ILAENV() to get block sizes, etc.
    • Never been systematically tuned
  • Extend automatic tuning techniques of ATLAS, etc. to these other parameters
    • Automation important as architectures evolve
  • Convert ScaLAPACK data layouts on the fly
  • How important is peak performance?
goal 4 improved ease of use
Goal 4: Improved Ease of Use
  • Which do you prefer?

A \ B

CALL PDGESV( N ,NRHS, A, IA, JA, DESCA, IPIV, B, IB, JB, DESCB, INFO)

CALL PDGESVX( FACT, TRANS, N ,NRHS, A, IA, JA, DESCA, AF, IAF, JAF, DESCAF, IPIV, EQUED, R, C, B, IB, JB, DESCB, X, IX, JX, DESCX, RCOND, FERR, BERR, WORK, LWORK, IWORK, LIWORK, INFO)

goal 4 improved ease of use software engineering 1
Goal 4: Improved Ease of Use, Software Engineering (1)
  • Development versus Research
    • Development: practical approach to produce useful code
    • Research: If we could start over and do it right, how would we?
  • Life after F77?
    • Fortran95, C, C++, Java, Matlab, Python, …
  • Easy interfaces vs access to details
    • No universal agreement across systems on “easiest interface”
    • Leave decision to higher level packages
    • Keep expert driver / simple driver / computational routines
  • Conclusion: Subset of F95 for core + wrappers for drivers
    • What subset?
      • Recursion, for new data structures
      • Modules, to produce multiple precision versions
      • Environmental enquiries, to replace xLAMCH
    • Wrappers for Fortran95, Java, Matlab, Python, … even for CLAPACK
      • Automatic memory allocation of workspace
goal 4 improved ease of use software engineering 2
Goal 4: Improved Ease of Use, Software Engineering (2)
  • Why not full F95 for core?
    • Would make interfacing to other languages and packages harder
    • Some users want control over memory allocation
  • Why not C for core?
    • High cost/benefit ratio for full rewrite
    • Performance
  • Automation would be nice
    • Use Babel/SIDL to produce native looking interfaces when possible
precisions beyond double 1
Precisions beyond double (1)
  • Range of designs possible
    • Just run in quad (or some other fixed precision)
    • Support codes like

#bits = 32

Repeat

#bits = 2* #bits

Solve(A, b, x, error_bound, #bits)

Until error_bound < tol

precisions beyond double 2
Precisions beyond double (2)
  • Easiest approach – fixed precision
    • Use F95 modules to produce any precision on request
    • Could use QD, ARPREC, GMP, …
    • Keep current memory allocation (twiddle GMP…)
  • Next easier approach – maximum precision
    • Build maximum allowable precision on request
    • Pass in precision parameter, up to this amount
  • More flexible (and difficult) approach
    • Choose any precision at run time
    • Dynamically allocate all variables
  • Most aggressive approach
    • New algorithms that minimize work to get desired prec.
  • What do users want?
    • Compatibility with symbolic manipulation systems?
goal 4 improved ease of use software engineering 3
Goal 4: Improved Ease of Use, Software Engineering (3)
  • Research Issues
    • May or may not impact development
  • How to map multiple software layers to emerging architectural layers?
  • Are emerging HPCS languages better?
  • How much can we automate? Do we keep having to write Gaussian elimination over and over again?
  • Statistical modeling to limit performance tuning costs, improve use of shared clusters
goal 5 better maintenance and support
Goal 5:Better Maintenance and Support
  • Website for user feedback and requests
  • New developer and discussion forums
  • URL: www.netlib.org/lapack-dev
    • Includes NSF proposal
  • Version control and bug tracking system
  • Automatic Build and Test environment
  • Wide variety of supported platforms
  • Cooperation with vendors
  • Anything else desired?
goal 6 involve the community
Goal 6: Involve the Community
  • To help identify priorities
    • More interesting tasks than we are funded to do
    • See www.netlib.org/lapack-dev for list
  • To help identify promising algorithms
    • What have we missed?
  • To help do the work
    • Bug reports, provide fixes
    • Again, more tasks than we are funded to do
    • Already happening: thank you!
    • We retain final decisions on content
  • Anything else?
some highlights
Some Highlights
  • Putting more of LAPACK into ScaLAPACK
  • ScaLAPACK performance on 1D vs 2D grids
  • MRRR “Holy Grail” algorithm for symmetric EVD
  • Iterative Refinement for Ax=b
  • O(n2) polynomial root finder
  • Generalized SVD
missing matrix types in scalapack
Missing matrix types in ScaLAPACK
  • Symmetric, Hermitian, triangular
    • Band, Packed
  • Positive Definite
    • Packed
  • Orthogonal, Unitary
    • Packed
slide24

Speedups for using 2D processor grid range from 2x to 8x

Times obtained on:

60 processors, Dual AMD Opteron 1.4GHz Cluster w/Myrinet Interconnect

2GB Memory

slide25

Cost of redistributing matrix to optimal layout is small

Times obtained on:

60 processors, Dual AMD Opteron 1.4GHz Cluster w/Myrinet Interconnect

2GB Memory

mrrr algorithm for eig tridiagonal and svd bidiagonal
MRRR Algorithm for eig(tridiagonal) and svd(bidiagonal)
  • “Multiple Relatively Robust Representation”
  • 1999 Householder Award honorable mention for Dhillon
  • O(nk) flops to find k eigenvalues/vectors of nxn tridiagonal matrix (similar for SVD)
    • Minimum possible!
  • Naturally parallelizable
  • Accurate
    • Small residuals || Txi – li xi || = O(n e)
    • Orthogonal eigenvectors || xiTxj || = O(n e)
  • Hence nickname: “Holy Grail”
  • 2 versions
    • LAPACK 3.0: large error on “hard” cases
    • Next release: fixed!
  • How should we tradeoff speed and accuracy?
accuracy results old vs new grail
Accuracy Results (old vs new Grail)

|| QQT – I || / (n e )

maxi ||Tqi – li qi || / ( n e )

slide32

Accuracy Results (Grail vs QR vs DC)

|| QQT – I || / (n e )

maxi ||Tqi – li qi || / ( n e )

more accurate solve ax b

With extra precise

iterative refinement

More Accurate: Solve Ax=b

Conventional Gaussian Elimination

1/e

e

e = n1/22-24

what s new
What’s new?
  • Need extra precision (beyond double)
    • Part of new BLAS standard
    • Cost = O(n2) extra per right-hand-side, vs O(n3) to factor
  • Get tiny componentwise bounds too
    • Error in xi small compared to |xi|, not just maxj |xj|
  • “Guarantees” based on condition number estimates
    • No bad bounds in 6.2M tests
    • Different condition number for componentwise bounds
    • Traditional iterative refinement can “fail”
    • Only get “matrix close to singular” message when answer wrong?
  • Extends to least squares
  • Demmel, Kahan, Hida, Riedy, X. Li, Sarkisyan, …
  • LAPACK Working Note # 165
can condition estimators lie
Can condition estimators lie?
  • Yes, but rarely, unless they cost as much as matrix multiply = cost of LU factorization
    • Demmel/Diament/Malajovich (FCM2001)
  • But what if matrix multiply costs O(n2)?
    • Cohn/Umans/Kleinberg (FOCS 2003/5)
new algorithm for roots p

C(p)=

-p1 -p2 … -pd

1 0 … 0

0 1 … 0

… … … …

0 … 1 0

New algorithm for roots(p)
  • To find roots of polynomial p
    • Roots(p) does eig(C(p))
    • Costs O(n3), stable, reliable
  • O(n2) Alternatives
    • Newton, Jenkins-Traub, Laguerre, …
    • Stable? Reliable?
  • New: Exploit “semiseparable” structure of C(p)
    • Low rank of any submatrix of upper triangle of C(p) preserved under QR iteration
    • Complexity drops from O(n3) to O(n2)
  • Related work: Gemignani, Bini, Pan, et al
  • Ming Gu, Shiv Chandrasekaran, Jiang Zhu, Jianlin Xia, David Bindel, David Garmire, Jim Demmel
properties of new roots p
Properties of new roots(p)
  • First (?) algorithm that
    • Is O(n2)
    • Is backward stable, in the matrix sense
    • Is backward stable, in the sense that the computed roots are the exact roots of a slightly perturbed input polynomial
      • Depends on balancing = scaling roots by a constant 
      • Still need to automate choice of 
  • Byers, Mathias, Braman
  • Tisseur, Higham, Mackey …
new gsvd algorithm timing comparisons
New GSVD Algorithm: Timing Comparisons
  • 1.0GHz Itanium–2 (2GB RAM);
  • Intel's Math Kernel Library 7.2.1 (incl. BLAS, LAPACK)

Bai et al, UC Davis

PSVD, CSD on the way

conclusions
Conclusions
  • Lots to do in Dense Linear Algebra
    • New numerical algorithms
    • Continuing architectural challenges
      • Parallelism, performance tuning
  • Grant support, but success depends on contributions from community
downa dating
Downa Dating

With apologies to Robert Burns & Nick Higham

Should some equations be forgot

when overdetermīned?

Should some equations be forgot

using hyperbolic sines?

With hyperbolic sines, my dear

with hyperbolic sines,

We’ll hope to get some boundedness

with hyperbolic sines.

new gsvd algorithm xggqsv
New GSVD Algorithm (XGGQSV)
  • UT A Z =∑a( 0 R ), VT B Z =∑b( 0 R ); A: M x N, B: P xN
  • Modified Van Loan's method
    • (1) Pre-processing: reveal rank of ( AT ; BT )T
    • (2) Split QR: reduce two upper triangular into one
    • (3) CSD: Cosine-Sine Decomposition
    • (4) Post-processing: assemble resulted matrices
  • Workspace = (max(M, N, P)) + 5L2 where L = rank(B)
  • Outperforms current XGGSVD in LAPACK
profile of sggqsv
Profile of SGGQSV
  • 1.0GHz Itanium–2 (2GB RAM);
  • Intel's Math Kernel Library 7.2.1 (incl. BLAS, LAPACK)
related new routines
Related New Routines
  • CSD (XORCSD)
    • UTQ1Z =∑a, VTQ2Z =∑b
    • Based on Von Loan's method (1985)
    • Dominated by the cost of SVD
    • Workspace =(Max(P+M, N))
  • PSVD (XGGPSV)
    • UTABV = ∑
    • Based on work by Golub, Solna, Van Dooren (2000)
    • Workspace =(Max(M, P, N))
benchmark details
Benchmark Details
  • AMD 1.2 GHz Athlon, 2GB mem, Redhat + Intel compiler
  • Compute all eigenvalues and eigenvectors of a symmetric tridiagonal matrix T
  • Codes compared:
    • qr: QR iteration from LAPACK: dsteqr
    • dc: Cuppen’s Divide&Conquer from LAPACK: dstedc
    • gr: New implementation of MRRR algorithm (“Grail”)
    • ogr: MRRR from LAPACK 3.0: dstegr (“old Grail”)
more accurate solve ax b48
More Accurate: Solve Ax=b
  • Old idea: Use Newton’s method on f(x) = Ax-b
    • On a linear system?
    • Roundoff in Ax-b makes it interesting (“nonlinear”)
    • Iterative refinement
      • Snyder, Wilkinson, Moler, Skeel, …

Repeat

r = Ax-b … compute with extra precision

Solve Ad = r … using LU factorization of A

Update x = x – d

Until “accurate enough” or no progress

slide49

Speedups from 1.33x to 11.5x

Times obtained on:

60 processors, Dual AMD Opteron 1.4GHz Cluster w/Myrinet Interconnect

2GB Memory

slide50

Times obtained on:

60 processors, Dual Opteron 1.4GHz, 64-bit machine

2GB Memory, Myrinet Interconnect

slide51

Speedups from 1.8x to 7.5x

Times obtained on:

60 processors, Dual Intel Xeon 2.4GHz, IA-32 w/Gigabit Ethernet Interconnect

2GB Memory

slide52

Times obtained on:

60 processors, Dual Intel Xeon 2.4GHz, IA-32 w/Gigabit Ethernet Interconnect

2GB Memory

slide53

Speedups from 2.2x to 6x

Times obtained on:

60 processors, Dual Intel Xeon 2.4GHz, IA-32 w/Gigabit Ethernet Interconnect

2GB Memory

slide54

Times obtained on:

60 processors, Dual Intel Xeon 2.4GHz, IA-32 w/Gigabit Ethernet Interconnect

2GB Memory

slide55

Speedups from 2.2x to 2.8x

Times obtained on:

60 processors, IBM SP RS/6000, 16 shared memory (16 Gbytes) processors per node, 4 nodes connected with high-bandwidth low-latency switching network

Block size: 64

slide56

Times obtained on:

60 processors, IBM SP RS/6000, 16 shared memory (16 Gbytes) processors per node, 4 nodes connected with high-bandwidth low-latency switching network

Block size: 64

the future of lapack and scalapack www cs berkeley edu demmel sca lapack proposal pdf

The Future of LAPACK and ScaLAPACKwww.cs.berkeley.edu/~demmel/Sca-LAPACK-Proposal.pdf

Jim Demmel

UC Berkeley

Householder XVI

oo like interfaces ve
OO-like interfaces (VE)
  • Aim: native looking interfaces in modern languages (C++, F90, Java, Python…)
  • Overloading to have identical interfaces for all data types (precision/storage)
  • Overloading to omit certain parameters (stride, transpose,…)
  • Expose data only when necessary (automatic allocation of temporaries, pivoting permutation,….)
  • Mechanism: Use Babel/SIDL to interface to existing F77 code base
example of hll interface ve
Example of HLL interface (VE)

// C++ example

Lapack::PDTridiagonalMatrix A = Lapack::PDTridiagonalMatrix::_create();

x = (double*) malloc(SIZE*sizeof(double));

y = (double*) malloc(SIZE*sizeof(double));

A.MatVec(x,y); // or A.MatVec(MatTranspose,x,y);

A.Factor();

A.Solve(y);

! F90 example

! Create matrix from user array

allocate(data_array(20,25)) ! Fill in the array….

call CreateWithArray(A,data_array)

! Retrieve the array of a (factored) matrix

call GetArray(A,mat)

mat_array => mat%d_data

print *,'pivots',mat_array(0,0),mat_array(1,1)

Lots of details omitted here!
