Progress in 3DG

1. Progress in 3DG Adviser ：PhD Jin-Hua Hong student ：Jun-Yi Wu Date ：2008/12/18

2. outline • 3DG system • Test architecture • Testing core and wrapper • Future work • Low Power Test Architecture

3.  • 3DG system • Test architecture • Testing core and wrapper • Future work • Low Power Test Architecture

4. 3DG system • TIC and IEEE-1500 in 3DG

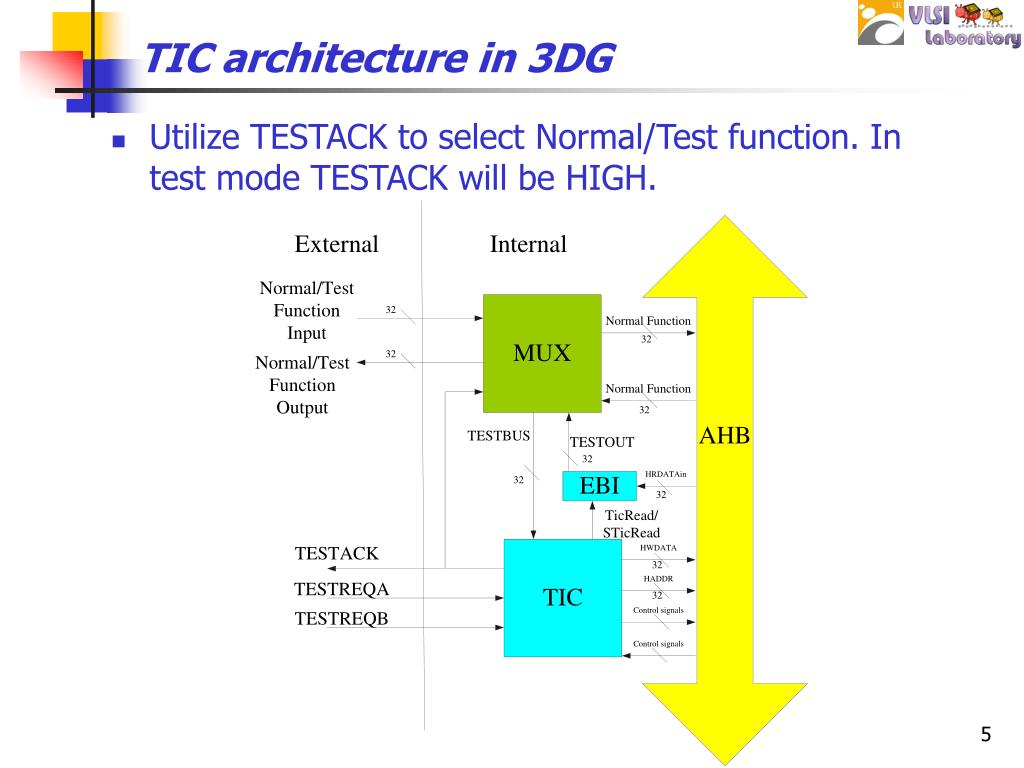

5. TIC architecture in 3DG • Utilize TESTACK to select Normal/Test function. In test mode TESTACK will be HIGH.

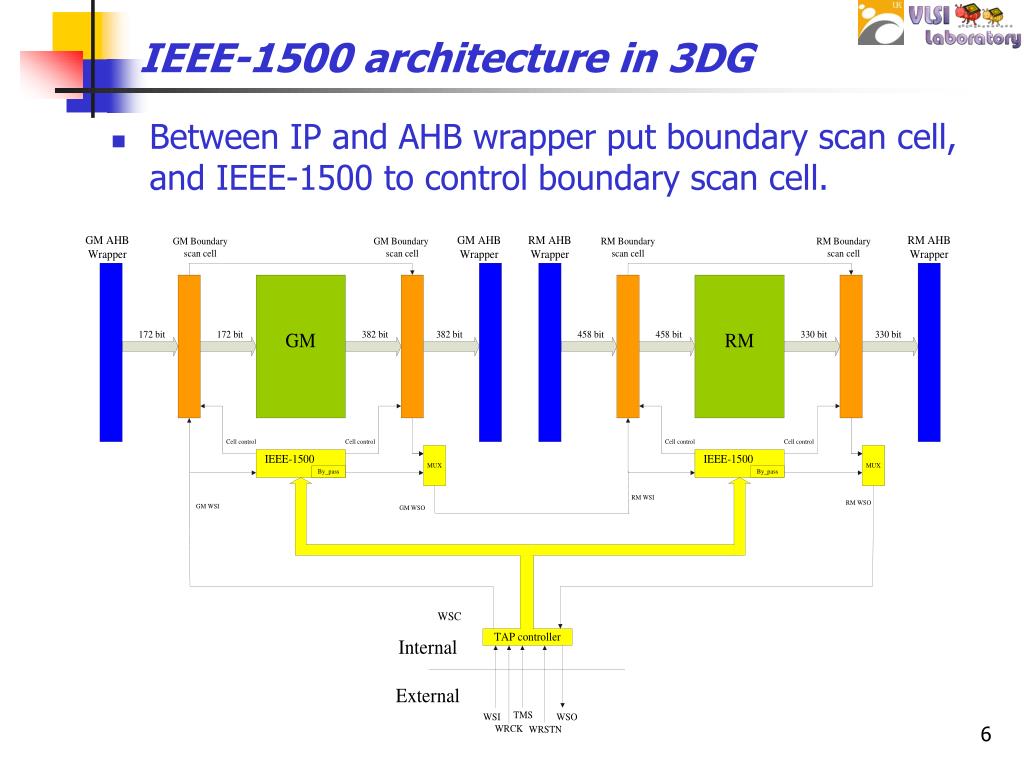

6. IEEE-1500 architecture in 3DG • Between IP and AHB wrapper put boundary scan cell, and IEEE-1500 to control boundary scan cell.

7. External pins in 3DG • TIC: TESTREQA TESTREQB TESTACK • IEEE-1500: WSI WSO WRCK TMS WRSTN

8. 3DG system • Test architecture • Testing core and wrapper • Future work • Low Power Test Architecture 

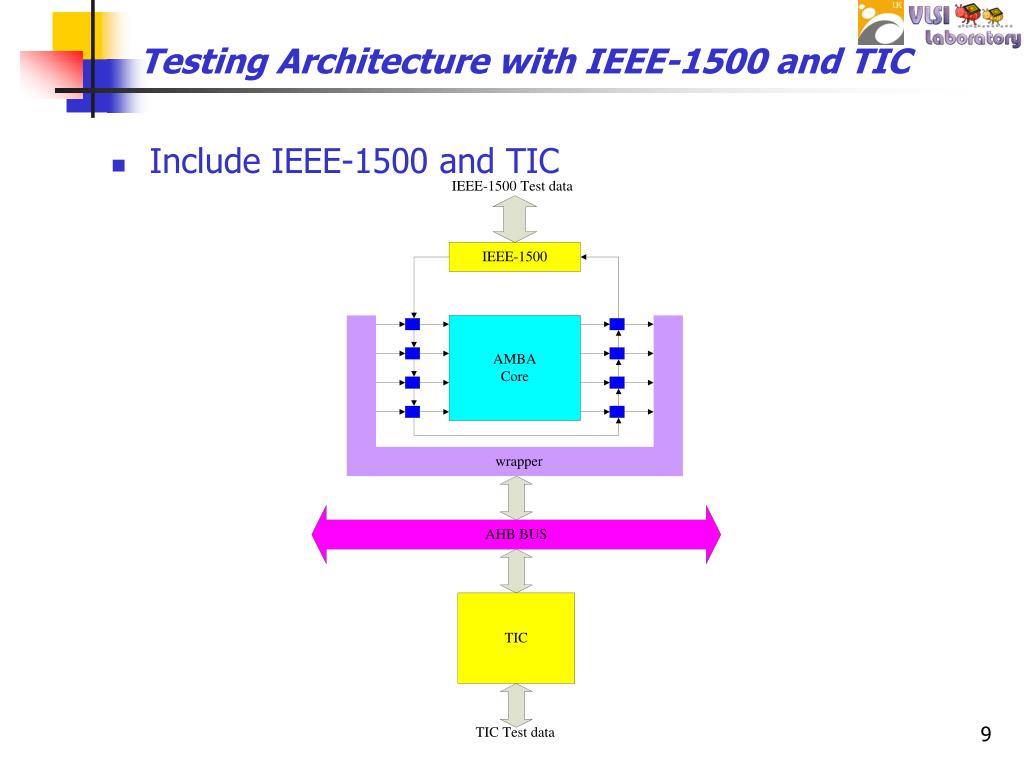

9. Testing Architecture with IEEE-1500 and TIC • Include IEEE-1500 and TIC

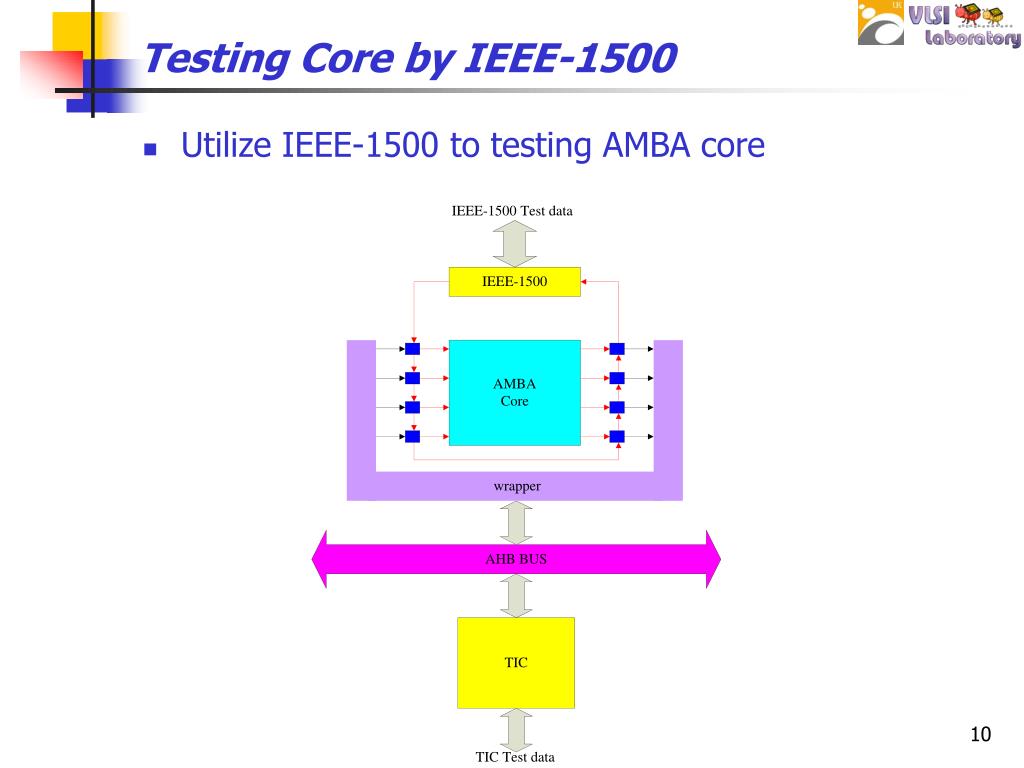

10. Testing Core by IEEE-1500 • Utilize IEEE-1500 to testing AMBA core

11. Testing Core by TIC • Utilize TIC to testing AMBA core

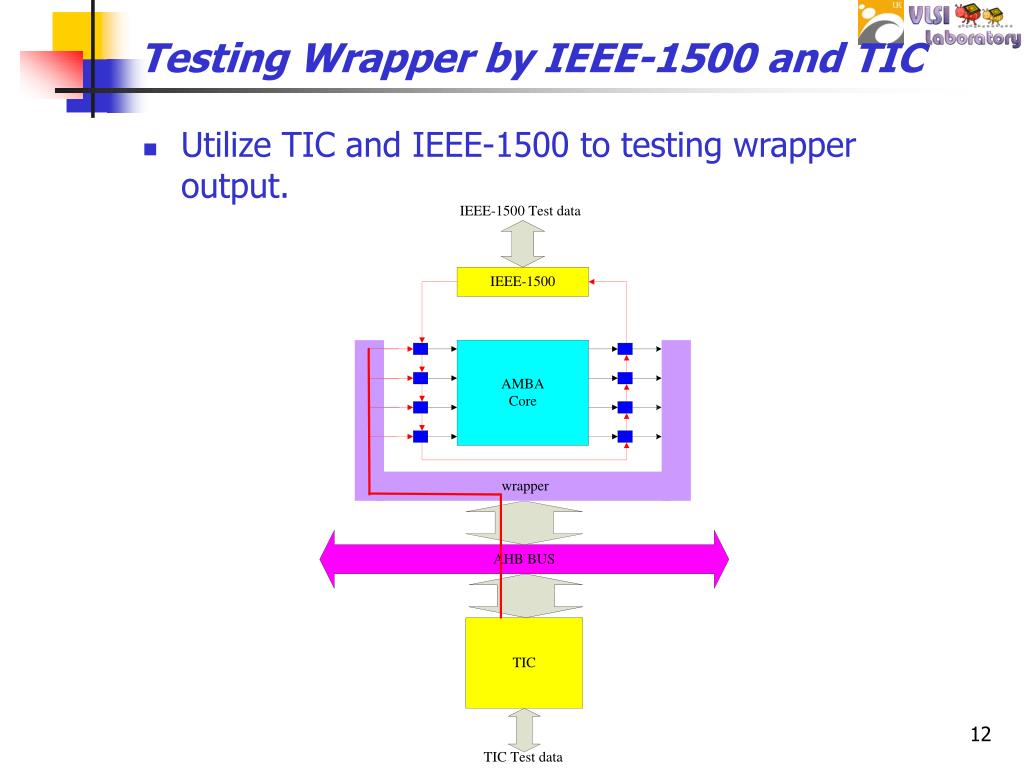

12. Testing Wrapper by IEEE-1500 and TIC • Utilize TIC and IEEE-1500 to testing wrapper output.

13. Testing Wrapper by IEEE-1500 and TIC • Utilize TIC and IEEE-1500 to testing wrapper input.

14. 3DG system • Test architecture • Testing core and wrapper • Future work • Low Power Test Architecture 

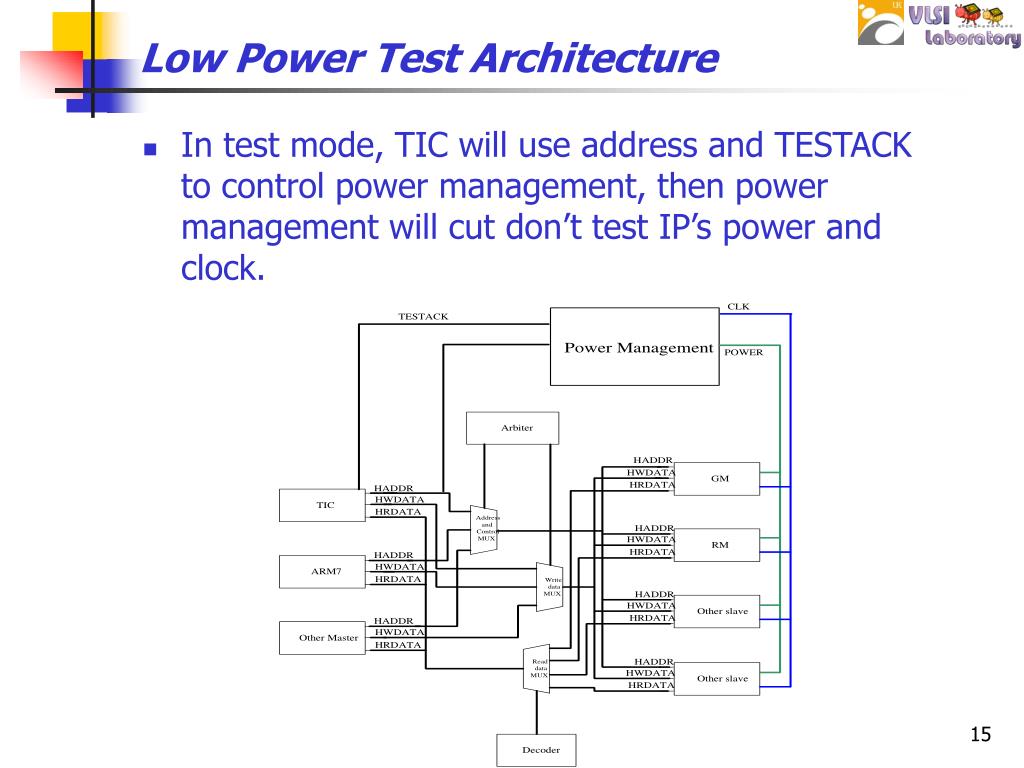

15. Low Power Test Architecture • In test mode, TIC will use address and TESTACK to control power management, then power management will cut don’t test IP’s power and clock.

16. 整合進度 • 之前GM的SCAN CHAIN有誤，導致整合時模擬跑到一半當機，目前重新進行加入SCAN CHAIN中 • ARM7裡的SCAN CHAIN無法與現有GM與RM的SCAN CHAIN整合，因此將會將ARM7從新加入可以與GM與RM整合的SACN CHAIN
