  1. Progress in LAB Progress in CLEX Anastasiya Solodko TMWG – Meeting, 3.05.2010

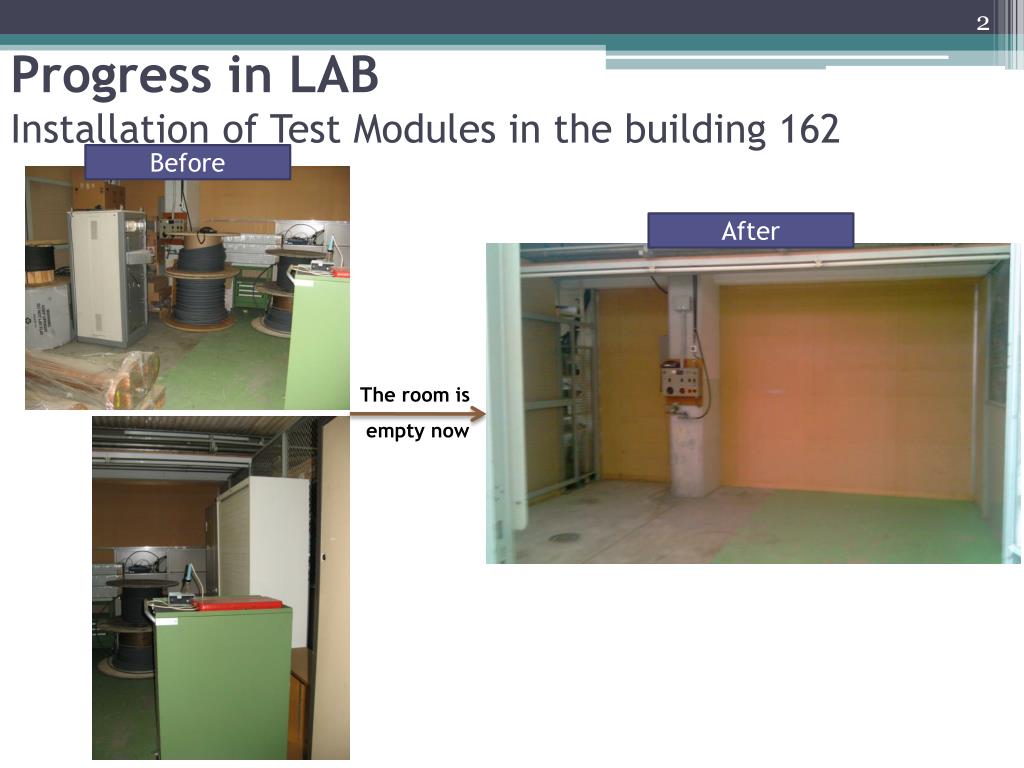

  2. Progress in LABInstallation of Test Modules in the building 162 Before After The room is empty now

  3. Progress in LABInstallation of Test Modules in the building 162

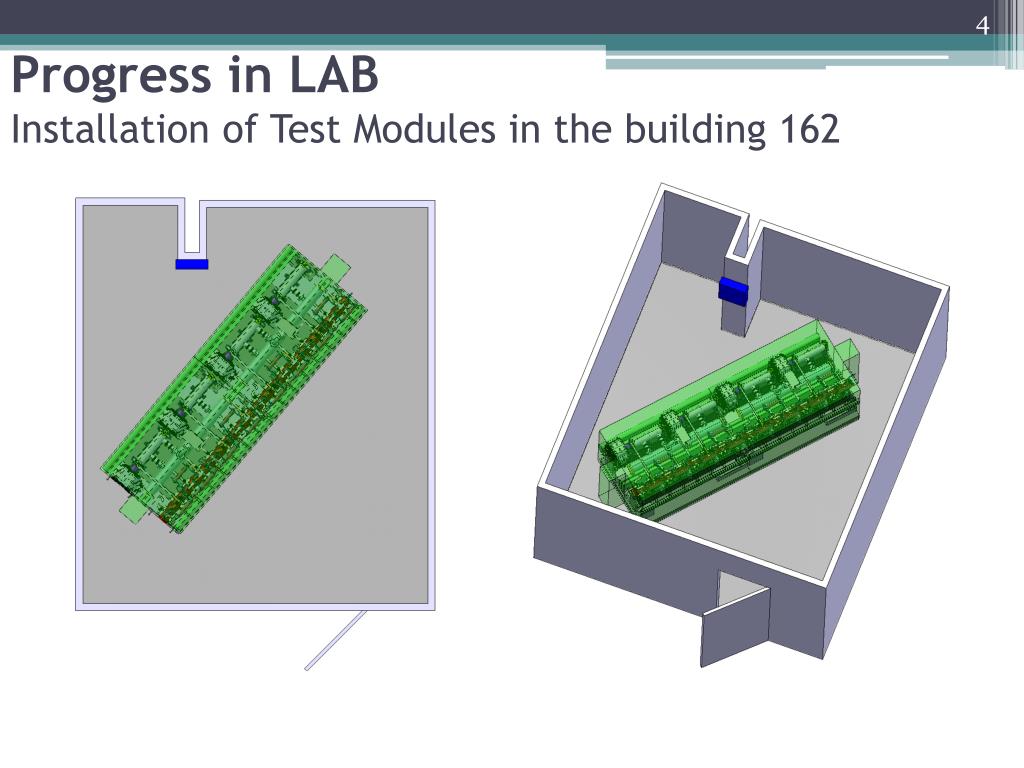

  4. Progress in LABInstallation of Test Modules in the building 162

  5. Progress in CLEXSpace for installation of TM type 0 Two possibilities: • Installation without moving PETS TANK (with present set-up) 2. Installation with moving PETS TANK upstream

  6. 6 Installation with moving PETS TANK upstream How we can obtain a free floor space for installation of Test Module type 0: PROBE BEAM LINE REMOVE REMOVE

  7. 7 Installation with moving PETS TANK upstream How we can obtain a free floor space for installation of Test Module type 0: DRIVE BEAM LINE MOVE MOVE

  8. 8 Installation with moving PETS TANK upstream DRIVE BEAM LINE (opt.1) DRIVE BEAM LINE (opt.2) PROBE BEAM LINE

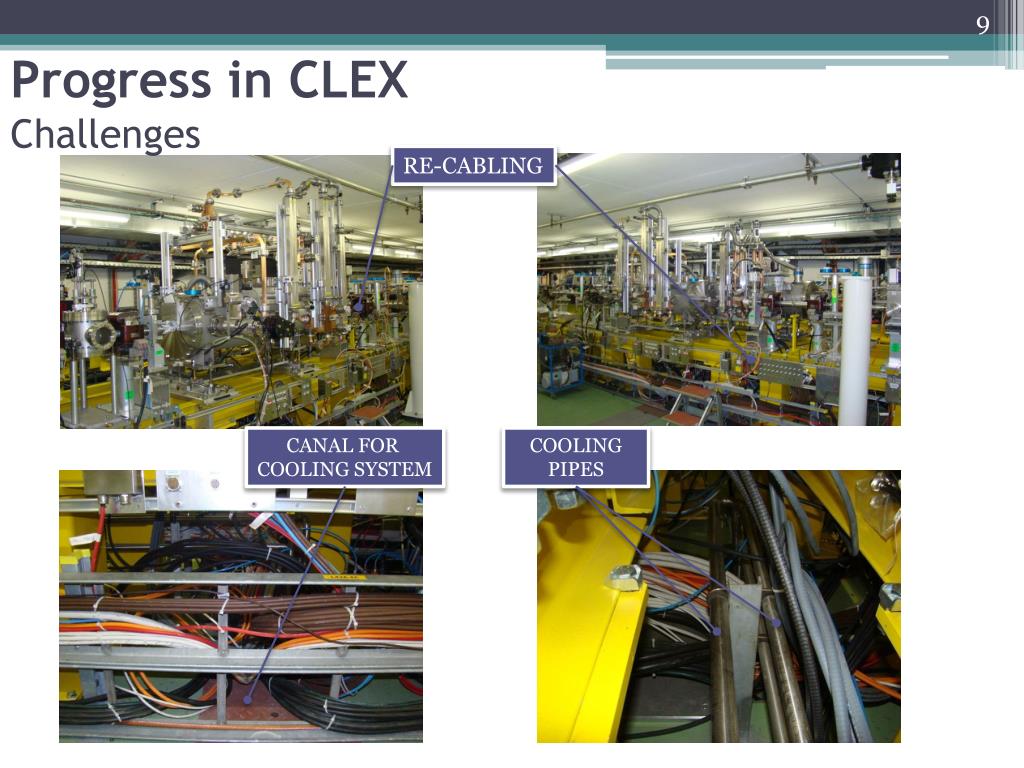

  9. 9 Progress in CLEXChallenges RE-CABLING CANAL FOR COOLING SYSTEM COOLING PIPES

  10. 10 Progress in CLEX Test Module type 0 integration into CLEX
