  1. Septronics, Inc. Mission StatementTo supply quality customer service, product and custom solutions spurred by direct contact with our customers in the onsite wastewater and electrical industries.

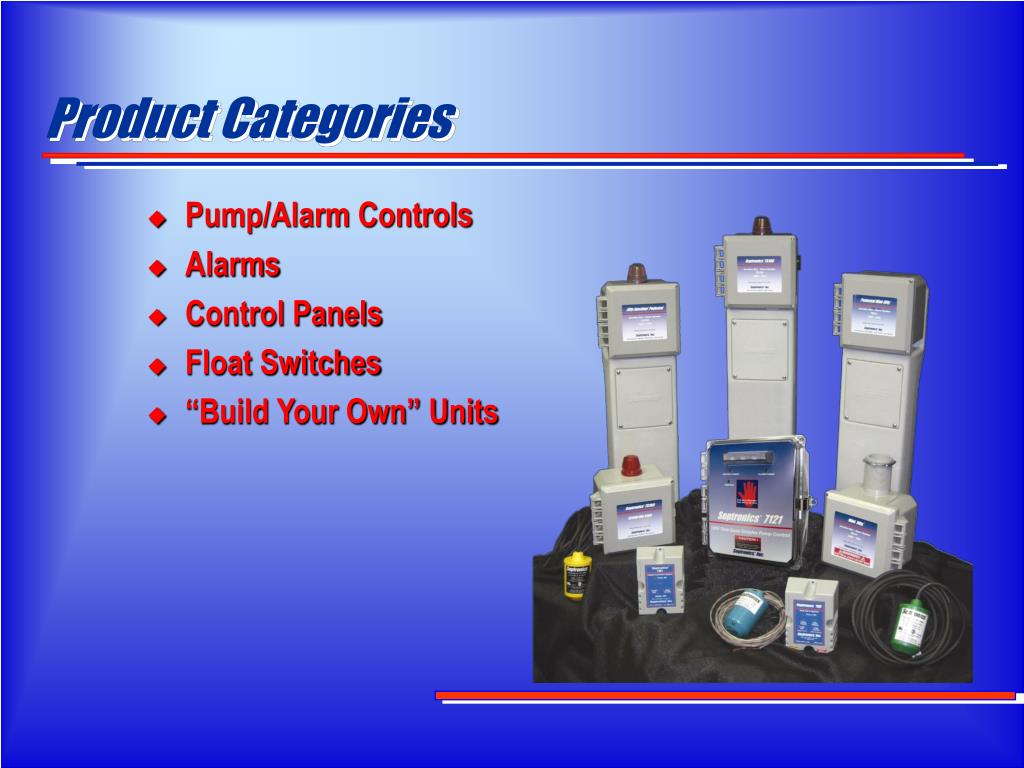

  2. Product Categories • Pump/Alarm Controls • Alarms • Control Panels • Float Switches • “Build Your Own” Units

  3. Pump/Alarm Controls • Exterior Pedestal Pump Controls w/ Exterior Alarms • Exterior Pedestal Pump Controls w/ Interior Alarms • Low Profile Pump Controls w/ Interior Alarms

  4. Septronics Alarms • Exterior Pedestal Tank Alarms • Exterior Wall Mount Tank Alarms • Interior Alarms

  5. Control Panels • Simplex • Time Dose • Duplex

  6. Septronics Float Switches • Control Switches • Pump Switches • Specialty Switches

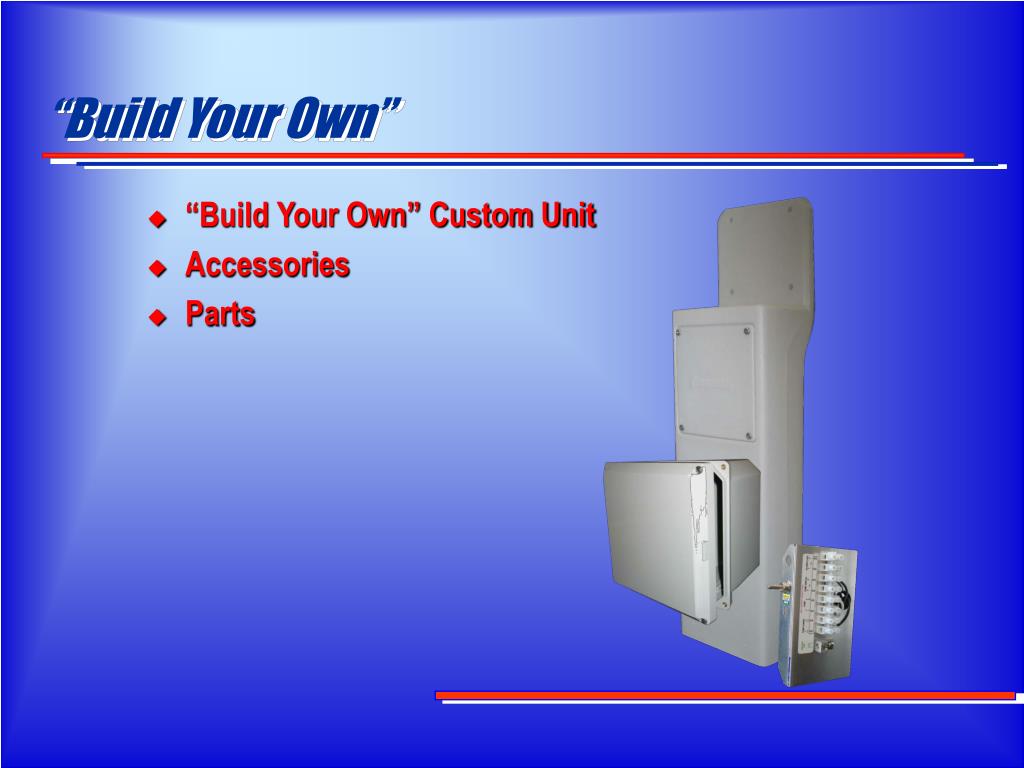

  7. “Build Your Own” • “Build Your Own” Custom Unit • Accessories • Parts

  8. Pump/Alarm Controls • Exterior Pedestal Pump Controls w/ Exterior Alarms • Exterior Pedestal Pump Controls w/ Interior Alarms • Low Profile Pump Controls w/ Interior Alarms

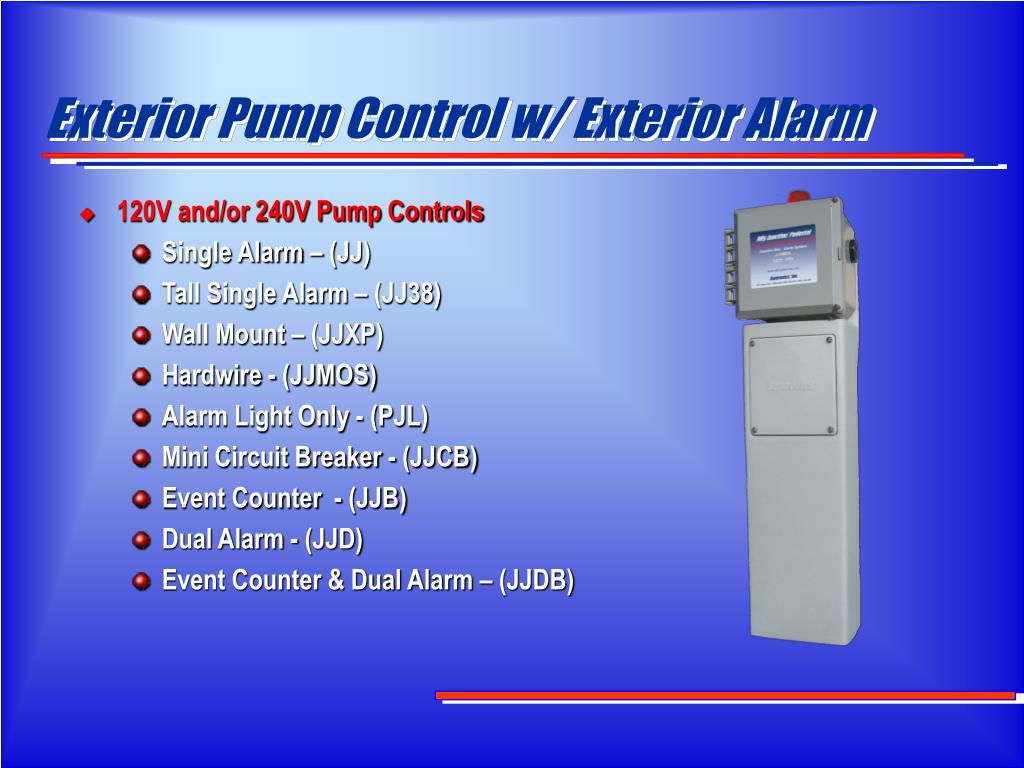

  9. Exterior Pump Control w/ Exterior Alarm • 120V and/or 240V Pump Controls • Single Alarm – (JJ) • Tall Single Alarm – (JJ38) • Wall Mount – (JJXP) • Hardwire - (JJMOS) • Alarm Light Only - (PJL) • Mini Circuit Breaker - (JJCB) • Event Counter - (JJB) • Dual Alarm - (JJD) • Event Counter & Dual Alarm – (JJDB)

  10. 120V & 240V Jiffy Junction • Horn Silence and Alarm Test • Corrosion Protection • Gas Tight Cord Seals • Easy Hook- Up • Removable Terminal Board • Corded Receptacle • Protect Wires & Splices • Watertight Junction Box • UV Resist, Hi Impact Pedestal • Fit Directly on Riser • Pipe Nipple,& Locknuts • Alarm Switch • Patents: Pedestal, Junction Box, Electrical Board, • ETL Listed, 3 Yr. Lim. Warranty

  11. JJ – JJ38 – JJXP - JJMOS • JJ (120V & 240V) • Standard Single Alarm, Pedestal Pump Control • JJ38 (120V & 240V) • Taller Pedestal (35”) • JJXP (120V & 240V) • Wall Mount Brackets • No Pedestal • JJMOS (120V & 240V) • Hardwire Unit • HOA Switch • No Receptacle

  12. JJB– JJCB - PJL • JJB (120V & 240V) • Event Counter • Hardwire Alarm Switch • JJCB (120V) • Mini Circuit Breaker • PJL (120V & 240V) • Alarm Light Only - No Horn

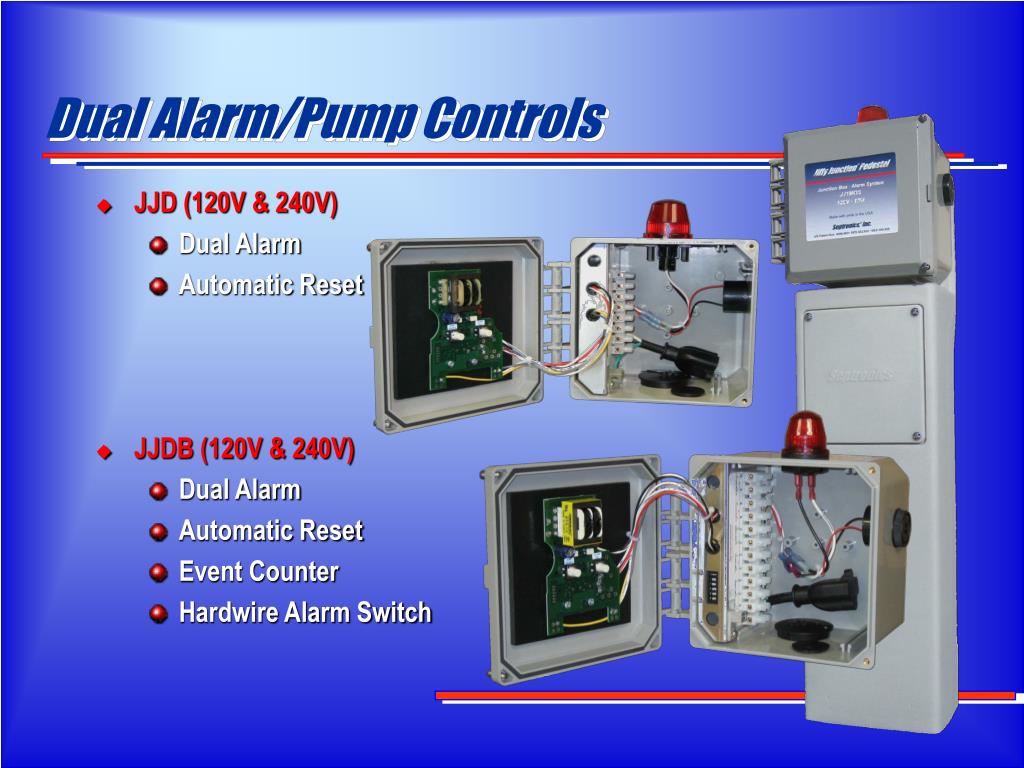

  13. Dual Alarm/Pump Controls • JJD (120V & 240V) • Dual Alarm • Automatic Reset • JJDB (120V & 240V) • Dual Alarm • Automatic Reset • Event Counter • Hardwire Alarm Switch

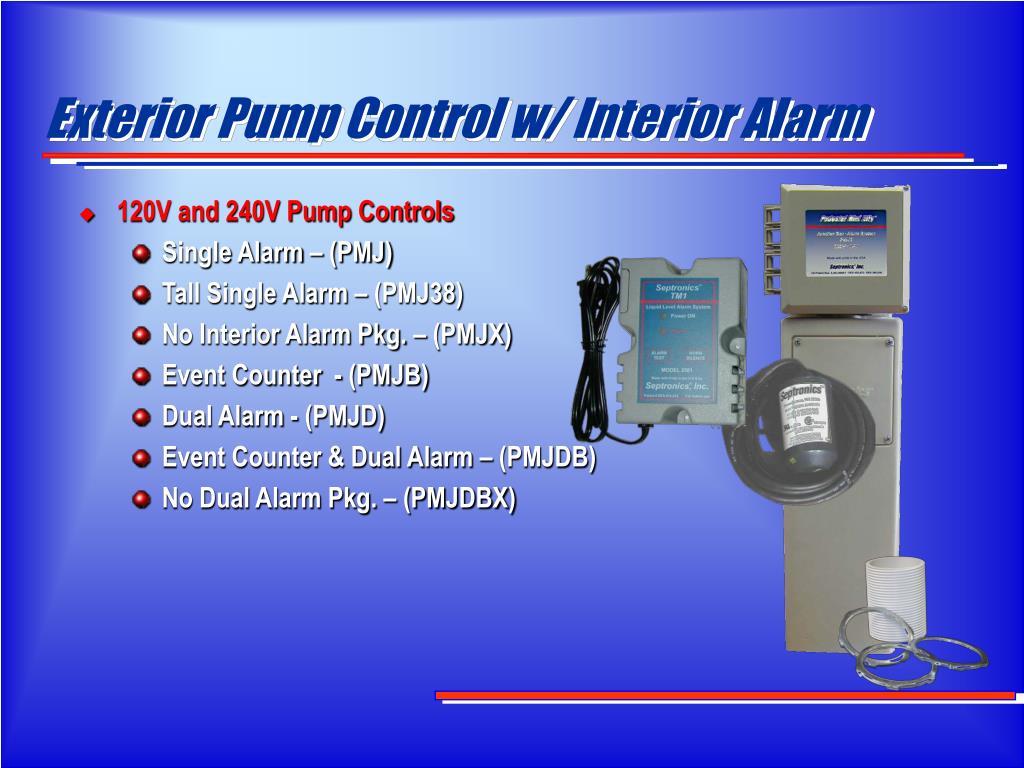

  14. Exterior Pump Control w/ Interior Alarm • 120V and 240V Pump Controls • Single Alarm – (PMJ) • Tall Single Alarm – (PMJ38) • No Interior Alarm Pkg. – (PMJX) • Event Counter - (PMJB) • Dual Alarm - (PMJD) • Event Counter & Dual Alarm – (PMJDB) • No Dual Alarm Pkg. – (PMJDBX)

  15. 120V & 240V Pedestal Mini Jiffy • Interior Alarm • Horn Silence & Alarm Test • Battery Back-Up & Auto Reset • Alarm Switch • Corrosion Protection • Gas Tight Cord Seals • Easy Hook- Up • Removable Terminal Board • Corded Receptacle • Protect Wires & Splices • Watertight Junction Box • UV Resist, Hi Impact Pedestal • Fit Directly on Riser • Pipe Nipple,& Locknuts • Patents: Pedestal, Junction Box, Electrical Board • ETL Listed, 3 Yr. Lim. Warranty

  16. PMJ– PMJ38 – PMJX - PMJB • PMJ (120V & 240V) • Single Alarm, Pedestal Pump Control • PMJ38 (120V & 240V) • Taller Pedestal (35”) • PMJX (120V & 240V) • No Interior Alarm & Alarm Switch • PMJB (120V & 240V) • Event Counter • Hardwire Alarm Switch

  17. Interior Dual Alarm w/Pump Control • PMJD (120V & 240V) • Dual Alarm • Alarm Switch • Pedestal Pump Control • PMJDB (120V & 240V) • Dual Alarm • Alarm Switch • Event Counter • Hardwire Alarm Switch • PMDBX (120V & 240V) • No Interior Alarm or Alarm Switch • Event Counter • Hardwire Alarm Switch

  18. Low Profile Pump Control/Interior Alarm • 120V and 240V Pump Controls • Single Alarm – (MJJ) • No Interior Alarm Pkg. – (MJJX) • Event Counter - (MJJB) • Dual Alarm - (MJJD) • Event Counter & Dual Alarm – (MJJDB)

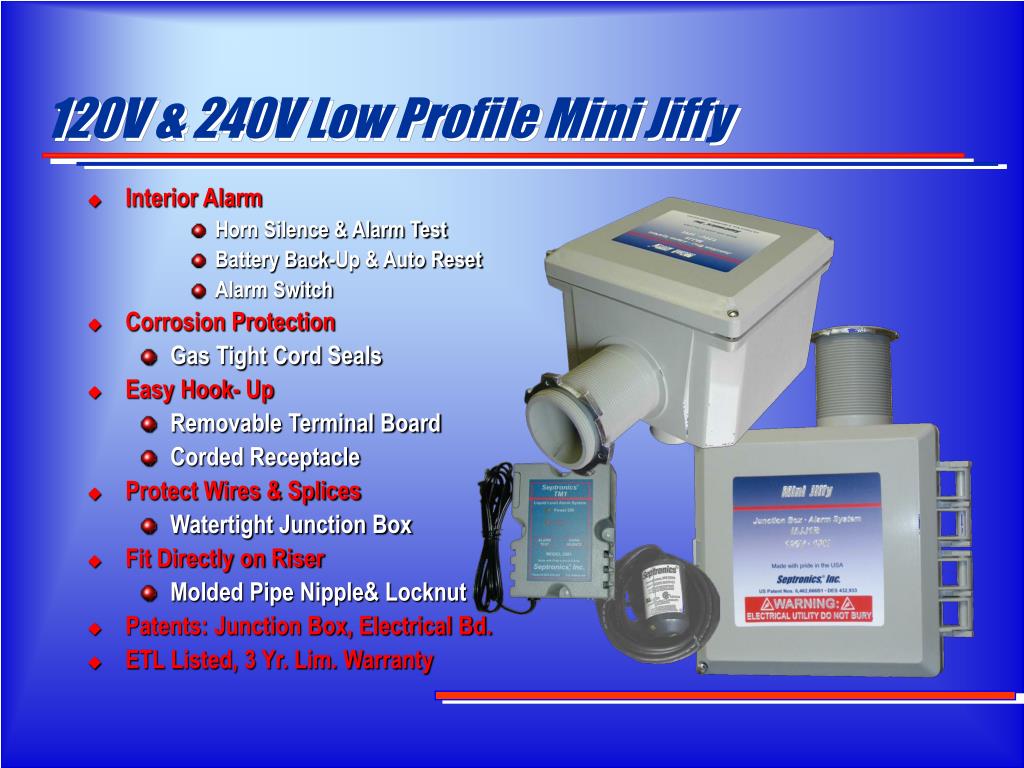

  19. 120V & 240V Low Profile Mini Jiffy • Interior Alarm • Horn Silence & Alarm Test • Battery Back-Up & Auto Reset • Alarm Switch • Corrosion Protection • Gas Tight Cord Seals • Easy Hook- Up • Removable Terminal Board • Corded Receptacle • Protect Wires & Splices • Watertight Junction Box • Fit Directly on Riser • Molded Pipe Nipple& Locknut • Patents: Junction Box, Electrical Bd. • ETL Listed, 3 Yr. Lim. Warranty

  20. MJJ – MJJX – MJJPMD - MJJB • MJJ (120V & 240V) • Single Alarm, Low Profile Pump Control • MJJX (120V & 240V) • No Interior Alarm & Alarm Switch • MJJPMD • Pump Switch Included • MJJB (120V & 240V) • Event Counter • Hardwire Alarm Switch

  21. Interior Dual Alarm w/Pump Control • MJJD (120V & 240V) • Dual Alarm • Alarm Switch • Low Profile Pump Control • MJJDB (120V & 240V) • Dual Alarm • Alarm Switch • Event Counter • Hardwire Alarm Switch

  22. Septronics Alarms • Exterior Pedestal Tank Alarms • Exterior Wall Mount Tank Alarms • Interior Alarms

  23. Exterior Pedestal Tank Alarms • Single Alarm or Dual Alarm • Horn Silence & Alarm Test • Alarm Switch • Corrosion Protection • Gas Tight Cord Seals • Easy Hook- Up • Removable Terminal Board • Protect Wires & Splices • Watertight Junction Box • UV Resist, Hi Impact Pedestal • Fit Directly on Riser • Pipe Nipple,& Locknuts • Patents: Pedestal, Junction Box • ETL Listed, 3 Yr. Lim. Warranty

  24. Exterior Pedestal Tank Alarms • Single Alarm (TS100) • Hi or Lo Liquid Level • Dual Alarm (TS150) • Battery Back-Up (Option) • Auto Reset • Filter Alarm Hook-up • Pump Alarm Hook-up • Discrete Monitoring • Common Light • Color Coded LED’s • Common Horn • Hi or Lo Liquid Level

  25. Exterior Wall Mount Tank Alarms • Single Alarm (TS100XP) • Hi or Lo Liquid Level • Dual Alarm (TS150XP) • Battery Back-Up (Option) • Auto Reset • Filter Alarm Hook-up • Pump Alarm Hook-up • Discrete Monitoring • Common Light • Color Coded LED’s • Common Horn • Hi or Lo Liquid Level

  26. Interior Alarms • Single Alarm (TM1) or Dual Alarm (TM2) • Battery Back-up • Auto Reset • Horn Silence & Alarm Test • Auxiliary Contact (Option) • Power-On Light • Color-Coded Failure LED’s • Easy Mount • Patents: Enclosure • ETL Listed, 3 Yr. Lim. Warranty

  27. Control Panels • Simplex • Time Dose • Duplex

  28. Simplex Control Panels • 120V and 230V (008121 – 008231) • Wall Mount or Pedestal • Nema 4X w/ SS Latch • Cycle Counter, Elapsed Time • Override Counter • Float Status Display • Circuit Breakers • Flashing Alarm • Exterior Silence • 3 Float Operation • Pump Run, Control & Alarm Power LED’s

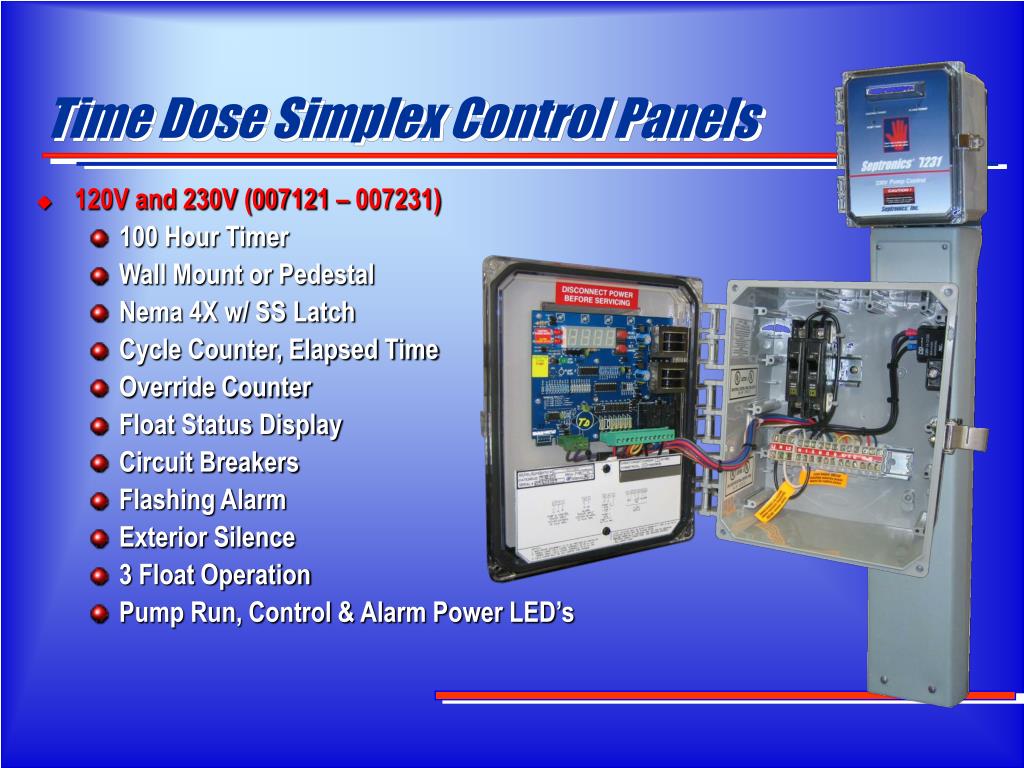

  29. Time Dose Simplex Control Panels • 120V and 230V (007121 – 007231) • 100 Hour Timer • Wall Mount or Pedestal • Nema 4X w/ SS Latch • Cycle Counter, Elapsed Time • Override Counter • Float Status Display • Circuit Breakers • Flashing Alarm • Exterior Silence • 3 Float Operation • Pump Run, Control & Alarm Power LED’s

  30. Duplex Alternating Control Panels • 120V and 230V (006121 – 006231) • Alternator & Lag Pump Delay • Wall Mount or Pedestal • Nema 4X w/ SS Latch • Cycle Counter, Elapsed Time • Override Counter • Float Status Display • Circuit Breakers • Flashing Alarm • Exterior Silence • 3 or 4 Float Operation • Pump Run, Control & Alarm Power LED’s

  31. Septronics Float Switches • Control Switches • Pump Switches • Specialty Switches

  32. Control Switches • SJOW Cord Lengths: 15’, 20’, 30, 45’ • 3 Yr. Limited Warranty, UL & CSA Listed • Temp Rated: 186° • 90° Wide Angle Mechanical • Normally Open or Normally Closed • Cable Weights (4201-4203) • Pipe Strap (4301-4310) • SPDT 3- Wire (4410 - 4413) • 30° Narrow Angle Mechanical • Normally Open (4415) • Normally Closed (4419) • 10° Narrow Angle Mercury • Normally Open (4820) • Normally Closed (4825)

  33. Pump Switches • 120V and 240V • Piggyback Plug • Temp Rated: 186° • SJOW Cord Lengths: 15’, 20’, 30, 45’ • 3 Yr. Limited Warranty, UL & CSA Listed • 90° Mechanical • Normally Open or Normally Closed • Standard Duty (4313-4334) • Heavy Duty (4500 - 4510) • Vertical Mechanical • Normally Open or Normally Closed • 6” Rod [10 amp] (4651 – 4657) • 14” [15 Amp] (4676)

  34. Specialty Switches • Ultra High Temperature Mechanical • Normally Open or Normally Closed • 120V or 240V • 90° Wide Angle • No Plug or Piggyback Plug • Temp Rated: 212° Consistent Usage • Mega Duty Mechanical • 25 Amp @ 120V/240V • 12/2 SJOW Cord Length: 20’ • Temp Rated: 186° • No Plug, Normally Open • Filter Switch • Cord: 10’, Housing: PVC • Temp Rated: 120°F

  35. “Build Your Own” • “Build Your Own” Custom Unit • Accessories • Parts

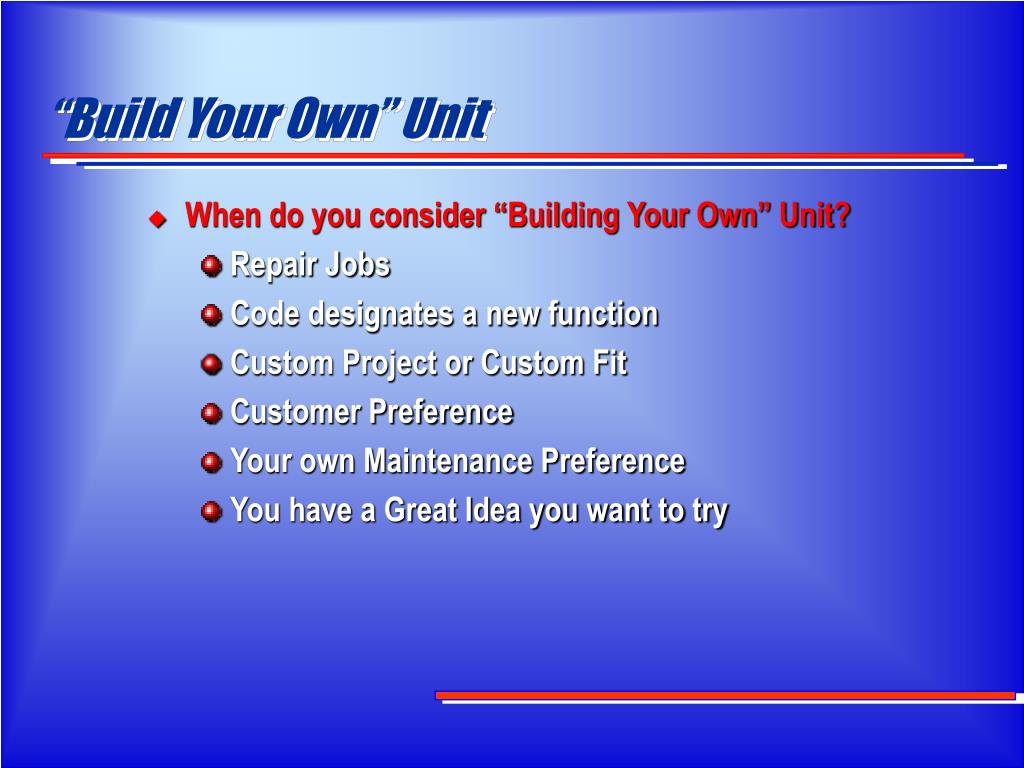

  36. “Build Your Own” Unit • When do you consider “Building Your Own” Unit? • Repair Jobs • Code designates a new function • Custom Project or Custom Fit • Customer Preference • Your own Maintenance Preference • You have a Great Idea you want to try

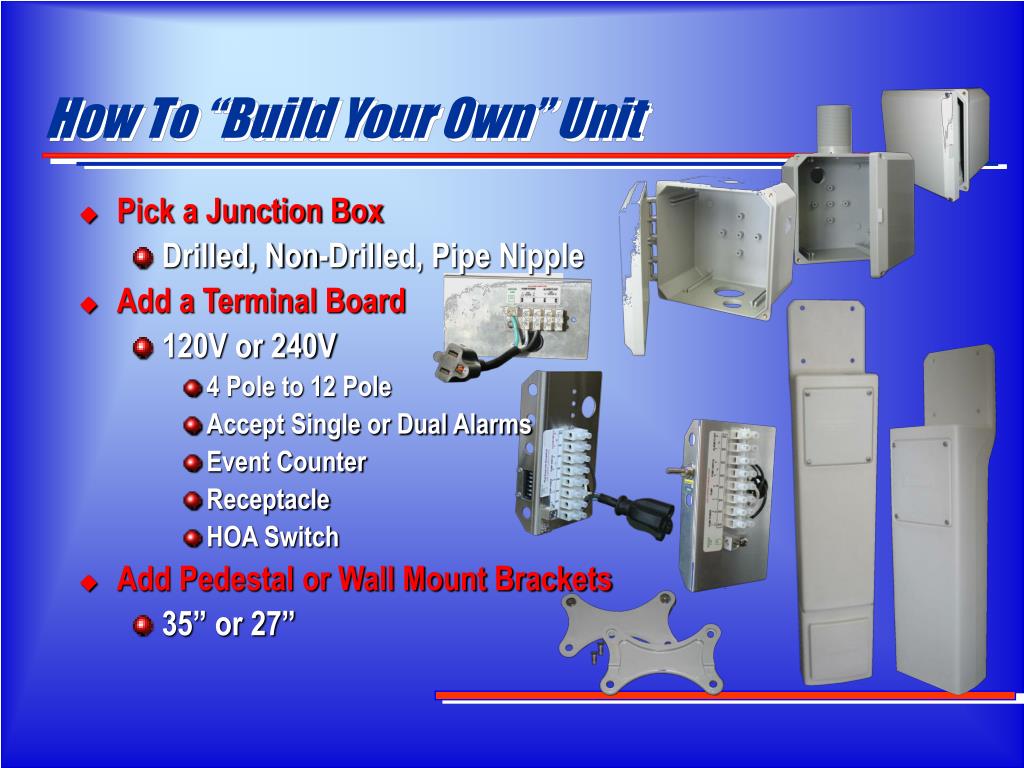

  37. How To “Build Your Own” Unit • Pick a Junction Box • Drilled, Non-Drilled, Pipe Nipple • Add a Terminal Board • 120V or 240V • 4 Pole to 12 Pole • Accept Single or Dual Alarms • Event Counter • Receptacle • HOA Switch • Add Pedestal or Wall Mount Brackets • 35” or 27”

  38. How To “Build Your Own” Unit • Add Accessories • Locking Latch • Event Counter • Din Rail • Dome Light • Cord Seals • Pipe Nipple with Locknuts

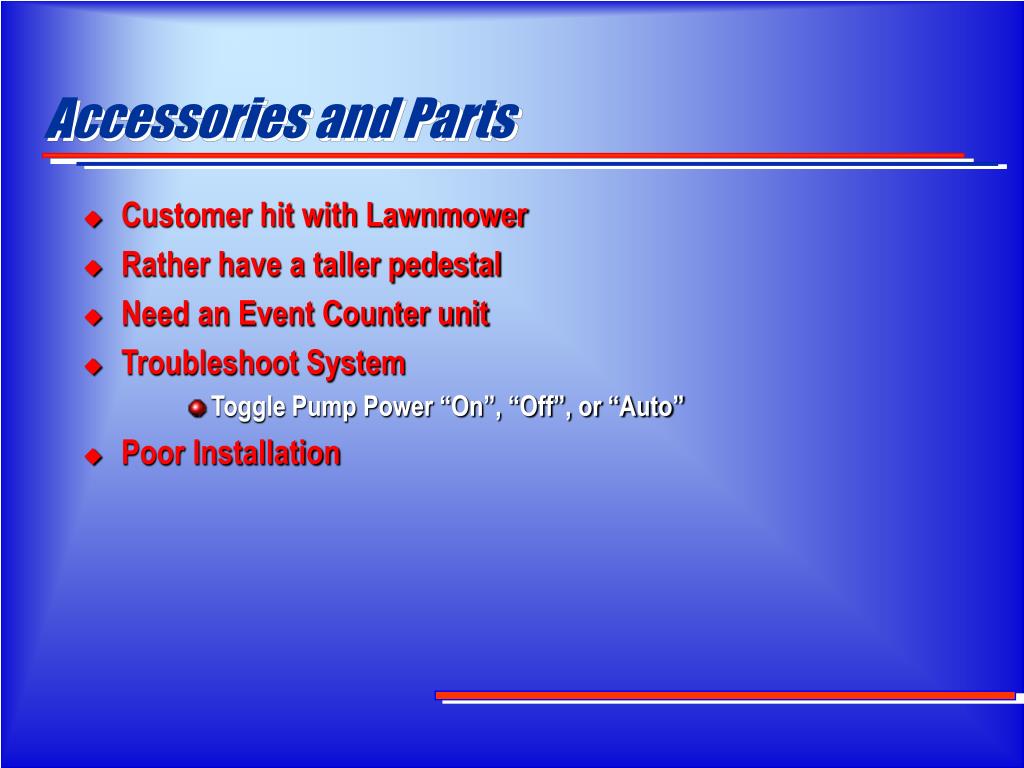

  39. Accessories and Parts • Customer hit with Lawnmower • Rather have a taller pedestal • Need an Event Counter unit • Troubleshoot System • Toggle Pump Power “On”, “Off”, or “Auto” • Poor Installation
