  1. DeNovo: Rethinking the Multicore Memory Hierarchyfor Disciplined Parallelism Byn Choi, Rakesh Komuravelli, Hyojin Sung, Robert Smolinski, NimaHonarmand, Sarita V. Adve, Vikram S. Adve, Nicholas P. Carter, Ching-Tsun Chou University of Illinois at Urbana-Champaign and Intel denovo@cs.illinois.edu

  2. Motivation • Goal: Safe and efficient parallel computing • Easy, safe programming model • Complexity-, power-, performance-scalable hardware • Today: shared-memory • Complex, power- and performance-inefficient hardware • Complex directory coherence, unnecessary traffic, ... • Difficult programming model • Data races, non-determinism, composability/modularity?, testing? • Mismatched interface between HW and SW, a.k.a memory model • Can’t specify “what value can read return” • Data races defy acceptable semantics  Fundamentally broken for hardware & software

  3. Motivation Banish shared memory? • Goal: Safe and efficient parallel computing • Easy, safe programming model • Complexity-, power-, performance-scalable hardware • Today: shared-memory • Complex, power- and performance-inefficient hardware • Complex directory coherence, unnecessary traffic, ... • Difficult programming model • Data races, non-determinism, composability/modularity?, testing? • Mismatched interface between HW and SW, a.k.a memory model • Can’t specify “what value can read return” • Data races defy acceptable semantics  Fundamentally broken for hardware & software

  4. Motivation Banish wild shared memory! Need disciplined shared memory! • Goal: Safe and efficient parallel computing • Easy, safe programming model • Complexity-, power-, performance-scalable hardware • Today: shared-memory • Complex, power- and performance-inefficient hardware • Complex directory coherence, unnecessary traffic, ... • Difficult programming model • Data races, non-determinism, composability/modularity?, testing? • Mismatched interface between HW and SW, a.k.a memory model • Can’t specify “what value can read return” • Data races defy acceptable semantics  Fundamentally broken for hardware & software

  5. What is Shared-Memory? Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

  6. What is Shared-Memory? Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

  7. What is Shared-Memory? Wild Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

  8. What is Shared-Memory? Wild Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

  9. What is Shared-Memory? Disciplined Shared-Memory = Global address space + Implicit, anywhere communication, synchronization Explicit, structured side-effects

  10. Benefits of Explicit Effects • Strong safety properties • Determinism-by-default, explicit & safe non-determinism • Simple semantics, composability, testability - Deterministic Parallel Java (DPJ) explicit effects + structured parallel control Disciplined Shared Memory • Efficiency: complexity, performance, power • Simplify coherence and consistency • Optimize communication and storage layout - DeNovo Simple programming model AND Complexity, power, performance-scalable hardware

  11. DeNovo Hardware Project • Exploit discipline for efficient hardware • Current driver is DPJ (Deterministic Parallel Java) • End goal is language-oblivious interface • Software research strategy • Deterministic codes • Safe non-determinism • OS, legacy, … • Hardware research strategy • On-chip: coherence, consistency, communication, data layout • Off-chip: similar ideas apply, next step

  12. Current Hardware Limitations • Complexity • Subtle races and numerous transient states in the protocol • Hard to extend for optimizations • Storage overhead • Directory overhead for sharer lists • Performance and power inefficiencies • Invalidation and ack messages • False sharing • Indirection through the directory • Fixed cache-line communication granularity

  13. Contributions Current Hardware Limitations • No transient states • Simple to extend for optimizations • No storage overhead for directory information • No invalidation and ack messages • No false sharing Up to 81% reduction in memory stall time • No indirection through the directory • Flexible, not cache-line, communication • Complexity • Subtle races and numerous transient sates in the protocol • Hard to extend for optimizations • Storage overhead • Directory overhead for sharer lists • Performance and power inefficiencies • Invalidation and ack messages • False sharing • Indirection through the directory • Traffic (fixed cache-line communication)

  14. Outline • Motivation • Background: DPJ • Base DeNovo Protocol • DeNovo Optimizations • Evaluation • Complexity • Performance • Conclusion and Future Work

  15. Background: DPJ[OOPSLA 09] • Extension to Java; fully Java-compatible • Structured parallel control: nested fork-join style • foreach, cobegin • A novel region-based type and effect system • Speedups close to hand-written Java programs • Expressive enough for irregular, dynamic parallelism

  16. Regions and Effects • Region: a name for a set of memory locations • Programmer assigns a region to each field and array cell • Regions partition the heap • Effect: a read or write on a region • Programmer summarizes effects of method bodies • Compiler checks that • Region types are consistent, effect summaries are correct • Parallel tasks are non-interfering (no conflicts) • Simple, modular type checking (no inter-procedural ….) • Programs that type-check are guaranteed determinism

  17. Region names have static scope (one per class) Example: A Pair Class • class Pair { • regionBlue, Red; • int Xin Blue; • int Yin Red; • void setX(int x) writes Blue{ • this.X= x; • } • void setY(int y) writes Red{ • this.Y= y; • } • void setXY(int x, int y) writes Blue; writes Red { • cobegin { • setX(x); // writes Blue • setY(y); //writes Red • } • } • } Declaring and using region names

  18. Example: A Pair Class • class Pair { • regionBlue, Red; • int Xin Blue; • intY in Red; • void setX(intx) writes Blue{ • this.X = x; • } • void setY(inty) writes Red{ • this.Y = y; • } • void setXY(int x, int y) writes Blue; writes Red{ • cobegin { • setX(x); // writes Blue • setY(y); //writes Red • } • } • } Writing method effect summaries

  19. Example: A Pair Class Inferred effects • class Pair { • regionBlue, Red; • int Xin Blue; • int Yin Red; • void setX(int x) writes Blue{ • this.X= x; • } • void setY(int y) writes Red{ • this.Y= y; • } • void setXY(int x, int y) writes Blue; writes Red{ • cobegin { • setX(x); //writes Blue • setY(y); // writes Red • } • } • } Expressing parallelism

  20. Outline • Motivation • Background: DPJ • Base DeNovo Protocol • DeNovo Optimizations • Evaluation • Complexity • Performance • Conclusion and Future Work

  21. Memory Consistency Model ST 0xa ST 0xa Parallel Phase LD 0xa • Guaranteed determinism Read returns value of last write in sequential order • Same task in this parallel phase • Or before this parallel phase

  22. Memory Consistency Model ST 0xa Coherence Mechanism Parallel Phase LD 0xa • Guaranteed determinism Read returns value of last write in sequential order • Same task in this parallel phase • Or before this parallel phase

  23. Cache Coherence • Coherence Enforcement • Invalidate stale copies in caches • Track up-to-date copy • Explicit effects • Compiler knows all regions written in this parallel phase • Cache can self-invalidate before next parallel phase • Invalidates data in writeable regions not accessed by itself • Registration • Directory keeps track of one up-to-date copy • Writer updates before next parallel phase

  24. Basic DeNovo Coherence registry Invalid Valid Read Write Write Registered • Assume (for now): Private L1, shared L2; single word line • Data-race freedom at word granularity • No space overhead • Keep valid data or registered core id • L2 data arrays double as directory • No transient states

  25. Example Run L1 of Core 1 L1 of Core 2 class Pair { X in DeNovo-region Blue; Y in DeNovo-region Red; • void setX(int x) writes Blue{ • this.X= x; • } } PairPArray[size]; ... Phase1writes Blue{// DeNovoeffect foreachi in 0, size { PArray[i].setX(…); } self_invalidate(Blue); } Registration Registration Shared L2 Ack Ack Registered Valid Invalid

  26. PracticalDeNovo Coherence Cache “Line Merging” Tag • Basic protocol impractical • High tag storage overhead (a tag per word) • Address/Transfer granularity > Coherence granularity • DeNovo Line-based protocol • Traditional software-oblivious spatial locality • Coherence granularity still at word • no word-level false-sharing

  27. Current Hardware Limitations ✔ ✔ ✔ ✔ • Complexity • Subtle races and numerous transient states in the protocol • Hard to extend for optimizations • Storage overhead • Directory overhead for sharer lists • Performance and power inefficiencies • Invalidation and ack messages • False sharing • Indirection through the directory • Fixed cache-line communication granularity

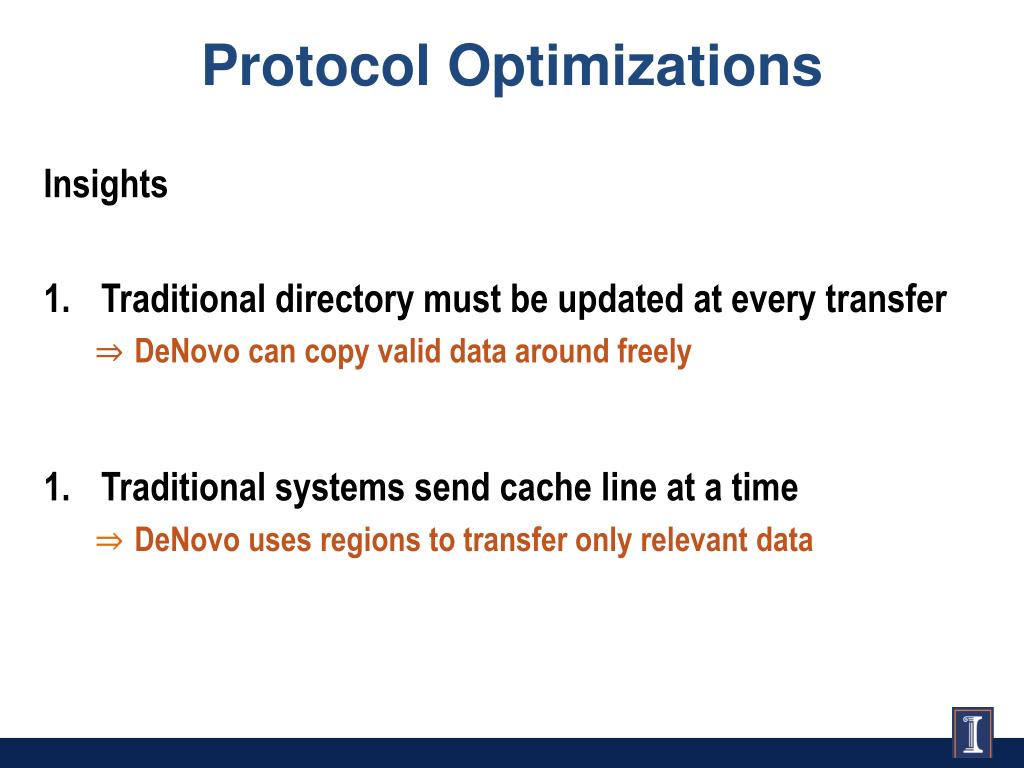

  28. Protocol Optimizations Insights • Traditional directorymust be updated at every transfer • DeNovo can copy valid data around freely • Traditional systems send cache line at a time • DeNovo uses regions to transfer only relevant data

  29. Protocol Optimizations L1 of Core 2 L1 of Core 1 … … … … Shared L2 … LD X3 Registered Valid Invalid … Direct cache-to-cache transfer Flexible communication

  30. Protocol Optimizations • Direct cache-to-cache transfer • Flexible communication L1 of Core 2 L1 of Core 1 … … LD X3 … … Shared L2 … Registered Valid Invalid … Direct cache-to-cache transfer Flexible communication

  31. Current Hardware Limitations • Complexity • Subtle races and numerous transient states in the protocol • Hard to extend for optimizations • Storage overhead • Directory overhead for sharer lists • Performance and power inefficiencies • Invalidation and ack messages • False sharing • Indirection through the directory • Fixed cache-line communication granularity ✔ ✔ ✔ ✔ ✔ ✔ ✔

  32. Outline • Motivation • Background: DPJ • Base DeNovo Protocol • DeNovo Optimizations • Evaluation • Complexity • Performance • Conclusion and Future Work

  33. Protocol Verification • DeNovo vs. MESI word with Murphi model checking • Correctness • Six bugs in MESI protocol • Difficult to find and fix • Three bugs in DeNovo protocol • Simple to fix • Complexity • 15x fewer reachable states for DeNovo • 20x difference in the runtime

  34. Performance Evaluation Methodology • Simulator: Simics + GEMS + Garnet • System Parameters • 64 cores • Simple in-order core model • Workloads • FFT, LU, Barnes-Hut, and radix from SPLASH-2 • bodytrack and fluidanimate from PARSEC 2.1 • kd-Tree (two versions) [HPG 09]

  35. MESI Word (MW) vs. DeNovo Word (DW) FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes • DW’s performance competitive with MW

  36. MESI Line (ML) vs. DeNovo Line (DL) FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes • DL about the same or better memory stall time than ML • DL outperforms ML significantly with apps with false sharing

  37. Optimizations on DeNovo Line FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes • Combined optimizations perform best • Except for LU and bodytrack • Apps with low spatial locality suffer from line-granularity allocation

  38. Network Traffic FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes • DeNovo has less traffic than MESI in most cases • DeNovo incurs more write traffic • due to word-granularity registration • Can be mitigated with “write-combining” optimization

  39. Conclusion and Future Work • DeNovorethinks hardware for disciplined models • Complexity • No transient states: 20X faster to verify than MESI • Extensible: optimizations without new states • Storage overhead • No directory overhead • Performance and power inefficiencies • No invalidations, acks, false sharing, indirection • Flexible, not cache-line, communication • Up to 81% reduction in memory stall time • Future work: region-driven layout, off-chip memory, safe non-determinism, sync, OS, legacy

  40. Thank You!
