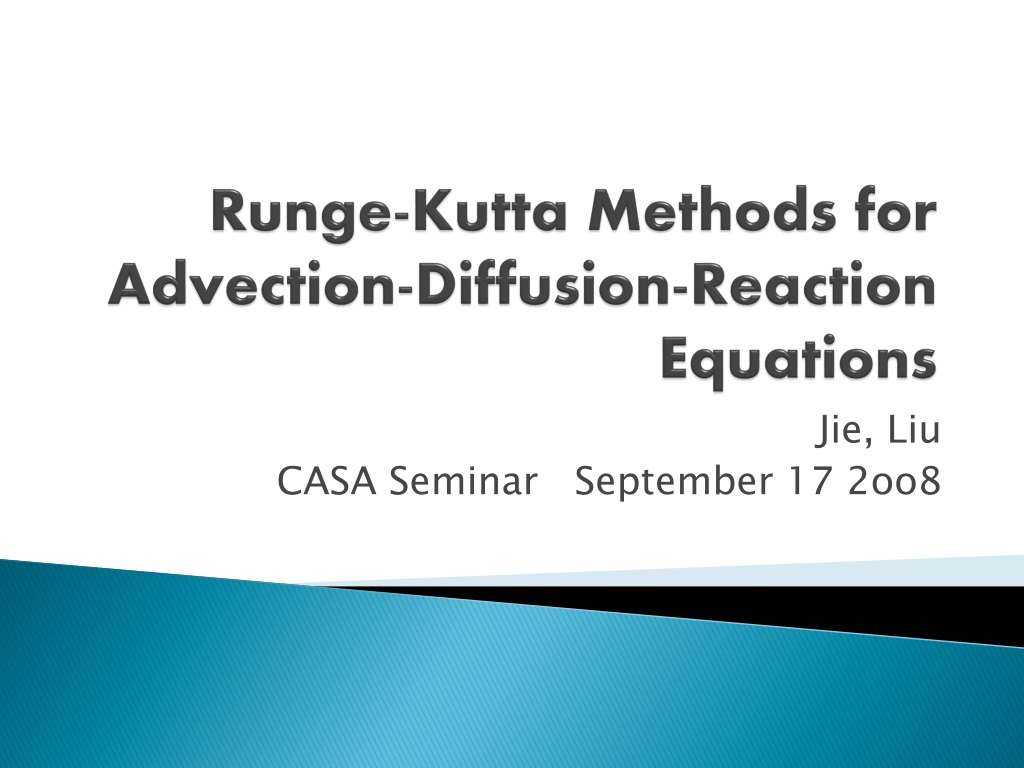

Runge-Kutta Methods for Advection-Diffusion-Reaction Equations. Jie, Liu CASA Seminar September 17 2oo8. Contents. Introduction Runge-Kutta Methods for ODE Systems Stability Analysis for the Advection-Diffusion-Reaction Equation Numerical Results Conclusions.

shavere
Download Presentation

Runge-Kutta Methods for Advection-Diffusion-Reaction Equations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Runge-Kutta Methods for Advection-Diffusion-ReactionEquations Jie, Liu CASA Seminar September 17 2oo8

  2. Contents • Introduction • Runge-Kutta Methods for ODE Systems • Stability Analysis for the Advection-Diffusion-Reaction Equation • Numerical Results • Conclusions Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  3. 1 Introduction of our model problem The parameter a is advection velocity • is diffusion coefficient • is source term coefficient • Reaction term is logistic growth Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  4. Application of A-D-R Equations • Arise in many chemical and biological settings. • In hydrology , equations of this type model the transport and fate of adsorbing contaminants and microbe-nutrient systems in groundwater. • In chemistry , this equation can stimulate the air pollution in environmental cases. Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  5. The Examples • Pollutant Transport-Chemistry Models Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  6. Chemo-Taxis Problems from Mathematical Biology • Like bacterial growth, tumor growth Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  7. 2 Runge-Kutta Methods for ODE Systems • Runge-Kutta Method • Semi-discrete system • Discretization of spatial operator like ∂x and ∂xx • First discretizing the spatial operators on a chosen space grid, then PDE is converted into a system of ODEs. • Then we use time integration method to obtain the fully discrete numerical solution Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  8. How Runge-Kutta Method for ODE System • Time Integral Method: • quadrature rule • General formula of Runge-Kutta Method: Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  9. Explicit and Implicit • Explicit if • The internal approximations can be computed one after another from an explicit relation • Implicit if else • The must be retrieved from a system of linear or nonlinear algebraic relation, usually by a Newton type iteration. Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  10. Butcher-Array • Runge-Kutta Method is often represented as Butcher-array Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  11. Comparison of Implicit and Explicit method classical fourth-order explicit here p=s the 2-stage Gauss method of order four It’s costly but better, because of the superior stability properties. Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  12. explicit implicit Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  13. Example: Logistic Equation • The equation is like • The logistic equation (sometimes called the Verhulst model or logistic growth curve) is a model of population growth. • illustrate the effects of oscillations on problems • Here I use 4th Order Explicit Runge-Kutta Method • Let • And the result is like Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  14. Results • By Richardson extrapolate • With different step size • here ratio=10 • P=4.426 Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  15. The Stability Analysis for A-D-R Equation Let’s introduce the scalar, complex test equation Let and application of rk equation to this test equation, we get , R is the stability function and here the function is to be And z, b, A are the coefficients for butcher array Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  16. The stability function of an explicit method with p=s≤4 is given by the polynomial • The stability regions S for the stability function of degree s=1,2,3,4 Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  17. A-stable and L-stable • A-stable means the stability regions S contains the left half-plane • The exponential function also satisfies • L-stable is A-stable additional • Gauss Method are A-stable and even L-stable Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  18. Step Size Restrictions for Advection-Diffusion • For the advection problem The step size restrictions is called CFL conditions Which formulated in Courant number Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  19. Stability Restrictions for Diffusion Maximal Value f for stability Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  20. Numerical Results • Give value of numerical parameters: • omega = 1 • Nt=100, Nx=50, final time=1 • We compare different initial value and different epsilon • Red line for initial value • Black line for explicit method • Pink circle for implicit method Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  21. Effect of Reaction Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  22. Effect of Diffusion Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  23. Effect of Advection Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  24. Effect of step size selection • For initial value Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  25. Effect of different diffusion parameter Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  26. For another initial value Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  27. Effect of different advection parameters Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  28. Conclusion • Implicit method has much better stability properties. • The choices of numerical parameters are very important , for stability restrictions of advection, diffusion have special conditions. • Sufficiently fine grid can eliminate the troublesome oscillations. But very expensive. Runge-Kutta Method for Advection-Diffusion-Reaction Equation

  29. End • Thank you very much for you time and bye 谢谢!! Runge-Kutta Method for Advection-Diffusion-Reaction Equation
