  1. Hello ASM World:A Painless and Contextual Introduction to x86 Assembly rogueclown DerbyCon 3.0 September 28, 2013

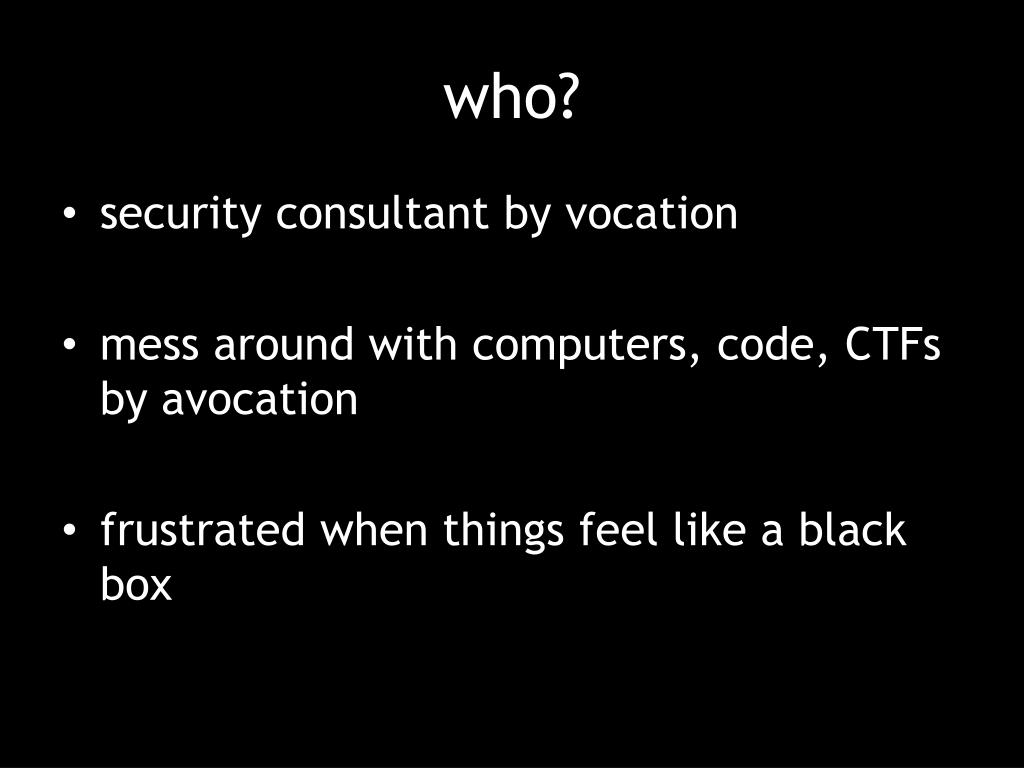

  2. who? • security consultant by vocation • mess around with computers, code, CTFs by avocation • frustrated when things feel like a black box

  3. what is assembly language? • not exactly machine language…but close • instructions: mnemonics for machine operations • normally a one-to-one correlation between ASM instruction and machine instruction • varies by processor • today, we will be discussing 32-bit x86

  4. why learn assembly language? • some infosec disciplines require it • curious about lower-level details of memory or interfacing with an operating system • it’s fun and challenging!

  5. how does assemblylanguage work?

  6. hello memory • what parts of computer memory does assembly language commonly access? • how does assembly language access those parts of computer memory?

  7. where is this memory? • what one “normally” thinks of as memory • RAM • virtual memory • CPU • registers

  8. computer memory layout • heap • global variables, usually allocated at compile-time • envision a bookshelf…that won’t let you push books together when you take one out • stack • local, contextual variables • envision a card game discard pile • you will use this when coding ASM. a lot.

  9. registers • memory located on the CPU • registers are awesome because they are fast. • registers are a pain because they are tiny.

  10. registers • general purpose registers • alphabet soup • eax, ebx, ecx, edx • can address in parts: ax, ah, al • stack and base pointers • esp • ebp • index registers • esi, edi

  11. registers • instruction pointer • eip • records the next instruction for the program to follow • other registers • eflags • segment registers

  12. instructions • mov • moves a value to a register • can either specify a value, or specify a register where a value resides • syntax in assembly • Intel syntax: movebx, 0xfee1dead • AT&T syntax: mov $0xfee1dead, %eax

  13. instructions • interrupt • int 0x80 • int 0x3 • system calls • how a program interacts with the kernel of the OS

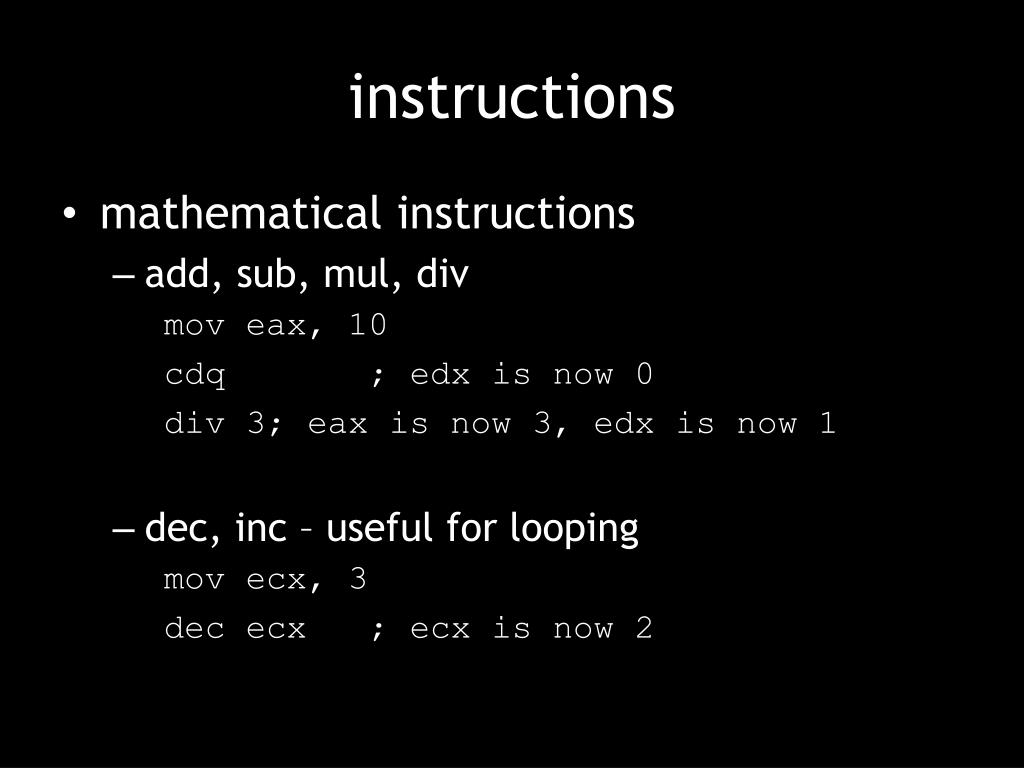

  14. instructions • mathematical instructions • add, sub, mul, div moveax, 10 cdq ; edx is now 0 div 3 ; eax is now 3, edx is now 1 • dec, inc – useful for looping movecx, 3 dececx ; ecx is now 2

  15. jumps • jge, jg, jle, jl • work with a compare (cmp) instruction • jz, jnz, js, jns • check zero flag or sign flag for jump

  16. instructions • stack operations: push and pop moveax, 10 push eax ; 10 on top of stack inceax ; eax is now 11 push eax ; 11 on top of stack pop ebx ; ebx is now 11 pop ecx ; ecx is now 10

  17. instructions • function access instructions • call • places the address of the next instruction on top of the stack • moves execution to identified function • ret • returns to the memory address on top of the stack • designed to work in tandem with the “call” instruction…but we’re hackers, yes? 

  18. sections of ASM code • .data • constant variables initialized at compile time • .bss • declaration of variables that may are set of changed during runtime • .text • executable instructions

  19. $%&#@%^ instructions: how do they work?

  20. putting it together • time to take a bit of C code, and reimplement it in assembly language!

  21. where does shellcodecome in?

  22. what is shellcode? • instructions injected into a running process • lacks some of the luxuries of writing a stand-alone program • no laying out nice memory segments in a .bss or .data section • basically, just one big .text section

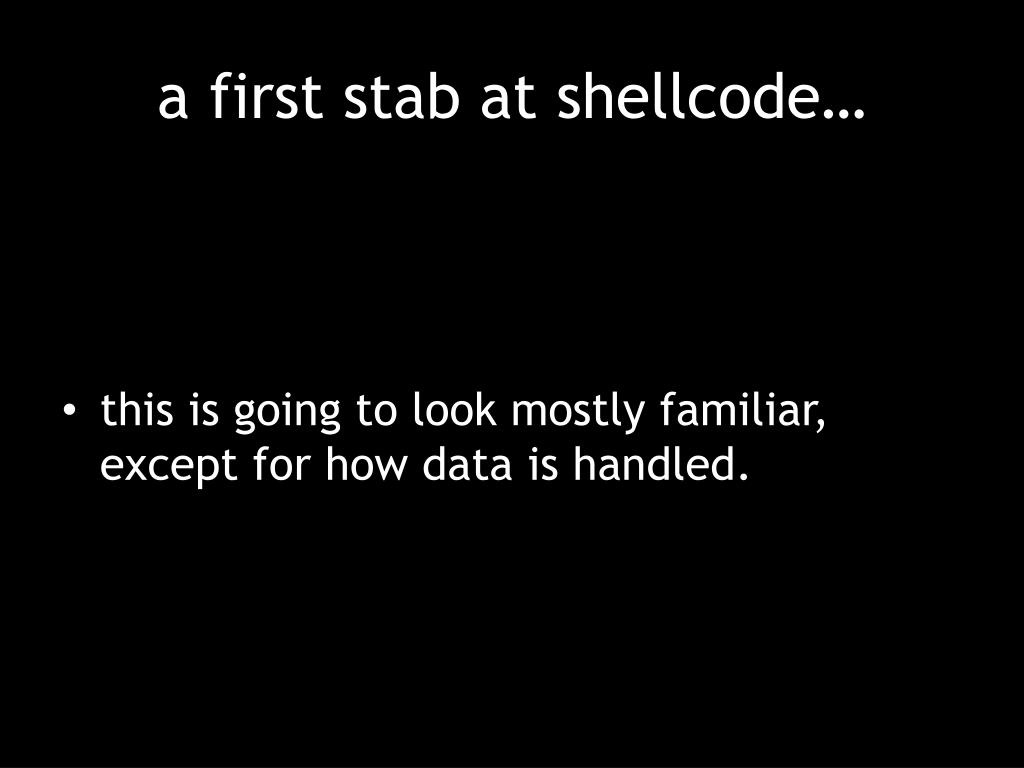

  23. a first stab at shellcode… • this is going to look mostly familiar, except for how data is handled.

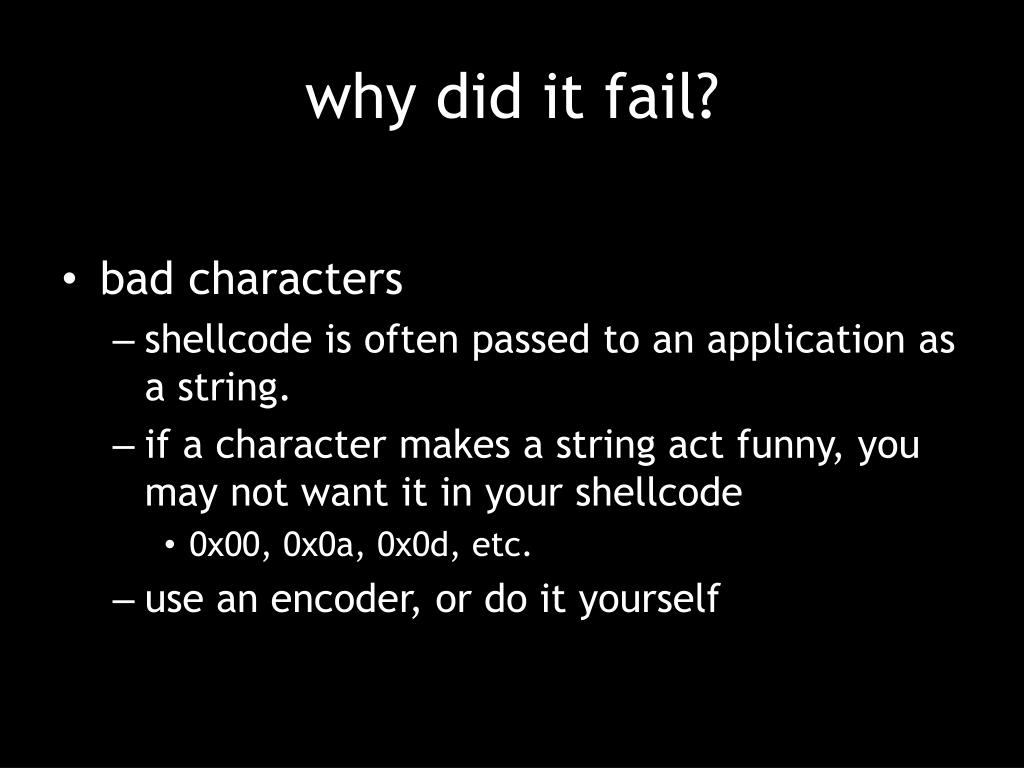

  24. why did it fail? • bad characters • shellcode is often passed to an application as a string. • if a character makes a string act funny, you may not want it in your shellcode • 0x00, 0x0a, 0x0d, etc. • use an encoder, or do it yourself

  25. try that shellcode again…

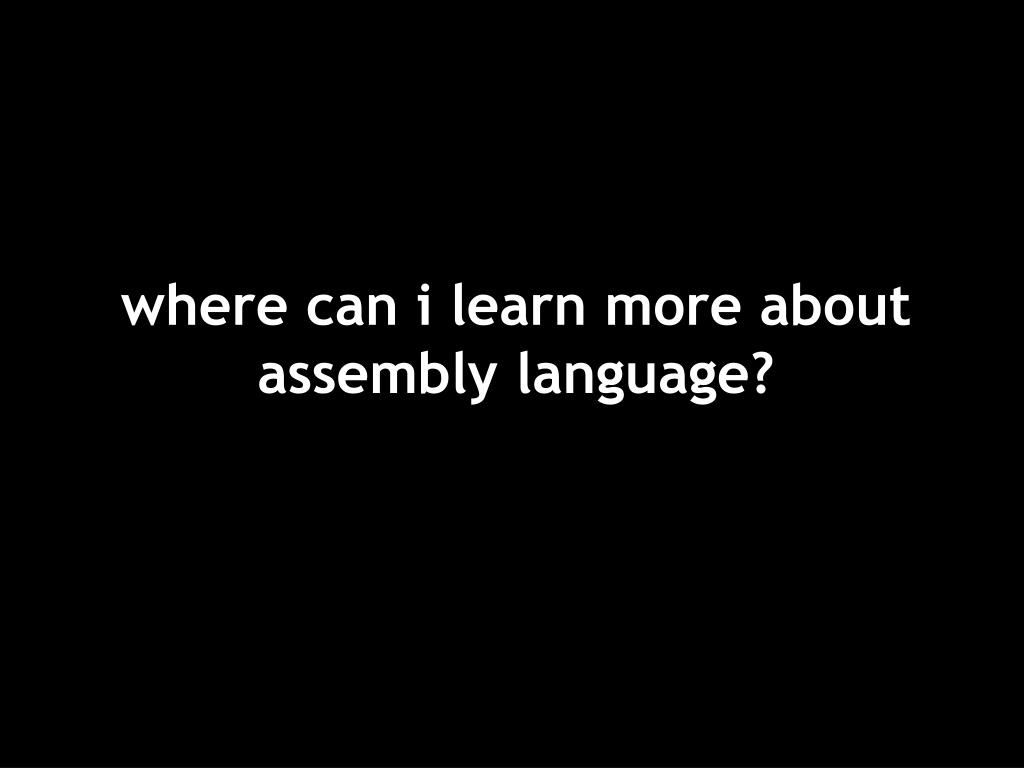

  26. where can i learn more about assembly language?

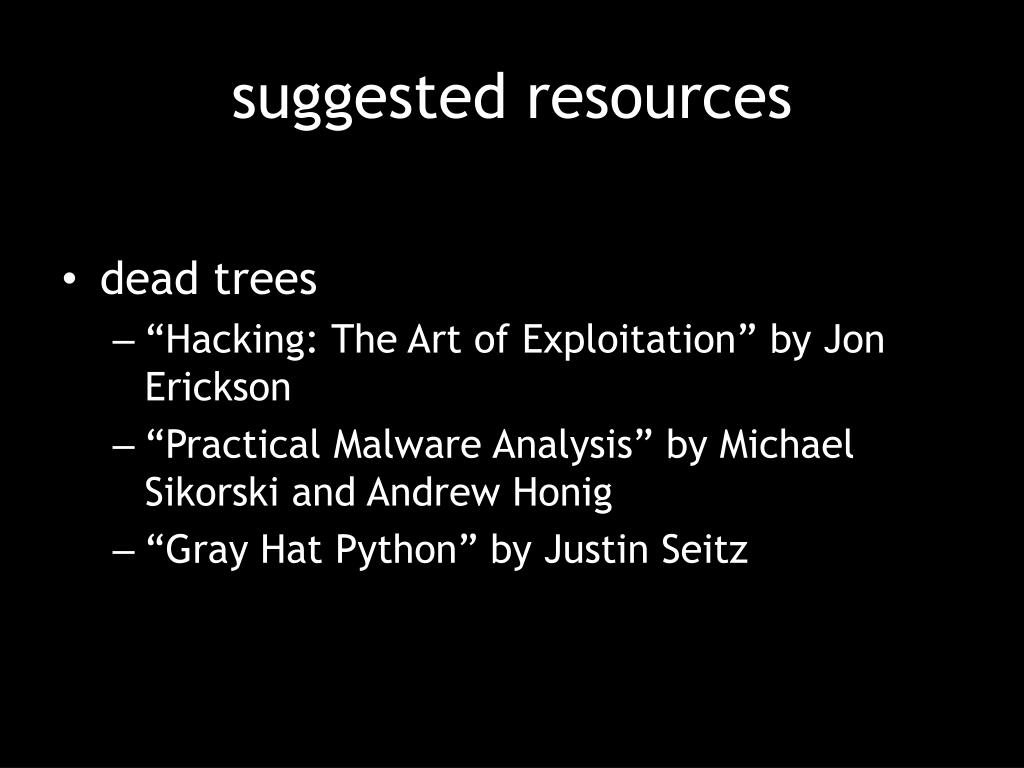

  27. suggested resources • dead trees • “Hacking: The Art of Exploitation” by Jon Erickson • “Practical Malware Analysis” by Michael Sikorski and Andrew Honig • “Gray Hat Python” by Justin Seitz

  28. suggested resources • the series of tubes • http://ref.x86asm.net – quick and dirty opcode reference • http://www.nasm.us/doc – Netwide Assembler documentation • system calls • Linux: • /usr/include/asm/unistd.h • man 2 $syscall • Windows: • http://msdn.microsoft.com/library/windows/desktop/hh920508%28vs.85%29 – Windows API reference

  29. how to find me • Twitter: @rogueclown • email: rogueclown@rogueclown.net • IRC: #derbycon, #misec, or #burbsec on Freenode • or, just wave me down at the con 
