objectives

Chapter 14

Section 1 Weathering Processes

Objectives
  • Identify three agents of mechanical weathering.
  • Compare mechanical and chemical weathering processes.
  • Drill: What is a Sedimentary Rock?
slide3

Weathering Chapter 14, 16

Erosion Chapter 14

Deposition chapters 6, 15

Compaction chpt 6

Lithification /

Cementation chpt 6

weathering processes

Chapter 14

Section 1 Weathering Processes

Weathering Processes

Weathering: the natural process environmental agents, such as wind, rain, and temperature changes, disintegrate and decompose rock material

  • Each type of weathering has different effects on rock.
slide5

There are two main types of weathering processes—mechanical weathering and chemical weathering.

mechanical weathering

Chapter 14

Section 1 Weathering Processes

Mechanical Weathering

mechanical weathering : the process by which rocks break down into smaller pieces by physical means

slide7

Mechanical weathering is strictly a physical process and does not change the composition of the rock.

  • Common agents of mechanical weathering are ice, plants and animals, gravity, running water, and wind.
mechanical weathering continued

Chapter 14

Section 1 Weathering Processes

Mechanical Weathering, continued

Ice Wedging

  • Occurs in cold climates
  • Ice wedging occurs when water seeps into the cracks in rock and freezes.
  • When the water freezes, its volume increases by about 10% and creates pressure on the surrounding rock.
  • This process eventually splits the rock apart.
mechanical weathering continued10

Chapter 14

Section 1 Weathering Processes

Mechanical Weathering, continued

Abrasion: the grinding and wearing away of rock surfaces through the mechanical action of other rock or sand particles

  • Caused by gravity, running water, and wind.
mechanical weathering continued12

Chapter 14

Section 1 Weathering Processes

Mechanical Weathering, continued

Organic Activity

  • Plants and animals are important agents of mechanical weathering.
  • As plants grow, the roots grow and expand to create pressure that wedge rock apart.
  • Earthworms and other animals that move soil expose new rock surfaces to both mechanical and chemical weathering.
chemical weathering

Chapter 14

Section 1 Weathering Processes

Chemical Weathering

chemical weathering: the process by which rocks break down as a result of chemical reactions

  • Chemical reactions commonly occur between rock, water, carbon dioxide, oxygen, and acids/bases.
  • Chemical weathering changes
    • composition
    • physical appearance of the rock.
chemical weathering continued

Chapter 14

Section 1 Weathering Processes

Chemical Weathering, continued

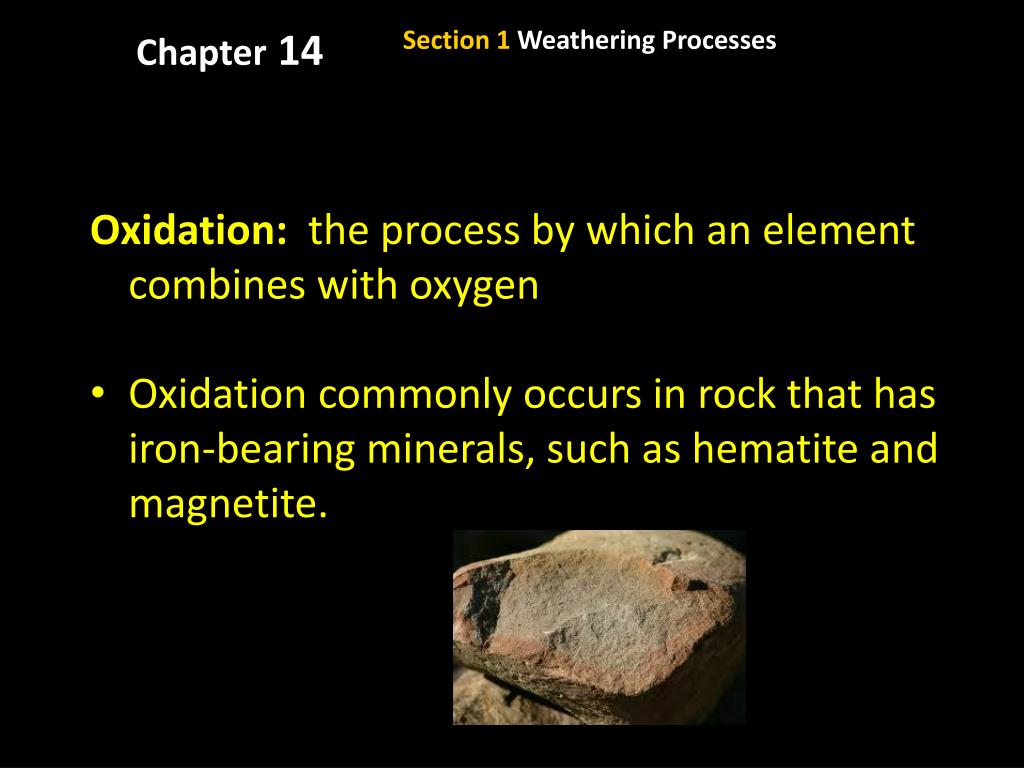

Oxidation: the process by which an element combines with oxygen

  • Oxidation commonly occurs in rock that has iron-bearing minerals, such as hematite and magnetite.
chemical weathering continued16

Chapter 14

Section 1 Weathering Processes

Chemical Weathering, continued

Oxidation, continued

  • The red color of much of the soil in the southeastern United States is due to mainly the presence of iron oxide produced by oxidation.
chemical weathering continued17

Chapter 14

Section 1 Weathering Processes

Chemical Weathering, continued

Hydrolysis

hydrolysis a chemical reaction between water and another substance to form two or more new substances

  • Minerals that are affected by hydrolysis often dissolve in water.
  • Water can then carry the dissolved minerals to lower layers of rock in a process called leaching.
chemical weathering continued18

Chapter 14

Section 1 Weathering Processes

Chemical Weathering, continued

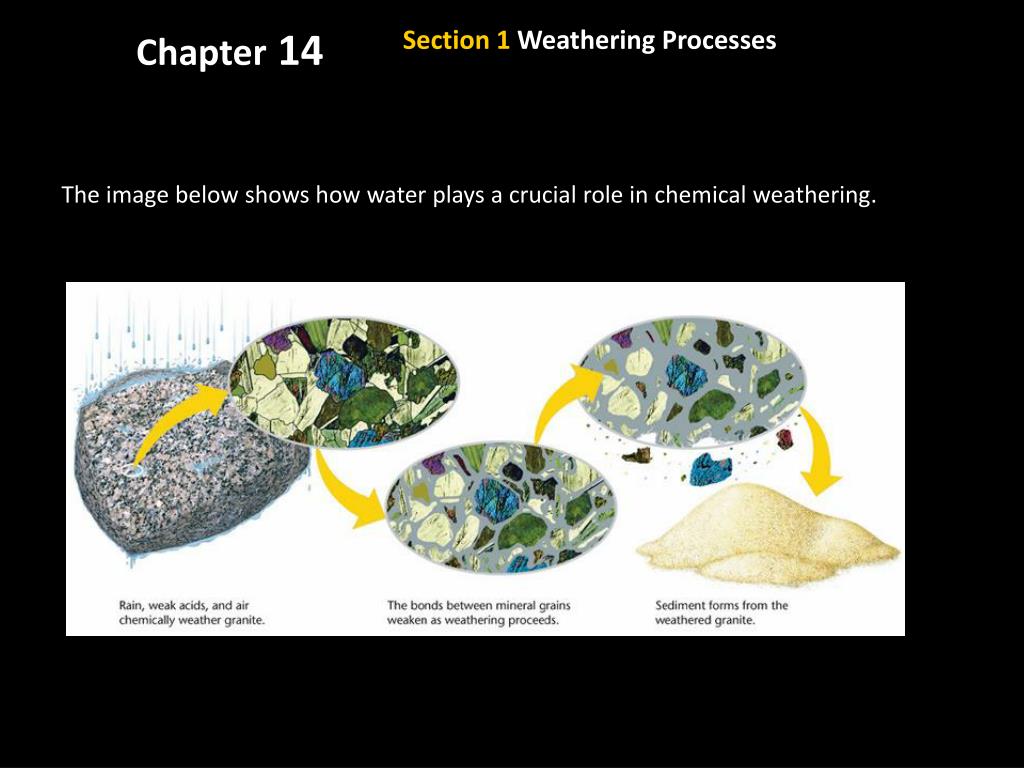

The image below shows how water plays a crucial role in chemical weathering.

chemical weathering continued19

Chapter 14

Section 1 Weathering Processes

Chemical Weathering, continued

Carbonation

carbonation the conversion of a compound into a carbonate

  • When carbon dioxide, CO2, from the air dissolves in water, H2O, a weak acid called carbonic acid, H2CO3, forms.

H2O + CO2  H2CO3

objectives20

Chapter 14

Section 2 Rates of Weathering

Objectives
  • Explain how rock composition affects the rate of weathering.
  • Discuss how surface area affects the rate at which rock weathers.
  • Describe the effects of climate and topography on the rate of weathering.
rates of weathering

Chapter 14

Section 2 Rates of Weathering

Rates of Weathering
  • The processes of mechanical and chemical weathering generally work very slowly.
  • The rate at which rock weathers depends on a number of factors, including rock composition, climate, and topography.
differential weathering

Chapter 14

Section 2 Rates of Weathering

Differential Weathering

differential weathering: the process by which softer, less weather resistant rocks wear away at a faster rate than harder, more weather resistant rocks do

slide23

When igneous rocks that are rich in the mineral quartz are exposed on Earth’s surface, they remain basically unchanged, even after all of the surrounding sedimentary rock has weathered away.

amount of exposure

Chapter 14

Section 2 Rates of Weathering

Amount of Exposure

Surface Area

  • Both chemical and mechanical weathering may split rock into a number of smaller rocks.
  • The part of a rock that is exposed to air, water, and other agents of weathering is called the rock’s surface area.
  • As a rock breaks into smaller pieces, the surface area that is exposed increases.
amount of exposure continued

Chapter 14

Section 2 Rates of Weathering

Amount of Exposure, continued

The image below shows the ratio of total surface area to volume.

amount of exposure continued26

Chapter 14

Section 2 Rates of Weathering

Amount of Exposure, continued

Fractures and Joints

  • Fractures and joints increase the surface area of a rock and allow weathering to take place more rapidly.
  • They also form natural channels through which water flows.
climate

Chapter 14

Section 2 Rates of Weathering

Climate
  • In general, climates that have alternating periods of hot and cold weather allow the fastest rates of weathering.
  • In warm, humid climates, chemical weathering is also fairly rapid. The constant moisture is highly destructive to exposed surfaces.
slide28

The slowest rates of weathering occur in hot, dry climates. The lack of water limits many weathering processes, such as carbonation and ice wedging.

  • Weathering is also slow in very cold climates
topography

Chapter 14

Section 2 Rates of Weathering

Topography
  • Because temperatures are generally cold at high elevations, ice wedging is more common at high elevations than at low elevations.
  • On steep slopes, such as mountainsides, weathered rock fragments are pulled downhill by gravity and washed out by heavy rains.
  • As a result of the removal of these surface rocks, new surfaces of the mountain are continually exposed to weathering.
plant and animal activities

Chapter 14

Section 2 Rates of Weathering

Plant and Animal Activities
  • Rock that is disturbed or broken by plants or animals also weathers more rapidly than undisturbed rock does.
  • The roots of plants and trees often break apart rock.
objectives32

Section 2 Groundwater and Chemical Weathering

Chapter 16

Objectives
  • Identify two features of karst topography.
  • Describe how water chemically weathers rock.
  • Explain how caverns and sinkholes form.
karst topography

Section 2 Groundwater and Chemical Weathering

Chapter 16

Karst Topography

karst topography a type of irregular topography that is characterized by caverns, sinkholes, and underground drainage and that forms on limestone or other soluble rock

slide34

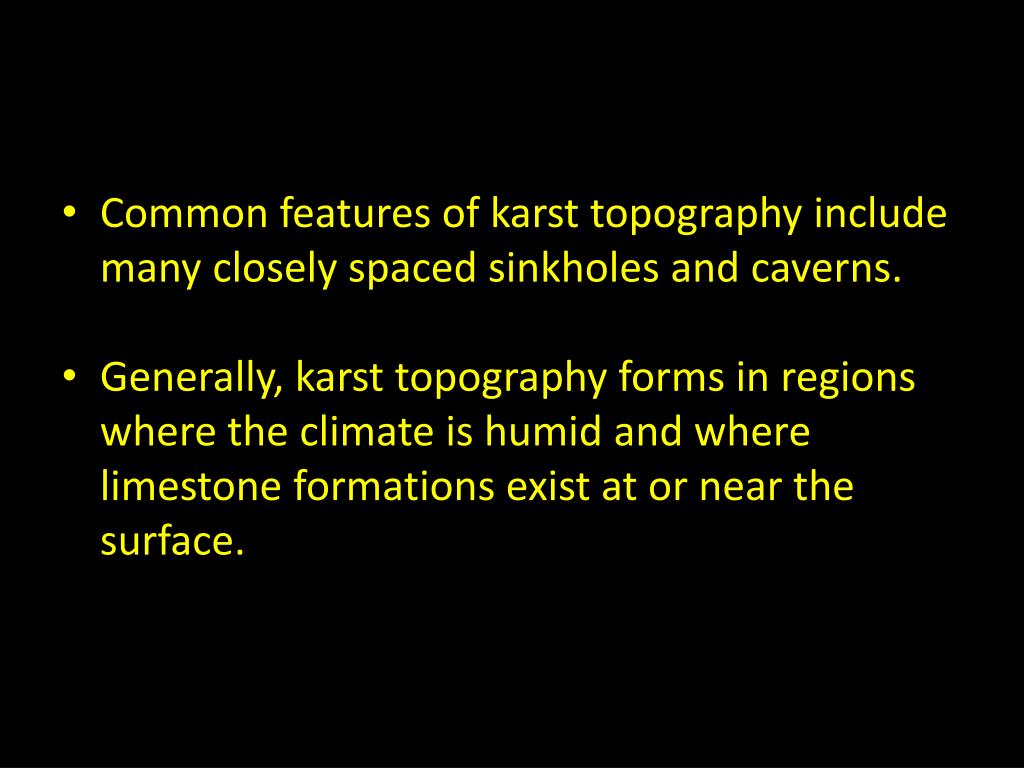

Common features of karst topography include many closely spaced sinkholes and caverns.
  • Generally, karst topography forms in regions where the climate is humid and where limestone formations exist at or near the surface.
slide35
Generally, karst topography forms in regions where the climate is humid and where limestone formations exist at or near the surface.
groundwater and chemical weathering

Section 2 Groundwater and Chemical Weathering

Chapter 16

Groundwater and Chemical Weathering
  • As groundwater passes through permeable rock, minerals in the rock dissolve. The warmer the rock is and the longer it is in contact with water, the greater the amount of dissolved minerals in the water.

Quick facts: (do not have to write down)

  • Water that contains relatively high concentrations of dissolved minerals, especially minerals rich in calcium, magnesium, and iron, is called hard water.
  • Water that contains relatively low concentrations of dissolved minerals is called soft water.
results of weathering by groundwater

Section 2 Groundwater and Chemical Weathering

Chapter 16

Results of Weathering by Groundwater

Caverns

cavern a natural cavity that forms in rocks as a result of the dissolution of minerals; also a large cave that commonly contains many smaller, connecting chambers

  • Rocks that are rich in the mineral calcite, such as limestone, are especially vulnerable to chemical weathering.
results of weathering by groundwater continued

Section 2 Groundwater and Chemical Weathering

Chapter 16

Results of Weathering by Groundwater, continued

Caverns

  • Although limestone is not porous, vertical and horizontal cracks commonly occur through limestone layers.
  • As groundwater flows through these cracks, carbonic acid slowly dissolves the limestone and enlarges the cracks.
  • Eventually, a cavern may form.
results of weathering by groundwater continued40

Section 2 Groundwater and Chemical Weathering

Chapter 16

Results of Weathering by Groundwater, continued

Sinkholes

sinkhole a circular depression that forms when rock dissolves, when overlying sediment fills an existing cavity, or when the roof of an underground cavern or mine collapses

results of weathering by groundwater continued41

Section 2 Groundwater and Chemical Weathering

Chapter 16

Results of Weathering by Groundwater, continued

Sinkholes, continued

  • Collapse sinkholes may form when sediment below the surface is removed and an empty space forms within the sediment layer.
  • Collapse sinkholes may develop abruptly and cause extensive damage.

Sink hole in Guatemala was man made from leaky water and sewer pipes!!

objective swbat identify agents of erosion and the features that they produce
Objective:

-SWBAT identify agents of erosion and the features that they produce.

Erosion: Moving SedimentDeposition: Dumping sediment

agents of erosion include

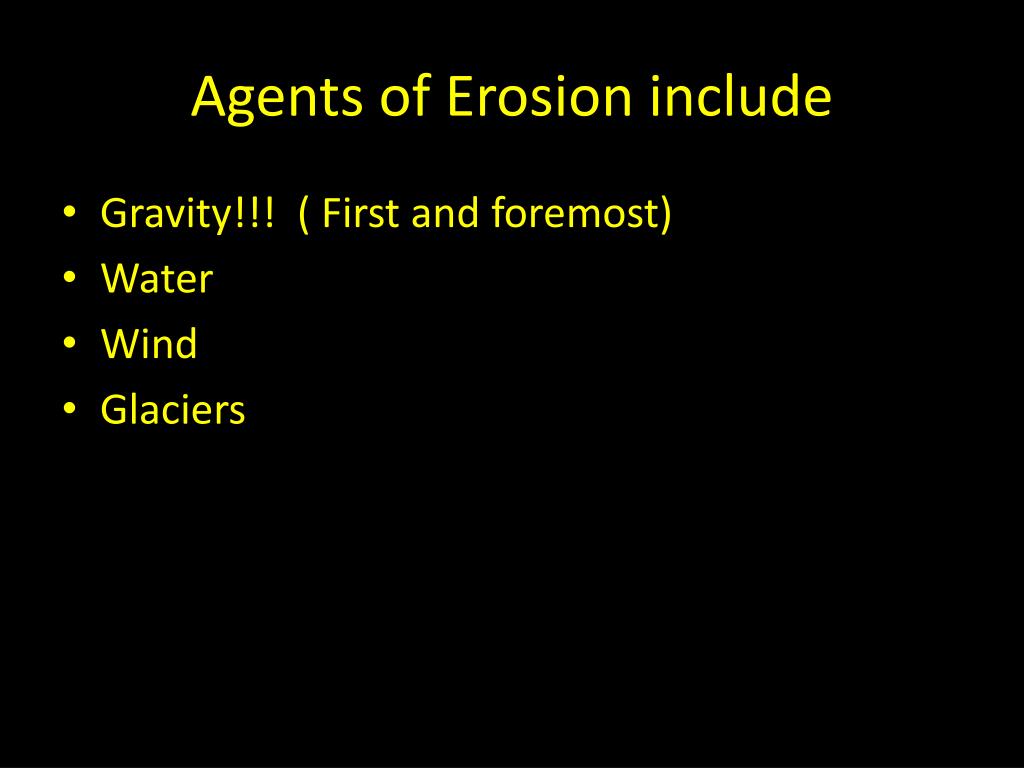

Agents of Erosion include

Gravity!!! ( First and foremost)

Water

Wind

Glaciers

forms of erosion
Forms of erosion:
  • Wave Action
  • Running Water
  • Mass Waisting
    • Landslides
    • Slump
    • Creep
    • Rock Fall
    • Glaciers
cementation lithification
Cementation / lithification
  • Dissolved minerals seep between the spaces in between sediments and “glue” the sediments together
slide56

Weathering Chapter 14, 16

Erosion Chapter 14

Deposition chapters 6, 15

Compaction chpt 6

Lithification /

Cementation chpt 6

slide58
You goal: Make a sequence chain showing how sedimentary rocks are produced.

Be sure to label any drawing and include a breif description of the process that is being portrayed

Include at least two examples of each process either in your drawing or in the description.
