  1. Trains

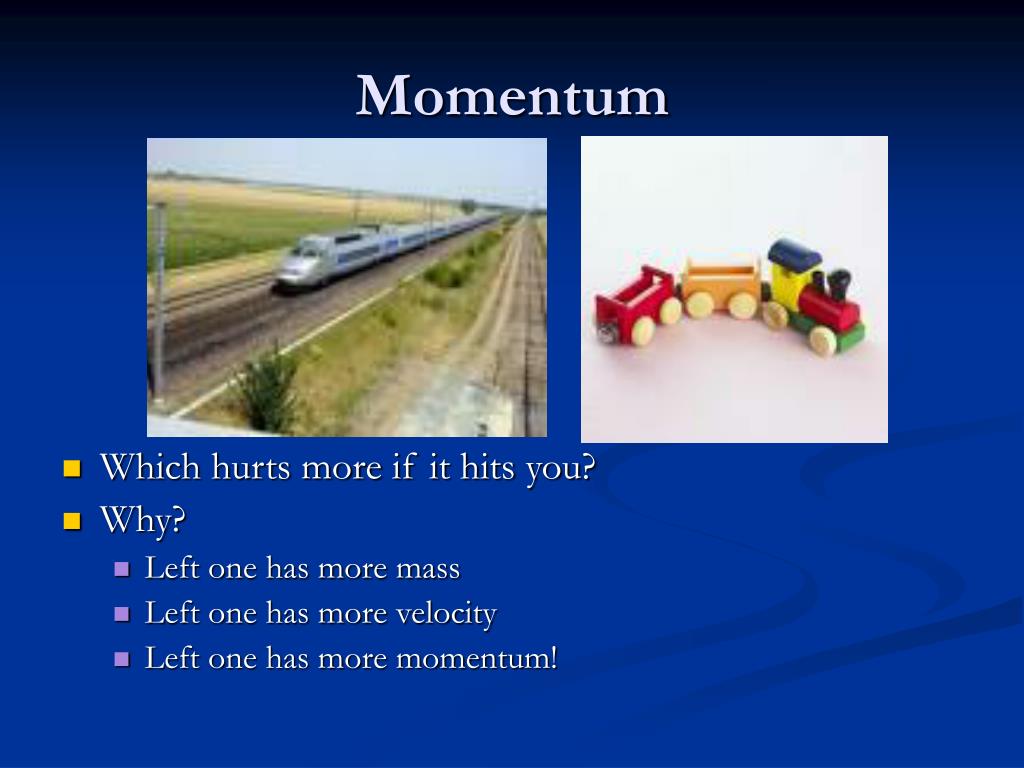

  2. Momentum • Which hurts more if it hits you? • Why? • Left one has more mass • Left one has more velocity • Left one has more momentum!

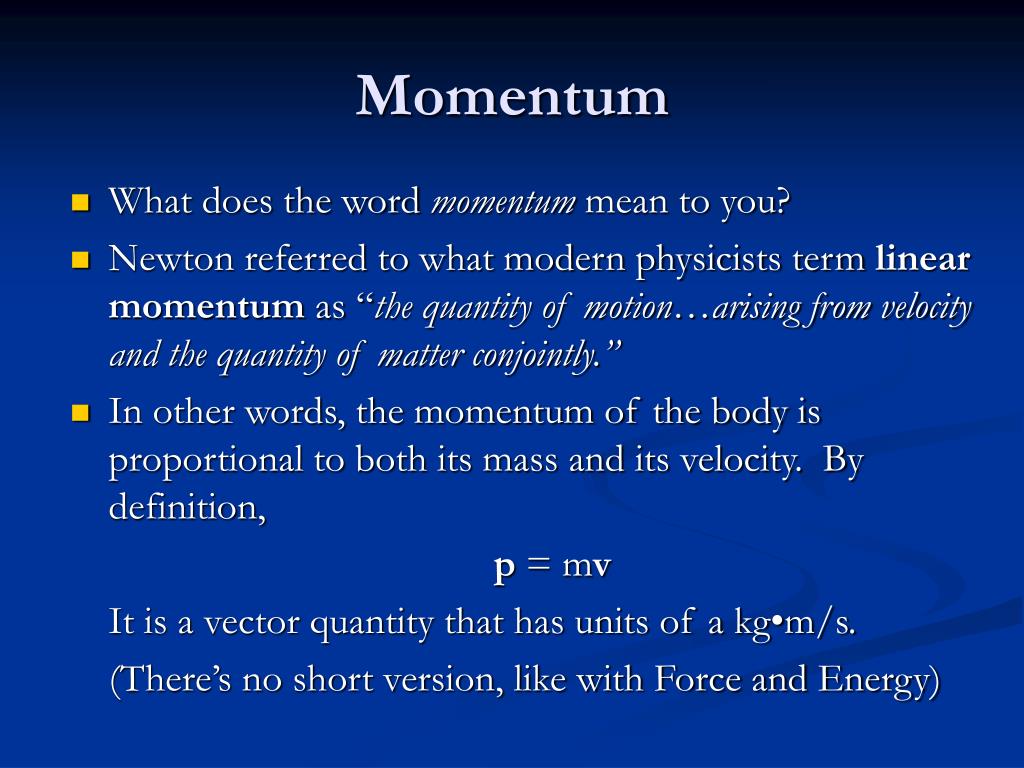

  3. Momentum • What does the word momentum mean to you? • Newton referred to what modern physicists term linear momentum as “the quantity of motion…arising from velocity and the quantity of matter conjointly.” • In other words, the momentum of the body is proportional to both its mass and its velocity. By definition, p = mv It is a vector quantity that has units of a kg•m/s. (There’s no short version, like with Force and Energy)

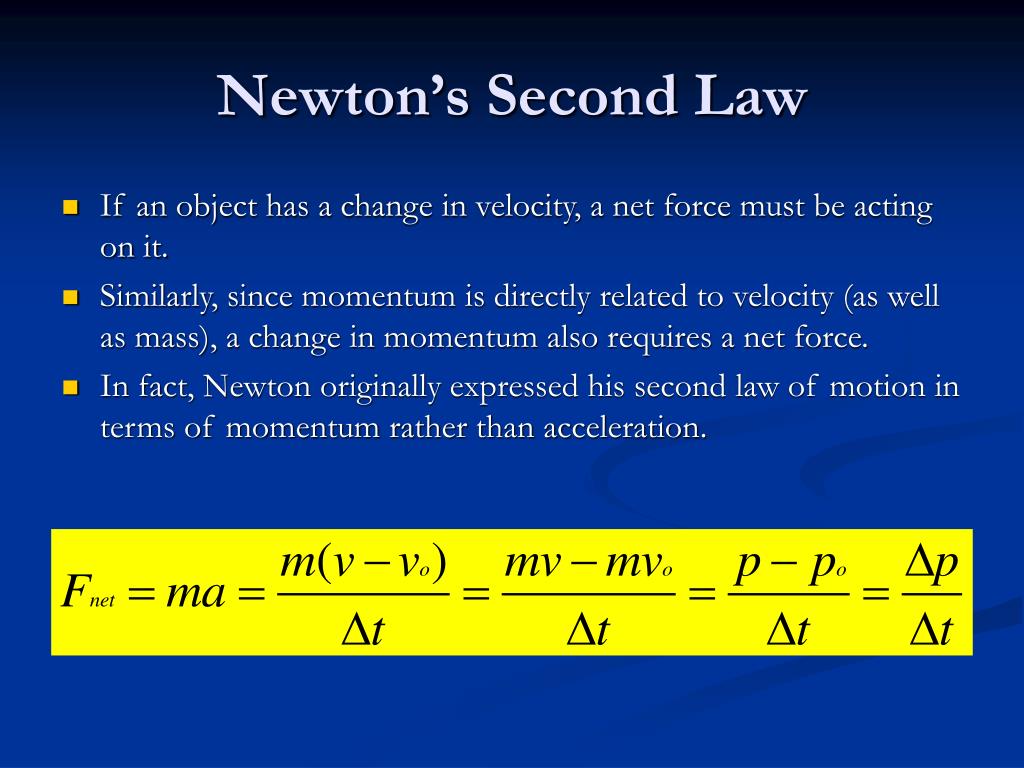

  4. Newton’s Second Law • If an object has a change in velocity, a net force must be acting on it. • Similarly, since momentum is directly related to velocity (as well as mass), a change in momentum also requires a net force. • In fact, Newton originally expressed his second law of motion in terms of momentum rather than acceleration.

  5. Change in Momentum • Newton’s second law states that the net external force acting on an object is equal to the time rate of change of the object’s momentum.

  6. Hammering a Nail…

  7. Impulse • When two objects—such as a hammer and a nail, a golf club and a golf ball, or even two cars—collide, they can exert large forces on one another for a short period of time. • The force is not constant in this case. However, Newton’s second law in momentum form is still useful for analyzing such situations by using average values. • Written in this form, the law states that the net average force is equal to the time rate of change of momentum: F = Δp/Δt. • Rewriting the equation to express the change in momentum, we have FΔt = Δp = p - po

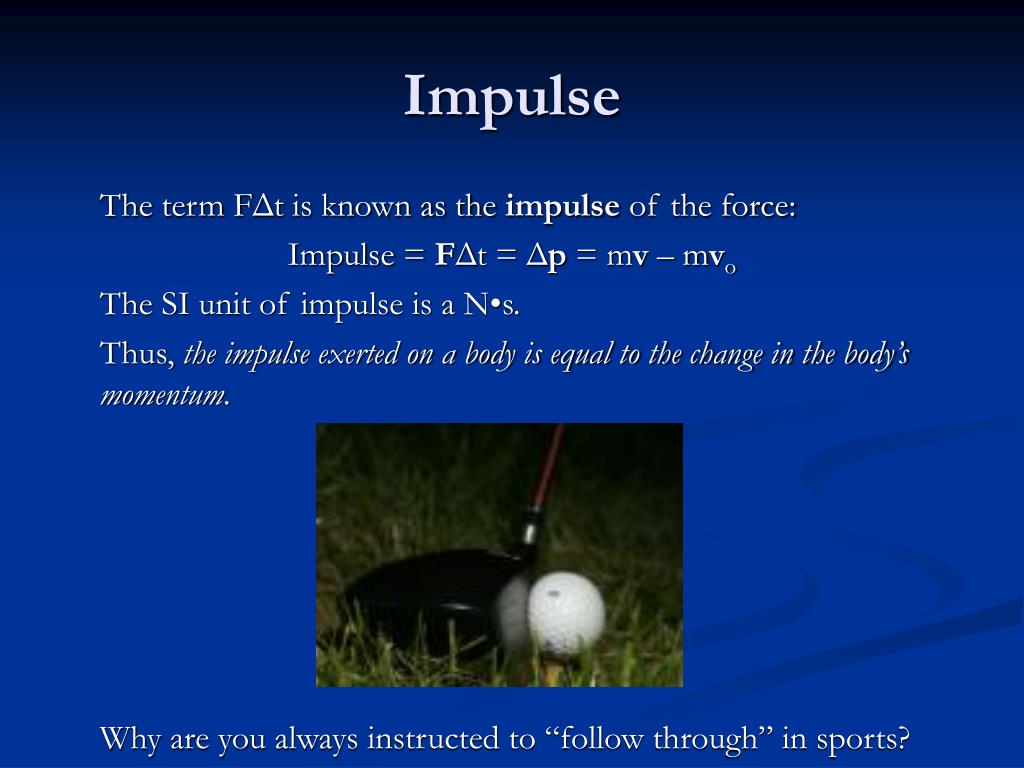

  8. Impulse The term FΔt is known as the impulse of the force: Impulse = FΔt = Δp = mv – mvo The SI unit of impulse is a N•s. Thus, the impulse exerted on a body is equal to the change in the body’s momentum. Why are you always instructed to “follow through” in sports?

  9. Baseball • Who exerts the greater impulse on a baseball…the pitcher or the catcher? • Who exerts the greater force on a baseball…the pitcher or the catcher?

  10. Pitchers and Catchers Pitcher: Low force, long time Catcher: High force, short time Ergo: Big mitt.

  11. Air Bags

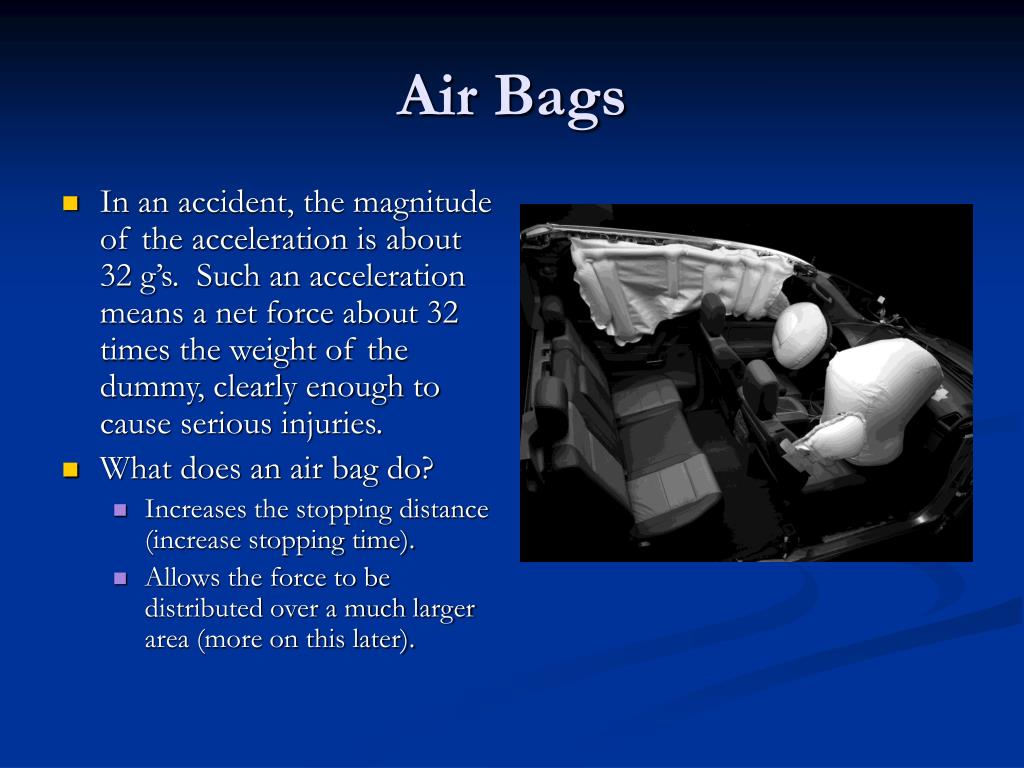

  12. Air Bags • In an accident, the magnitude of the acceleration is about 32 g’s. Such an acceleration means a net force about 32 times the weight of the dummy, clearly enough to cause serious injuries. • What does an air bag do? • Increases the stopping distance (increase stopping time). • Allows the force to be distributed over a much larger area (more on this later).

  13. Air Bags can be dangerous too!

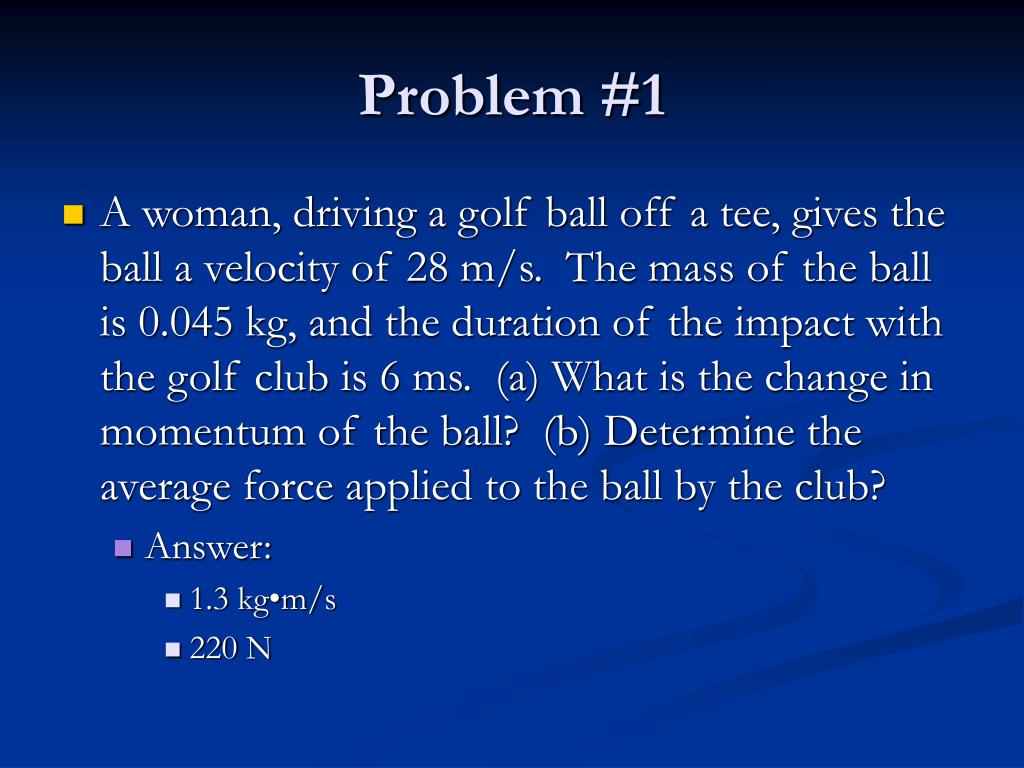

  14. Problem #1 • A woman, driving a golf ball off a tee, gives the ball a velocity of 28 m/s. The mass of the ball is 0.045 kg, and the duration of the impact with the golf club is 6 ms. (a) What is the change in momentum of the ball? (b) Determine the average force applied to the ball by the club? • Answer: • 1.3 kg•m/s • 220 N

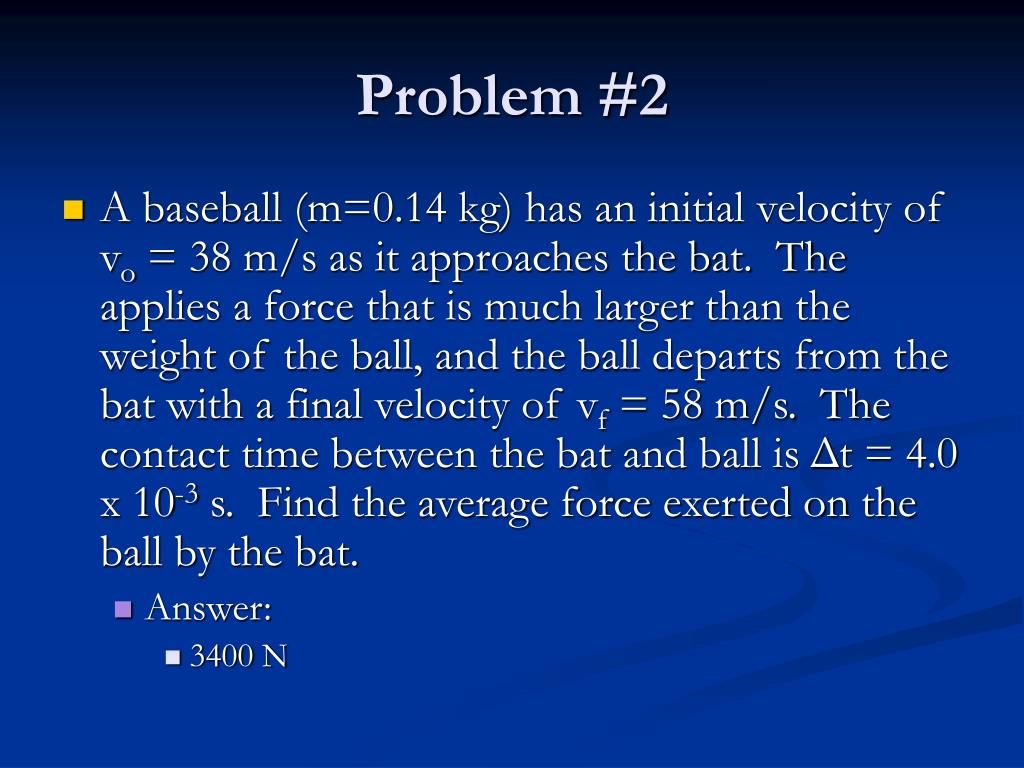

  15. Problem #2 • A baseball (m=0.14 kg) has an initial velocity of vo = 38 m/s as it approaches the bat. The applies a force that is much larger than the weight of the ball, and the ball departs from the bat with a final velocity of vf = 58 m/s. The contact time between the bat and ball is Δt = 4.0 x 10-3 s. Find the average force exerted on the ball by the bat. • Answer: • 3400 N
