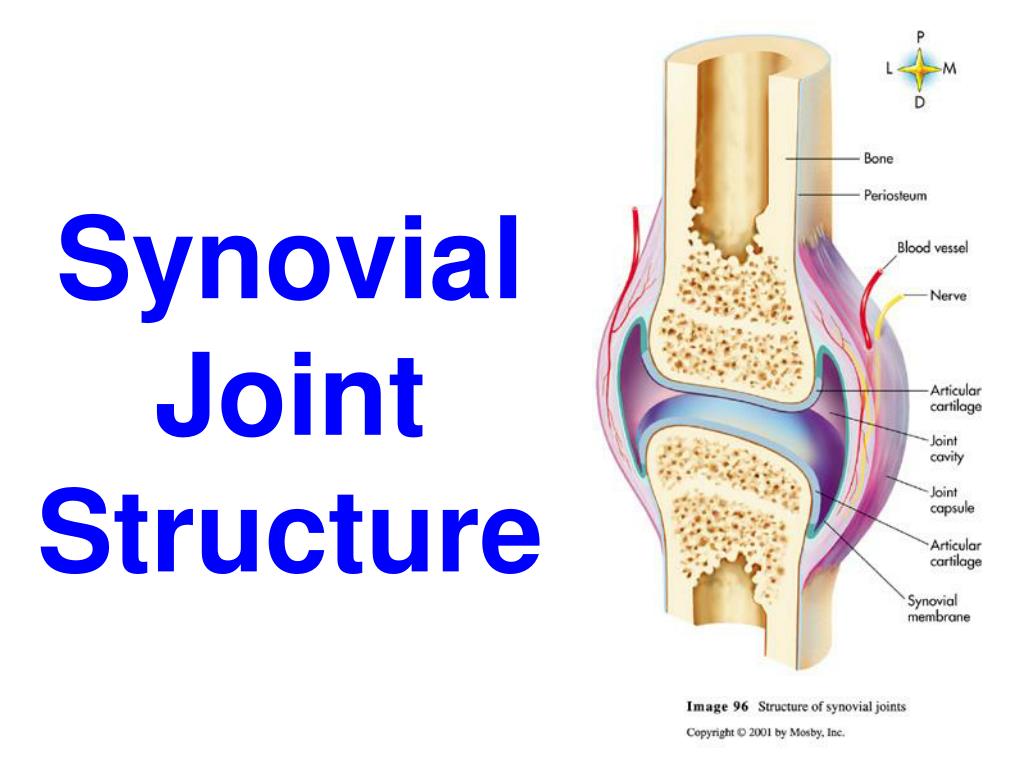

  1. Synovial Joint Structure

  2. Joint Capsule • Fits over the ends of two bones like a sleeve • It is composed of strong, fibrous (collagen) tissue. • The sleeve is oversized to allow for joint motion. • It is nourished by blood vessels which give it the ability to repair itself after injury

  3. Ligaments • Connect two bones together • Ligaments are a specialized part of this sleeve • Account for the primary stability of the joint. • Many joints also have internal ligaments that contribute to support, such as the cruciate ligaments of the knee.

  4. Articular Cartilage • Cushion bone ends • Reduce friction • Sustained by internal blood vessels

  5. Synovial Membrane • Synovium • Produces Synovial fluid • The prime lubricant for the joint and • The nutritional source for joint surface cartilage and meniscus cartilage

  6. Meniscus • Ten percent of synovial joints have a washer-like structure between bone ends called the meniscus • Its purpose is to absorb shock, to stabilize the joint, and to spread synovial fluid. • Made out of fibro-cartilage, which is a different tissue type from joint surface cartilage

  7. The meniscus also has no blood supply, no nerves, and no lymphatic channels. • Biologically, it can't heal itself. • The knee meniscus is the most famous and most injured
