spinal stenosis

Spinal Stenosis

Niall Craig Consultant Orthopaedic Spinal Surgeon Aberdeen

25th February 2011

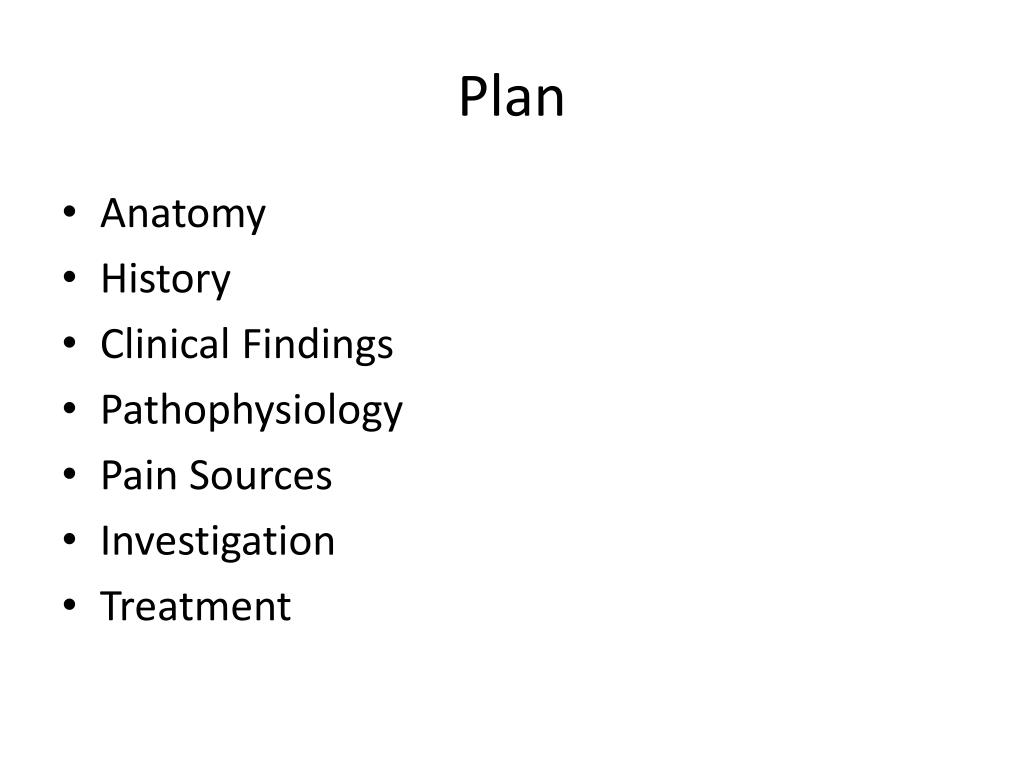

  • Anatomy
  • History
  • Clinical Findings
  • Pathophysiology
  • Pain Sources
  • Investigation
  • Treatment
spinal stenosis3
Spinal Stenosis
  • Coined 1855-60
  • Greek derivation
  • Pathology – noun
  • Narrowing or stricture of a passage or canal
  • Commonest in the cervical and lumbar spine
  • Also occurs in the thoracic region


First coined expression lateral stenosis in 1940s

Dutch surgeon

Now we think of this as lateral recess or foraminal stenosis

spinal canal development
Spinal Canal Development

185 skeletons from the Spitalfield Collection at the Natural History Museum - French Huguenots (1646 and 1852)

date of birth and death known

41 infants between 15 months and 5 years of age

L1 to L4 the cross sectional area and the mid sagittal diameters - fully mature by 1 year

canal size reached maturity at L5 by 5 years of age gradual trend from a circular towards a trefoil shape at L5 – trefoil shape not present prior to adulthood.


C – central zone

F – foramen

E – extraforaminal zone

Normal relationships

Remember most people with symptoms will not have normal anatomy


Normal canal showing space available space for thecal sac and exiting roots

Specimen courtesy of Prof Rauschning Uppsala

lateral recess stenosis
Lateral Recess Stenosis
  • Lateral region is compartmentalized into entrance zone, mid zone, exit zone, and far-out stenosis
  • Keim et al mention the following simplistic LSS anatomical classification scheme:2
  • Lateral, secondary to SAP hypertrophy
  • Medial, secondary to IAP hypertrophy
  • Central, due to hypertrophic spurring, bony projection, or ligamentum flavum/laminar thickening
  • Fleur de lis (clover leaf), from laminar thickening with subsequent posterolateral bulging
lateral recess stenosis10
Lateral Recess Stenosis
  • Lateral recess stenosis (ie, lateral gutter stenosis, subarticular stenosis, subpedicular stenosis, foraminal canal stenosis, intervertebral foramen stenosis) - narrowing (less than 3-4 mm) between the facet superior articulating process (SAP) and posterior vertebral margin - impinge the nerve root and subsequently elicit radicular pain.
entrance zone
Entrance Zone
  • The entrance zone - medial to the pedicle and SAP – stenosis from facet joint SAP hypertrophy.
  • Other causes - developmentally short pedicle and facet joint morphology, as well as osteophytosis
  • Disc prolapse anterior to the nerve root
  • The lumbar nerve root compressed below SAP retains the same segmental number as the involved vertebral level (eg, L5 nerve root is impinged by L5 SAP).
mid zone
Mid Zone
  • Mid zone extends from the medial to the lateral pedicle edge. Mid-zone stenosis arises from osteophytosis under the pars interarticularis and bursal or fibrocartilaginous hypertrophy at a spondylolytic defect
exit zone
Exit Zone
  • Exit-zone stenosis involves an area surrounding the foramen and arises from facet joint hypertrophy and subluxation, as well as superior disc margin osteophytosis. Such stenosis may impinge the exiting spinal nerve
extra canalicular stenosis
Extra-canalicular Stenosis
  • Far-out (extracanalicular) stenosis entails compression lateral to the exit zone
  • Occurs with far lateral vertebral body endplate osteophytosis and when the sacral ala and L5 transverse process impinge on the L5 spinal nerve
  • Patient will describe buttock pain or leg pain
  • Heaviness weakness
  • Tiredness in legs on walking
  • Neurogenic claudication
  • Lumbar spinal stenosis classically presents as bilateral neurogenic claudication
  • Unilateral radicular symptoms may result from severe foraminal or lateral recess stenosis
  • Patients, typically aged more than 50 years
  • insidious-onset NC - intermittent, crampy, diffuse radiating thigh or leg pain with associated paresthesias
  • Leg pain affects 90% of patients with LSS
  • Retrospective review of 75 patients with radiographically confirmed LSS, reports of weakness, numbness or tingling, radicular pain, and NC were in almost equal proportions. The most common symptom was numbness or tingling of the legs
  • NC pain exacerbated by standing erect and downhill ambulation, alleviated with lying supine more than prone, sitting, squatting, and lumbar flexion
  • Getty et al documented 80% pain diminution with sitting and 75% with forward bending.9
  • Lumbar spinal canal and lateral recess cross-sectional area increases with spinal flexion and decreases with extension
  • cross-sectional area is reduced 9% with extension in the normal spine and 67% with severe stenosis
  • Penning rule of progressive narrowing implies that the more narrowed the canal by stenosis, the more it narrows with spinal extension
  • Schonstrom et al have shown that spinal compressive loading from weight bearing reduces spinal canal dimensions
  • NC not exacerbated with biking, uphill ambulation, and lumbar flexion and is not alleviated with standing
  • compensate for symptoms by flexing forward, slowing their gait, leaning onto objects (eg, over a shopping trolley) and limiting distance of ambulation. Unfortunately this promotes disease progression and vertebral fracture. Pain radiates downward in NC and up in vascular claudication
  • Hall et al note the presence of radiculopathy in 6% and NC in 94% of LSS patients
  • Distinguishing between neurogenic and vascular claudication is important
  • Treatments and implications quite different
  • Vascular claudication is a manifestation of peripheral vascular disease and arteriosclerosis. Other vessels, including the coronary, vertebral, and carotid, are also often affected
  • Remember neurogenic and vascular claudication may occur together
  • Congenital
  • Narrow canal
  • Short pedicles
  • Arrested growth
  • Achondroplasia
congenital or primary
Congenital or Primary
  • Congenital malformations and developmental flaws
  • incomplete vertebral arch closure (spinal dysraphism), segmentation failure, achondroplasia, and osteopetrosis
  • developmental early vertebral arch ossification, shortened pedicles, thoracolumbar kyphosis, apical vertebral wedging, anterior vertebral beaking (Morquio syndrome), and osseous exostosis
  • uncommon, occurring in only 9% of cases.

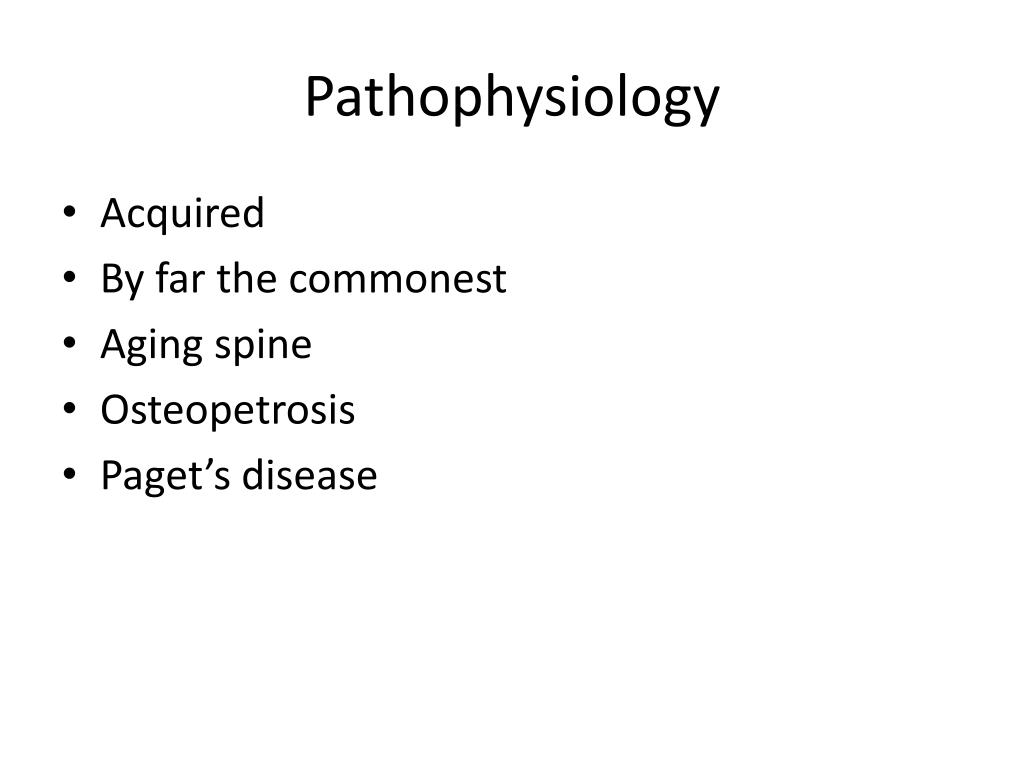

  • Acquired
  • By far the commonest
  • Aging spine
  • Osteopetrosis
  • Paget’s disease
acquired or secondary

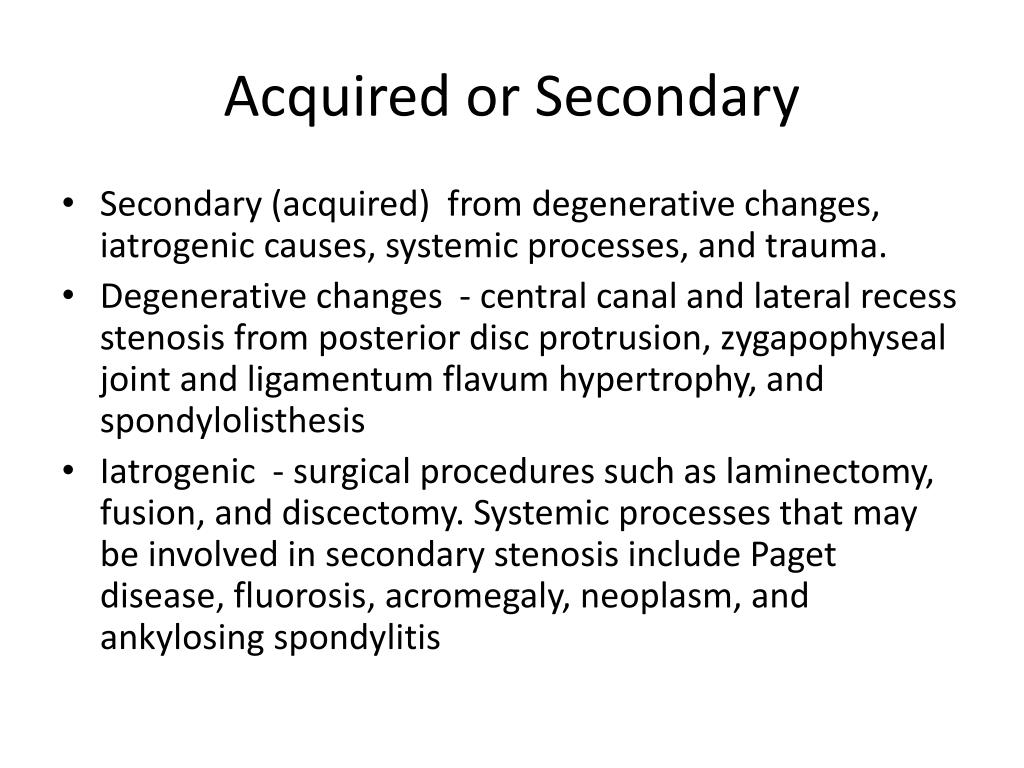

Acquired or Secondary
  • Secondary (acquired) from degenerative changes, iatrogenic causes, systemic processes, and trauma.
  • Degenerative changes - central canal and lateral recess stenosis from posterior disc protrusion, zygapophyseal joint and ligamentum flavum hypertrophy, and spondylolisthesis
  • Iatrogenic - surgical procedures such as laminectomy, fusion, and discectomy. Systemic processes that may be involved in secondary stenosis include Paget disease, fluorosis, acromegaly, neoplasm, and ankylosing spondylitis
lumbar stenosis
Lumbar Stenosis

disc degeneration and facet arthropathy investigated extensively

nature and etiology of pain generation  - still debated degeneration of the annulus fibrosis - radial tears through which a posteriorly migrated nucleus pulposus can herniate

disc herniation in the typical posterolateral region

nerve root impingement (usually of the root passing to the next lower foramen).

lateral recess stenosis is the result of such herniations, leading to radiculopathy. The most common site for this is L5-S1 followed by L4-L5. Central disk bulges or herniations contribute to central canal stenosis

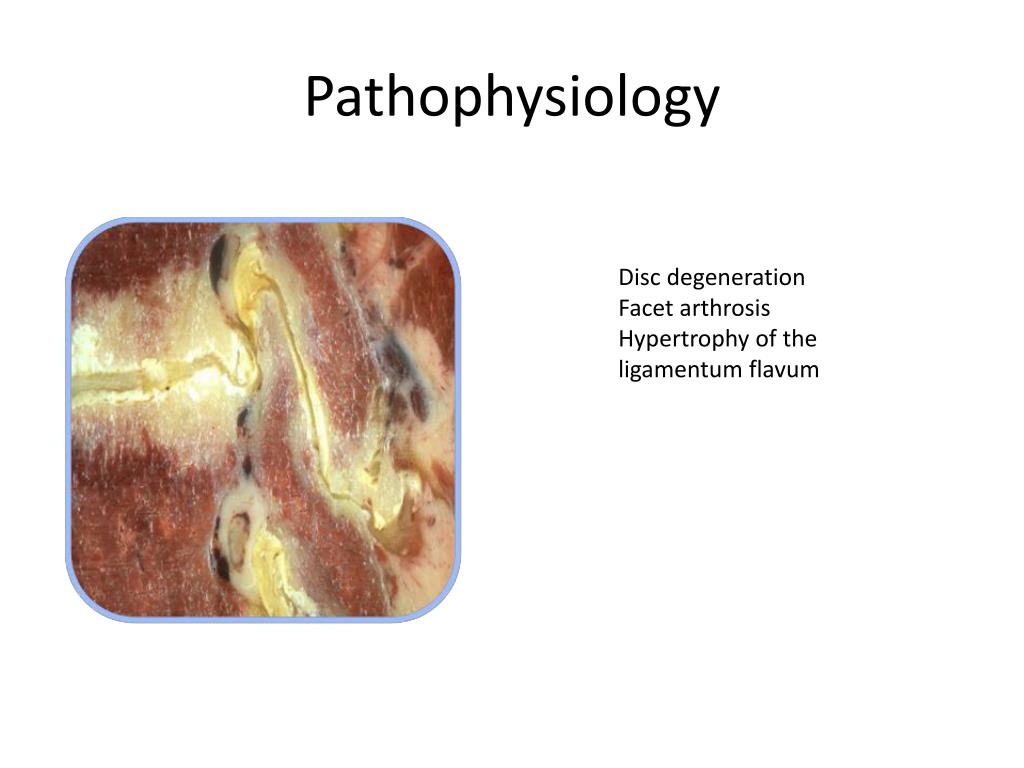

Disc degeneration

Facet arthrosis

Hypertrophy of the ligamentum flavum

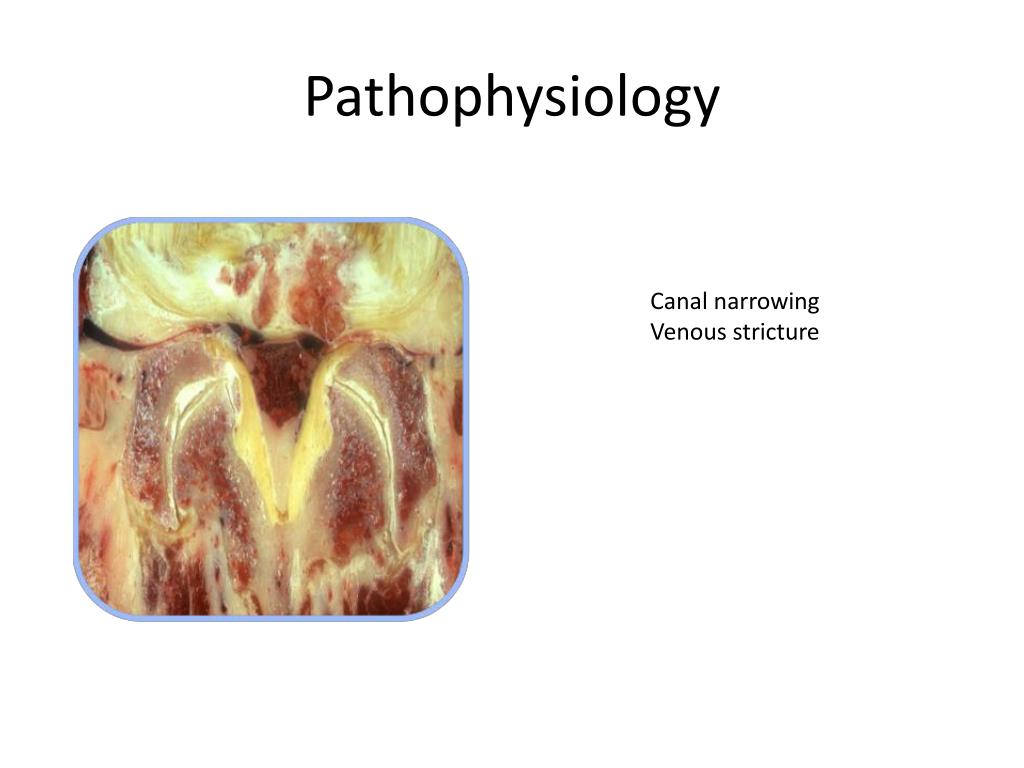

Canal narrowing

Venous stricture

cervical stenosis

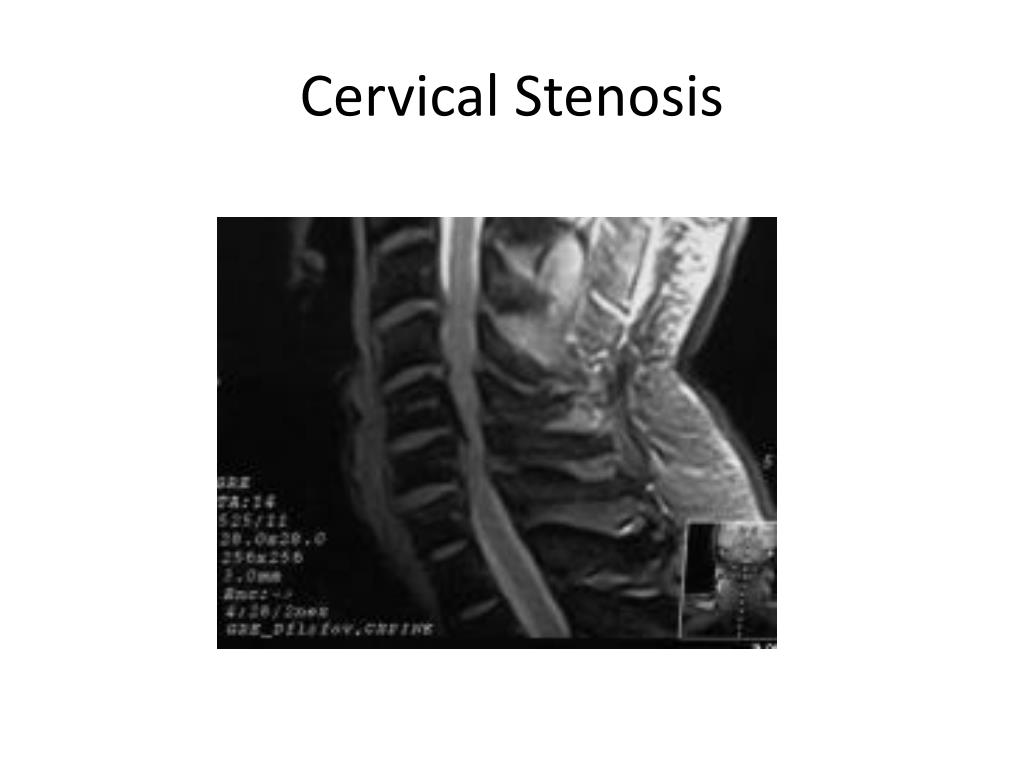

Cervical Stenosis
  • Congenital cervical stenosis predisposes to myelopathy
  • age-related degenerative changes of the cervical spine
  • These changes can narrow the cervical spinal canal. Cervical spondylotic myelopathy (CSM) - clinical presentation resulting from these degenerative processes
  • most common cause of spinal cord dysfunction in adults older than 55 years
  • degenerative changes of the cervical spine 95% of asymptomatic individuals older than 65 years. Myelopathy is believed to develop in up to 20% of individuals with evidence of spondylosis
lumbar stenosis30

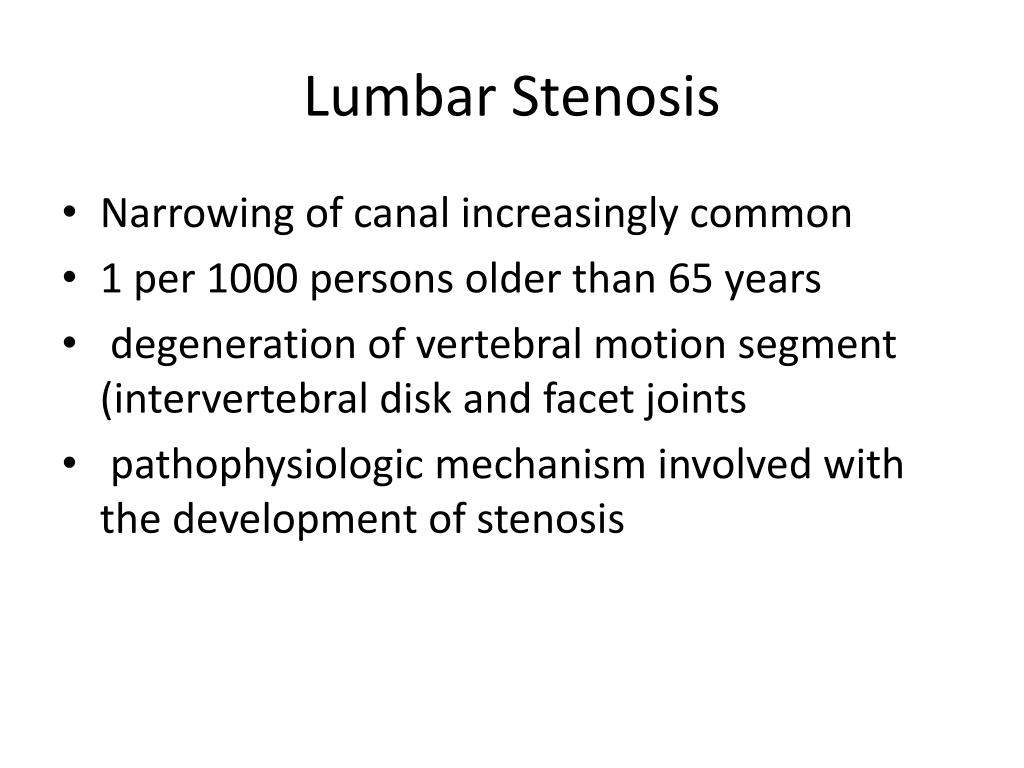

Lumbar Stenosis
  • Narrowing of canal increasingly common
  • 1 per 1000 persons older than 65 years
  • degeneration of vertebral motion segment (intervertebral disk and facet joints
  • pathophysiologic mechanism involved with the development of stenosis
cause of symptoms
Cause of Symptoms
  • Cauda equina microvascular ischemia, venous congestion, axonal injury, and intraneural fibrosis.
  • Ooi at al myeloscopically observed ambulation-provoked cauda equina blood vessel dilation with subsequent circulatory stagnation
  • Ambulation dilates the epidural venous plexus, which, amidst narrow spinal canal diameter, increases epidural and intrathecal pressure
  • This ultimately compresses the cauda equina, compromises its microcirculation, and causes pain.
causes of symptoms
Causes of Symptoms
  • Another pain generator may be the DRG, which contains pain-mediating neuropeptides, such as substance P - possibly increase with mechanical compression
  • DRG varies spatially within the lumbosacral spine
  • L4 and L5 DRG in an intraforaminal position
  • S1 DRG located intraspinally
  • This may lead to stenotic compression with subsequent radicular symptomology
causes of pain
Causes of Pain

Severe radiologic stenosis in otherwise asymptomatic individuals suggests inflammation, not just mechanical nerve root compression

Specific inflammation generators may include disc prolapses, ligamentum flavum, and facet joint capsule

causes of pain34
Causes of Pain
  • Katz et al report that the historical findings associated with LSS include advanced age, severe lower extremity pain, and absence of pain when the patient is in a flexed position
  • Fritz et al - most important elements involve the postural nature of the patient's pain
  • absence of pain or improvement of symptoms when seated assists in ruling in LSS
  • Stenosis cannot be ruled out when sitting is the most comfortable position for the patient and standing/walking is the least comfortable
clinical findings
Clinical Findings
  • Physical examination findings frequently normal
  • diminished lumbar extension appears most consistent
  • loss of lumbar lordosis and forward-flexed gait
  • Radiculopathy may be noted with motor, sensory, and/or reflex abnormalities
  • Asymmetric muscle stretch reflexes and focal myotomal weakness with atrophy occur with lateral recess
  • Some report objective neurologic deficits in approximately 50% of LSS cases
  • Pain on walking
clinical findings36
Clinical Findings
  • may also have a positive stoop test
  • Dyck in 1979 - patient walks with an exaggerated lumbar lordosis until symptoms appear or are worsened.
  • Then leans forward. Reduction of symptoms positive
  • Negative findings in the physical examination include skin color, turgor, and temperature; normal distal lower extremity pulses; and an absence of arterial bruits
  • Always check the pulses
  • Katz et al - examination findings most strongly associated with LSS include wide-based gait, abnormal Romberg test, thigh pain following 30 seconds of lumbar extension, and neuromuscular abnormalities
  • Fritz et al - examination findings do not seem helpful
  • Johnsson et al - single study of the natural course - unchanged symptoms in 70% , improvement in 15%, and worsening in 15% after a 49-month observation period. Walking capacity improved in 37% of patients, remained unchanged in 33%, and worsened in 30%
  • Amundsen et al - concomitant lateral recess stenosis all cases of central canal stenosis
  • In his study, pure central stenosis without lateral stenosis failed to exist
  • Plain radiographs - narrow anteroposterior diameter in both congenital and acquired spinal stenosis
  • degenerative changes and spondylolisthesis

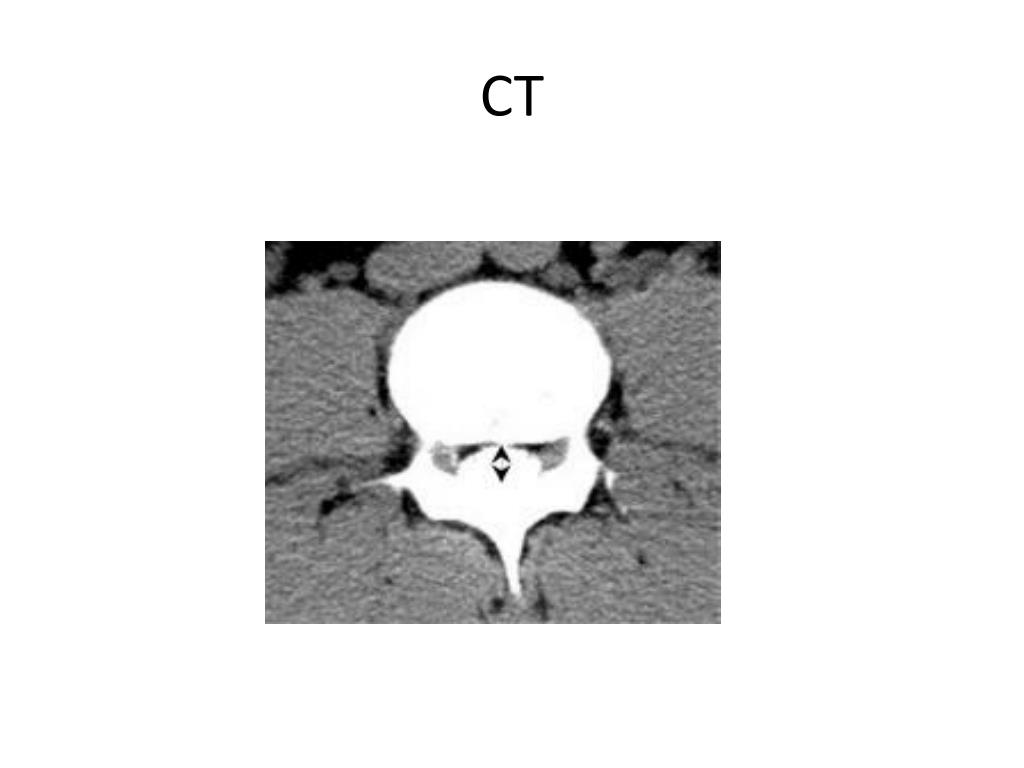

  • CT - info. on canal diameter, spur formation, and foraminal stenosis
  • with myelography - demonstrates central or lateral canal stenosis (sagittal and axial planes)
  • MRI - most useful for soft tissues and neural structures
  • disc degeneration, ligamentous and facet hypertrophy, malalignment, central or lateral canal stenosis, and intrinsic cord or root abnormalities (syrinx or contusion)
  • MRI is not optimal for visualization of bony details (ie, spurs).
  • Myelography can be diagnostic
  • revealing a narrow dye column or a complete blockage in advanced forms
  • Lumbar puncture may be difficult in severe stenosis
  • Combined CT and myelography provide most information in sagittal and axial planes
  • good visualization of bony anatomy.
  • Cervical stenosis progresses in as many as one third of affected individuals
  • propensity for initial deterioration, followed by a period of stability (may require years), and subsequent progressive myelopathy
  • Late treatment of myelopathy by decompression does not always reverse the neurologic deficit, and thus, individuals with severe cervical stenosis should undergo close neurologic follow-up
  • Natural history lumbar stenosis not well understood
  • Slow progression in all
  • Even if very6 narrow - very unlikely to develop an acute cauda equina syndrome
  •  Slow progression leads to a feeling of heaviness in the legs relieved by rest.
  • Infrequently, a facet cyst will lead to severe canal stenosis and subacute radiculopathy
  • Pain and mild weakness
  • Nonsurgical measures aimed at symptomatic relief: analgesics, anti-inflammatory agents (including judicious use of steroids), and antispasmodics can provide relief during acute exacerbations
  • Epidural steroids have been used
  • success rate low.
  • Physical therapy with traction and strengthening exercises helps relieve associated symptoms or muscular spasms and mechanical back pain
  • Only provide temporary relief
  • Inversion tables - great initial success and varying benefit
surgical treatment
Surgical Treatment
  • Surgery - indicated for significant myelopathy, radiculopathy, and/or neurogenic claudication
  • Choice of - approach depends on the spinal region, the spinal alignment, and the anatomic nature of the compressive elements (ie, spurs vs ligamentum flavum)
  • Controversy about need for concomitant stabilization - reserved for gross instability (eg, unstable spondylolisthesis).
surgical treatment54
Surgical Treatment
  • Cervical spine - anterior versus posterior approaches. Posterior decompressive laminectomy in multilevel disease and congenital stenosis
  • can lead to instability and kyphotic (swan neck) deformity
  • laminoplasty (typically used in younger patients) to preserve the integrity of the posterior elements and motion
  • arthrodesis and fixation (ie, lateral mass fixation) reduces the risk of postoperative instability and deformity
  • limits flexibility
  • posterior approach is not recommended as the sole approach for the kyphotic cervical spine
surgical treatment56
Surgical Treatment
  • The anterior approach addresses the pathology from disc herniation and spur formation
  • can be used with almost any spinal alignment, but associated risks of morbidity exist. Single-level discectomies can be performed with or without concomitant fusion with good results
  • most surgeons believe the risk of collapse is present without the placement of an interbody graft, spacer, cage, or disc replacement device
surgical treatment57
Surgical Treatment
  • Plate is not always needed in single-level disease
  • multilevel discectomies or corpectomies anterior fixation should be strongly considered
  • risk of complications is higher when corpectomies are performed on 3 or more levels
  • some augment their multilevel anterior decompression and fusion with posterior stabilization
  • decision-making - alignment of the spine, the nature of the compressive element, and the surgeon's preference
surgical treatment58
Surgical Treatment
  • Lumbar spine - single or multilevel laminotomy for canal decompression and foraminotomy
  • Partial or complete facetectomies and discectomy may be needed
  • microdecompression in the lateral recess with the use of hemilaminotomies instead of complete laminectomies preserve the biomechanical integrity of the posterior tension band and avoid potential instability or postlaminectomy flat-back syndrome
  • bilateral total facetectomies consider concomitant fusion and/or stabilisation
surgical treatmant
Surgical Treatmant
  • Stabilisation in stable spinal stenosis is controversial
  • Some report the use of ipsilateral nerve root decompression and fusion; others have reported their preference of contralateralautologous bone fusion to preserve segmental stability
  • posterolateral intertransverse fusion bilaterally through a midline approach with an autologous hip graft, local autograft or allogaraft
  • interbody space best biomechanically
surgical treatment60
Surgical Treatment
  • Interbody fusion with transpedicular fixation most stable
  • Need for fusion controversial instability
  • Anterior lumbar interbody fusion indirect root decompression (restoration of disk space height) used for severe back pain with limited disc bulging
surgical treatment63
Surgical Treatment
  • Dynamic stabilization and mobile devices
  • popular -protect adjacent segments from more rapid degeneration
  • Dynamic devices stiffen the spinal motion segment but do not eliminate motion completely
surgical treatment64
Surgical Treatment
  • Minimally invasive techniques
  • decrease trauma and indirectly decompress neural elements
surgical treatment65
Surgical Treatment
  • Internal fixation is controversial
  • Better fusion results but outcome may not improve significantly
  • Pedicle screw fixation widely accepted device
  • but associated with morbidity, increased operative time
  • Some use translaminar facet screws instead
  • Chou et al
  • randomized, controlled studies of surgery for symptomatic spinal stenosis, nonradicular back pain with common degenerative changes, and radiculopathy with herniated lumbar disc
  • surgery for symptomatic spinal stenosis and for radiculopathy with herniated lumbar disc is associated with short-term benefits (1-2 years) - benefits decreased over time
  • nonradicular back pain - fusion no more effective than intensive rehabilitation, but small to moderate benefits when compared to standard (nonintensive) nonsurgical therapy
  • Weinstein et al
  • degenerative spondylolisthesis associated with spinal stenosis to compare surgical versus nonsurgical
  • standard decompressive laminectomy (with or without fusion) or nonoperative care
  • degenerative spondylolisthesis and associated spinal stenosis treated surgically maintained substantially greater pain relief and improvement in function for 4 years versus nonoperative therapy.
  • Voulgaris et al
  • prospective study of 23 patients who underwent decompressive laminectomy for lumbar spinal stenosis
  • efficacy of transcranial motor evoked potentials (TcMEP) and continuous electromyography (EMG) - prevent irreversible pyramidal tract damage during laminectomy.
  • 17 patients - an increase in TcMEP amplitudes of more than 50% - slightly increased or remained unchanged in 6
  • increased TcMEP amplitudes - greatest improvement 3 and 12 months postoperatively, according to neurologic examination and visual analog scale pain ratings
  • concluded that monitoring may allow rapid identification of potential damage of the neural structures
  • Management of spinal stenosis aimed at symptomatic relief and prevention of neurologic sequelae. Conservative measures - temporary relief
  • important preceding surgical decompression
  • Surgery is recommended when significant radiculopathy, myelopathy (cervicothoracic), neurogenic claudication (lumbar), or incapacitating pain is present
  • Choice of procedure and the decision to fuse individualised
