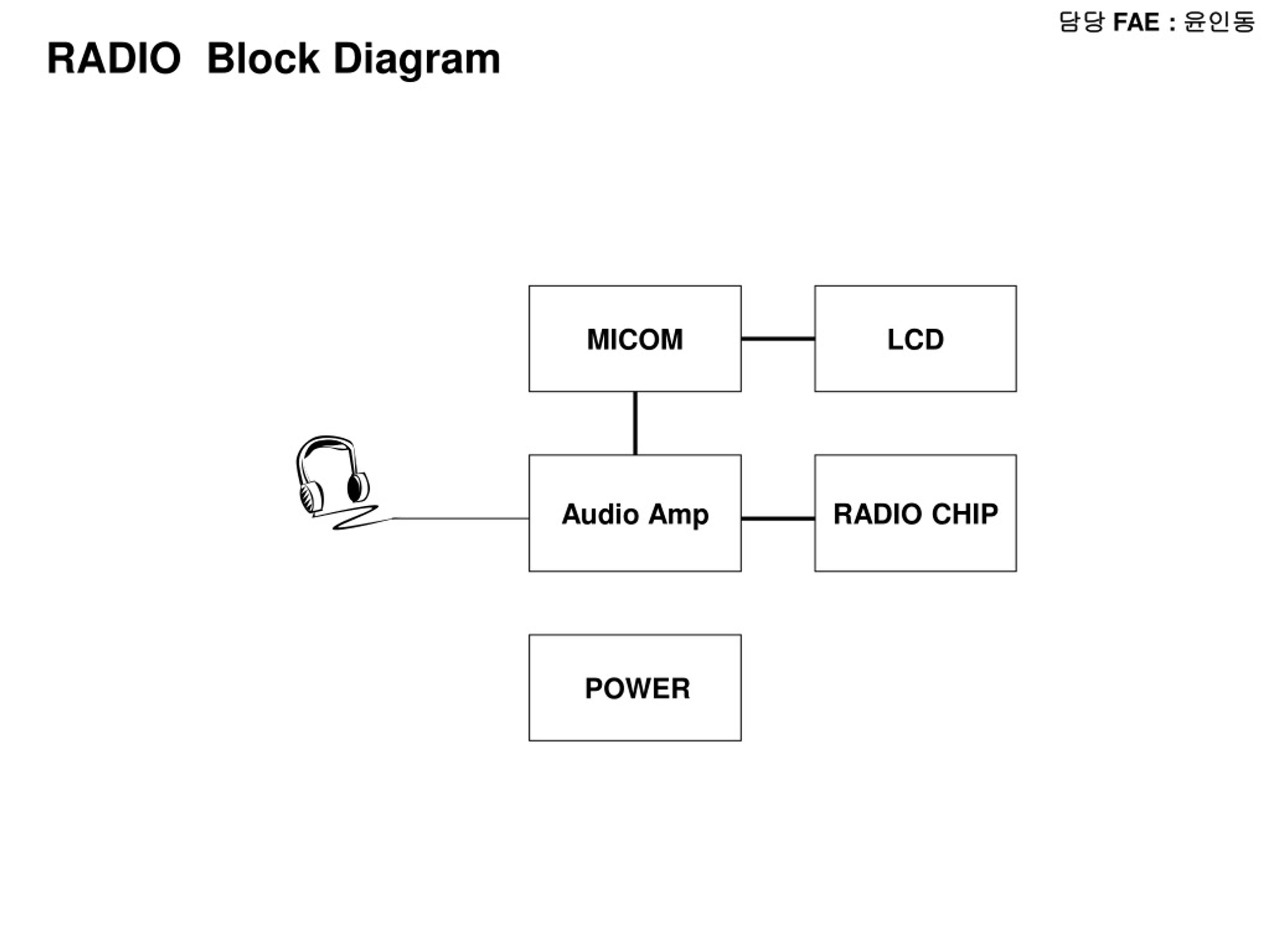

  1. 담당 FAE : 윤인동 RADIO Block Diagram MICOM LCD Audio Amp RADIO CHIP POWER

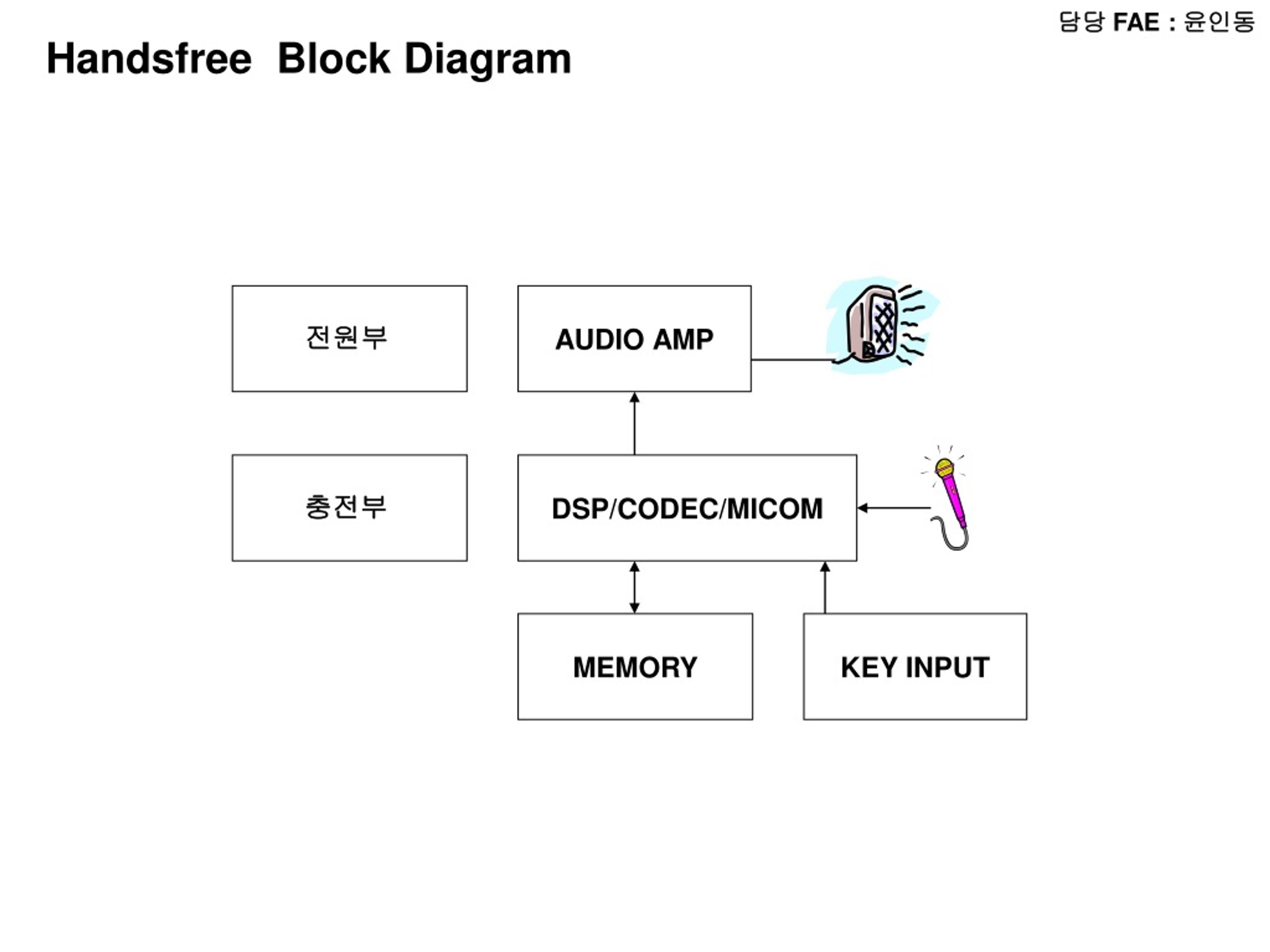

  2. 담당 FAE : 윤인동 Handsfree Block Diagram AUDIO AMP 전원부 DSP/CODEC/MICOM 충전부 MEMORY KEY INPUT

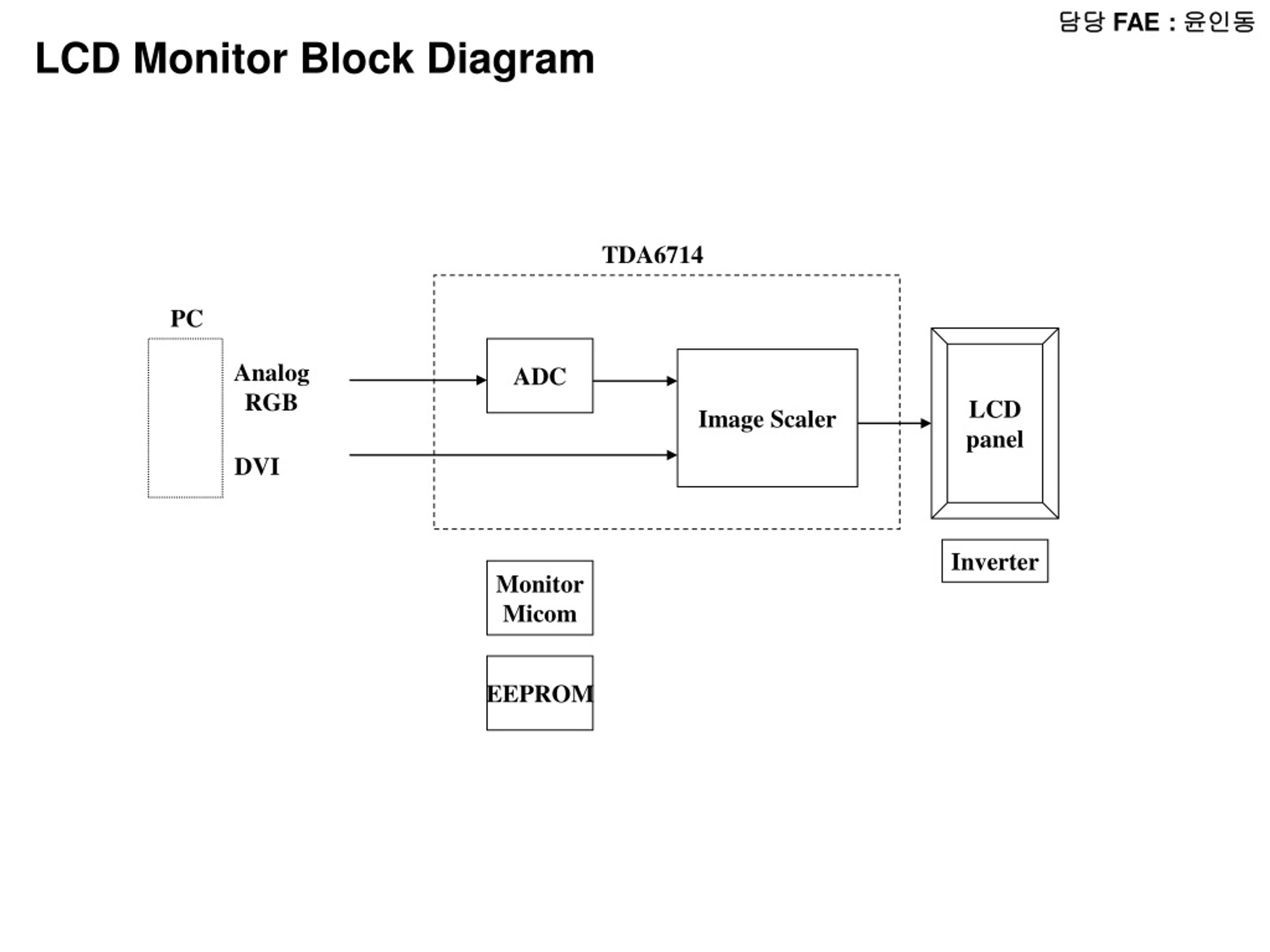

  3. 담당 FAE : 윤인동 LCD Monitor Block Diagram TDA6714 PC LCD panel ADC Image Scaler Analog RGB DVI Inverter Monitor Micom EEPROM

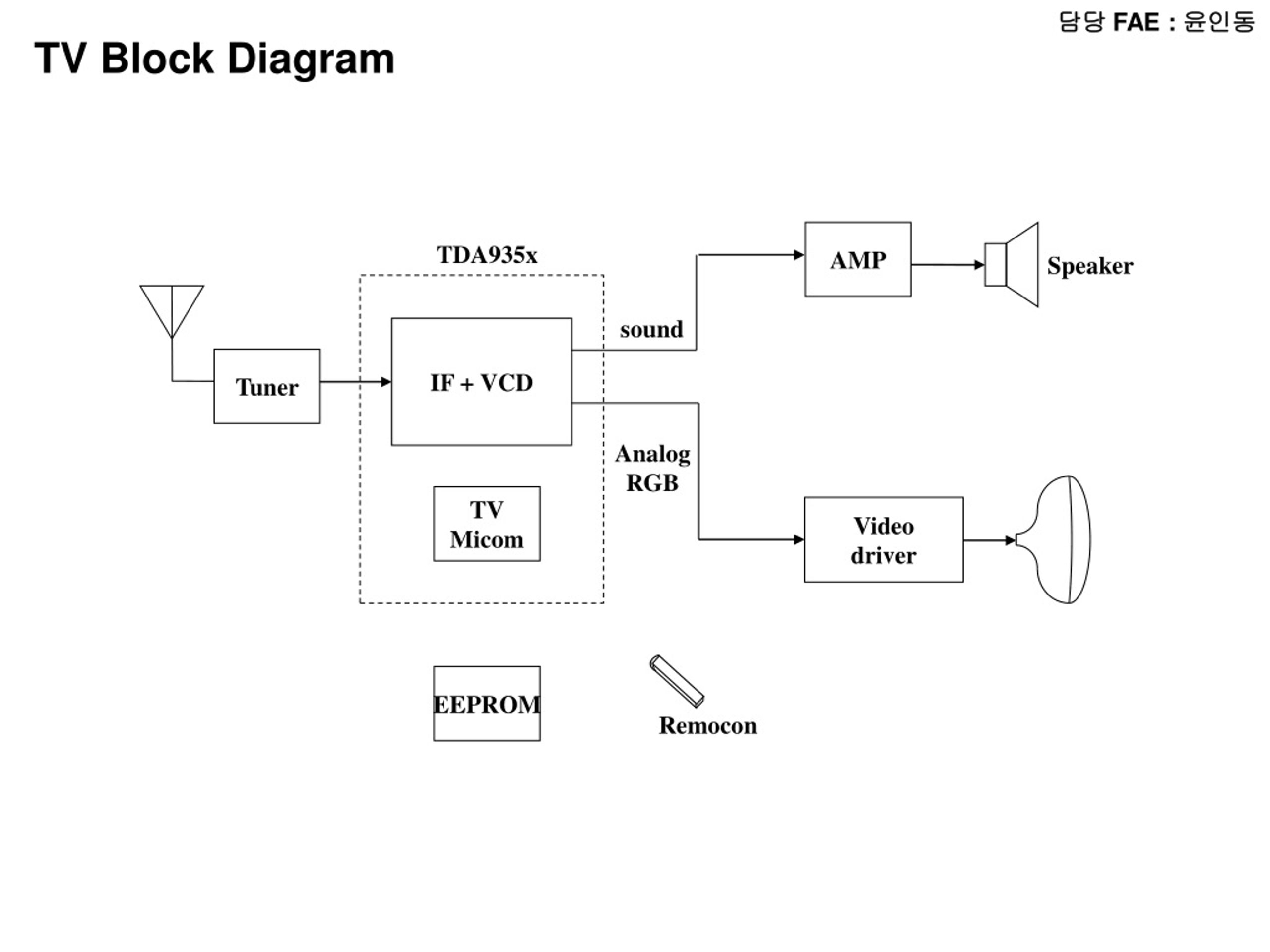

  4. 담당 FAE : 윤인동 TV Block Diagram AMP TDA935x Speaker sound IF + VCD Tuner Analog RGB TV Micom Video driver EEPROM Remocon

  5. 담당 FAE : 윤인동 LCD TV - I Block Diagram IF AMP Speaker Tuner CVBS TV decoder CCIR-601 LCD panel Image Scaler PC RGB DVI EEPROM Inverter Monitor Micom Remocon

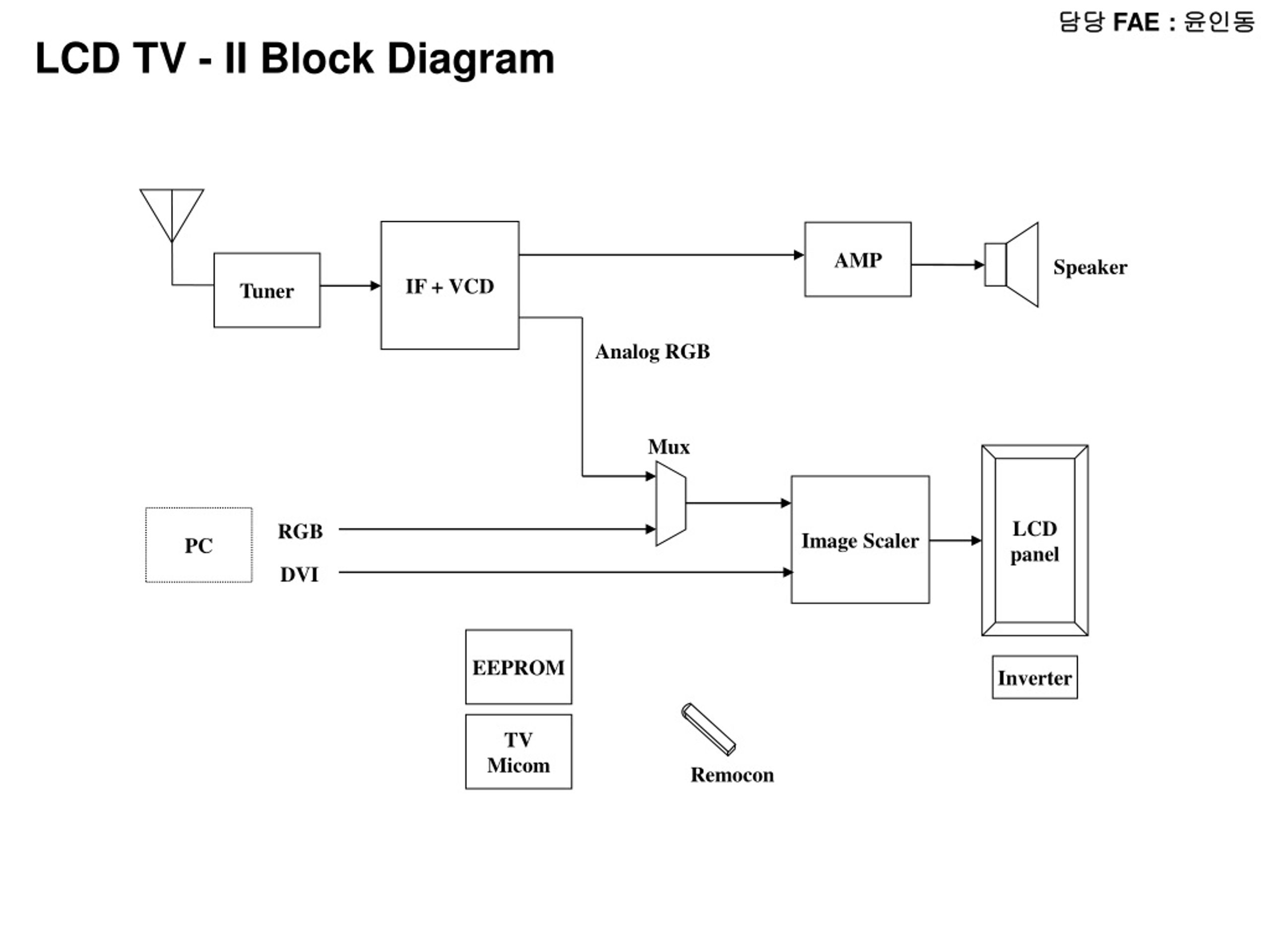

  6. 담당 FAE : 윤인동 LCD TV - II Block Diagram IF + VCD AMP Speaker Tuner Analog RGB Mux LCD panel Image Scaler PC RGB DVI EEPROM Inverter TV Micom Remocon

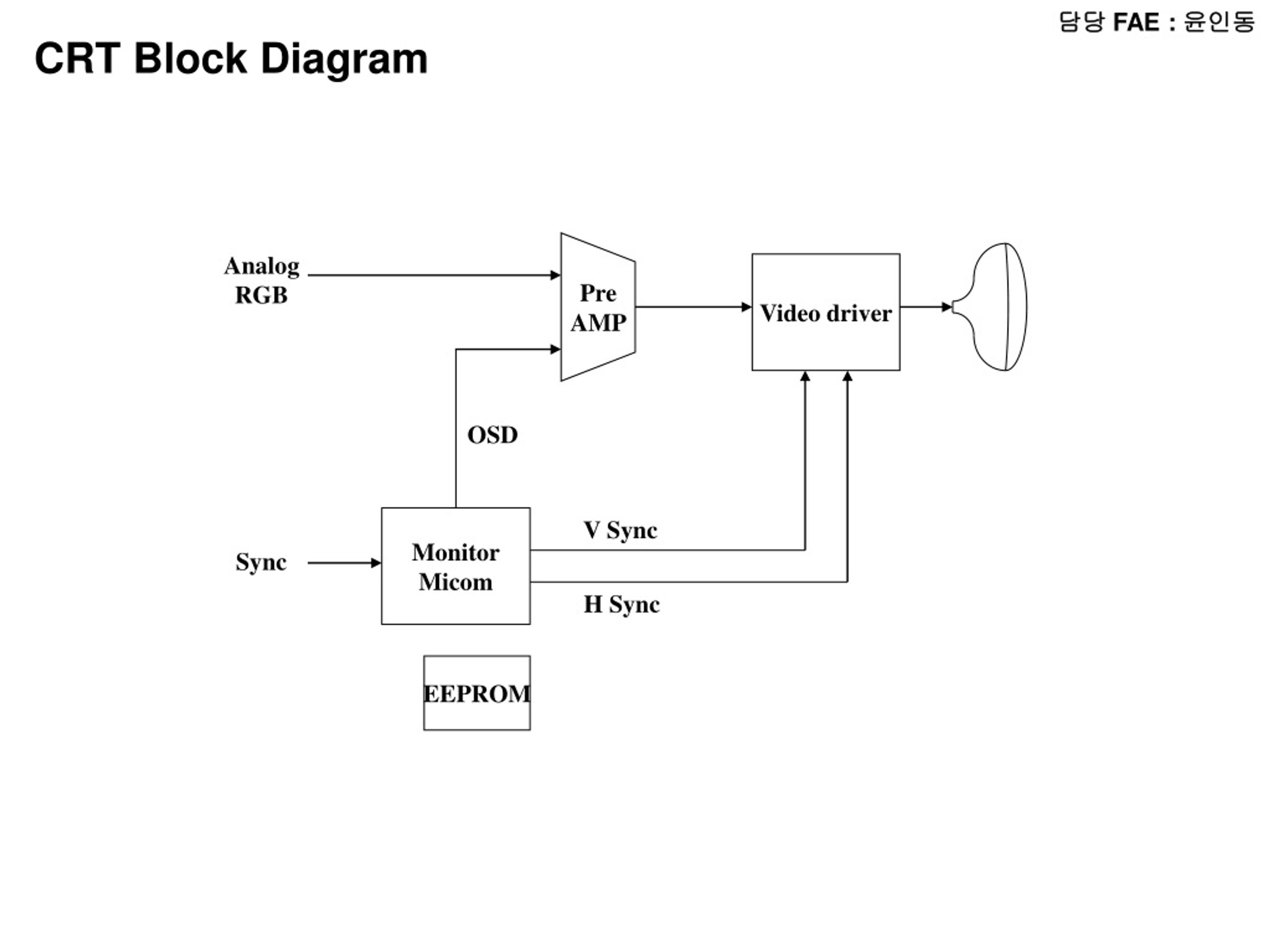

  7. 담당 FAE : 윤인동 CRT Block Diagram Analog RGB Video driver Pre AMP OSD Monitor Micom V Sync Sync H Sync EEPROM

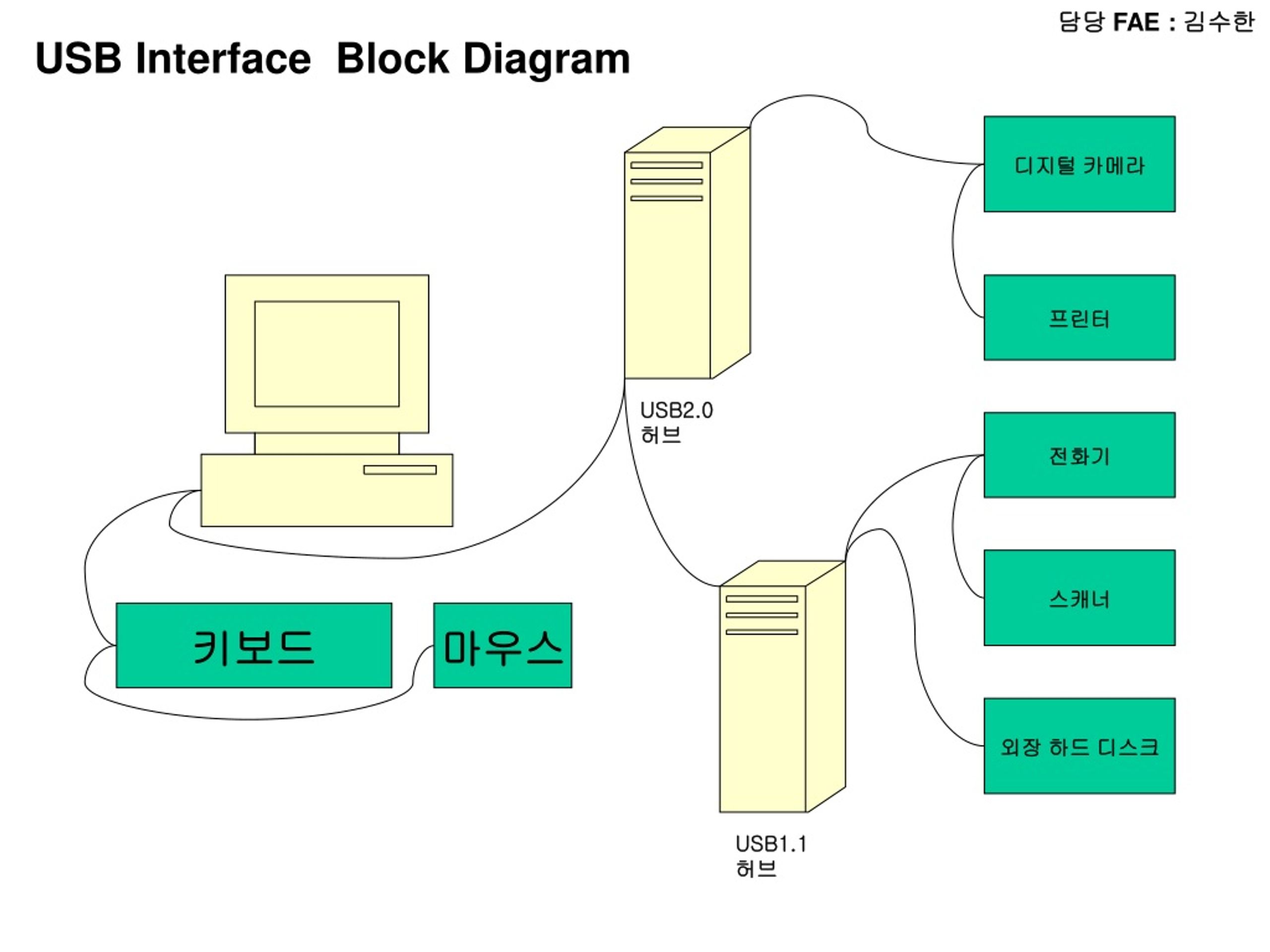

  8. 담당 FAE : 김수한 USB Interface Block Diagram 디지털 카메라 USB2.0 허브 프린터 전화기 스캐너 USB1.1 허브 키보드 마우스 외장 하드 디스크

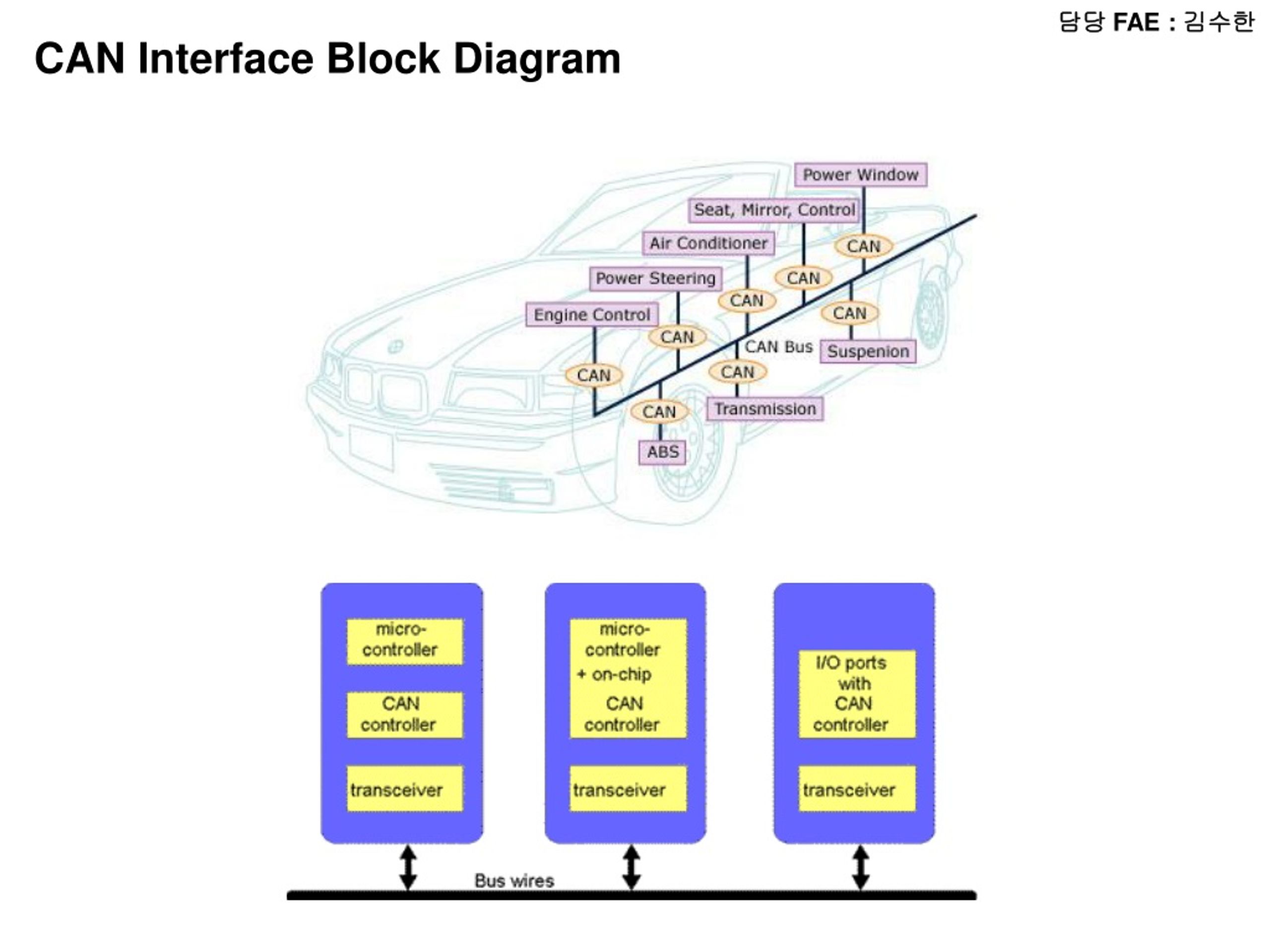

  9. 담당 FAE : 김수한 CAN Interface Block Diagram

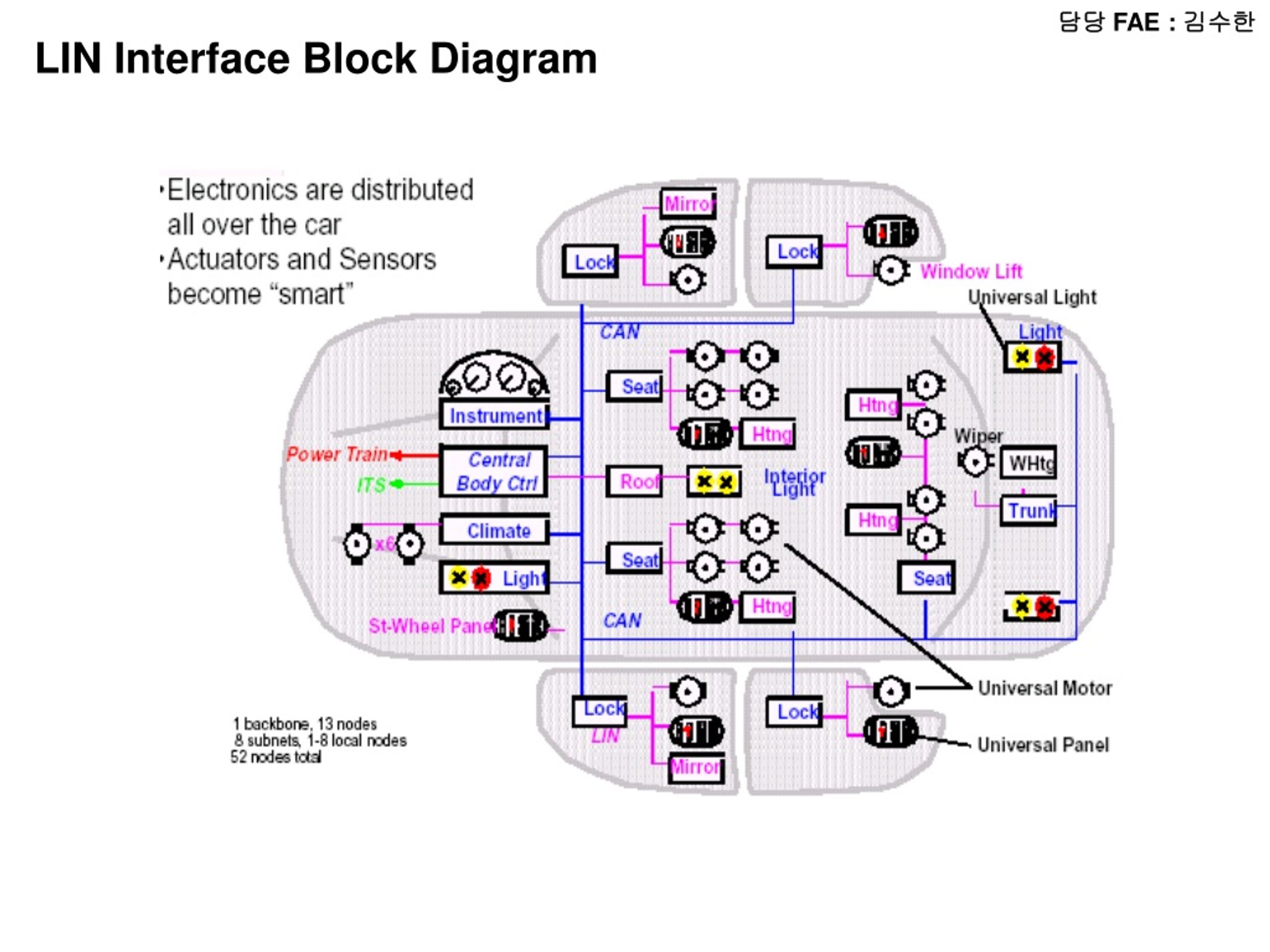

  10. 담당 FAE : 김수한 LIN Interface Block Diagram

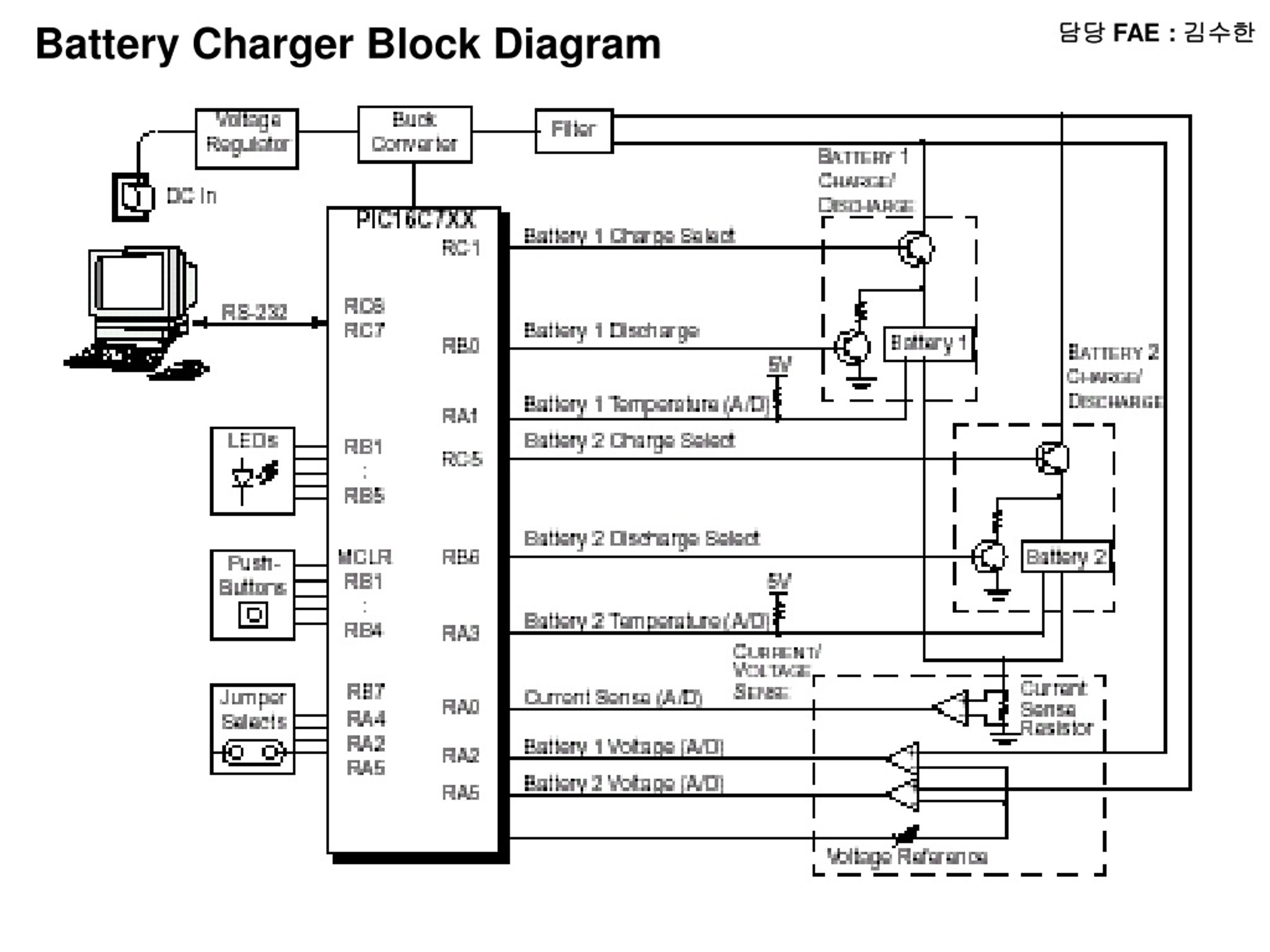

  11. Battery Charger Block Diagram 담당 FAE : 김수한

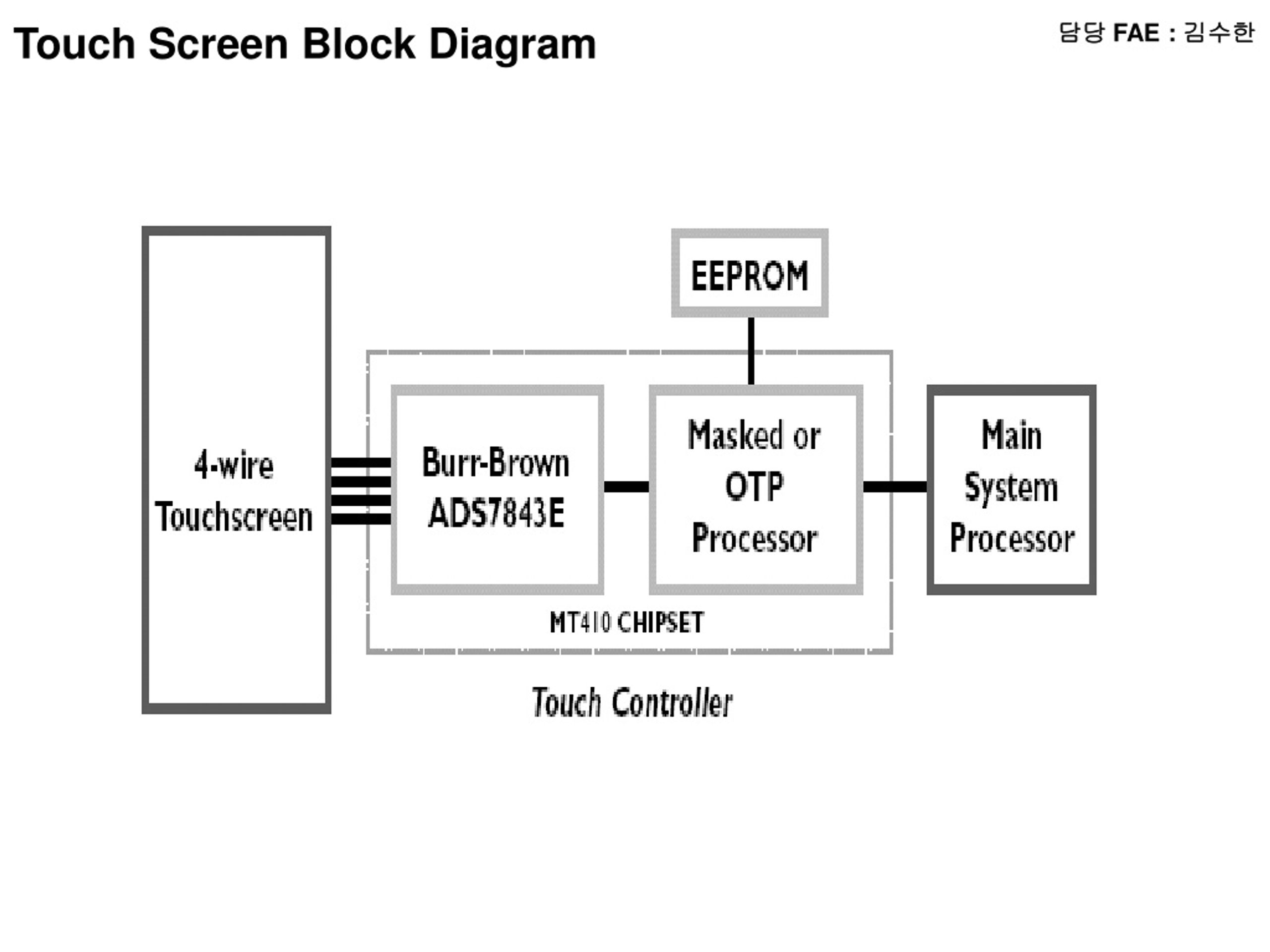

  12. Touch Screen Block Diagram 담당 FAE : 김수한

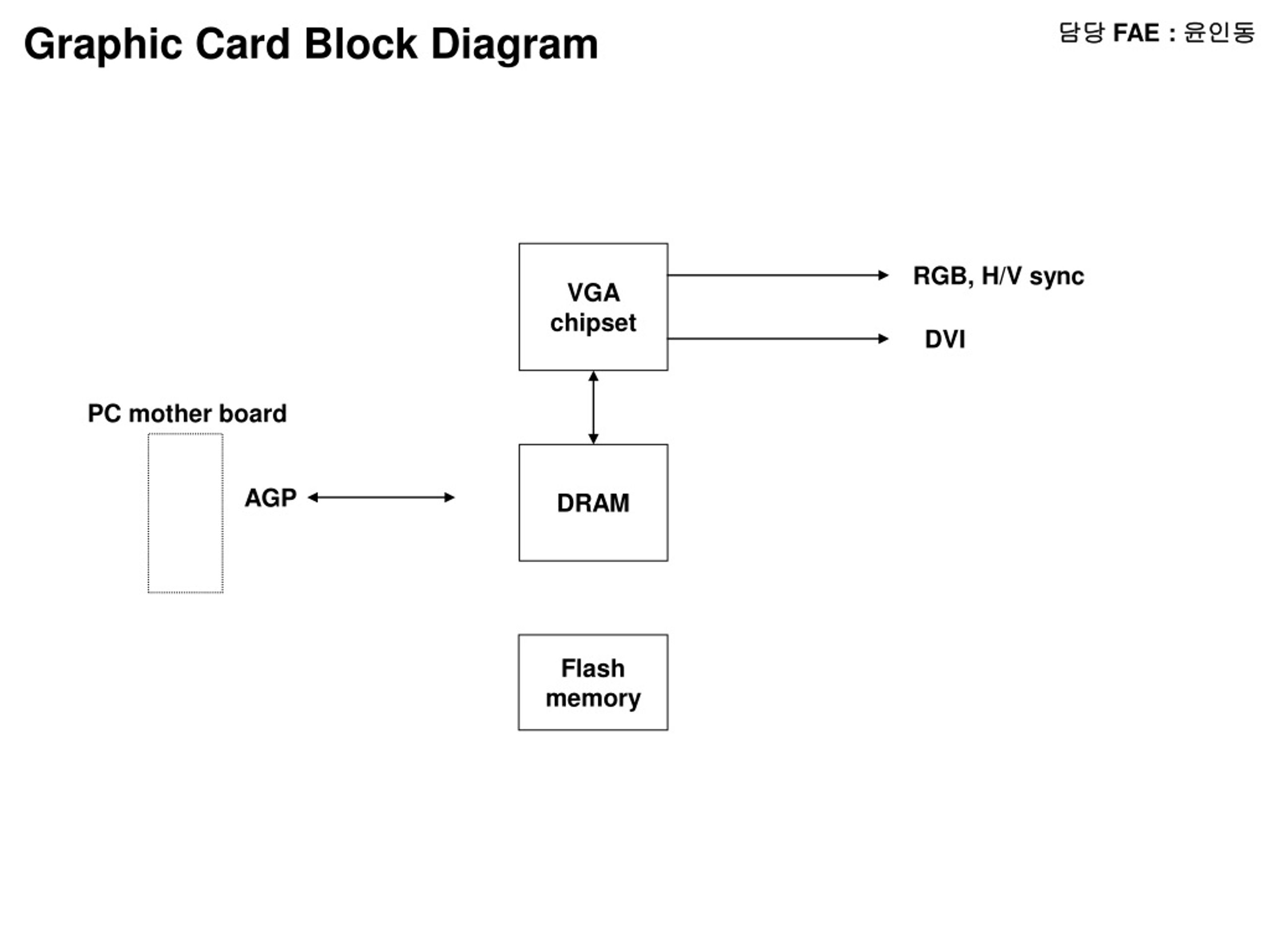

  13. Graphic Card Block Diagram 담당 FAE : 윤인동 VGA chipset RGB, H/V sync DVI PC mother board DRAM AGP Flash memory

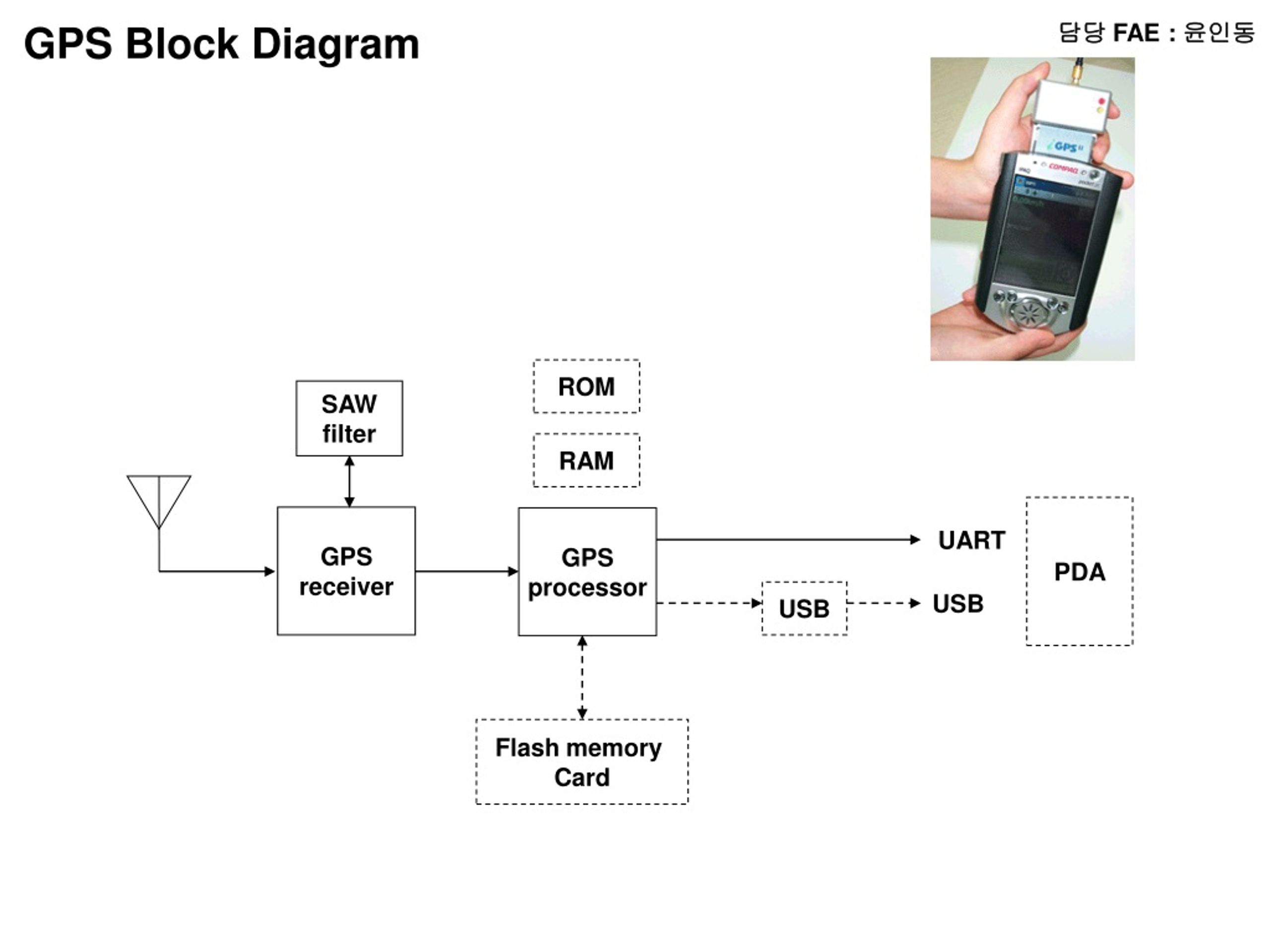

  14. GPS Block Diagram 담당 FAE : 윤인동 ROM SAW filter RAM PDA GPS receiver GPS processor UART USB USB Flash memory Card

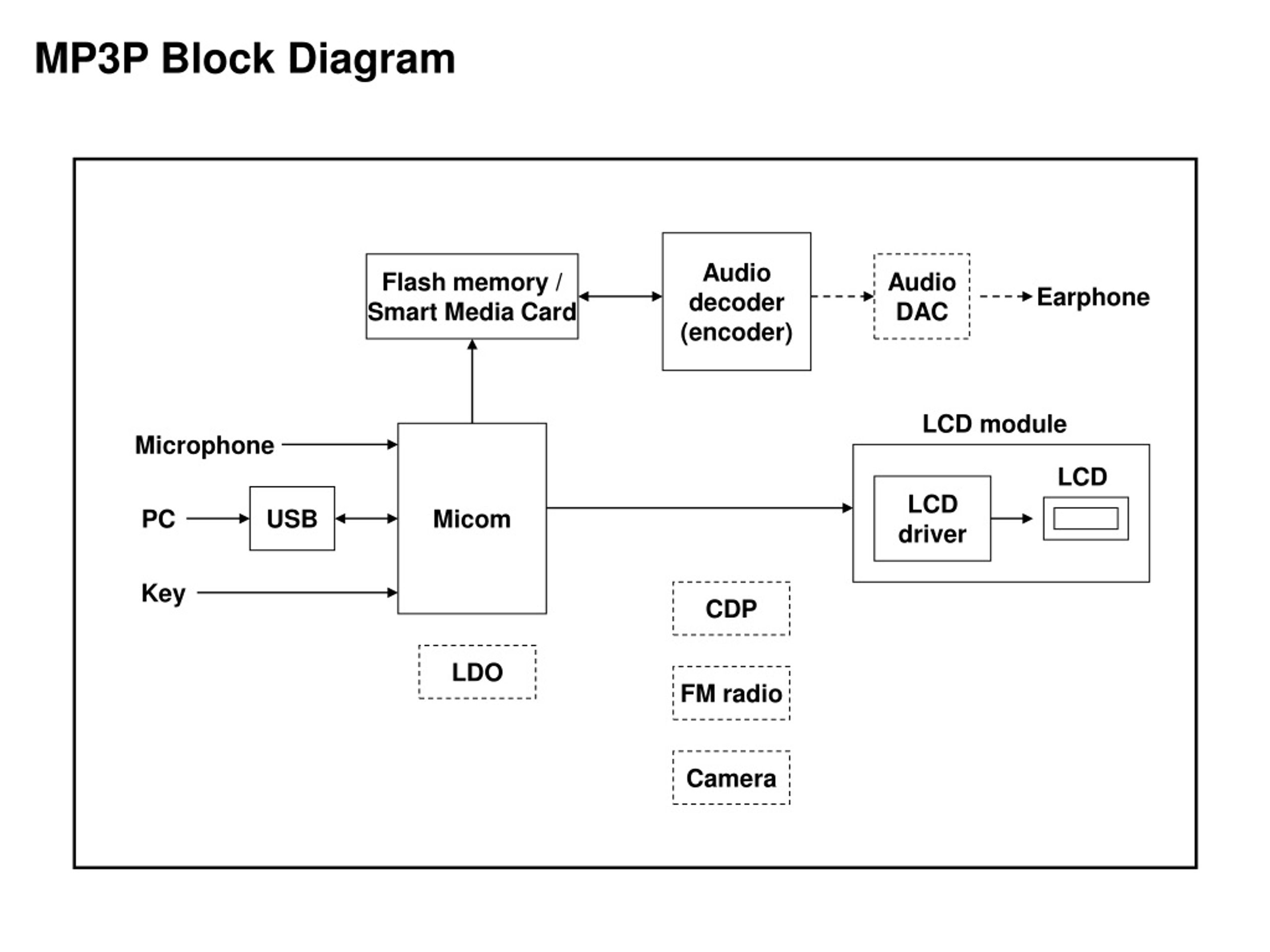

  15. MP3P Block Diagram 담당 FAE : 윤인동 AD/DA Microphone Earphone Audio decoder Audio processor Earphone Flash memory / Smart Media Card PC LCD USB Micom LCD driver Key CDP FM radio

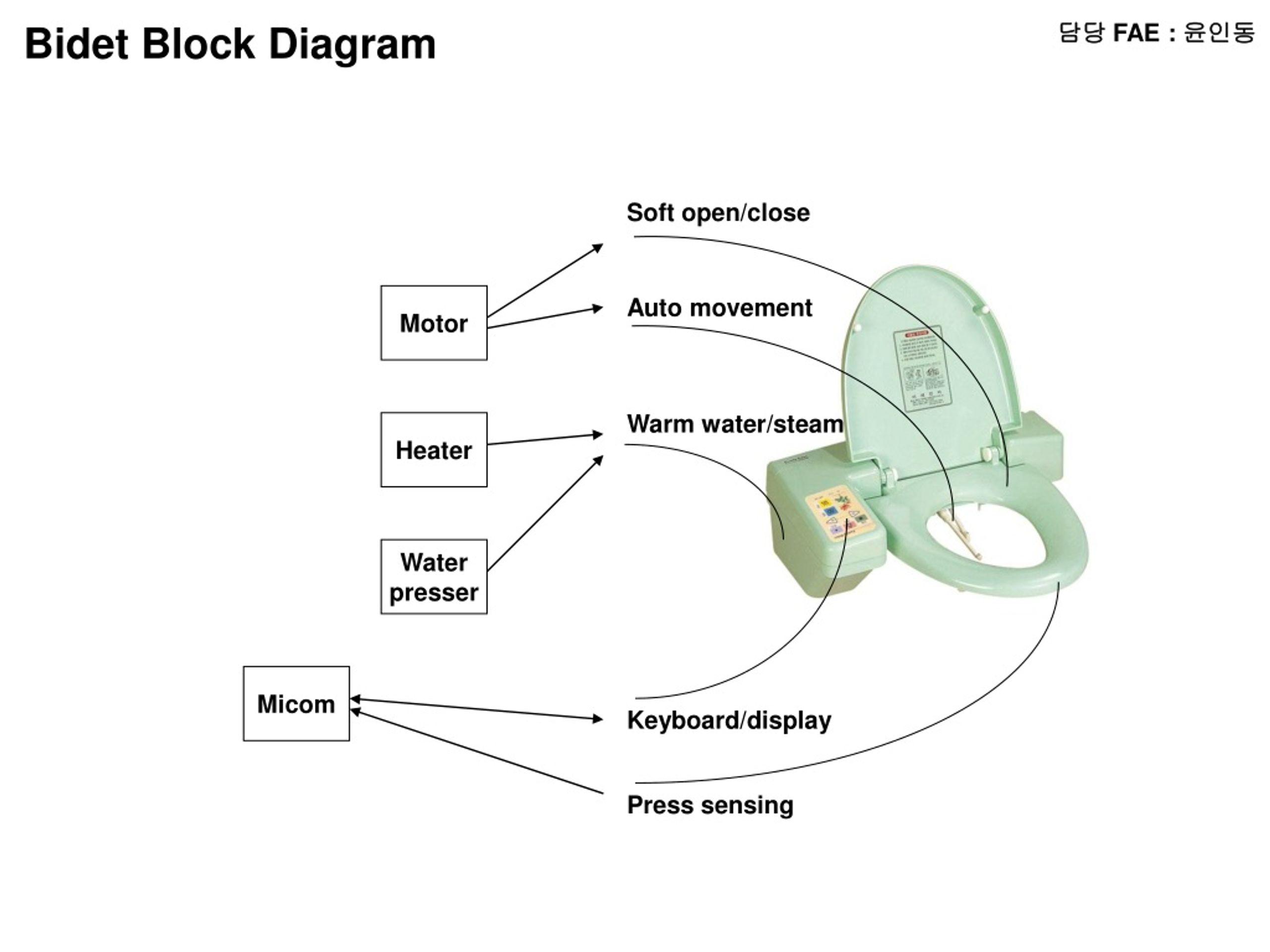

  16. Bidet Block Diagram 담당 FAE : 윤인동 Soft open/close Motor Auto movement Warm water/steam Heater Water presser Micom Keyboard/display Press sensing

  17. DSTB Block Diagram 담당 FAE : 윤인동 DBS Tuner QPSK Audio out TP + CPU A/V decoder Tuner IF QAM Video out Cable DRAM DRAM Modem Telephone line EEPROM Cable Remocon

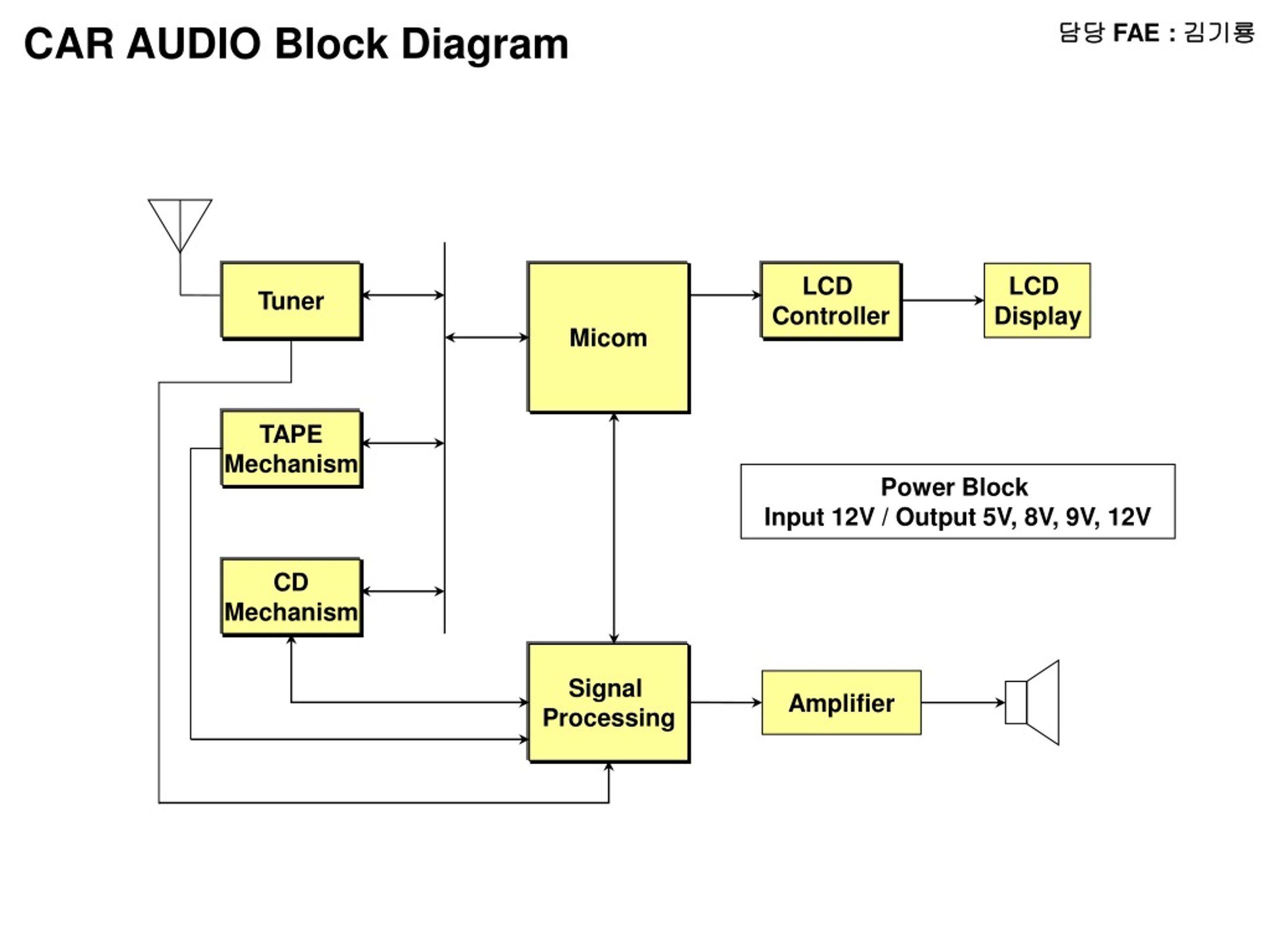

  18. CAR AUDIO Block Diagram 담당 FAE : 김기룡 Tuner Micom LCD Controller LCD Display TAPE Mechanism Power Block Input 12V / Output 5V, 8V, 9V, 12V CD Mechanism Signal Processing Amplifier

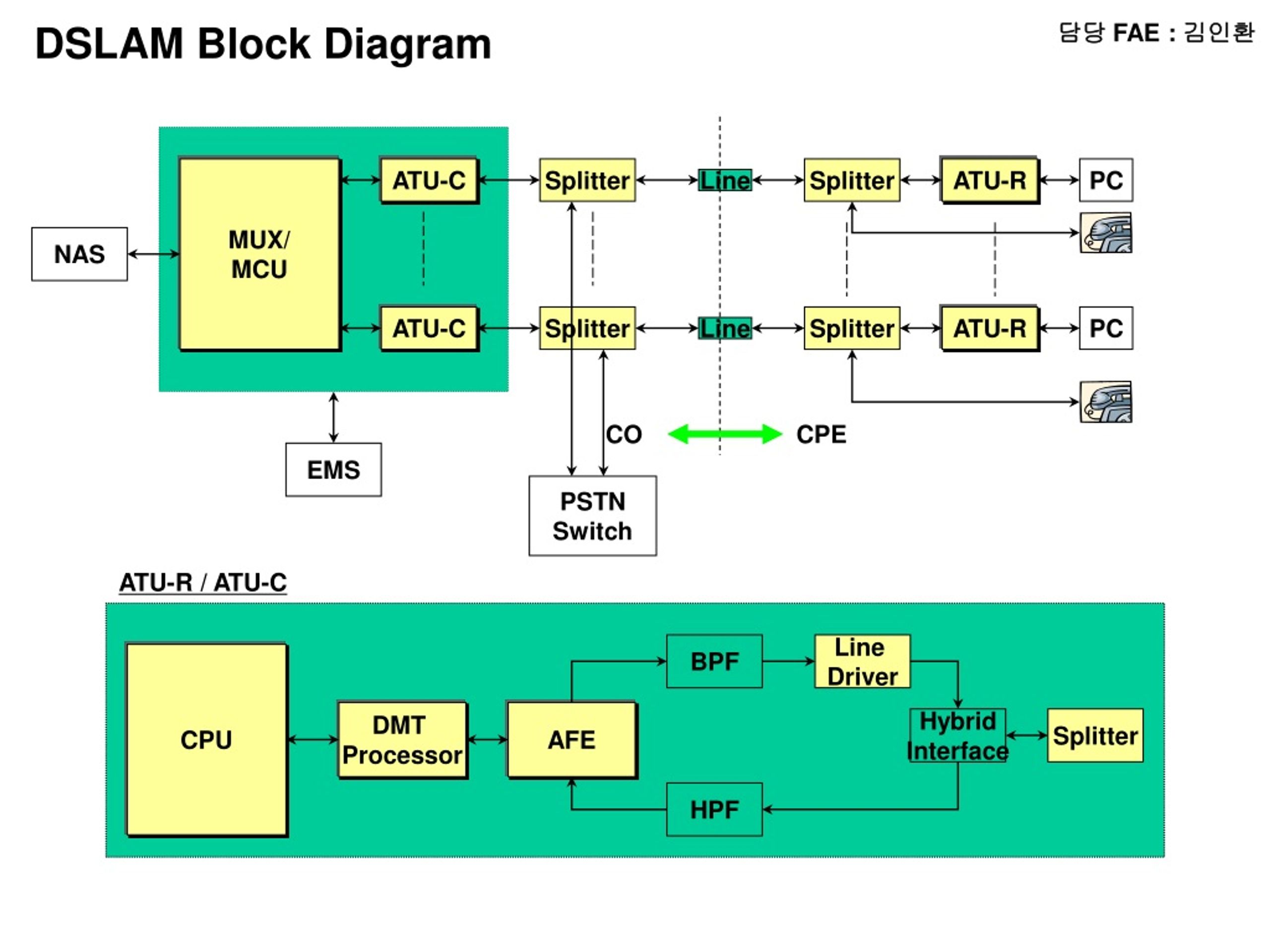

  19. DSLAM Block Diagram 담당 FAE : 김인환 MUX/ MCU ATU-C Splitter Splitter ATU-R PC Line NAS ATU-C Splitter Splitter ATU-R PC Line CO CPE EMS PSTN Switch ATU-R / ATU-C BPF Line Driver CPU DMT Processor AFE Hybrid Interface Splitter HPF

  20. 담당 FAE : 김인환 Cable Modem Block Diagram Flash SDRAM Single Chip Cable Modem IC CPU/MODEM/Interface USB UPSTREAM TUNER Console RS232C DOWNSTREAM Etherner RJ45/Transformer POWER Block

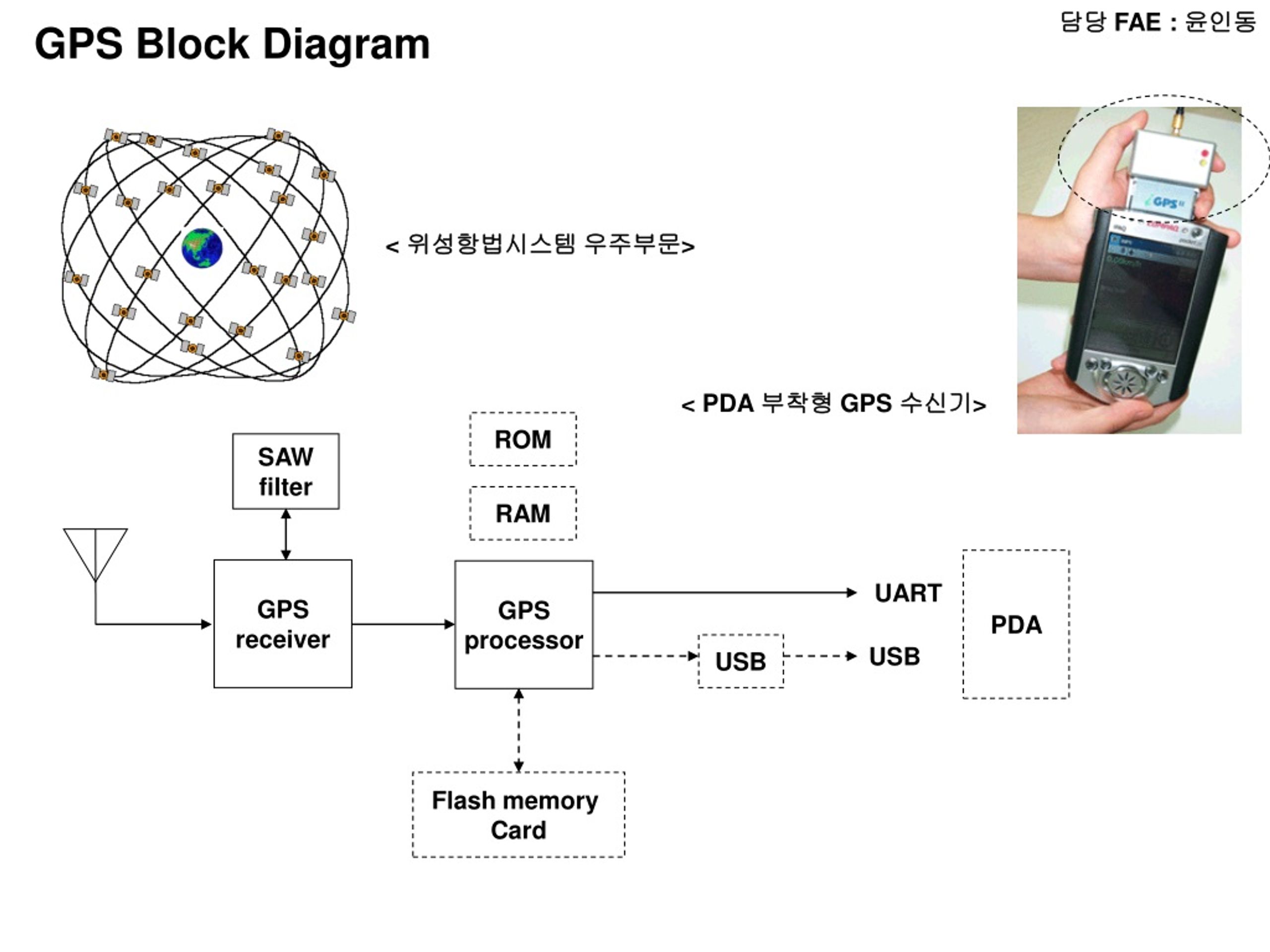

  21. 담당 FAE : 윤인동 GPS Block Diagram < 위성항법시스템 우주부문> < PDA 부착형 GPS 수신기> ROM SAW filter RAM PDA GPS receiver GPS processor UART USB USB Flash memory Card

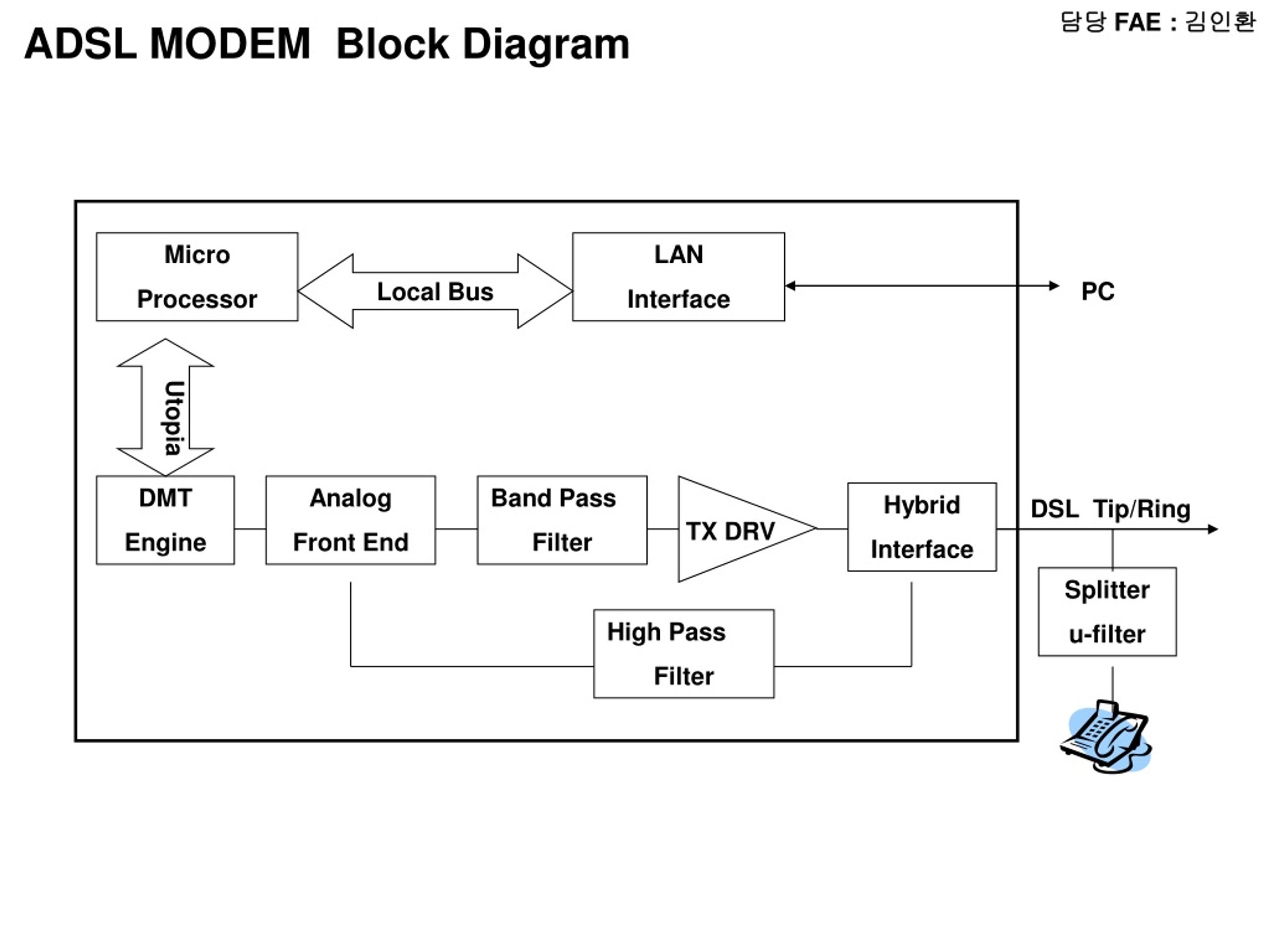

  22. 담당 FAE : 김인환 ADSL MODEM Block Diagram Micro Processor LAN Interface Local Bus PC Utopia DMT Engine Analog Front End Band Pass Filter Hybrid Interface DSL Tip/Ring TX DRV Splitter u-filter High Pass Filter

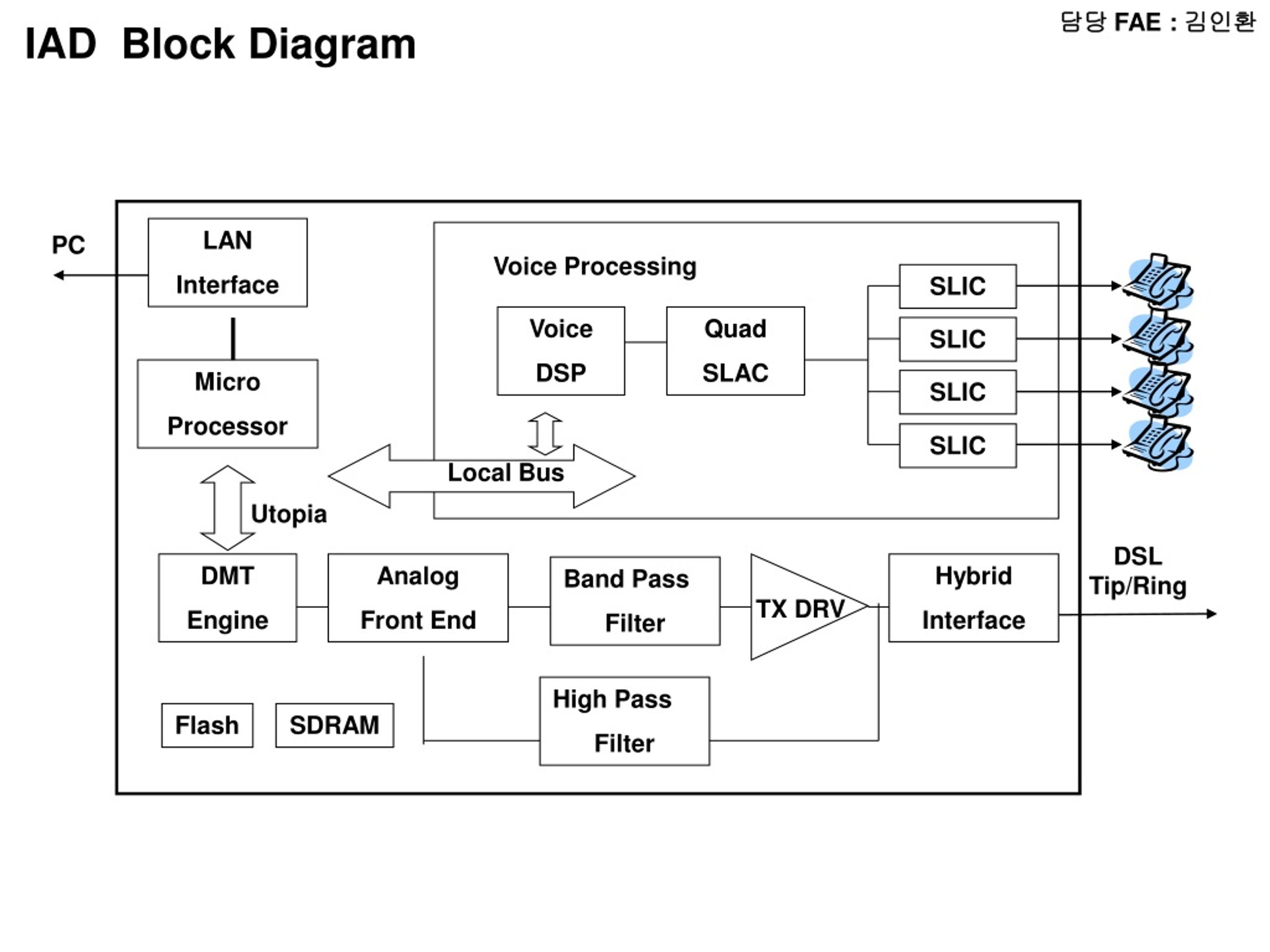

  23. 담당 FAE : 김인환 IAD Block Diagram LAN Interface PC Voice Processing SLIC Voice DSP Quad SLAC SLIC Micro Processor SLIC SLIC Local Bus Utopia DSL Tip/Ring DMT Engine Analog Front End Hybrid Interface Band Pass Filter TX DRV High Pass Filter Flash SDRAM

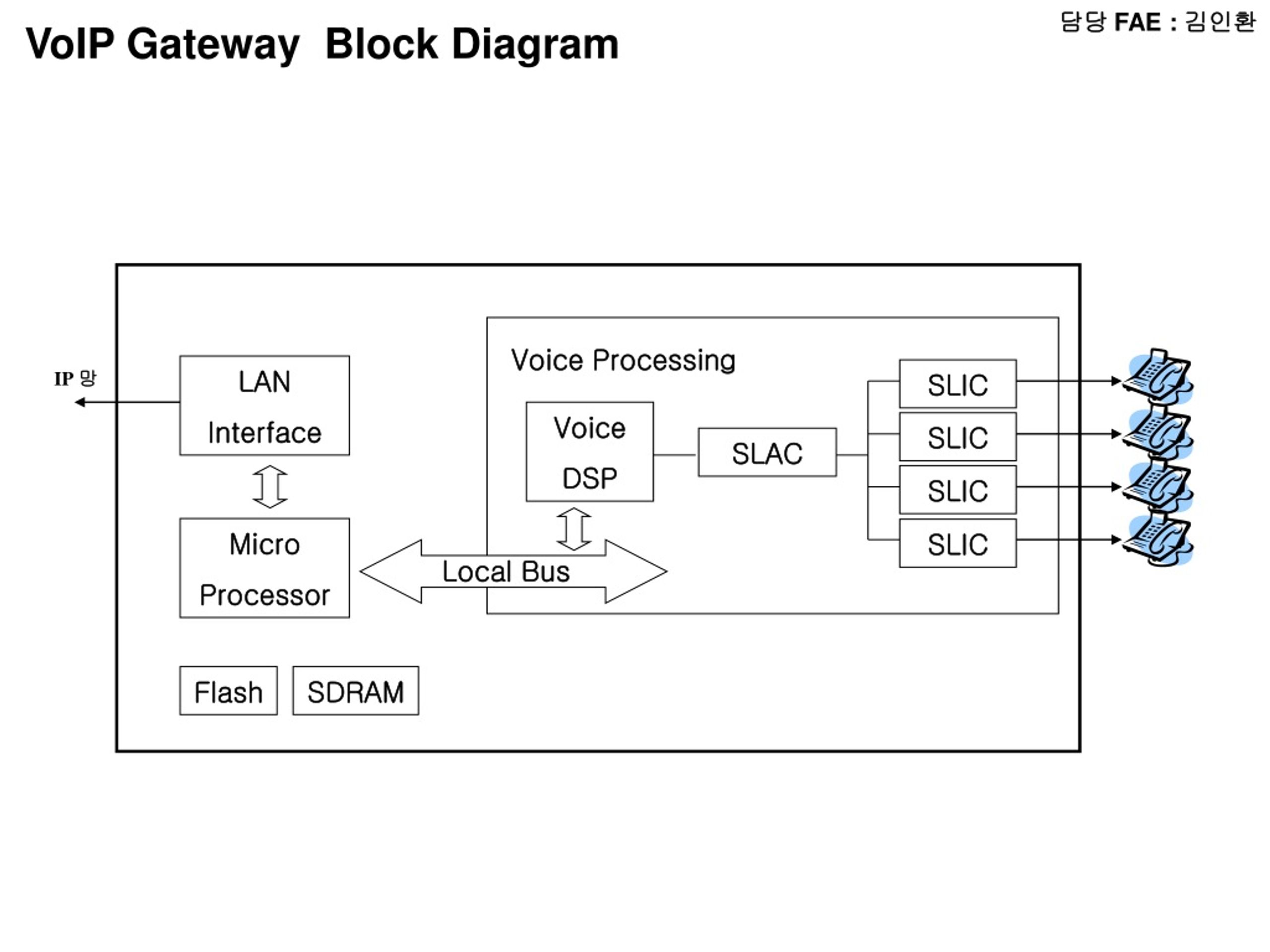

  24. 담당 FAE : 김인환 VoIP Gateway Block Diagram Voice Processing LAN Interface IP 망 SLIC Voice DSP SLIC SLAC SLIC Micro Processor SLIC Local Bus Flash SDRAM

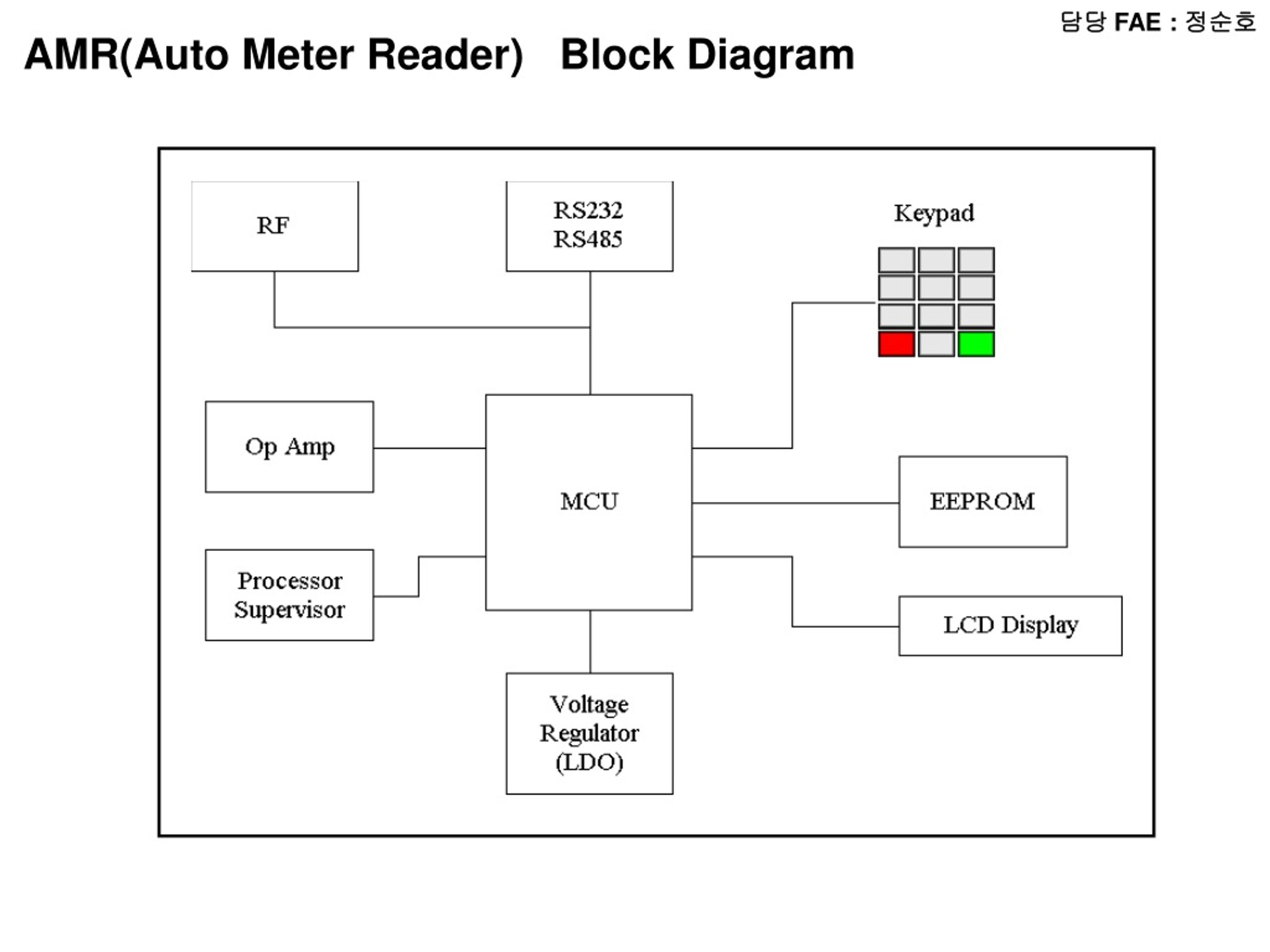

  25. 담당 FAE : 정순호 AMR(Auto Meter Reader) Block Diagram

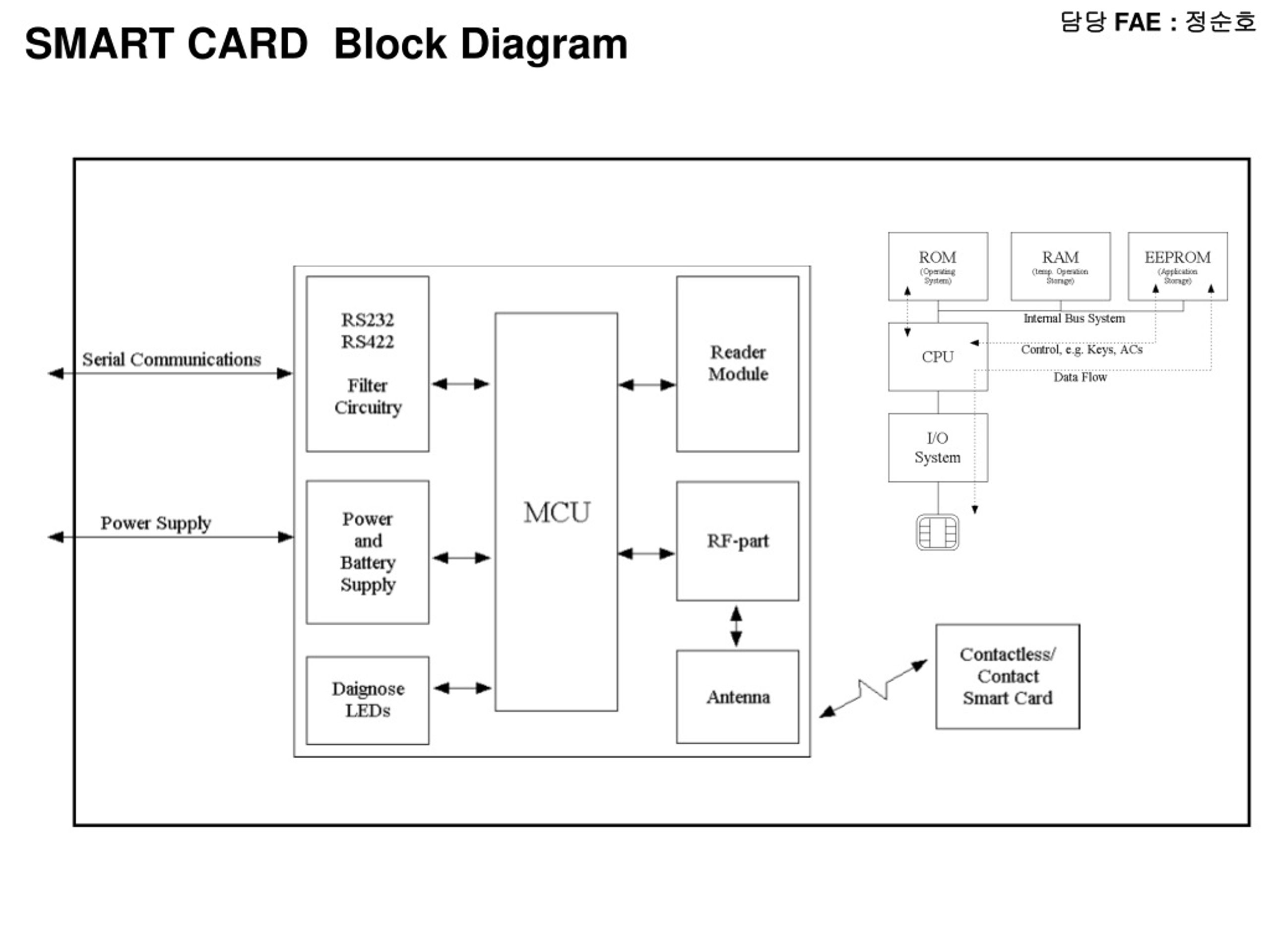

  26. 담당 FAE : 정순호 SMART CARD Block Diagram

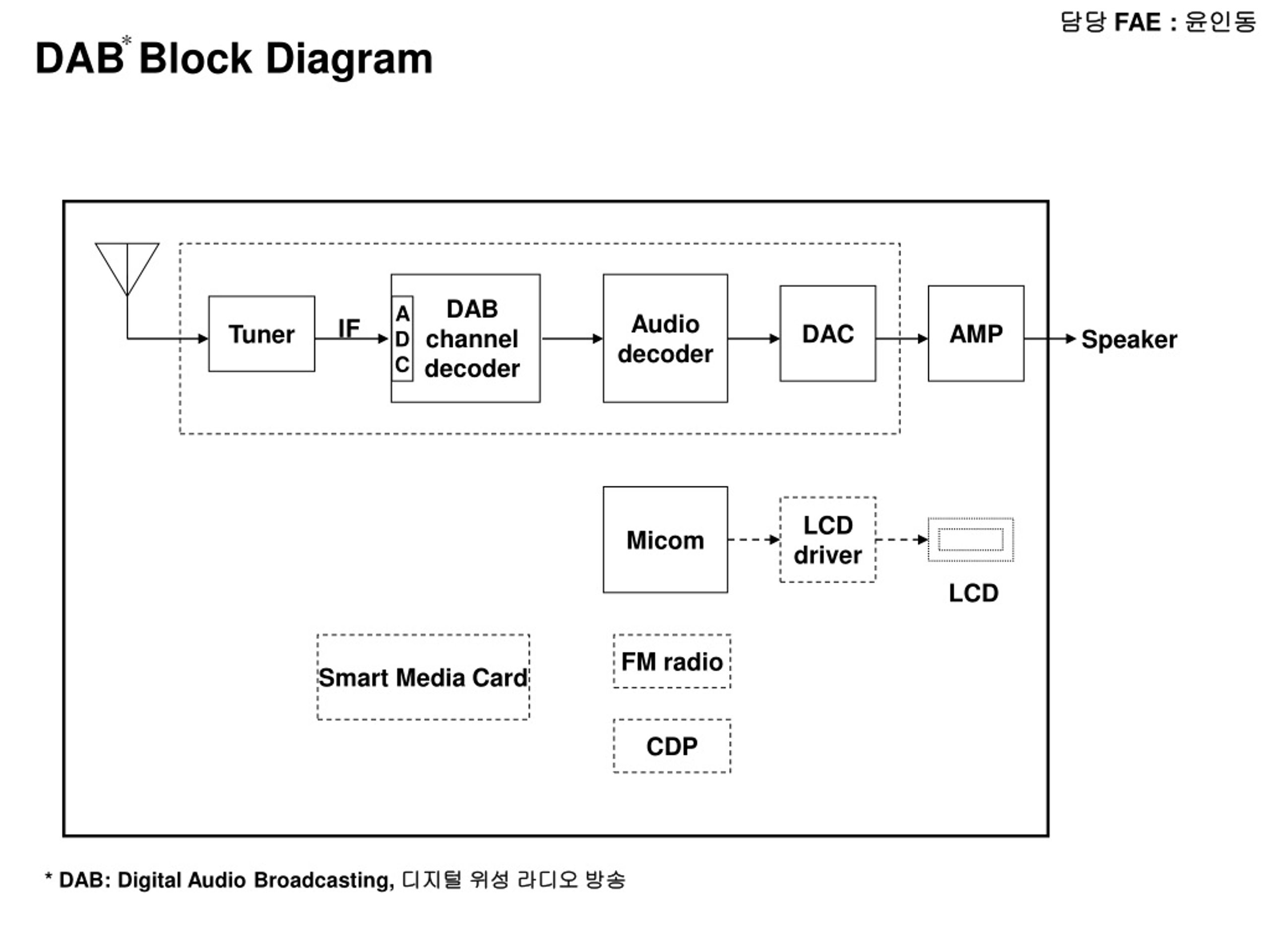

  27. 담당 FAE : 윤인동 * DAB Block Diagram DAB channel decoder Audio decoder DAC AMP Tuner A D C IF Speaker Micom LCD driver LCD Smart Media Card FM radio CDP * DAB: Digital Audio Broadcasting, 디지털 위성 라디오 방송

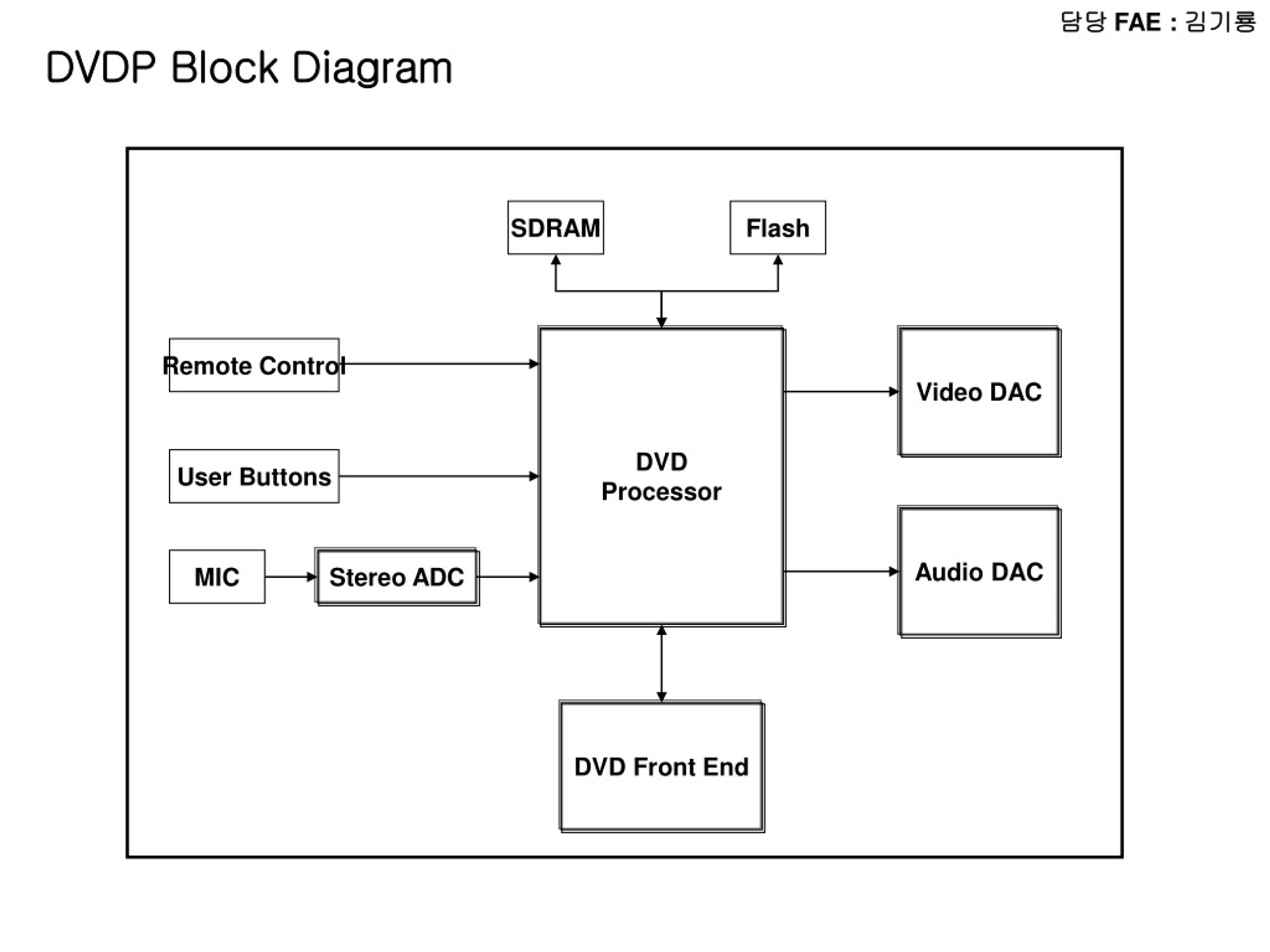

  28. 담당 FAE : 김기룡 DVDP Block Diagram SDRAM Flash DVD Processor Video DAC Remote Control User Buttons Audio DAC MIC Stereo ADC DVD Front End

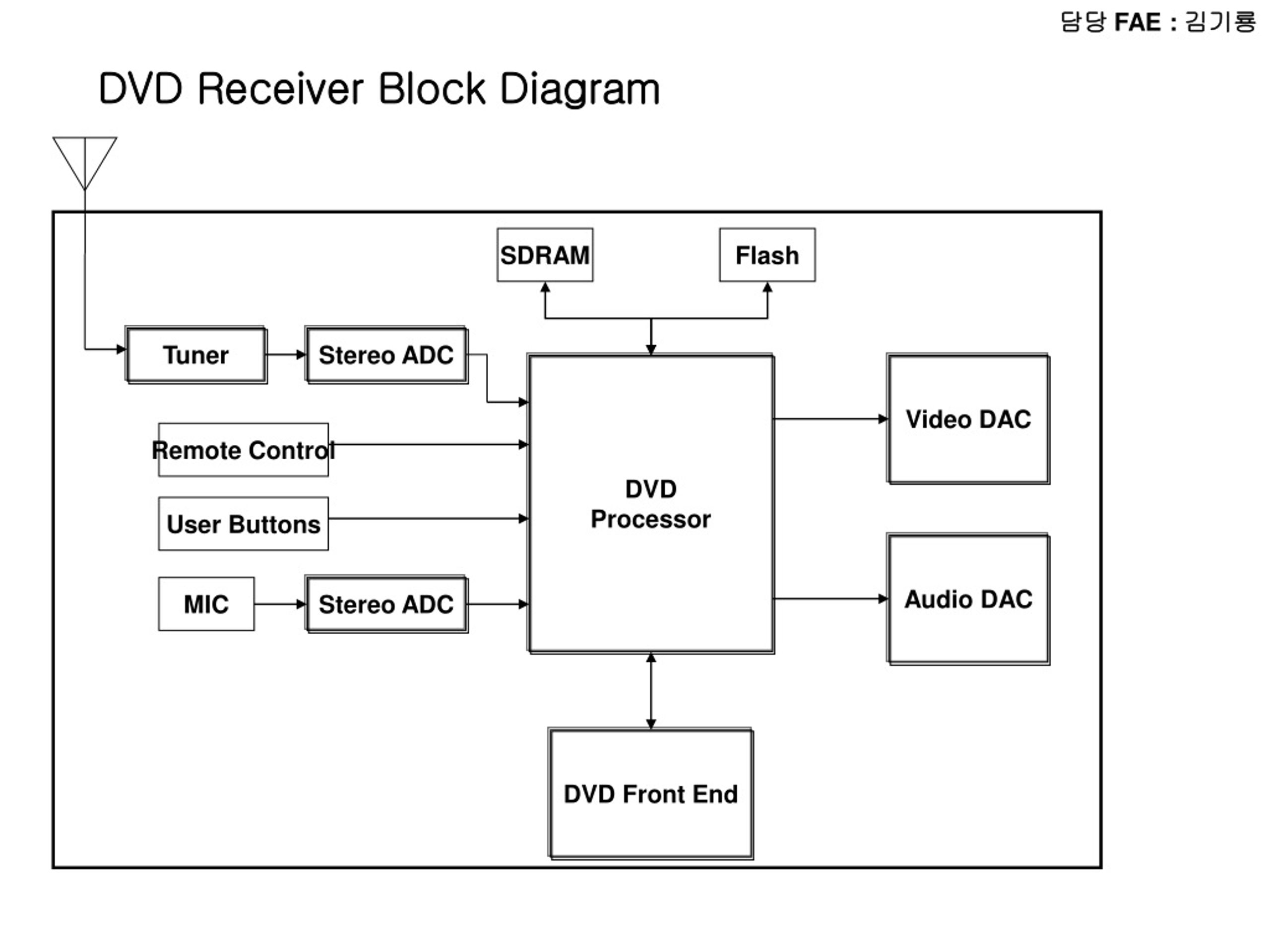

  29. 담당 FAE : 김기룡 DVD Receiver Block Diagram SDRAM Flash Tuner Stereo ADC DVD Processor Video DAC Remote Control User Buttons Audio DAC MIC Stereo ADC DVD Front End

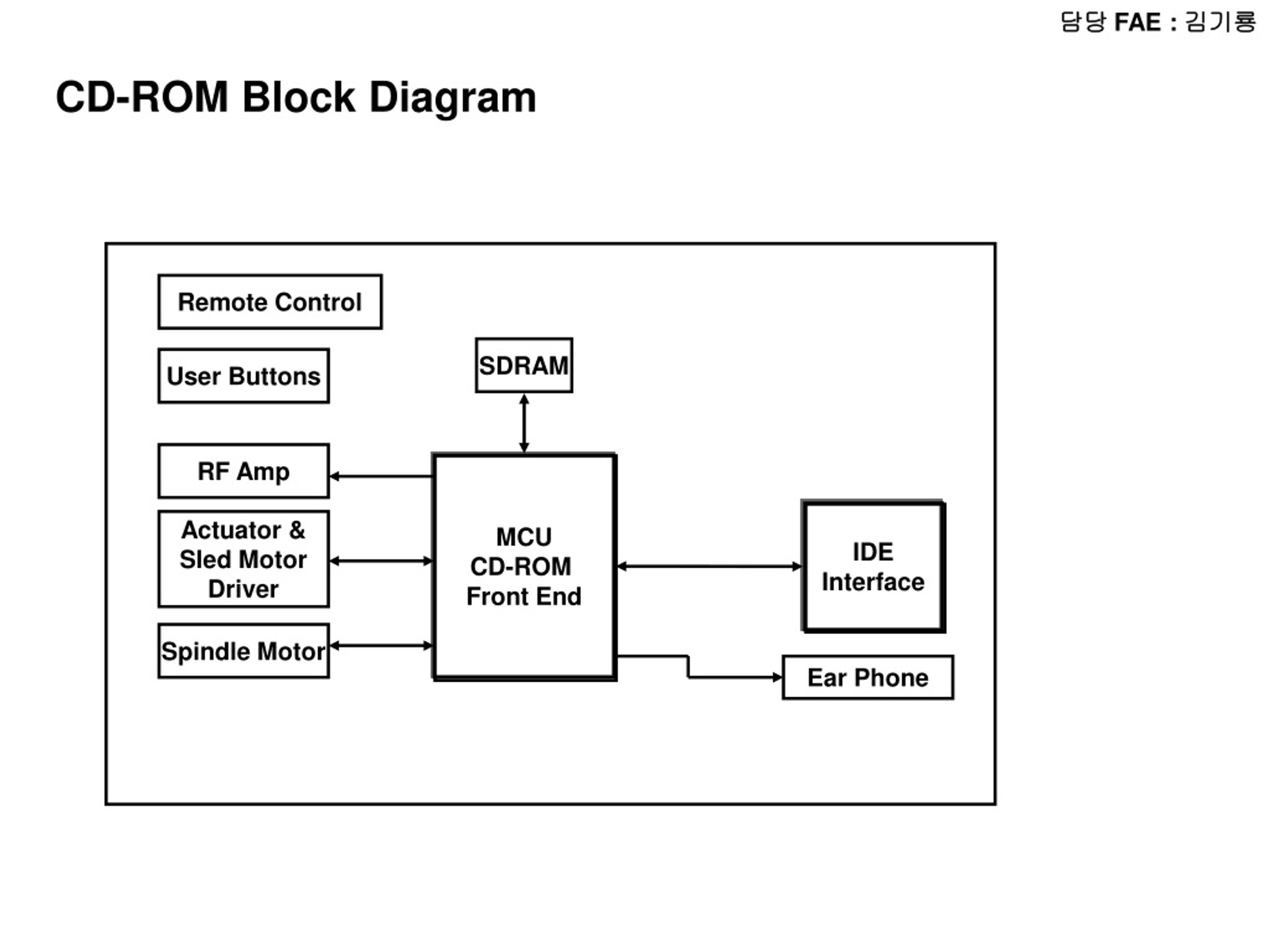

  30. 담당 FAE : 김기룡 CD-ROM Block Diagram Remote Control SDRAM User Buttons RF Amp MCU CD-ROM Front End IDE Interface Actuator & Sled Motor Driver Spindle Motor Ear Phone

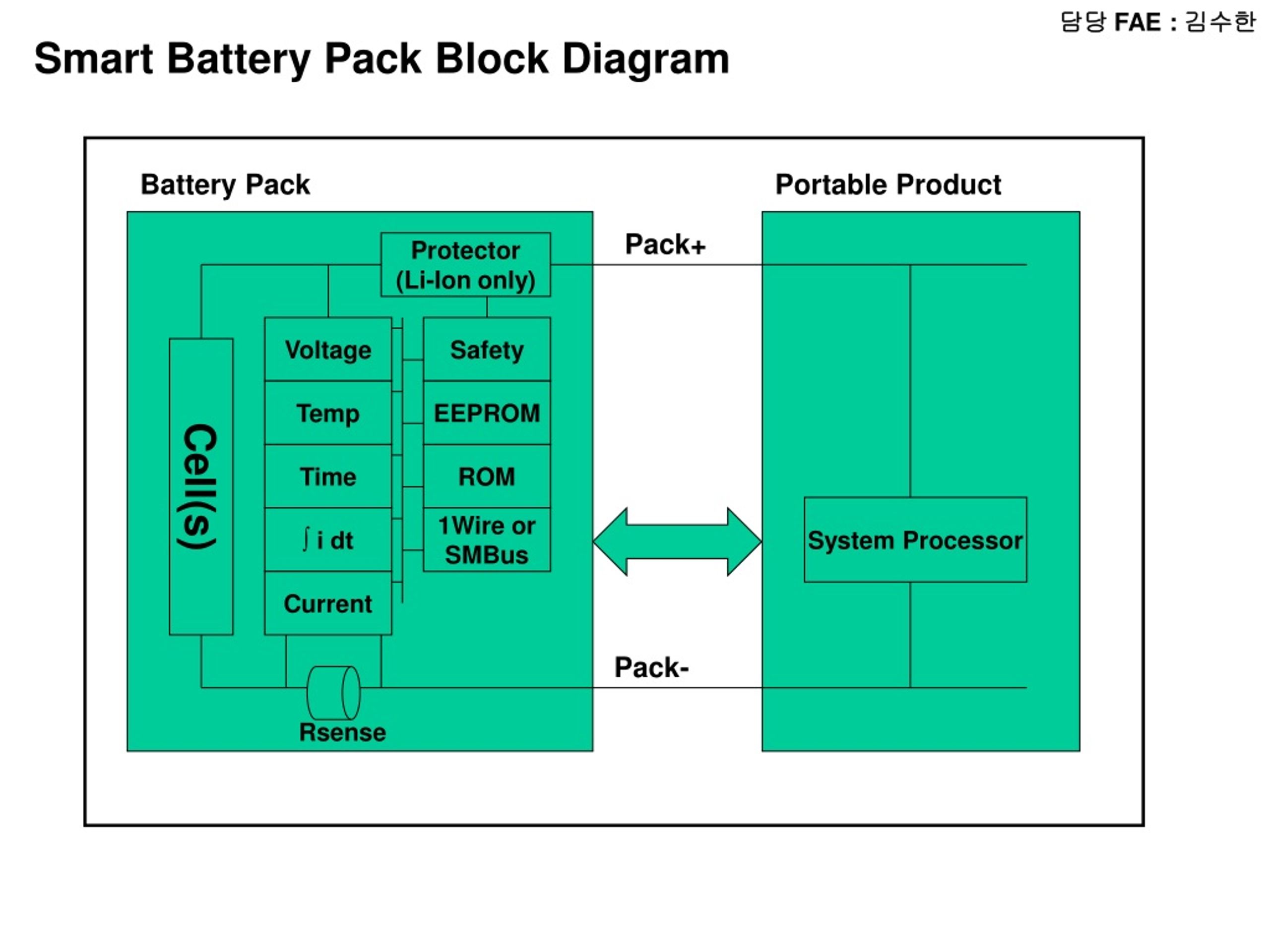

  31. 담당 FAE : 김수한 Smart Battery Pack Block Diagram Battery Pack Portable Product Pack+ Protector (Li-Ion only) Voltage Safety Cell(s) Temp EEPROM Time ROM System Processor ∫ i dt 1Wire or SMBus Current Pack- Rsense

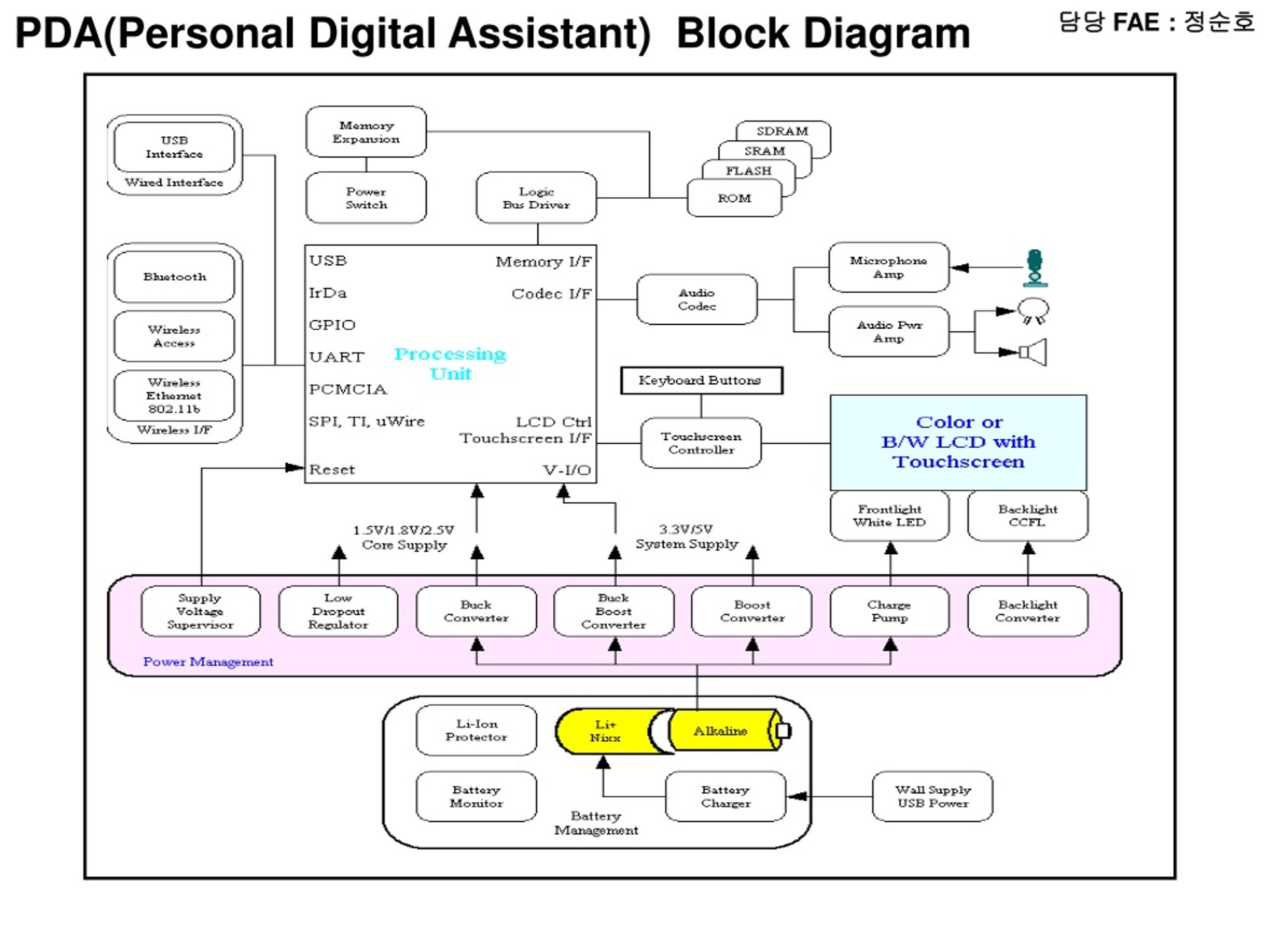

  32. PDA(Personal Digital Assistant) Block Diagram 담당 FAE : 정순호

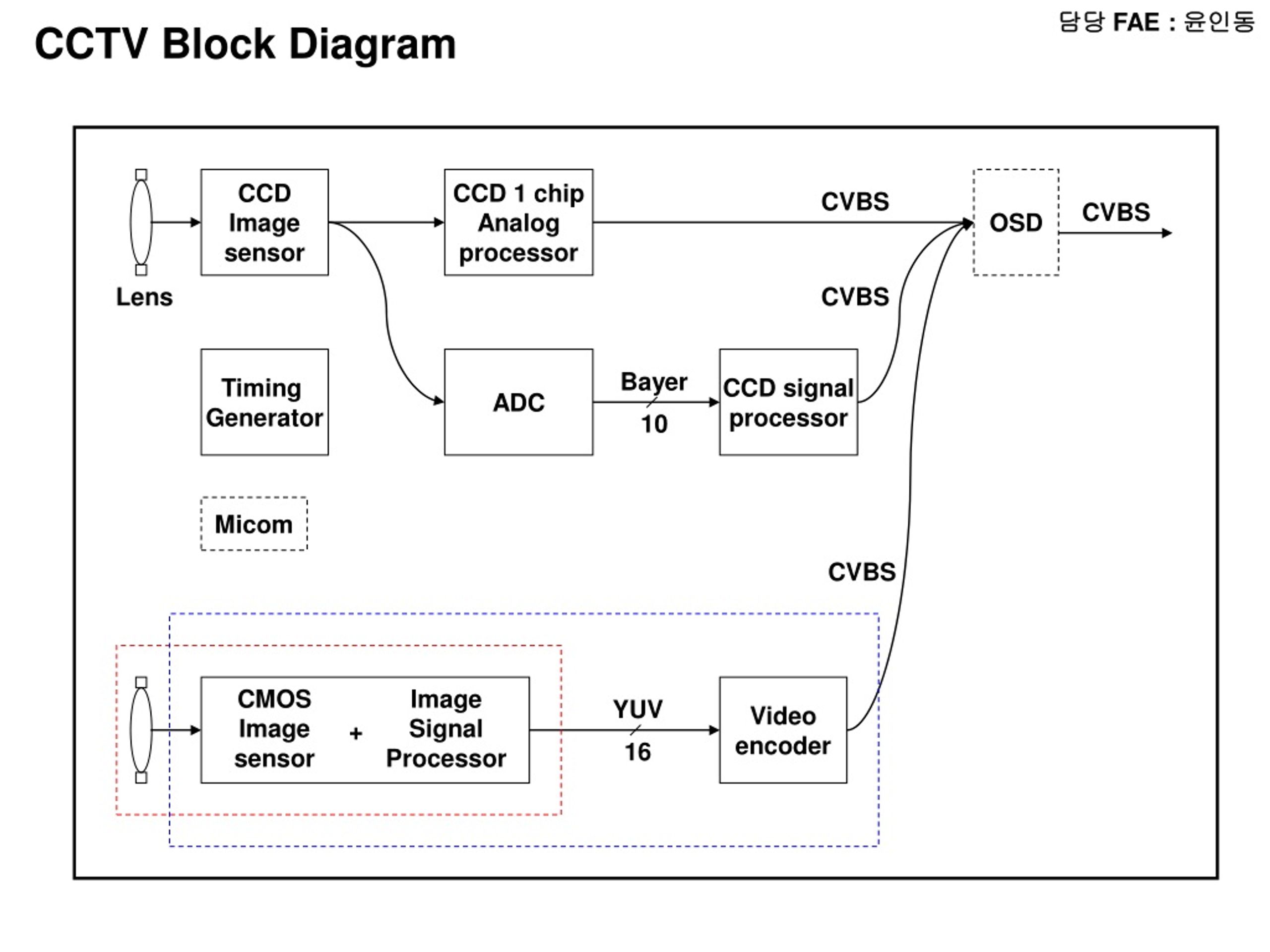

  33. 담당 FAE : 윤인동 CCTV Block Diagram CCD Image sensor CCD 1 chip Analog processor OSD CVBS CVBS Lens CVBS Timing Generator ADC CCD signal processor Bayer 10 Micom CVBS CMOS Image sensor Image Signal Processor Video encoder YUV + 16

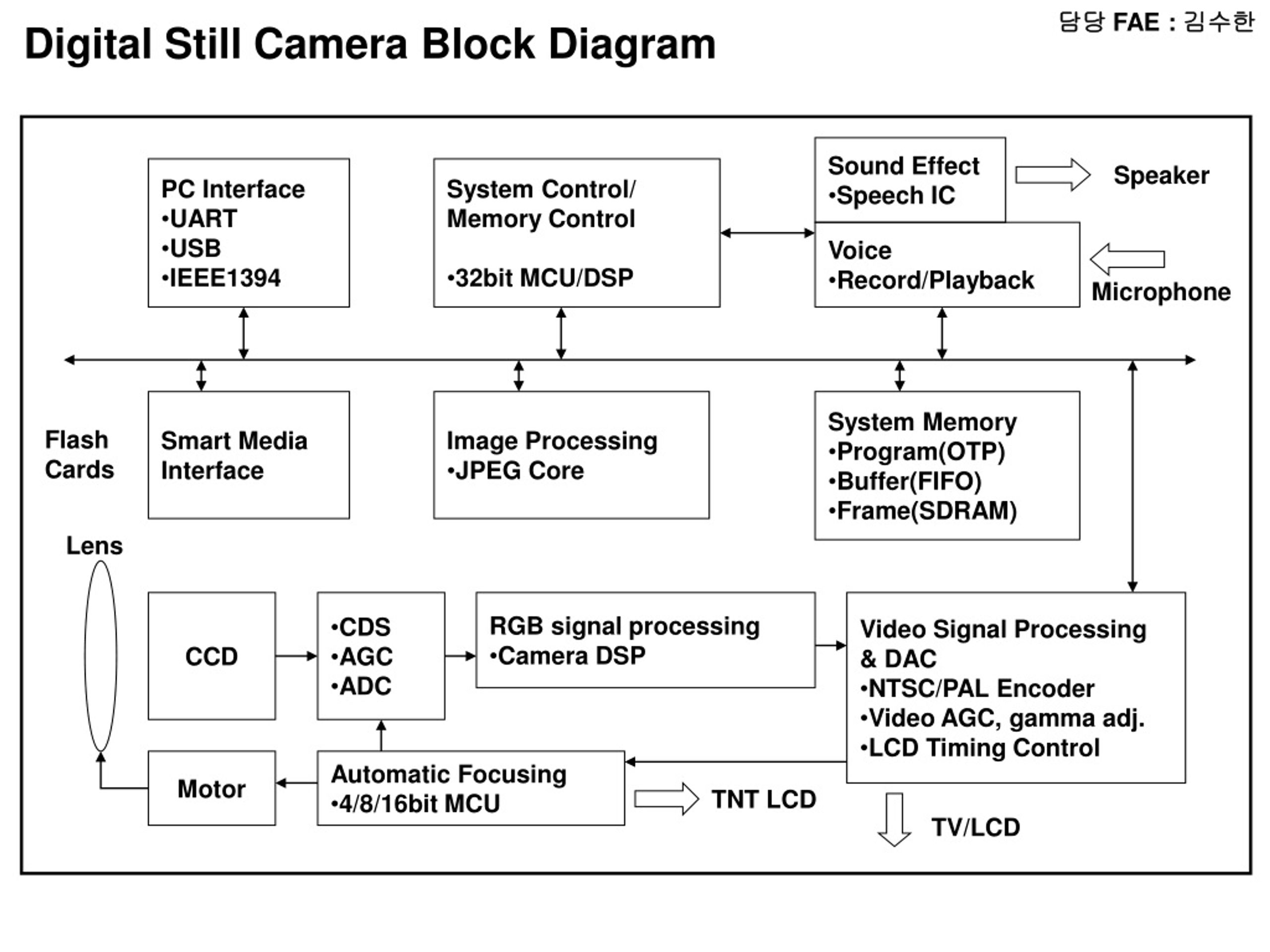

  34. 담당 FAE : 김수한 Digital Still Camera Block Diagram • Sound Effect • Speech IC Speaker • PC Interface • UART • USB • IEEE1394 • System Control/ • Memory Control • 32bit MCU/DSP • Voice • Record/Playback Microphone Smart Media Interface • Image Processing • JPEG Core • System Memory • Program(OTP) • Buffer(FIFO) • Frame(SDRAM) Flash Cards Lens CCD • CDS • AGC • ADC • RGB signal processing • Camera DSP • Video Signal Processing • & DAC • NTSC/PAL Encoder • Video AGC, gamma adj. • LCD Timing Control Motor • Automatic Focusing • 4/8/16bit MCU TNT LCD TV/LCD

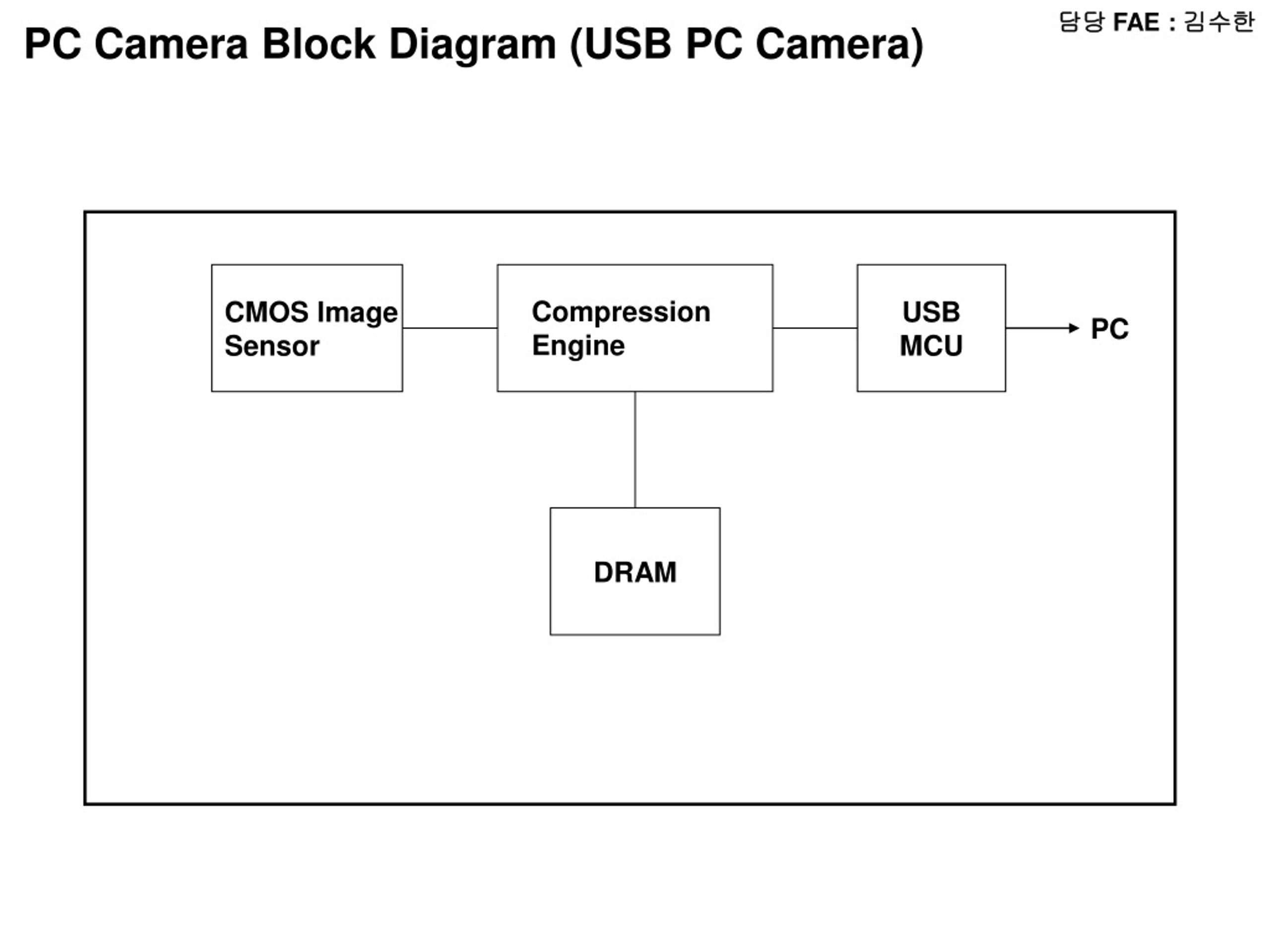

  35. 담당 FAE : 김수한 PC Camera Block Diagram (USB PC Camera) CMOS Image Sensor USB MCU Compression Engine PC DRAM

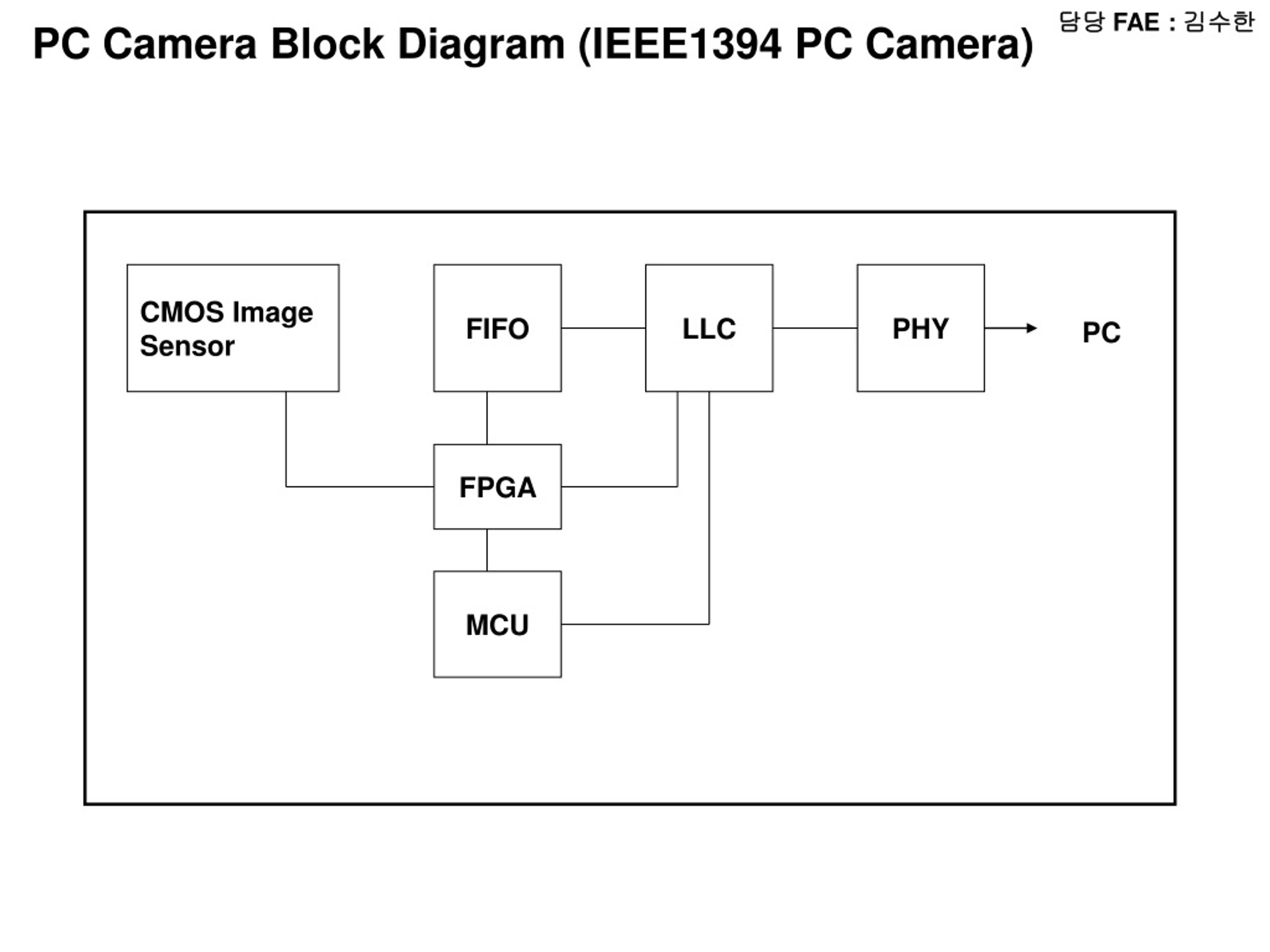

  36. 담당 FAE : 김수한 PC Camera Block Diagram (IEEE1394 PC Camera) CMOS Image Sensor FIFO LLC PHY PC FPGA MCU

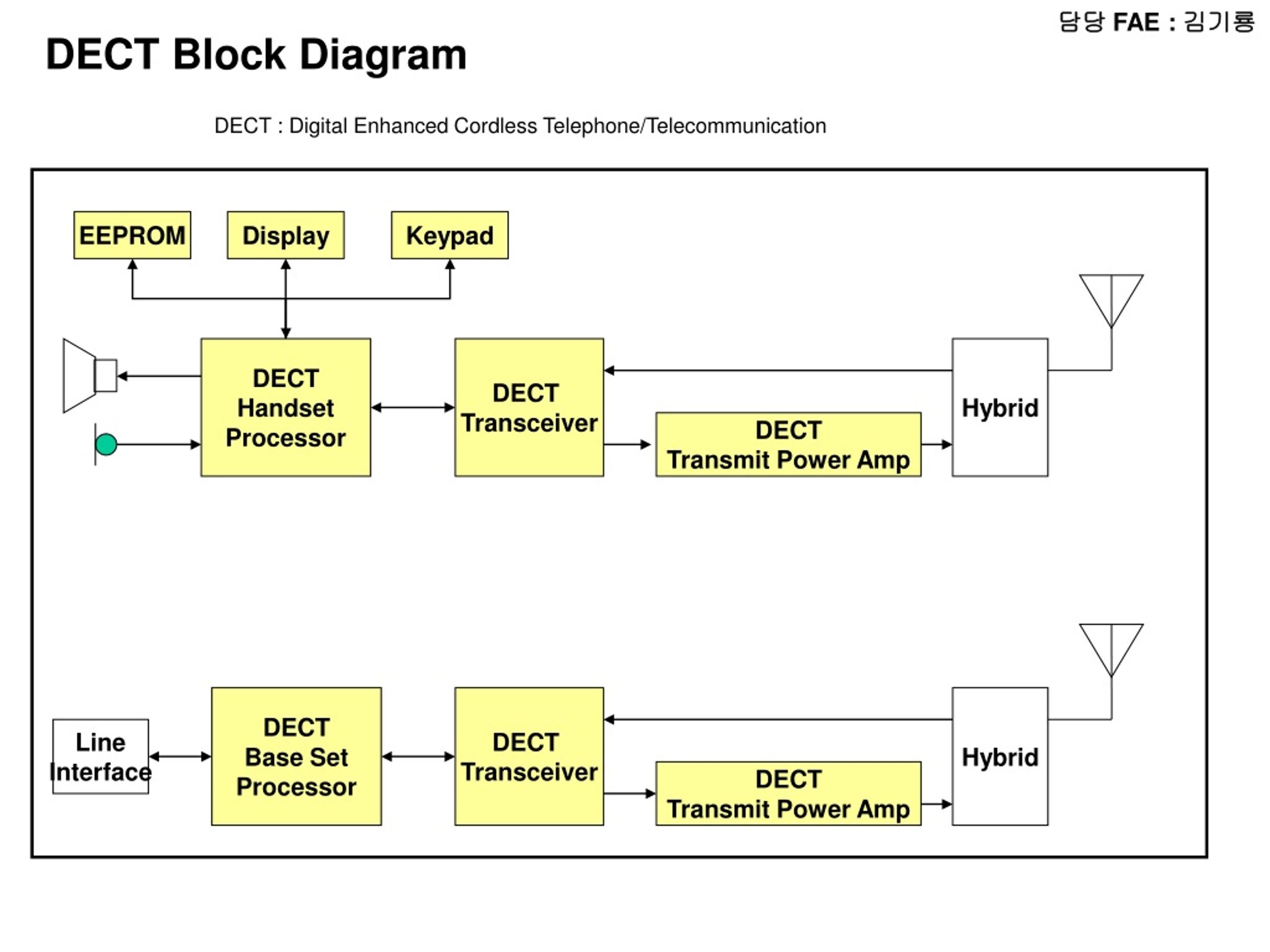

  37. 담당 FAE : 김기룡 DECT Block Diagram DECT : Digital Enhanced Cordless Telephone/Telecommunication EEPROM Display Keypad DECT Handset Processor DECT Transceiver Hybrid DECT Transmit Power Amp DECT Base Set Processor DECT Transceiver Hybrid Line Interface DECT Transmit Power Amp

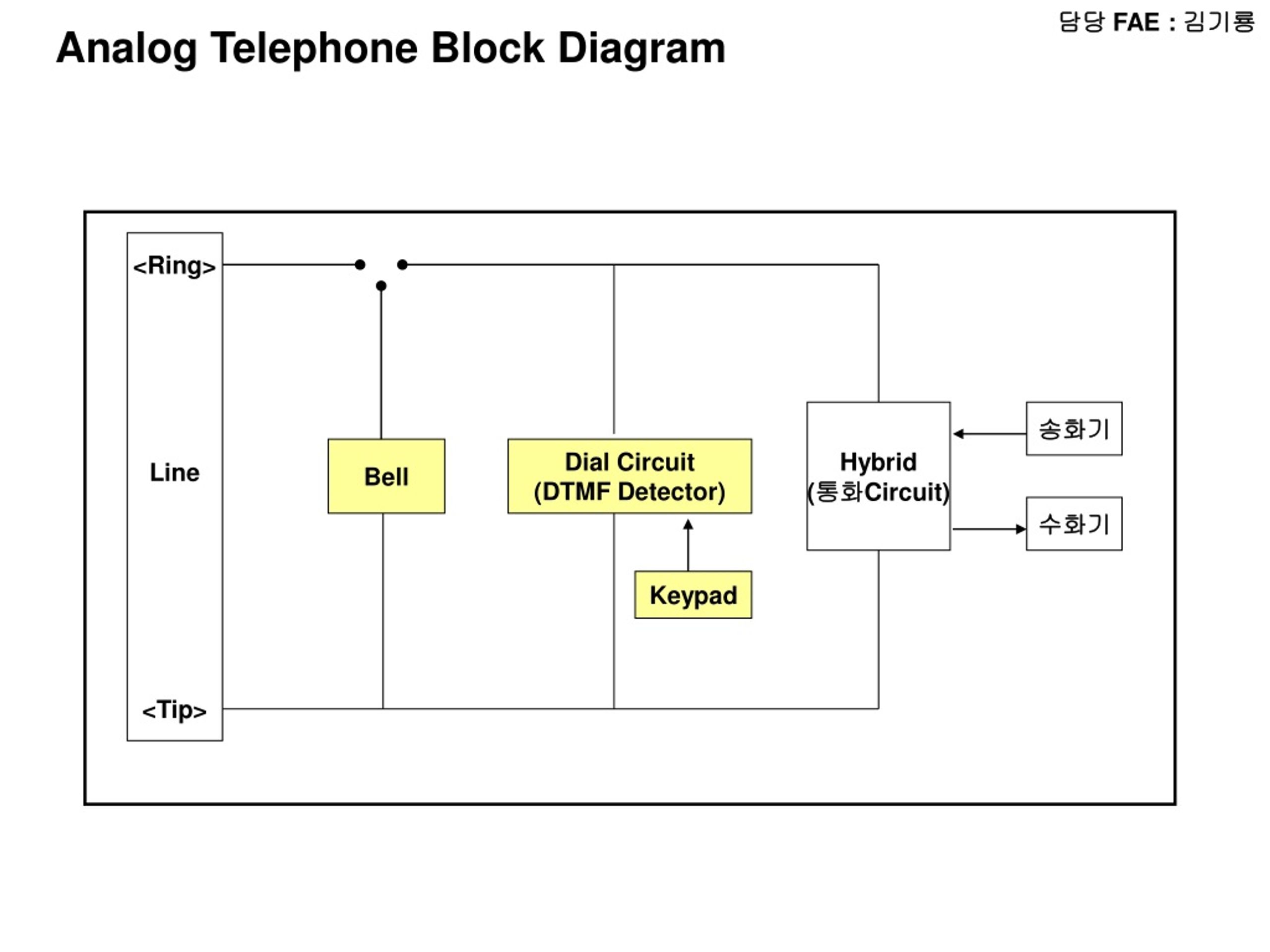

  38. 담당 FAE : 김기룡 Analog Telephone Block Diagram <Ring> Line <Tip> Hybrid (통화Circuit) 송화기 Bell Dial Circuit (DTMF Detector) 수화기 Keypad

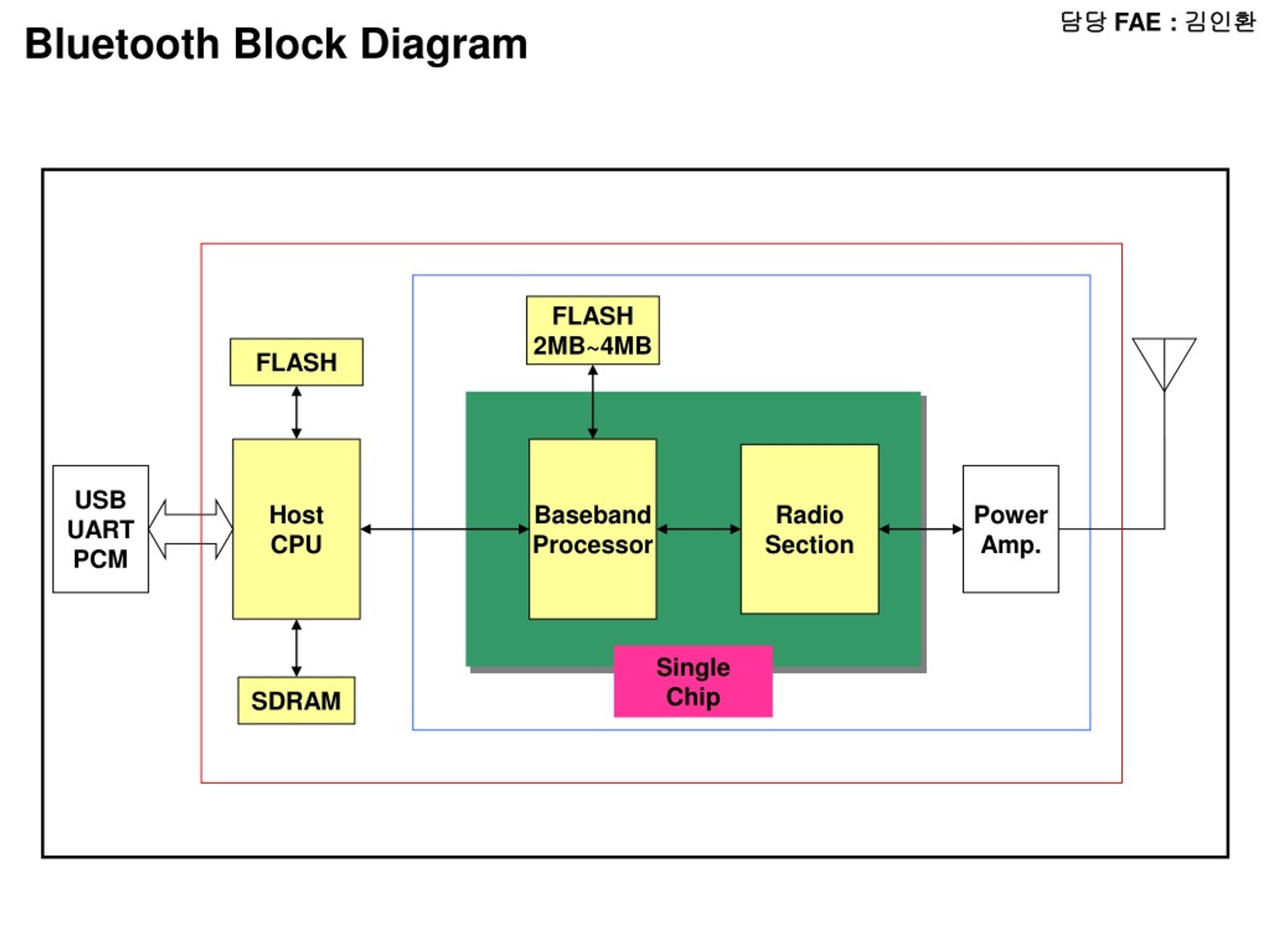

  39. 담당 FAE : 김인환 Bluetooth Block Diagram FLASH 2MB~4MB FLASH Host CPU Baseband Processor Radio Section USB UART PCM Power Amp. Single Chip SDRAM

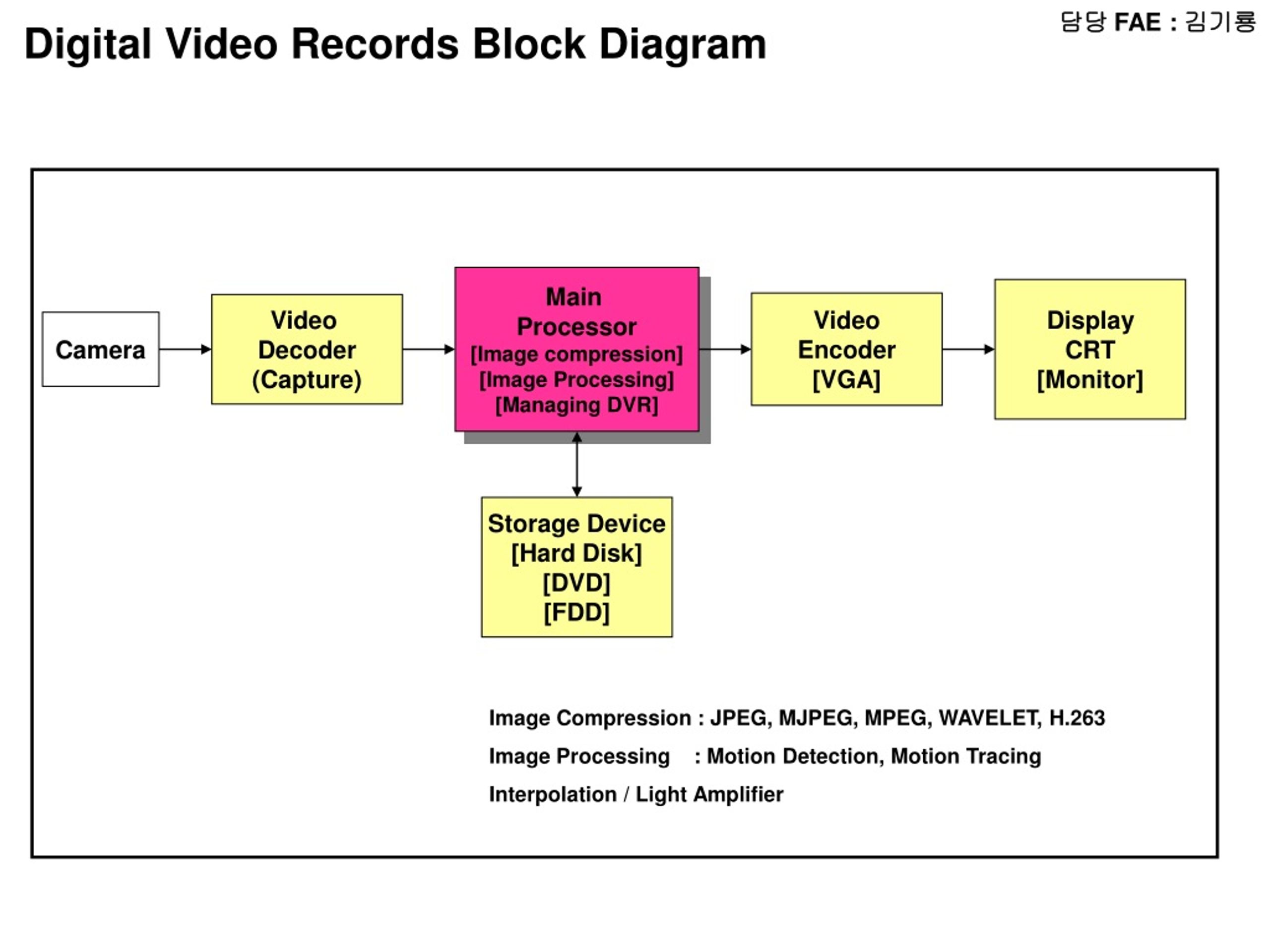

  40. 담당 FAE : 김기룡 Digital Video Records Block Diagram Main Processor [Image compression] [Image Processing] [Managing DVR] Display CRT [Monitor] Video Encoder [VGA] Video Decoder (Capture) Camera Storage Device [Hard Disk] [DVD] [FDD] Image Compression : JPEG, MJPEG, MPEG, WAVELET, H.263 Image Processing : Motion Detection, Motion Tracing Interpolation / Light Amplifier

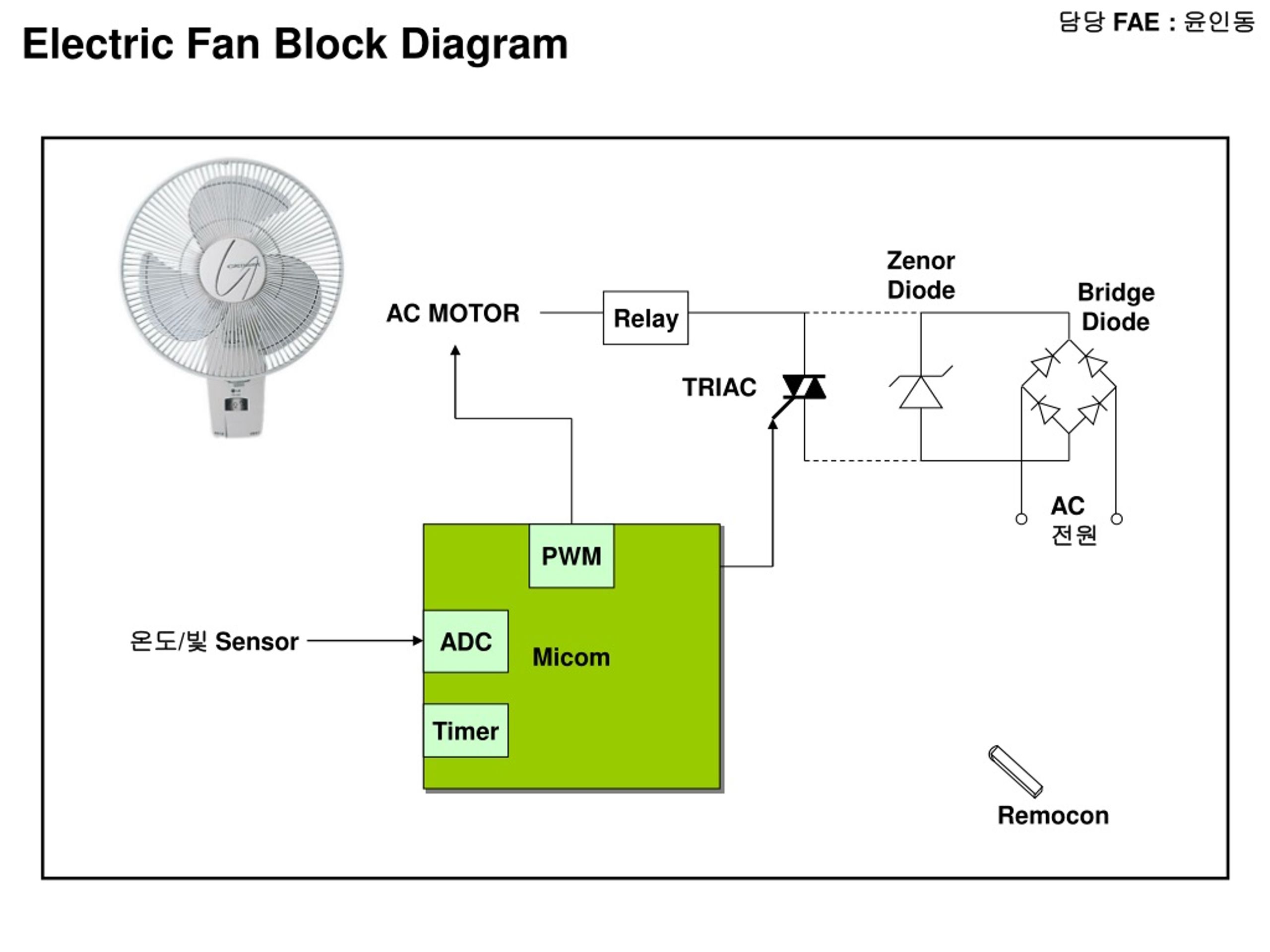

  41. 담당 FAE : 윤인동 Electric Fan Block Diagram Zenor Diode Bridge Diode AC MOTOR Relay TRIAC AC 전원 Micom PWM ADC 온도/빛 Sensor Timer Remocon

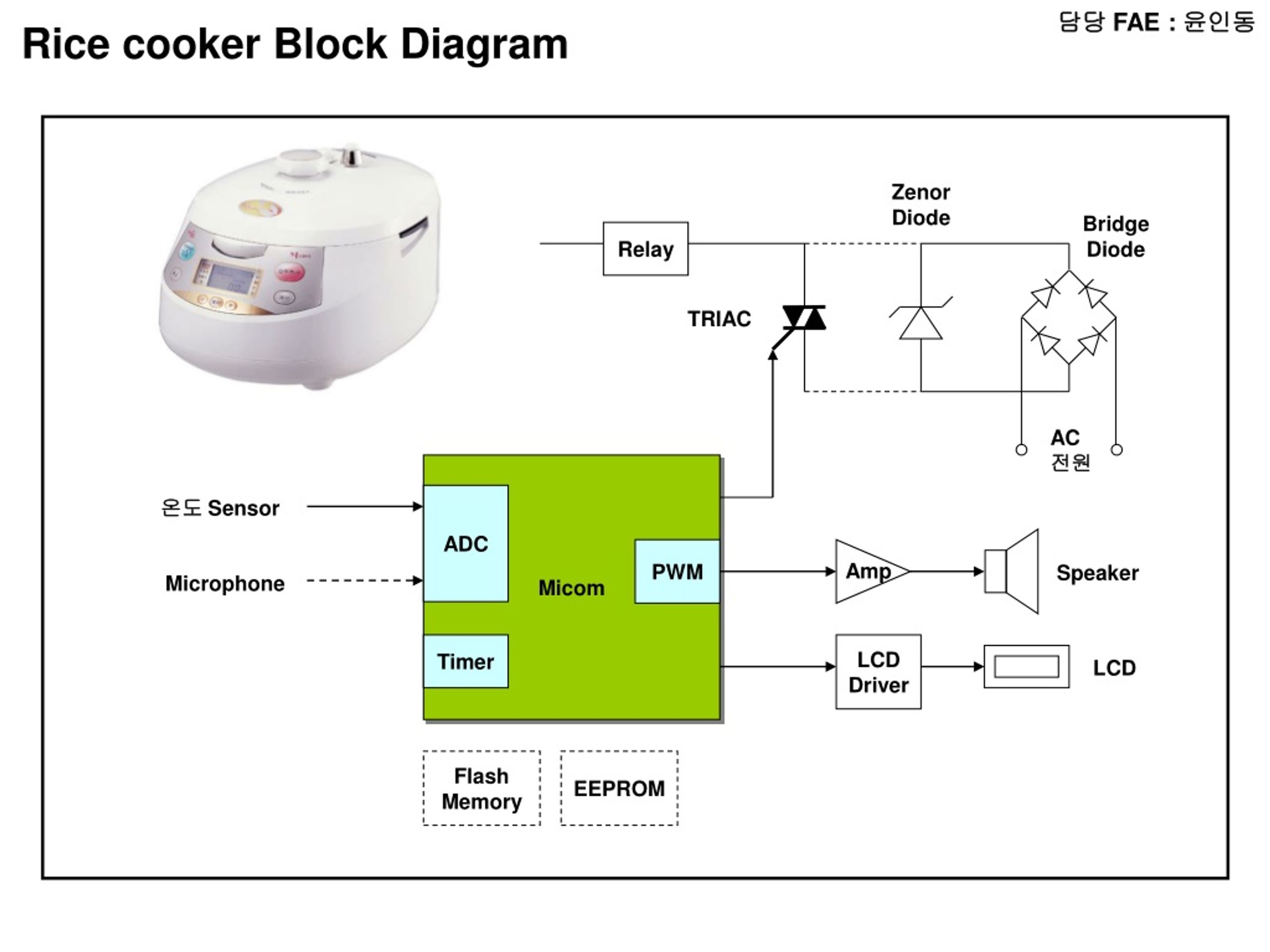

  42. 담당 FAE : 윤인동 Rice cooker Block Diagram Zenor Diode Bridge Diode Relay TRIAC AC 전원 Micom ADC 온도 Sensor PWM Amp Speaker Microphone Timer LCD Driver LCD Flash Memory EEPROM

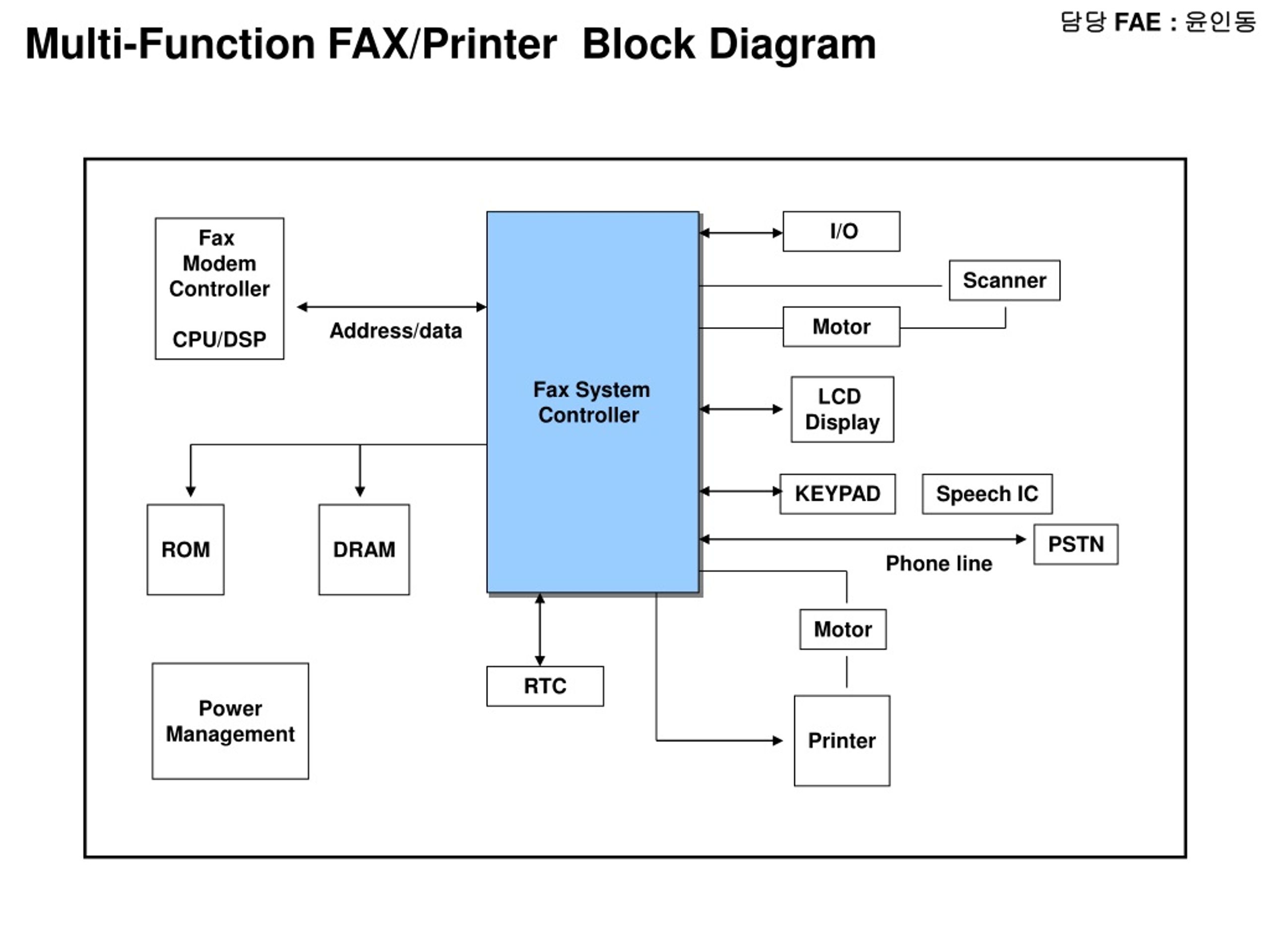

  43. 담당 FAE : 윤인동 Multi-Function FAX/Printer Block Diagram I/O Fax Modem Controller CPU/DSP Scanner Motor Address/data Fax System Controller LCD Display KEYPAD Speech IC ROM DRAM PSTN Phone line Motor Power Management RTC Printer

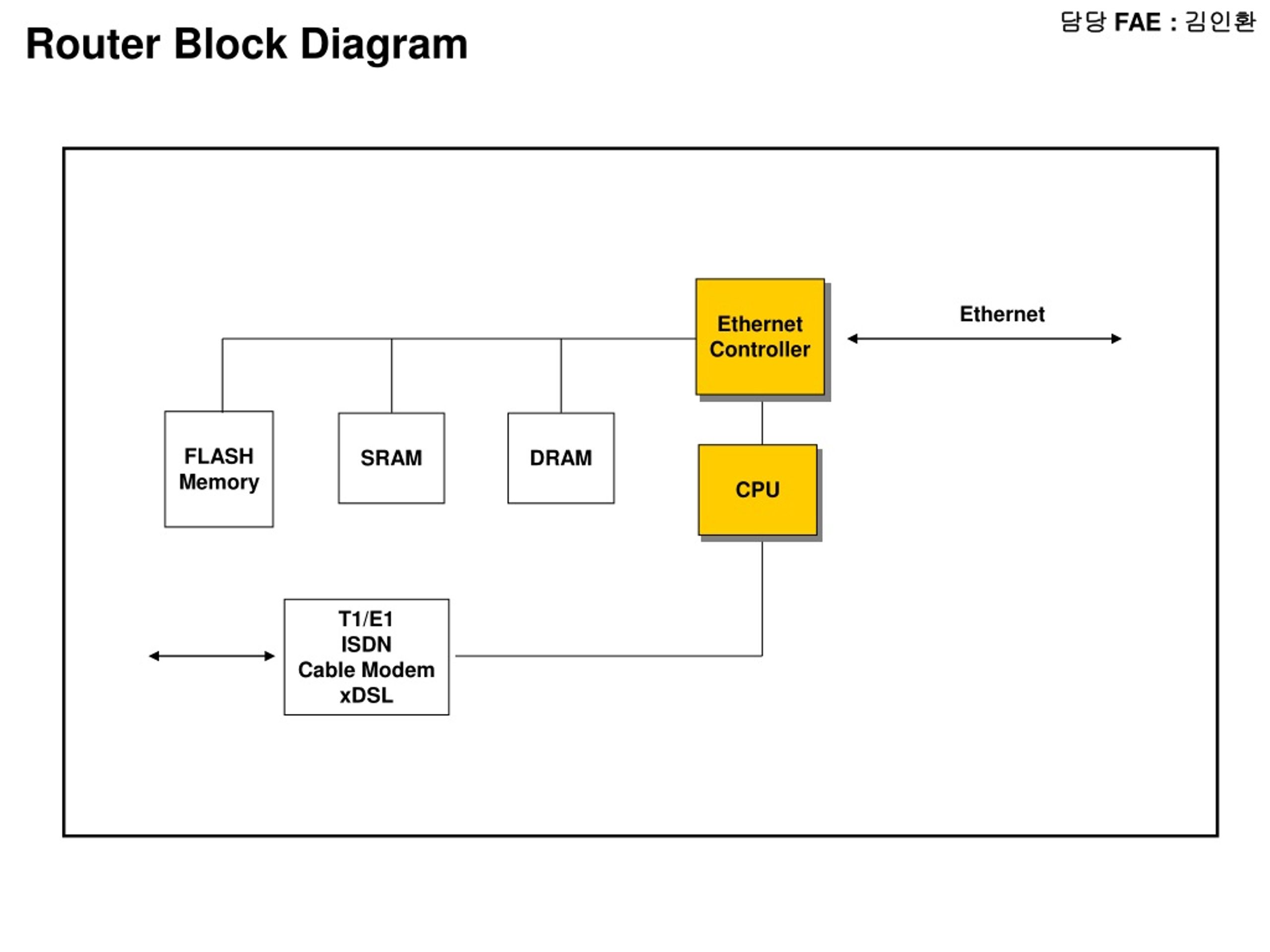

  44. 담당 FAE : 김인환 Router Block Diagram Ethernet Controller Ethernet FLASH Memory SRAM DRAM CPU T1/E1 ISDN Cable Modem xDSL

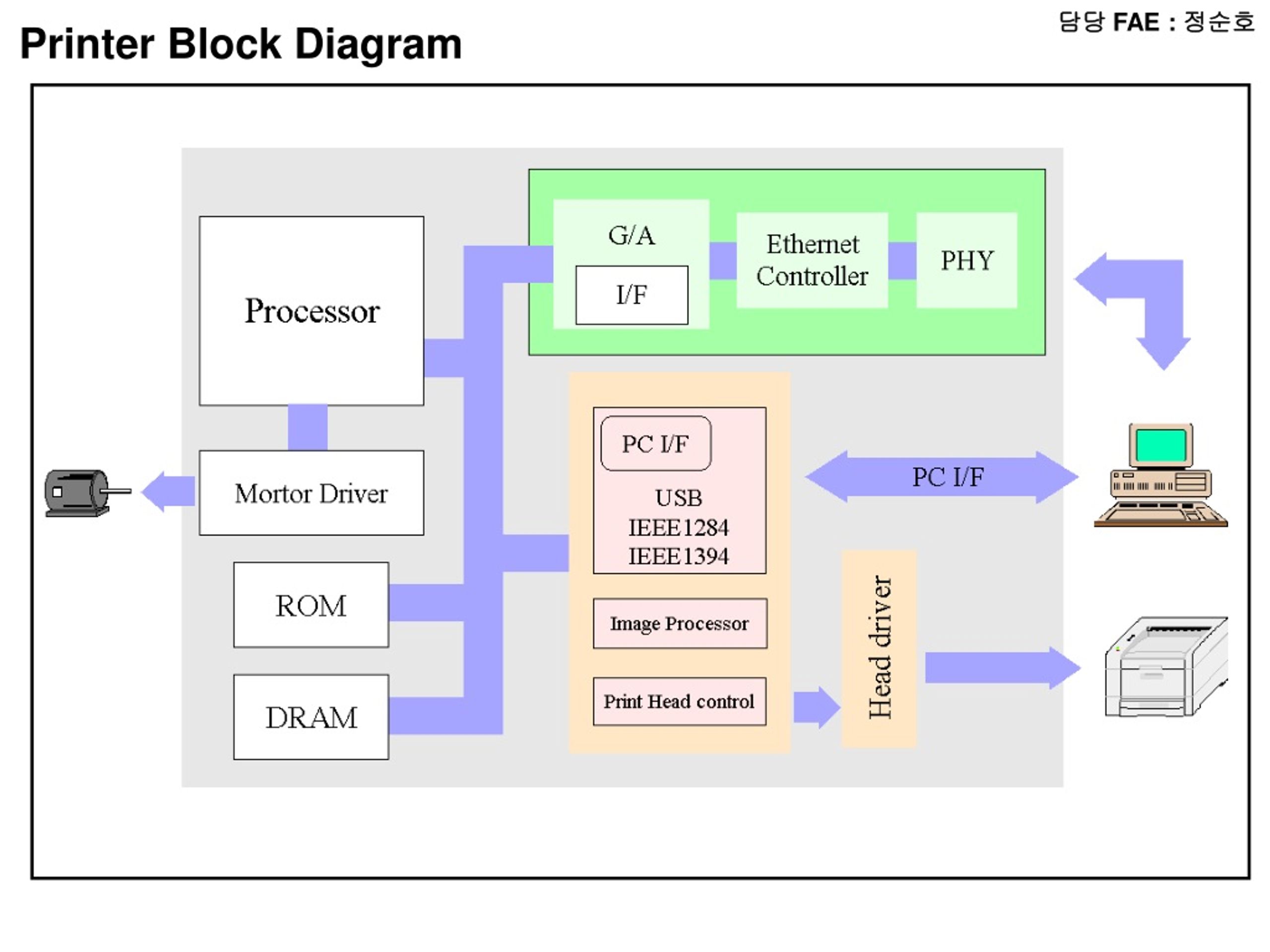

  45. 담당 FAE : 정순호 Printer Block Diagram

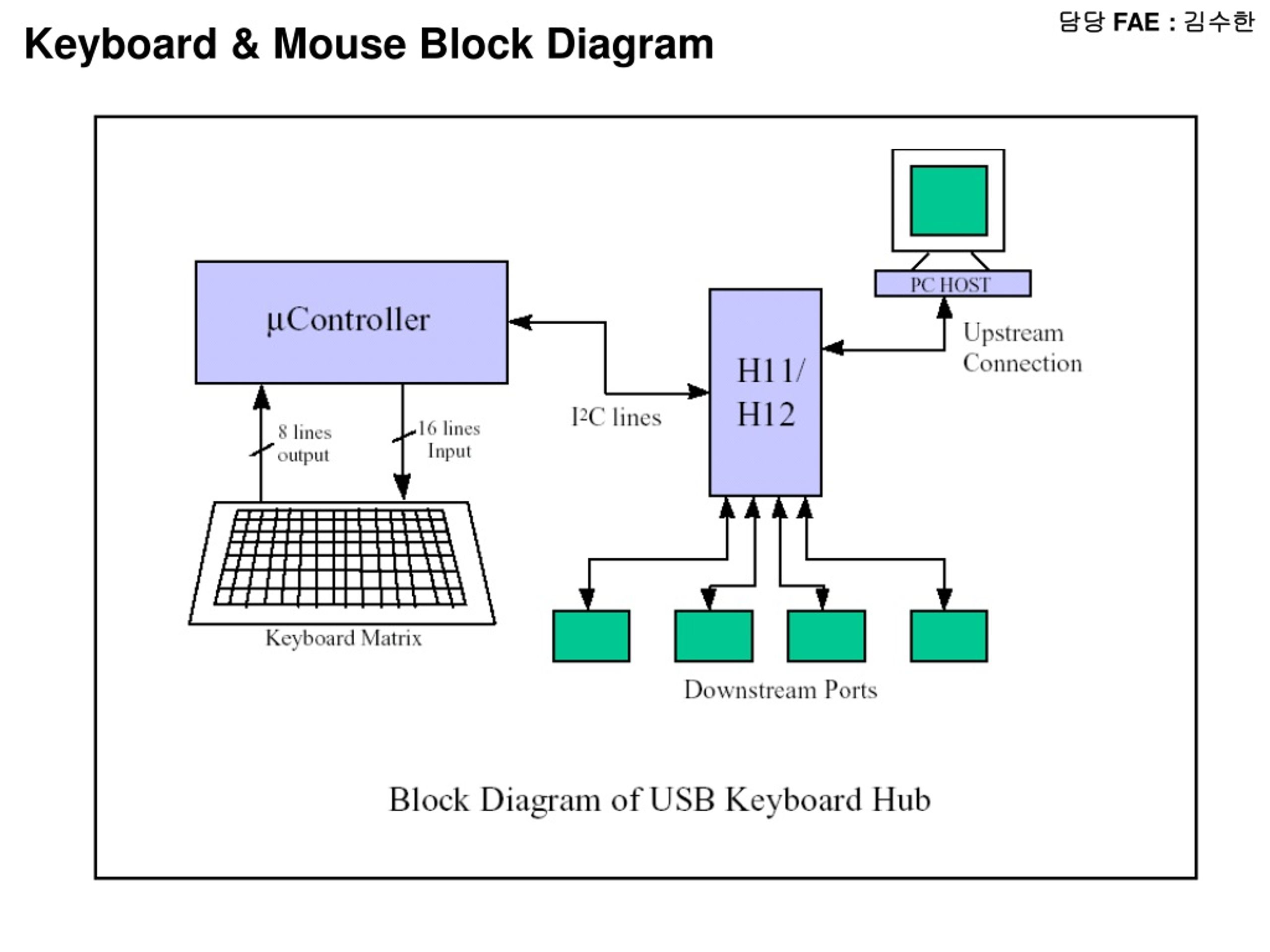

  46. 담당 FAE : 김수한 Keyboard & Mouse Block Diagram

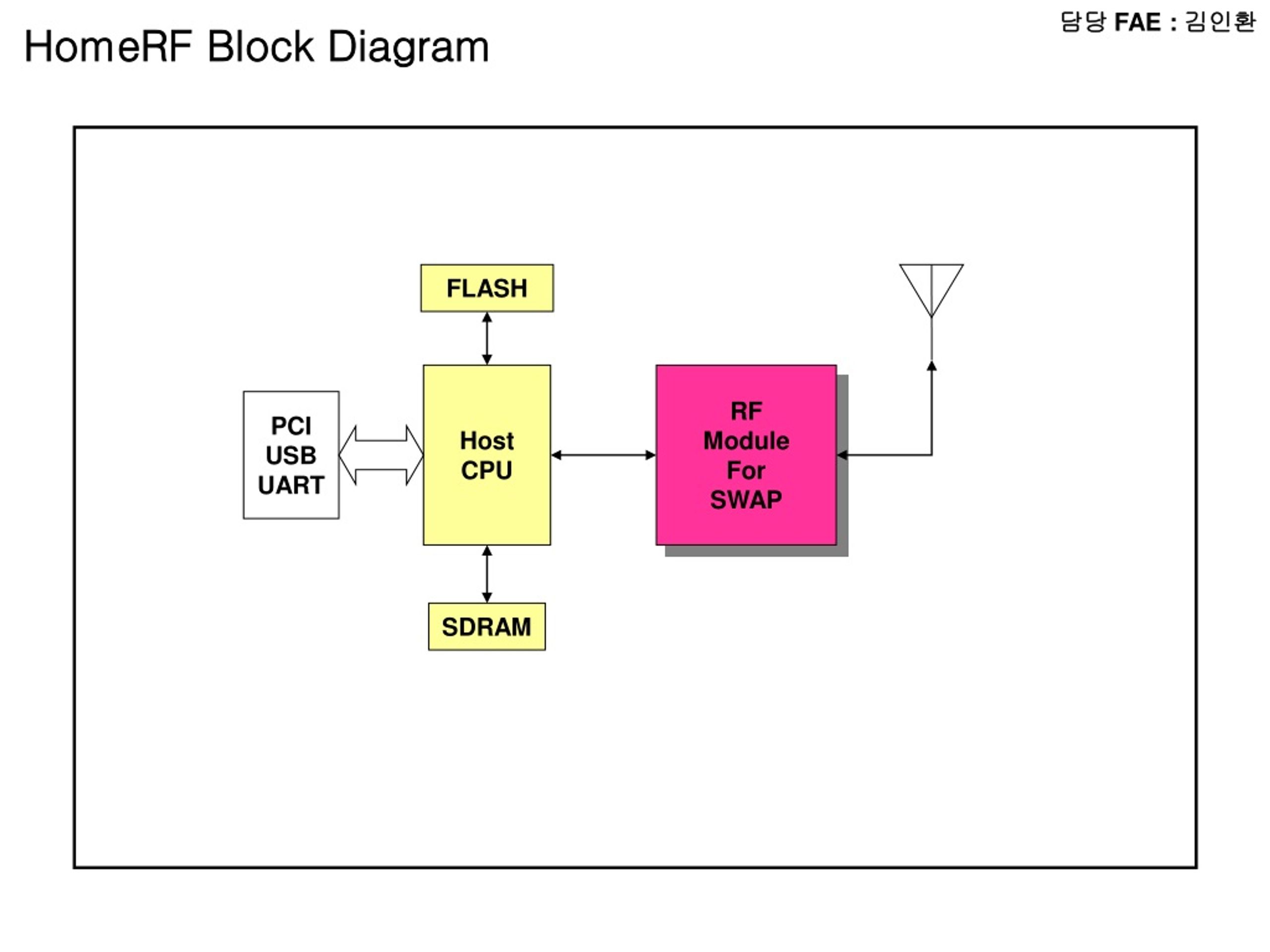

  47. 담당 FAE : 김인환 HomeRF Block Diagram FLASH Host CPU RF Module For SWAP PCI USB UART SDRAM

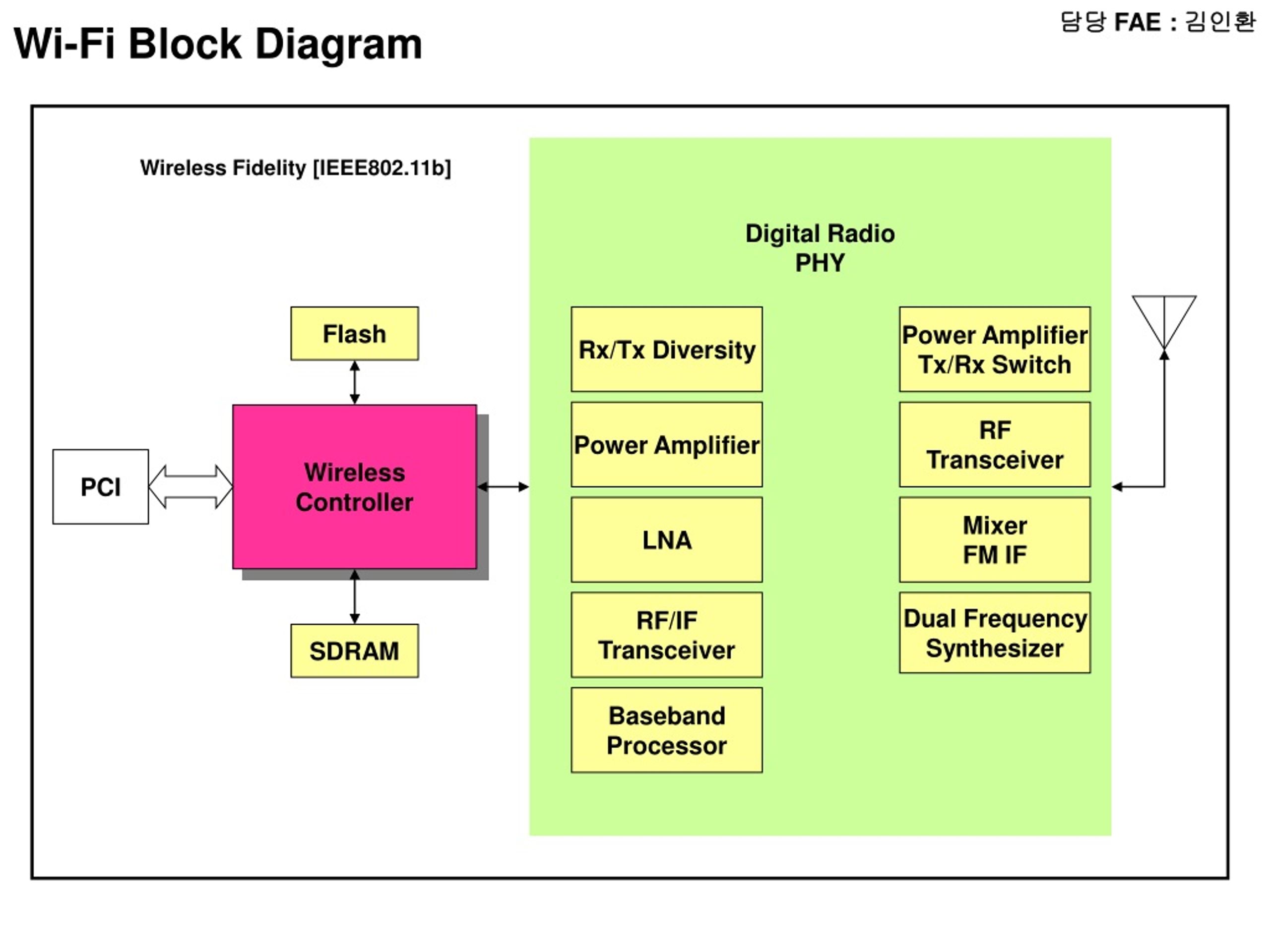

  48. 담당 FAE : 김인환 Wi-Fi Block Diagram Wireless Fidelity [IEEE802.11b] Digital Radio PHY Flash Rx/Tx Diversity Power Amplifier Tx/Rx Switch Power Amplifier RF Transceiver Wireless Controller PCI LNA Mixer FM IF RF/IF Transceiver Dual Frequency Synthesizer SDRAM Baseband Processor

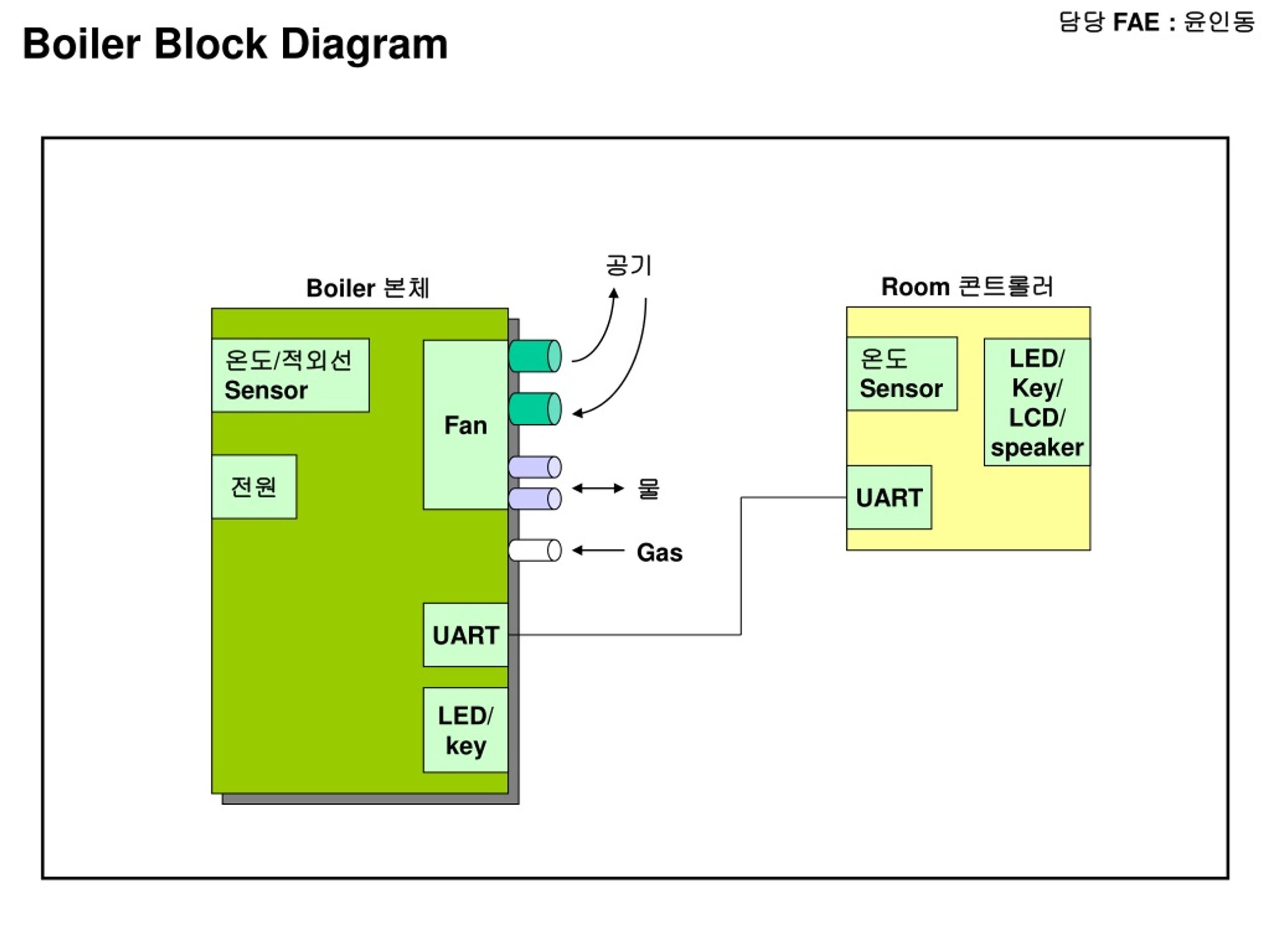

  49. 담당 FAE : 윤인동 Boiler Block Diagram 공기 Room 콘트롤러 Boiler 본체 Micom 온도 Sensor 온도/적외선 Sensor LED/ Key/ LCD/ speaker Fan 전원 UART 물 Gas UART LED/ key

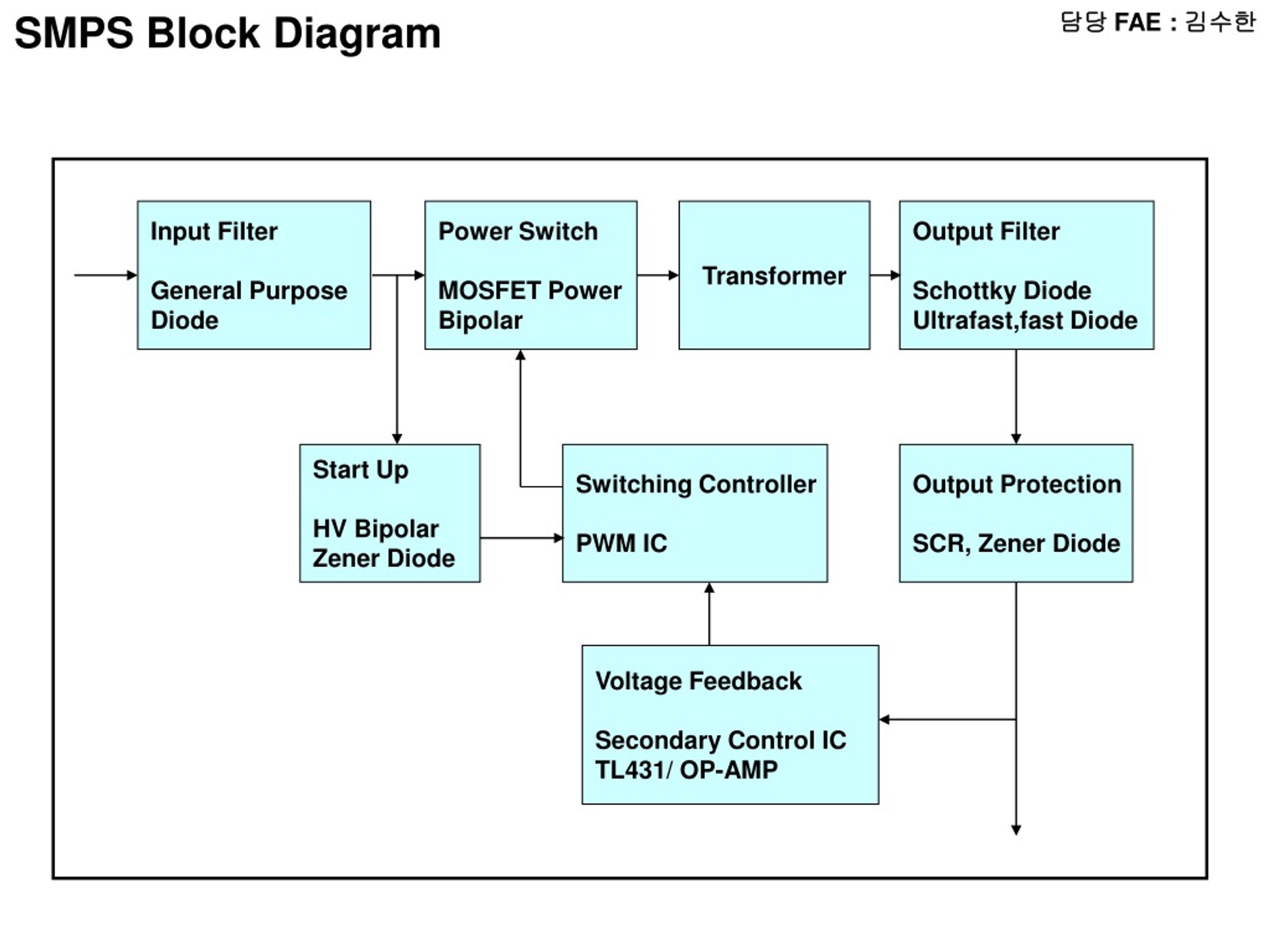

  50. SMPS Block Diagram 담당 FAE : 김수한 Input Filter General Purpose Diode Power Switch MOSFET Power Bipolar Transformer Output Filter Schottky Diode Ultrafast,fast Diode Start Up HV Bipolar Zener Diode Switching Controller PWM IC Output Protection SCR, Zener Diode Voltage Feedback Secondary Control IC TL431/ OP-AMP
