Pipelining

1. Pipelining Reducing Instruction Execution Time COMP25212 Lecture 5

2. The Fetch-Execute Cycle • Instruction execution is a simple repetitive cycle Fetch Instruction Execute Instruction Memory CPU COMP25212 Lecture 5

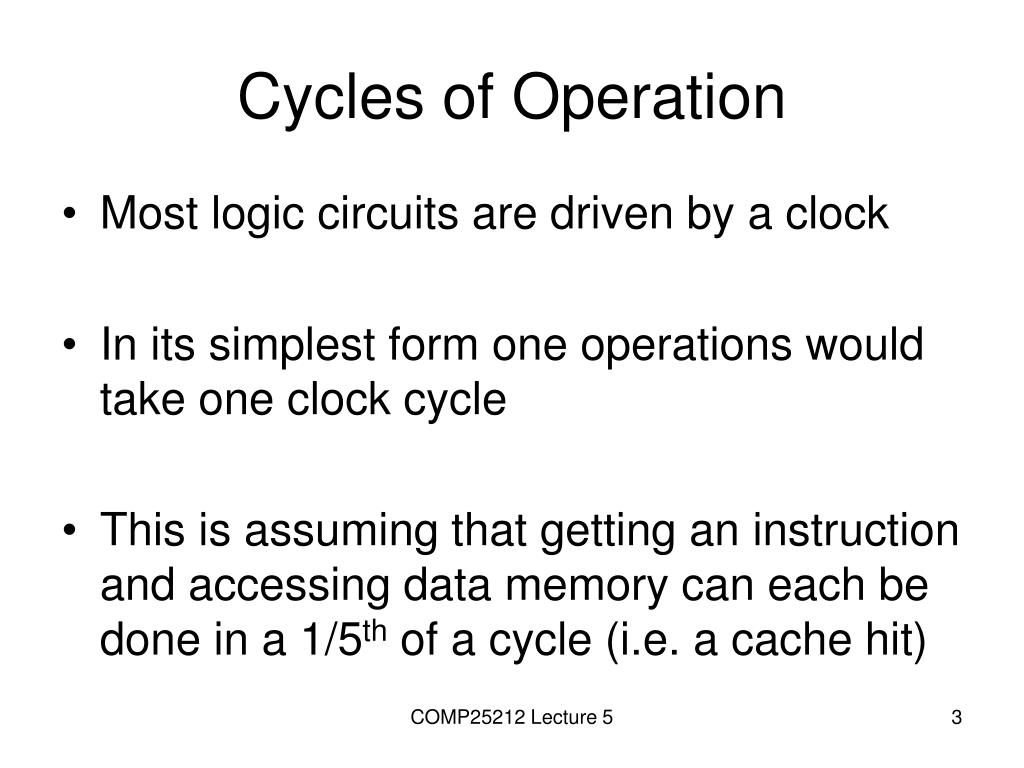

3. Cycles of Operation • Most logic circuits are driven by a clock • In its simplest form one operations would take one clock cycle • This is assuming that getting an instruction and accessing data memory can each be done in a 1/5th of a cycle (i.e. a cache hit) COMP25212 Lecture 5

4. Fetch-Execute Detail The two parts of the cycle can be subdivided • Fetch • Get instruction from memory • Decode instruction & select registers • Execute • Perform operation or calculate address • Access an operand in data memory • Write result to a register COMP25212 Lecture 5

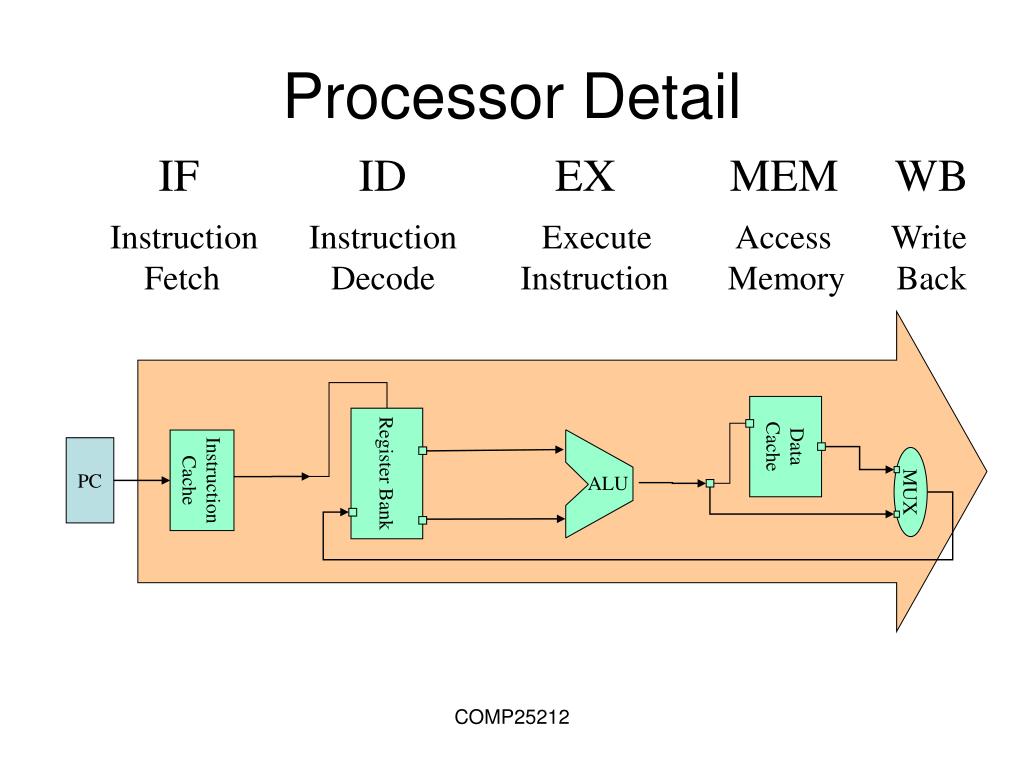

5. MUX Data Cache Processor Detail IF ID EX MEM WB Instruction Instruction Execute Access Write Fetch Decode Instruction Memory Back Register Bank Instruction Cache PC ALU COMP25212

6. Logic to do this Inst Cache Data Cache • Each stage will do its work and pass work to the next • Each block is only doing any work once every 1/5th of a cycle Fetch Logic Decode Logic Exec Logic Mem Logic Write Logic COMP25212 Lecture 5

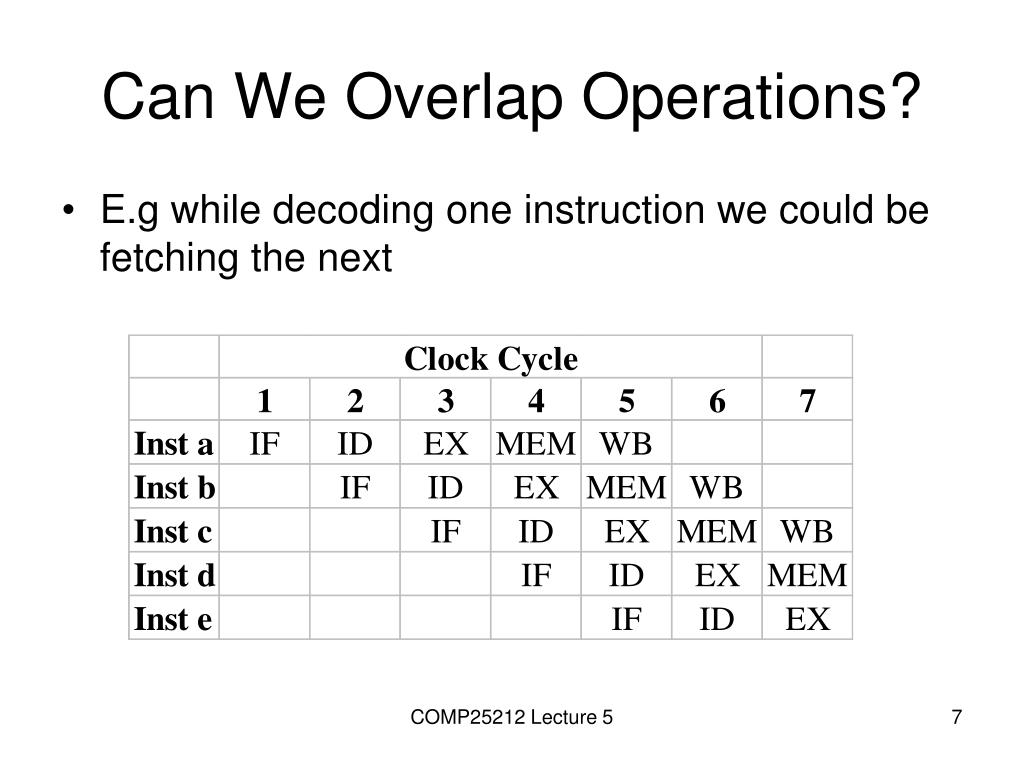

7. Can We Overlap Operations? • E.g while decoding one instruction we could be fetching the next COMP25212 Lecture 5

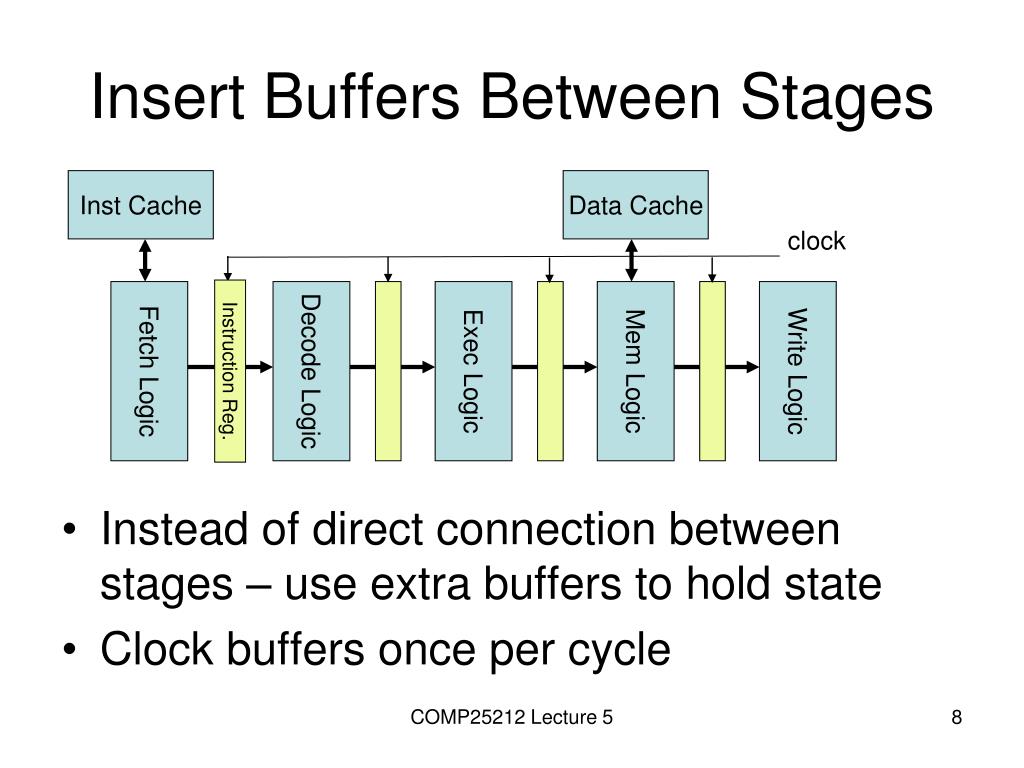

8. Insert Buffers Between Stages Inst Cache Data Cache • Instead of direct connection between stages – use extra buffers to hold state • Clock buffers once per cycle clock Fetch Logic Decode Logic Exec Logic Mem Logic Write Logic Instruction Reg. COMP25212 Lecture 5

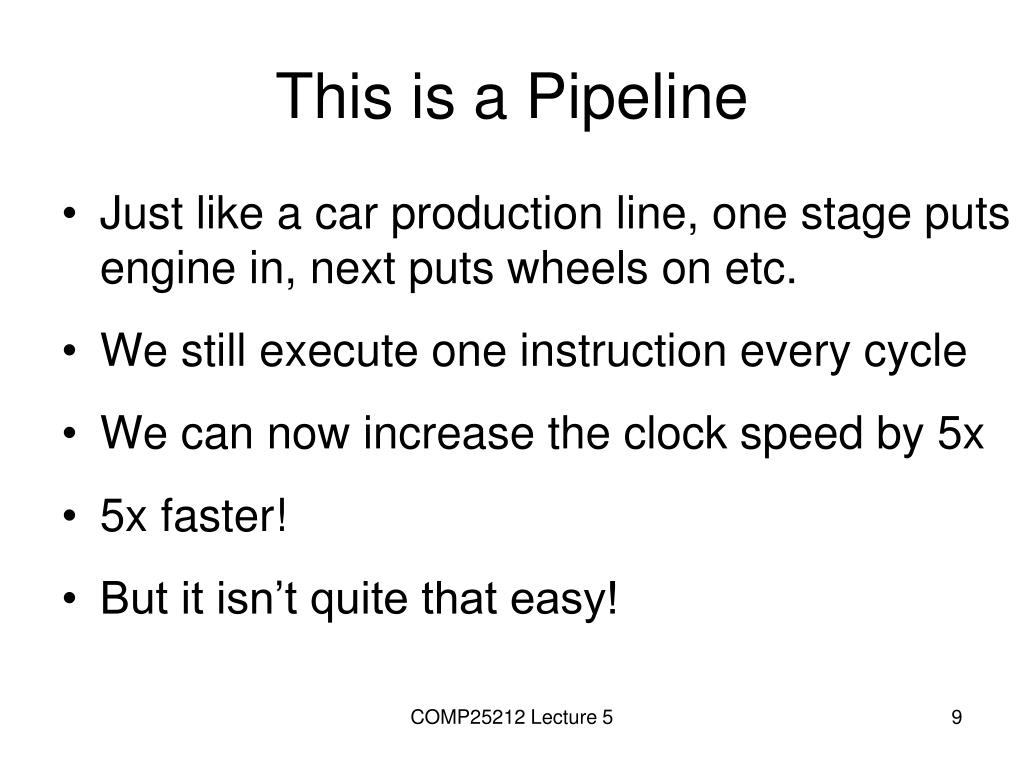

9. This is a Pipeline • Just like a car production line, one stage puts engine in, next puts wheels on etc. • We still execute one instruction every cycle • We can now increase the clock speed by 5x • 5x faster! • But it isn’t quite that easy! COMP25212 Lecture 5

10. Why 5 Stages • Simply because early pipelined processors determined that dividing into these 5 stages of roughly equal complexity was appropriate • Some recent processors have used more than 30 pipeline stages • We will consider 5 for simplicity at the moment COMP25212 Lecture 5

11. Control Hazards

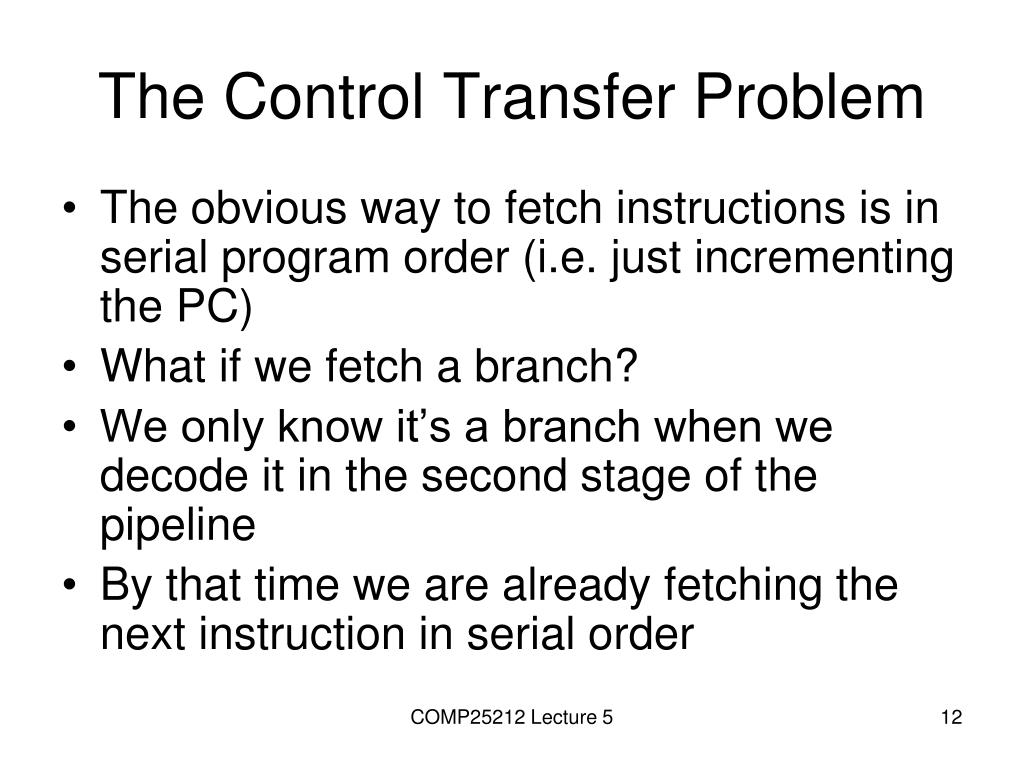

12. The Control Transfer Problem • The obvious way to fetch instructions is in serial program order (i.e. just incrementing the PC) • What if we fetch a branch? • We only know it’s a branch when we decode it in the second stage of the pipeline • By that time we are already fetching the next instruction in serial order COMP25212 Lecture 5

13. A Pipeline ‘Bubble’ Decode here Inst 1 Inst 2 Inst 3 Branch n Inst 5 . . Inst n Bra 3 2 1 5 cycles n 5 Bra 3 2 n n+1 5 Bra 3 We must mark Inst 5 as unwanted and Ignore it as it goes down the pipeline. But we have wasted a cycle COMP25212 Lecture 5

14. Conditional Branches • It gets worse! • Suppose we have a conditional branch • It is possible that we might not be able to determine the branch outcome until the execute (3rd) stage • We would then have 2 ‘bubbles’ • We can often avoid this by reading registers during the decode stage. COMP25212 Lecture 5

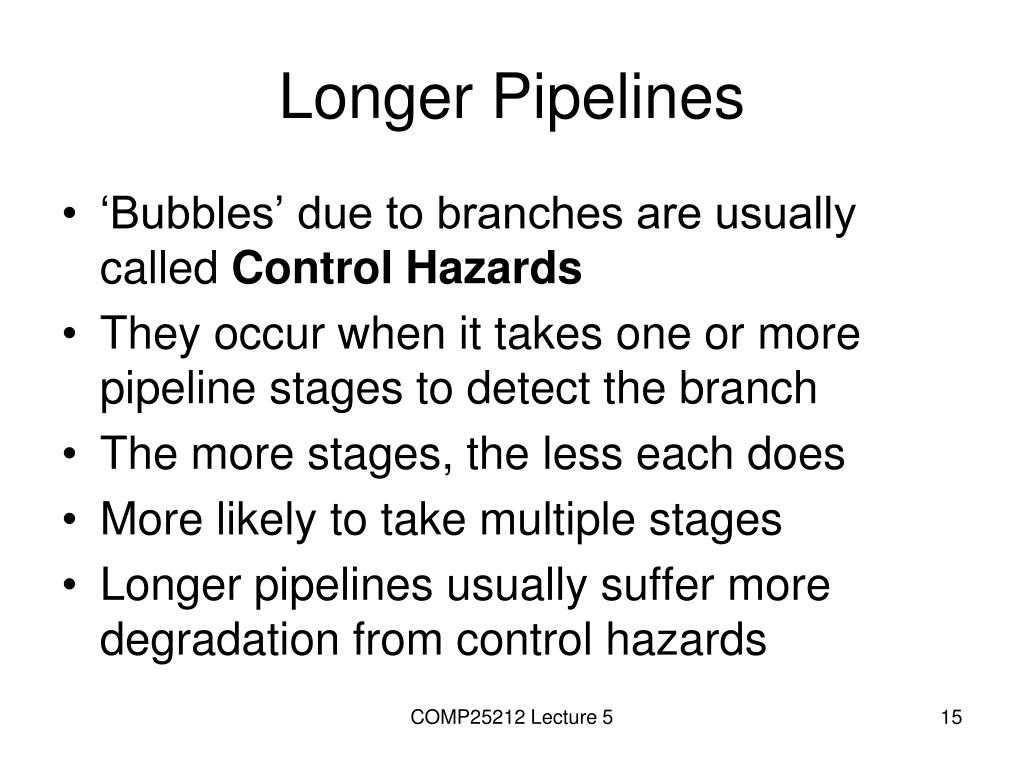

15. Longer Pipelines • ‘Bubbles’ due to branches are usually called Control Hazards • They occur when it takes one or more pipeline stages to detect the branch • The more stages, the less each does • More likely to take multiple stages • Longer pipelines usually suffer more degradation from control hazards COMP25212 Lecture 5

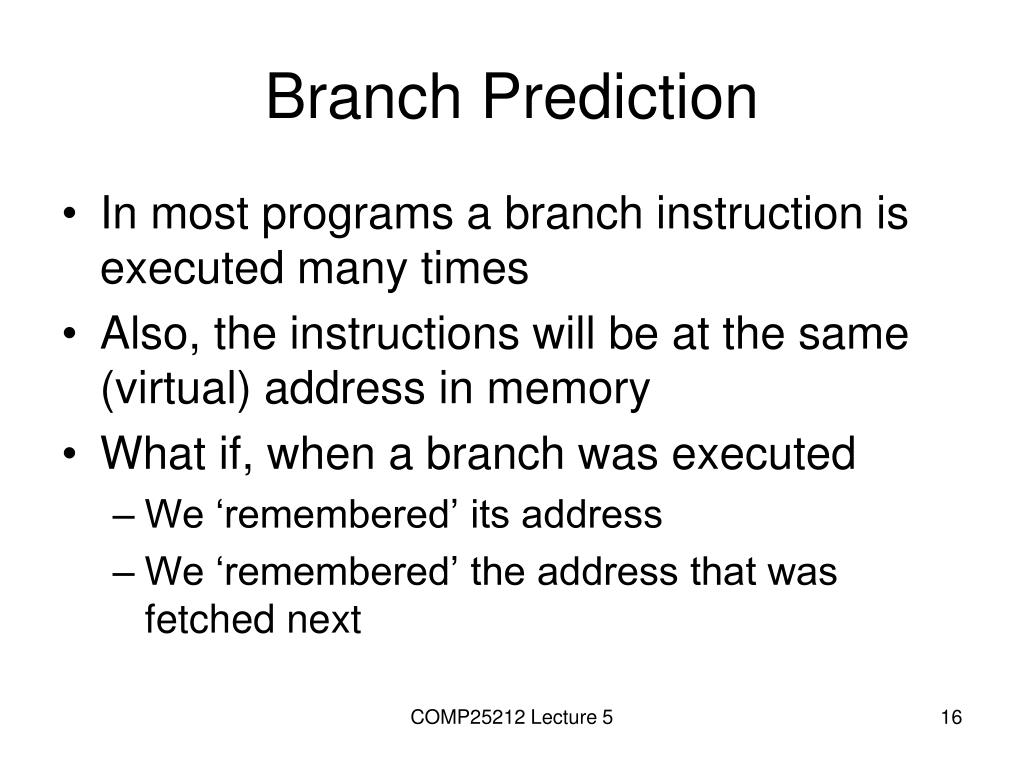

16. Branch Prediction • In most programs a branch instruction is executed many times • Also, the instructions will be at the same (virtual) address in memory • What if, when a branch was executed • We ‘remembered’ its address • We ‘remembered’ the address that was fetched next COMP25212 Lecture 5

17. Branch Target Buffer • We could do this with some sort of cache • As we fetch the branch we check the target • If a valid entry in buffer we use that to fetch next instruction Address Data Branch Add Target Add COMP25212 Lecture 5

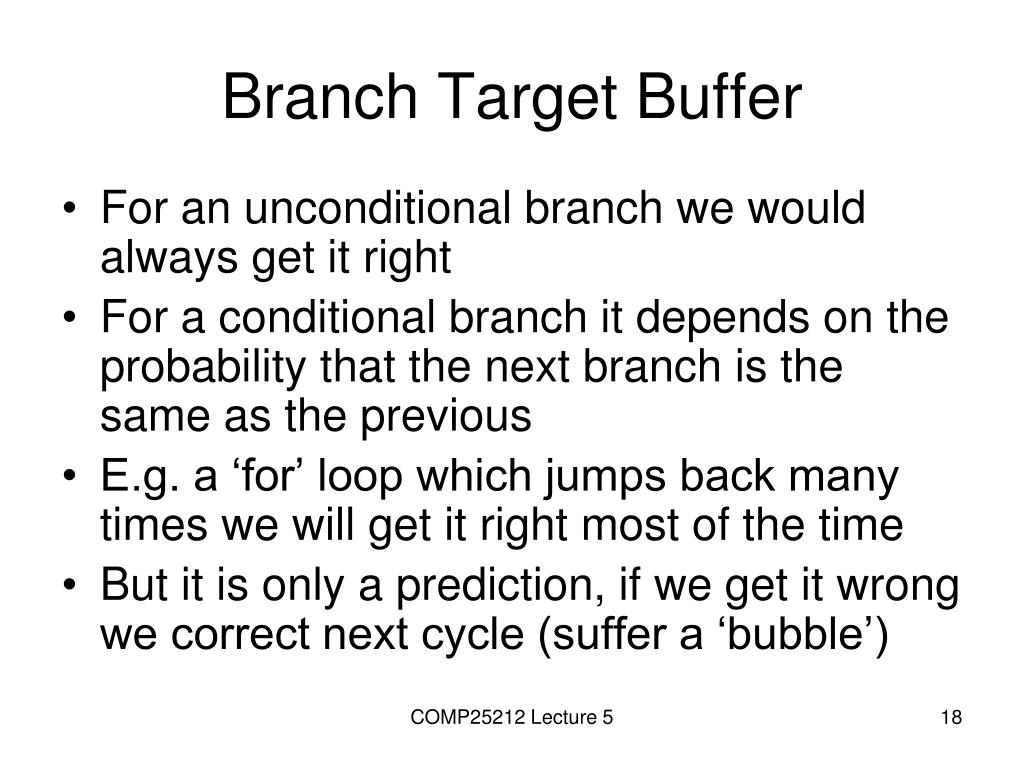

18. Branch Target Buffer • For an unconditional branch we would always get it right • For a conditional branch it depends on the probability that the next branch is the same as the previous • E.g. a ‘for’ loop which jumps back many times we will get it right most of the time • But it is only a prediction, if we get it wrong we correct next cycle (suffer a ‘bubble’) COMP25212 Lecture 5

19. Outline Implementation valid Branch Target Buffer Inst Cache inc Fetch Stage PC COMP25212 Lecture 5

20. Other Branch Prediction • BTB is simple to understand but expensive to implement • Also, as described, it just uses the last branch to predict • In practice branch prediction depends on • More history (several previous branches) • Context (how did we get to this branch) • Real branch predictors are more complex and vital to performance (long pipelines) COMP25212 Lecture 5

21. Data Hazards

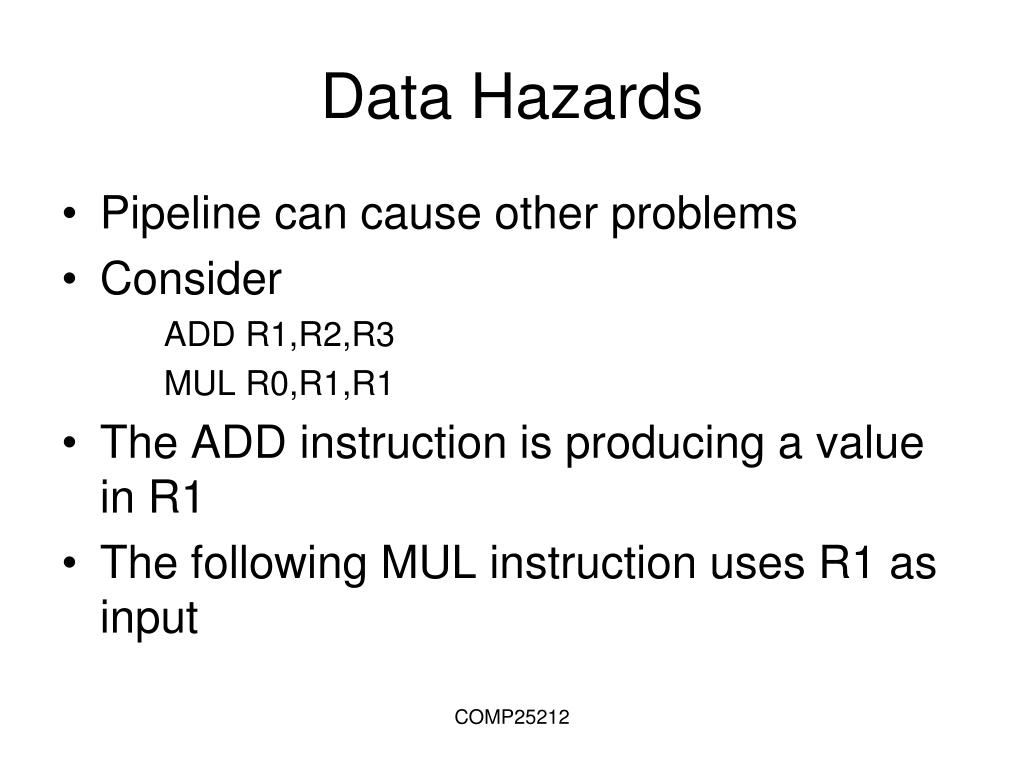

22. Data Hazards Pipeline can cause other problems Consider ADD R1,R2,R3 MUL R0,R1,R1 The ADD instruction is producing a value in R1 The following MUL instruction uses R1 as input COMP25212

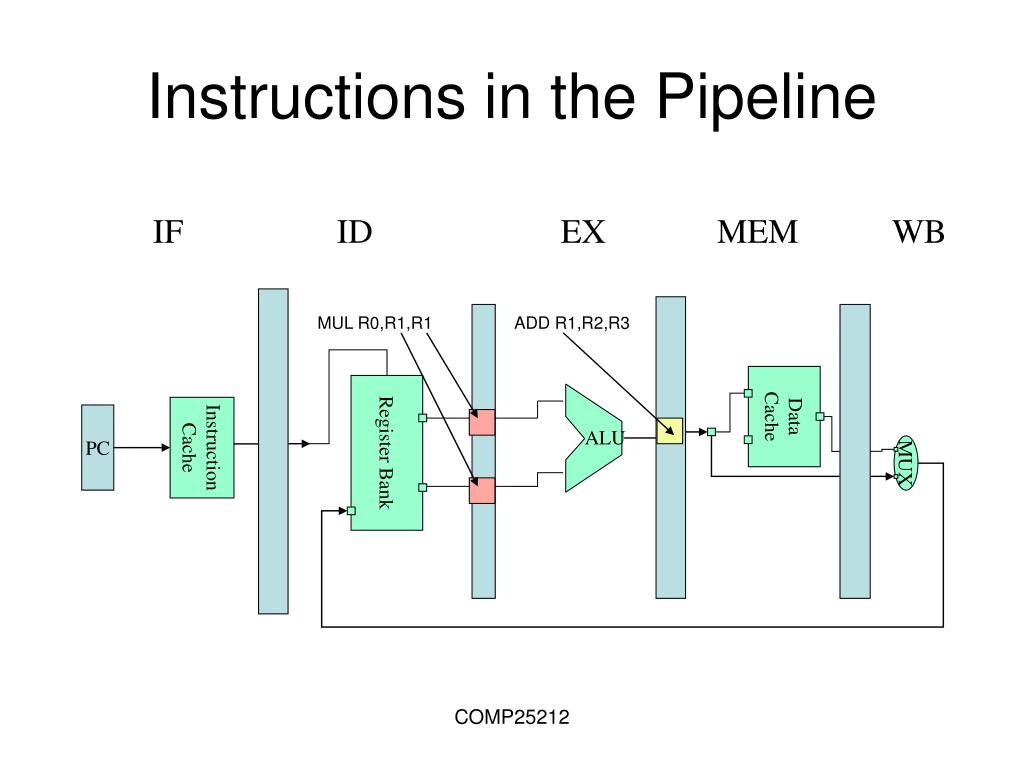

23. Instructions in the Pipeline MUX Data Cache IF ID EX MEM WB MUL R0,R1,R1 ADD R1,R2,R3 Register Bank Instruction Cache PC ALU COMP25212

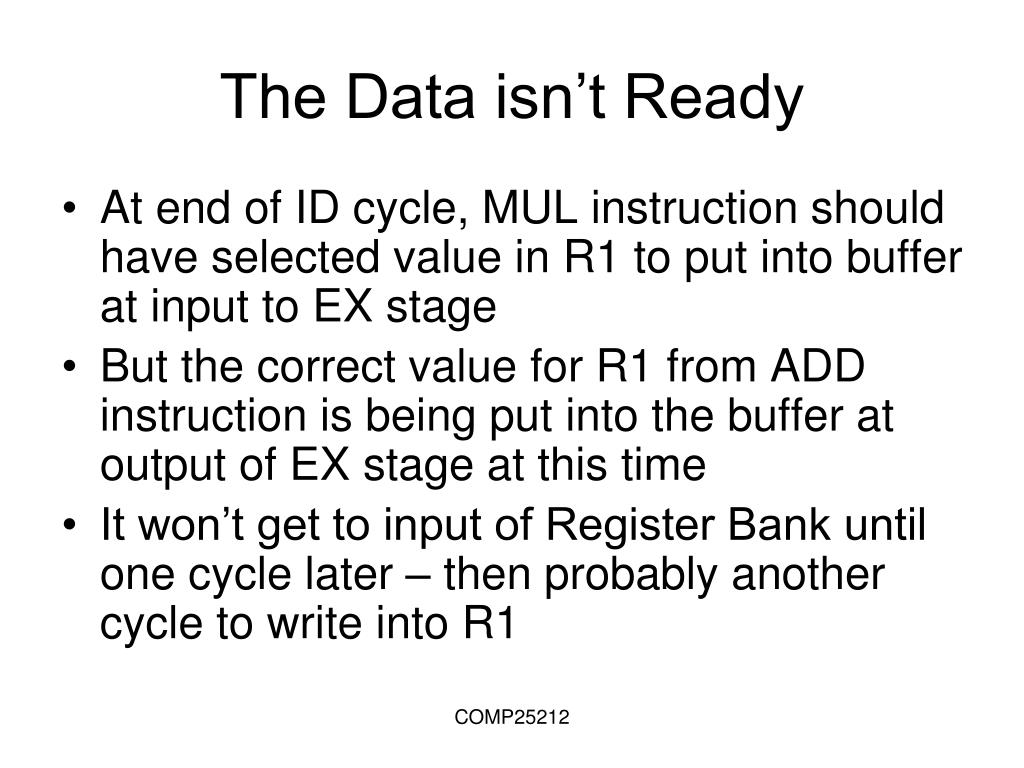

24. The Data isn’t Ready At end of ID cycle, MUL instruction should have selected value in R1 to put into buffer at input to EX stage But the correct value for R1 from ADD instruction is being put into the buffer at output of EX stage at this time It won’t get to input of Register Bank until one cycle later – then probably another cycle to write into R1 COMP25212

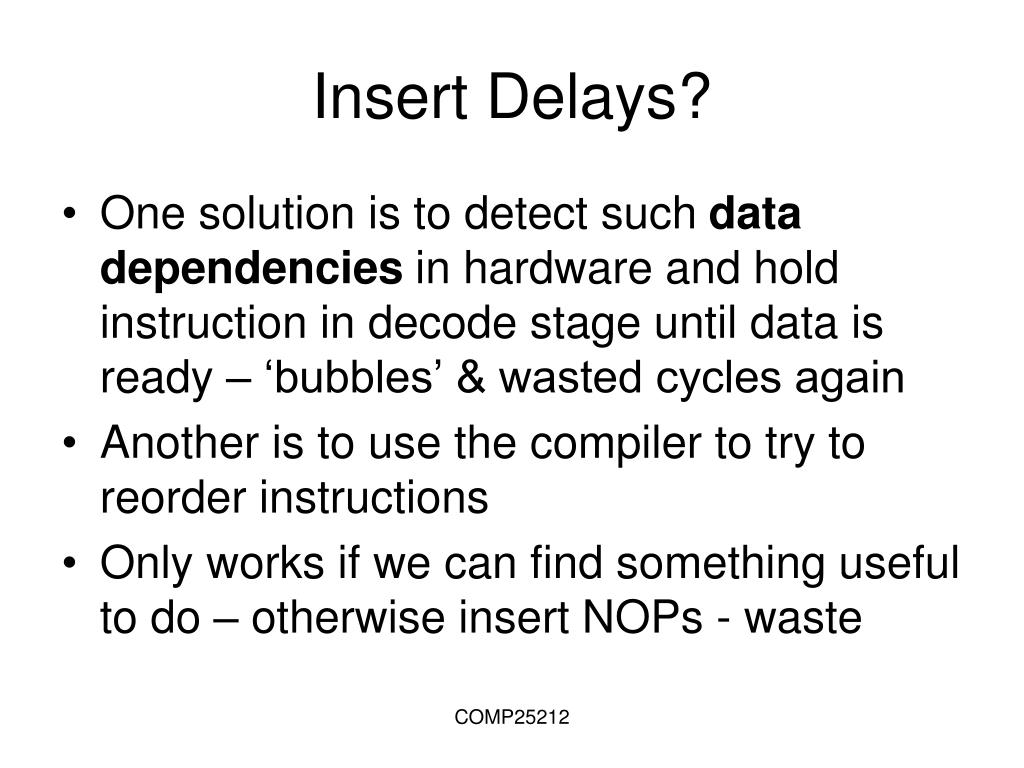

25. Insert Delays? One solution is to detect such data dependencies in hardware and hold instruction in decode stage until data is ready – ‘bubbles’ & wasted cycles again Another is to use the compiler to try to reorder instructions Only works if we can find something useful to do – otherwise insert NOPs - waste COMP25212

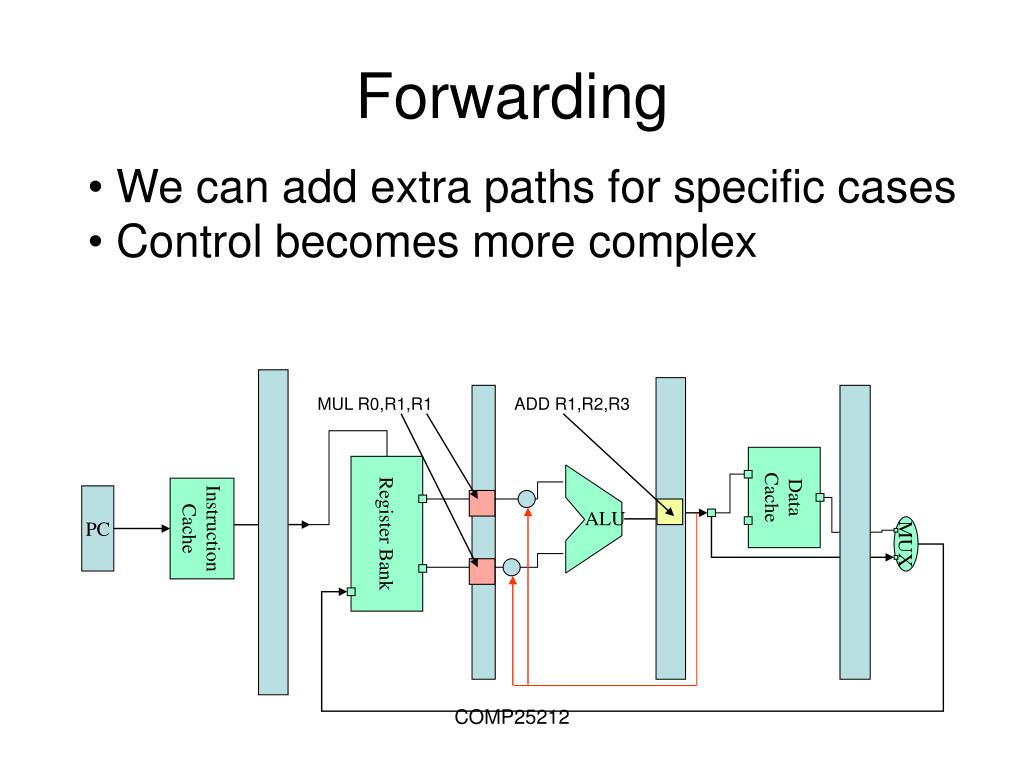

26. Forwarding MUX Data Cache • We can add extra paths for specific cases • Control becomes more complex MUL R0,R1,R1 ADD R1,R2,R3 Register Bank Instruction Cache PC ALU COMP25212

27. Why did it Occur? Due to the design of our pipeline In this case, the result we want is ready one stage ahead of where it was needed, why pass it down the pipeline? But what if we have the sequence LDR R1,[R2,R3] MUL R0,R1,R1 LDR instruction means load R1 from memory address R2+R3 COMP25212

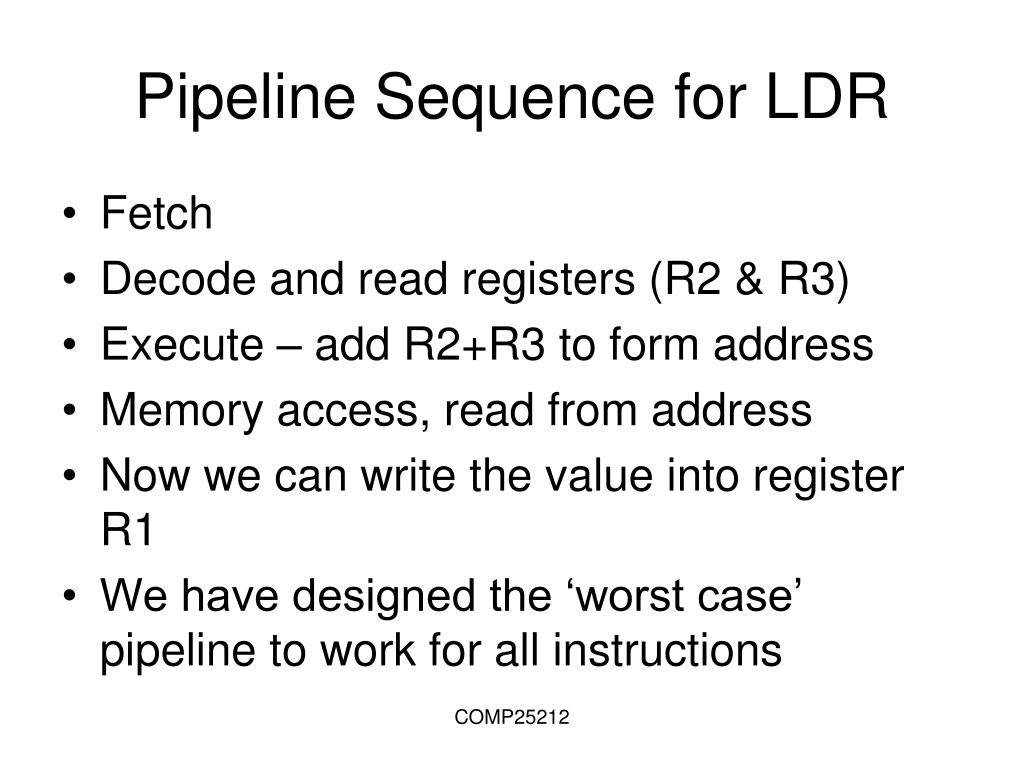

28. Pipeline Sequence for LDR Fetch Decode and read registers (R2 & R3) Execute – add R2+R3 to form address Memory access, read from address Now we can write the value into register R1 We have designed the ‘worst case’ pipeline to work for all instructions COMP25212

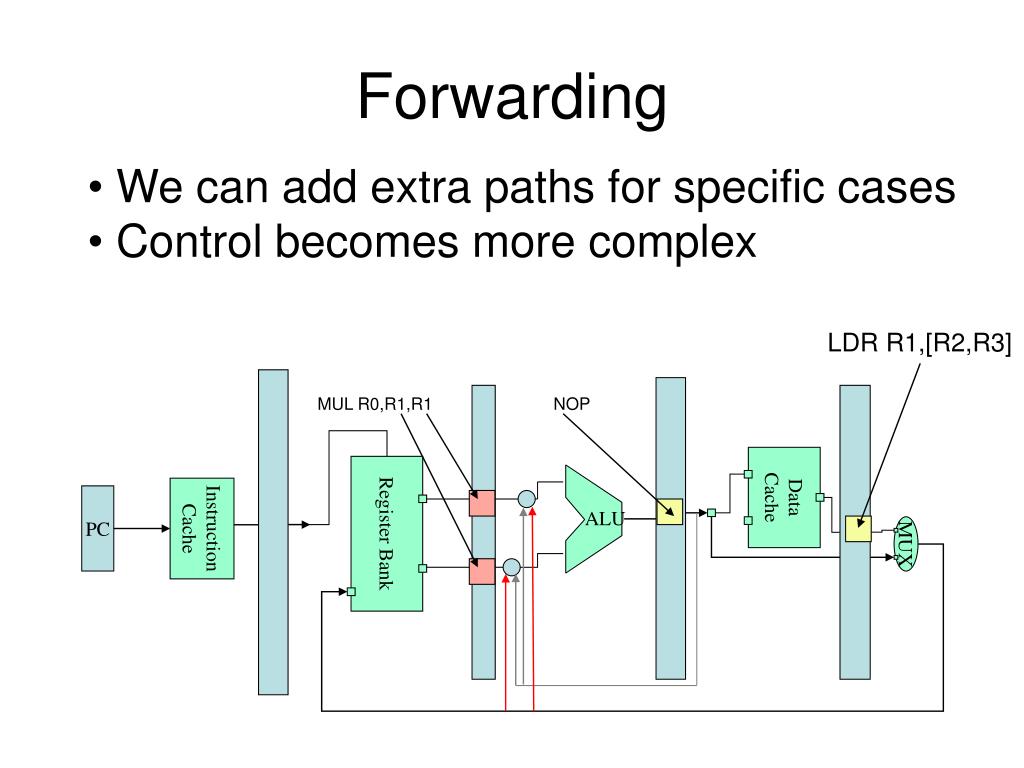

29. Forwarding MUX Data Cache • We can add extra paths for specific cases • Control becomes more complex • LDR R1,[R2,R3] MUL R0,R1,R1 NOP Register Bank Instruction Cache PC ALU

30. Longer Pipelines As mentioned previously we can go to longer pipelines Do less per pipeline stage Each step takes less time So can increase clock frequency But greater penalty for hazards More complex control Negative returns? COMP25212

31. Where Next? Despite these difficulties it is possible to build processors which approach 1 cycle per instruction (cpi) Given that the computational model is one of serial instruction execution can we do any better than this? COMP25212

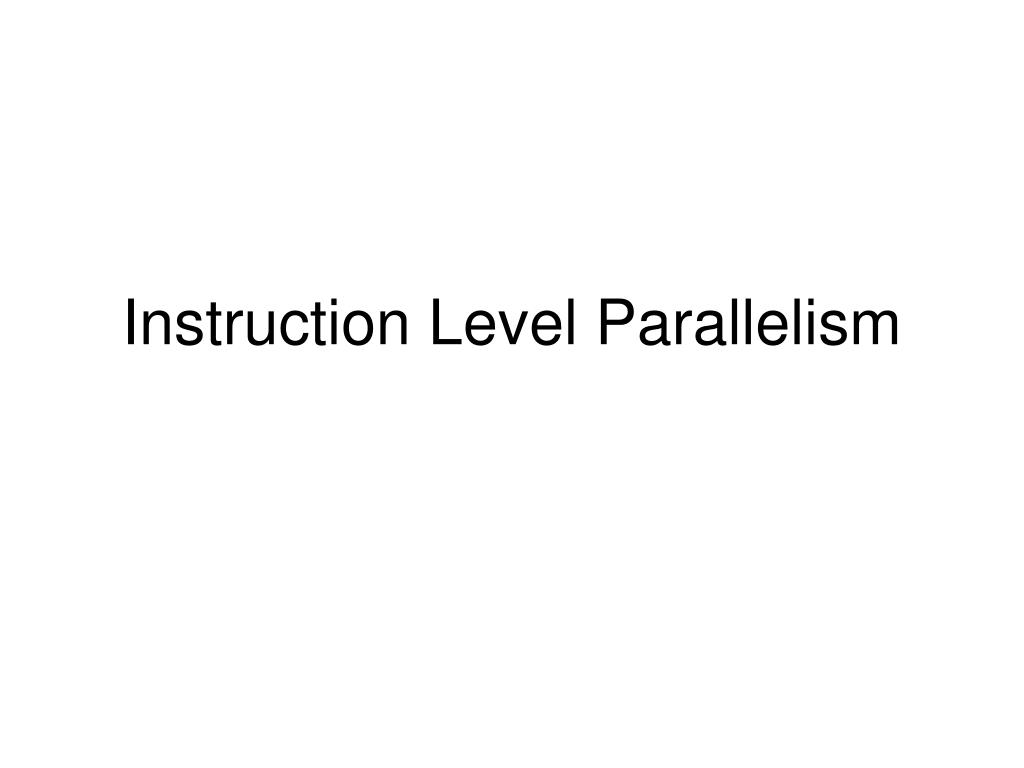

32. Instruction Level Parallelism

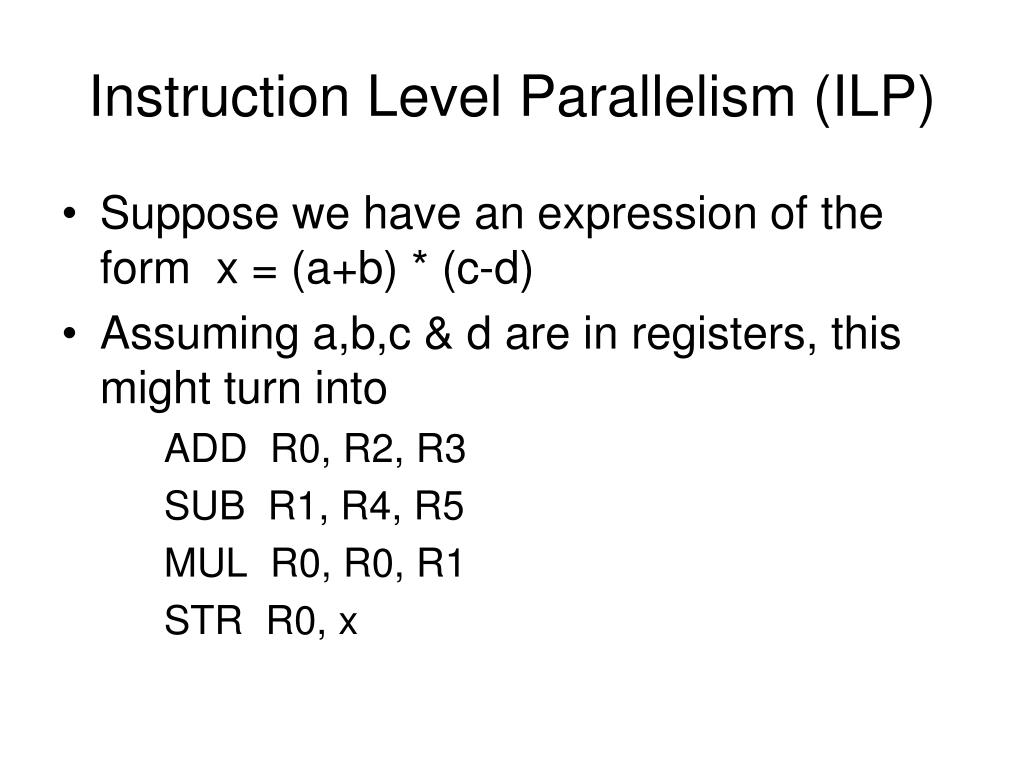

33. Instruction Level Parallelism (ILP) Suppose we have an expression of the form x = (a+b) * (c-d) Assuming a,b,c & d are in registers, this might turn into ADD R0, R2, R3 SUB R1, R4, R5 MUL R0, R0, R1 STR R0, x

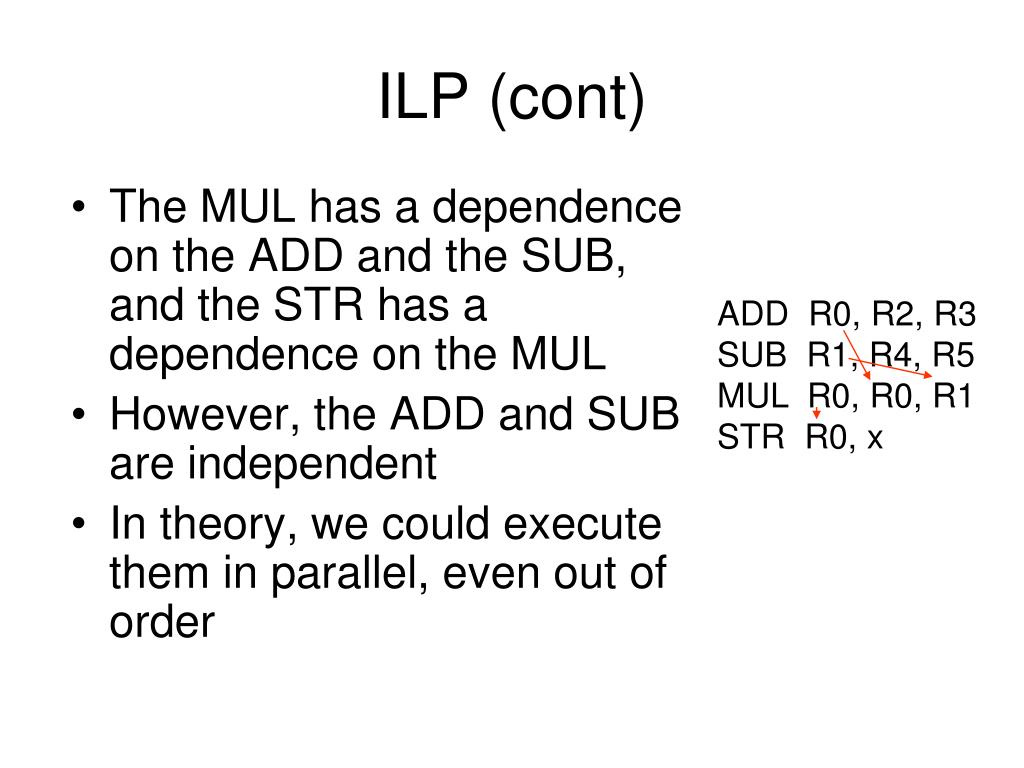

34. ILP (cont) The MUL has a dependence on the ADD and the SUB, and the STR has a dependence on the MUL However, the ADD and SUB are independent In theory, we could execute them in parallel, even out of order ADD R0, R2, R3 SUB R1, R4, R5 MUL R0, R0, R1 STR R0, x

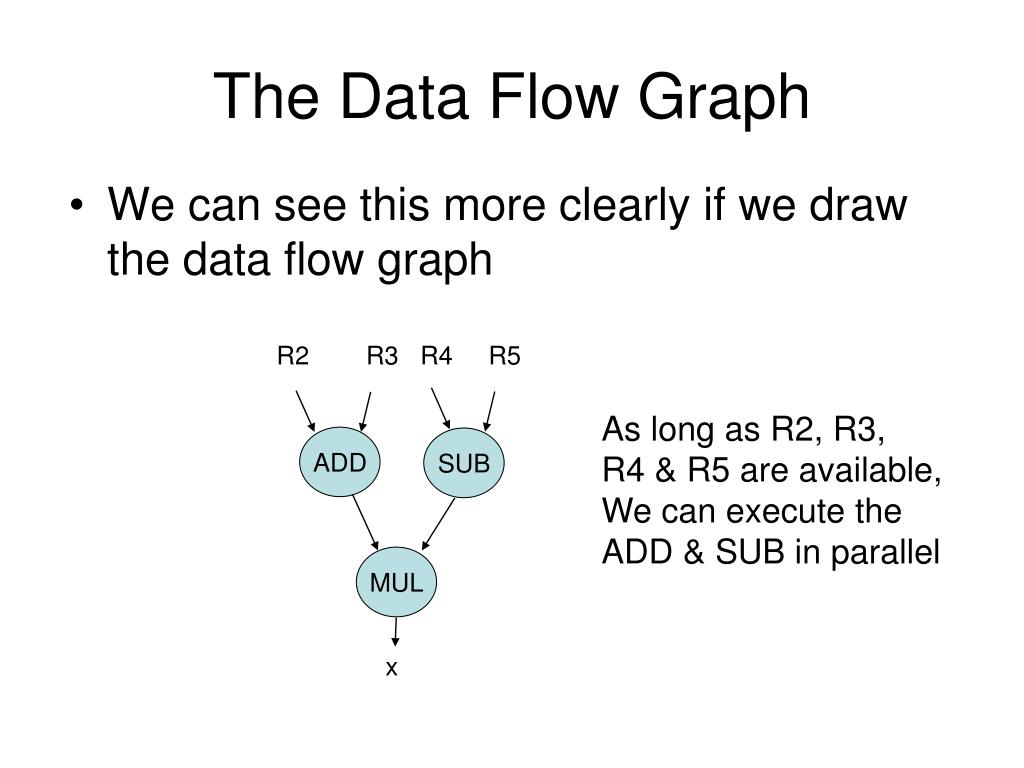

35. The Data Flow Graph We can see this more clearly if we draw the data flow graph R2 R3 R4 R5 As long as R2, R3, R4 & R5 are available, We can execute the ADD & SUB in parallel ADD SUB MUL x

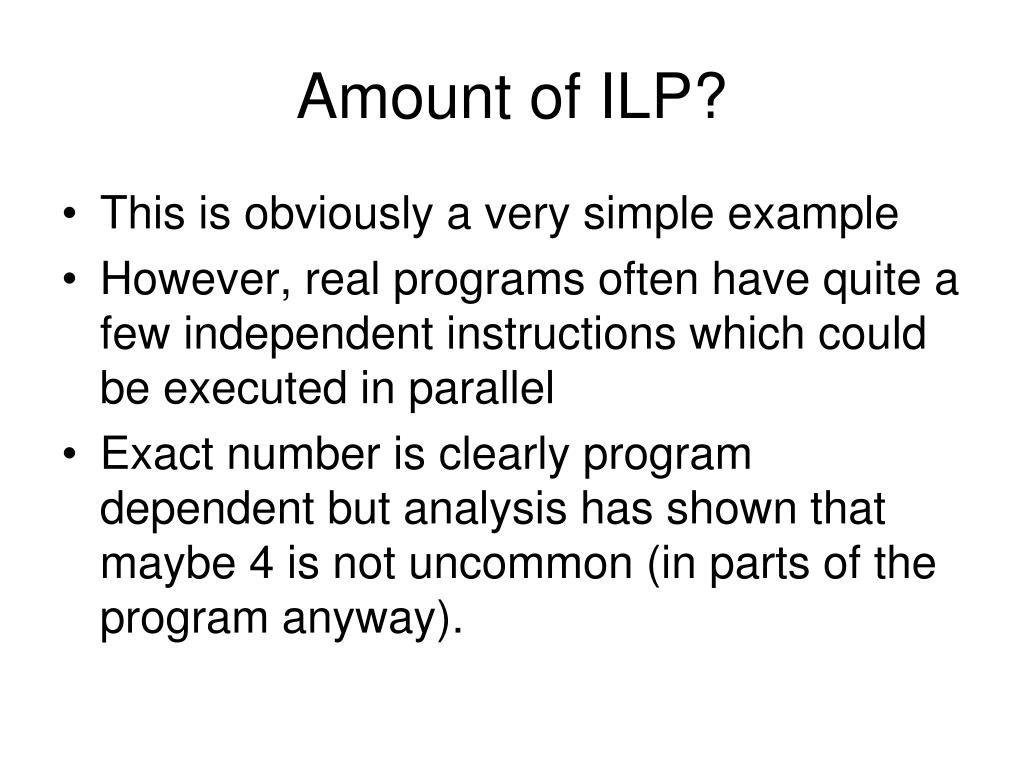

36. Amount of ILP? This is obviously a very simple example However, real programs often have quite a few independent instructions which could be executed in parallel Exact number is clearly program dependent but analysis has shown that maybe 4 is not uncommon (in parts of the program anyway).

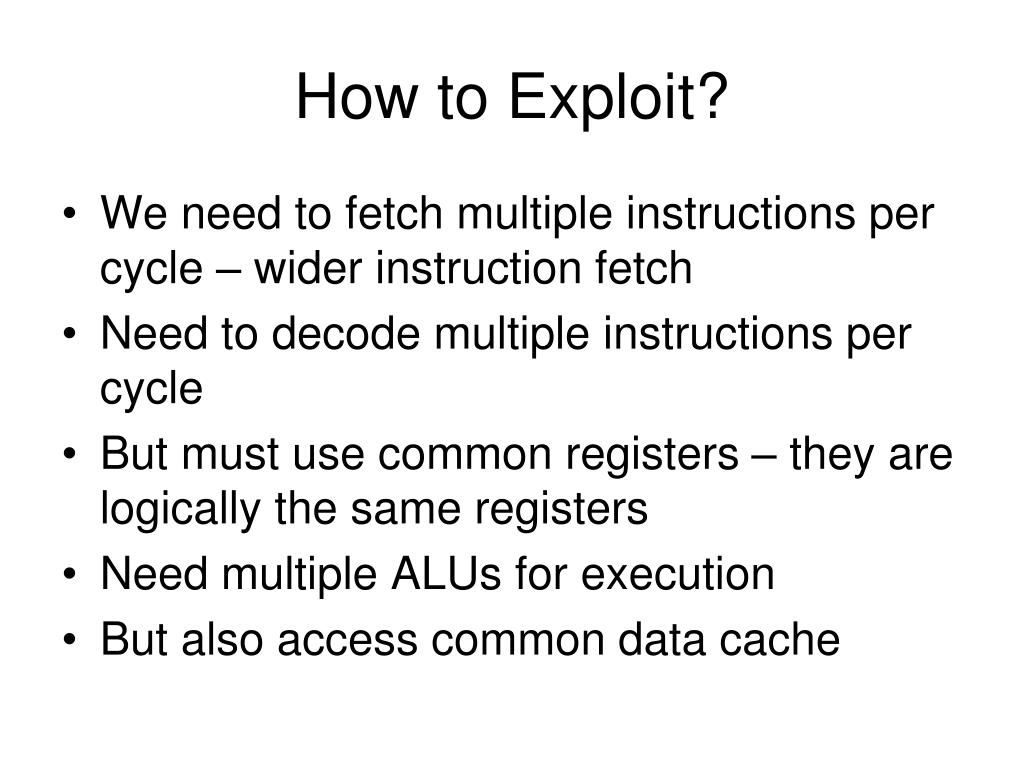

37. How to Exploit? We need to fetch multiple instructions per cycle – wider instruction fetch Need to decode multiple instructions per cycle But must use common registers – they are logically the same registers Need multiple ALUs for execution But also access common data cache

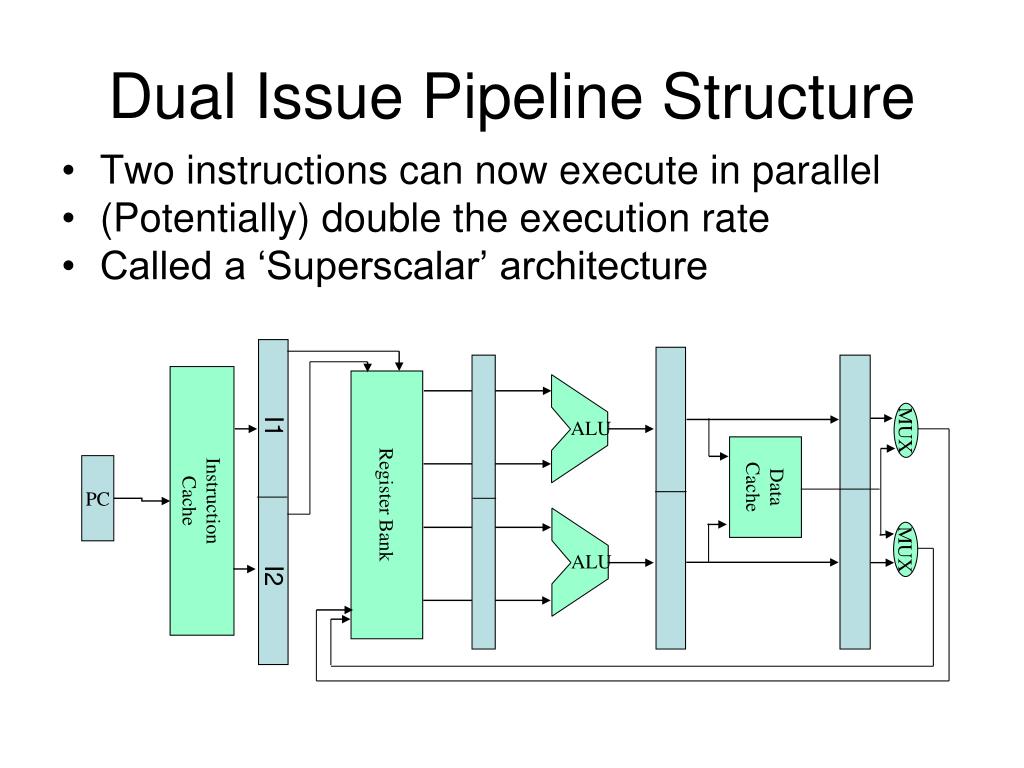

38. Dual Issue Pipeline Structure Two instructions can now execute in parallel (Potentially) double the execution rate Called a ‘Superscalar’ architecture I1 I2 Instruction Cache Register Bank MUX ALU Data Cache PC MUX ALU

39. Register & Cache Access Note the access rate to both registers & cache will be doubled To cope with this we may need a dual ported register bank & dual ported cache. This can be done either by duplicating access circuitry or even duplicating whole register & cache structure

40. Selecting Instructions To get the doubled performance out of this structure, we need to have independent instructions We can have a ‘dispatch unit’ in the fetch stage which uses hardware to examine the instruction dependencies and only issue two in parallel if they are independent

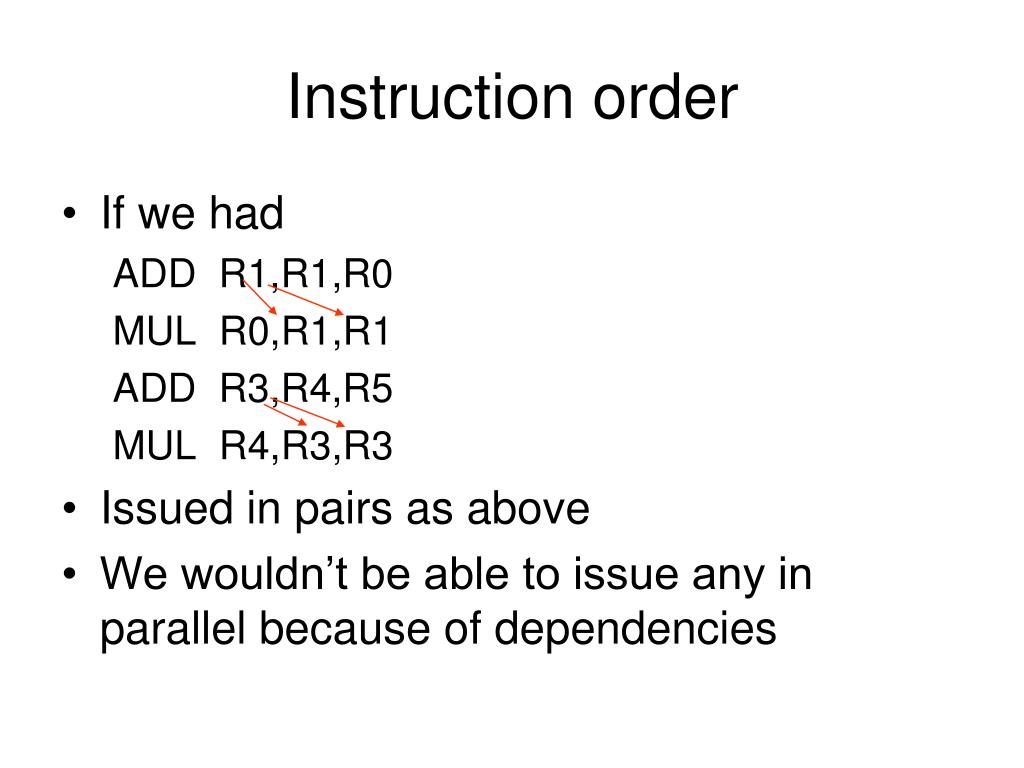

41. Instruction order If we had ADD R1,R1,R0 MUL R0,R1,R1 ADD R3,R4,R5 MUL R4,R3,R3 Issued in pairs as above We wouldn’t be able to issue any in parallel because of dependencies

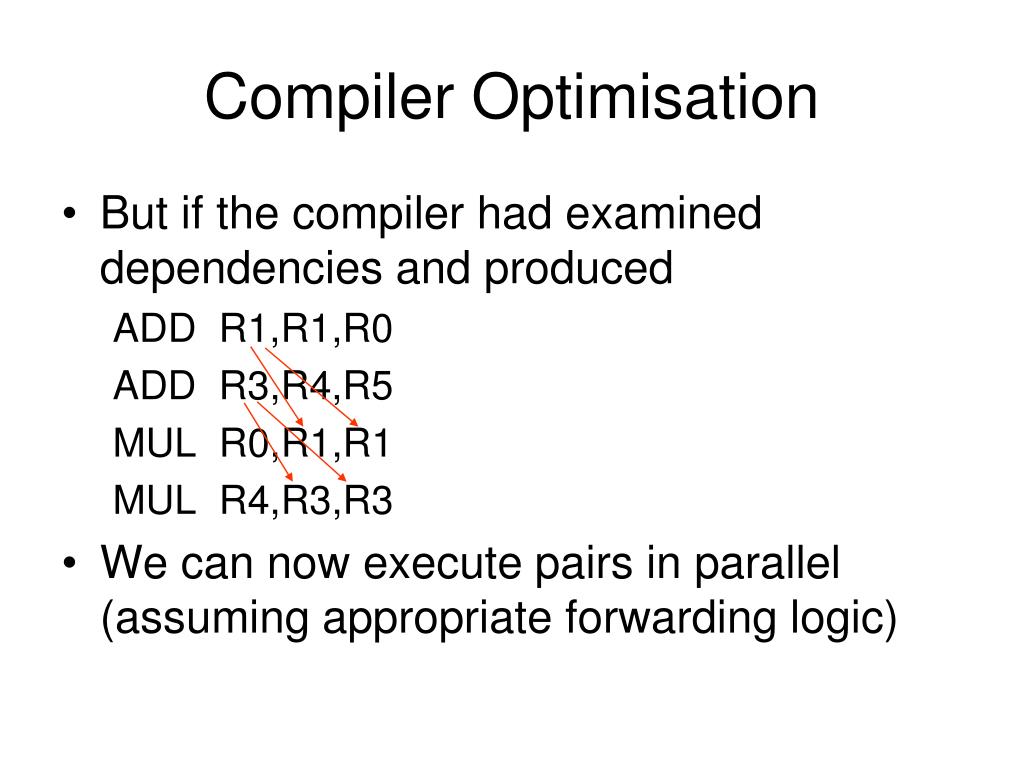

42. Compiler Optimisation But if the compiler had examined dependencies and produced ADD R1,R1,R0 ADD R3,R4,R5 MUL R0,R1,R1 MUL R4,R3,R3 We can now execute pairs in parallel (assuming appropriate forwarding logic)

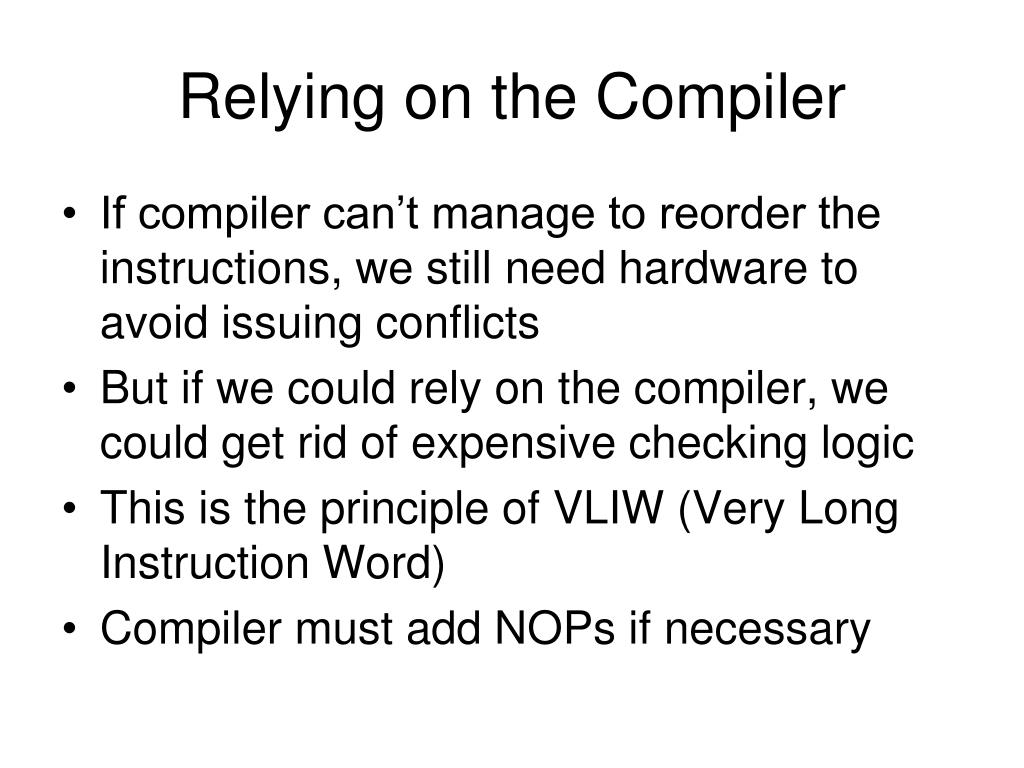

43. Relying on the Compiler If compiler can’t manage to reorder the instructions, we still need hardware to avoid issuing conflicts But if we could rely on the compiler, we could get rid of expensive checking logic This is the principle of VLIW (Very Long Instruction Word) Compiler must add NOPs if necessary

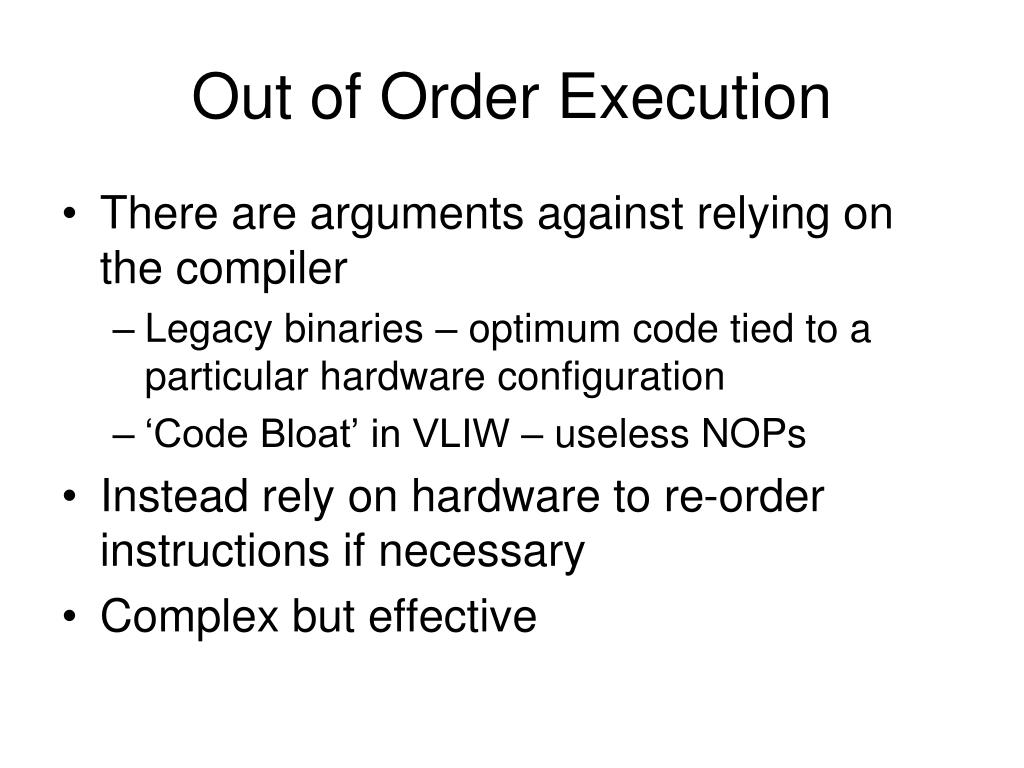

44. Out of Order Execution There are arguments against relying on the compiler Legacy binaries – optimum code tied to a particular hardware configuration ‘Code Bloat’ in VLIW – useless NOPs Instead rely on hardware to re-order instructions if necessary Complex but effective

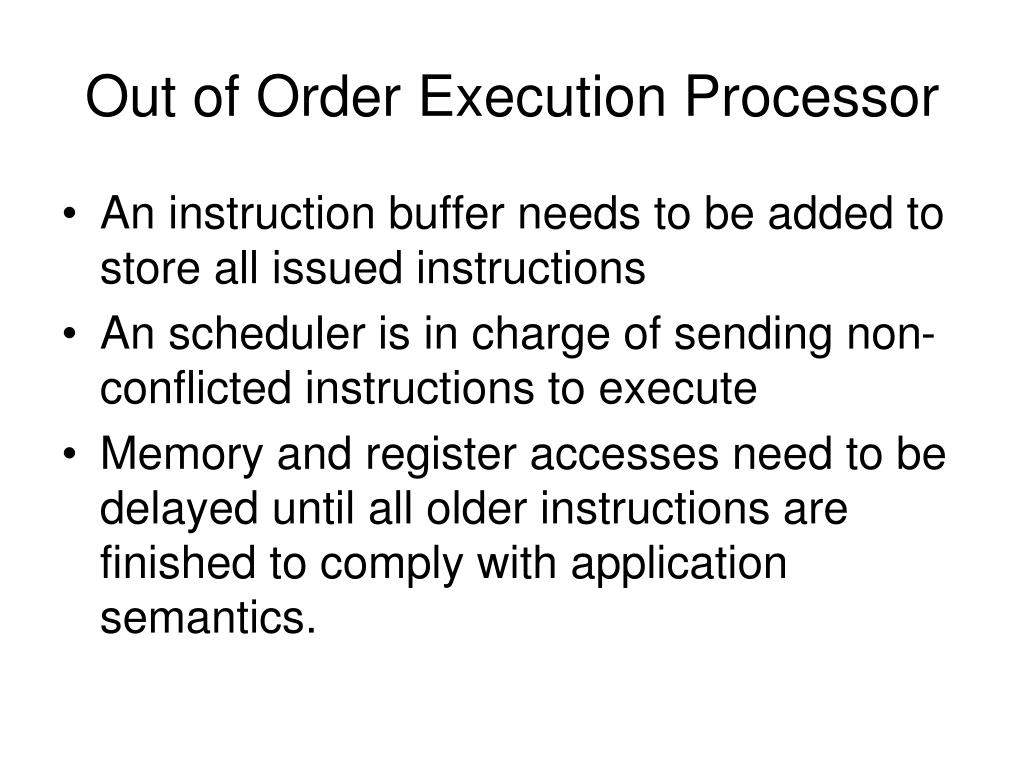

45. Out of Order Execution Processor • An instruction buffer needs to be added to store all issued instructions • An scheduler is in charge of sending non-conflicted instructions to execute • Memory and register accesses need to be delayed until all older instructions are finished to comply with application semantics.

46. Out of Order Execution Instruction Dispatching and Scheduling Memory and register accesses deferred Schedule Memory Queue Dispatch Instruction Buffer Register Queue Instr. Cache Data Cache PC Delay Register Bank ALU Delay

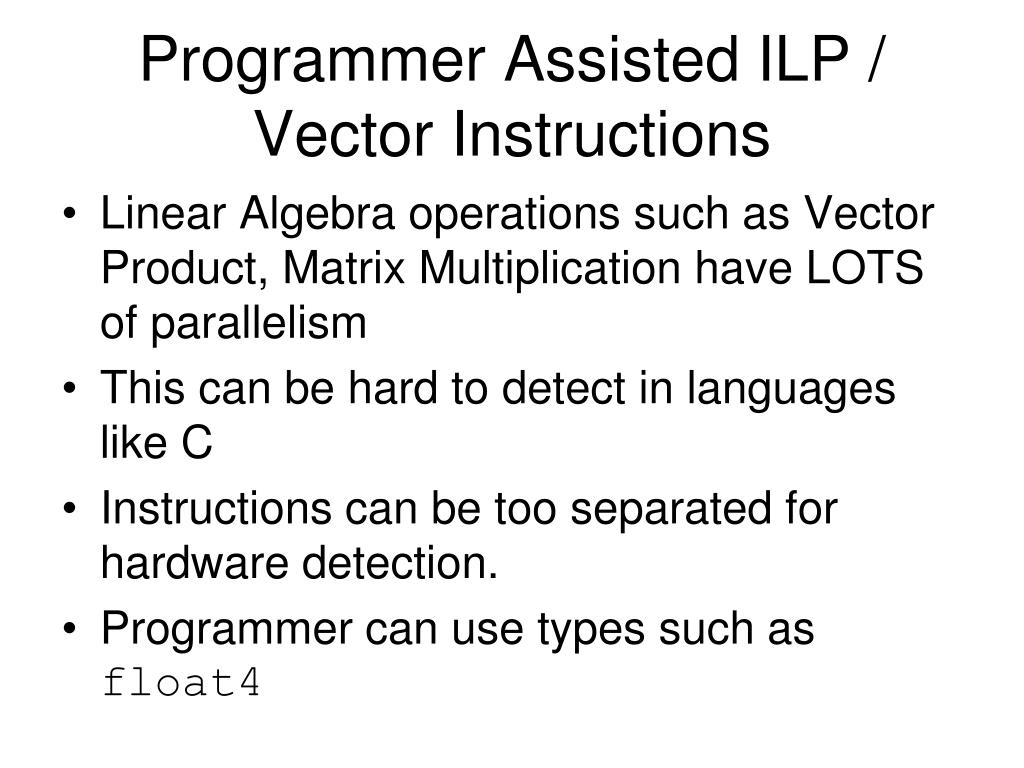

47. Programmer Assisted ILP / Vector Instructions Linear Algebra operations such as Vector Product, Matrix Multiplication have LOTS of parallelism This can be hard to detect in languages like C Instructions can be too separated for hardware detection. Programmer can use types such as float4

48. Limits of ILP Modern processors are up to 4 way superscalar (but rarely achieve 4x speed) Not much beyond this Hardware complexity Limited amounts of ILP in real programs Limited ILP not surprising, conventional programs are written assuming a serial execution model – what next?
