Presentation Transcript

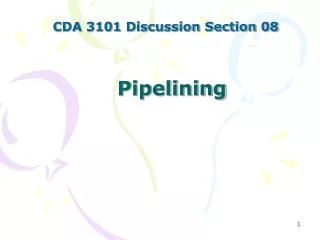

  1. CDA 3101 Discussion Section 08 Pipelining

  2. Question 1 – 6.1 Suppose that time for an ALU operation can be shortened by 25% in the following figure a. Will it affect the speedup obtained from pipelining? If yes, by how much? If no, why? b. What if the ALU operation now takes 25% more time?

  3. Question 1 • Shortening time for an ALU operation by 25% • The slowest stage time for pipeline still remains 200ps(IF and MEM stage) • The single-cycle one will be reduced from 800ps to 750ps • Original speedup = 800/200 = 4 • New Speedup =750/200=3.75

  4. Question 1 • Lengthening time for ALU operation by 25% • It will affect the speedup obtained from pipelining because the slowest stage time will be 250ps. • New speedup = 850/250 = 3.4 • Therefore, speedup is 15% less

  5. Question 2 – 6.4 Identify all of the data dependencies in the following code. add $3, $4, $2 sub $5, $3, $1 lw $6, 200($3) add $7, $3, $6 a. Which dependencies are data hazards that will be resolved via forwarding? b. Which dependencies are data hazards that will cause a stall?

  6. Question 2 • Data Dependencies 1. Data dependency through $3 between the first instruction and each subsequent instructions 2. Data dependency through $6 between the last instruction and lw instruction • Dependencies that will be resolved via forwarding Dependencies between the first instruction and each subsequent instruction can be resolved via forwarding • Dependencies that will cause a stall Dependencies between the last instruction and lw instruction cannot be resolved via forwarding, so it will cause a stall

  7. Question 2

  8. Question 3 – 6.22 Consider executing the following code on the pipelined datapath of Figure 6.36 lw $4, 100($2) sub $6, $4, $3 add $2, $3, $5 a. Draw a diagram that illustrates the dependencies that need to be resolved b. Provide another diagram that illustrates how the code will actually be executed c. How many cycles will it take to execute this code?

  9. Question 3 Cont. Figure 6.36

  10. Question 3-1 Diagram that illustrates the dependencies that need to be resolved

  11. Question 3-2 Diagram that illustrates how the code will actually be executed

  12. Question 3-3 Total cycles to execute the code is 8

  13. Question 4-1 Look at the following code. The pipelined datapath is given on the previous question addi $t0, $t0, 4 lw $v0, 0($t0) sw $v0, 20($t1) lw $s0, 60($t0) add $s1, $s0, $s0 sub $s1, $s1, $s0 sub $s4, $s1, $s5 a. Determine where the hazards occur and on which register and write it against each instruction above

  14. Question 4-1 addi $t0, $t0, 4 lw $v0, 0($t0) data hazard on $t0 sw $v0, 20($t1) data hazard on $v0 lw $s0, 60($t0) add $s1, $s0, $s0 data hazard on $s0 sub $s1, $s1, $s0 data hazard on $s1 sub $s4, $s1, $s5 data hazard on $s1

  15. Question 4-2 b. Indicate in the chart below what stage each instruction is in what cycle, where forwarding occurs (draw an arrow from where the value is produced to where the value is used), and where stalls or flushed occur. In the chart below, you may have more/less spaces than you need. Make sure you fill in the instructions in the first column as they would execute

  16. Question 4-2

  17. Question 4-3 c. Which two registers of the register file are being read in cycle 8? $s0, $s1

  18. Question 4-4 d. How many cycles does it take to execute the above code completely? 12

  19. Question 4-5 e. Can you reorder the code to reduce the number of cycles it takes to execute this code, without changing the code result? If yes, show how. Switch the instructions: sw $v0,20($t1) with lw $s0,60($t0)

  20. Question 4-5 • Switching load and store instruction is VERY dangerous! • The load and store address may be same under certain conditions. • Another kind of data dependence (memory correctness). • Don’t change the order of lw/sw unless you are 100% sure.
