    1. EBNeuro BE Micro Recorder Concept Proposal – Advanced Device

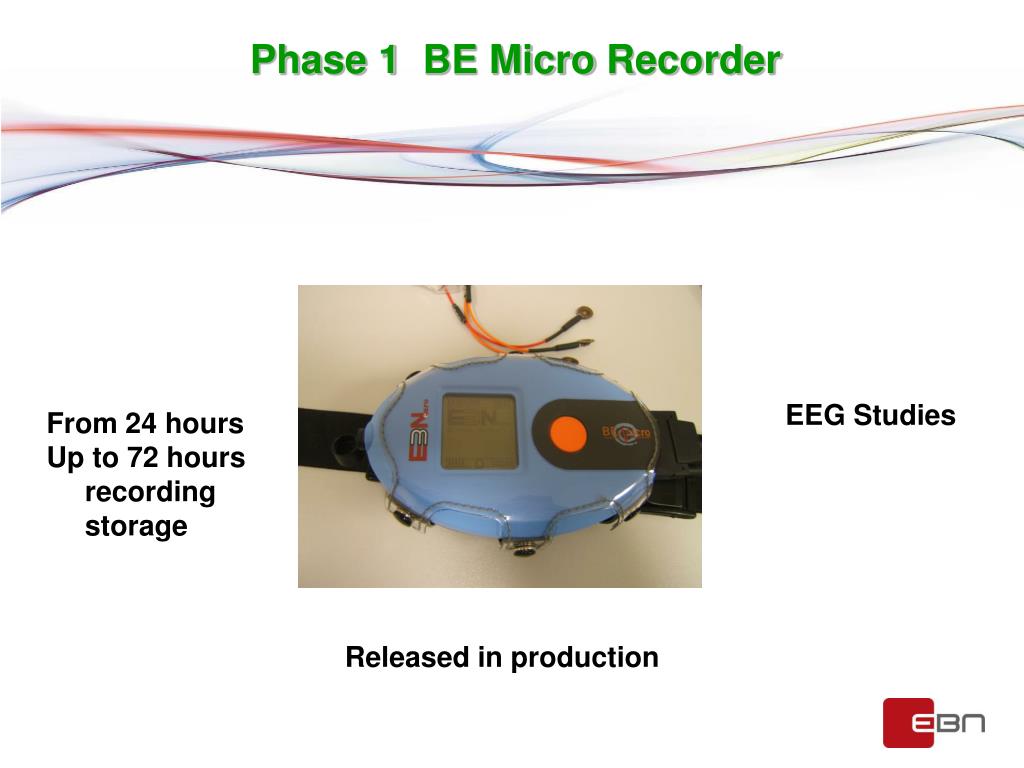

    2. Phase 1 BE Micro Recorder EEG Studies From 24 hours Up to 72 hours recording storage Released in production

    3. Phase 1 BE Micro system BEMicro + Patient In Interface + OxiWatch Nonin Tecnology Patient Input Int Patient Yoke BEMicro 21 ch + 4ch OxiWatch Up to 25 Channels! High Speed Serial USB BE Micro Switch Box (Patient Isolation)

    4. Be Micro Recorder Phase 1 : Channels Monopolar Channels: 16 ch Polygraphic Channels: 5 ch Total of 21 Channels

    5. BE Micro and cables interface modules

    6. BE Micro and Oxymetry plug module OxiWatch Built in Nonin Tecnology

    7. BE Micro and BE Micro Plus BE Micro Plus Up to 34 CH EEG and SLEEP STUDIES BE Micro 21 CH BE Micro Additional Patient headbox BE Micro

    8. Phase 2  BE Micro Plus system BEMicro + Patient In Interface + Yoke + OxiWatch Nonin Tecnology Patient Input Int Patient Yoke BEMicro 21 ch + 9 ch + 4ch OxiWatch Up to 34 Channels! High Speed Serial USB BE Micro Switch Box (Patient Isolation)

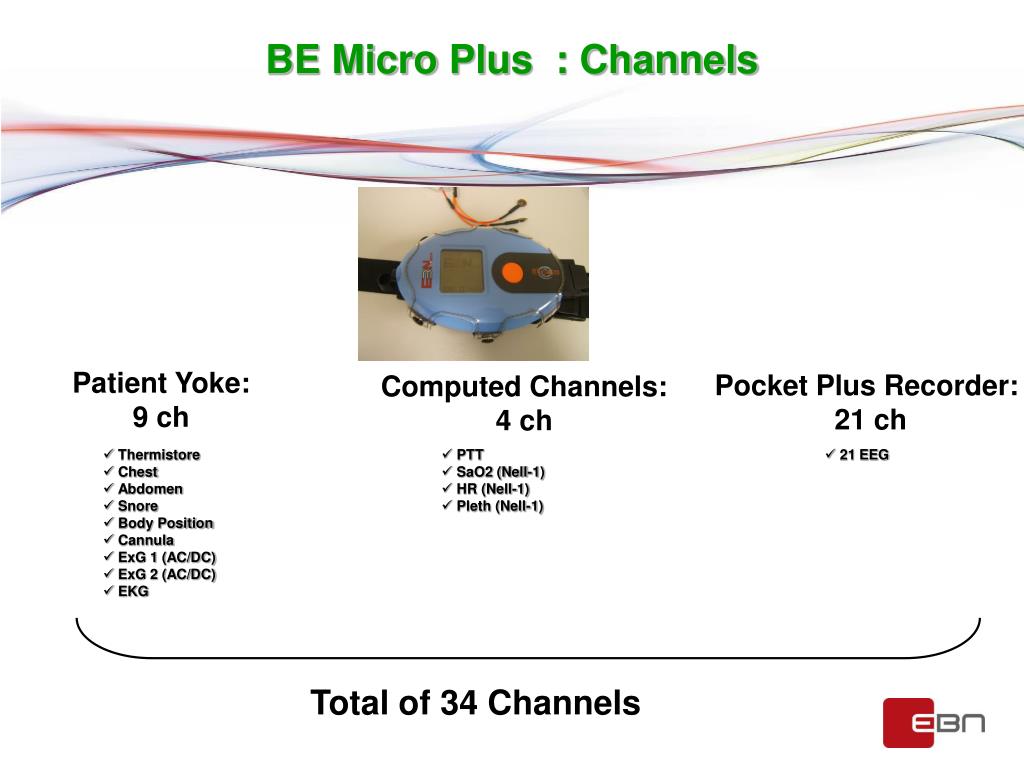

    9. BE Micro Plus : Channels Patient Yoke: 9 ch Pocket Plus Recorder: 21 ch Computed Channels: 4 ch • Thermistore • Chest • Abdomen • Snore • Body Position • Cannula • ExG 1 (AC/DC) • ExG 2 (AC/DC) • EKG • PTT • SaO2 (Nell-1) • HR (Nell-1) • Pleth (Nell-1) • 21 EEG Total of 34 Channels

    10. BE Micro plus Strengths • Project already in Progress • High number of channels • Possible PTT & Heart Rate • Upgradeability of BE Micro … Weaknesses • FDA: New Submission • No Oximeter built in • No CPAP management
