  1. By Janice Levi and Bill Berry Ornament Demo Gulf Coast Woodturners Association November 2011

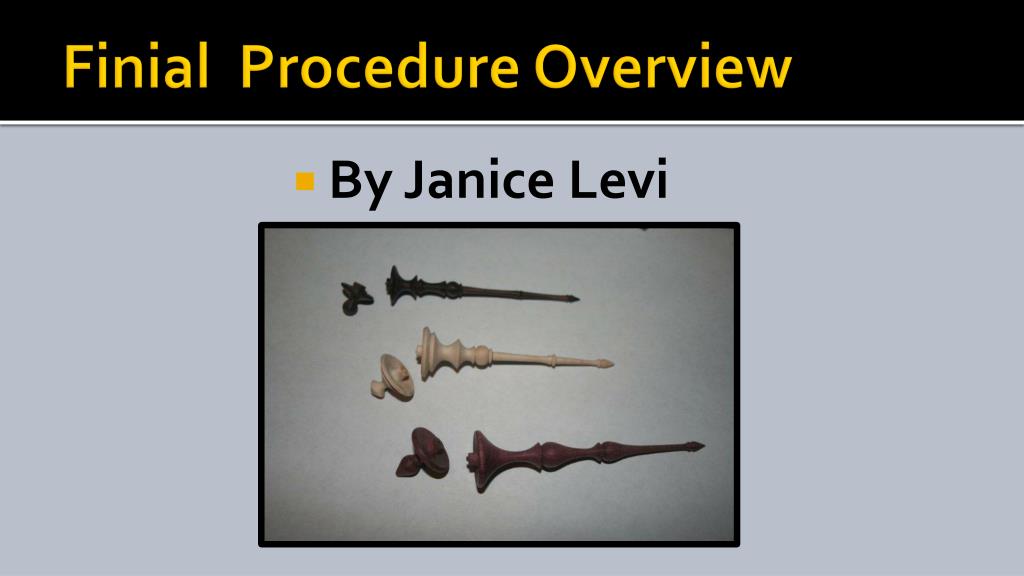

  2. Finial Procedure Overview • By Janice Levi

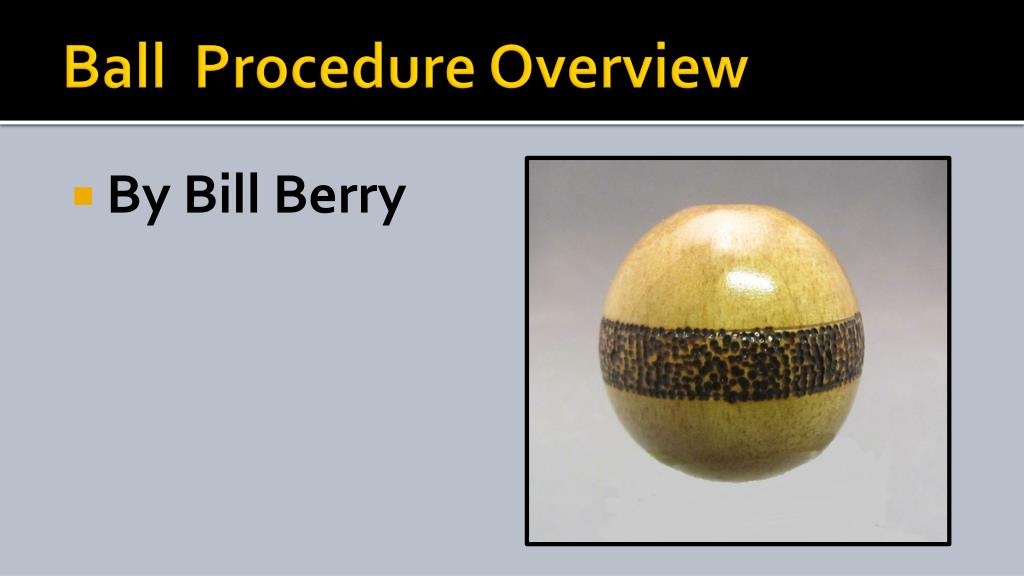

  3. Ball Procedure Overview • By Bill Berry

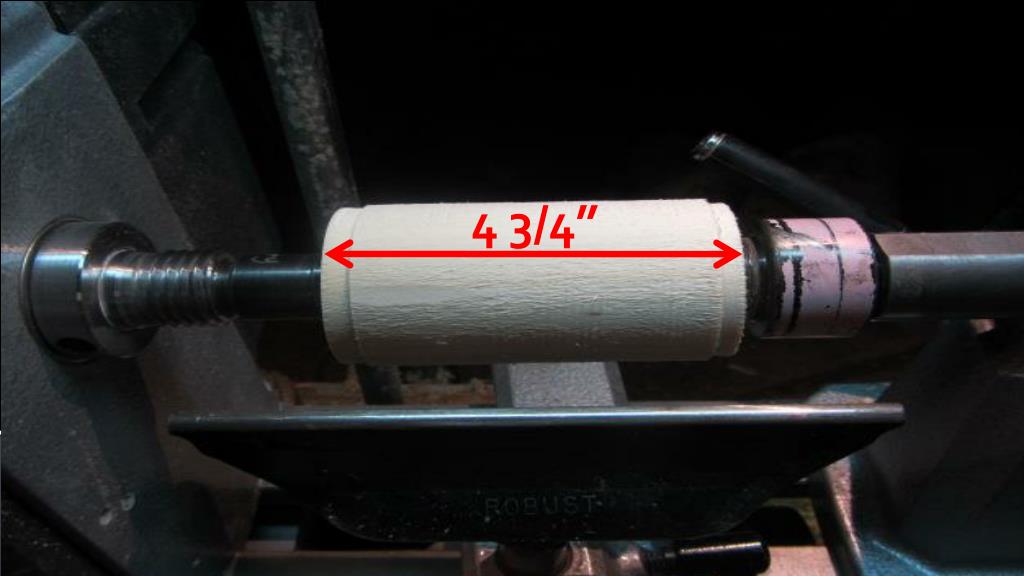

  4. 4 3/4”

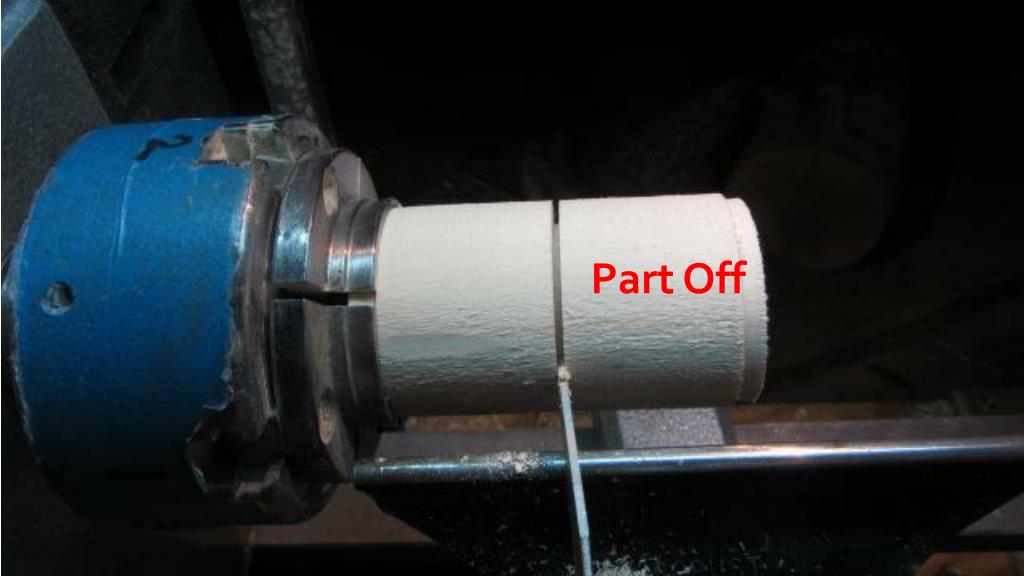

  5. Part In Part Off

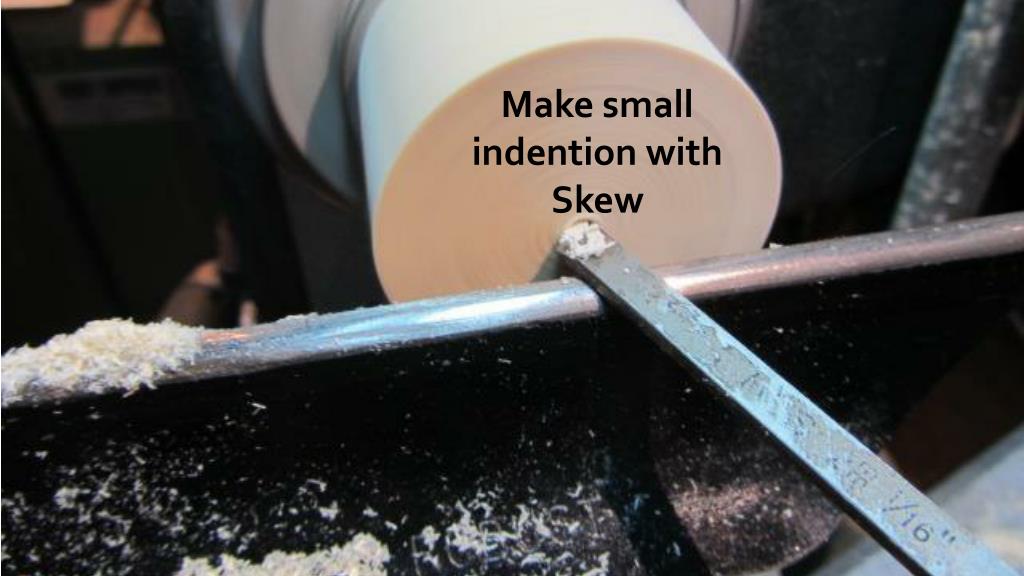

  6. Make small indention with Skew

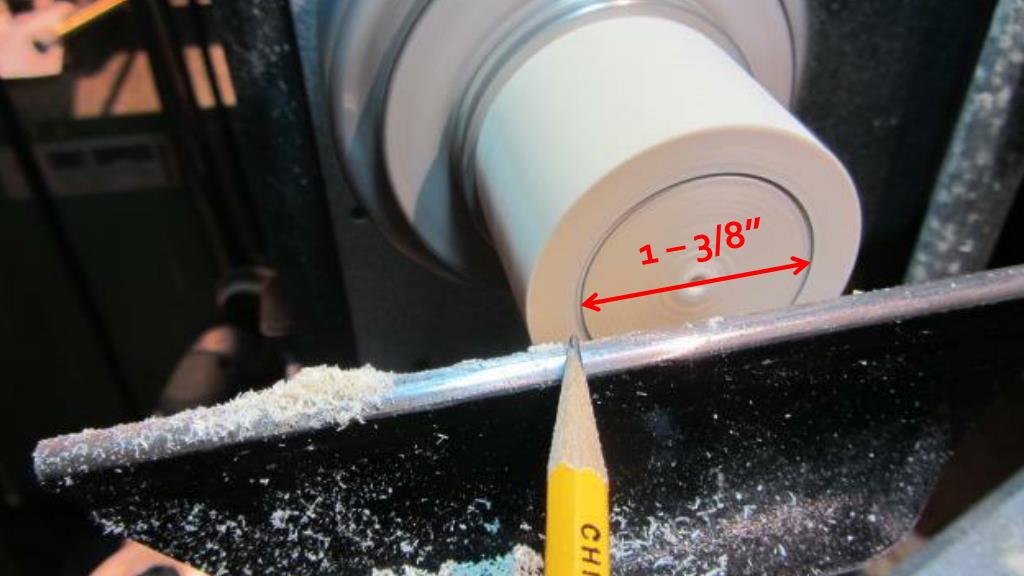

  7. 1 – 3/8”

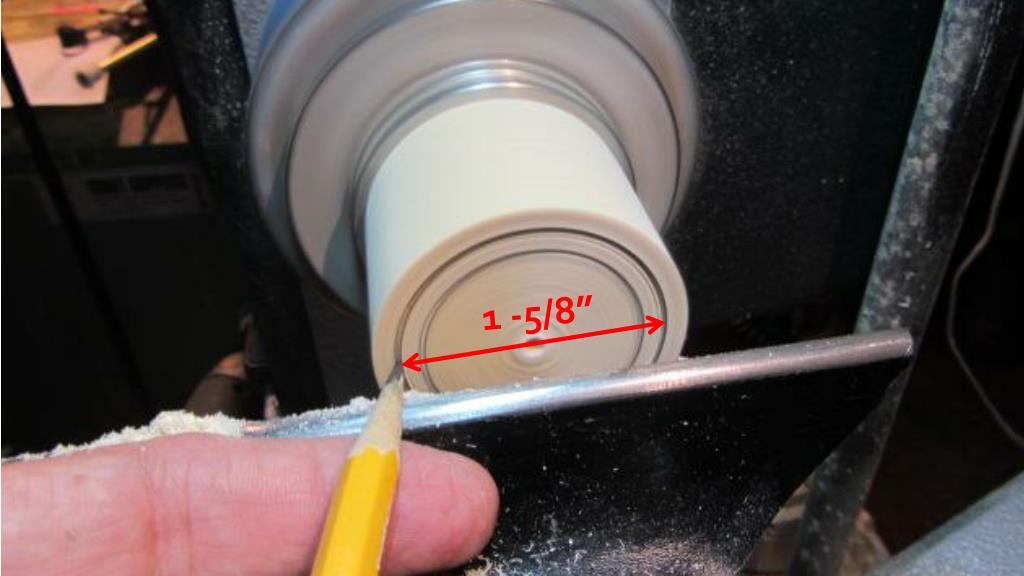

  8. 1 -5/8”

  9. Drill ¼” Hole 1” Deep

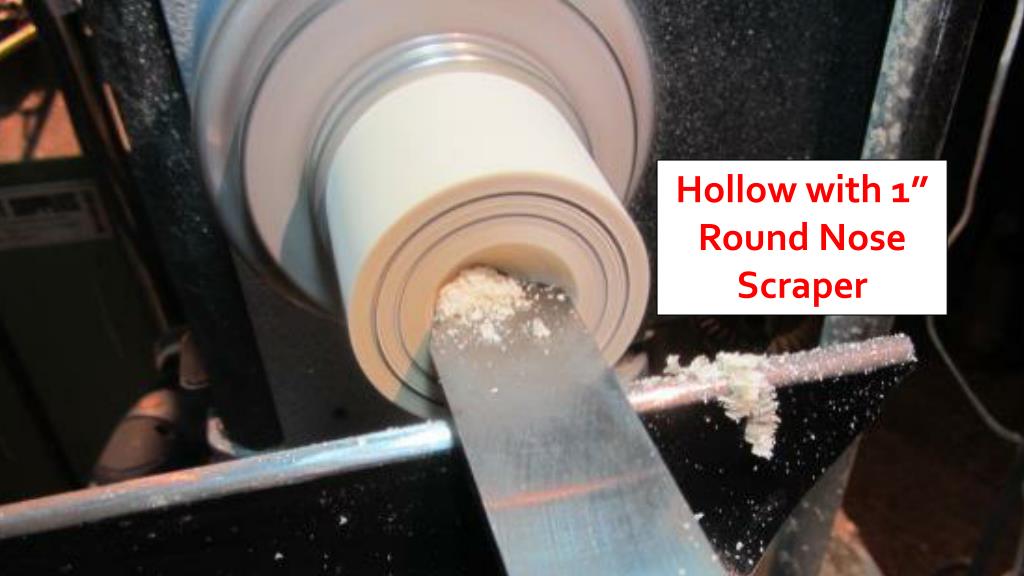

  10. Hollow with 1” Round Nose Scraper

  11. Measure Inside With “Template”

  12. Instructions for making Template (2) Wooden Tongue Depressors (Hobby Lobby) (1) Steel Washer 1-3/8” OD Hot Glue Gun

  13. 1- 3/8” OD Steel Washer

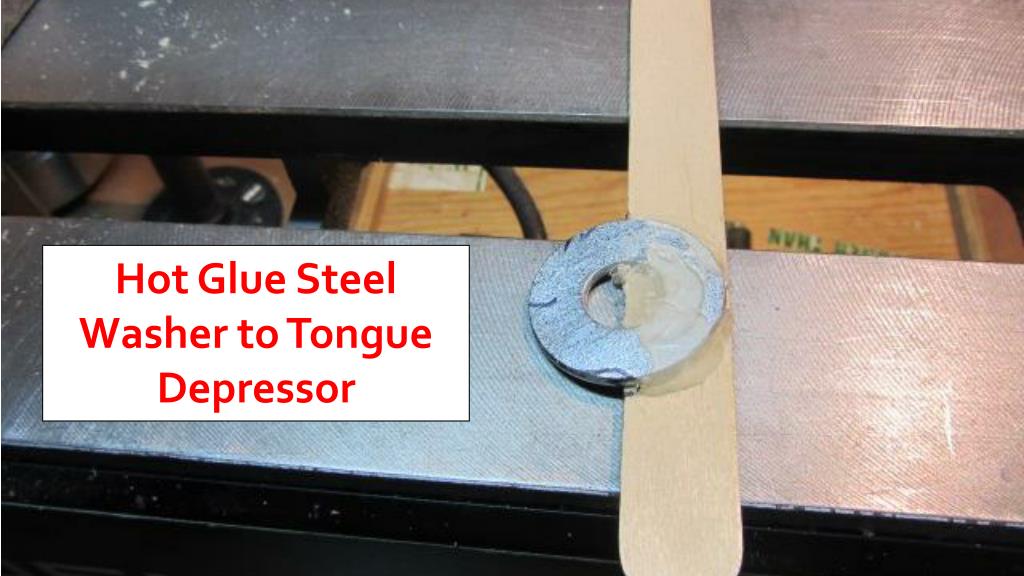

  14. Hot Glue Steel Washer to Tongue Depressor

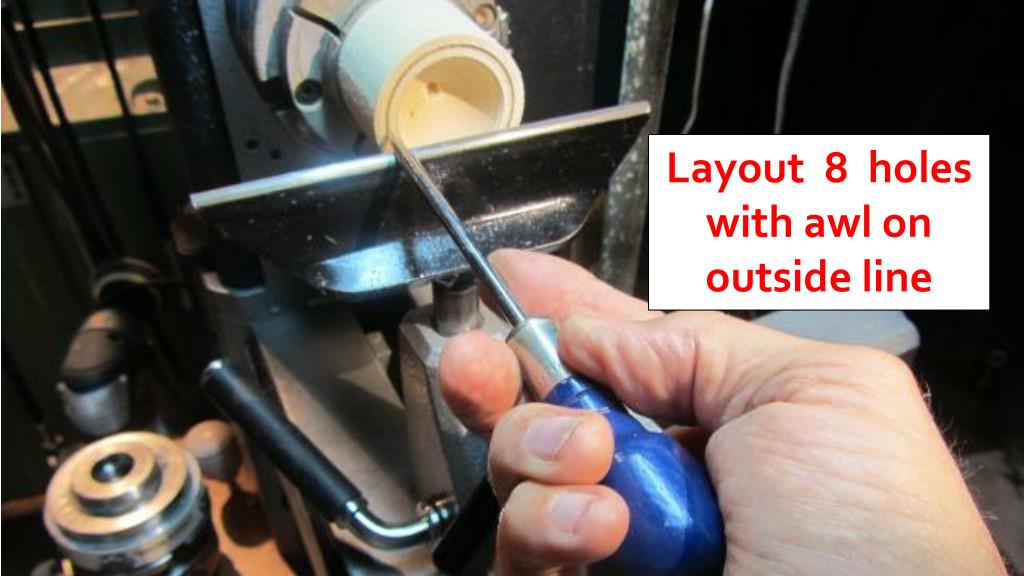

  15. Layout 8 holes with awl on outside line

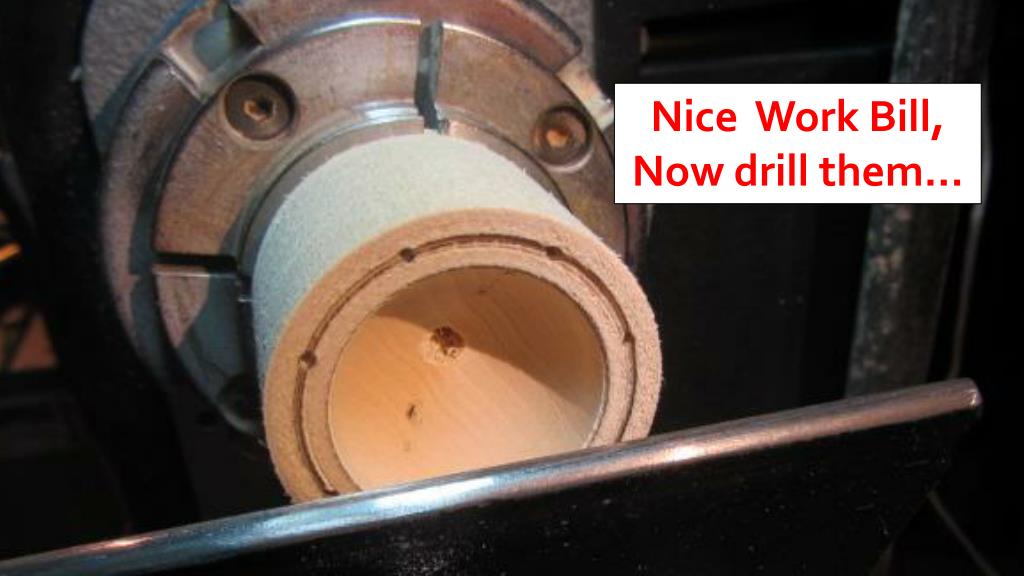

  16. Nice Work Bill, Now drill them…

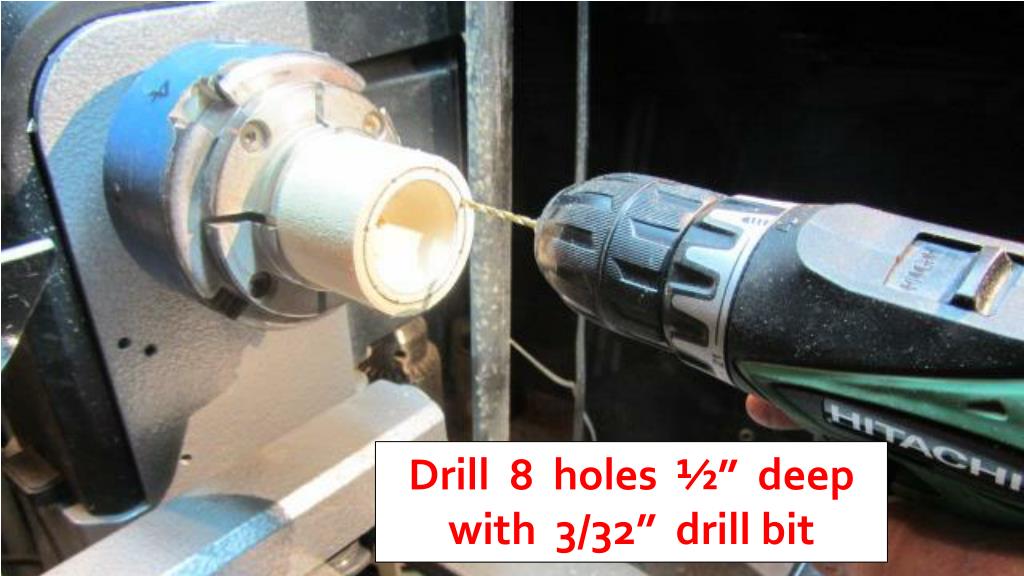

  17. Drill 8 holes ½” deep with 3/32” drill bit

  18. Repeat the procedure on the other half. Then glue halves together.

  19. Align Grain and Glue Halves Together.

  20. 1-3/8” ID

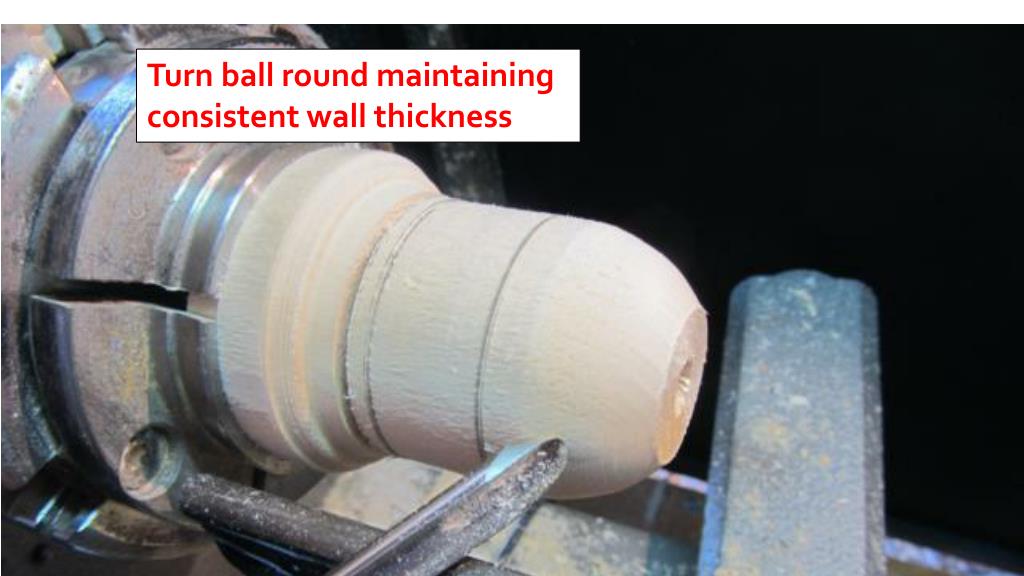

  21. Turn ball round maintaining consistent wall thickness

  22. RoughShape and Part Off

  23. Use ¼” Tenon to Friction drive ball

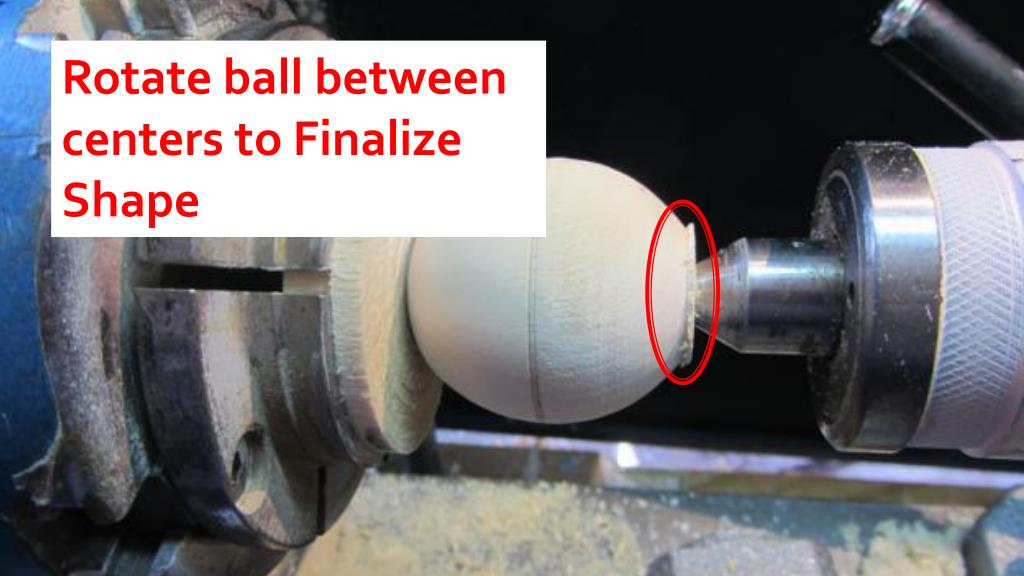

  24. Rotate ball between centers to Finalize Shape

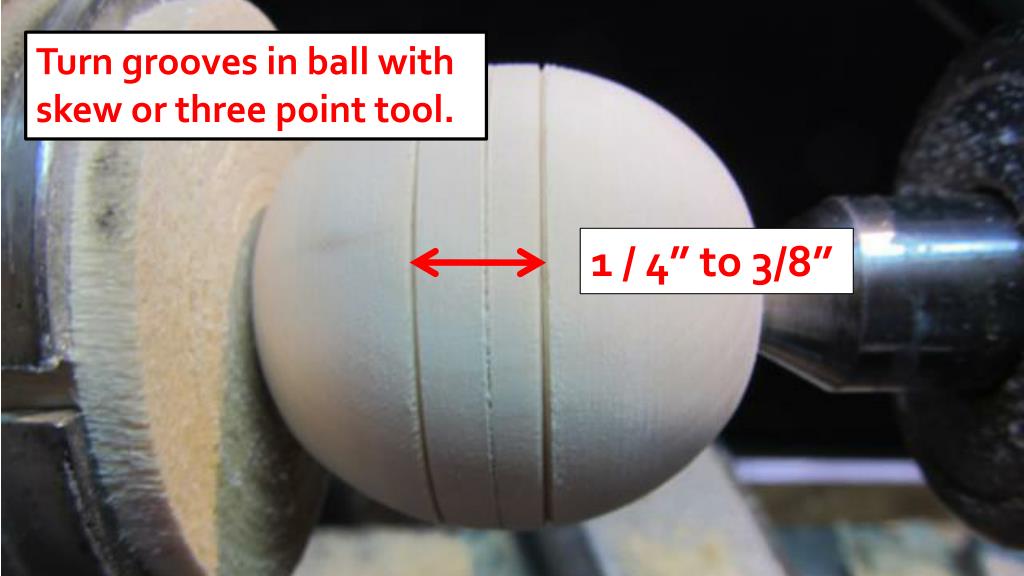

  25. Turn grooves in ball with skew or three point tool. 1 / 4” to 3/8”

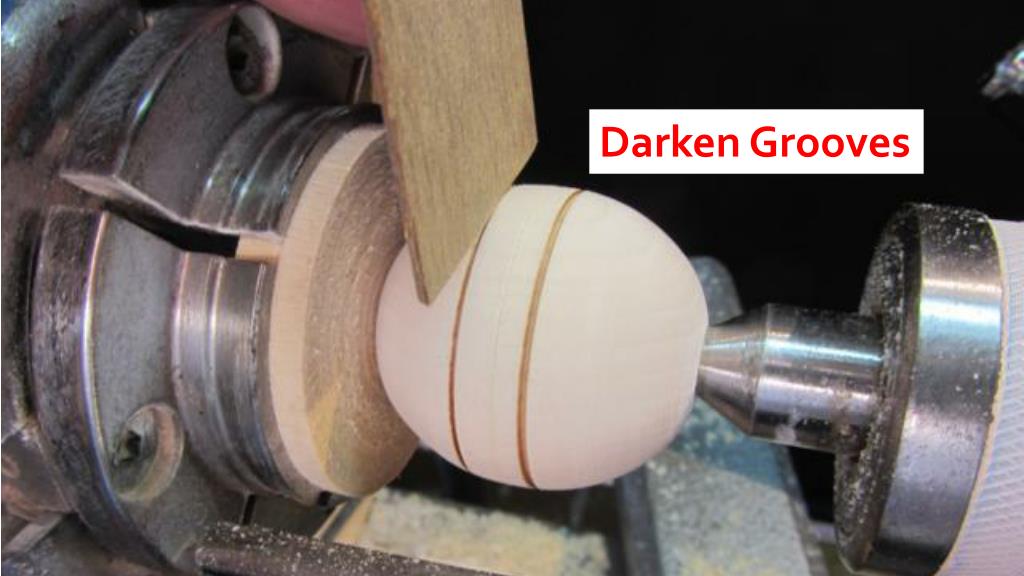

  26. Darken Grooves
