  1. Lesson 3 Layout & Flow

  2. Sandwich making • 'If you were making a sandwich for a friend how would you do it? • 'If you were making sandwiches for a whole group of friends who were due to arrive in an hour’s time, how would your process change?‘ • 'If you were making 5,000 sandwiches a day for a supermarket, how would you wish to organize the production system?'

  3. Sandwich making • Sandwich for a friend - What kind of sandwich would they want (limited only by the availability of ingredients in the kitchen), when do they want it? (it could be made to order), and how much it could be customized (more salt and pepper) • Whole group/1hour arrival (You would butter all the bread together, standardize the products to some extent, and so on). • ‘Making 5,000 sandwiches a day for a supermarket?'(would need to use an assembly line or process, etc.).

  4. Volume & Variety • Layout and flow cannot be discussed without first considering : • The product volume and variety • The type of process to be employed • These factors are inextricably linked

  5. Volume and variety Project process Jobbing process Batch process Mass process Continuous process Decision 1 Process type Strategic performance objectives Fixed position layout Process layout Cell layout Product layout Decision 2 Basic layout type Decision 3 The physical position of all transforming resources Detailed design of layout The flow of the operation’s transformed resources How decisions might be connected (Slack2004)

  6. Volume & Variety • Product volume – quantity of units produced • Product Variety – is the variation in products (SKU’s) • Product volume and variety is affected by the type of business and the market demand for products

  7. Volume-Variety Dilemma Low VOLUME High High Not possible? VARIETY Accepted continuum for processes Not viable? Low

  8. Volume & Variety • Product volume and variety have a big influence on process design. • The two dimensions normally go together: • Low volumes operations normally have a high degree of product variety. [automotive component supplier] • High volume operations normally have a low degree of product variety.[canning plant] • The same organisation can have different parts of the operation organised differently – [large automotive OEM] • Volume/Variety is seen as having a large Influence upon the process type deployed

  9. Volume & Variety • Process types in manufacturing are generally considered as: • Project Processes • Jobbing Processes • Batch Processes • Mass Processes • Continuous Processes • The volume/variety position points to the most appropriate process

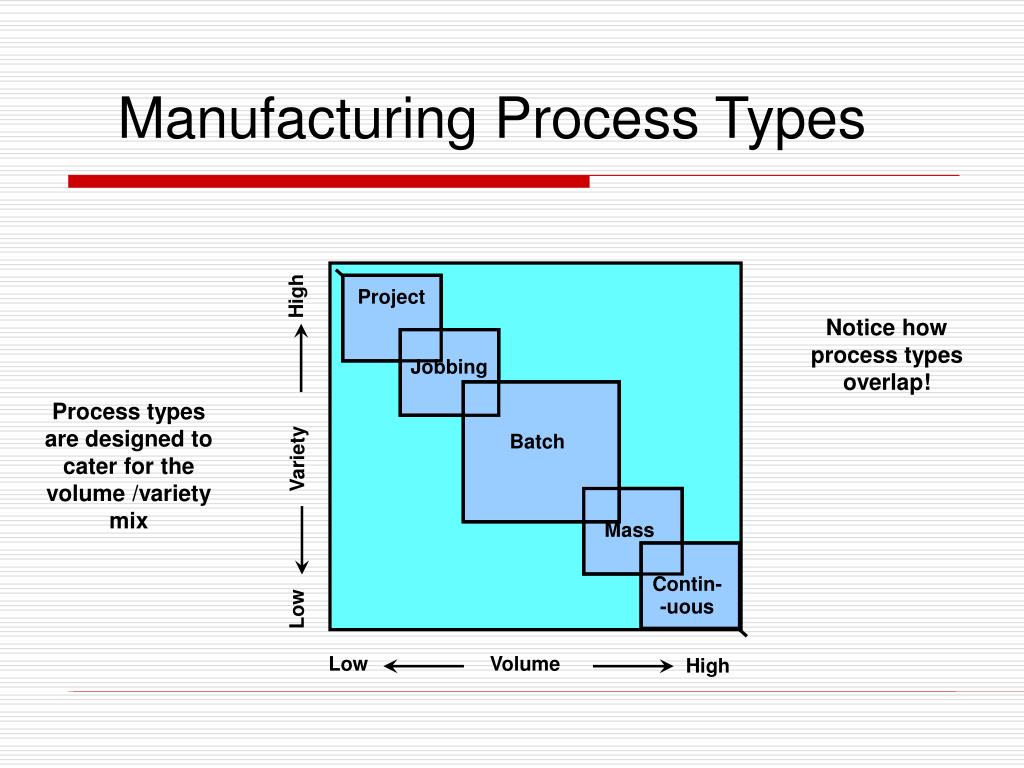

  10. High Project Jobbing Batch Variety Mass Contin- -uous Low Low Volume High Manufacturing Process Types Notice how process types overlap! Process types are designed to cater for the volume /variety mix

  11. Project Processes • One-off, complex, large scale, high work content “products” e.g. construction projects • Speciallymade, every one customized i.e. a project! • Defined start and finish: time, quality and cost objectives • Many different skills have to be coordinated • Fixed position layout, resources brought to product

  12. Jobbing Processes • Also deal with high variety / low volume • Very small quantities: “one-offs” • Speciallymade. High variety, low repetition e.g. bespoke suits • Skill requirements are usually very broad • Each job has to share resources with other jobs • Fixed position or process layout (routing decided by jobbers)

  13. Batch Processes • Higher volumes and lower variety than for jobbing • Standard products, repeating demand. But can make specials • Specialized, narrower skills • Set-ups (changeovers) at each stage of production • Can use process or cellular layout, has a predetermined planned routing

  14. Mass (Line)Processes • Higher volumes than Batch • Standard, repeat products • Low and/or narrow skills • No set-ups, or almost instantaneous ones • Cell or product layout: a fixed sequence of operations

  15. Continuous Processes • Extremely high volumes and low variety: often single product • Standard, repeat products • Highly capital-intensive and automated • Few changeovers, if any, required • Difficult and expensive to start and stop the process • Product layout: usually flow along conveyors or pipes

  16. INCREASING VARIETY INCREASING VOLUME PRODUCT CHARACTERISTICS Low volume Low standardization Low volume Multiple products Higher volume Few major products High volume High standardization Random flow (project) Custom furniture maker Jumbled flow (jobbing) Machine tool maker Disconnected line flow (batch) PROCESS CHARACTERISTICS Automobile factory Connected line flow (mass) Petro- chemical refinery Smoothflow (Continuous) The Product/Process Matrix

  17. Volume Manufacturing operations process types Service operations process types Variety Project Professional service None More process flexibility than is needed so high cost Jobbing Service Shop Batch Less process flexibility than is needed so high cost Mass None Mass service Continuous The ‘natural’ line of fit of process to volume/variety characteristics Deviating from the ‘natural’ diagonal on the product-process matrix has consequences for cost and flexibility

  18. Layout and F low • Layout decisions have to be carefully thought out: • Size and complexity of equipment involved • Cost • Resource and time • Disruption to production and customer service • Complex and ‘muddled’ production flows can evolve if not designed and monitored properly

  19. Layout • Product volume and variety dictate the process type selected. • Areas of overlap exist where more than one type could be applicable – in this case operational objectives are used to make decision: cost, flexibility, known future areas of growth etc. • There are four broad layouts • Fixed position • Process • Cell • Product

  20. Layout • It is important to note that one process type does not mean one layout type. • There are normally choices associated with jobbing processes, batch processes and mass processes.

  21. The nature of the basic layout types Manufacturing B asic layout Service process types types process types Fixed Project processes Project processes Professional position layout services Jobbing processes Process layout Service shops Batch pro cesses Cell layout Mass services Mass processes Product layout Continuous processes

  22. Fixed Position • Transformed resources do not move • Equipment and resources move to the product which is stationery. • Normally because product is too large, i.e. shipbuilding, aero-engine, power generators. • Or too delicate or fragile – heart transplant patient • Main problems associated with this type of operations are space and scheduling issues: • Adequate space for groups to work without interference • Storage for materials and equipment • Scheduling of material and people is key to FP success

  23. Fixed Position Example • Case study exercise – ALSTROM • Pg 209 • In groups of 2-3 discuss the set questions. • Question 2 should be answered in relation to performance metrics - Quality, Speed, Dependability. Flexibility and Cost

  24. Alstrom Case Study • 1. What factors at each site are likely to influence the layout? • Although the generators themselves will be relatively standard (though there are some variations) the installation of each will be slightly different where the generator interfaces with something else. The input of fuel, the output of generated electricity, and the way in which the generator is fixed to its foundations will all depend on the customer’s site. So, for example, the geometry of the site could be important. Very large pieces of the generator will have to be brought in and positioned in the site. If access to the site is restricted this may have to be done in a non-standard manner. Similarly, some of the services required by the product (compressed air, water, etc.) may not be available at the right place. These will also have to be provided.

  25. Alstrom Case Study • 2. Parts of the product are assembled in the factory and transported to the site. What advantage does this give the company? • The advantages to the company can be classed according to our normal five performance objectives as follows. • Quality – Assembling large parts of the generator at the factory ensures that the job will be done by skilled staff who can make sure that any small problems in assembly are solved at the point where there are the appropriate facilities. Assembling parts on the site introduces more variables which may undermine the quality of the product. • Speed – It will be faster to assemble parts in the factory using an appropriate layout than trying to do the same on the site where conditions are less predictable. • Dependability – Again, the relatively predictable conditions of the factory will allow assembly to be carried out to a schedule. Assembly on site is prone to disruption from the other tasks taking place on the site. • Flexibility – Standard parts, assembled at the factory, can be used for more than one customer. So, for example, if one part, when it gets to the site, is found to be unsatisfactory another one can be rushed to it at short notice. • Cost – Making many of the same part in the factory (even if the part is fairly large) is obviously cheaper than assembling everything on site.

  26. Process Layout • Resource types dominate layout decision • Similar process are located together – for convenience or utilisation • Parts are routed through the operation based upon their requirements • Flow patterns are different and complex • Control and visibility is also an issue • Example of use – production of aero-engine parts – many different processes involved.

  27. Cellular Layout • Where all the required resources are available in one area to meet the processing needs. • Can be of the product or process layout type. • After completion the product may be finished or go to another cell. • Cells attempt to bring order to the product flow

  28. Process Layout Cellular Layout

  29. Product Layout • Each product follows the same route • Can also be known as flow-line • Flow is clear predictable and therefore offers visibility and ease of control. • Products produced are standardised (although small variations are possible) – but flow route is the same. • Examples – car assembly, electronic goods etc.

  30. Advantages and disadvantages Fixed Process Cell Product position layout layout layout layout Very high product High product and Can give good and mix flexibility. mix flexibility. compromise. Low unit costs for high volume. Product/customer Relatively robust Fast throughput. A dvantages not moved. in the case of Opportunities for disruptions. Group work can specialization of High variety of result in good equipment. tasks for staff. Easy to supervise. motivation. Can have low mix Very high unit Low utilization. Can be costly to flexibility. costs. rearrange existing Can have very layout. Not very robust to Disadvantages Scheduling space high WIP. disruption. and activities can Can need more be difficult. Complex flow. plant. Work can be very repetitive.

  31. Next Week • No tutorial sessions on Monday 15th October • Answer SAQ for Unit 1 - Lesson 3 • Read Unit 1 lesson 4 of study guide LAYOUT DESIGN TECHNIQUES – LINE BALANCING

  32. Lesson 3 Self Assessment Questions

  33. Lesson 3 Self Assessment Questions

  34. Lesson 3 Self Assessment Questions

  35. Lesson 3 Self Assessment Questions

  36. Lesson 4 Layout Design Techniques: Line Balancing

  37. Last Week • Discussed volume & variety • Processes – Project, Jobbing, batch, mass & continuous • Looked at layouts - Fixed position, cellular, process and product

  38. This Week • Layout Design Techniques • Focus on Product layout • Cycle time • Line Balancing

  39. Product Layout • Transforming resources located for the convenience of the transformed resources • Product/customer/information follow a pre-arranged route • Sequence of activities matches the sequence in which process’s have been located

  40. Detailed Design - Product Layout • Key decisions are concerned with ‘what to place where’ – in terms of what to allocate to each of the workstations. • This is termed line balancing • Other key questions are: • What cycle time is needed? • How many stages are needed? • How should the layout be balanced? • How should the stages be arranged?

  41. Some definitions – (ch4 Slack) • Cycle time – the average time for units of output to emerge from the process • Throughput time – the time for a ‘unit’ to move through the process • Work Content – the total amount of work required to produce a unit of output • WIP – work in progress

  42. Detailed Design - Product Layout Cycle time = time available No.of units to be processed • Suppose a bank is designing an operation to process mortgage applications. The number to be processed per week= 160 and the time available for processing = 40 hours Cycle time = 40 = 1 hr = 15 minutes 160 4

  43. Detailed Design - Product Layout Number of stages req. = work content required cycle time Suppose the back in the previous example calculated the total work content to process a mortgage application to be 60 minutes. Cycle time = 15 mins Number of stages = 60 = 4 stages 15

  44. Detailed Design - Product Layout • The previous example assumed that 15mins. of work time was allocated equally to each of the 4 stages. • This can be almost impossible in practice and some imbalance results • The effectiveness of the line balancing is measured by ‘balancing loss’ • Balancing loss - is that proportion of the time invested in processing the product or service which is not used productively • Can lead to excessive stations being required

  45. An ideal ‘balance’ where work is allocated equally between the stages But if work is not equally allocated the cycle time will increase and ‘balancing losses’ will occur 3 Cycle time = 2.5 mins Cycle time = 3.0 mins 3.5 2.5 3 3.0 2.5 2 2.5 Load 2.3 2.5 2.2 2.2 3.0 2.3 2 Load 1.5 1.5 1 1 0.5 0.5 0 0 1 2 3 4 1 2 3 4 Stage Stage Work allocated to stage Calculating balancing loss: Idle time every cycle =(3.0 - 2.3) + (3.0 - 2.5) + (3.0 - 2.2) = 2.0 mins Balancing loss = 2.0 4 x 3.0 = 0.1667 = 16.67% Idle time Calculation of Balancing Loss

  46. STAGE 1 (10 secs) STAGE 2 (50 secs) STAGE 3 (15 secs) STAGE 4 (15 secs) The Plug and Play Excercise • WHAT WAS THE CYCLE TIME? • HOW LONG DID IT TAKE TO MAKE THE FIRST PLUG? • HOW LONG DID IT TAKE TO MAKE THE LAST PLUG?

  47. 10 10 10 10 20 20 20 20 30 30 30 30 40 40 40 40 50 50 50 50 60 60 60 60 70 70 70 70 80 80 80 80 90 90 90 90 100 100 100 100 110 110 110 110 120 120 120 120 130 130 130 130 140 140 140 140 150 150 150 150 160 160 160 160 Timing diagram START OF PRODUCTION STAGE 1 STAGE 2 STAGE 3 STAGE 4 50 secs 90 secs Start up First Plug Produced Second Plug Produced

  48. 10 10 10 10 20 20 20 20 30 30 30 30 40 40 40 40 50 50 50 50 60 60 60 60 70 70 70 70 80 80 80 80 90 90 90 90 100 100 100 100 110 110 110 110 120 120 120 120 130 130 130 130 140 140 140 140 150 150 150 150 160 160 160 160 Timing diagram END OF PRODUCTION STAGE 1 STAGE 2 STAGE 3 STAGE 4 50 secs 50 secs 50 secs Last Plug Produced Plug Produced Plug Produced

  49. Detailed Design - Product Layout • In Line balance calculations the initial start up situation is neglected and the cycle time is taken as the continuous rate of output • In this case 1 plug every 50 seconds • Note – it is the value of the longest activity (the bottleneck) • Using this value the line balancing loss can be calculated

  50. STAGE 1 (10 secs) STAGE 2 (50 secs) STAGE 3 (15 secs) STAGE 4 (15 secs) 60 50 40 35 35 40 30 20 10 0 1 2 3 4 The Plug and Play Excercise Idle time = (50-10)+0+(50-35)+(50-35) = 40+0+35+35 = 110 secs Balance loss = (110/4*50)*100 = 55% CYCLE TIME = 50 secs WORK CONTENT = 90 secs Stage 1 10 secs Fit pins to plug Stage 2 50 secs Get plug from stage 1 10secs Fit screws and cable retainer 30 secs Take plug to Stage 3 10 secs Stage 3 15 secs Fit fuse and holder Stage 4 15 secs Inspect and fit top cover
