peacock. dogbane beetle. Thin Film Interference. opal. k 1. k 2. y. then. if. Maxima at:. Reflection from a dielectric slab:. Reflectance:. I o. I R. 1. .04. (near normal incidence). .0369. ( n = relative index). n. .0384. .96. R = 0.04 for glass.

Download Presentation


An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. peacock dogbane beetle Thin Film Interference opal

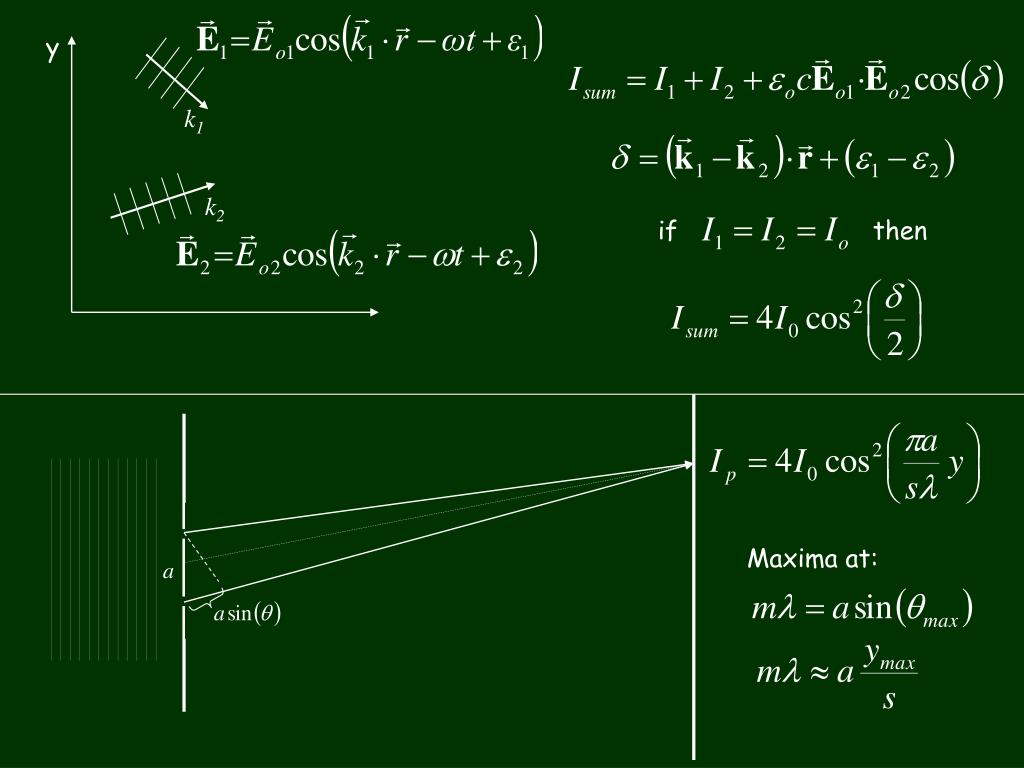

  2. k1 k2 y then if Maxima at:

  3. Reflection from a dielectric slab: Reflectance: Io IR 1 .04 (near normal incidence) .0369 (n = relative index) n .0384 .96 R = 0.04 for glass To consider interference between the front and back reflection, assume they have the same amplitude: 0.04 Io

  4. Dielectric Films n t What is d? Assume near normal incidence: Physical path difference: 2t Optical path difference:

  5. Wait!! Reflections can cause phase shifts! First reflection: p phase shift Second reflection: no phase shift “Reflection” path difference: Total phase difference: Constructive Destructive How does this lead to color?

  6. white n t t = 400 nm, n = 1.515, q = 0 R lo (nm)

  7. normal and 45 degrees 45 0 For varying angle of incidence:

  8. 4% per interface adds up!

  9. E k Goal: R = 0, T = 1 (Impedance Matching) no ng Can only adjust n

  10. E Antireflection coating k no nf ng

  11. Antireflection coating: two requirements 1. Destructive interference: no = 1.0 t nf = x ns = 1.5

  12. 1. Equal amplitudes:

  13. Reflections from the front and back surfaces of a dielectric slab result in two plane waves with an optical path difference and therefore exhibit interference. The interference effects can be engineered to minimize reflectance or produce pretty colors.
