  1. Network Components By Carl Jordan

  2. CONTENT • Switch • Hub • Gateway • Bridge • Router • Firewall • Wireless AP

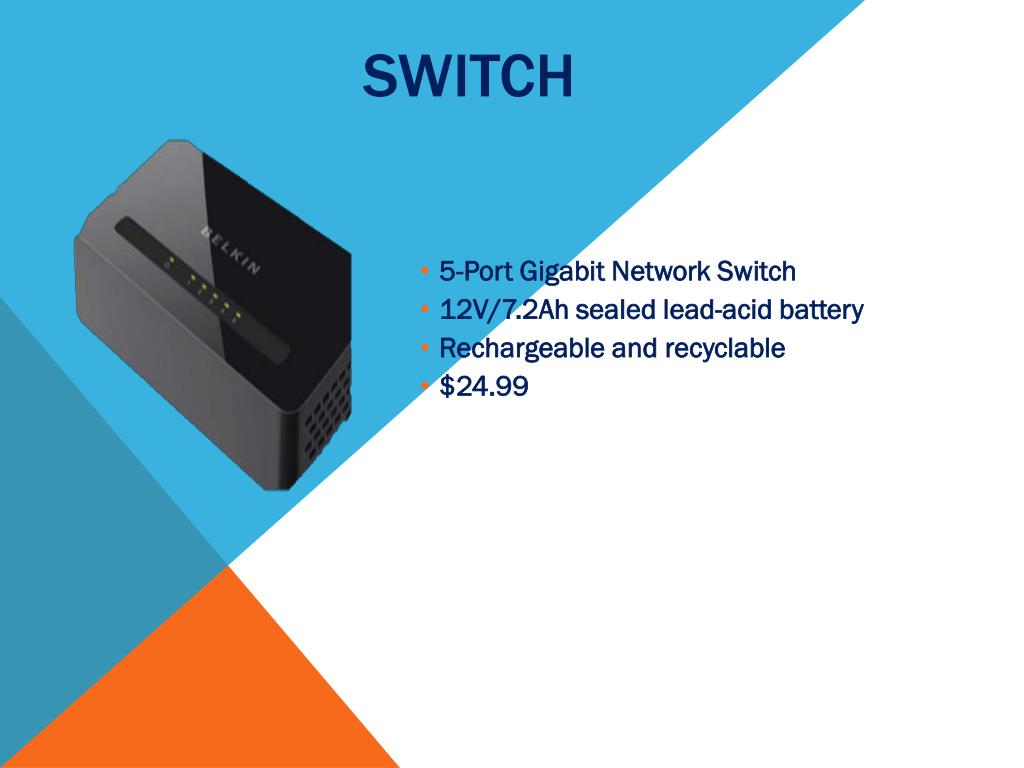

  3. SWITCH • 5-Port Gigabit Network Switch • 12V/7.2Ah sealed lead-acid battery • Rechargeable and recyclable • $24.99

  4. SWITCH A LAN switch does the same thing as a hub, but more efficiently. The switch connects computers, printers, and external hard drives to each other for communication.

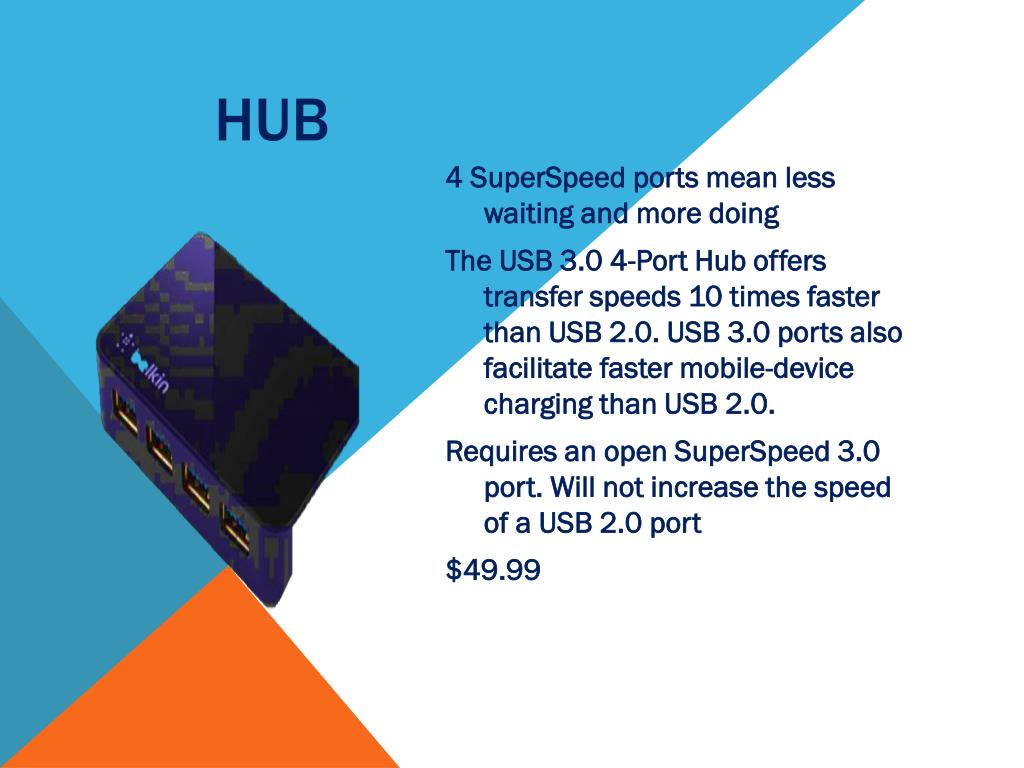

  5. HUB • 4 SuperSpeed ports mean less waiting and more doing • The USB 3.0 4-Port Hub offers transfer speeds 10 times faster than USB 2.0. USB 3.0 ports also facilitate faster mobile-device charging than USB 2.0. • Requires an open SuperSpeed 3.0 port. Will not increase the speed of a USB 2.0 port • $49.99

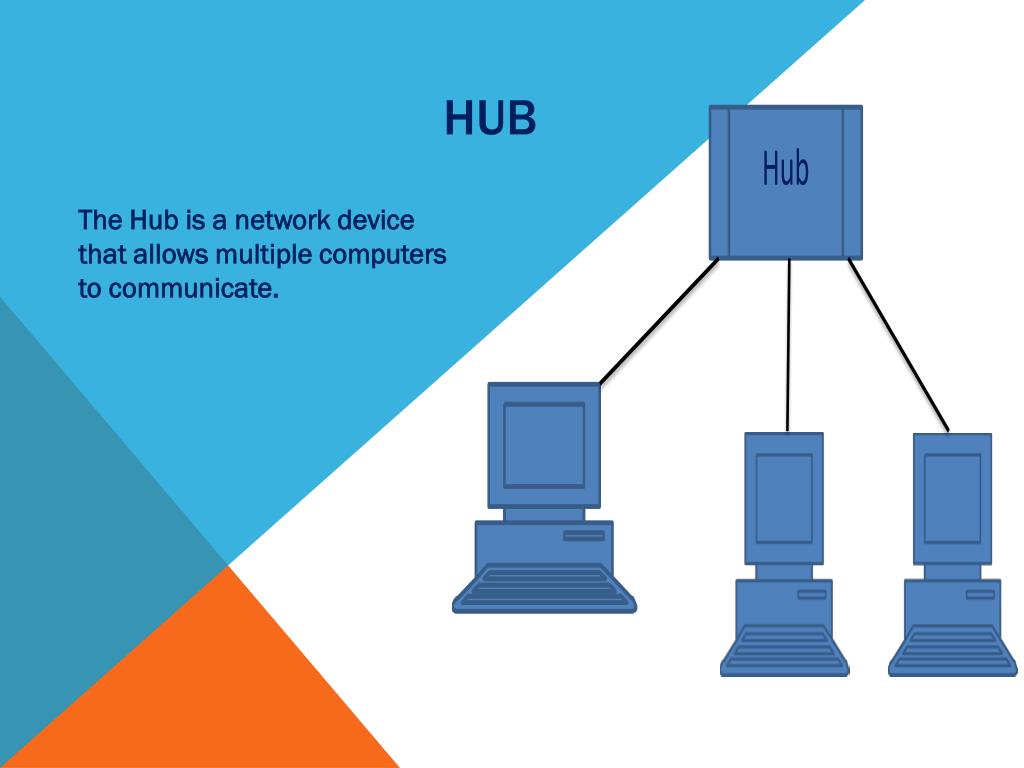

  6. HUB The Hub is a network device that allows multiple computers to communicate.

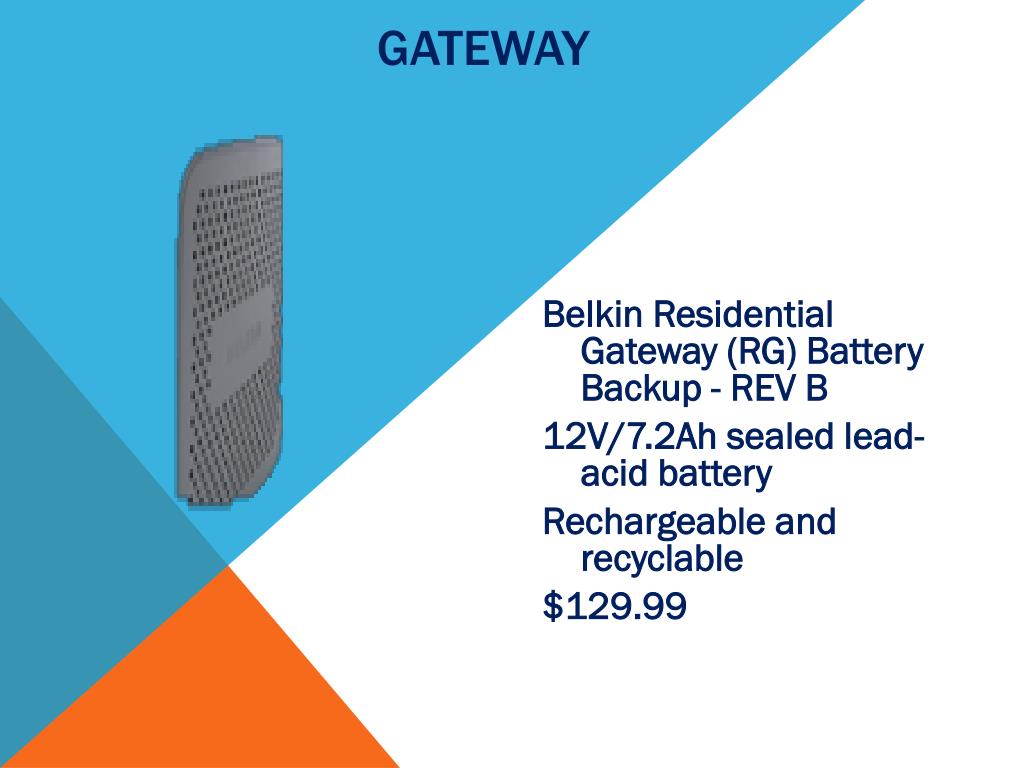

  7. GATEWAY • Belkin Residential Gateway (RG) Battery Backup - REV B • 12V/7.2Ah sealed lead-acid battery • Rechargeable and recyclable • $129.99

  8. GATEWAY Gateway sit between the Internet and the Router. It give you access to the Internet.

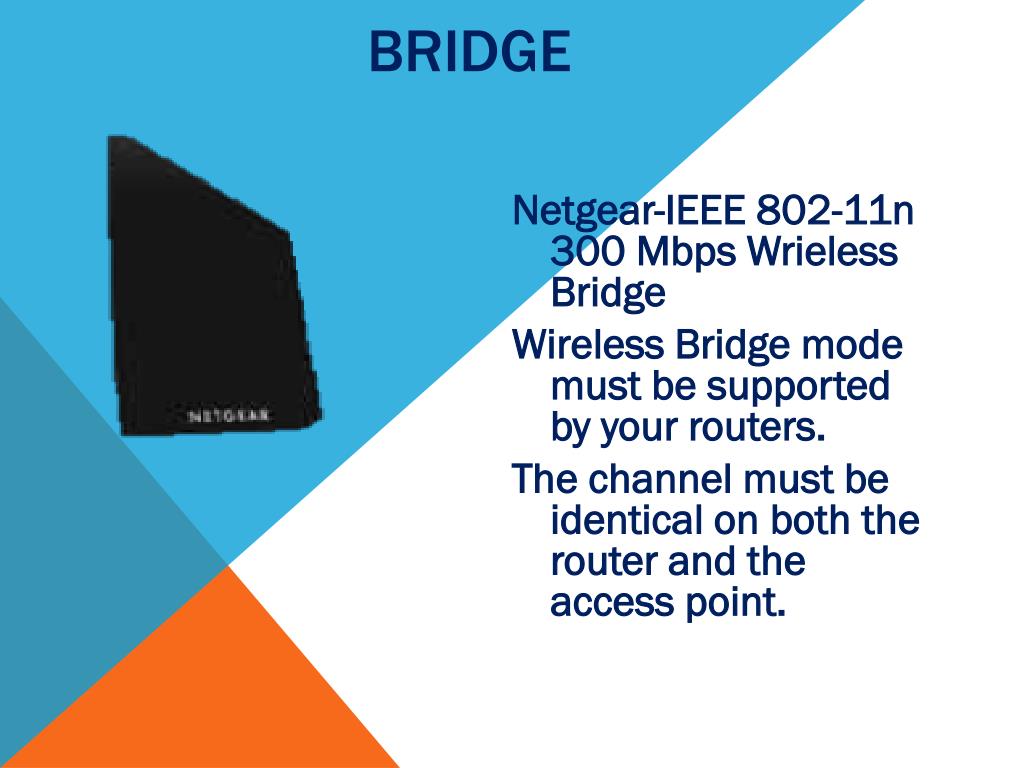

  9. BRIDGE • Netgear-IEEE 802-11n 300 Mbps Wrieless Bridge • Wireless Bridge mode must be supported by your routers. • The channel must be identical on both the router and the access point.

  10. BRIDGE A Bridge connect to separate Network together form difference location.

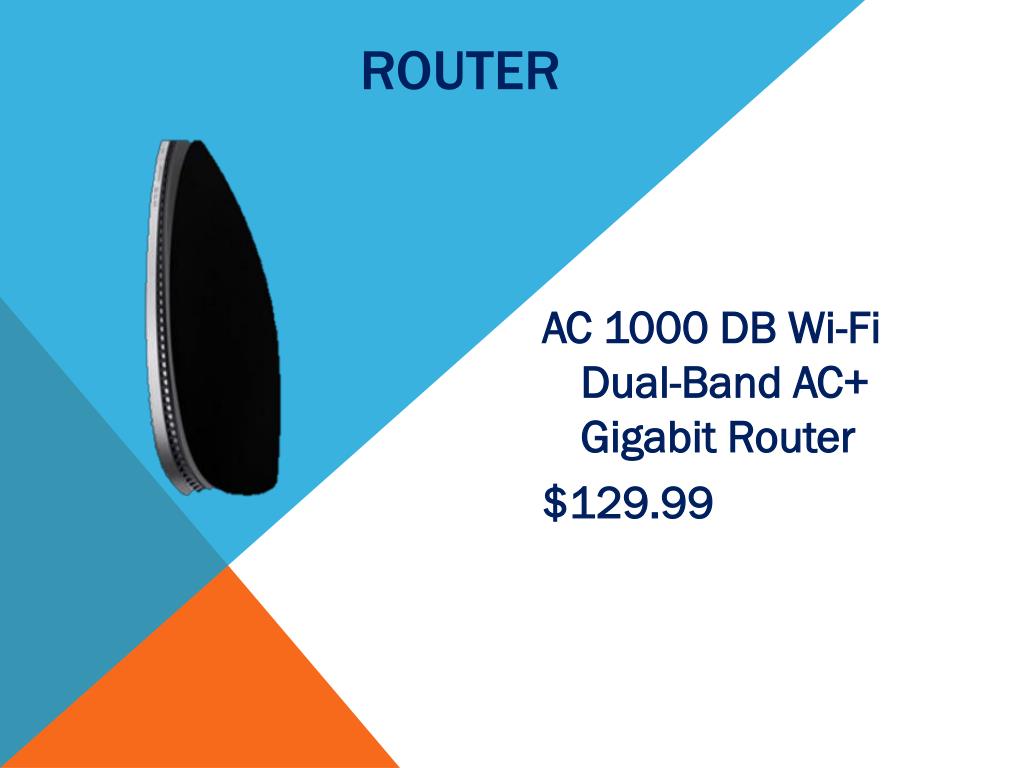

  11. ROUTER • AC 1000 DB Wi-Fi Dual-Band AC+ Gigabit Router • $129.99

  12. ROUTER Routers can connect WANs, which provide a transmission medium across long distances.

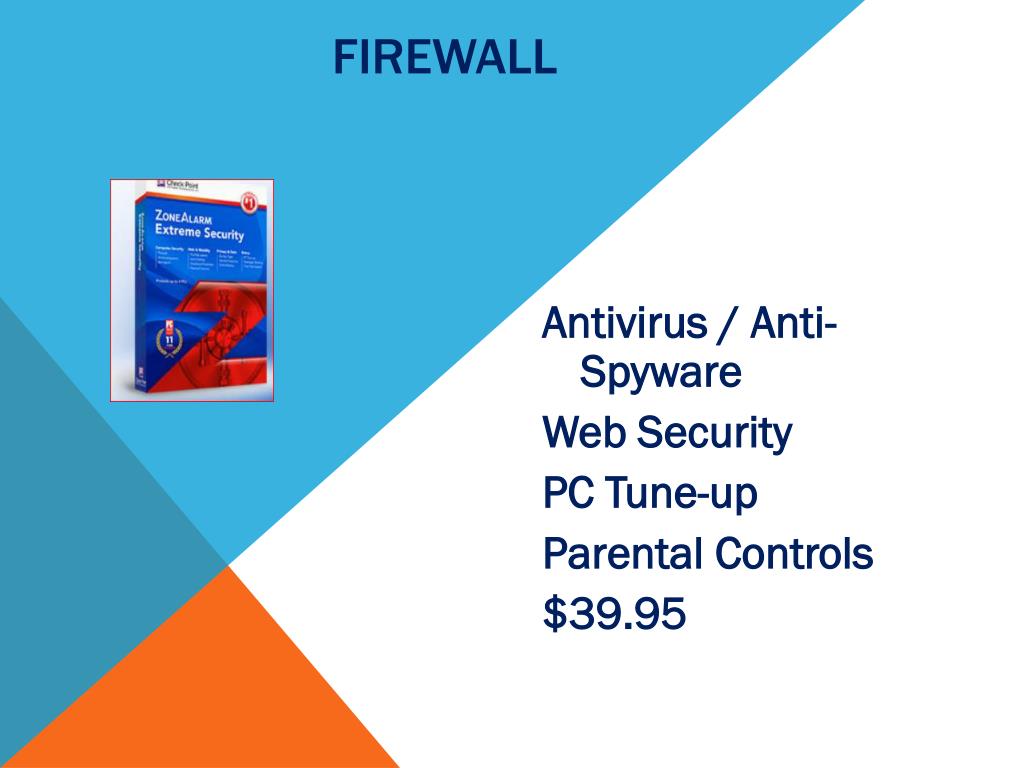

  13. FIREWALL • Antivirus / Anti-Spyware • Web Security • PC Tune-up • Parental Controls • $39.95

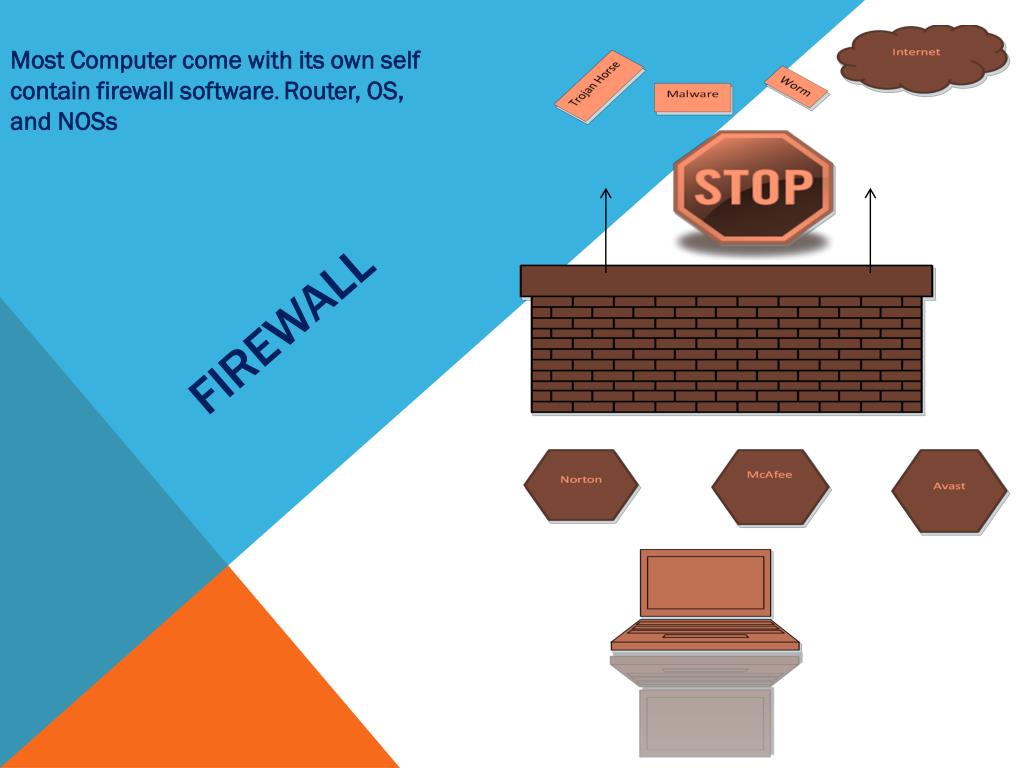

  14. FIREWALL Most Computer come with its own self contain firewall software. Router, OS, and NOSs

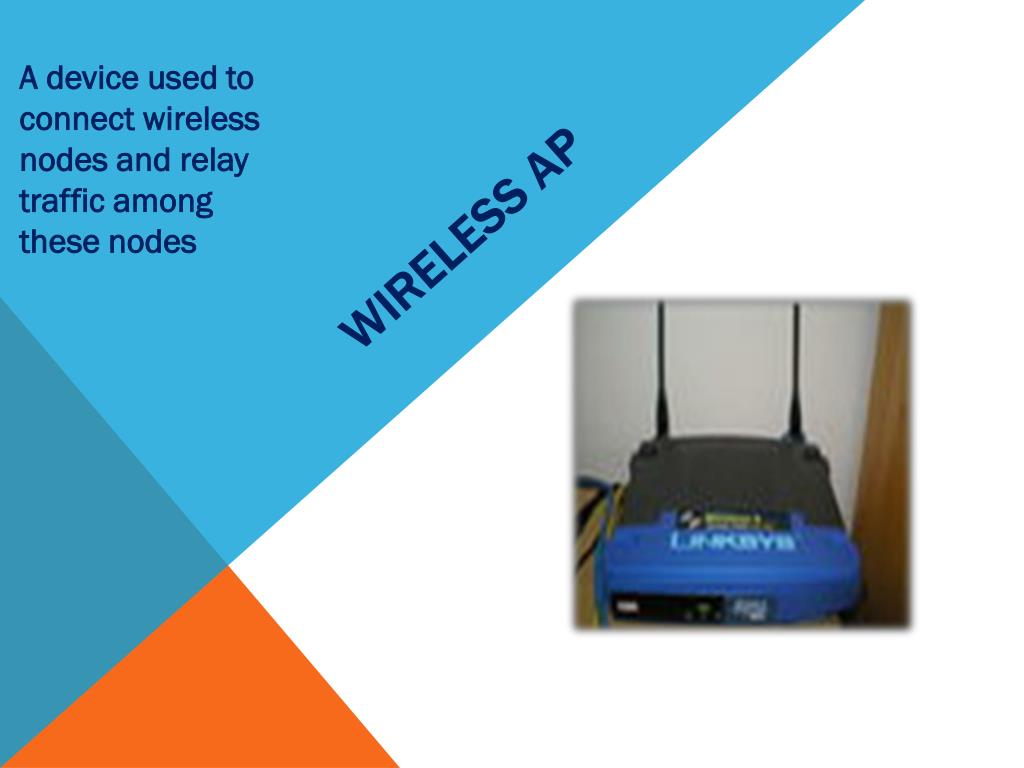

  15. WIRELESS AP A device used to connect wireless nodes and relay traffic among these nodes

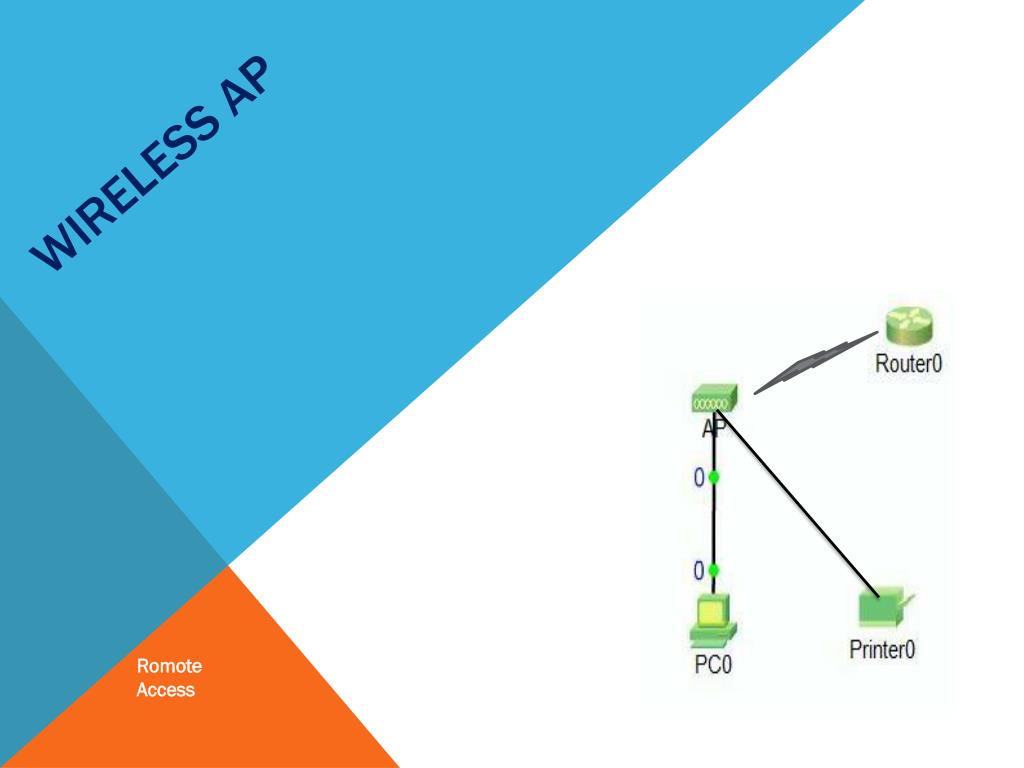

  16. WIRELESS AP Romote Access

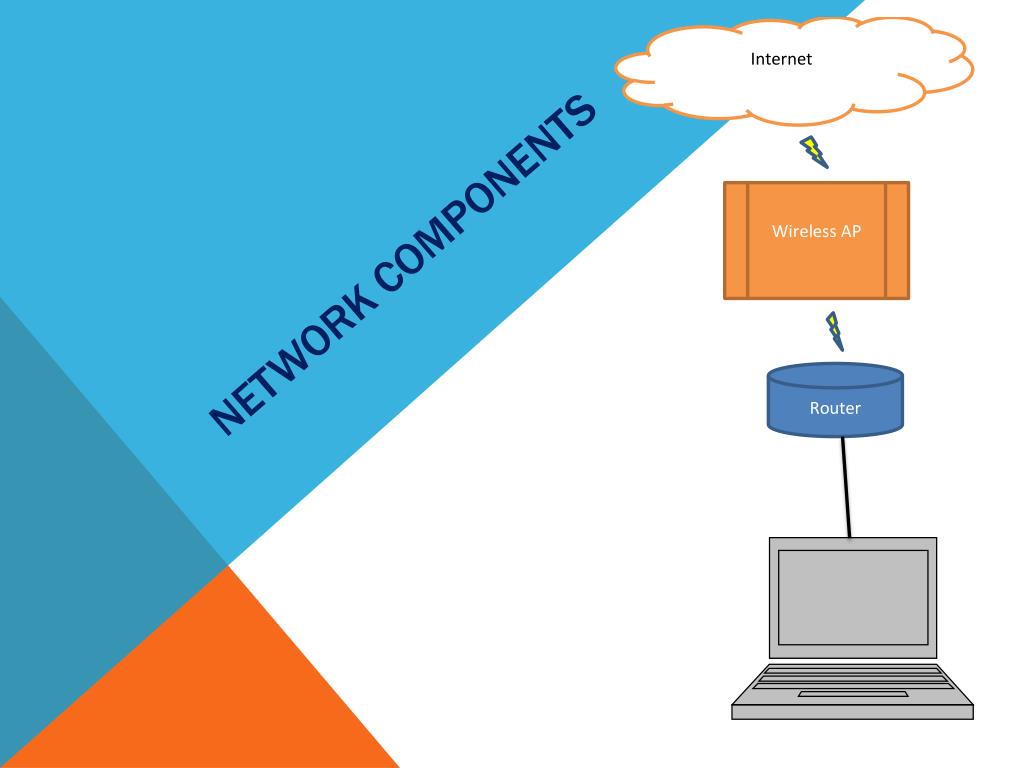

  17. NETWORK COMPONENTS
