Reason for Using Copper in HVAC VRF System

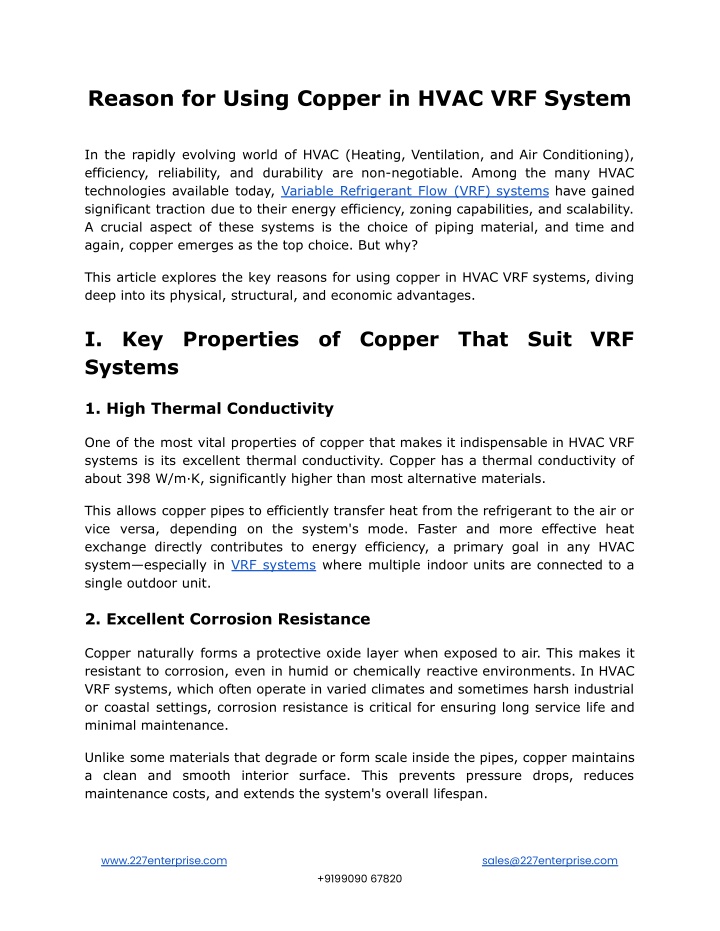

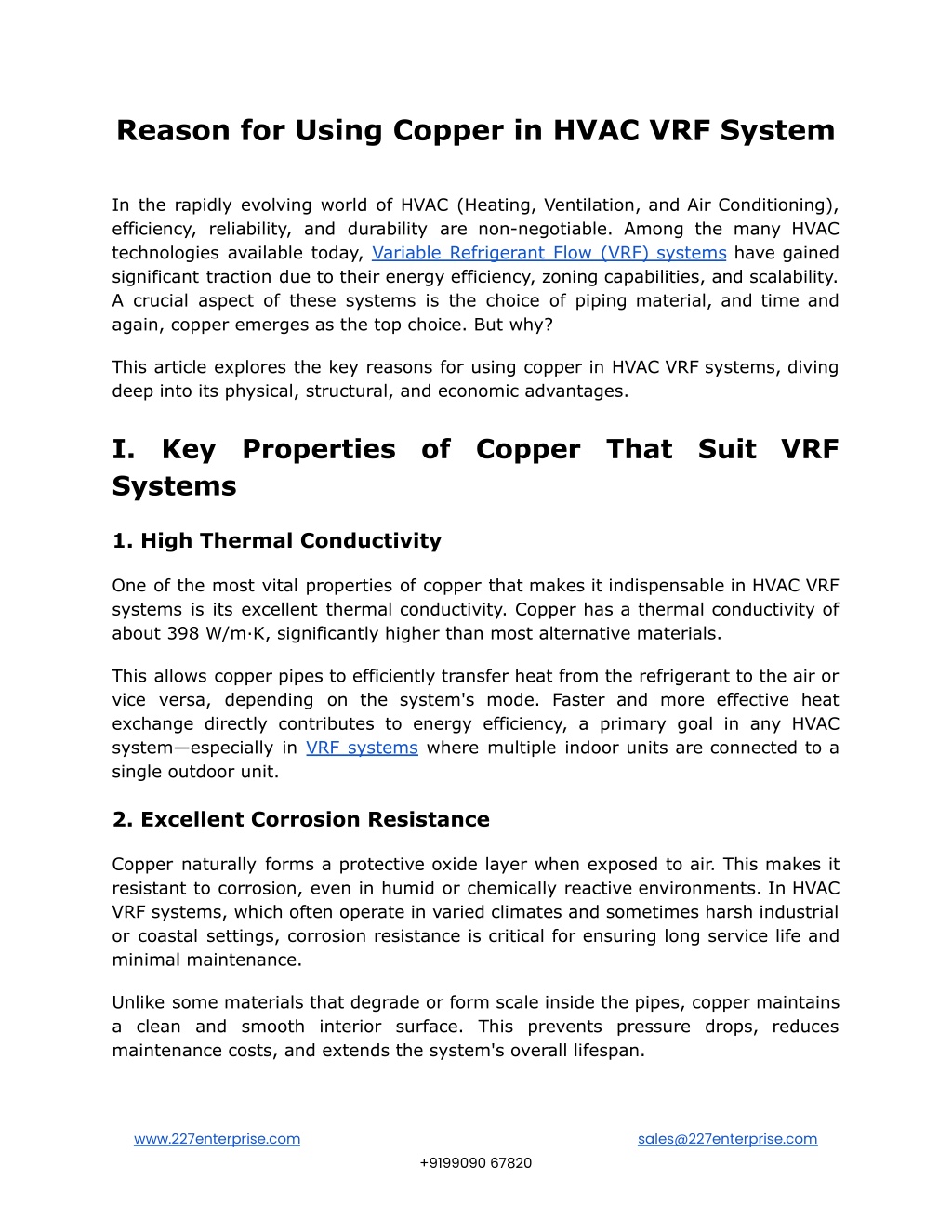

1. Reason for Using Copper in HVAC VRF System In the rapidly evolving world of HVAC (Heating, Ventilation, and Air Conditioning), efficiency, reliability, and durability are non-negotiable. Among the many HVAC technologies available today, Variable Refrigerant Flow (VRF) systems have gained significant traction due to their energy efficiency, zoning capabilities, and scalability. A crucial aspect of these systems is the choice of piping material, and time and again, copper emerges as the top choice. But why? This article explores the key reasons for using copper in HVAC VRF systems, diving deep into its physical, structural, and economic advantages. I. Key Properties of Copper That Suit VRF Systems 1. High Thermal Conductivity One of the most vital properties of copper that makes it indispensable in HVAC VRF systems is its excellent thermal conductivity. Copper has a thermal conductivity of about 398 W/m·K, significantly higher than most alternative materials. This allows copper pipes to efficiently transfer heat from the refrigerant to the air or vice versa, depending on the system's mode. Faster and more effective heat exchange directly contributes to energy efficiency, a primary goal in any HVAC system—especially in VRF systems where multiple indoor units are connected to a single outdoor unit. 2. Excellent Corrosion Resistance Copper naturally forms a protective oxide layer when exposed to air. This makes it resistant to corrosion, even in humid or chemically reactive environments. In HVAC VRF systems, which often operate in varied climates and sometimes harsh industrial or coastal settings, corrosion resistance is critical for ensuring long service life and minimal maintenance. Unlike some materials that degrade or form scale inside the pipes, copper maintains a clean and smooth interior surface. This prevents pressure drops, reduces maintenance costs, and extends the system's overall lifespan. www.227enterprise.com sales@227enterprise.com +9199090 67820

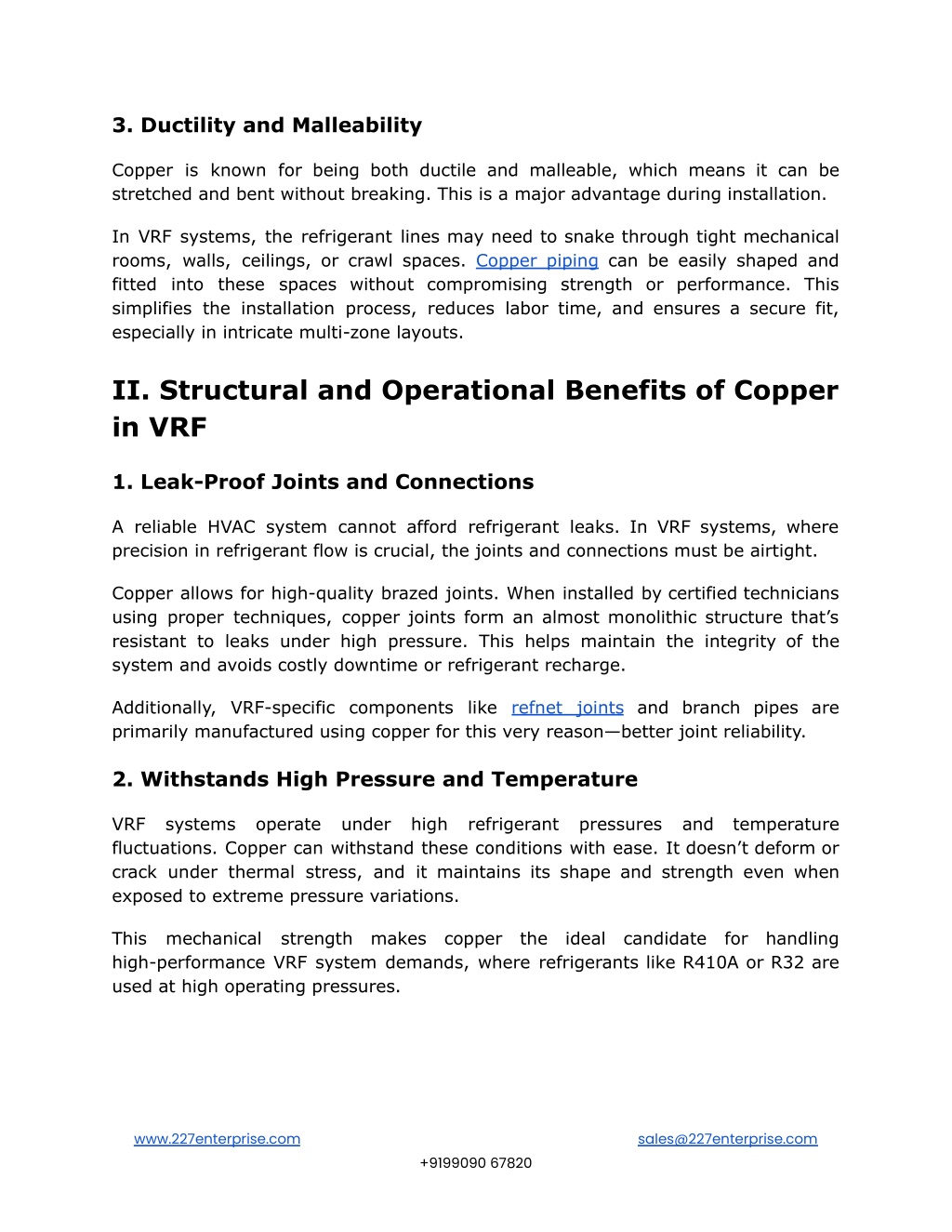

2. 3. Ductility and Malleability Copper is known for being both ductile and malleable, which means it can be stretched and bent without breaking. This is a major advantage during installation. In VRF systems, the refrigerant lines may need to snake through tight mechanical rooms, walls, ceilings, or crawl spaces. Copper piping can be easily shaped and fitted into these spaces without compromising strength or performance. This simplifies the installation process, reduces labor time, and ensures a secure fit, especially in intricate multi-zone layouts. II. Structural and Operational Benefits of Copper in VRF 1. Leak-Proof Joints and Connections A reliable HVAC system cannot afford refrigerant leaks. In VRF systems, where precision in refrigerant flow is crucial, the joints and connections must be airtight. Copper allows for high-quality brazed joints. When installed by certified technicians using proper techniques, copper joints form an almost monolithic structure that’s resistant to leaks under high pressure. This helps maintain the integrity of the system and avoids costly downtime or refrigerant recharge. Additionally, VRF-specific components like refnet joints and branch pipes are primarily manufactured using copper for this very reason—better joint reliability. 2. Withstands High Pressure and Temperature VRF systems operate under high refrigerant pressures and temperature fluctuations. Copper can withstand these conditions with ease. It doesn’t deform or crack under thermal stress, and it maintains its shape and strength even when exposed to extreme pressure variations. This mechanical strength makes copper the ideal candidate for handling high-performance VRF system demands, where refrigerants like R410A or R32 are used at high operating pressures. www.227enterprise.com sales@227enterprise.com +9199090 67820

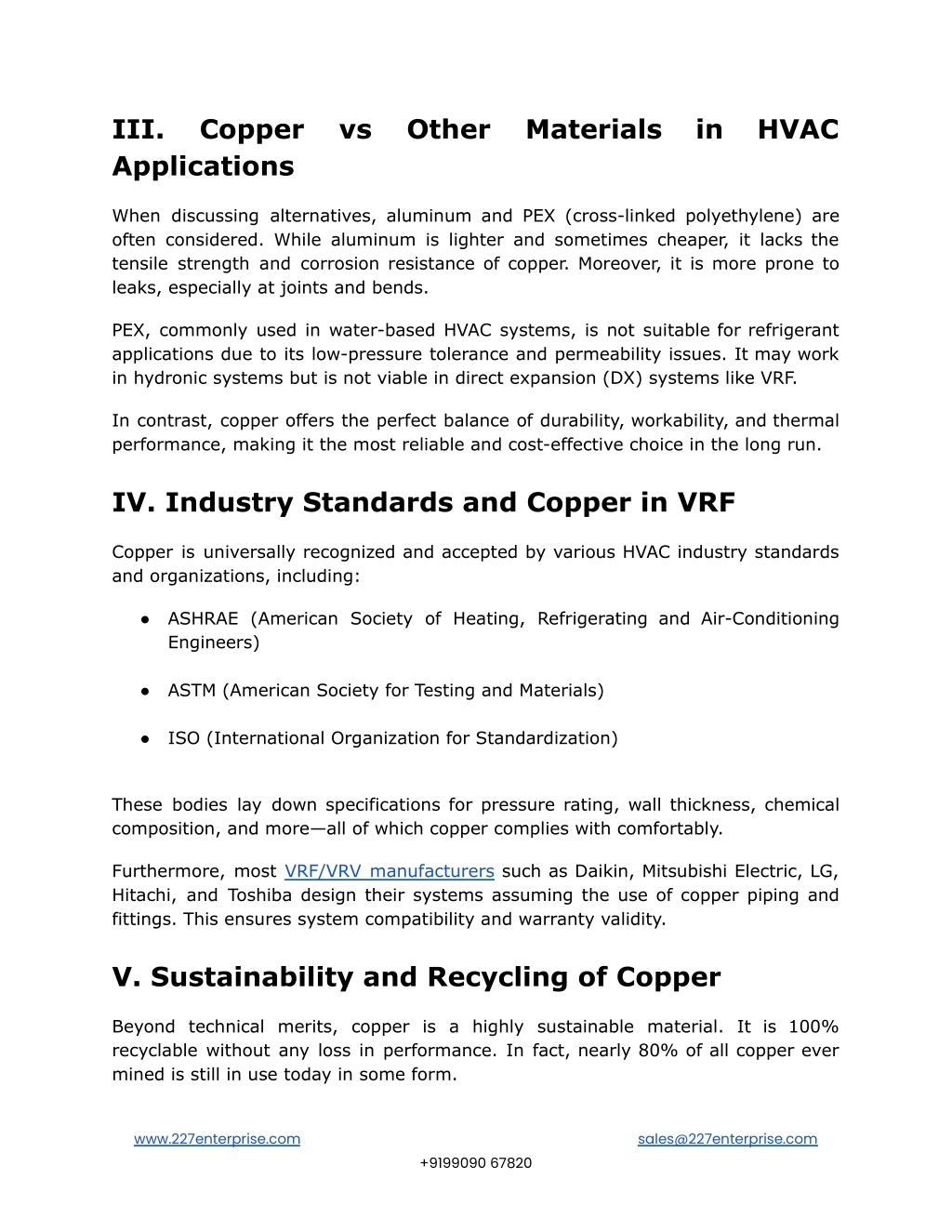

3. III. Applications Copper vs Other Materials in HVAC When discussing alternatives, aluminum and PEX (cross-linked polyethylene) are often considered. While aluminum is lighter and sometimes cheaper, it lacks the tensile strength and corrosion resistance of copper. Moreover, it is more prone to leaks, especially at joints and bends. PEX, commonly used in water-based HVAC systems, is not suitable for refrigerant applications due to its low-pressure tolerance and permeability issues. It may work in hydronic systems but is not viable in direct expansion (DX) systems like VRF. In contrast, copper offers the perfect balance of durability, workability, and thermal performance, making it the most reliable and cost-effective choice in the long run. IV. Industry Standards and Copper in VRF Copper is universally recognized and accepted by various HVAC industry standards and organizations, including: ● ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers) ● ASTM (American Society for Testing and Materials) ● ISO (International Organization for Standardization) These bodies lay down specifications for pressure rating, wall thickness, chemical composition, and more—all of which copper complies with comfortably. Furthermore, most VRF/VRV manufacturers such as Daikin, Mitsubishi Electric, LG, Hitachi, and Toshiba design their systems assuming the use of copper piping and fittings. This ensures system compatibility and warranty validity. V. Sustainability and Recycling of Copper Beyond technical merits, copper is a highly sustainable material. It is 100% recyclable without any loss in performance. In fact, nearly 80% of all copper ever mined is still in use today in some form. www.227enterprise.com sales@227enterprise.com +9199090 67820

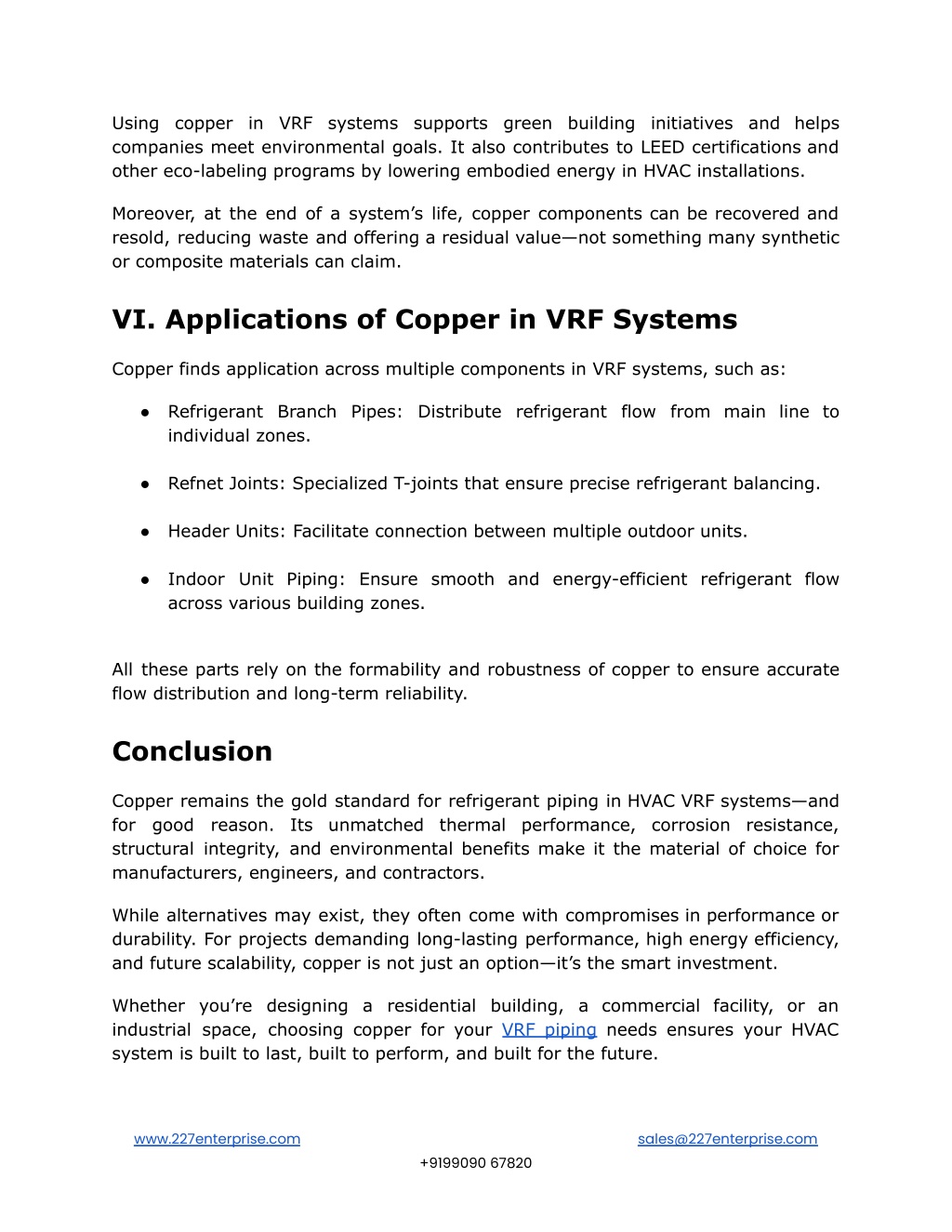

4. Using copper in VRF systems supports green building initiatives and helps companies meet environmental goals. It also contributes to LEED certifications and other eco-labeling programs by lowering embodied energy in HVAC installations. Moreover, at the end of a system’s life, copper components can be recovered and resold, reducing waste and offering a residual value—not something many synthetic or composite materials can claim. VI. Applications of Copper in VRF Systems Copper finds application across multiple components in VRF systems, such as: ● Refrigerant Branch Pipes: Distribute refrigerant flow from main line to individual zones. ● Refnet Joints: Specialized T-joints that ensure precise refrigerant balancing. ● Header Units: Facilitate connection between multiple outdoor units. ● Indoor Unit Piping: Ensure smooth and energy-efficient refrigerant flow across various building zones. All these parts rely on the formability and robustness of copper to ensure accurate flow distribution and long-term reliability. Conclusion Copper remains the gold standard for refrigerant piping in HVAC VRF systems—and for good reason. Its unmatched thermal performance, corrosion resistance, structural integrity, and environmental benefits make it the material of choice for manufacturers, engineers, and contractors. While alternatives may exist, they often come with compromises in performance or durability. For projects demanding long-lasting performance, high energy efficiency, and future scalability, copper is not just an option—it’s the smart investment. Whether you’re designing a residential building, a commercial facility, or an industrial space, choosing copper for your VRF piping needs ensures your HVAC system is built to last, built to perform, and built for the future. www.227enterprise.com sales@227enterprise.com +9199090 67820

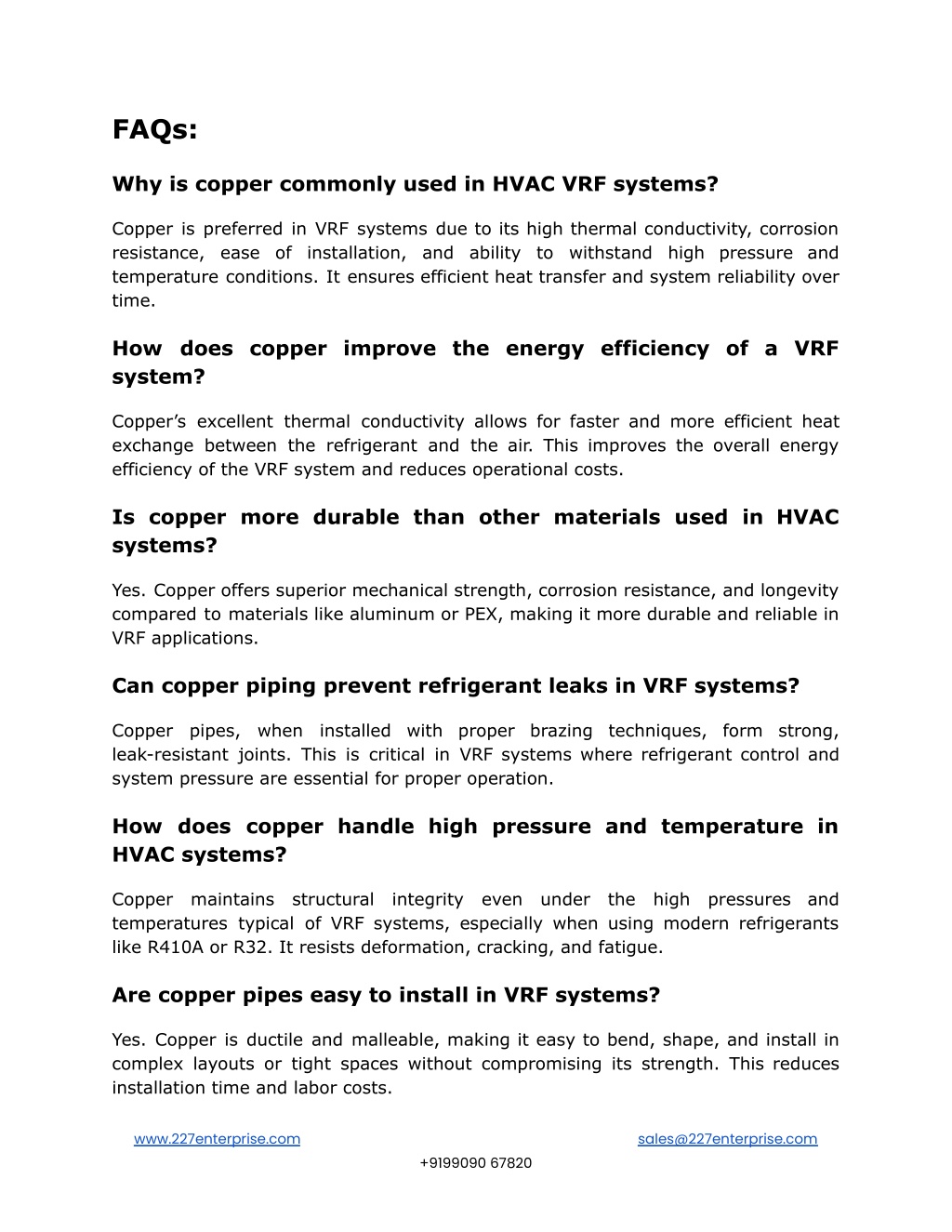

5. FAQs: Why is copper commonly used in HVAC VRF systems? Copper is preferred in VRF systems due to its high thermal conductivity, corrosion resistance, ease of installation, and ability to withstand high pressure and temperature conditions. It ensures efficient heat transfer and system reliability over time. How does copper improve the energy efficiency of a VRF system? Copper’s excellent thermal conductivity allows for faster and more efficient heat exchange between the refrigerant and the air. This improves the overall energy efficiency of the VRF system and reduces operational costs. Is copper more durable than other materials used in HVAC systems? Yes. Copper offers superior mechanical strength, corrosion resistance, and longevity compared to materials like aluminum or PEX, making it more durable and reliable in VRF applications. Can copper piping prevent refrigerant leaks in VRF systems? Copper pipes, when installed with proper brazing techniques, form strong, leak-resistant joints. This is critical in VRF systems where refrigerant control and system pressure are essential for proper operation. How does copper handle high pressure and temperature in HVAC systems? Copper maintains structural integrity even under the high pressures and temperatures typical of VRF systems, especially when using modern refrigerants like R410A or R32. It resists deformation, cracking, and fatigue. Are copper pipes easy to install in VRF systems? Yes. Copper is ductile and malleable, making it easy to bend, shape, and install in complex layouts or tight spaces without compromising its strength. This reduces installation time and labor costs. www.227enterprise.com sales@227enterprise.com +9199090 67820

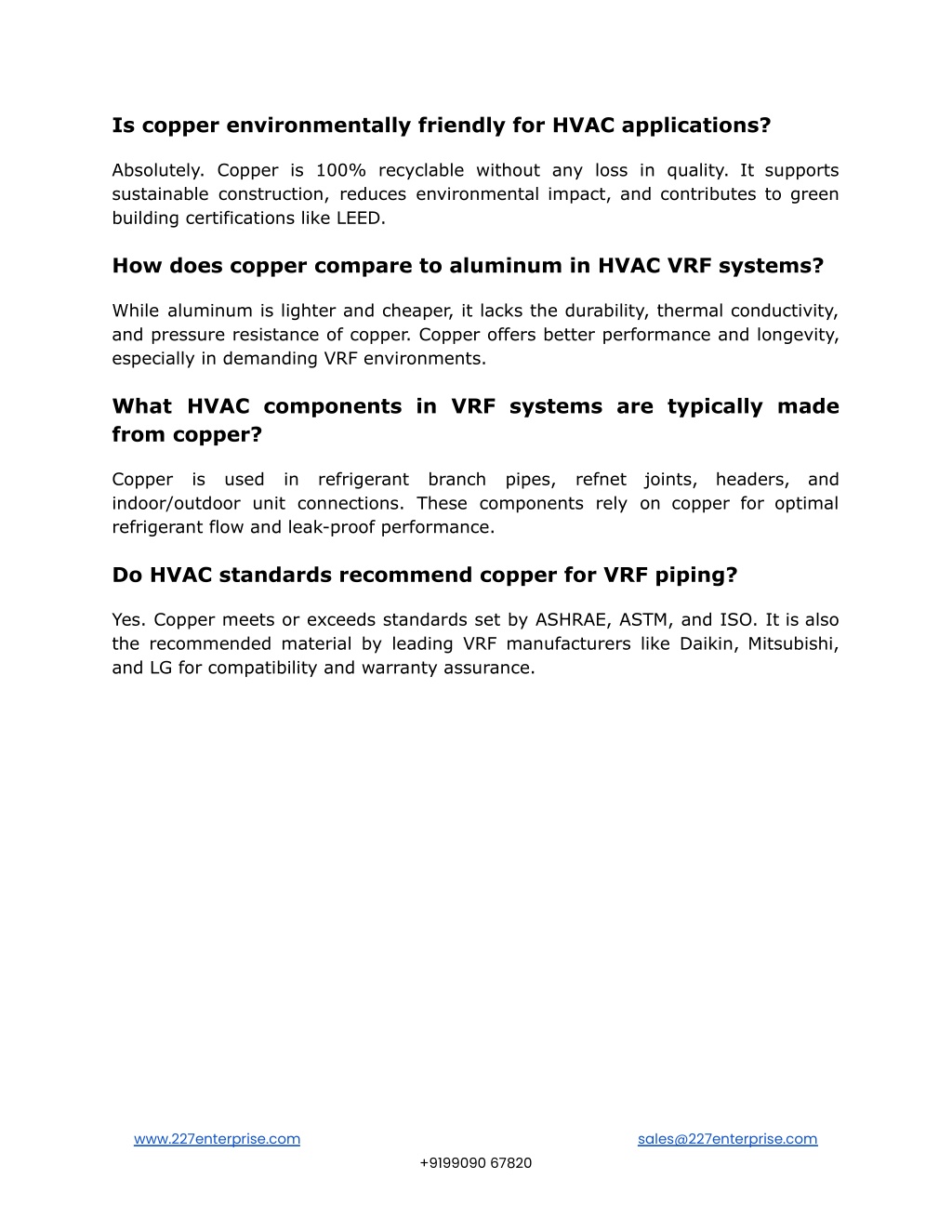

6. Is copper environmentally friendly for HVAC applications? Absolutely. Copper is 100% recyclable without any loss in quality. It supports sustainable construction, reduces environmental impact, and contributes to green building certifications like LEED. How does copper compare to aluminum in HVAC VRF systems? While aluminum is lighter and cheaper, it lacks the durability, thermal conductivity, and pressure resistance of copper. Copper offers better performance and longevity, especially in demanding VRF environments. What HVAC components in VRF systems are typically made from copper? Copper is used in refrigerant branch pipes, refnet joints, headers, and indoor/outdoor unit connections. These components rely on copper for optimal refrigerant flow and leak-proof performance. Do HVAC standards recommend copper for VRF piping? Yes. Copper meets or exceeds standards set by ASHRAE, ASTM, and ISO. It is also the recommended material by leading VRF manufacturers like Daikin, Mitsubishi, and LG for compatibility and warranty assurance. www.227enterprise.com sales@227enterprise.com +9199090 67820
