  1. Logic Combi

  2. Logic Specification Product size - Cupboard fit Installation weight - Competitive Efficiency - 91% min. SEDBUK A heating - DHW efficiency DHW outputs - Standard to high flow models CH outputs - Increased modulation (5:1 turndown) Emissions (NOx) - C.S.H. max. credits (< 40mg/ kWh) Installer benefits - Fast installation Installation components standard Easy access to all components Fast component removal / replacement Quality components & appearance Customer benefits - Small size / fit anywhere. Concealed system connections Switched pre-heat range of user controls inc. weather compensation

  3. Logic ‘Nice Touches’ Normal Ideal expectations: Central flue position Reduced flue terminal clearances Added features: Pre wired mains cable Filling loop Push and clip flue turret fixing Translucent condensate syphon Casing painted internally with clean point drain Universal condensate pipe connection Economy heating position Plain diagnosis text in electronic timer

  4. Product Range Summary Logic & Logic + 3 models in each range 24, 30 & 35 Higher DHW flow rates Lower minimum CH outputs

  5. Dimensions Compact & cupboard fit

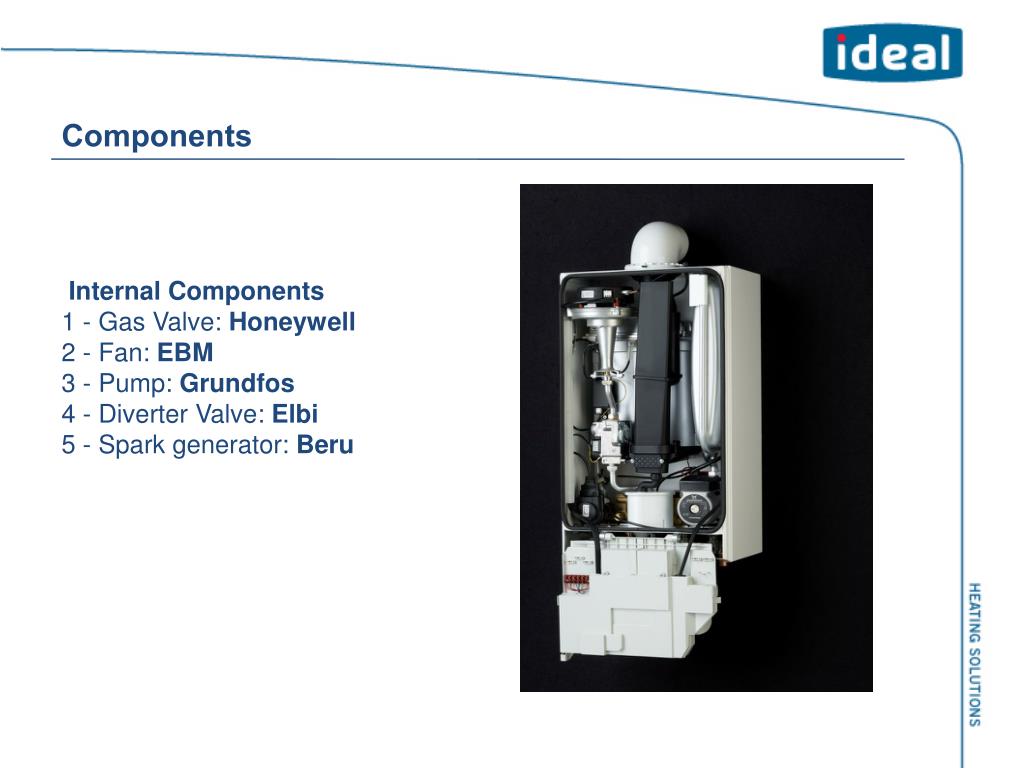

  6. Components Internal Components 1 - Gas Valve: Honeywell 2 - Fan: EBM 3 - Pump: Grundfos 4 - Diverter Valve: Elbi 5 - Spark generator: Beru
