Presentation Transcript
Slide1 l.jpg


Attentional deficit

Hyperactivity Syndrome

Frequency prevalence l.jpg

4 – 6 % of school children

more boys than girls

About 75 % are affected in adulthood

Fixation of a limit is controversial

Symptoms l.jpg

Attention deficit: distractable, problems to

concentrate, to finish a task

Hyperactivity: inability to remain seated

talking too much

Impuslivity: interrupts other spakers

can‘t wait for anything

antisocial behaviour

No insight into the own disease-state

Cause l.jpg

There is a strong genetic component


Polymorphism of the D4 gene ???

of the DA-transporter Gene ???

Environmental factors alone can not explain

the disease

Slide5 l.jpg

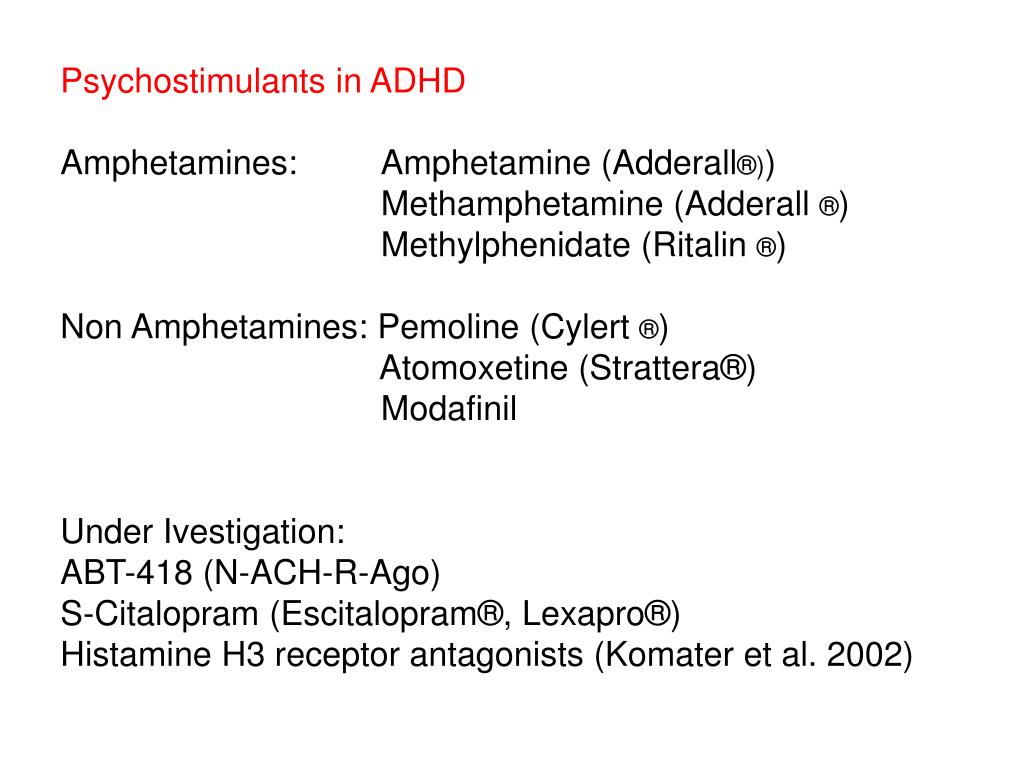

Psychostimulants in ADHD

Amphetamines: Amphetamine (Adderall®))

Methamphetamine (Adderall ®)

Methylphenidate (Ritalin ®)

Non Amphetamines: Pemoline (Cylert ®)

Atomoxetine (Strattera®)


Under Ivestigation:

ABT-418 (N-ACH-R-Ago)

S-Citalopram (Escitalopram®, Lexapro®)

Histamine H3 receptor antagonists (Komater et al. 2002)

Slide7 l.jpg



Slide9 l.jpg


Methylphenidate: Ritalin ®, Medikinet®, Equasym®,

Concerta ®

Methadate ®

D-Amphetamine (D- / S-isomer)

Dexedrine ®=Dexamphetamine ®=go-pills

for those who do not respond to Ritalin

Adderall ®

is an amphetamine coctail

Slide10 l.jpg

  • Behavioural pharmacology of amphetamine

  • Self-administered

  • Dopamine-dependent, mediated by the brain reward system

  • Dose dependent increase in:

  • -All behaviours resulting in fragmentation of behaviour

  • -swichtching – finally stereotypy

  • Dopamin-dependent, mediated by striatum and N.accumbens

  • Amphetamine acts rate dependently:

  • It icreases the response rate of low-rate responder

  • It decreases the response rate of high-rate responder

  • („the rate dependency principle“)

Slide11 l.jpg

Amphetamines in ADHD

Rate dependency hypothesis:

Children with ADHD are high-rate responders

And amphetamines reduce response rates

Adults are low rate responders and amphetamines enhance

response rates

Teicher et al. J Child Adolesc Psychopharmacol 2003, 13: 41-51:

„We provide preliminary evidence that methylphenidate exerts

rate-dependent behavioural effects (attentiveness) in children with


„These findings illustrate a clear inverse association between

symptom severity and degree of therapeutic response….“

Slide12 l.jpg

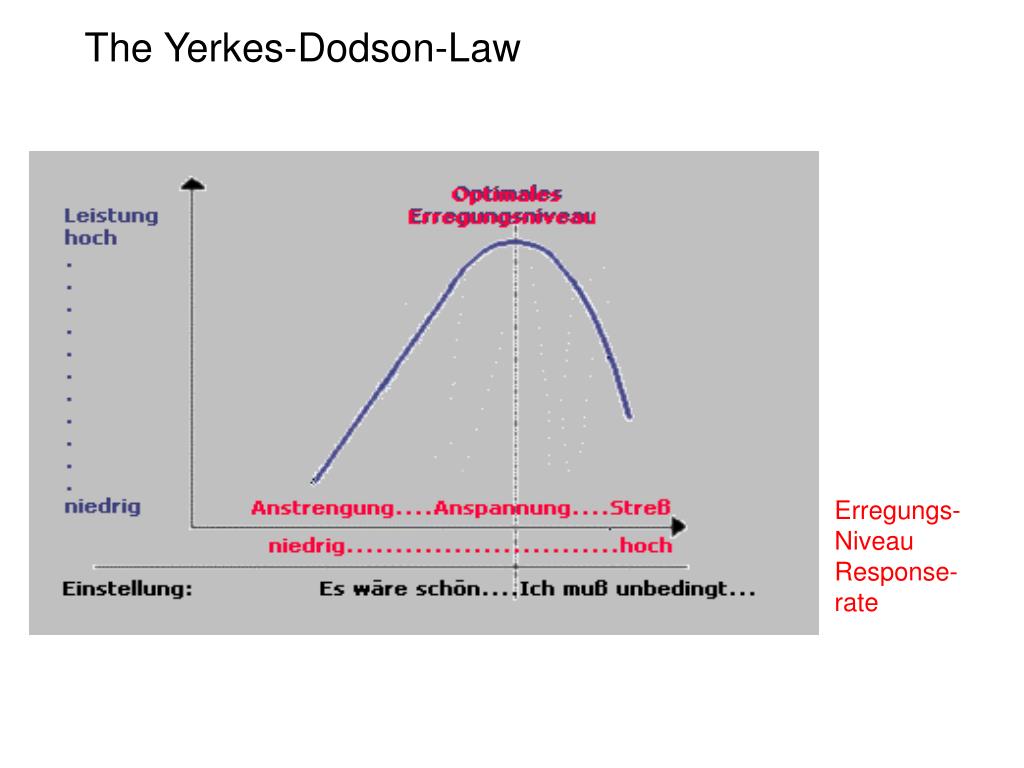

The Yerkes-Dodson-Law




Slide13 l.jpg

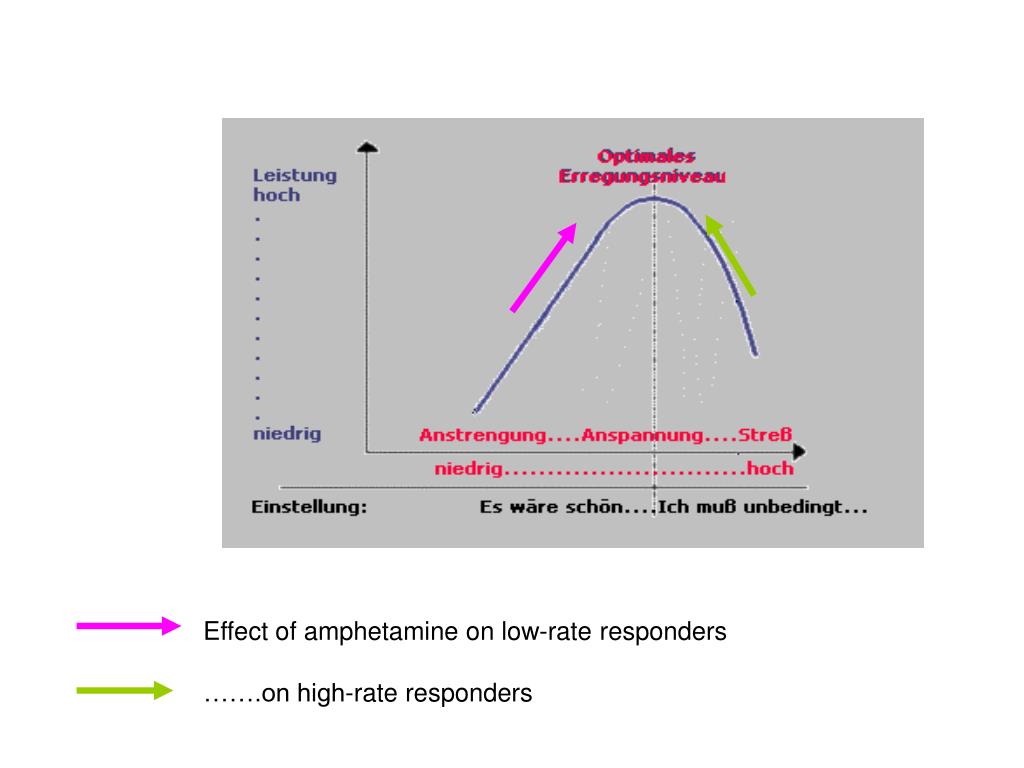

Effect of amphetamine on low-rate responders

…….on high-rate responders

Slide14 l.jpg

Further evidence for

the rate dependency principle

Children with severe cognitive impairment

(IQ less than 45, developmental age less than 4.5 years)

react to methylphenidate with increased stimulation/excitation

or did not profit from medication.

(Handen et al. 1991)


The paradoxical sedating effects of

methylphenidate occurs only in high rate responders.

Slide15 l.jpg

Atomoxetine (Strattera®)

Approved in USA and UK for ADHD in children,

adolescents and adults.

In Germany: March 2005

No psychostimulant drug/ not controlled by BtMG

Contraindication: MAO inhibitors


P450 pathway: 7 % white 2% black

Are poor metabolizers (not dangerous)

Slide16 l.jpg

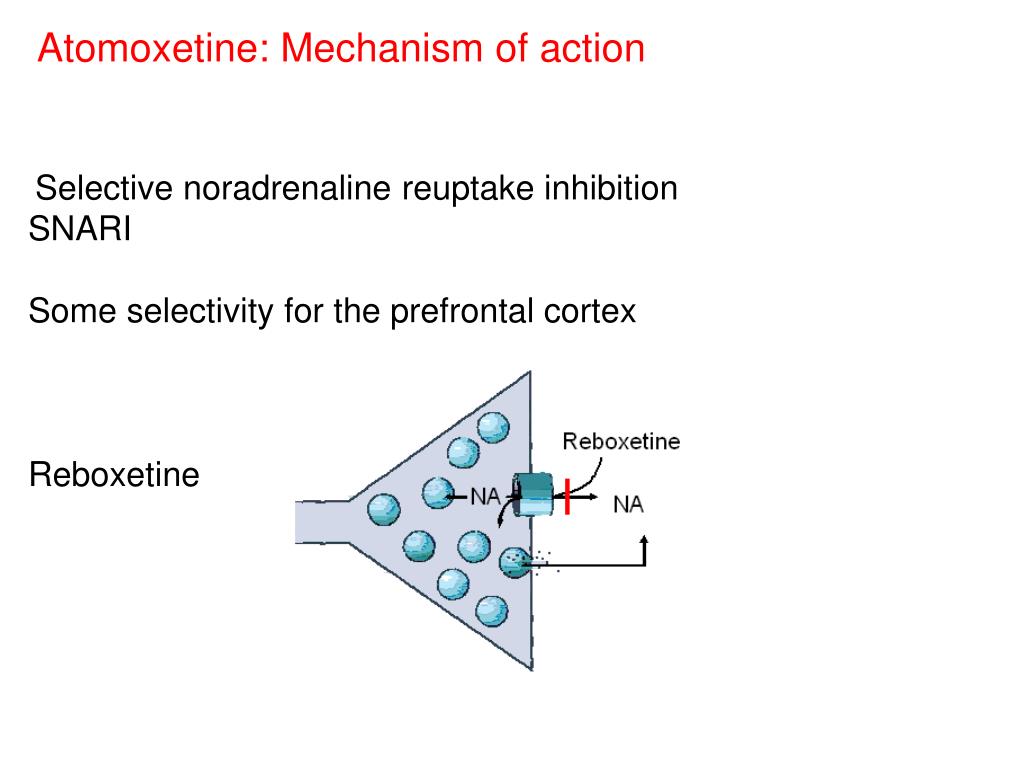

Atomoxetine: Mechanism of action

Selective noradrenaline reuptake inhibition


Some selectivity for the prefrontal cortex


Slide17 l.jpg

  • Atomoxetine effects in humans

  • Mood brightening, but

  • no psychostimulant-like high

  • Neuropharmacology

  • Enhancement of noradrenaline tone

  • Facilitates neuronal differentiation during developent

  • Facilitates neuronal plasticity

  • protects against various neurotoxins

  • Behavioural pharmacology

  • Alerting effects

Slide18 l.jpg

Atomoxetine in ADHD

1.2 – 1.8 mg /kg /day effective

(comparable to methylphenidate)

Administration: once daily

Approved in the USA for all ages

Advantages: see list

Disadvantages: see list

Slide19 l.jpg

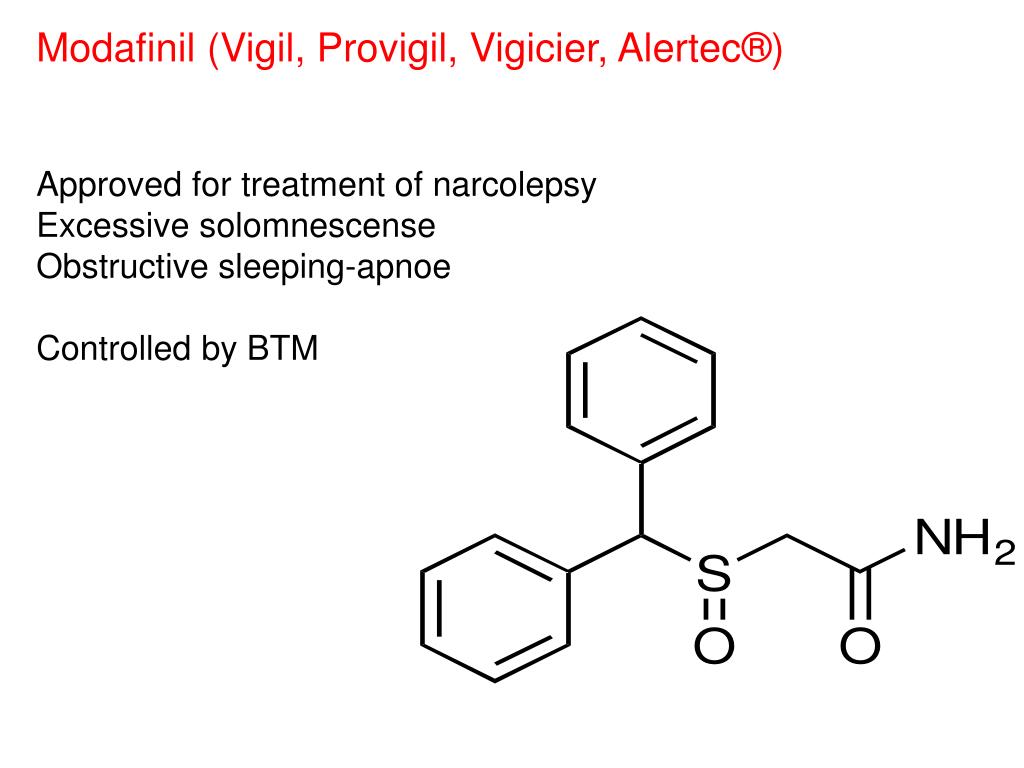

Modafinil (Vigil, Provigil, Vigicier, Alertec®)

Approved for treatment of narcolepsy

Excessive solomnescense

Obstructive sleeping-apnoe

Controlled by BTM

Slide20 l.jpg


Mechanisms of action

α-agonist (prazosin antagonizes some effects)

Facilitates Glu-transmission

Reduces GABA-transmission

Modafinil activates Orexin producing neurons

Orexine is a peptide transmitter

exclusively originating in the lateral hypothalamus

Wakefulness promoting/sleep supressing

Orexine deficit is the cause of narcolepsy

(Orexine k.o…as a model)

Slide21 l.jpg

  • Modafinil effects in humans

  • Prescribed for narcolepsy, unusual fatigue,

  • for Parkinsonian patients

  • Increases vigilance (enhancement in sports)

  • in US-military, esp. Air Force dexedrine (go-pills) will be replaced by Modafinil

  • Stimulant, mood brightening

  • Enhances willingness to work

  • Meomory enhancing

  • Compared to amphetamines: Less jitteriness, anxiety, agitation,

  • no hypersolomescent rebound effect

  • less peripheral efects

  • Minimal abuse potential (Rush. et al. 2002, Behav. Pharm. 13:105-115)

Slide22 l.jpg

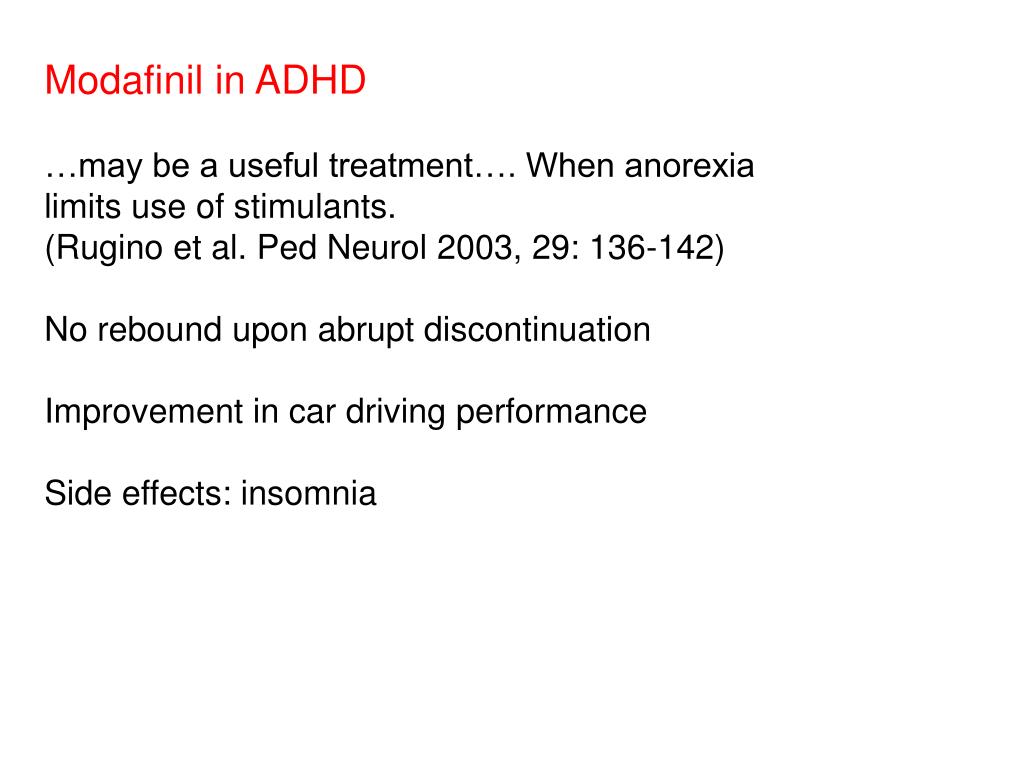

Modafinil in ADHD

…may be a useful treatment…. When anorexia

limits use of stimulants.

(Rugino et al. Ped Neurol 2003, 29: 136-142)

No rebound upon abrupt discontinuation

Improvement in car driving performance

Side effects: insomnia

Histamine h3 antagonists in adhd l.jpg
Histamine H3-antagonists in ADHD

The H3 receptor is a presynaptic auto- and


It inhibits histamine and

Catecholamine release

H3-antagonists enhance catecholamine


Nicotine r agonists in adhd l.jpg
Nicotine-R agonists in ADHD

Nicotinic ACH-Receptors are located

Presynaptically as heteroreceptors on

Catecholaminergic terminals

Nicotine-R-agonists enhance catecholamine


Slide25 l.jpg

Animal models for ADHD

Neonatal 6-OH-Dopamine lesion leads to hyperactivity

in adulthood (Davids et al. 2002, JPET:301: 1097-1102)

Reduced dopamine and metabolite concentration

in the striatum (for ex. 90 %)

Hyperinnervation due to sprouting by 5-HT neurons

Originating in the medial Raphe (for ex. 80%)

Slide26 l.jpg

  • Neonatal NMDA-R-anatgonists, cause hyperactivity,

  • inattention, impulsivity (Fredriksson and Archer 2004)

  • DAT k.o.

  • Irrespective of the target addressed:

  • Many knock-out or knock-in mice exhibit increased

  • hyperactivity, irritability, impulsivity, aggressivity.

  • ??? do different neonatal disturbances and compensation processes lead to hyperactivity ???

Slide27 l.jpg

ADHD in adulthood

Untreated ADHD persists in about 66% to

Adulthood and results in:

adverse/inappropriate/antisocial behaviour


Slide28 l.jpg

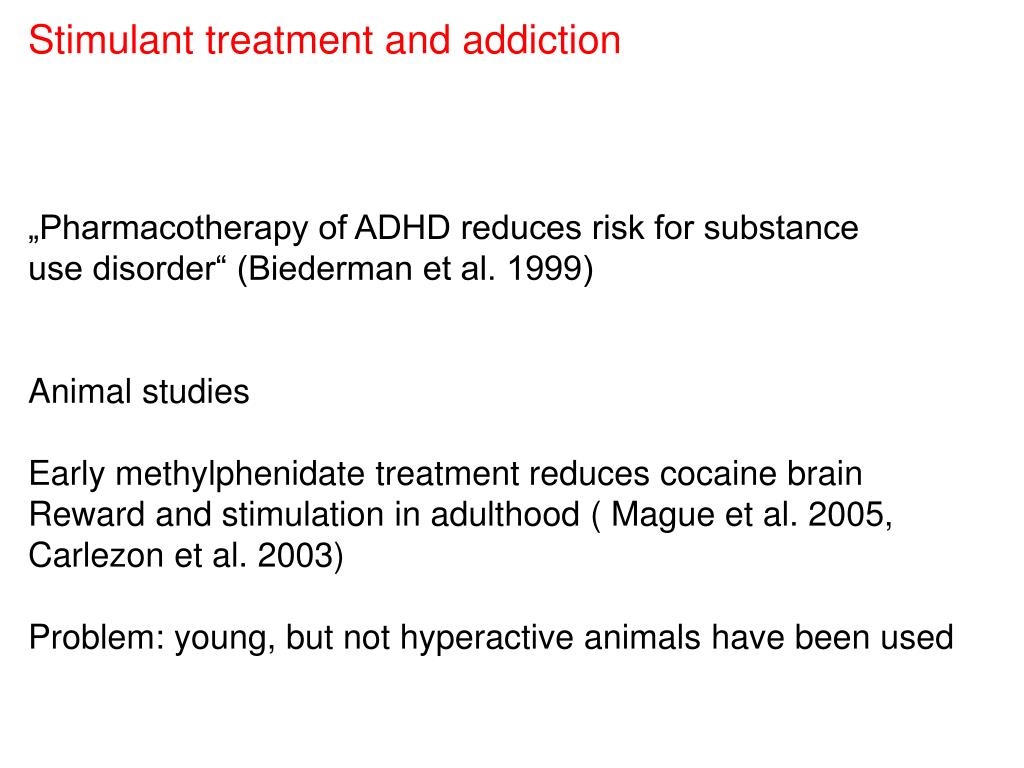

Stimulant treatment and addiction

„Pharmacotherapy of ADHD reduces risk for substance

use disorder“ (Biederman et al. 1999)

Animal studies

Early methylphenidate treatment reduces cocaine brain

Reward and stimulation in adulthood ( Mague et al. 2005,

Carlezon et al. 2003)

Problem: young, but not hyperactive animals have been used

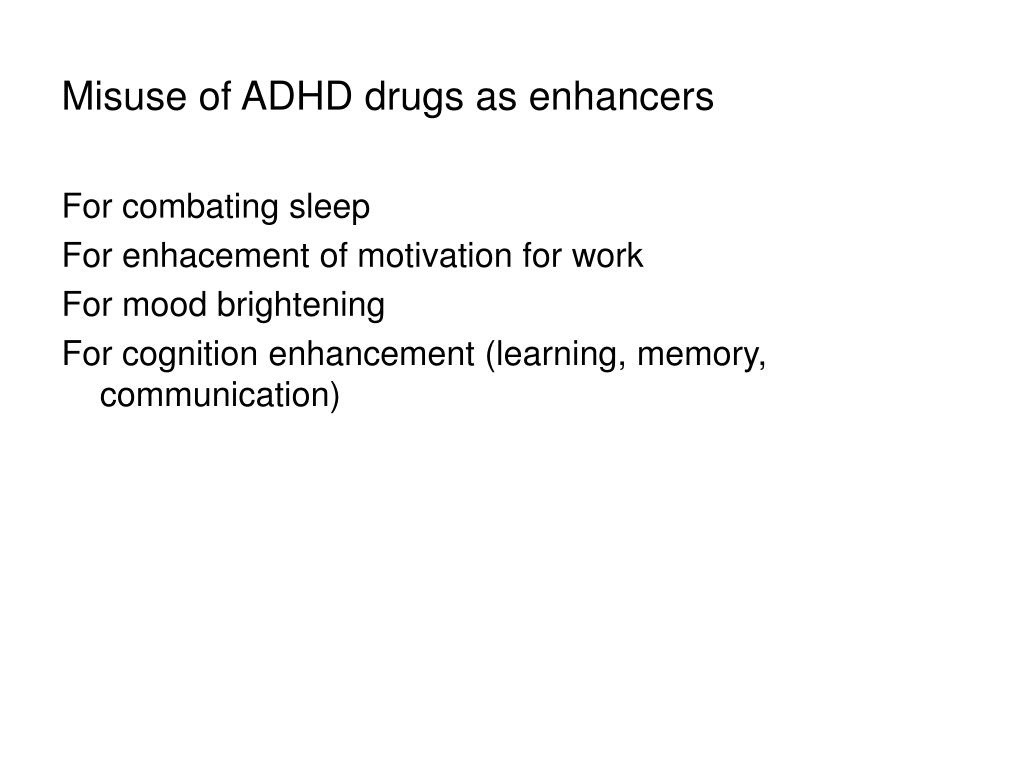

Misuse of adhd drugs as enhancers l.jpg
Misuse of ADHD drugs as enhancers

For combating sleep

For enhacement of motivation for work

For mood brightening

For cognition enhancement (learning, memory, communication)
