  1. Alex WoodsFebruary 21stAerothermodynamicsGroupAerodynamic Forces Code

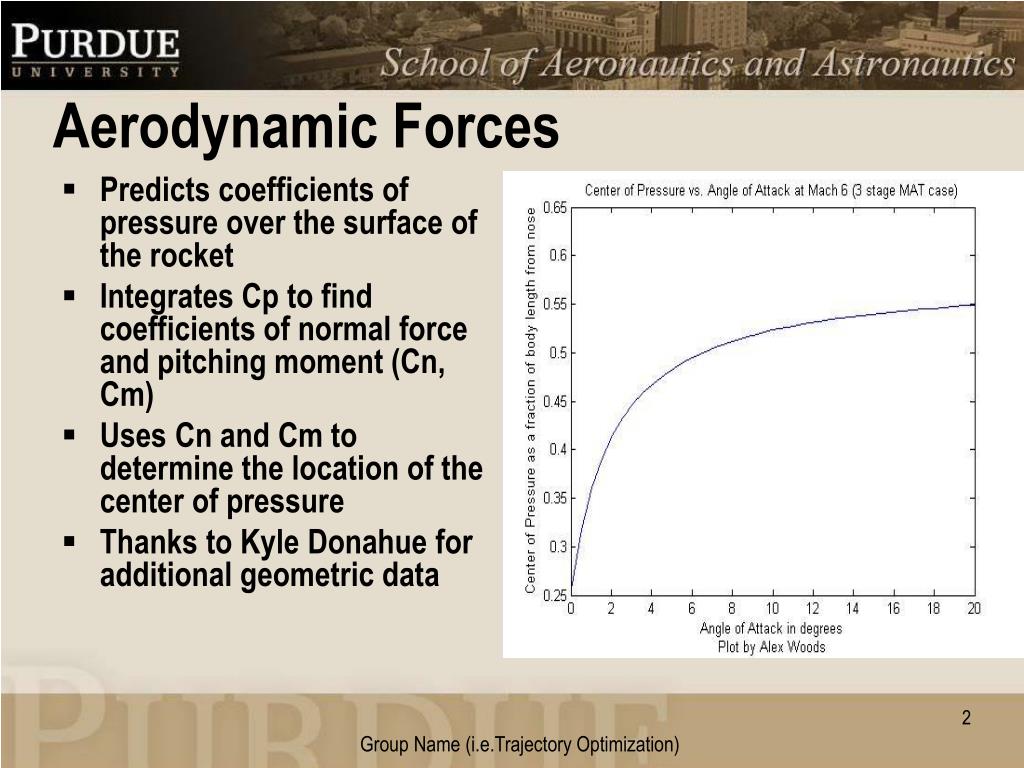

  2. Aerodynamic Forces • Predicts coefficients of pressure over the surface of the rocket • Integrates Cp to find coefficients of normal force and pitching moment (Cn, Cm) • Uses Cn and Cm to determine the location of the center of pressure • Thanks to Kyle Donahue for additional geometric data Group Name (i.e.Trajectory Optimization)

  3. Structural Forces • Uses Cn data to determine shear forces within the rocket, as well as determining bending moments. • Code computes data for each stage coupling. • Future Work: • Ensure accuracy for high aoa cases • Modify code for changing design parameters

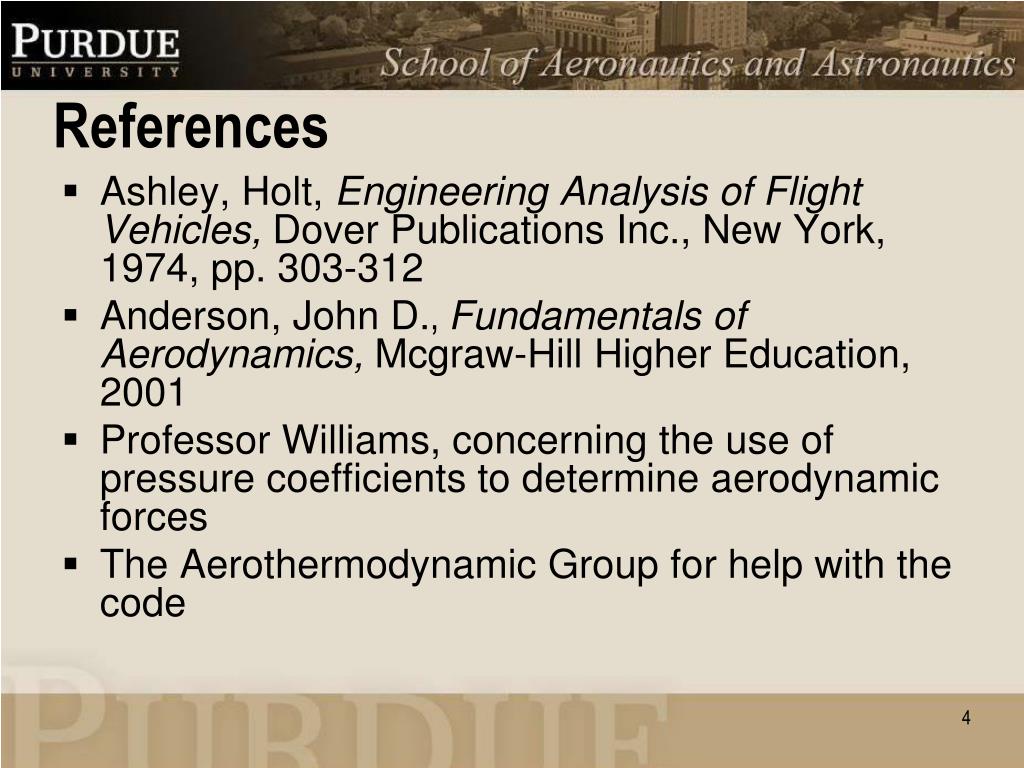

  4. References • Ashley, Holt, Engineering Analysis of Flight Vehicles, Dover Publications Inc., New York, 1974, pp. 303-312 • Anderson, John D., Fundamentals of Aerodynamics, Mcgraw-Hill Higher Education, 2001 • Professor Williams, concerning the use of pressure coefficients to determine aerodynamic forces • The Aerothermodynamic Group for help with the code

  5. Assumptions and Concerns • The linear theory used to determine pressure coefficients is primarily valid for thin airfoils; additional terms are necessary for better application to slender rocket bodies. • Small angles of attack – Normal forces become non-linear past 6 degrees. • Results vary by the number of data points and the locations from which they are taken; small step sizes bias the effects of long cylindrical sections

  6. Concerns cont. • Code does not yet compute axial forces, which would allow for the computation of drag. • Moment values being found are unusually small compared to results found in the Holt Ashley text • Location of center of pressure is unusually far aft compared to Vanguard example

  7. Pretty Pictures

  8. Contributions • Center of Pressure code • Calling function for all applicable codes • Rocket volume computations • Pressure Coefficient integrations • Normal force coefficients • Pitching moment coefficients • Shear Forces • Bending Moments

  9. Contributions Cont. • Sea Launch • Tugboat hiring costs • Barge rental costs Thanks to Jerry White of Oregon Offshore Towing for these estimates • Drag Code Assisted Jayme Zott in creating and integrating drag models • Wing Code Assisted Brian Budzinski in the modification of his wing and fin codes

  10. Contributions Cont. • MAT team member – helped troubleshoot version 1.0, ran six two stage cases for the initial group of cases.
