    1. Spatial Statistics II RESM 575 Spring 2011 Lecture 11

    2. What we will use spatial stats to find • How features are distributed • Where are the clusters • What is the pattern created by the features • What are the relationships between sets of features or values

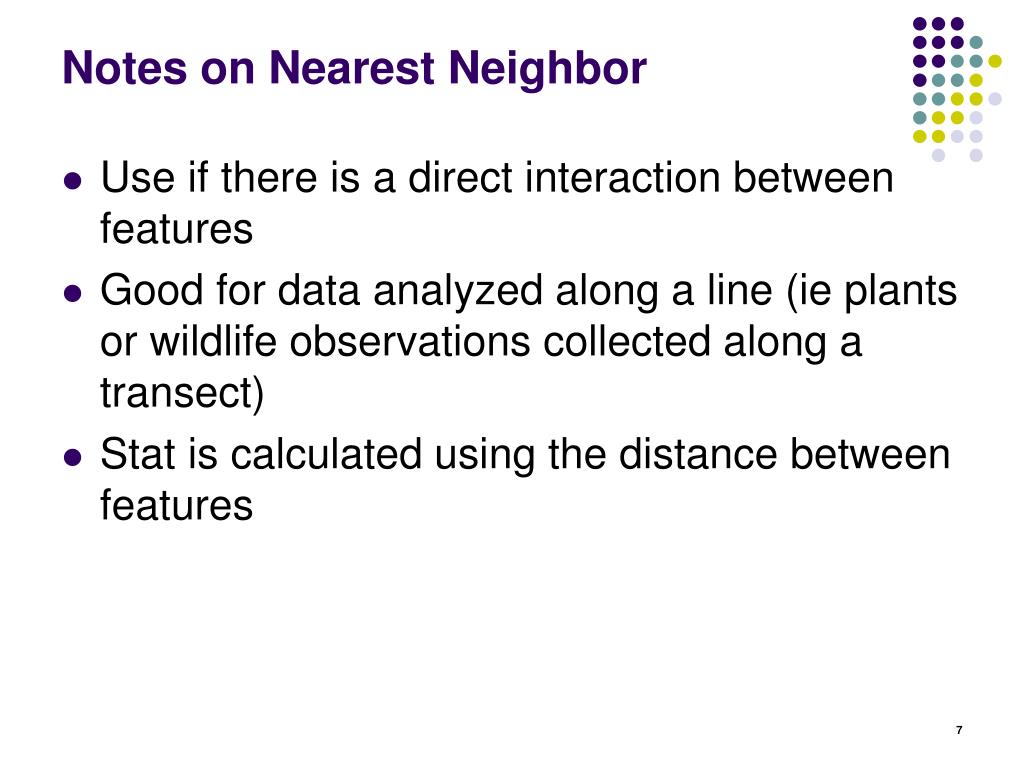

    3. Notes on Nearest Neighbor • Use if there is a direct interaction between features • Good for data analyzed along a line (ie plants or wildlife observations collected along a transect) • Stat is calculated using the distance between features

    4. . . . . . . . . . . . . . . . . . . . . . . . . Counting the number of features within defined distances • Known as the K-function, or Ripley’s K-function • Here you specify a distance interval and use GIS to calculate the average number of neighboring features within the distance of each feature • If the ave # of features found at a distance is greater than the ave concentration of features throughout the study area, then the distribution is considered clustered at that distance K is the distance bands

    5. Notes on K-function • Good for if you are interested in how the pattern changes at different scales of analysis • Includes all distances to neighbors within a given distance • Emergency calls, bird nests

    6. K function in GIS • Finds the distance from each point to every other point • Then, for each point, counts up the number of surrounding points within a given distance

    7. Interpreting the K stat

    8. Paper on class website for today.

    9. Factors influencing the K function • Points near the edge of a study area are likely to have less neighboring points • At larger distances its more likely that fewer neighboring points will be found than actually exist

    10. Spatial Statistics III

    11. Geostatistical Analyst of ArcGIS 10 • For advanced surface modeling • Extension of ArcGIS 10 • Tools for creating a statistically valid surface

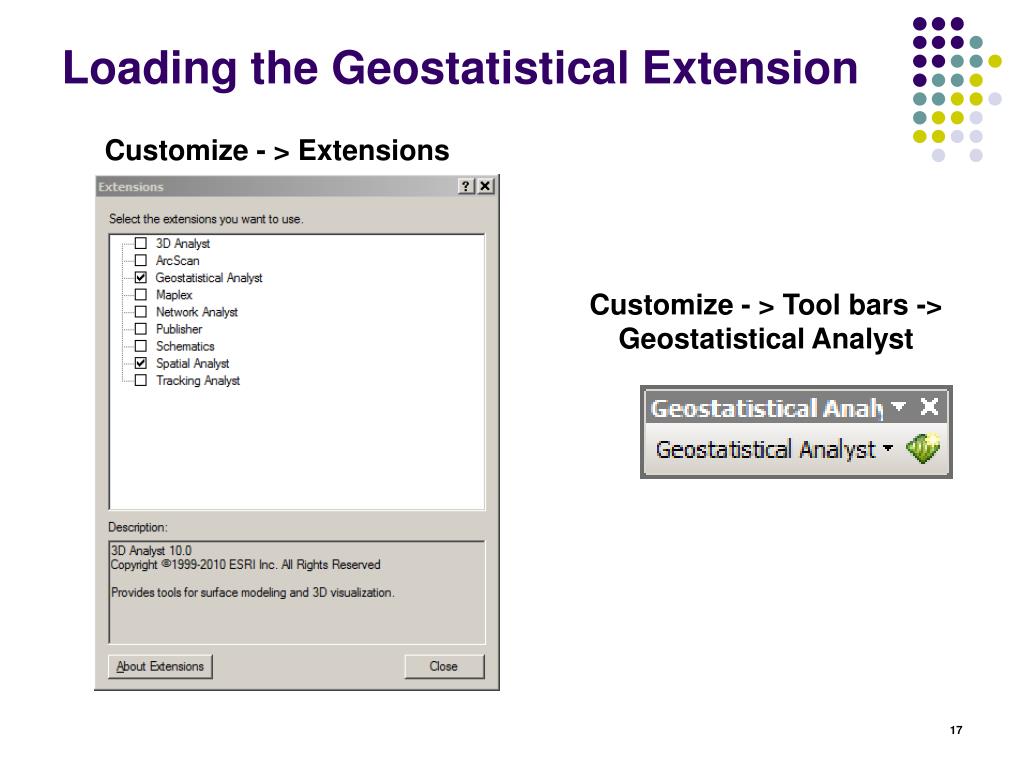

    12. Loading the Geostatistical Extension Customize - > Extensions Customize - > Tool bars -> Geostatistical Analyst

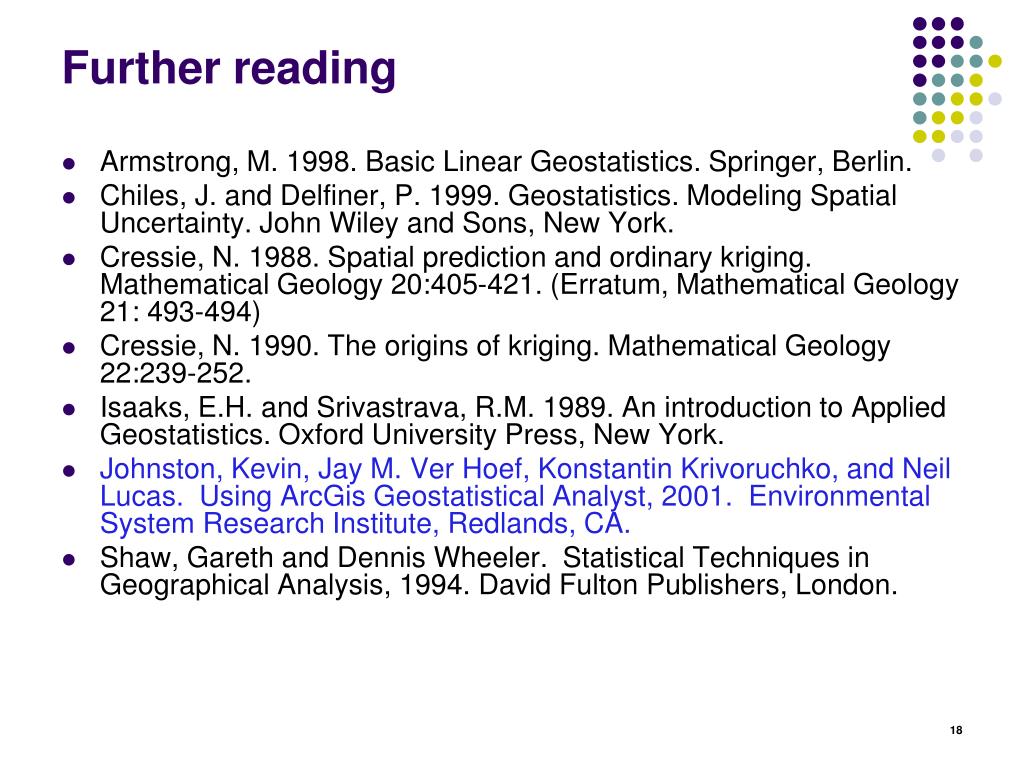

    13. Further reading • Armstrong, M. 1998. Basic Linear Geostatistics. Springer, Berlin. • Chiles, J. and Delfiner, P. 1999. Geostatistics. Modeling Spatial Uncertainty. John Wiley and Sons, New York. • Cressie, N. 1988. Spatial prediction and ordinary kriging. Mathematical Geology 20:405-421. (Erratum, Mathematical Geology 21: 493-494) • Cressie, N. 1990. The origins of kriging. Mathematical Geology 22:239-252. • Isaaks, E.H. and Srivastrava, R.M. 1989. An introduction to Applied Geostatistics. Oxford University Press, New York. • Johnston, Kevin, Jay M. Ver Hoef, Konstantin Krivoruchko, and Neil Lucas. Using ArcGis Geostatistical Analyst, 2001. Environmental System Research Institute, Redlands, CA. • Shaw, Gareth and Dennis Wheeler.  Statistical Techniques in Geographical Analysis, 1994. David Fulton Publishers, London.

    14. Part A. Background on Interpolation Techniques Deterministic methods Geostatistical methods Some important principles

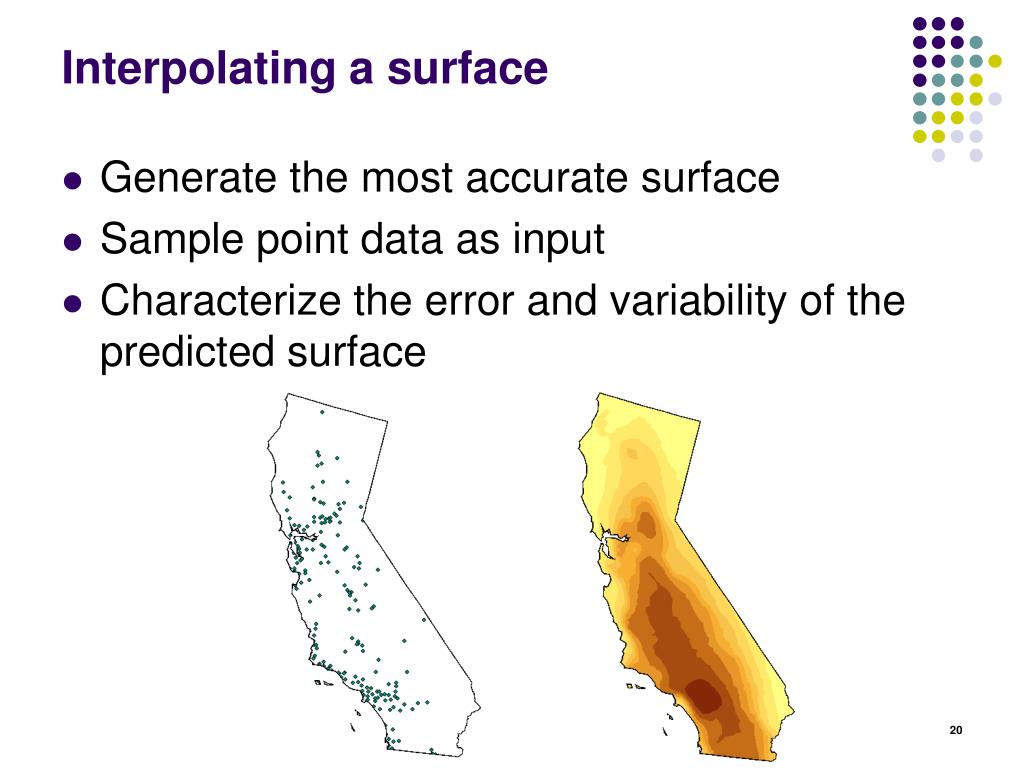

    15. Interpolating a surface • Generate the most accurate surface • Sample point data as input • Characterize the error and variability of the predicted surface

    16. Interpolation techniques • Deterministic • Use mathematical functions for interpolation • IDW, global and local polynomial, radial basis • Geostatistical • Relies on both statistical and mathematical methods • Can be used to assess the uncertainty of the predictions NOTE: Both rely on similarity of nearby points to create the surface

    17. Deterministic techniques • Inverse distance weighted • Global polynomial • Local polynomial • Radial bias functions

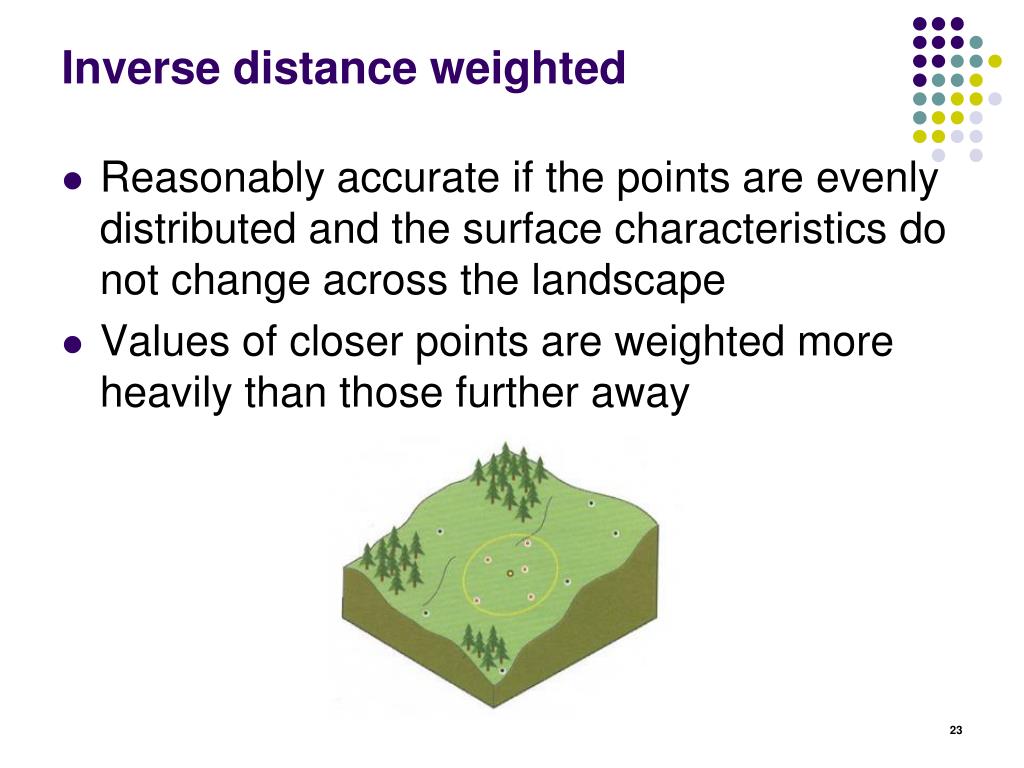

    18. Inverse distance weighted • Reasonably accurate if the points are evenly distributed and the surface characteristics do not change across the landscape • Values of closer points are weighted more heavily than those further away

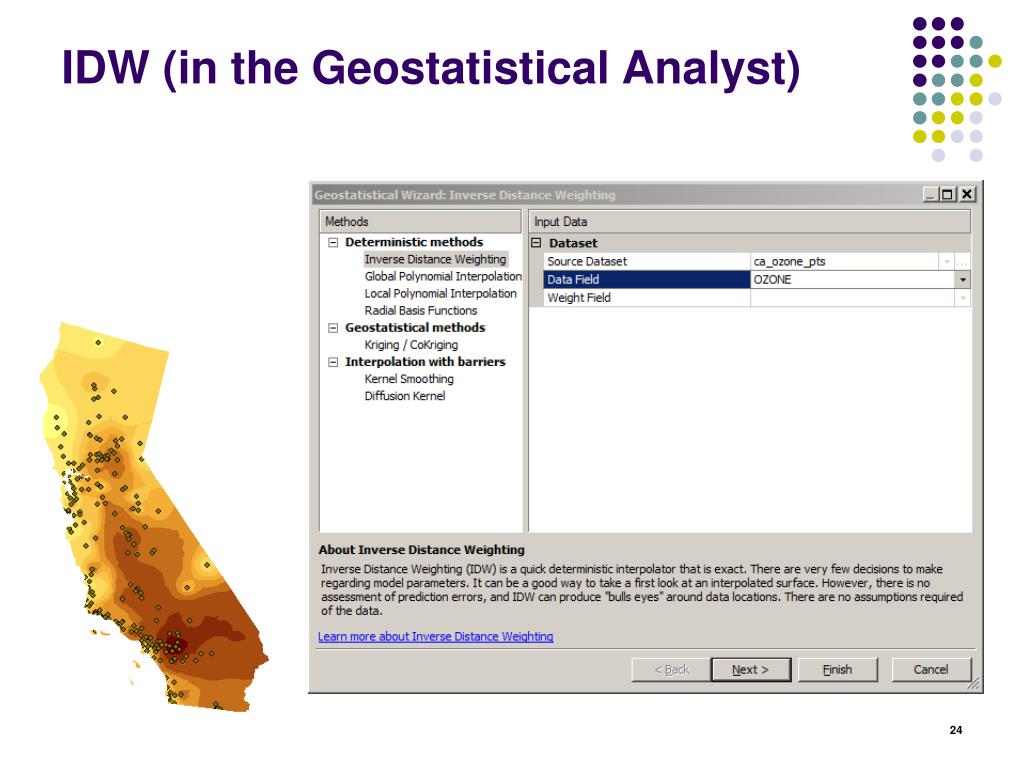

    19. IDW (in the Geostatistical Analyst)

    20. Global polynomial • Identify and model local structures and surface trends • Fit a plane between the sample points One bend = 2nd order Two bends = 3rd order Etc… Plane = first order

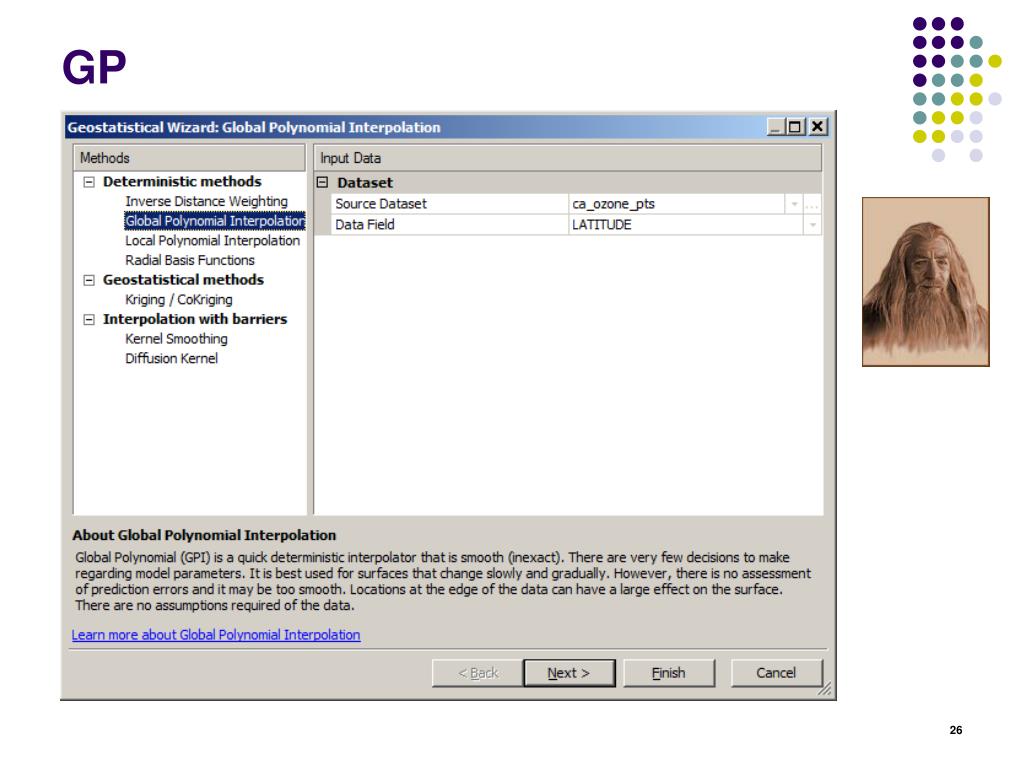

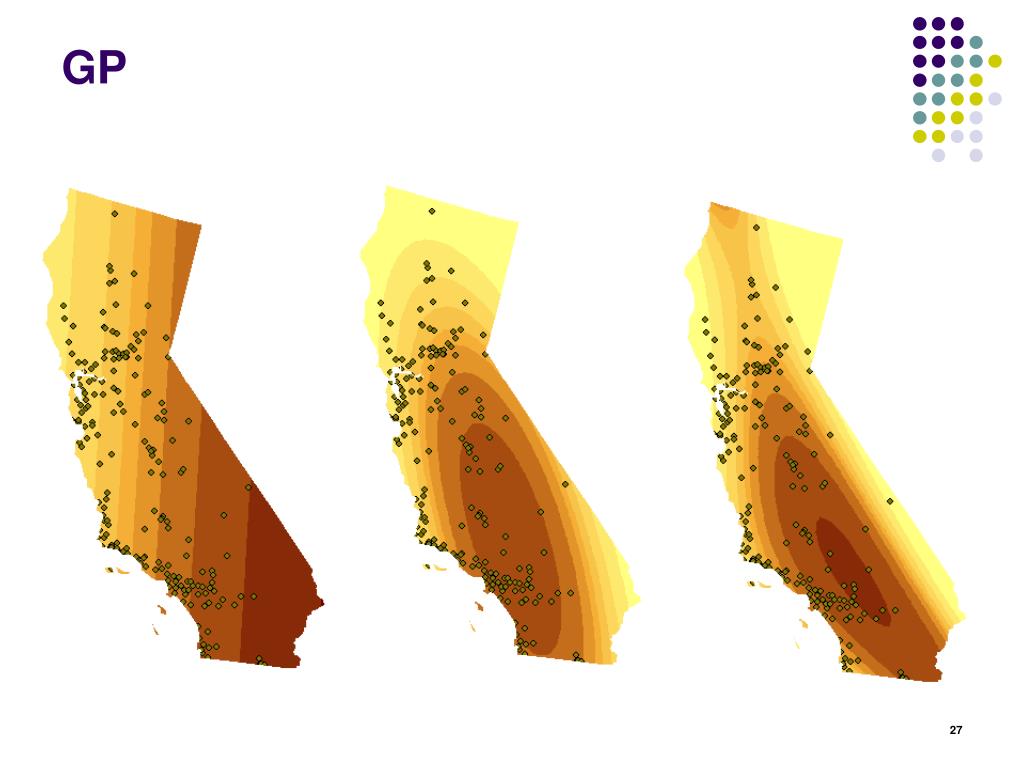

    21. GP

    22. GP

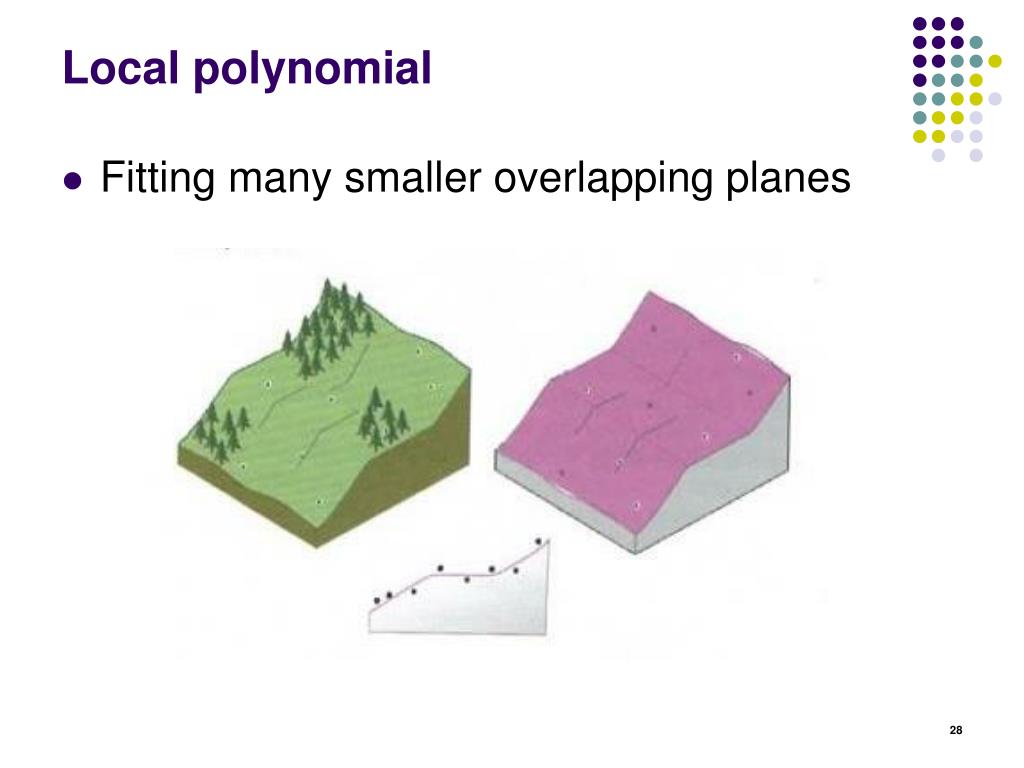

    23. Local polynomial • Fitting many smaller overlapping planes

    24. LP

    25. Radial basis • Captures global trends and picks up local variation (bending and stretching of surface to match all the measured values)

    26. RB

    27. Geostatistical methods • Based on statistical methods not just mathematical • Include spatial autocorrelation • Provide a measure of certainty or accuracy • Kriging • Cokriging

    28. Principals of Geostat Methods • Unlike the deterministic methods, geostatistics assumes that all values are a result of a random process with dependence • What does this mean?

    29. Ex • Flip three coins and determine if H or T • The fourth coin will not be flipped; it will be laid down based on what the 2nd and 3rd are • Rule to lay the 4th: • if the 2nd and 3rd are tails, the fourth is the opposite of the first, if not then the 4th is same as first

    30. How does this relate to predicting locations in an interpolation? • In coin ex, dependence rules were given • In reality, dependence rules are not known • In geostats, there are two key tasks • To uncover the dependence rules • To make predictions KEY: the predictions come from knowing the dependency rules!

    31. Principles of Geostat Methods • Besides random process with dependence… • Stationarity • Mean stationarity • mean is constant between samples and is independent of location • Second order stationarity for covariance • covariance is the same between any two points that are at the same distance and direction apart no matter which points you choose • Intrinsic stationarity for semivariograms • variance of the difference is the same between any two points that are at the same distance and direction apart no matter which two points you choose

    32. Kriging • In geostats, there are two key tasks • To uncover the dependence rules • To make predictions Semivariogram and covariance functions Interpolate areas

    33. Kriging • Similar to IDW (weights surrounding values to derive a prediction) • Different in that it incorporates the spatial arrangement among the measured points (must calculate spatial autocorrelation)

    34. Kriging

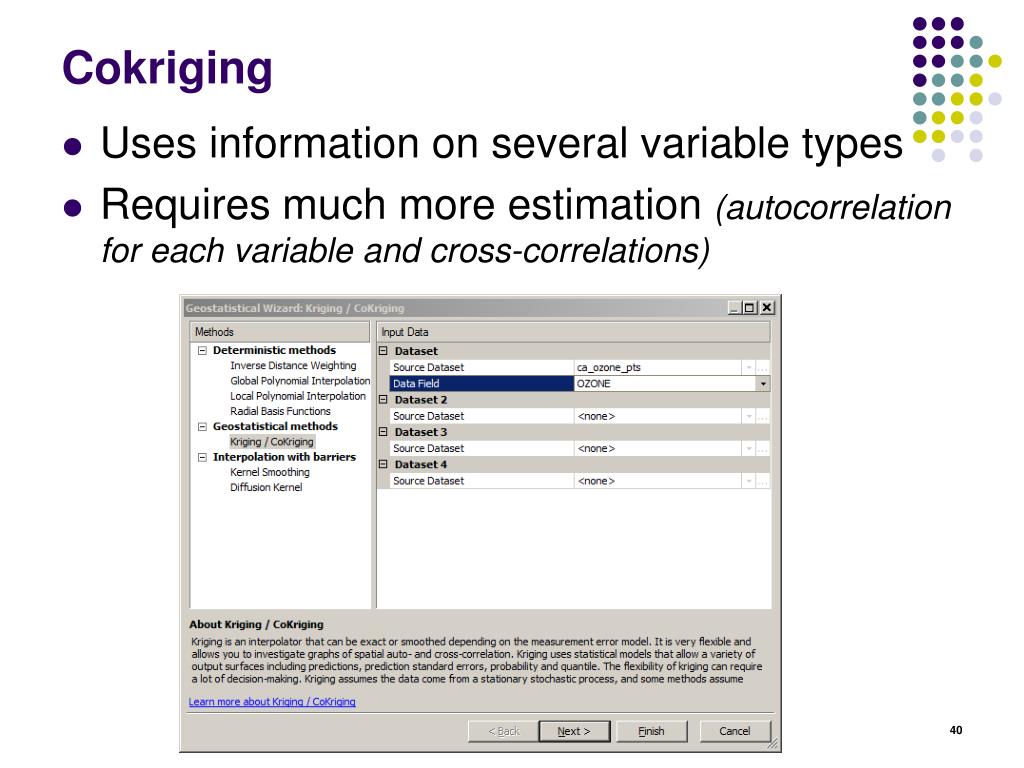

    35. Cokriging • Uses information on several variable types • Requires much more estimation (autocorrelation for each variable and cross-correlations)

    36. Kriging process • Calculate the empirical semivariogram • Fit a model • Make a prediction

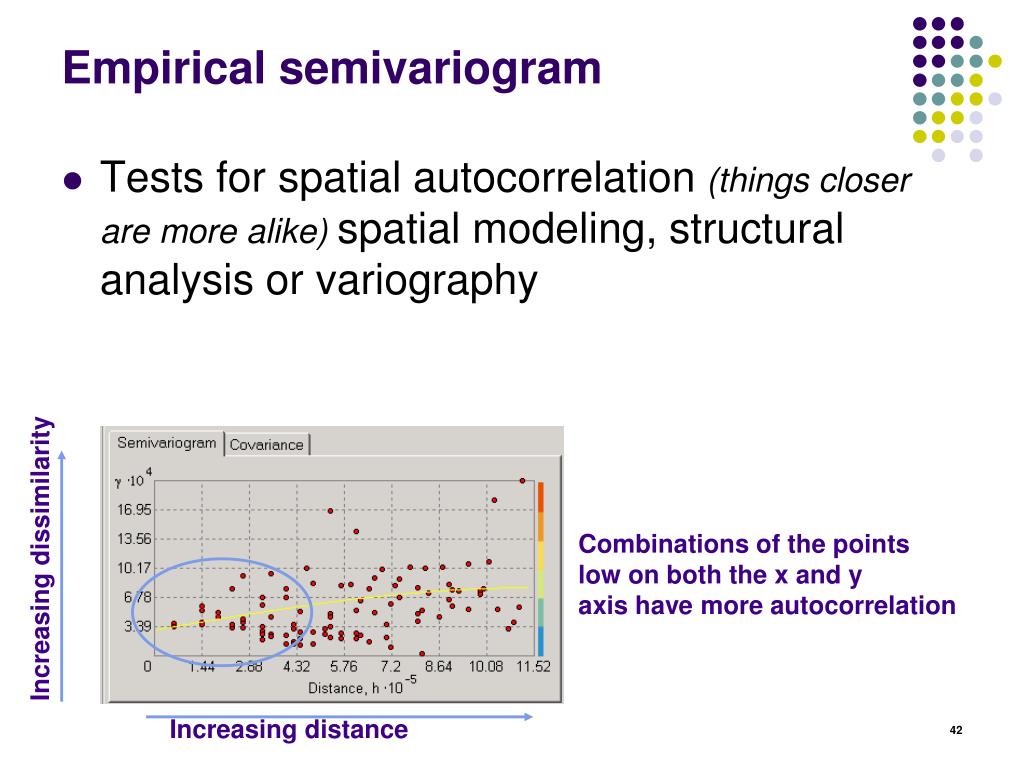

    37. Empirical semivariogram • Tests for spatial autocorrelation (things closer are more alike) spatial modeling, structural analysis or variography Combinations of the points low on both the x and y axis have more autocorrelation Increasing dissimilarity Increasing distance

    38. Fit a Model • Defining a line (weighted least squares) that provides the best fit through the points in the empirical semivariogram cloud • Line is considered a model quantifying the spatial autocorrelation in a model

    39. Make a prediction • From the kriging weights for the measured values, you can calculate a prediction for the location with the unknown value.

    40. Part B. The Geostatistical Process Explore the data Fit a model Perform diagnostics Compare the models

    41. Explore your data

    42. Why explore your data? • To make better decisions when creating a surface • To gain a better understanding of the data • Look for obvious errors in the input sample that may drastically affect the output prediction surface • Examine how the data is distributed • Look for global trends

    43. Summarizing the Geostatistical analyst data exploration tools • Tools to examine the distribution of your data • Identify trends in the data if any • Understand the spatial autocorrelation and directional influences

    44. Examining the distribution of data Tools Available in ArcGIS 10 Geostatistical Analyst: • Histogram • Look for normal distribution • Normal QQPlot • To find trends • Semivariogram/covariance cloud • To identify spatial autocorrelation

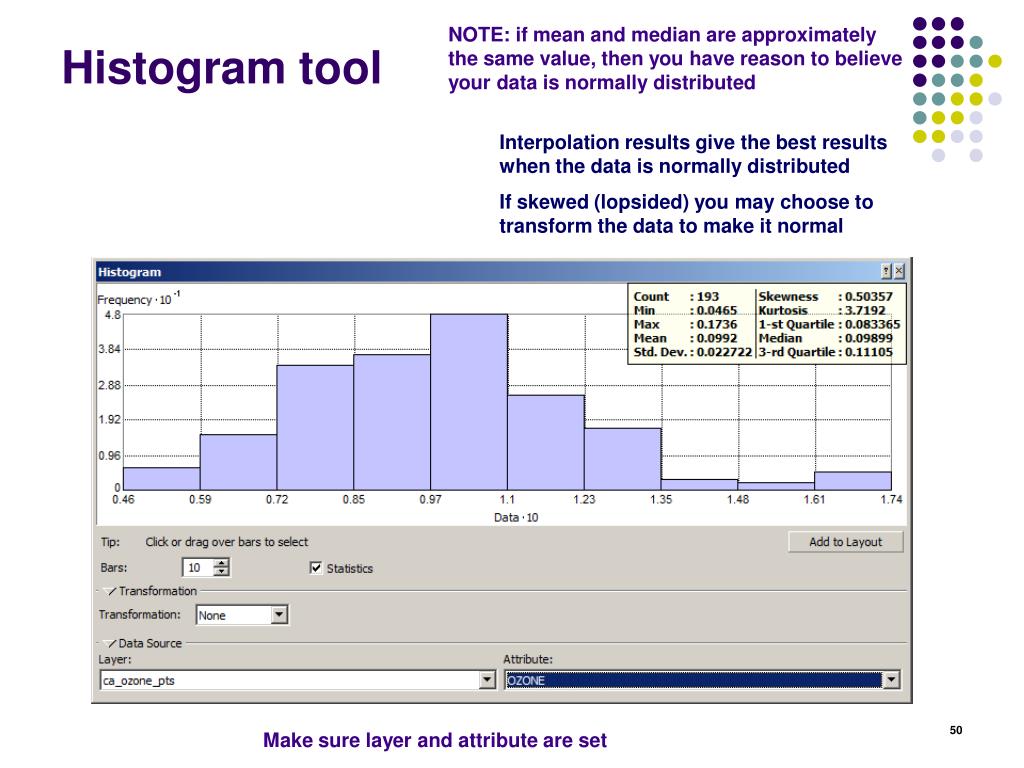

    45. NOTE: if mean and median are approximately • the same value, then you have reason to believe • your data is normally distributed • Interpolation results give the best results when the data is normally distributed • If skewed (lopsided) you may choose to transform the data to make it normal Histogram tool Make sure layer and attribute are set
