  1. Global Roaming in Next-Generation Networks Theodore B. Zahariadis, Konstantinos G. Vaxevanakis, Christos P. Tsantilas, and Nikolaos A. Zervos Ellemedia Technologies, Greece Nikos A. Nikolaou, Lucent Technologies, The Netherlands IEEE Communications Magazine • February 2002 Date: 2006/03/29 Speaker: Kai-Jie Chang

  2. Outlines • Introduction • Proposed architecture • Horizontal handover • Vertical handover architecture • Conclusions

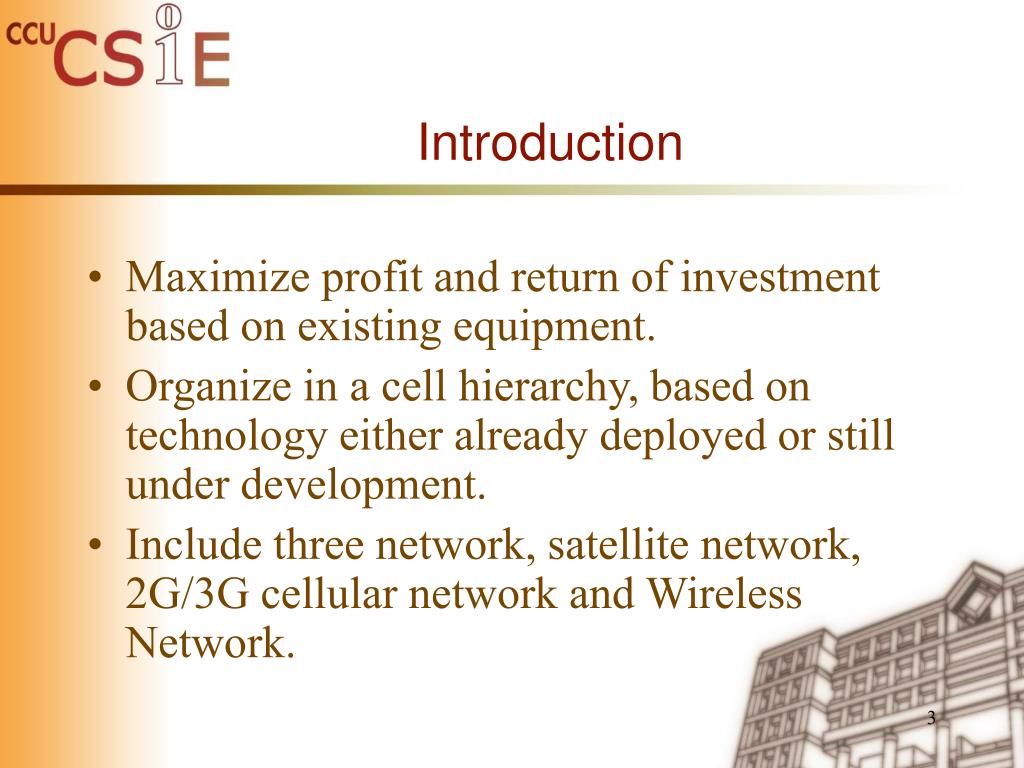

  3. Introduction • Maximize profit and return of investment based on existing equipment. • Organize in a cell hierarchy, based on technology either already deployed or still under development. • Include three network, satellite network, 2G/3G cellular network and Wireless Network.

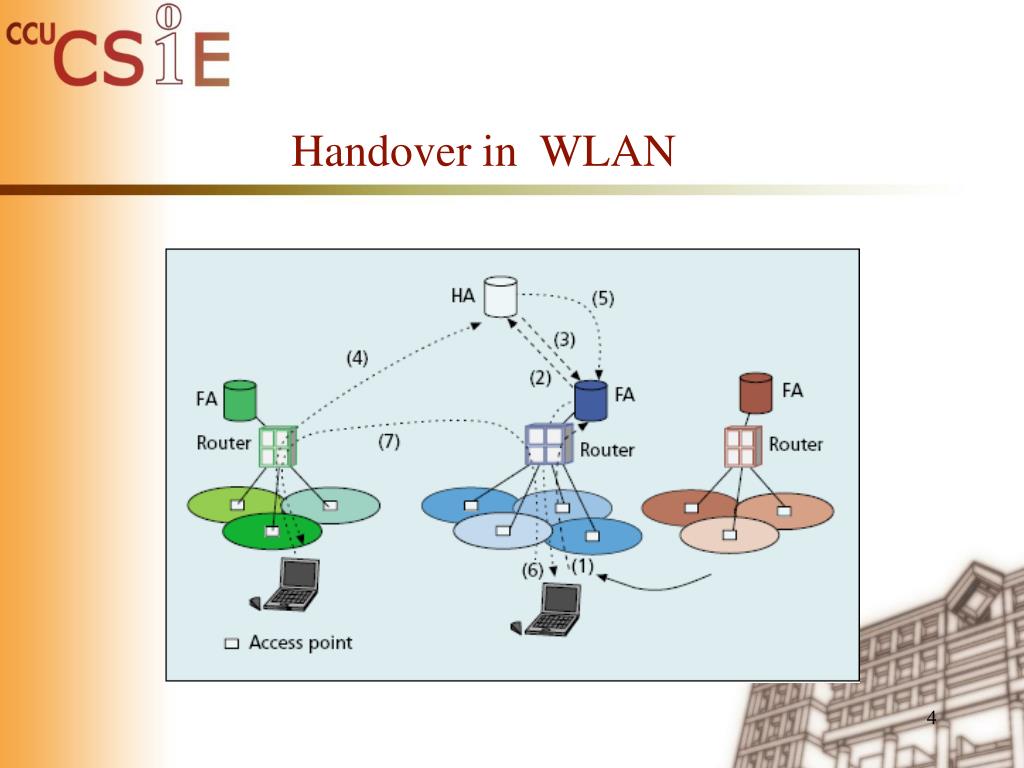

  4. Handover in WLAN

  5. WLAN roaming • (1). Request FA • (2). Register HA via FA • (3). Response • (4). IP packets to MN through HA • (5). Redirect to FA • (6). Forward packets to MN • (7). Establish a link to MN directly.

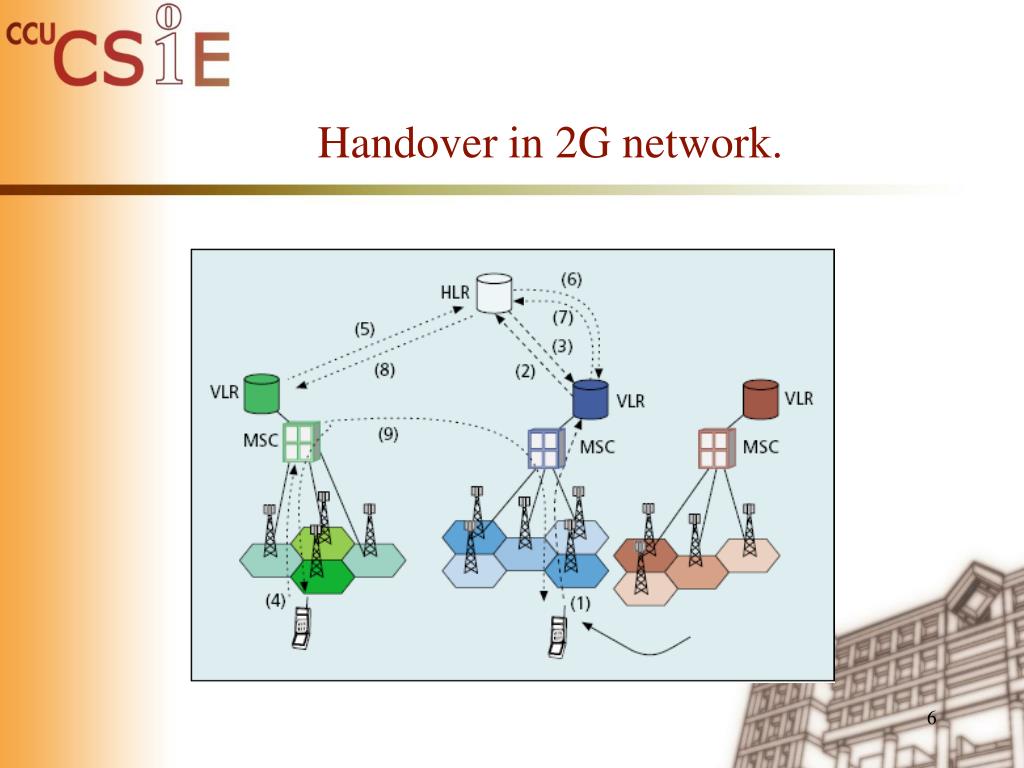

  6. Handover in 2G network.

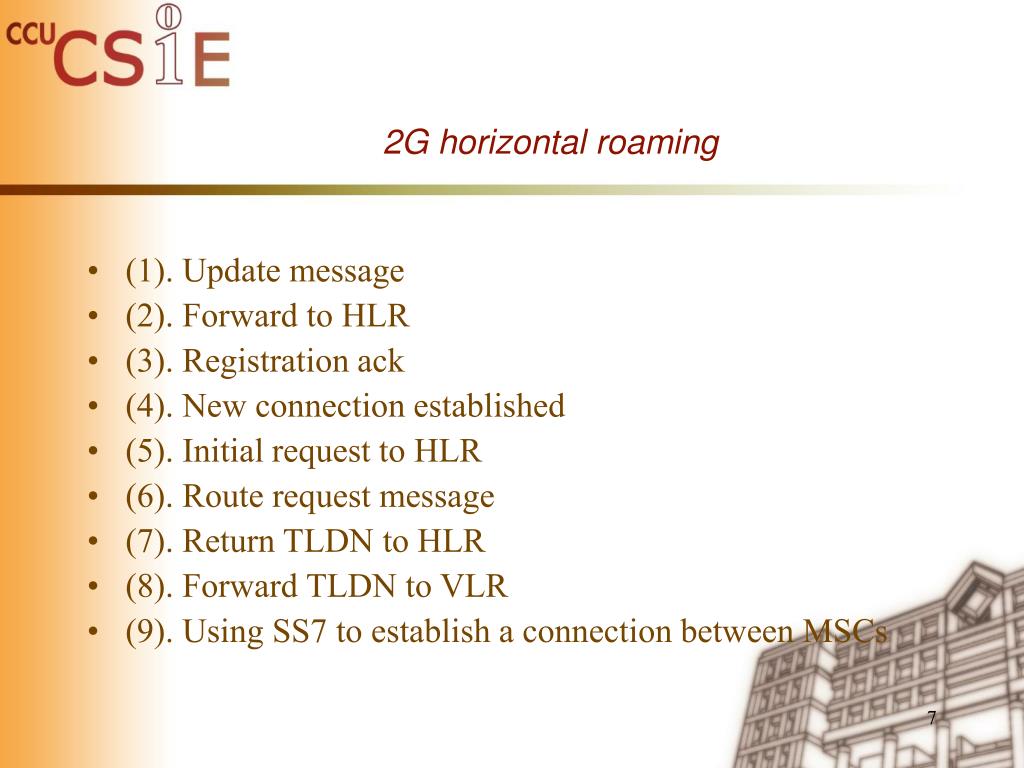

  7. 2G horizontal roaming • (1). Update message • (2). Forward to HLR • (3). Registration ack • (4). New connection established • (5). Initial request to HLR • (6). Route request message • (7). Return TLDN to HLR • (8). Forward TLDN to VLR • (9). Using SS7 to establish a connection between MSCs

  8. Handover in LEO satellite network.

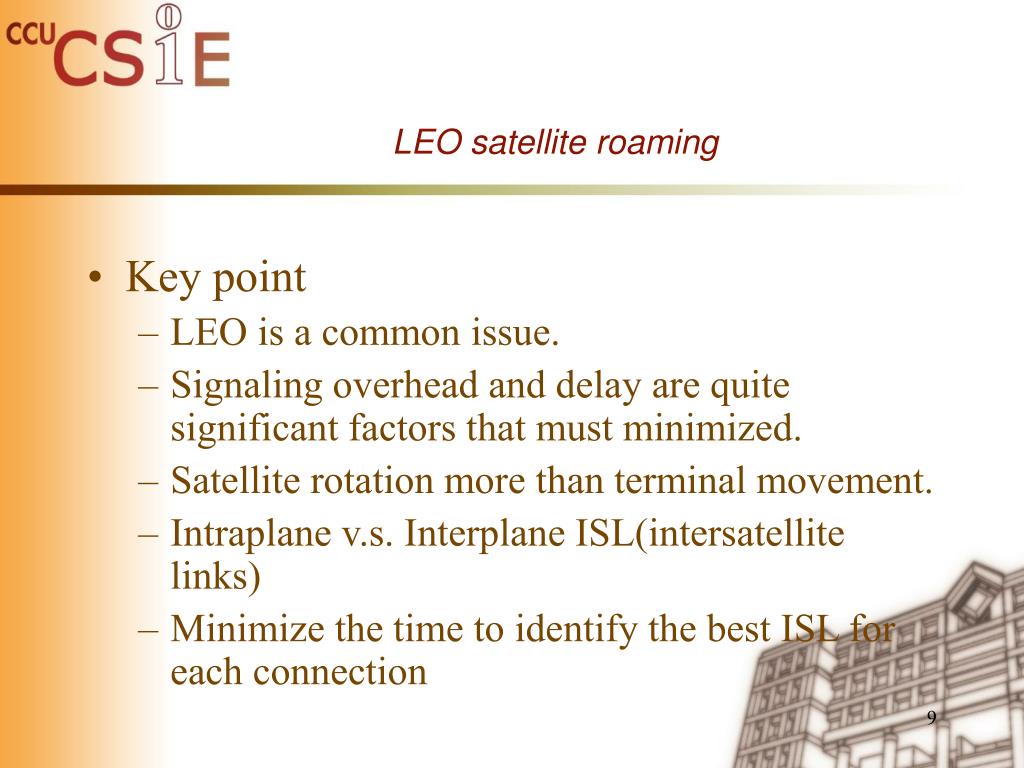

  9. LEO satellite roaming • Key point • LEO is a common issue. • Signaling overhead and delay are quite significant factors that must minimized. • Satellite rotation more than terminal movement. • Intraplane v.s. Interplane ISL(intersatellite links) • Minimize the time to identify the best ISL for each connection

  10. Cell hierarchy of a next-generation network.

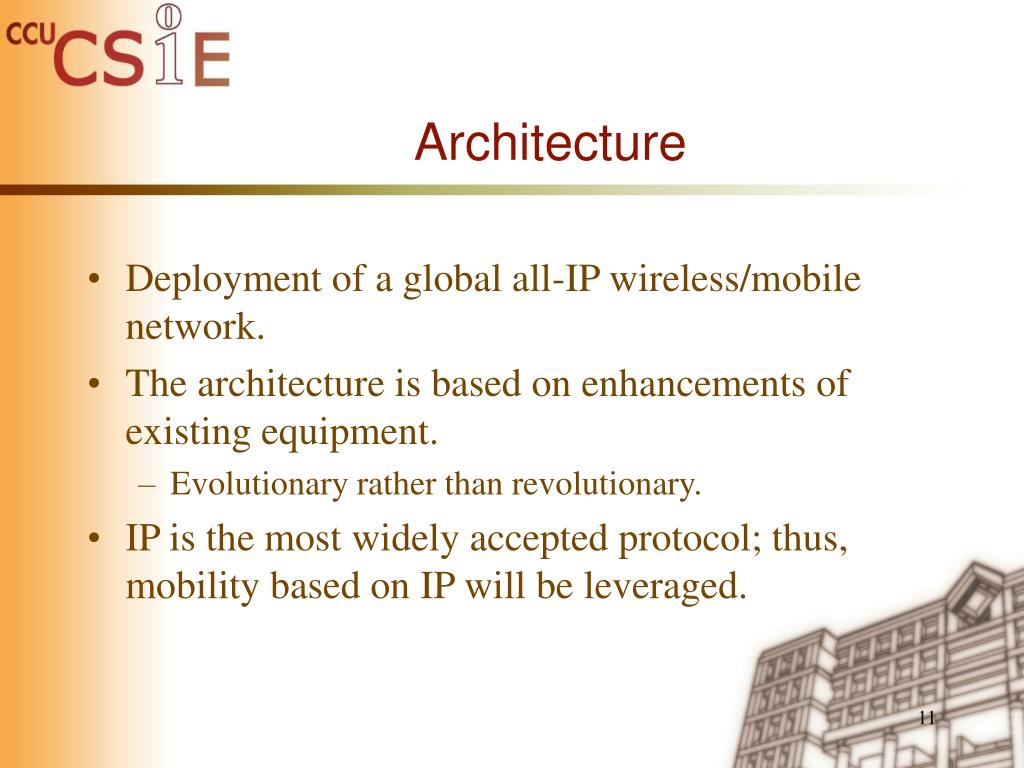

  11. Architecture • Deployment of a global all-IP wireless/mobile network. • The architecture is based on enhancements of existing equipment. • Evolutionary rather than revolutionary. • IP is the most widely accepted protocol; thus, mobility based on IP will be leveraged.

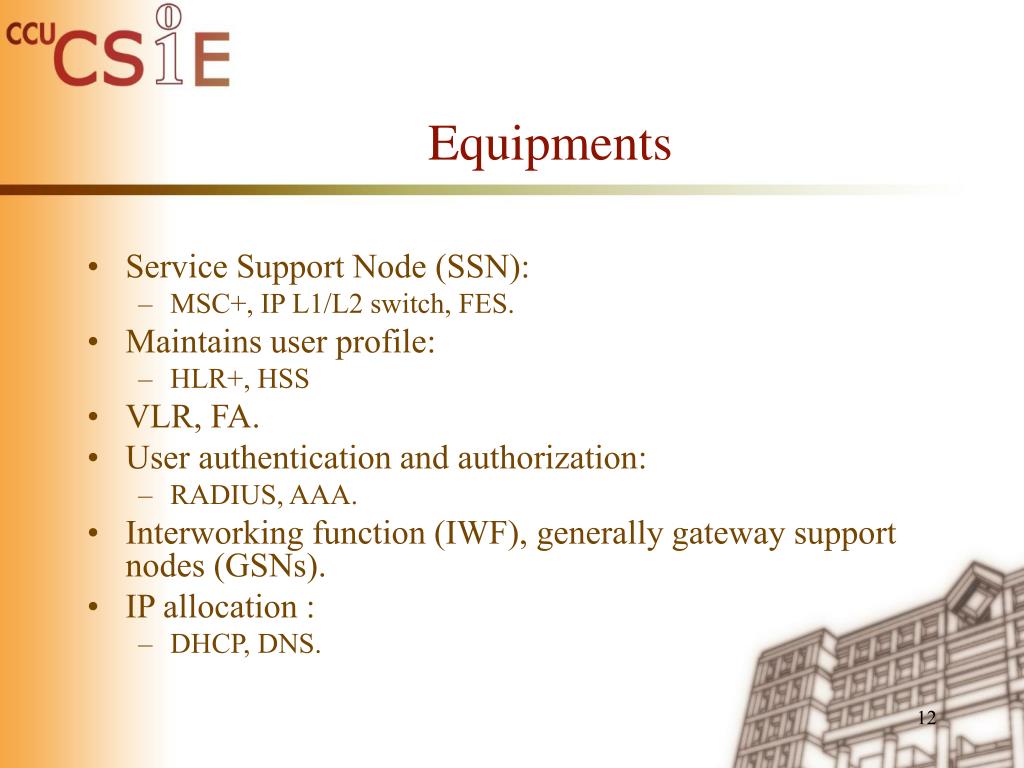

  12. Equipments • Service Support Node (SSN): • MSC+, IP L1/L2 switch, FES. • Maintains user profile: • HLR+, HSS • VLR, FA. • User authentication and authorization: • RADIUS, AAA. • Interworking function (IWF), generally gateway support nodes (GSNs). • IP allocation : • DHCP, DNS.

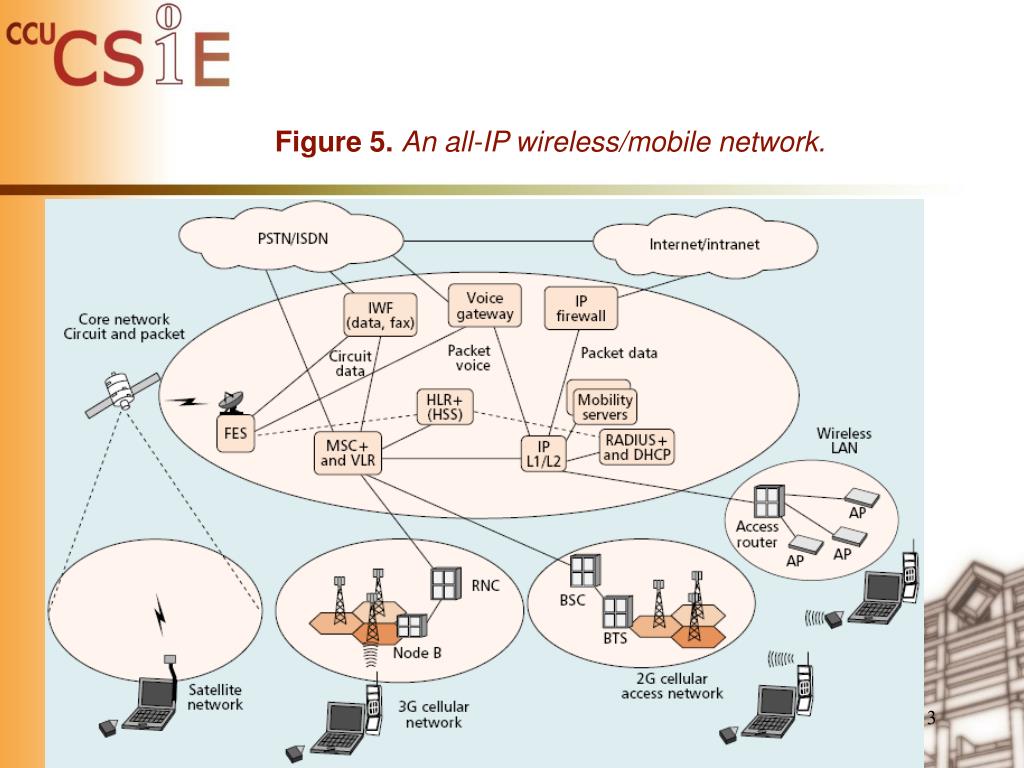

  13. Figure 5. An all-IP wireless/mobile network.

  14. Conclusions • Global roaming in current and next-generation networks is an important issue. • This article consider a hierarchical cell architecture either installed or under development. • Route packet rather than IP change.
