Presentation Transcript
slide2

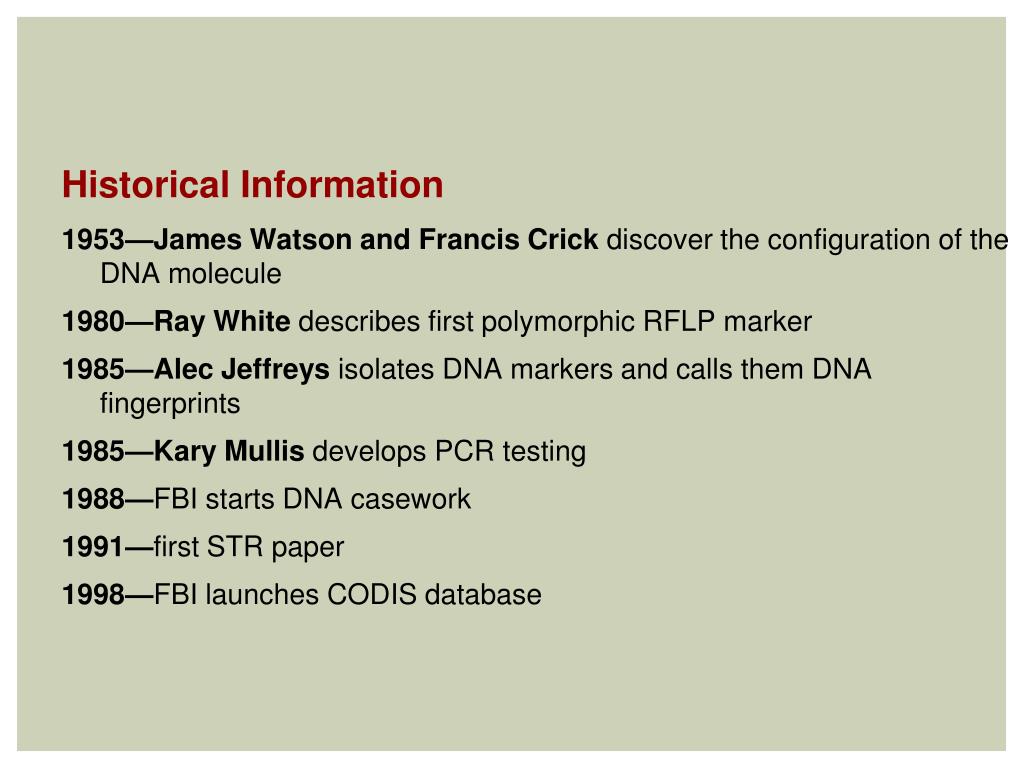

Historical Information

1953—James Watson and Francis Crick discover the configuration of the DNA molecule

1980—Ray White describes first polymorphic RFLP marker

1985—Alec Jeffreys isolates DNA markers and calls them DNA fingerprints

1985—Kary Mullis develops PCR testing

1988—FBI starts DNA casework

1991—first STR paper

1998—FBI launches CODIS database

slide3

Introduction

  • Portions of the DNA structure are as unique to each individual as fingerprints.
  • The gene is the fundamental unit of heredity.
  • Each gene is actually composed of DNA specifically designed to carry the task of controlling the genetic traits of our cells.
slide4

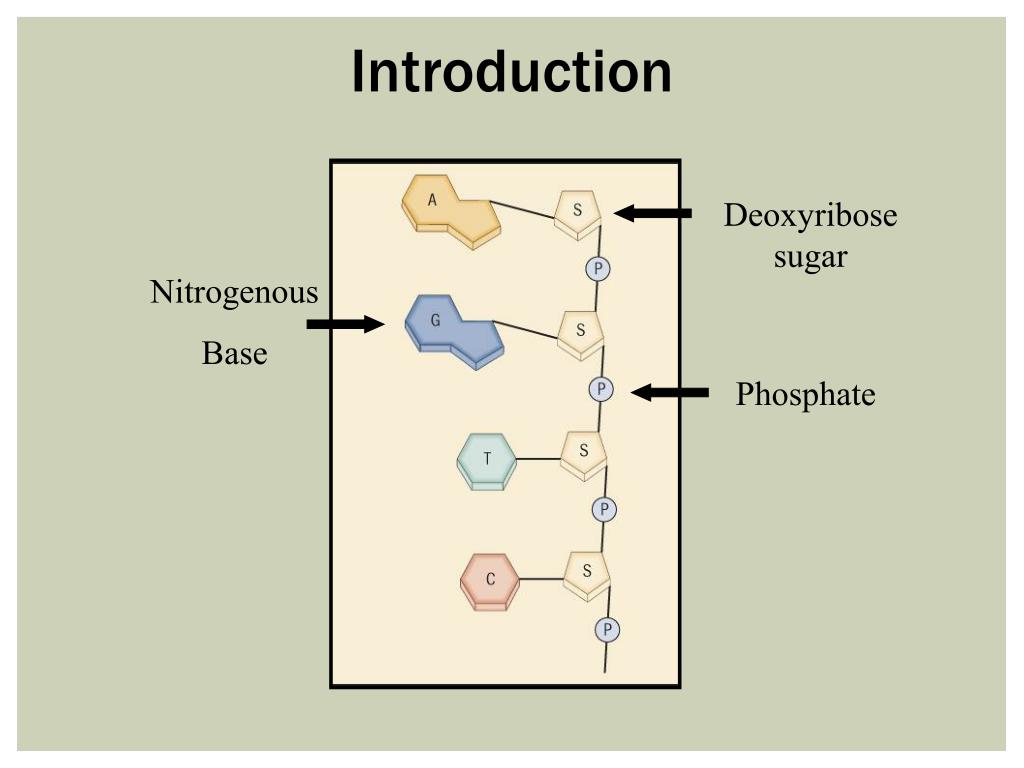

Introduction

Deoxyribose sugar

Nitrogenous

Base

Phosphate

slide5

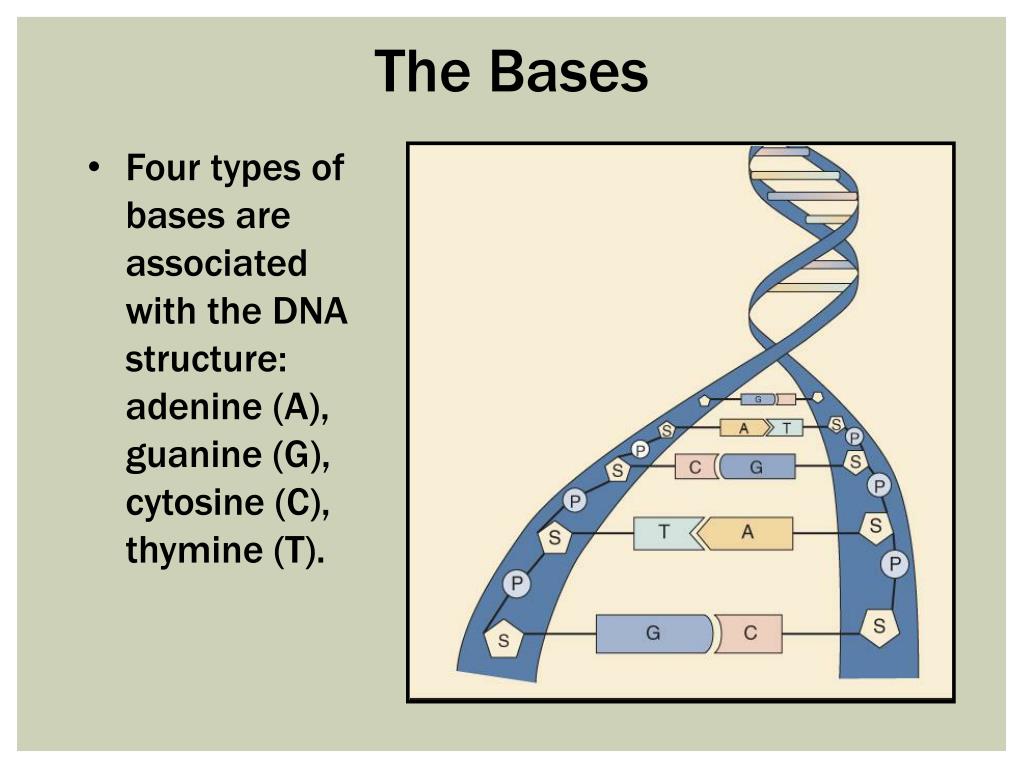

The Bases

  • Four types of bases are associated with the DNA structure: adenine (A), guanine (G), cytosine (C), thymine (T).
slide6

The Bases

  • The bases on each strand are properly aligned in a double-helix configuration, which is two strands of DNA coiled together.
  • As a result, adenine pairs with thymine and guanine pairs with cytosine.
  • This concept is known as base pairing.
  • The order of the bases is what distinguishes different DNA strands.
slide7

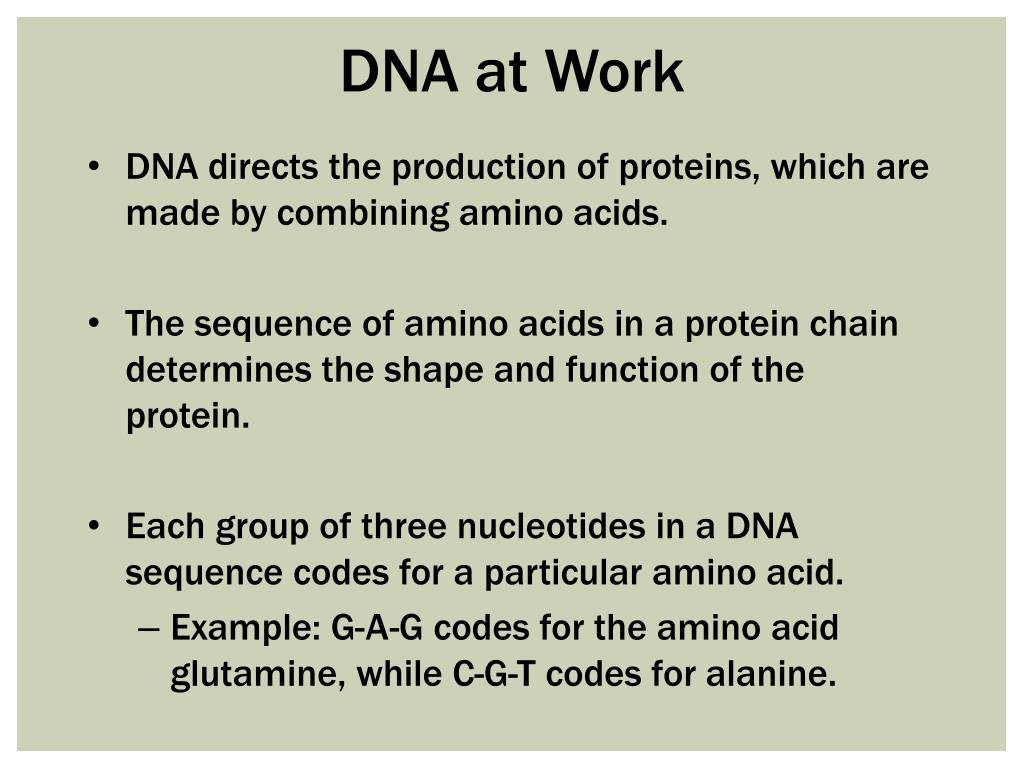

DNA at Work

  • DNA directs the production of proteins, which are made by combining amino acids.
  • The sequence of amino acids in a protein chain determines the shape and function of the protein.
  • Each group of three nucleotides in a DNA sequence codes for a particular amino acid.
    • Example: G-A-G codes for the amino acid glutamine, while C-G-T codes for alanine.
slide8

General DNA Information

Double helix—two coiled DNA strands

Composed of nucleotides—units containing a sugar molecule (deoxyribose), a phosphate group, and a nitrogen-containing base

In humans, the order of these bases is 99.9 percent the same.

Four bases:

  • Adenine
  • Cytosine
  • Guanine
  • Thymine

Bases always pair A to T and G to C.

3 enzymes in dna
3 Enzymes in DNA
  • Esterase-D (esD)
  • PGM
  • pepA
  • Enzymes catalyze
  • Each enzyme has a responsibility: to convert one sugar group to another
slide10

Where Is DNA Found?

Genes are portions of DNA that code for specific proteins.

DNA is found in all nucleated body cells—white blood cells,

semen, saliva, urine, hair roots, teeth, bone, tissue.

Most abundant in buccal (cheek) cells

Red blood cells have no nuclei, and therefore, no nuclear DNA.

DNA obtained from blood comes from white blood cells.
