Optimizing Billiard Ball Systems for Maximum Force Distribution

This project explores the analysis of a billiard ball system by drawing, removing gravity, adding air resistance, and giving the cue ball initial velocity. The simulation compares tight rack vs. loose rack force distribution.

orson-bailey
Download Presentation

Optimizing Billiard Ball Systems for Maximum Force Distribution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

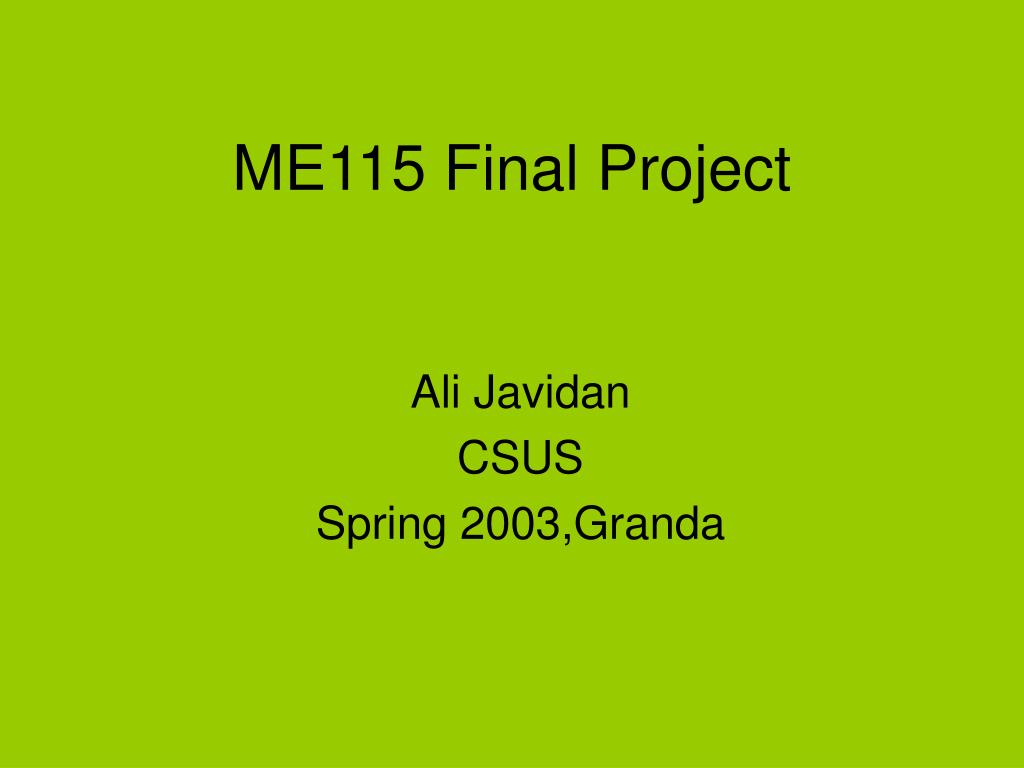

  1. ME115 Final Project Ali Javidan CSUS Spring 2003,Granda

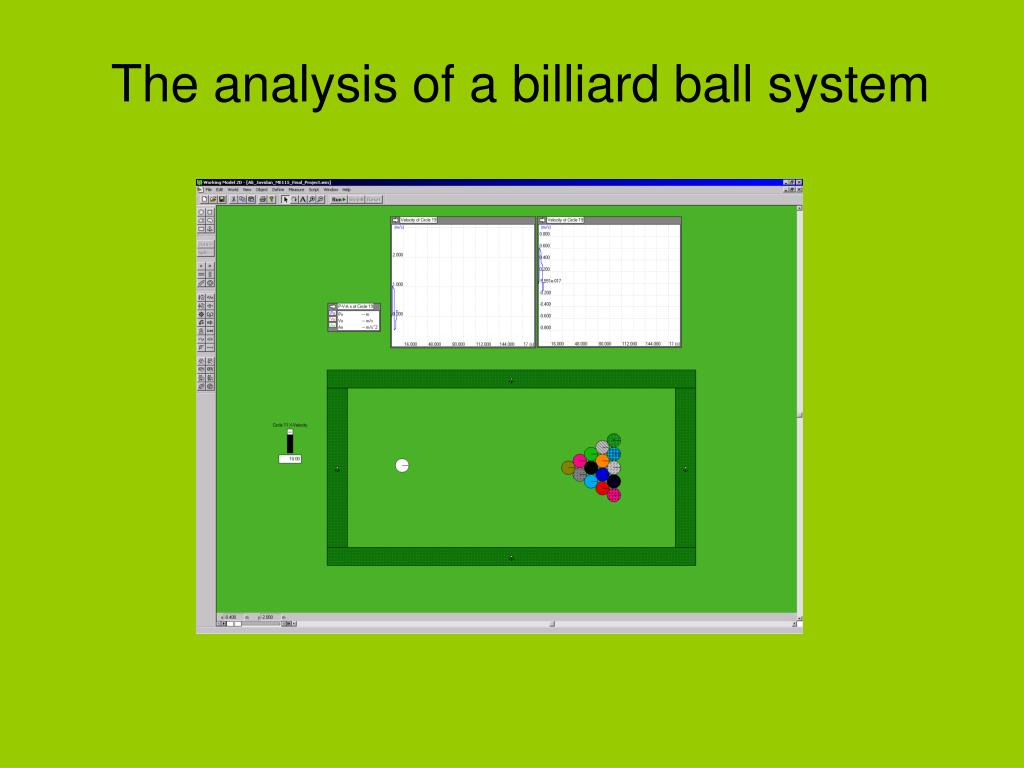

  2. The analysis of a billiard ball system

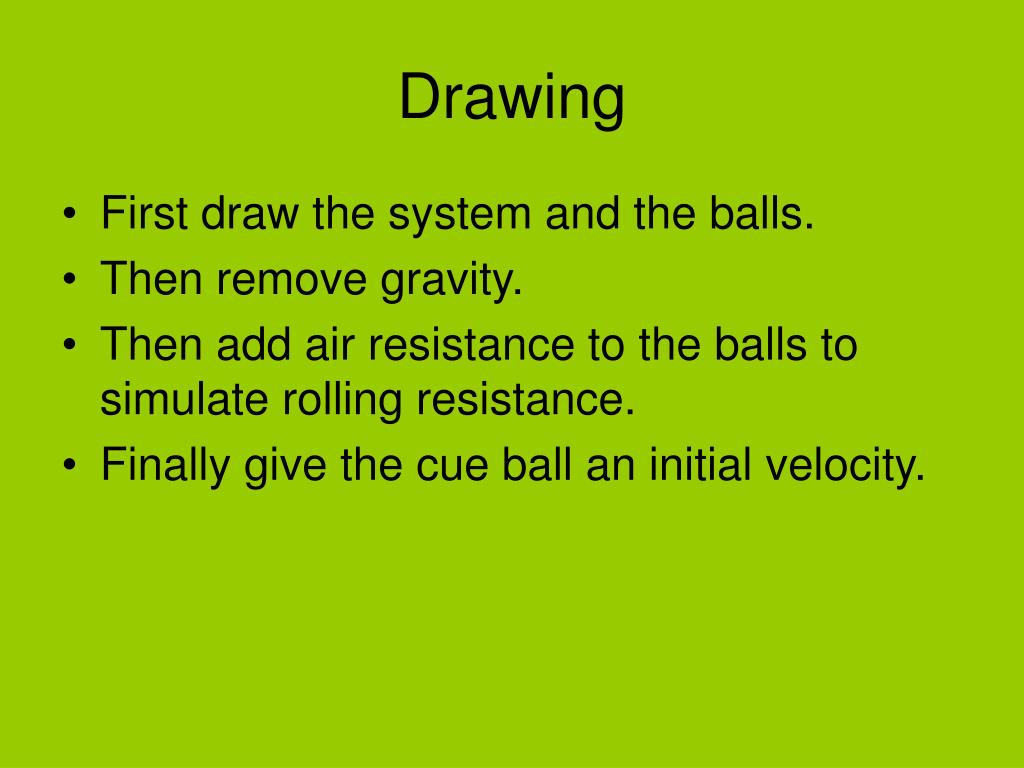

  3. Drawing • First draw the system and the balls. • Then remove gravity. • Then add air resistance to the balls to simulate rolling resistance. • Finally give the cue ball an initial velocity.

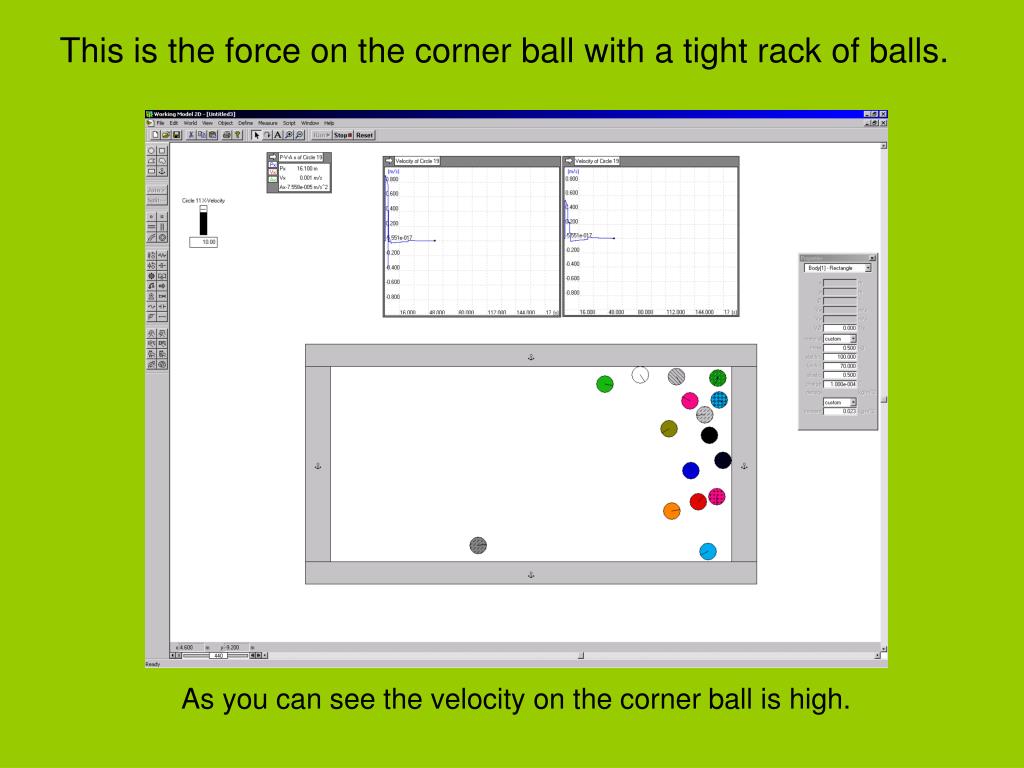

  4. This is the force on the corner ball with a tight rack of balls. As you can see the velocity on the corner ball is high.

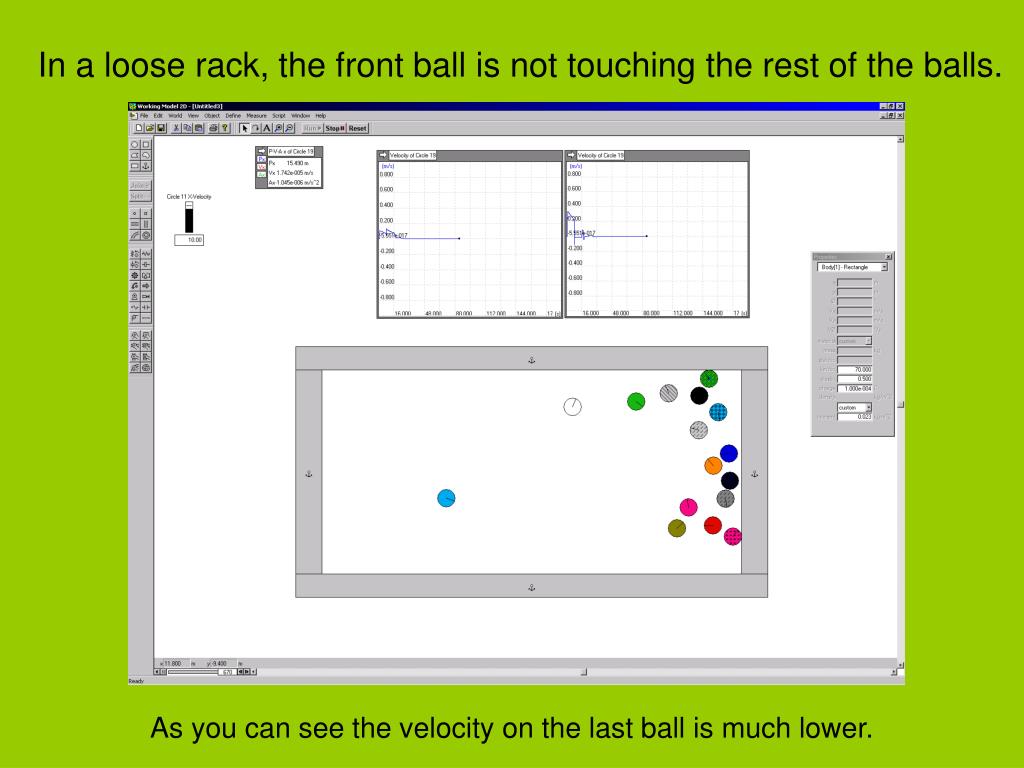

  5. In a loose rack, the front ball is not touching the rest of the balls. As you can see the velocity on the last ball is much lower.

  6. Simulation • Take the working model file and make sure the balls in the rack are all touching and run the simulation.

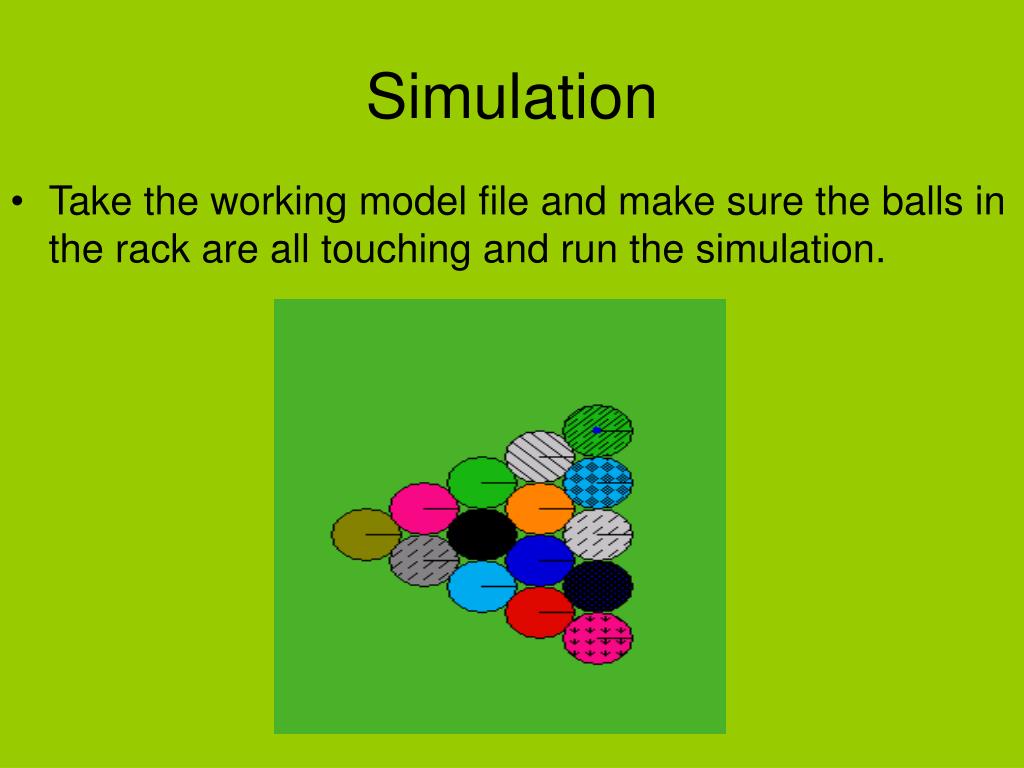

  7. Simulation • Now take the working model file and make a loose rack, by moving the leading ball out and run the simulation.

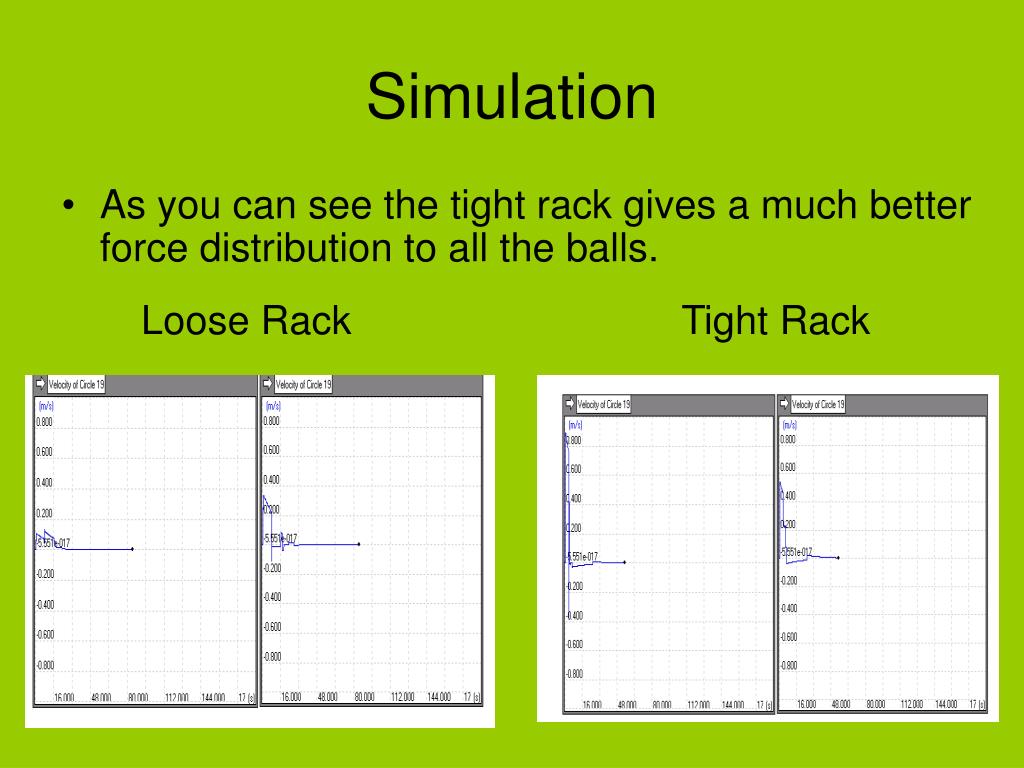

  8. Simulation • As you can see the tight rack gives a much better force distribution to all the balls. Loose Rack Tight Rack

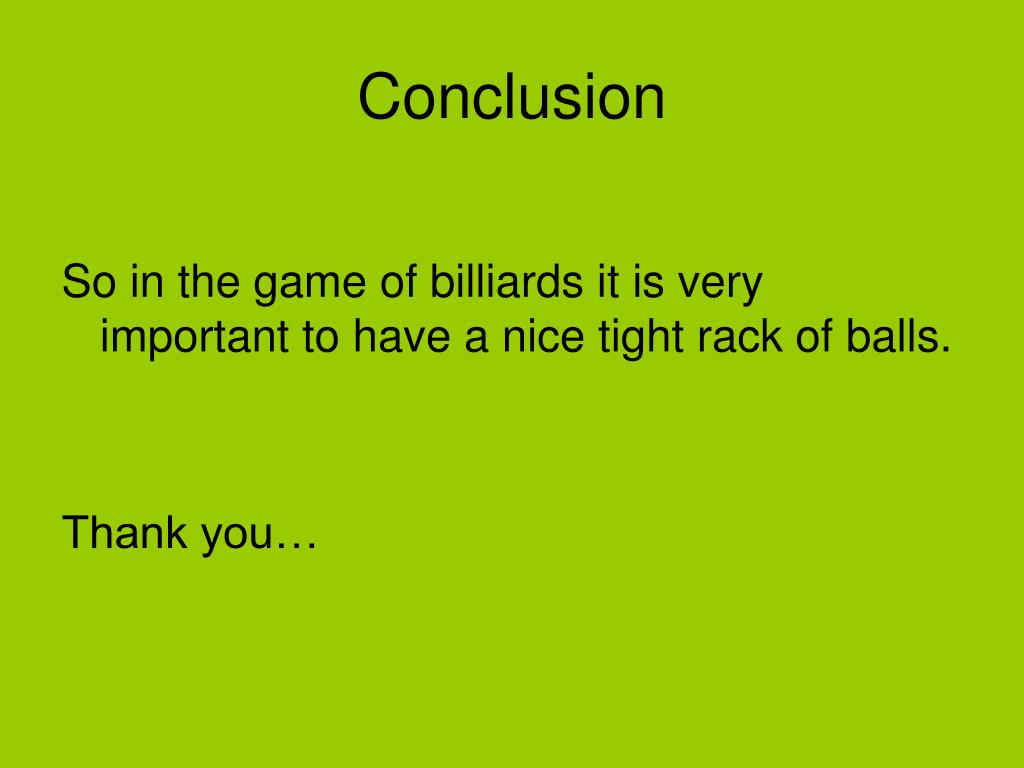

  9. Conclusion So in the game of billiards it is very important to have a nice tight rack of balls. Thank you…
