1. Timing Faults in VLSI circuits Institute of Microelectronics and Optoelectronics Warsaw University of Technology Elzbieta Piwowarska Reason Tutorial, Tomsk, September 06, 2004

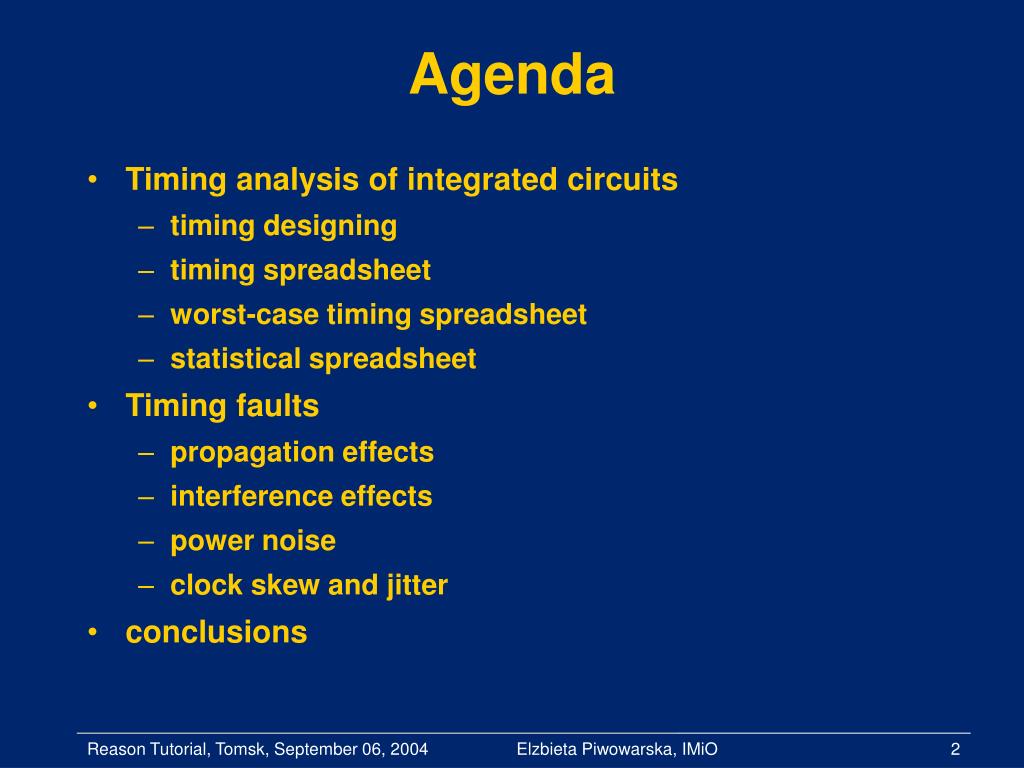

2. Agenda • Timing analysis of integrated circuits • timing designing • timing spreadsheet • worst-case timing spreadsheet • statistical spreadsheet • Timing faults • propagation effects • interference effects • power noise • clock skew and jitter • conclusions Elzbieta Piwowarska, IMiO

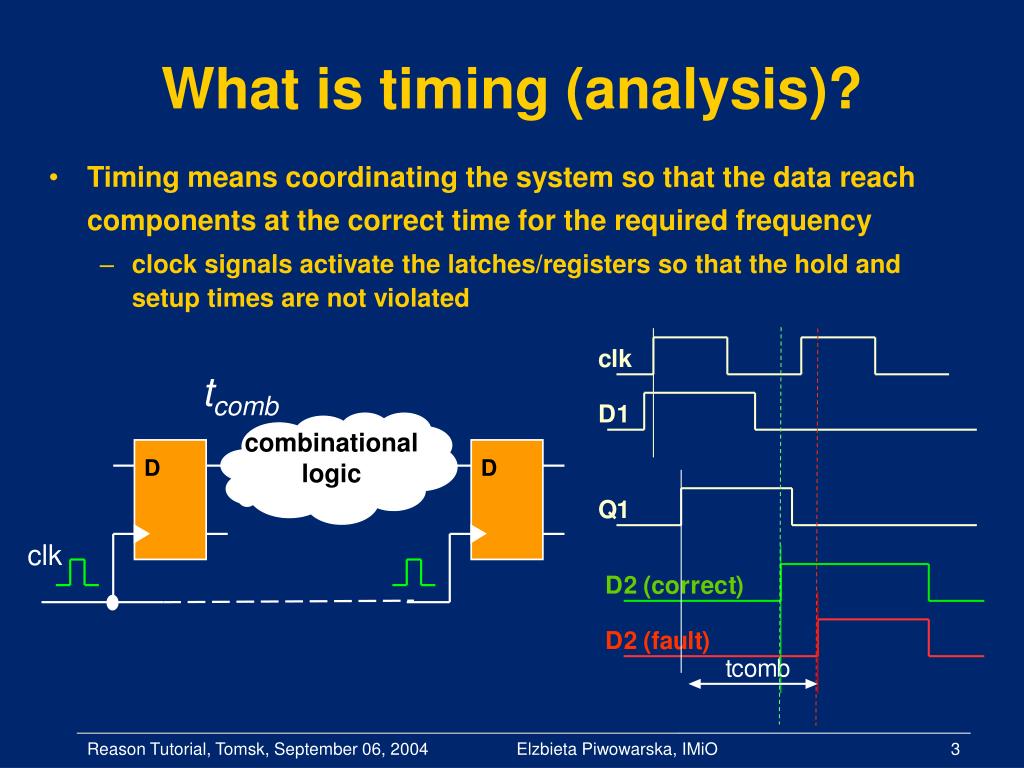

3. tcomb D D combinational logic clk What is timing (analysis)? • Timing means coordinating the system so that the data reach components at the correct time for the required frequency • clock signals activate the latches/registers so that the hold and setup times are not violated Elzbieta Piwowarska, IMiO

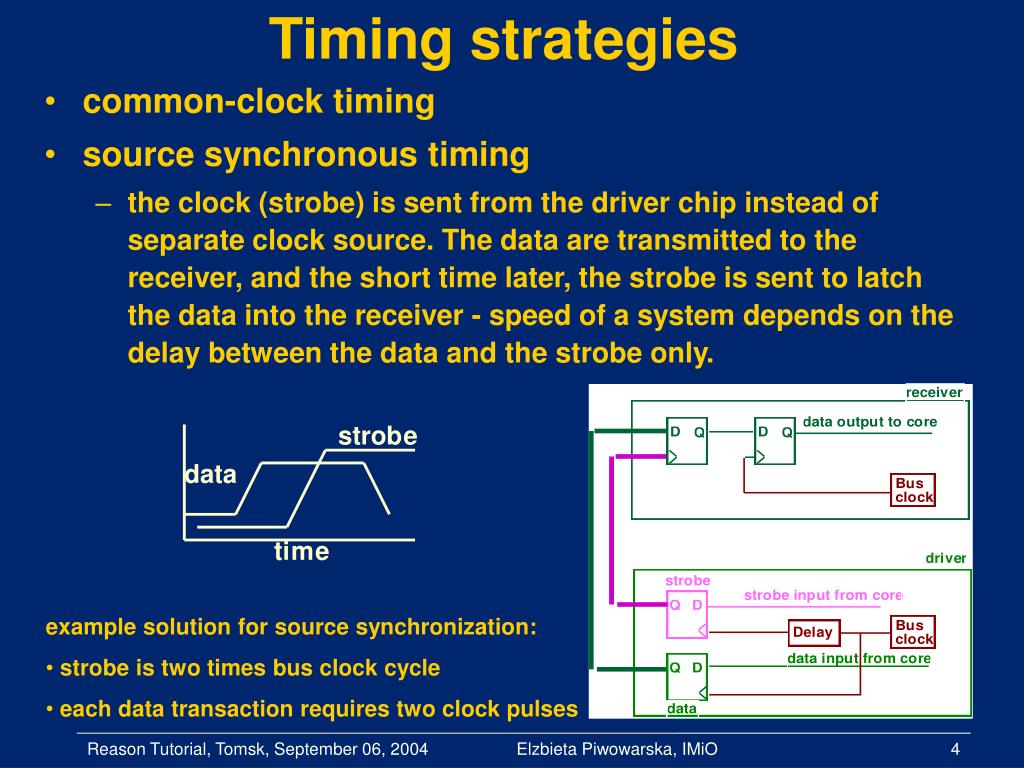

4. example solution for source synchronization: • strobe is two times bus clock cycle • each data transaction requires two clock pulses Timing strategies • common-clock timing • source synchronous timing • the clock (strobe) is sent from the driver chip instead of separate clock source. The data are transmitted to the receiver, and the short time later, the strobe is sent to latch the data into the receiver - speed of a system depends on the delay between the data and the strobe only. Elzbieta Piwowarska, IMiO

5. Timing designing • define the initial system timings • estimate the values of max and min setup and hold times for each component of the system • estimate the values of max and min skew and jitter • estimate the delays of components and interconnects • use the spreadsheet to implement timing equations and get the starting point for the design • assume the certain amount of margin for interconnect delays • improve the design after post-layout analysis Elzbieta Piwowarska, IMiO

6. Timing spreadsheet • It allows the components designing team (silicon designers) and system design team to coordinate working on a system. • It is updated periodically, it shows the progress of the design, set design targets, perform timing trade-offs. Elzbieta Piwowarska, IMiO

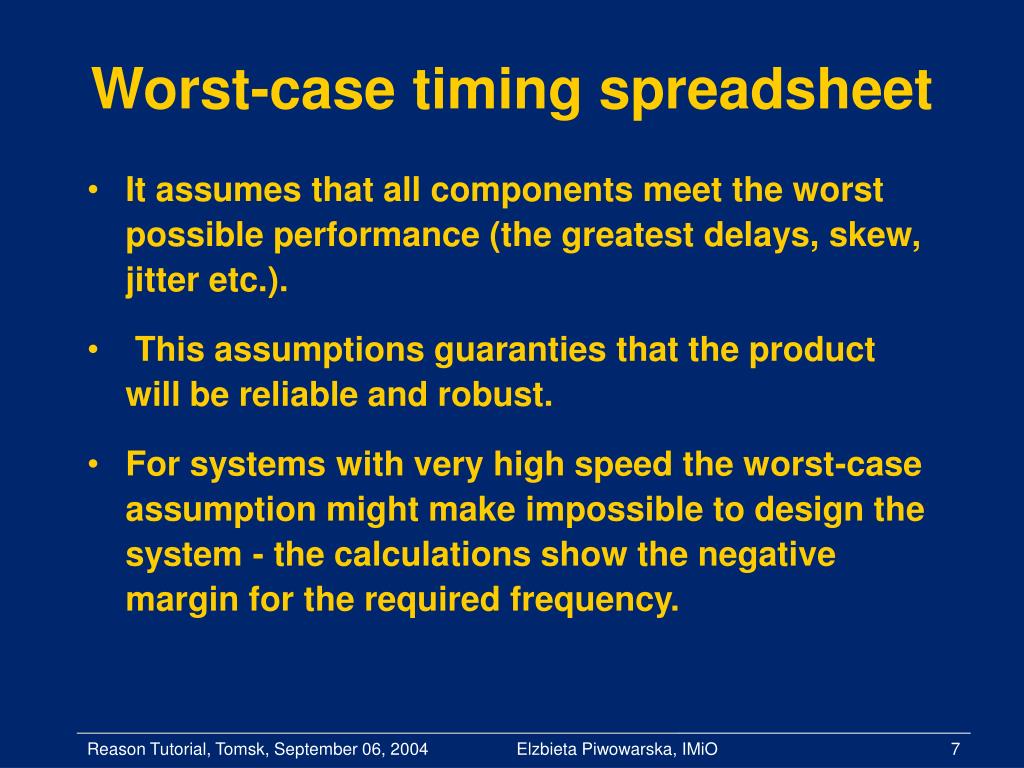

7. Worst-case timing spreadsheet • It assumes that all components meet the worst possible performance (the greatest delays, skew, jitter etc.). • This assumptions guaranties that the product will be reliable and robust. • For systems with very high speed the worst-case assumption might make impossible to design the system - the calculations show the negative margin for the required frequency. Elzbieta Piwowarska, IMiO

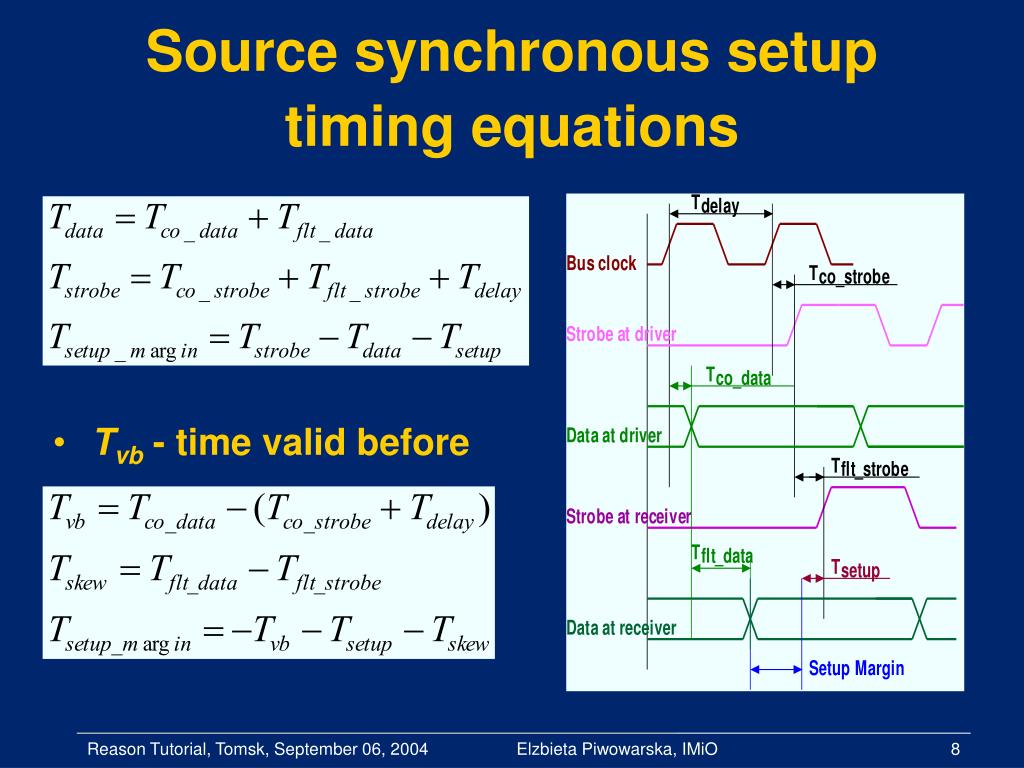

8. Source synchronous setup timing equations • Tvb- time valid before Elzbieta Piwowarska, IMiO

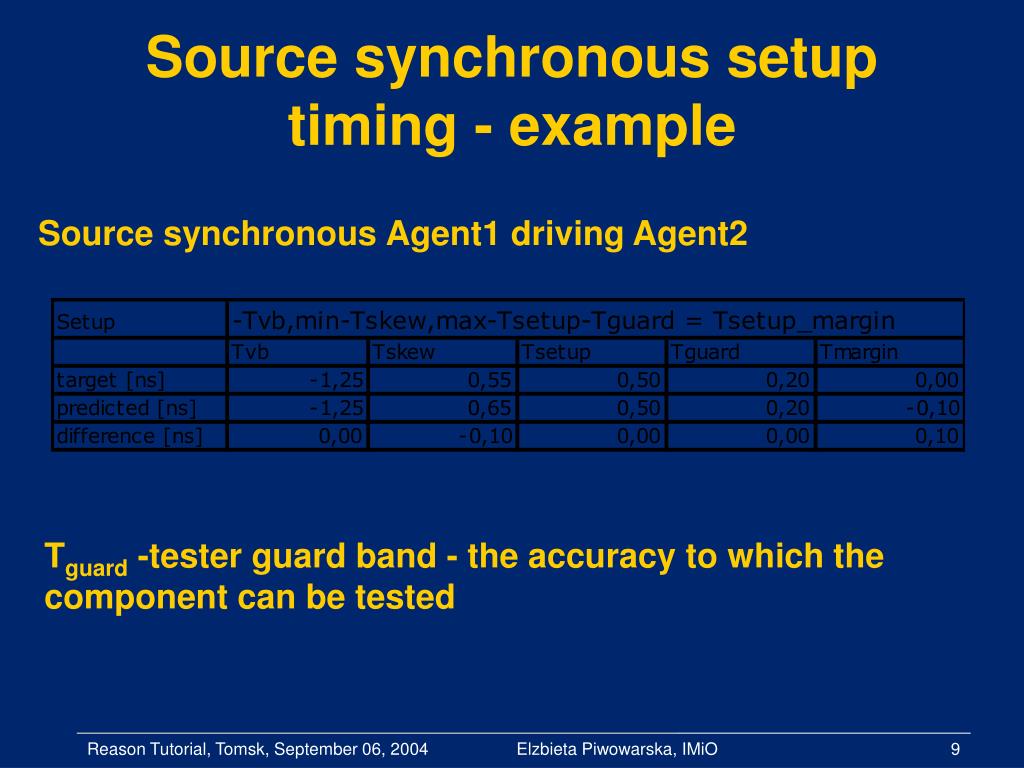

9. Source synchronous setup timing - example Source synchronous Agent1 driving Agent2 Tguard -tester guard band - the accuracy to which the component can be tested Elzbieta Piwowarska, IMiO

10. Statistical spreadsheet • existing in conjunction with the worst-case spreadsheet • the probability of the negative margin is calculated. If it is acceptable small the design will proceed. • the mean and a standard deviation are obtained for each component • It assumes approximately normal (Gaussian) distributions and that the components are completely independent on each other - this works good as a next iteration of the design. Elzbieta Piwowarska, IMiO

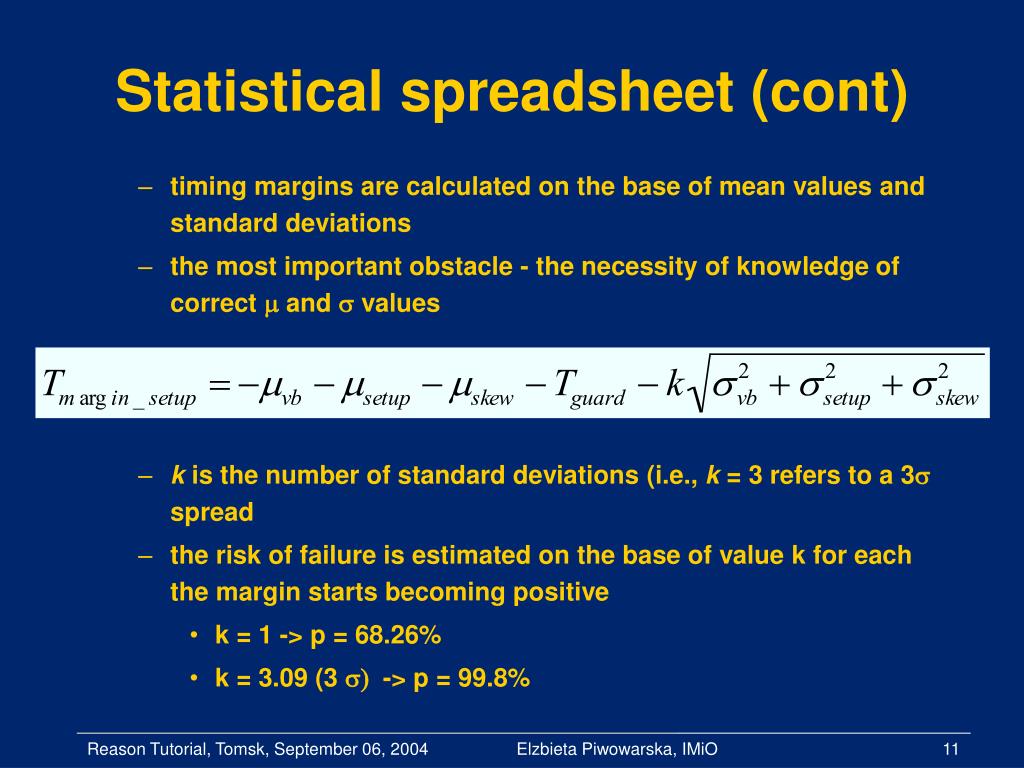

11. Statistical spreadsheet (cont) • timing margins are calculated on the base of mean values and standard deviations • the most important obstacle - the necessity of knowledge of correct m and s values • k is the number of standard deviations (i.e., k = 3 refers to a 3s spread • the risk of failure is estimated on the base of value k for each the margin starts becoming positive • k = 1 -> p = 68.26% • k = 3.09 (3 s) -> p = 99.8% Elzbieta Piwowarska, IMiO

12. Now the additional effects affecting timing values must be taken into account. • These additional effects are noises caused by the influence of many working components on each other. • The performance metrics should be captured, defined and calculated. Elzbieta Piwowarska, IMiO

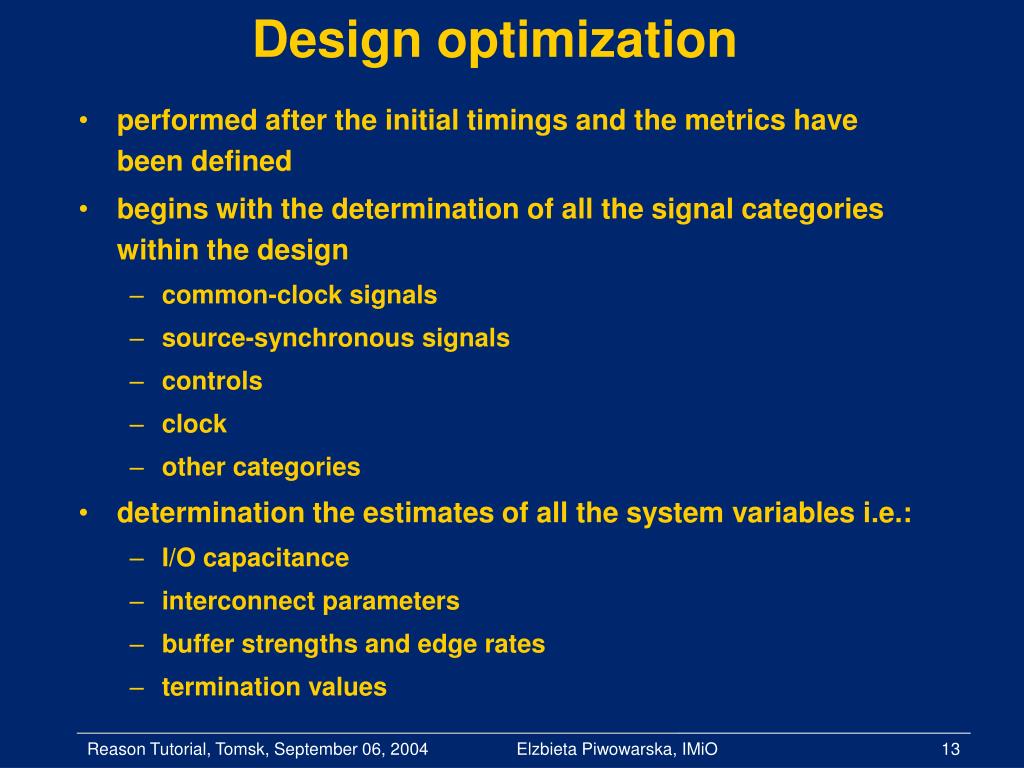

13. Design optimization • performed after the initial timings and the metrics have been defined • begins with the determination of all the signal categories within the design • common-clock signals • source-synchronous signals • controls • clock • other categories • determination the estimates of all the system variables i.e.: • I/O capacitance • interconnect parameters • buffer strengths and edge rates • termination values Elzbieta Piwowarska, IMiO

14. Spreadsheets & metrics Signal categories Topology options Sensitivity analysis Routing guidelines Reference design Buffer guidelines Simulation of design Fix Pass Fail Design check Takeout Design methodology Elzbieta Piwowarska, IMiO

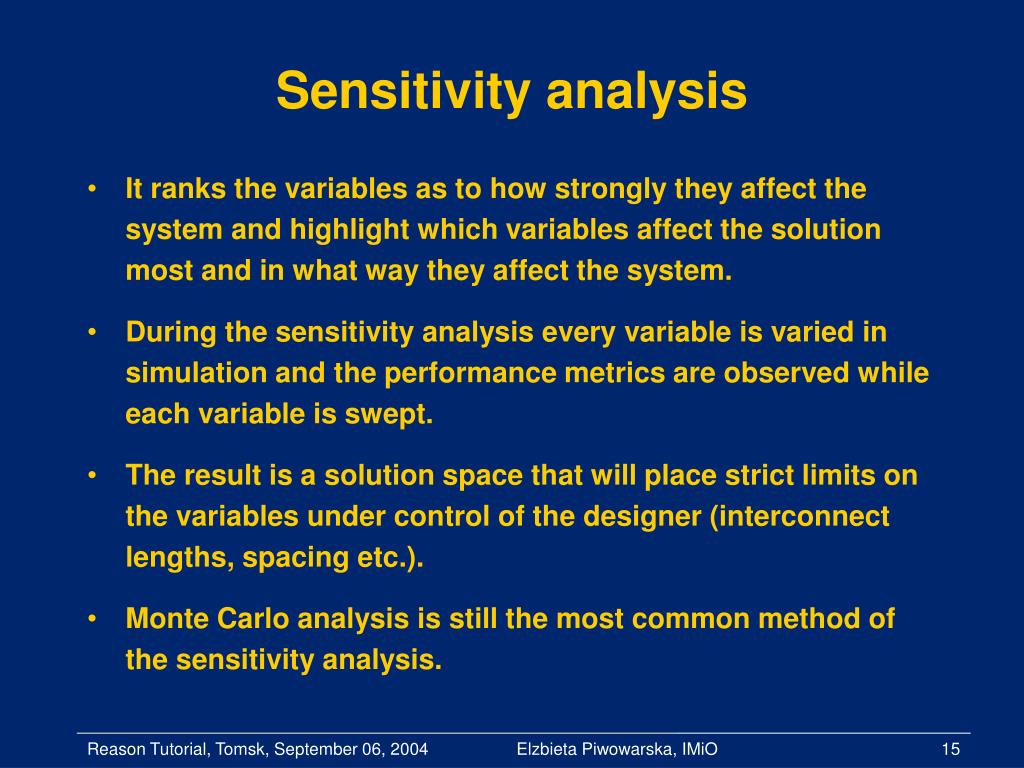

15. Sensitivity analysis • It ranks the variables as to how strongly they affect the system and highlight which variables affect the solution most and in what way they affect the system. • During the sensitivity analysis every variable is varied in simulation and the performance metrics are observed while each variable is swept. • The result is a solution space that will place strict limits on the variables under control of the designer (interconnect lengths, spacing etc.). • Monte Carlo analysis is still the most common method of the sensitivity analysis. Elzbieta Piwowarska, IMiO

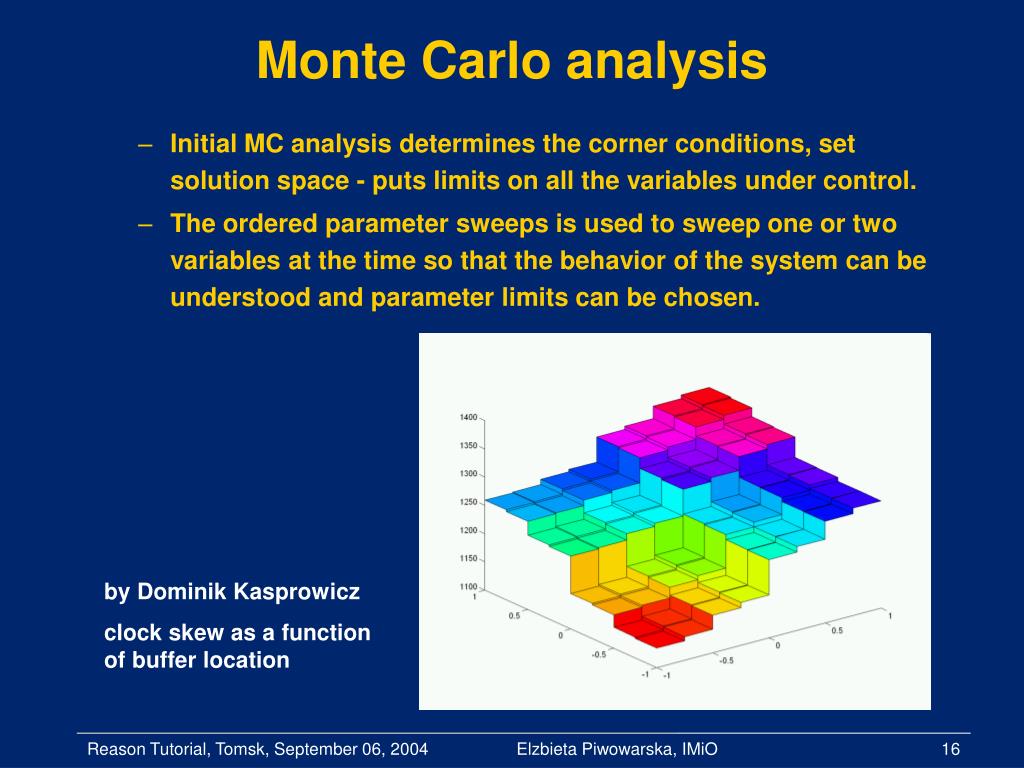

16. Monte Carlo analysis • Initial MC analysis determines the corner conditions, set solution space - puts limits on all the variables under control. • The ordered parameter sweeps is used to sweep one or two variables at the time so that the behavior of the system can be understood and parameter limits can be chosen. by Dominik Kasprowicz clock skew as a function of buffer location Elzbieta Piwowarska, IMiO

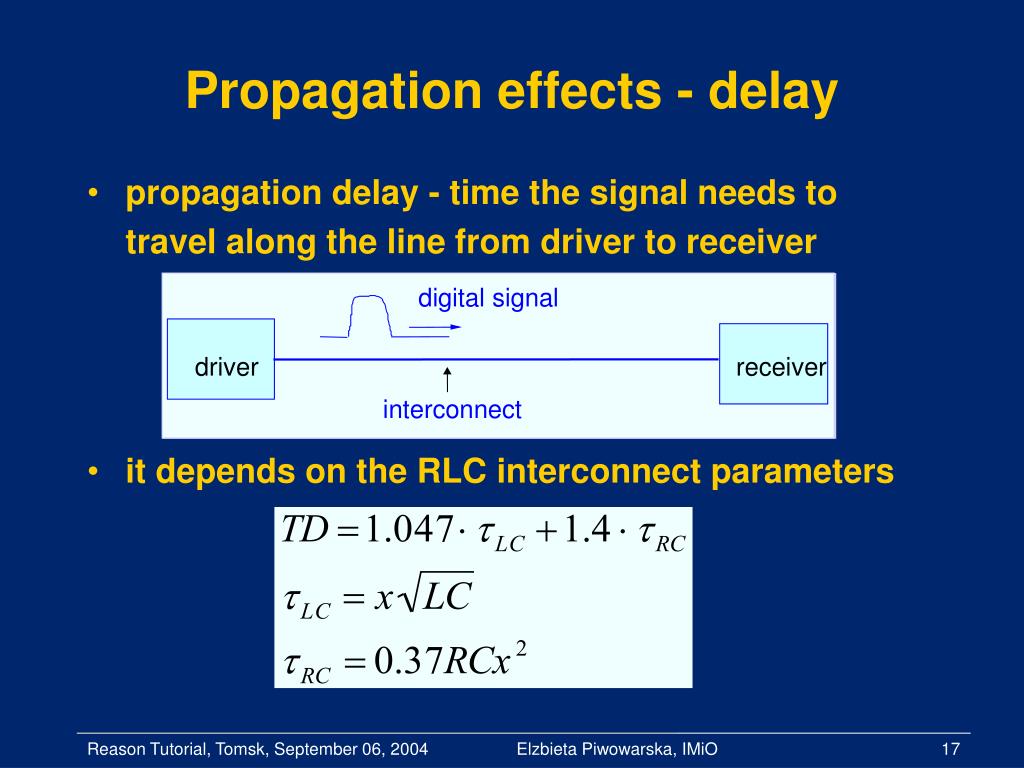

17. Propagation effects - delay • propagation delay - time the signal needs to travel along the line from driver to receiver • it depends on the RLC interconnect parameters digital signal driver receiver interconnect Elzbieta Piwowarska, IMiO

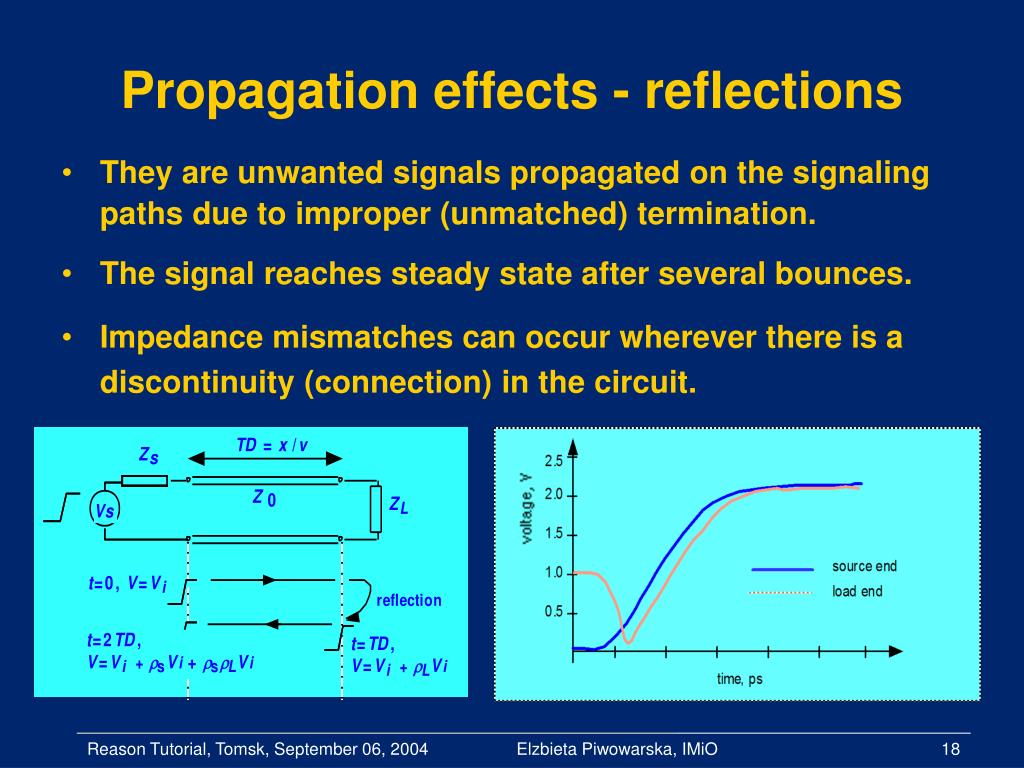

18. Propagation effects - reflections • They are unwanted signals propagated on the signaling paths due to improper (unmatched) termination. • The signal reaches steady state after several bounces. • Impedance mismatches can occur wherever there is a discontinuity (connection) in the circuit. Elzbieta Piwowarska, IMiO

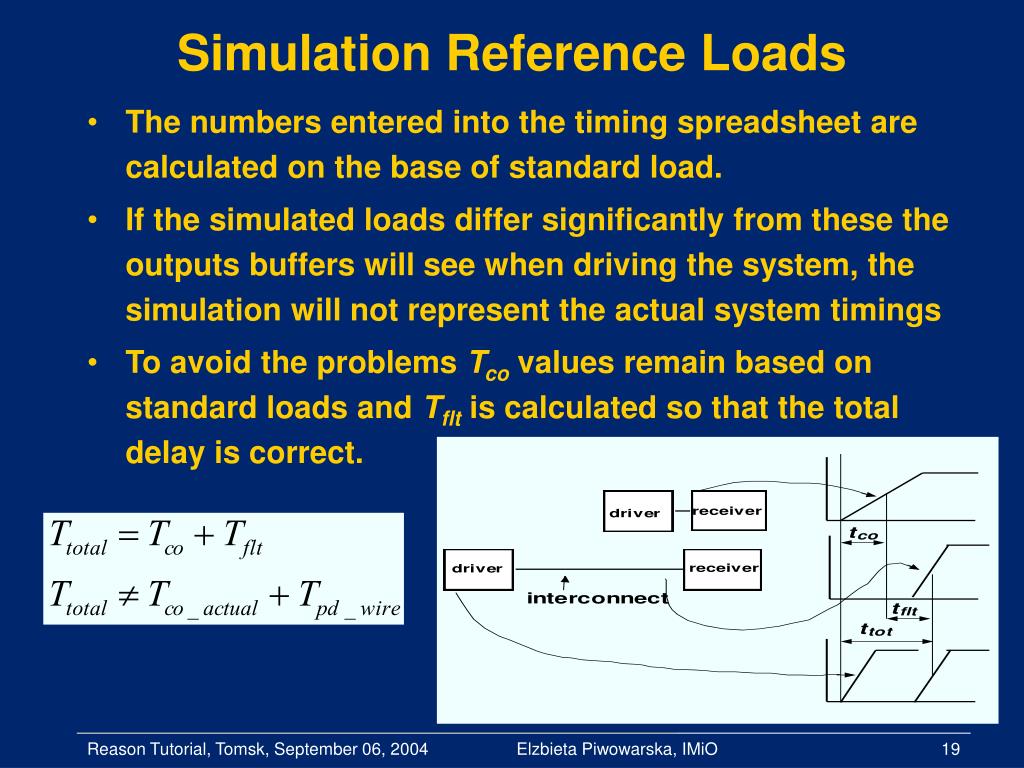

19. Simulation Reference Loads • The numbers entered into the timing spreadsheet are calculated on the base of standard load. • If the simulated loads differ significantly from these the outputs buffers will see when driving the system, the simulation will not represent the actual system timings • To avoid the problems Tco values remain based on standard loads and Tflt is calculated so that the total delay is correct. Elzbieta Piwowarska, IMiO

20. Interference effects - crosstalk • Crosstalk is unwanted signal generated on a nearby victim line as a result of transmitting line (aggressor). • crosstalk simulation (1 cm long Met1 wires with min spacing in CMOS 0.7 mm technology - Vnoise >1/2 Vdd) Elzbieta Piwowarska, IMiO

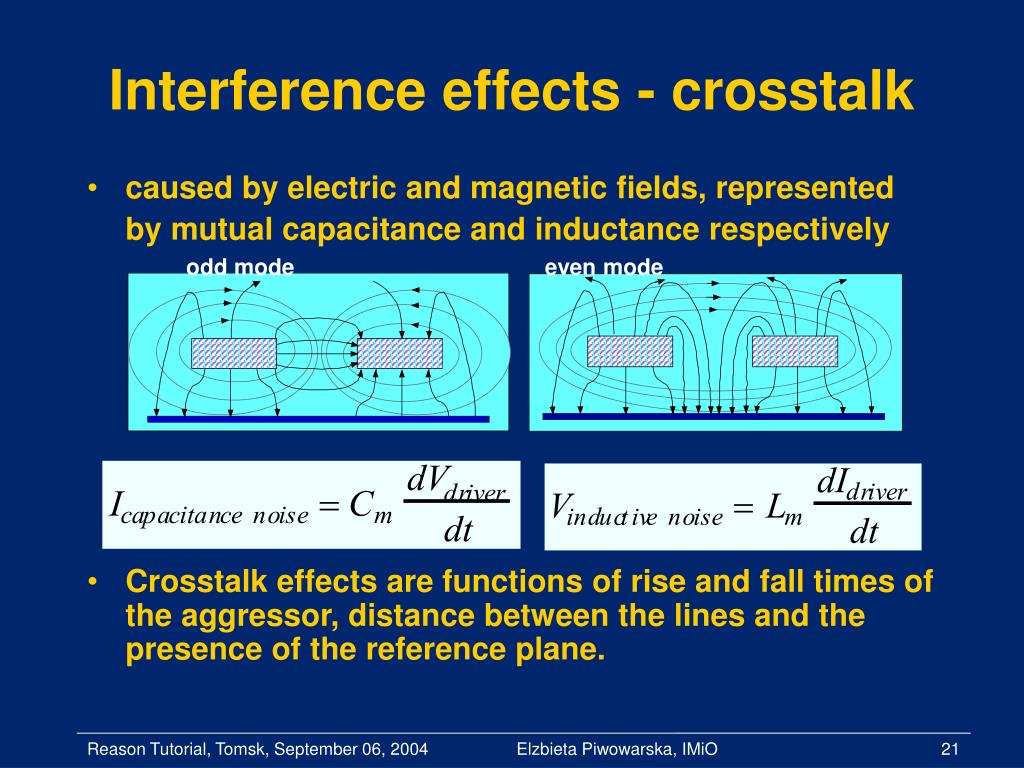

21. Interference effects - crosstalk • caused by electric and magnetic fields, represented by mutual capacitance and inductance respectively • Crosstalk effects are functions of rise and fall times of the aggressor, distance between the lines and the presence of the reference plane. odd mode even mode Elzbieta Piwowarska, IMiO

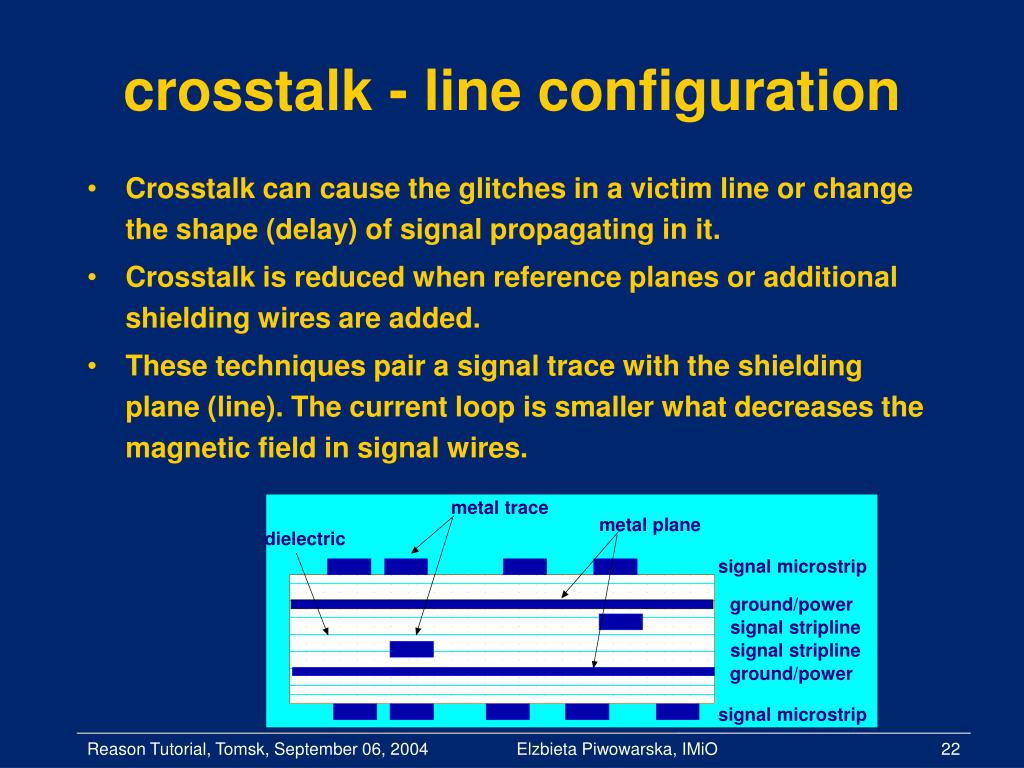

22. metal trace metal plane dielectric signal microstrip ground/power signal stripline signal stripline ground/power signal microstrip crosstalk - line configuration • Crosstalk can cause the glitches in a victim line or change the shape (delay) of signal propagating in it. • Crosstalk is reduced when reference planes or additional shielding wires are added. • These techniques pair a signal trace with the shielding plane (line). The current loop is smaller what decreases the magnetic field in signal wires. Elzbieta Piwowarska, IMiO

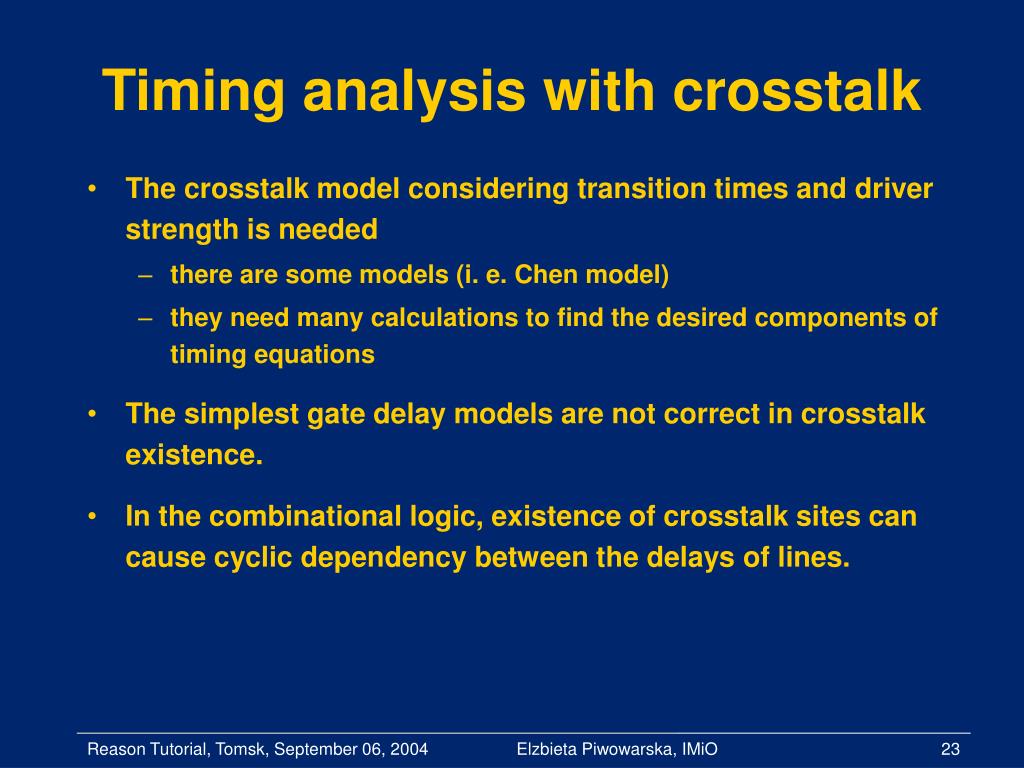

23. Timing analysis with crosstalk • The crosstalk model considering transition times and driver strength is needed • there are some models (i. e. Chen model) • they need many calculations to find the desired components of timing equations • The simplest gate delay models are not correct in crosstalk existence. • In the combinational logic, existence of crosstalk sites can cause cyclic dependency between the delays of lines. Elzbieta Piwowarska, IMiO

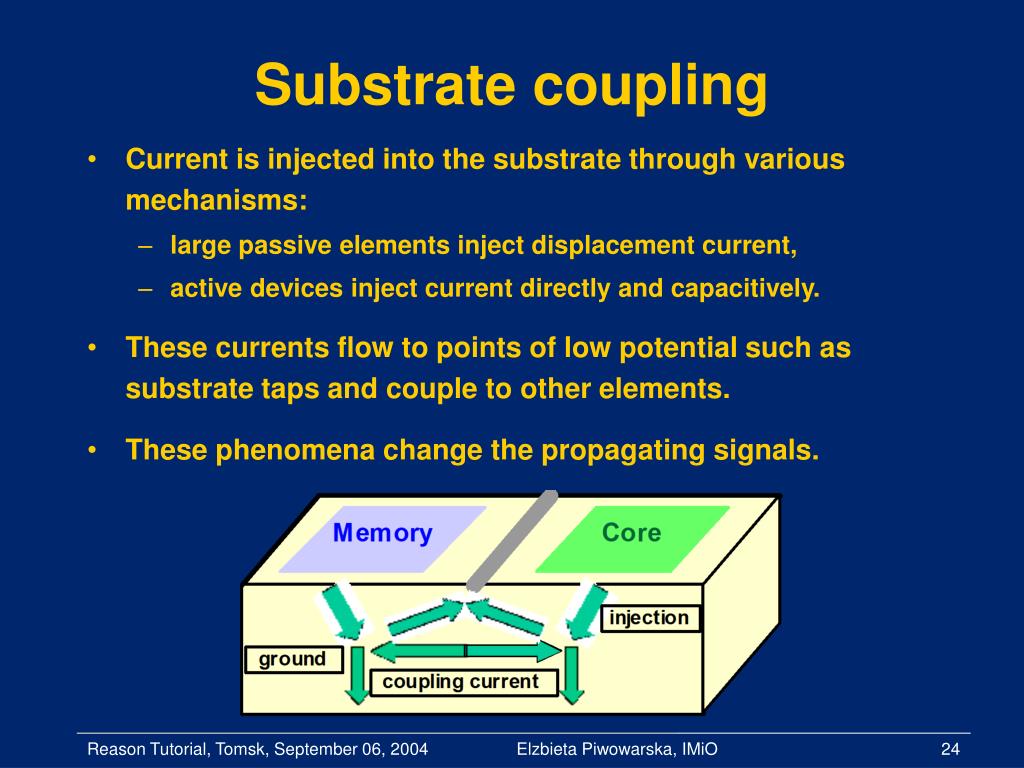

24. Substrate coupling • Current is injected into the substrate through various mechanisms: • large passive elements inject displacement current, • active devices inject current directly and capacitively. • These currents flow to points of low potential such as substrate taps and couple to other elements. • These phenomena change the propagating signals. Elzbieta Piwowarska, IMiO

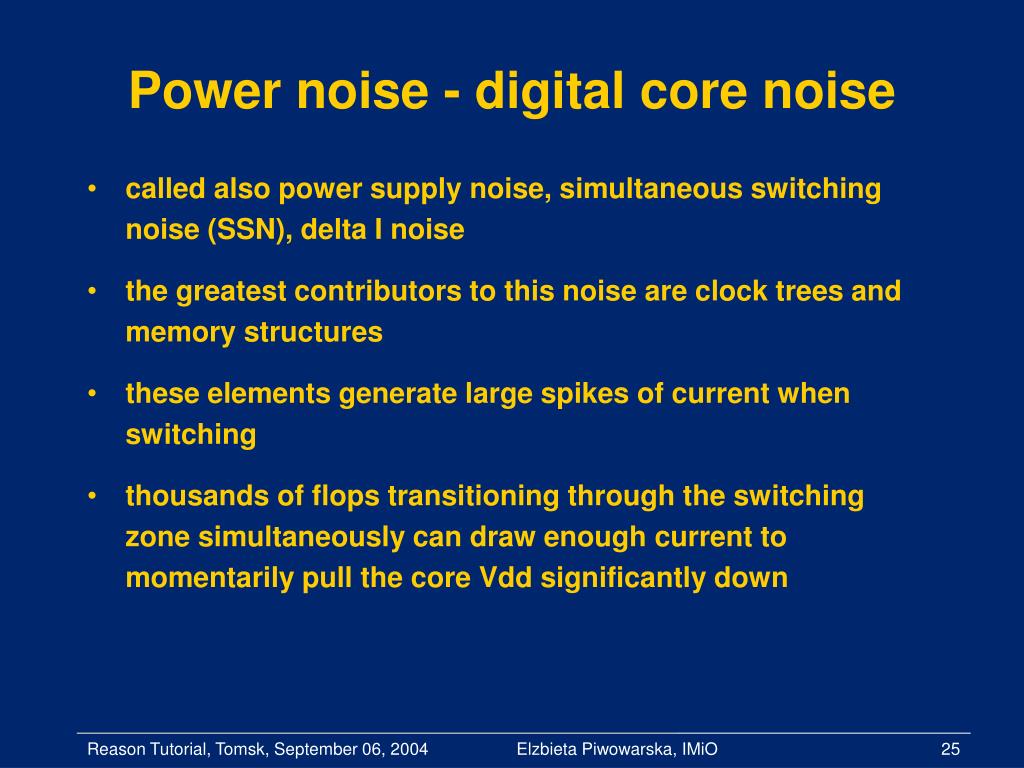

25. Power noise - digital core noise • called also power supply noise, simultaneous switching noise (SSN), delta I noise • the greatest contributors to this noise are clock trees and memory structures • these elements generate large spikes of current when switching • thousands of flops transitioning through the switching zone simultaneously can draw enough current to momentarily pull the core Vdd significantly down Elzbieta Piwowarska, IMiO

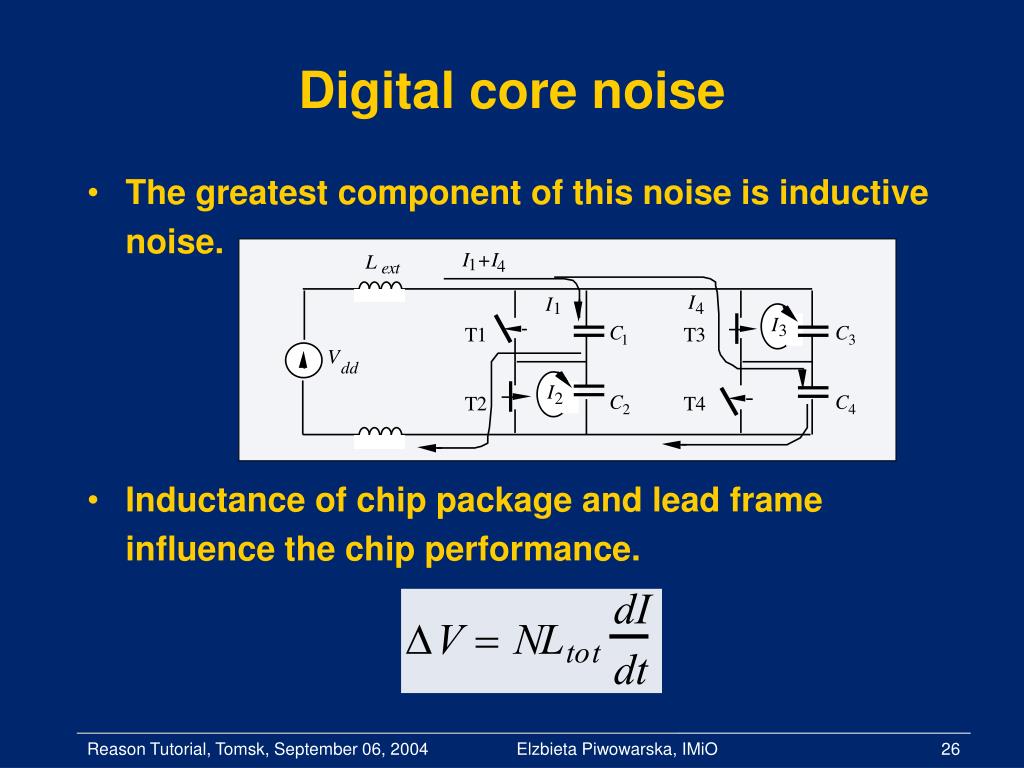

26. Digital core noise • The greatest component of this noise is inductive noise. • Inductance of chip package and lead frame influence the chip performance. Elzbieta Piwowarska, IMiO

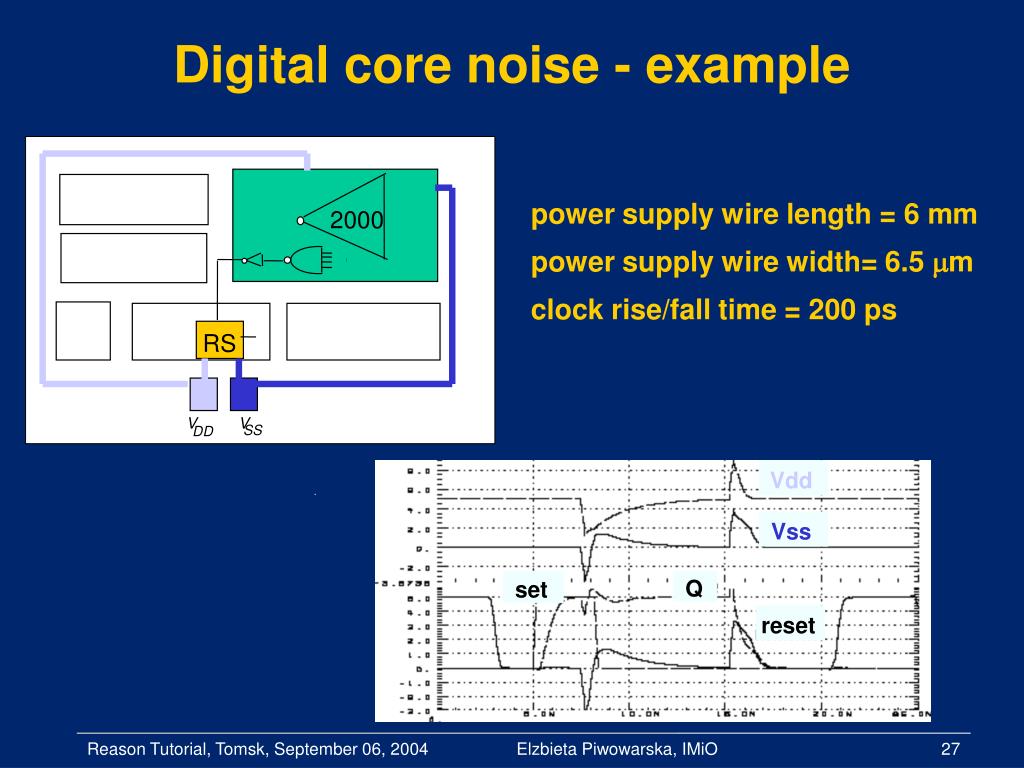

27. Q set reset Vdd Vss Digital core noise - example power supply wire length = 6 mm power supply wire width= 6.5 mm clock rise/fall time = 200 ps 2000 RS V V SS DD Elzbieta Piwowarska, IMiO

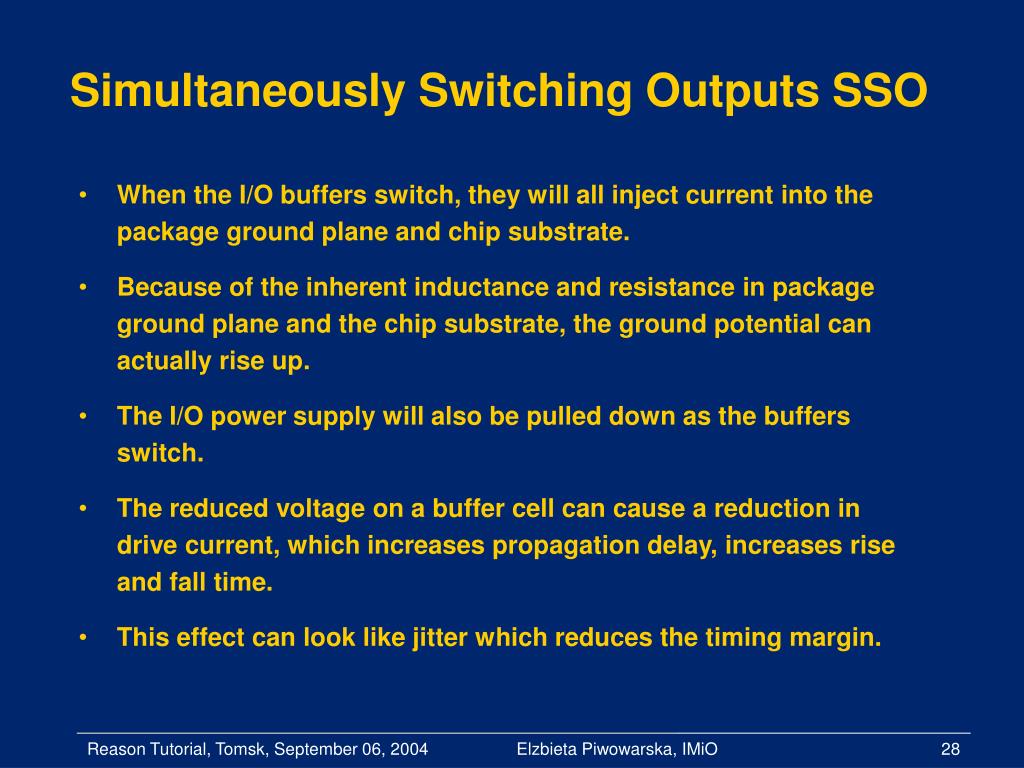

28. Simultaneously Switching Outputs SSO • When the I/O buffers switch, they will all inject current into the package ground plane and chip substrate. • Because of the inherent inductance and resistance in package ground plane and the chip substrate, the ground potential can actually rise up. • The I/O power supply will also be pulled down as the buffers switch. • The reduced voltage on a buffer cell can cause a reduction in drive current, which increases propagation delay, increases rise and fall time. • This effect can look like jitter which reduces the timing margin. Elzbieta Piwowarska, IMiO

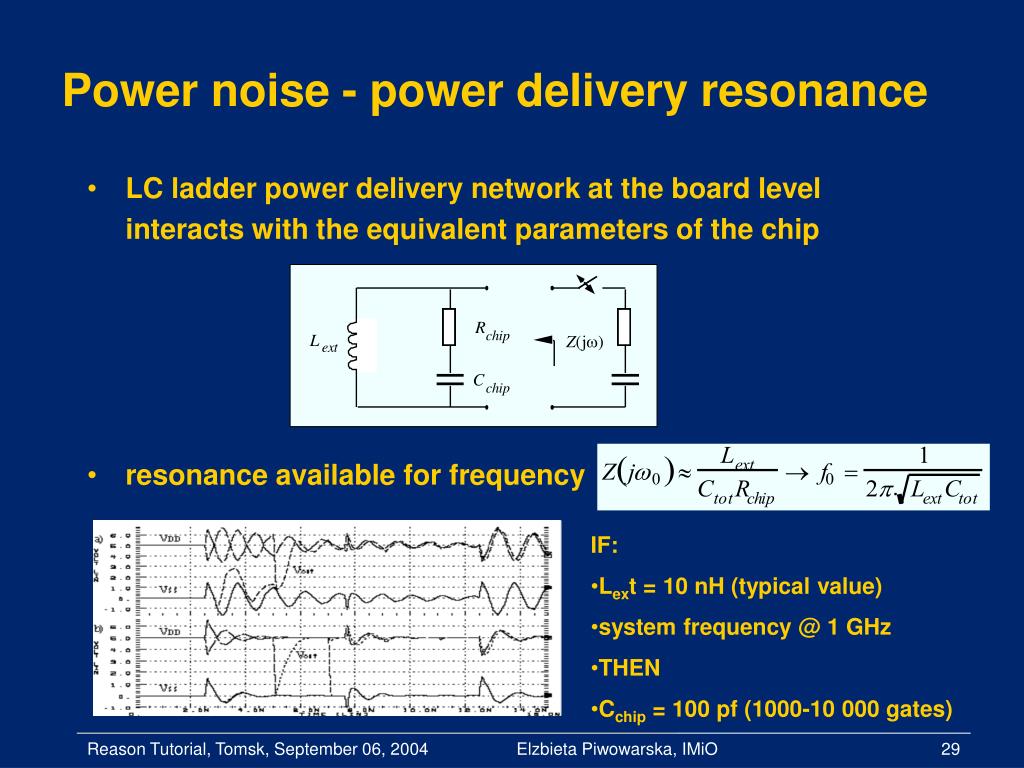

29. Power noise - power delivery resonance • LC ladder power delivery network at the board level interacts with the equivalent parameters of the chip • resonance available for frequency • IF: • Lext = 10 nH (typical value) • system frequency @ 1 GHz • THEN • Cchip = 100 pf (1000-10 000 gates) Elzbieta Piwowarska, IMiO

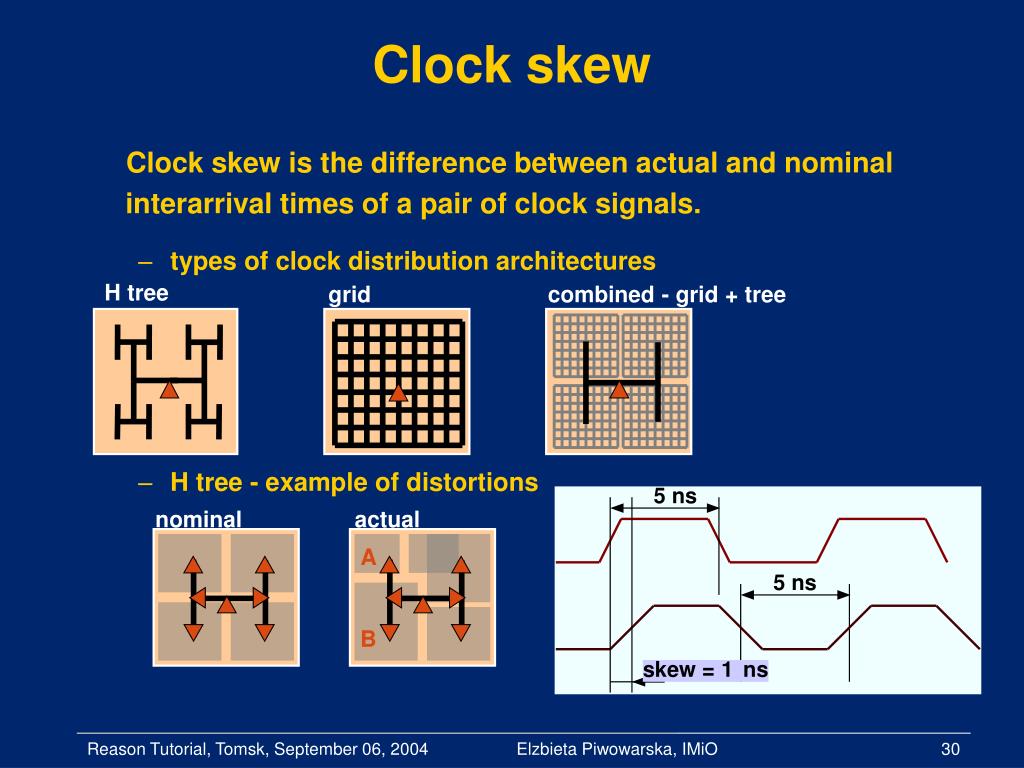

30. Clock skew Clock skew is the difference between actual and nominal interarrival times of a pair of clock signals. • types of clock distribution architectures • H tree - example of distortions H tree grid combined - grid + tree nominal actual A B Elzbieta Piwowarska, IMiO

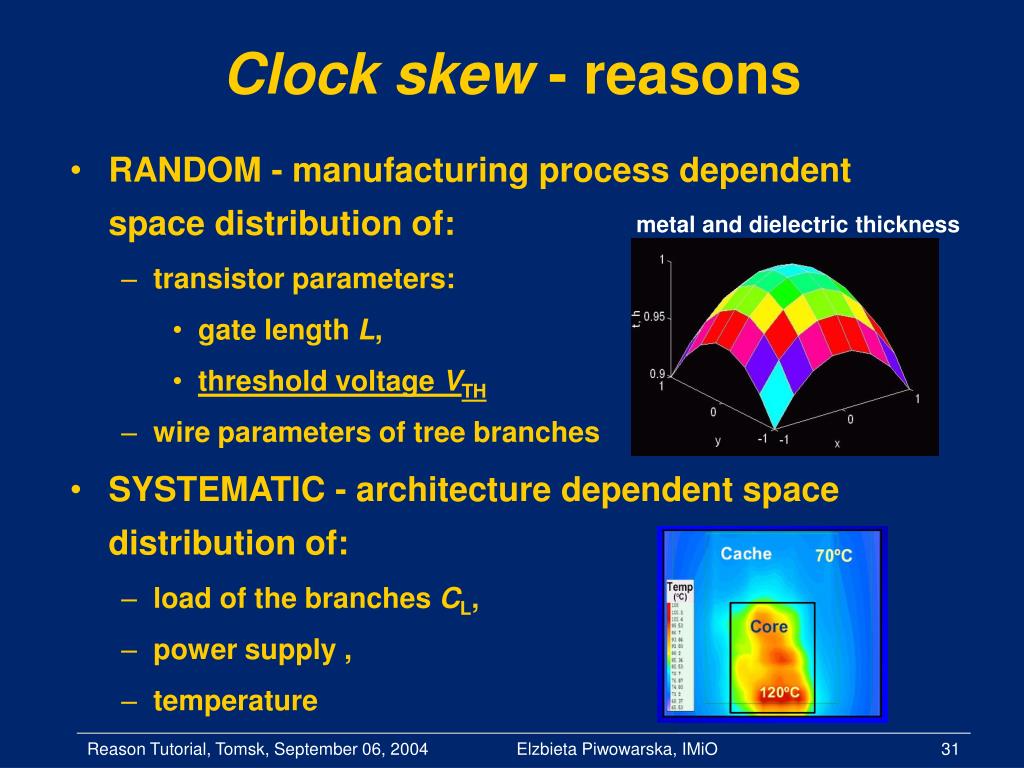

31. Clock skew - reasons • RANDOM - manufacturing process dependent space distribution of: • transistor parameters: • gate length L, • threshold voltage VTH • wire parameters of tree branches • SYSTEMATIC - architecture dependent space distribution of: • load of the branches CL, • power supply , • temperature metal and dielectric thickness Elzbieta Piwowarska, IMiO

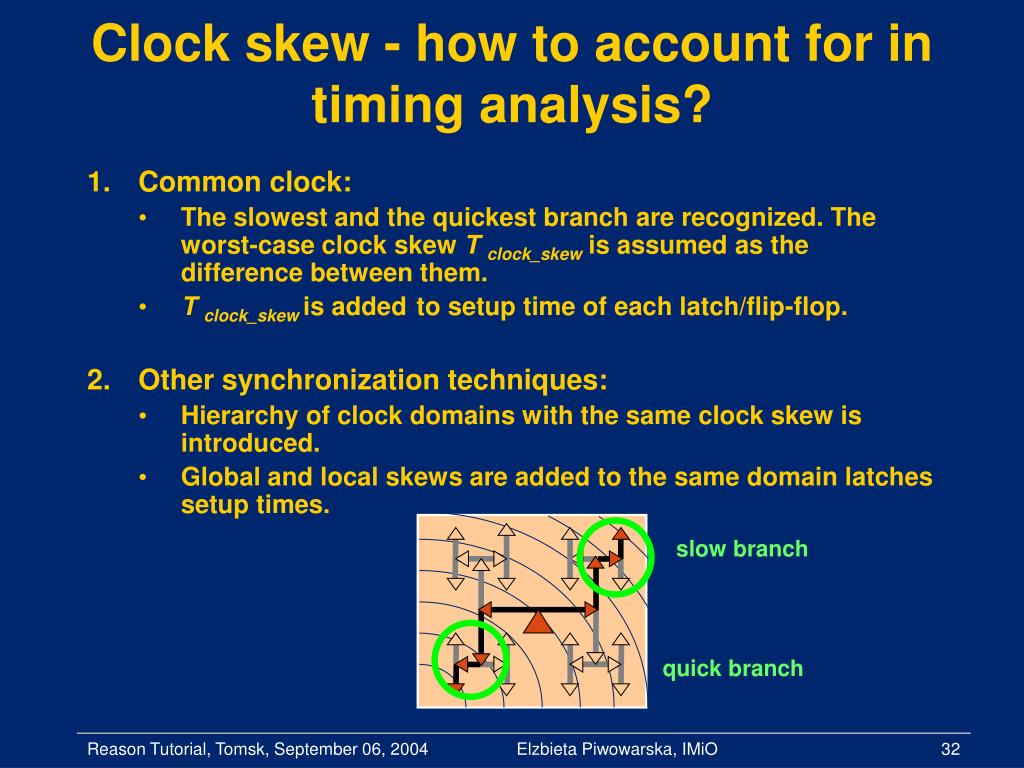

32. slow branch quick branch Clock skew - how to account for in timing analysis? • Common clock: • The slowest and the quickest branch are recognized. The worst-case clock skew T clock_skew is assumed as the difference between them. • T clock_skew is addedto setup time of each latch/flip-flop. • Other synchronization techniques: • Hierarchy of clock domains with the same clock skew is introduced. • Global and local skews are added to the same domain latches setup times. Elzbieta Piwowarska, IMiO

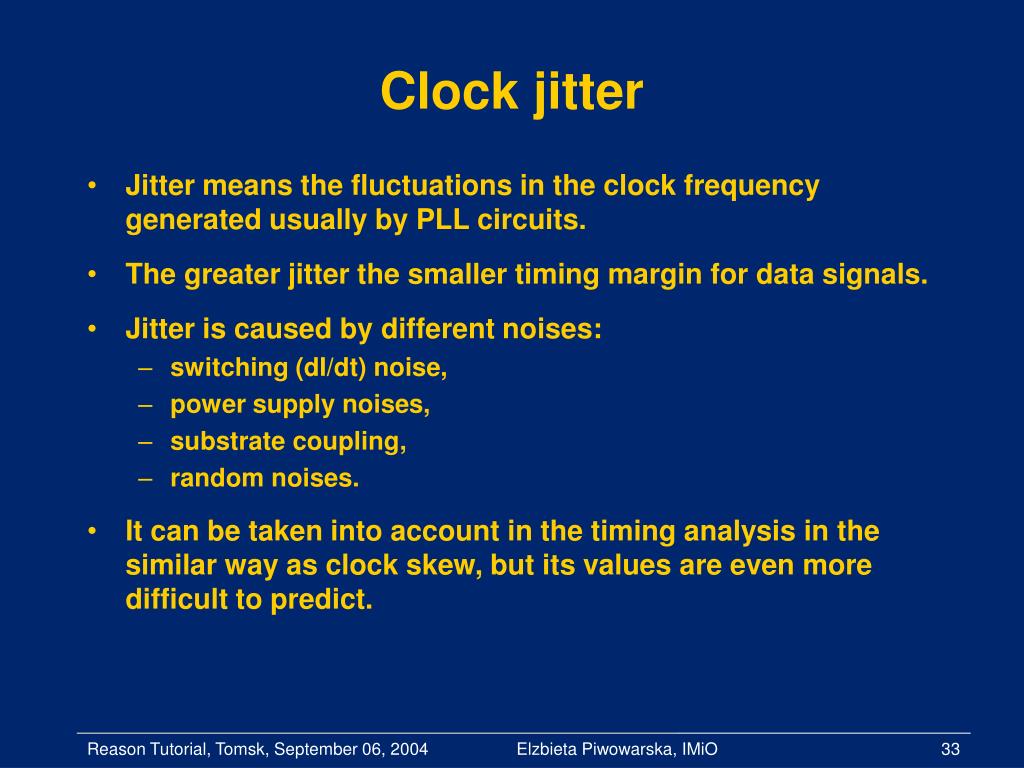

33. Clock jitter • Jitter means the fluctuations in the clock frequency generated usually by PLL circuits. • The greater jitter the smaller timing margin for data signals. • Jitter is caused by different noises: • switching (dI/dt) noise, • power supply noises, • substrate coupling, • random noises. • It can be taken into account in the timing analysis in the similar way as clock skew, but its values are even more difficult to predict. Elzbieta Piwowarska, IMiO

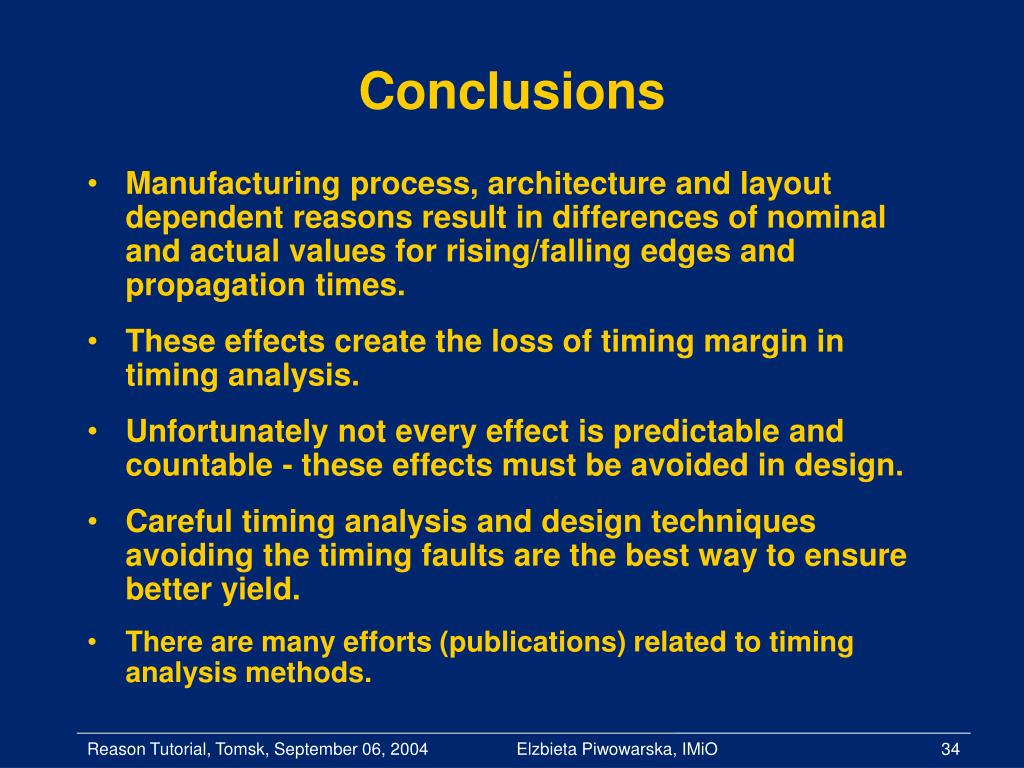

34. Conclusions • Manufacturing process, architecture and layout dependent reasons result in differences of nominal and actual values for rising/falling edges and propagation times. • These effects create the loss of timing margin in timing analysis. • Unfortunately not every effect is predictable and countable - these effects must be avoided in design. • Careful timing analysis and design techniques avoiding the timing faults are the best way to ensure better yield. • There are many efforts (publications) related to timing analysis methods. Elzbieta Piwowarska, IMiO

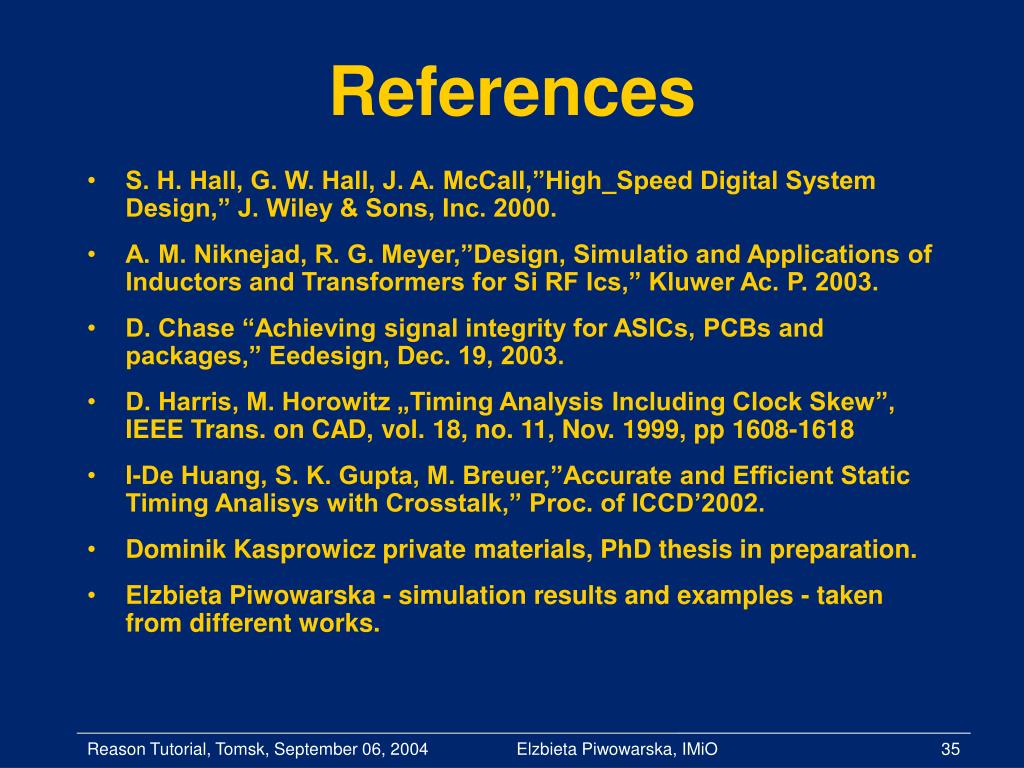

35. References • S. H. Hall, G. W. Hall, J. A. McCall,”High_Speed Digital System Design,” J. Wiley & Sons, Inc. 2000. • A. M. Niknejad, R. G. Meyer,”Design, Simulatio and Applications of Inductors and Transformers for Si RF Ics,” Kluwer Ac. P. 2003. • D. Chase “Achieving signal integrity for ASICs, PCBs and packages,” Eedesign, Dec. 19, 2003. • D. Harris, M. Horowitz „Timing Analysis Including Clock Skew”, IEEE Trans. on CAD, vol. 18, no. 11, Nov. 1999, pp 1608-1618 • I-De Huang, S. K. Gupta, M. Breuer,”Accurate and Efficient Static Timing Analisys with Crosstalk,” Proc. of ICCD’2002. • Dominik Kasprowicz private materials, PhD thesis in preparation. • Elzbieta Piwowarska - simulation results and examples - taken from different works. Elzbieta Piwowarska, IMiO
