Lecture 17: Storage Classes, Scope and Program Modules

1. Lecture 17: Storage Classes, Scope and Program Modules Homework: Read Chapter 7, Appendix G of Barclay

2. Lecture 17: Outline • Storage Classes, Scope, and program modules: • Abstract Data Types. • Storage classes: • auto, static, extern, register. • Global variables, scope, visibility. • Compiling and linking program modules.

3. Abstractions • Abstractions are used for a variety of reasons: • Overcomes complexity. • Divides large programs into smaller manageable pieces. • Each piece can represent a function in the problem. • Ignores details.

4. Abstractions (contd.) • Abstract Data Types: • Represent abstract concepts. • Include • Set of variables. • Set of operations on those variables. • External visible interface. • Hidden implementation.

5. Abstractions (contd.) • Implementation using • Storage classes. • Scope. • Region of a program over which a declaration is active. • Object linkage. • Program units/modules. • Separate compilation and linking.

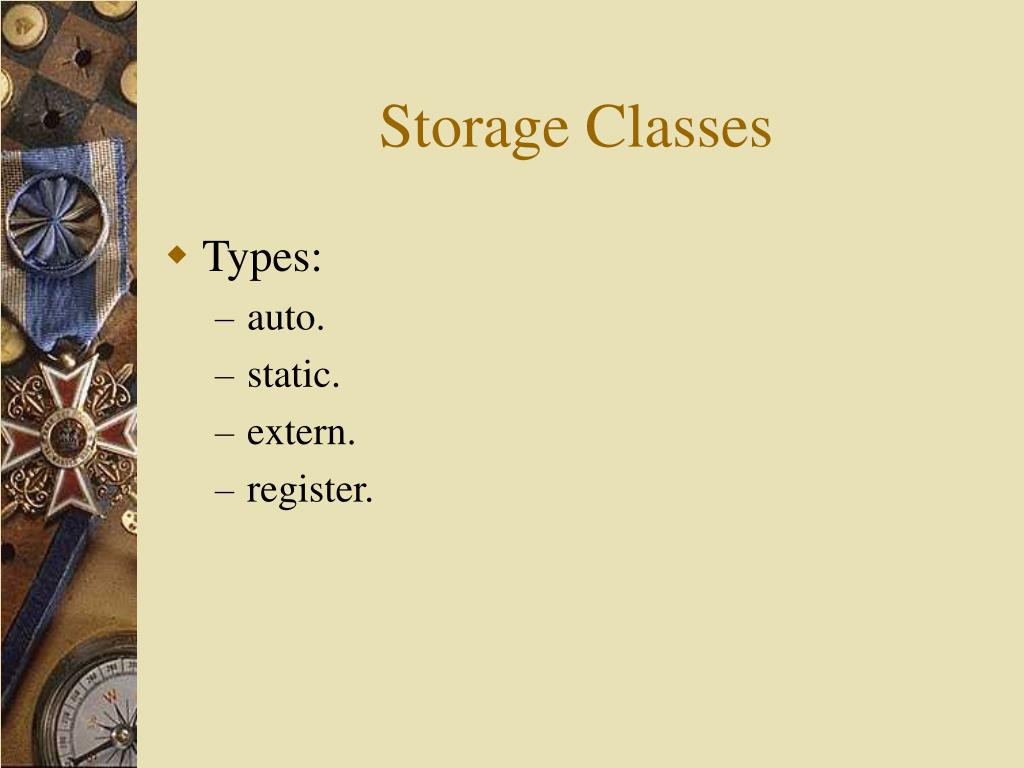

6. Storage Classes • Types: • auto. • static. • extern. • register.

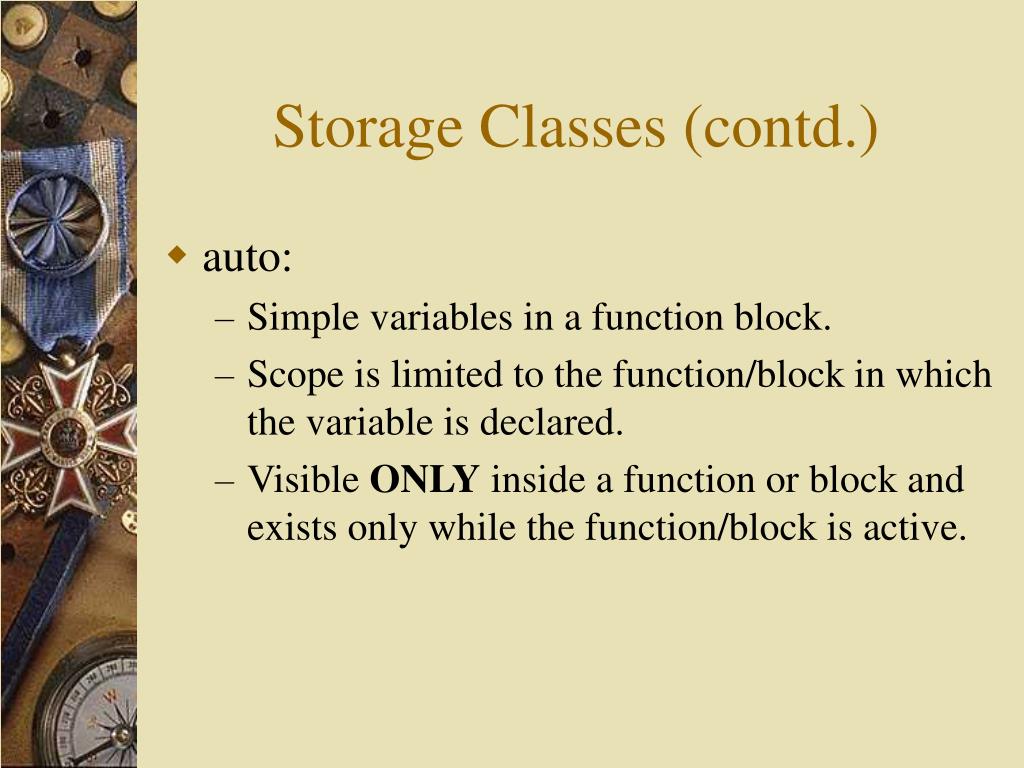

7. Storage Classes (contd.) • auto: • Simple variables in a function block. • Scope is limited to the function/block in which the variable is declared. • Visible ONLY inside a function or block and exists only while the function/block is active.

8. Storage Classes (contd.) • E.g: void main () { int x; } // visibility of x is only inside this block void print () { printf ("something"); x = 10; // WRONG as x is not visible }

9. Storage Classes (contd.) • static: • Local variables: • Visible ONLY in function where declared • Private to containing function (similar to auto). • Retains values between function calls. • E.g: int foo () { static int x; x++; return x; }

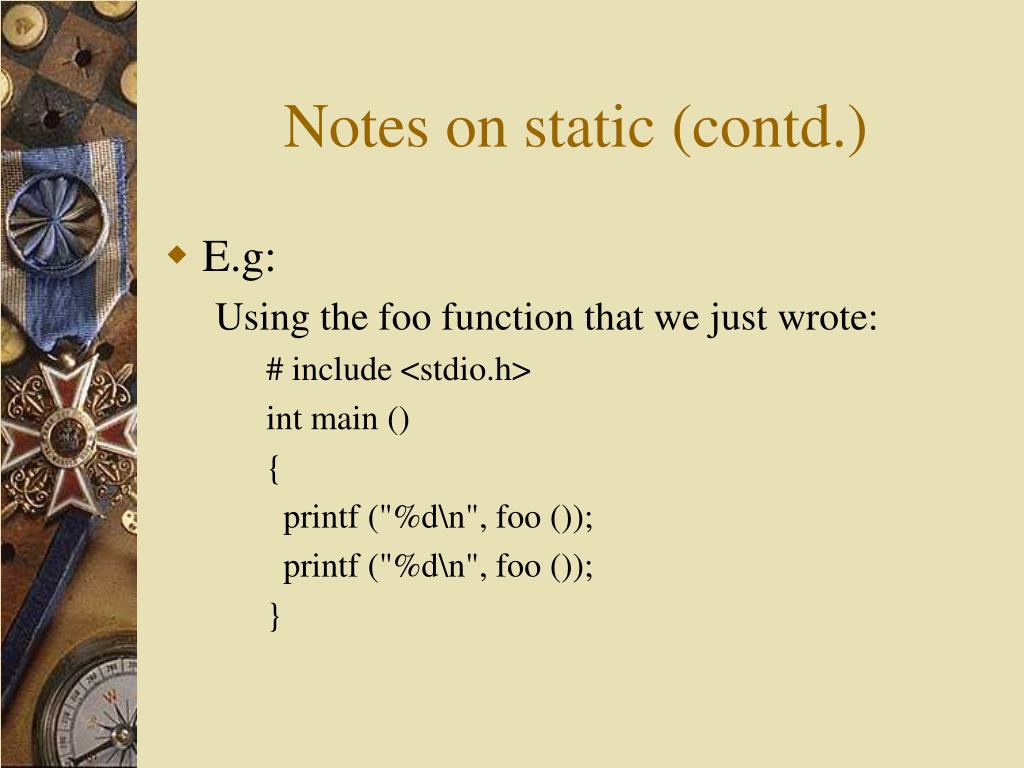

10. Notes on static (contd.) • E.g: Using the foo function that we just wrote: # include <stdio.h> int main () { printf ("%d\n", foo ()); printf ("%d\n", foo ()); }

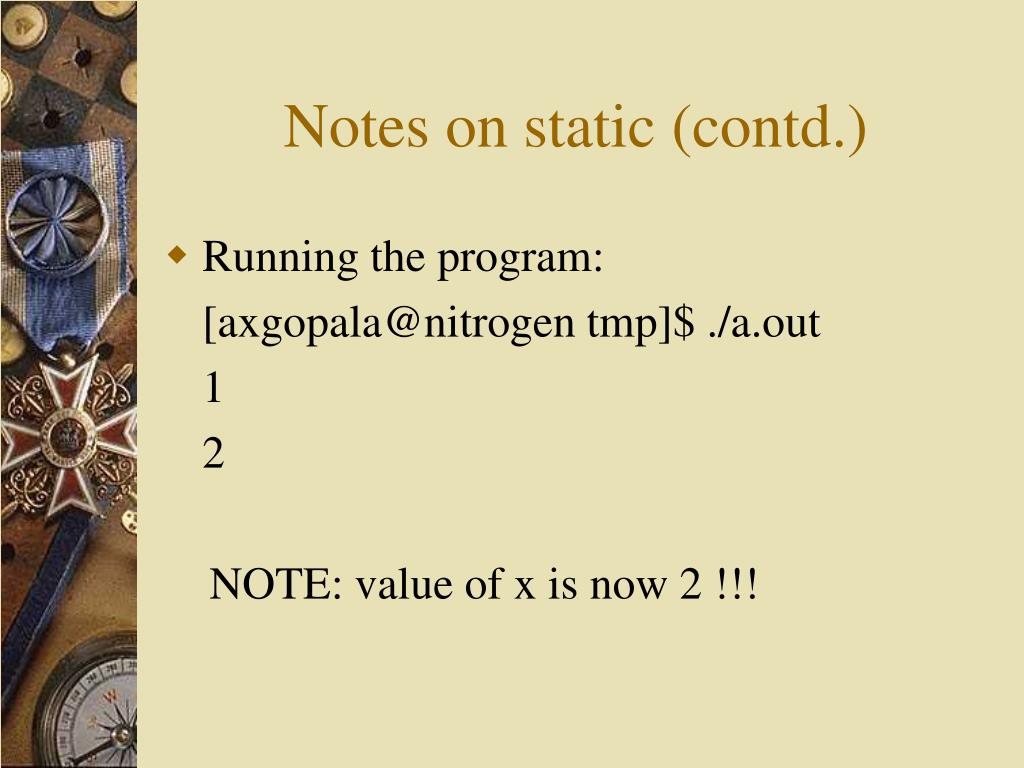

11. Notes on static (contd.) • Running the program: [axgopala@nitrogen tmp]$ ./a.out 1 2 NOTE: value of x is now 2 !!!

12. Notes on static (contd.) • static: • Global variables: • Visible ONLY to functions inside the program unit where declared. • Private to declaring module. • Potentially visible to ALL functions within theprogram unit.

13. Notes on static (contd.) • E.g: # include <stdio.h> int x = 0; // declaring a global variable x before main int main () { x = 2; add (); printf ("%d\n", x); } void add () { x++; } // x accessible out here also

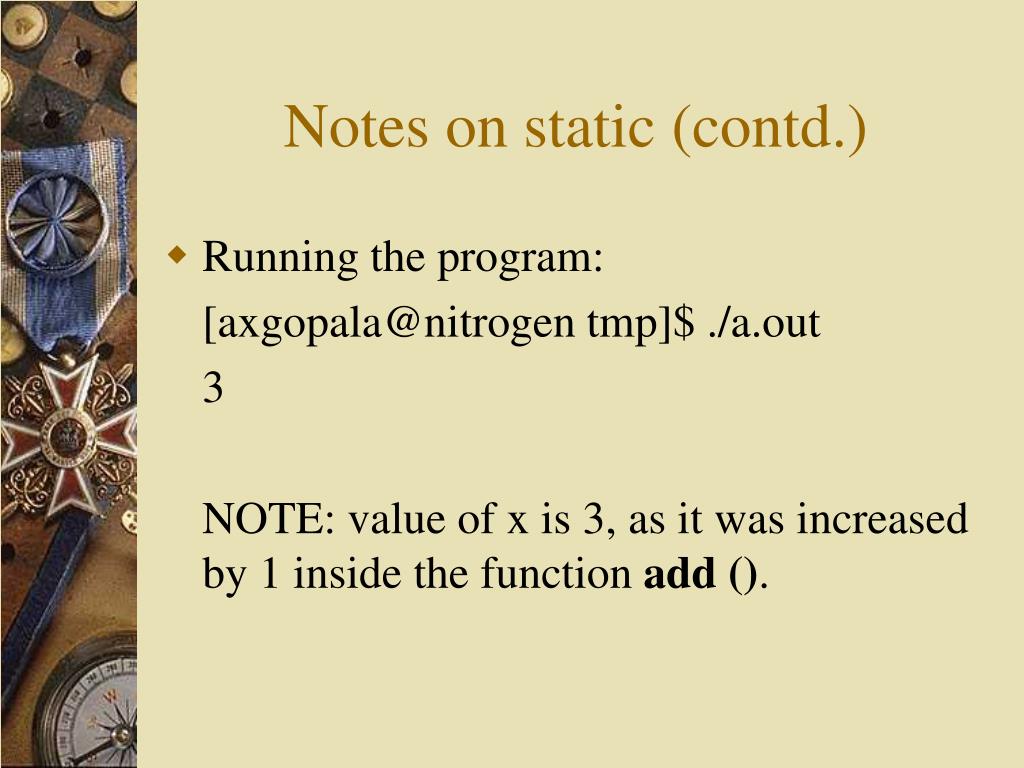

14. Notes on static (contd.) • Running the program: [axgopala@nitrogen tmp]$ ./a.out 3 NOTE: value of x is 3, as it was increased by 1 inside the function add ().

15. Storage Classes (contd.) • extern: • Defined in some other program unit/module. • Declared as locally accessible. • Made available to calling modules through linking. • Variables declared with extern cannot be initialized locally in functions.

16. Notes on extern • E.g: file ext.c # include <stdio.h> int main () { extern int y; printf ("%d\n", y); }

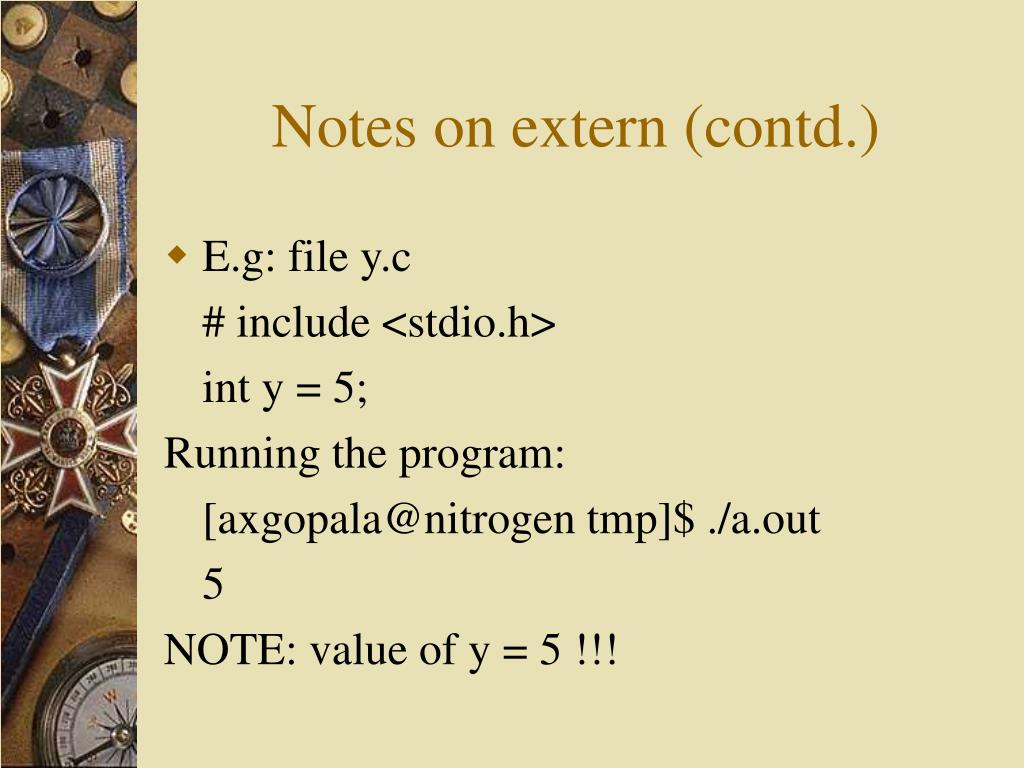

17. Notes on extern (contd.) • E.g: file y.c # include <stdio.h> int y = 5; Running the program: [axgopala@nitrogen tmp]$ ./a.out 5 NOTE: value of y = 5 !!!

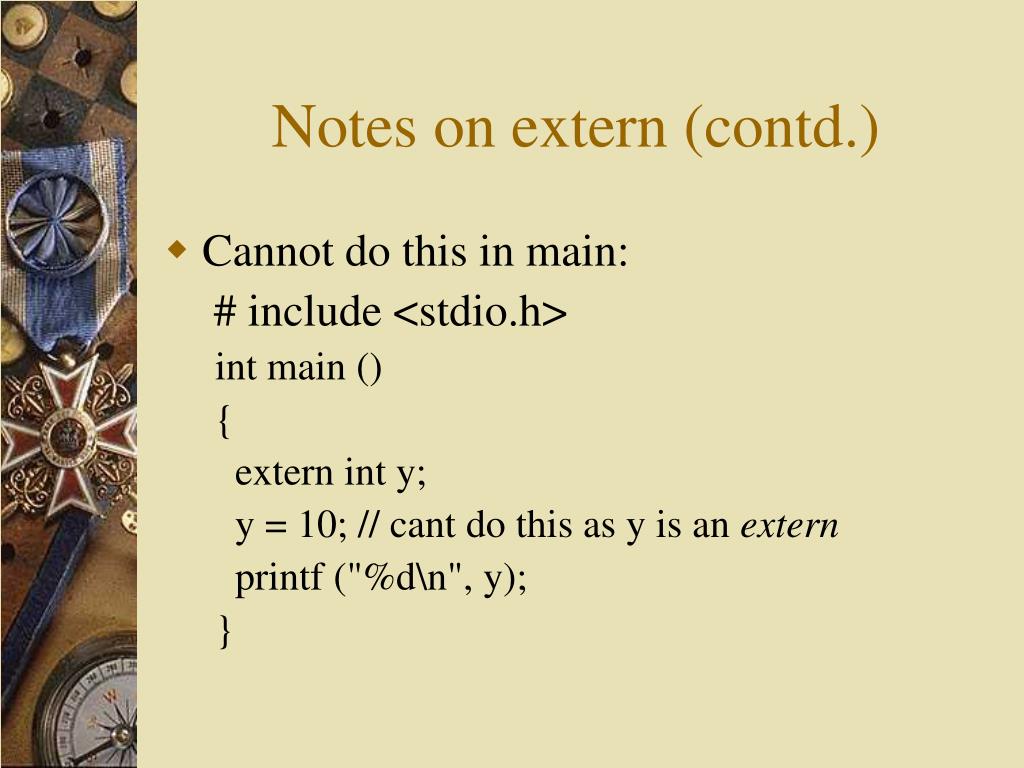

18. Notes on extern (contd.) • Cannot do this in main: # include <stdio.h> int main () { extern int y; y = 10; // cant do this as y is an extern printf ("%d\n", y); }

19. Storage Classes (contd.) • register: • Creates/stores variables in CPU registers. • Implementation dependent, sometimes does not work  • Only automatic variables and function arguments are permitted, not functions. • If an unacceptable type or more variables than available registers, they are just ignored.

20. Notes on register • register: • Use of address operator (&) is ignored (as it is meaningless). • Register variables can produce faster code since their values are not retrieved from memory (RAM). • Frequently, optimizing compilers will generate register variables automatically.

21. Scope and Visibility • What is main () ??? • It is: • A function like all other functions. • Required for a C executable program. • It is not: • The program. • A module/program unit.

22. Scope and Visibility (contd.) • The object containing main () is a module/program unit. • Variables declared outside of its functions are external to the functions. • Variables declared inside functions are visible ONLY inside function. • Scope of external declaration: • From the point of declaration to the end of the module in which declared.

23. Scope and Visibility (contd.) • Compound statements: • Statements between ‘{‘ and ‘}’. • Variables can be declared within these statements. • Bodies of ifs, loops ….. • Declaration inside these statements are invisible outside !!! • Example follows.

24. Scope and Visibility (contd.) • E.g: # include <stdio.h> int main () { int x = 10; { int y = 20; y is only visible in this block b/w { and } } use y; // error }

25. Scope and Visibility (contd.) • Global vs. Local variables: • Global variables are potentially available to more than one function. • Scope and visibility are controlled by: • Placement/location in code. • Declaration of same name variables in overriding location affects visibility.

26. Scope and Visibility (contd.) • Global vs. Local variables: • Local variables are available only in containing function/block. • Not visible outside of the function, but can return value of local variable. • E.g: • int foo () {int x = 0; return x;}

27. Some examples (ex. 1) # include <something.h> int a; static int b; /* b is private to this module, attempts to reference b using extern in other modules produces linker error */ int main () { ... use a, b … } some_function () { int a; // different a, not the first one, this overrides the first one use … a, b … }

28. Some Examples (ex. 2) # include <something.h> int main () { ... use a, b ... /* ERROR, as a,b must be declared here since main () is out of scope of following declaration */ } int a,b; // visibility of a and b starts here some_function () { static float c = 1; // local and retains value between calls ... use a,b,c ... // can use a and b as they are visible here. }

29. Compiling and Linking Modules • Using the cc/gcc command: • Use of the cc command has so far been limited to: • Compiling C files to get an executable. • cc filename.c produces a.out • filename.c is automatically preprocessed, compiled and linked to become a.out • What do we do when a program spans several files ??

30. Compiling and Linking Modules • Compiling separate modules • When program spreads over many modules. • cc –c file.c only object file named file.o • cc file.o  a.out • To link files, we need them to be object files. • What about multiple files ??

31. Compiling and Linking Modules • Compiling separate modules • Combining separate modules • cc file1.c file2.c compiles and links file1.c and file2.c to produce a.out • cc –c file1.c file2.c  compiles to respective object files file1.o and file2.o • To produce executable link these two together: • cc file1.o file2.o links and produces a.out

32. Compiling and Linking Modules • We can directly compile two files, so why is getting an object file useful ??? • We can catch compile time errors without having to link the files. • Linking files is an expensive process (compiler has to do a lot of work). • Sometimes library files are only object files. • This is to make sure that you don’t see the code, but you only know how to use it.

33. Compiling and Linking Modules • Only preprocessing: • Using either the –E or the –P flag • -E flag sends the output to stdout, so redirect it to save it in a file: • cc –E file1.c > temp • temp is a text file here

34. Compiling and Linking Modules • Only preprocessing: • -P writes output to filename.i • cc –P file1.c file1.i • file1.i is the preprocessed file. • file1.i is a text file.

35. Compiling and Linking Modules • Smart compilation: • Mixing options allowed: • cc –o out file1.o file2.c • file1 is NOT compiled. • file2 IS compiled. • file1.o and file2.o are linked • Output file is named out.

36. Compiling and Linking Modules • Building executes all steps from scratch. • Make only does what is needed. • Using the make utility. • Available on UNIX platforms. • Reads a Makefile to perform required action • Makefile is a script file that contains a list of commands to execute. • make looks at the time stamps and compiles only those files who have changed since the last time make was executed.

37. Compiling and Linking Modules • More cc flags: • -g: to add debug symbols to use while debugging. • -H: print name of each header file used. • -Wall: print all warning messages. • Etc. etc. see man pages for more.

38. Next Lecture • Preprocessing in C • C preprocessor. • Macros • Defining, redefining, undefining macros. • Macros with arguments. • ifdef and ifndef directives. • Miscellaneous directives.
