  1. Hypersensitivity Dr. Prakash Nagarkatti Associate Dean for Basic Science 733-3180

  2. Allergic condition Estimated number affected (million) Allergic rhinitis 19.6 Chronic sinusitis 32.5 Contact dermatitis & eczema 5.8 Skin rashes 12 Asthma 9-12 Anaphylaxis 1-2 Impact of allergic diseases

  3. Types of Hypersensitivity • Excessive immune response in a sensitized individual leading to tissue damage. • Types of Hypersensitivity: • Types I,II,III------>Immediate, Abs. • Type IV ------>Delayed, T cells.

  4. Type II Type I Four types of Hypersensitivity Reactions Ag Target cell Y Y Y Y IgG IgE Target cell Fc receptor Fc recep- tor Killer cell Y Mast cells Ab Histamine Complement Type III Type IV Ag Ag Y Complement Y Th Th cell Endothelial cells Ab Macrophage Y Y Cytokines Neutrophils Activated Macrophage

  5. Type I or Immediate Hypersensitivity Anaphylaxis: Repeat Inj. 2 Weeks later Egg Albumin Dies from asphyxia

  6. Guinea Pig dies from anaphylaxis. Egg albumin IgE Abs Mast cells Histamine • Bronchoconstriction • Vasodilation Lungs

  7. Vasodilatation: Endothelial cells Loss of intravascular fluid Shock Epinephrine Life saving drug.

  8. B cell IL13 TH2 Newly synthesized mediators Sensitization against allergens and type-I hypersensitivity Plasma cell IgE Histamine, tryptase, kininegenase, ECFA Mast cells Leukotriene-B4, C4, D4, prostaglandin D, PAF

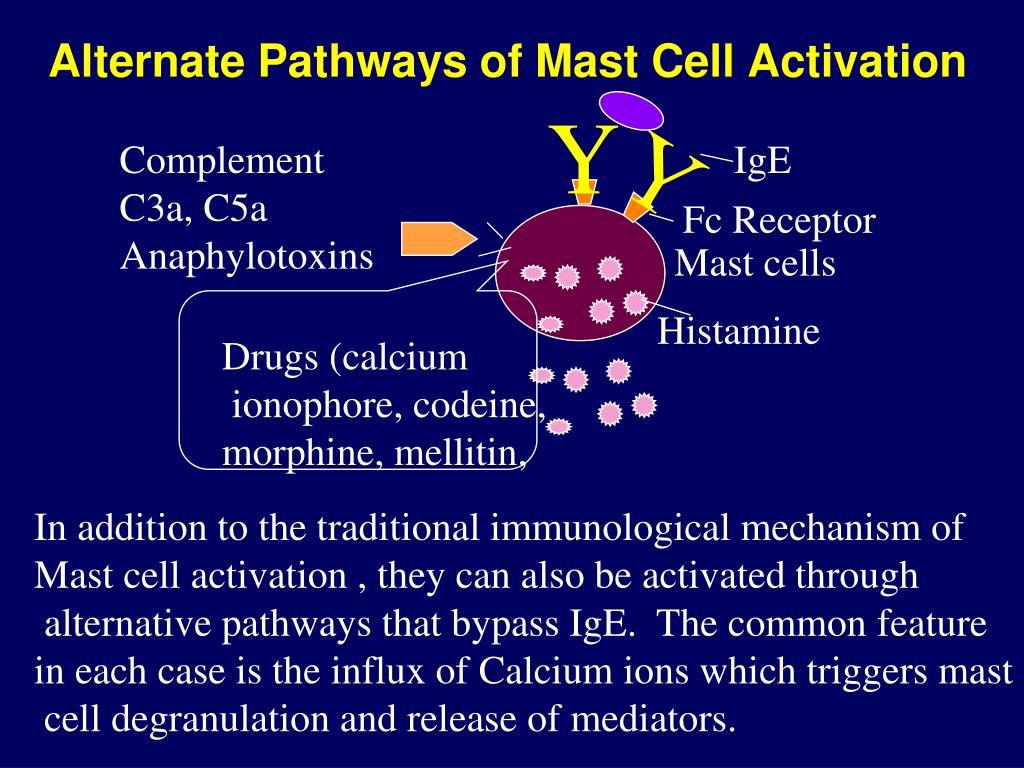

  9. Alternate Pathways of Mast Cell Activation Y Y Complement C3a, C5a Anaphylotoxins IgE Fc Receptor Mast cells Histamine Drugs (calcium ionophore, codeine, morphine, mellitin, In addition to the traditional immunological mechanism of Mast cell activation , they can also be activated through alternative pathways that bypass IgE. The common feature in each case is the influx of Calcium ions which triggers mast cell degranulation and release of mediators.

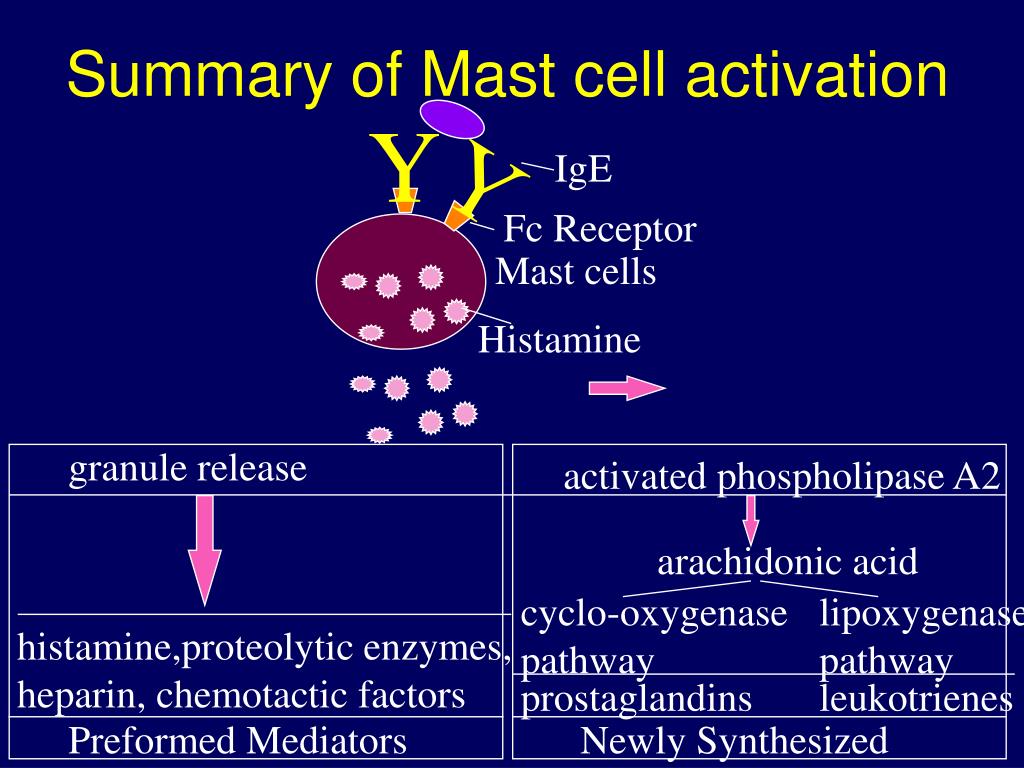

  10. Summary of Mast cell activation Y Y IgE Fc Receptor Mast cells Histamine granule release activated phospholipase A2 arachidonic acid cyclo-oxygenase pathway lipoxygenase pathway histamine,proteolytic enzymes, heparin, chemotactic factors prostaglandins leukotrienes Preformed Mediators Newly Synthesized

  11. Chemo-attractants Physiological Effects of mast cell mediators Attract neutrophils, eosinophils, monocytes and basophils NCF ECF LTB4 Y Y IgE Fc Receptor Activators Mast cells Histamine PAF Tryptase Kininogenase vasodilatation & vascular permeability Histamine and other mediators Microthrombi Activation of C Kinins-->vasodilatation spasmogens Bronchial smooth muscle contraction, mucosal oedema, mucus secretion Histamine Prostaglandins Leukotrienes

  12. Clinical Examples • Hay fever and Asthma----To pollen, house dust, pets etc. • Urticaria(Hives)---Drugs,food. Reddening and itching of skin. • Systemic anaphylaxis---Inj. of Penicillin,Insect bites.

  13. Allergic reaction in the skin eczema

  14. List of Allergens • Grasses/Pollens • Weeds • Foods-->Crab, shrimp, potato, tuna etc • Epidermals--> dog,cat, mouse • Insect bites • House dust • Molds • Drugs

  15. Anaphylaxis to bee venom Bee venom has Mellitin which can directly trigger mast cells

  16. Dust mite fecal pellet

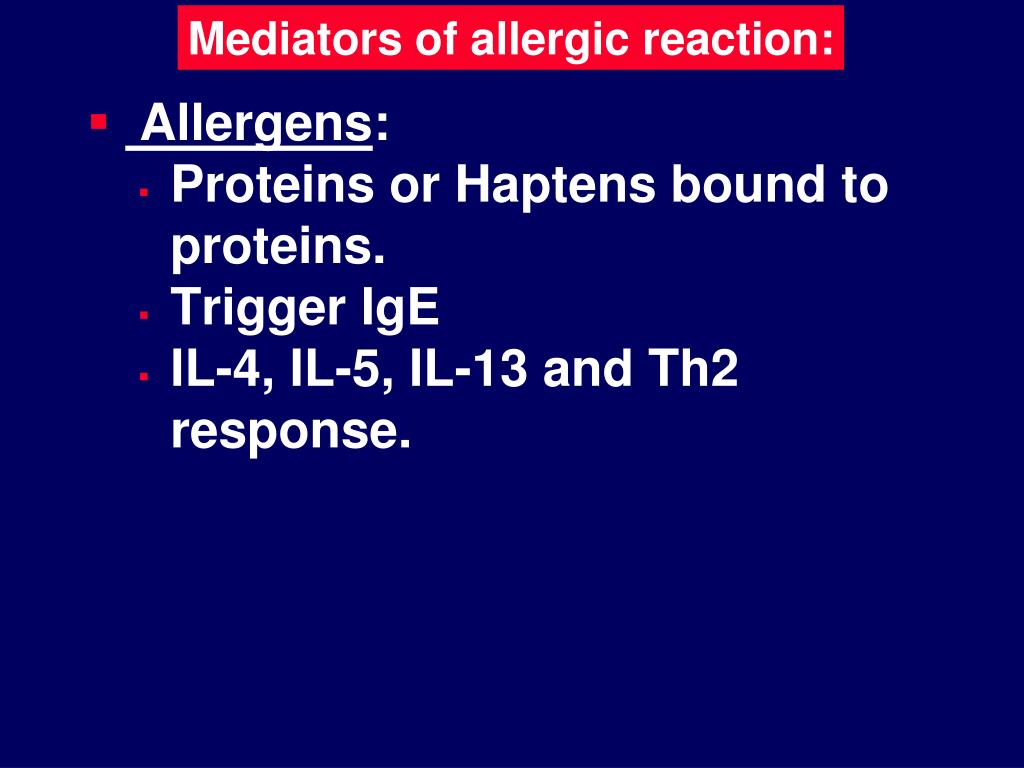

  17. Mediators of allergic reaction: • Allergens: • Proteins or Haptens bound to proteins. • Trigger IgE • IL-4, IL-5, IL-13 and Th2 response.

  18. IgE Abs • 2) IgE: • Only Ab that can bind mast cells. • Cross linking of IgE Fc receptors leads to Mast cell degranulation.

  19. Skin test for allergy

  20. Skin test for allergy

  21. IgE levels in immediate hypersensitivity • Atopic diseases • allergic asthma • allergic eczema • hay fever Helminthic (worm) infections IgE • Immunodeficiency • hyper-IgE syndrome • Wiscott-Aldrich syndrome Miscellaneous diseases • Bronchopulmonary • aspergillosis • IgE myeloma

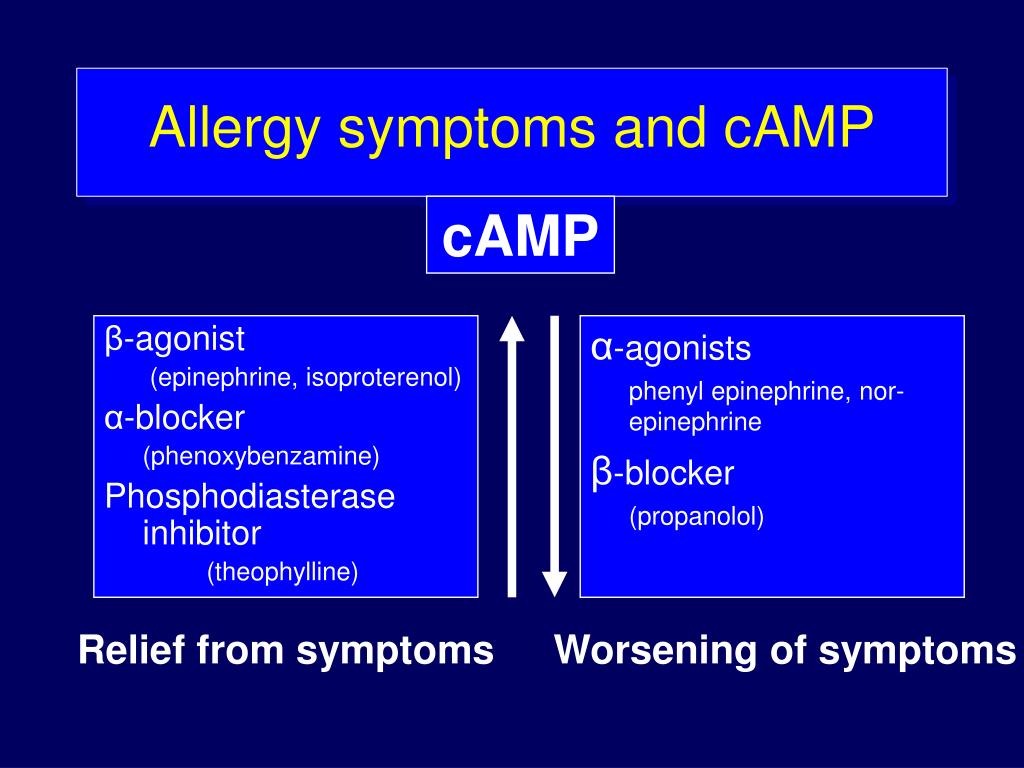

  22. β-agonist (epinephrine, isoproterenol) α-blocker (phenoxybenzamine) Phosphodiasterase inhibitor (theophylline) α-agonists phenyl epinephrine, nor-epinephrine β-blocker (propanolol) Allergy symptoms and cAMP cAMP Relief from symptoms Worsening of symptoms

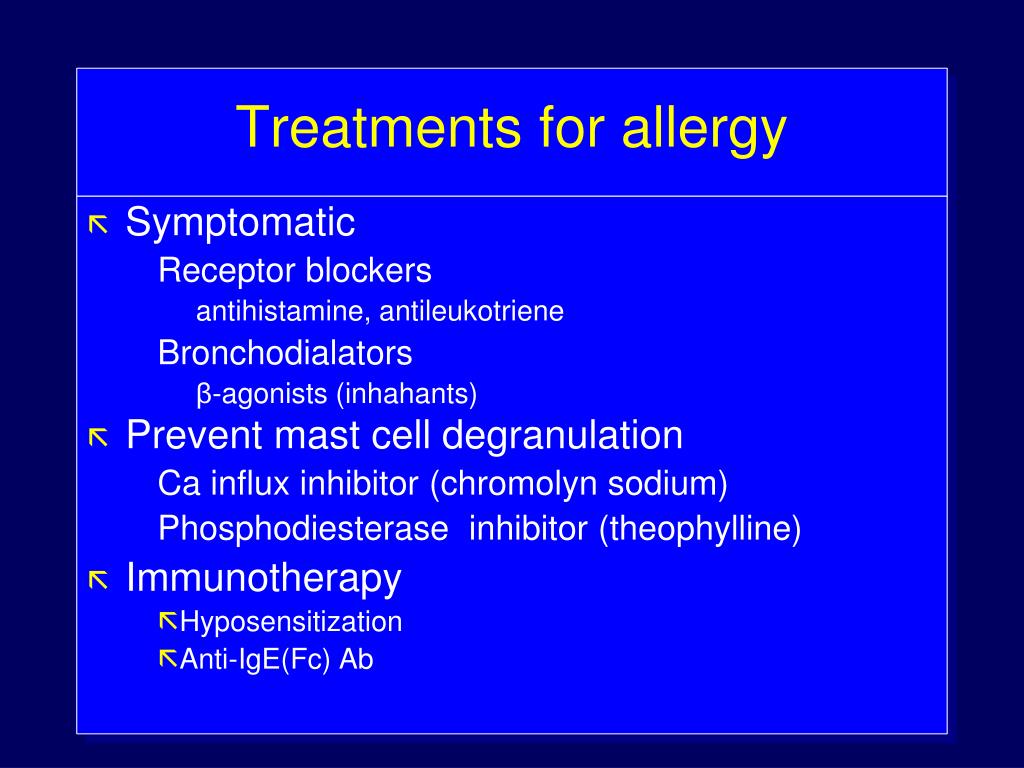

  23. Treatments for allergy • Symptomatic Receptor blockers antihistamine, antileukotriene Bronchodialators β-agonists (inhahants) • Prevent mast cell degranulation Ca influx inhibitor (chromolyn sodium) Phosphodiesterase inhibitor (theophylline) • Immunotherapy • Hyposensitization • Anti-IgE(Fc) Ab

  24. Hyposensitization

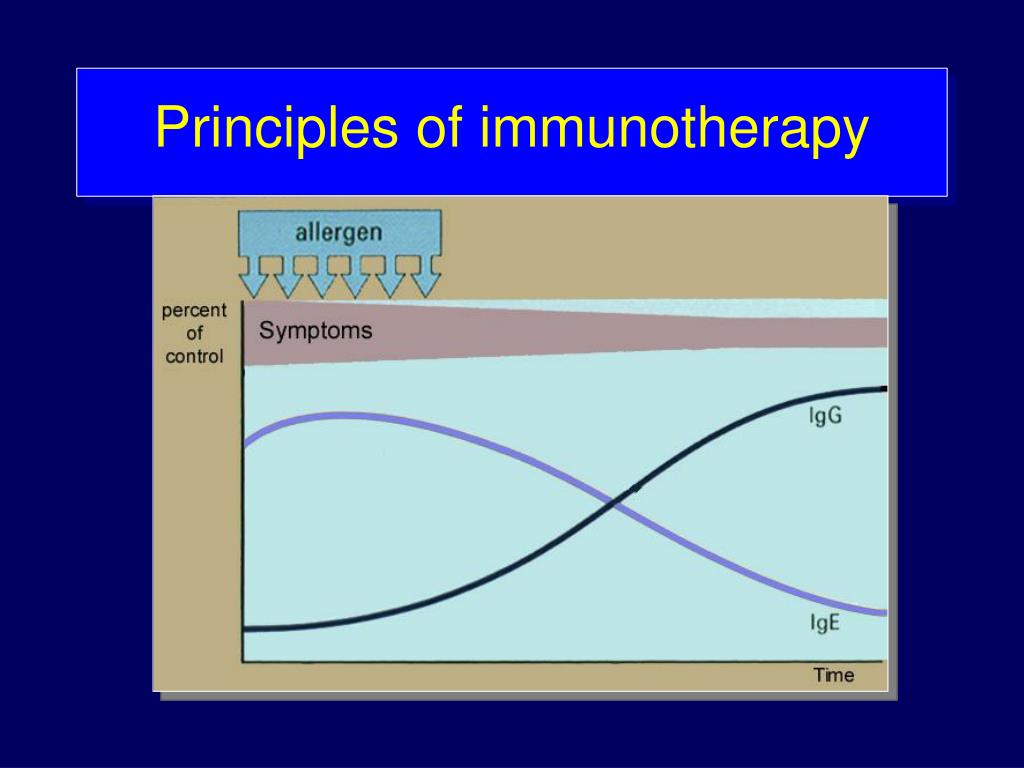

  25. Principles of immunotherapy

  26. Gut Lumen parasitic worm Y Role of IgE in parasitic worm infections Y Soluble Ag Y gut mucosa Y Eosinophils Y B cells Y IgE Mast cells Histamine & other mediators Y APC B cells Y Th cells

  27. Type II hypersensitivityrole of complement and phagocytes

  28. Type II hypersensitivity induced by exogenous agents

  29. Examples of drug-inducedtype II hypersensitivity • Red cells: Penicillin, chloropromazine, phenacetin • Granulocytes: Quinidine, amidopyridine • Platelets: sulphonamides, thiazides

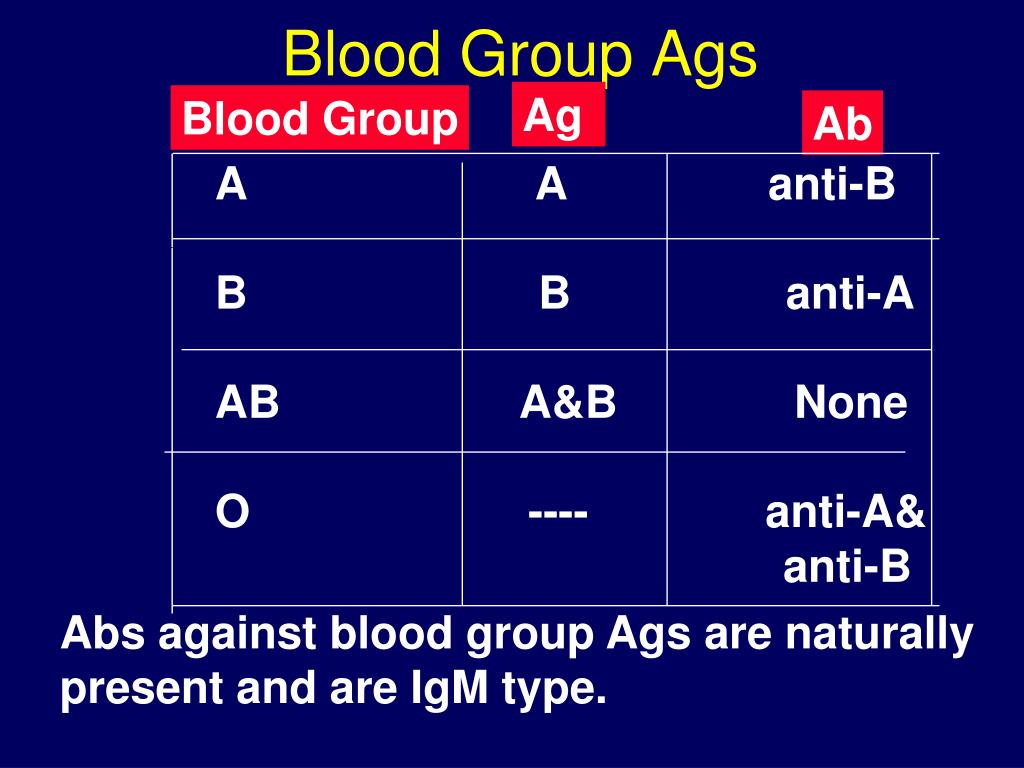

  30. Blood Group Ags Ag Blood Group Ab A A anti-B B B anti-A AB A&B None O ---- anti-A& anti-B Abs against blood group Ags are naturally present and are IgM type.

  31. Transfusion Reaction: +Complement IgM RBC cell lysis Fc K RBC Result: Anaphylactic Shock due to Complement activation.

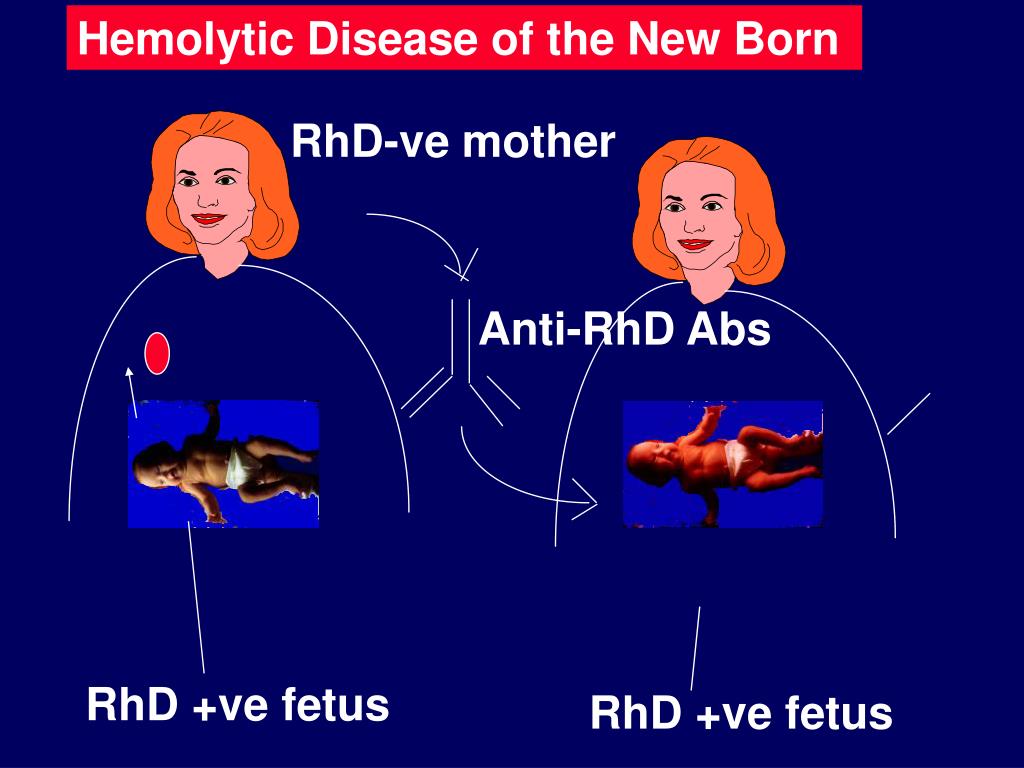

  32. Hemolytic Disease of the New Born RhD-ve mother Anti-RhD Abs RhD +ve fetus RhD +ve fetus

  33. If mother and fetus have different blood groups, hemolytic disease does not occur. ‘A’ blood group mother Anti-B Abs ‘B’ blood group fetus

  34. Child with Hemolytic Disease • Mother is Rh- and fetus is Rh+. • Fetal RBC entering mother, will trigger anti- Rh Abs. • Such Abs cross placenta and can destroy fetal RBC.

  35. Prophylaxis (RhoGAM) Anti-RhD Abs RhD-ve mother RhD +ve fetus RhD +ve fetus Mid-term injection of RhoGAM and a second injection within a few days of delivery

  36. Prophylaxis Inject Anti-RhD Abs mothers immediately after delivery Prevents sensitization

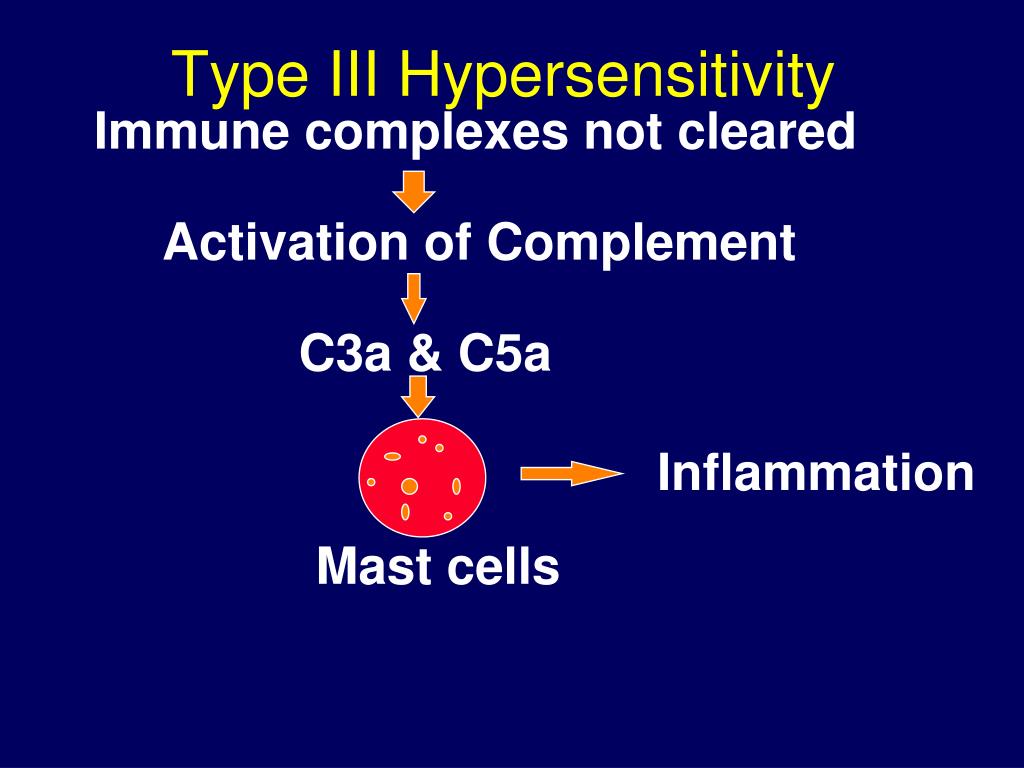

  37. Type III Hypersensitivity Immune complexes not cleared Activation of Complement C3a & C5a Inflammation Mast cells

  38. antigen cause site of deposition persistent infection bacterial, viral, parasitic, etc. infected organ, kidney mold, plant or animal antigen lung inhaled antigens serum injected material kidney, skin, arteries, joint autoimmunity self antigen kidney, joint, arteries, skin Types of immune complex disease

  39. Serum sickness

  40. Systemic lupus erythematosus

  41. Type III hypersensitivity mechanism

  42. Type III hypersensitivity mechanism

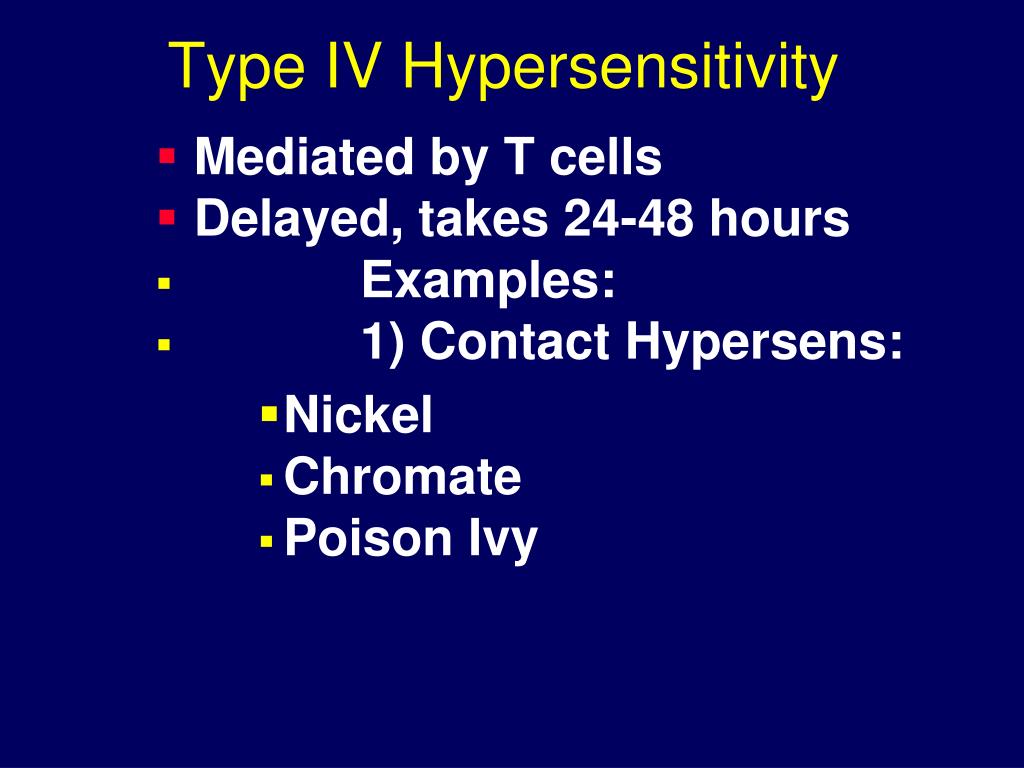

  43. Type IV Hypersensitivity • Mediated by T cells • Delayed, takes 24-48 hours • Examples: • 1) Contact Hypersens: • Nickel • Chromate • Poison Ivy

  44. Contact Dermatitis

  45. Reaction to Poison Ivy

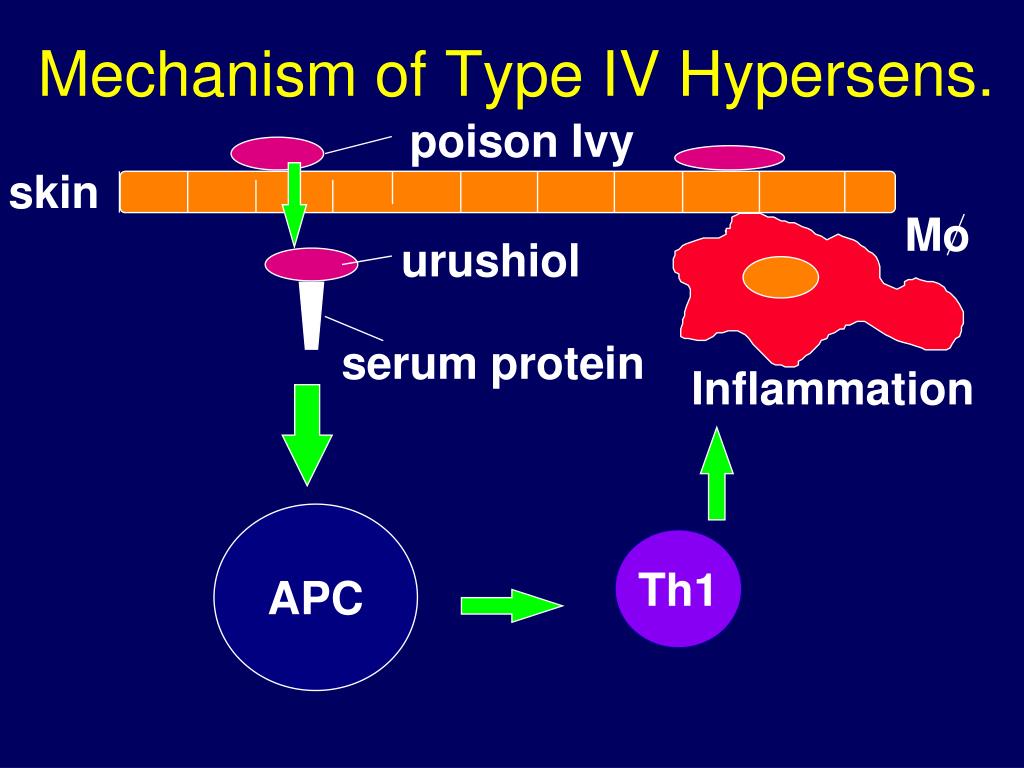

  46. Mechanism of Type IV Hypersens. poison Ivy skin Mo urushiol serum protein Inflammation APC Th1

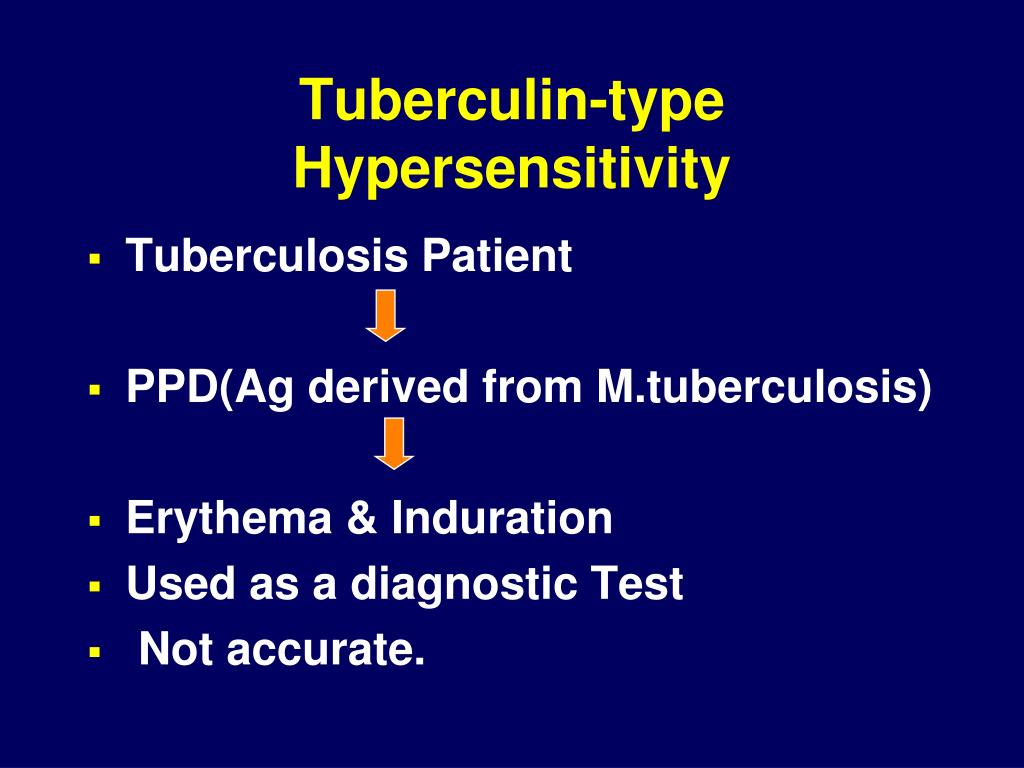

  47. Tuberculin-type Hypersensitivity • Tuberculosis Patient • PPD(Ag derived from M.tuberculosis) • Erythema & Induration • Used as a diagnostic Test • Not accurate.

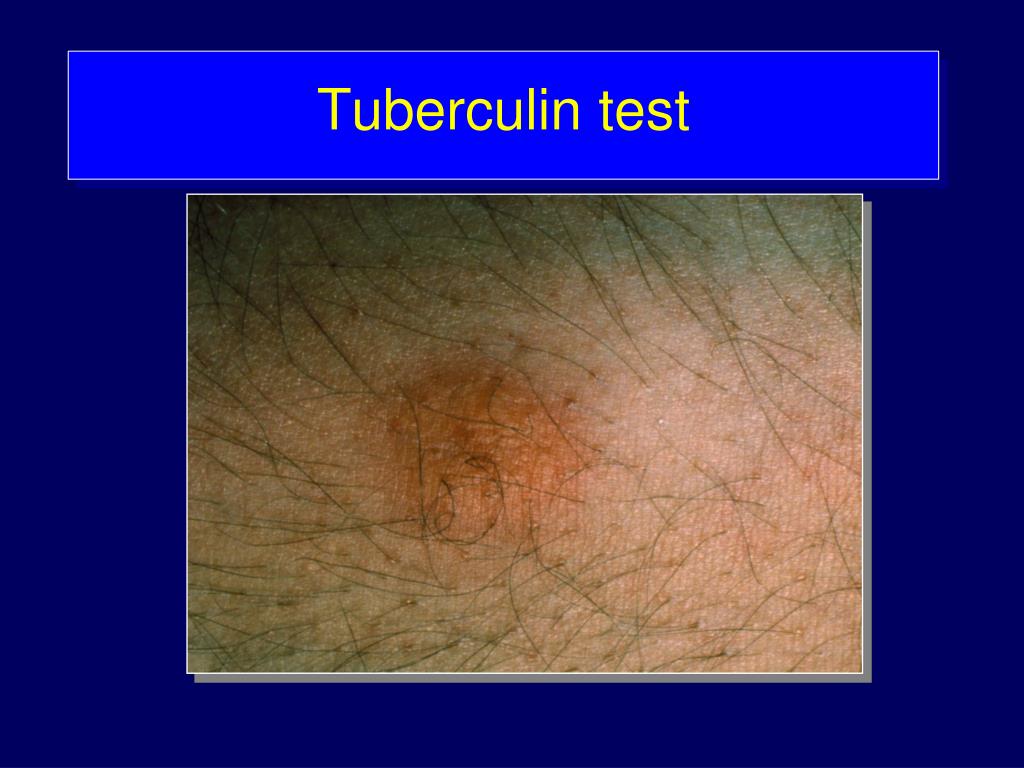

  48. Tuberculin test

  49. Role of DTH in Infection: Plays a major role in acute infections caused by intracellular pathogens. Ex: Listeria, Salmonella, Brucella Th1 Macrophage
